eMagin BlazeTorch User manual
USER MANUAL
/ Join the BLAZE Movement
www.blazethenight.com
/Cautions & Warnings /Cautions & Warnings
WARNING: Always use extreme caution when using the BlazeTorch for
activities, such as sporting activities, where clear visibility is important. Certain
conditions can affect the performance of the BlazeTorch. For example:
Certain weather and environmental conditions, such as rain, snow,
smoke and dust, can seriously reduce visibility when using the
BlazeTorch.
The performance of the BlazeTorch depends on the level of ambient light,
such as moonlight and artificial light. Always use the built in IR
illuminator under extreme dark conditions.
The BlazeTorch does not provide normal depth perception. Use extreme
caution when using the BlazeTorch when you need to rely upon depth
perception.
It is the user’s sole responsibility for determining whether the use of the
BlazeTorch is appropriate under the circumstances.
Abide by all local laws when using your BlazeTorch and related mounts
and accessories, including all privacy laws, which may restrict use and
recording in certain areas.
CAUTION: BlazeTorch is not warranted against water damage. Do not
submerge in water. Take great care when using BlazeTorch in wet
environments.
To avoid scratching the BlazeTorch, do not touch the lenses. Clean
with a clean, soft cloth only.
Failure to following these cautions could result in damage to
BlazeTorch and void the warranty.
WARNING: Contains Lithium-ion battery. Do not drop, disassemble,
open, crush, bend, deform, puncture, shred, microwave, incinerate or
paint the camera. Do not insert foreign objects into the camera housing.
Do not use the camera if it has been damaged—for example, if cracked,
punctured or harmed by water. Disassembling or puncturing the battery
can cause an explosion or fire.
Failure to following these warnings could result in serious injury or death.
/Release
It is the responsibility of the user (“User”) for determining whether the use of the
BlazeTorch is appropriate under the circumstances. By using the BlazeTorch, User
explicitly releases eMagin Corp., and its officers, directors, shareholders, members,
representatives, assignees, employees, volunteers and agents, as well as any
manufacturers and distributors of the BlazeTorch (hereinafter the “Indemnified
Parties” collectively, the “Indemnified Party” individually) from all liability and
waives all legal rights whatsoever related to use of the BlazeTorch, whether caused
by the negligence of the Indemnified Parties or otherwise. This shall be the case no
matter how or where the product was used. Further, User agrees to assume any and
all risks of injury or death resulting from use of the BlazeTorch, waive, release, and
not sue, make any claims or file any actions against the Indemnified Parties that are
based on, arise or result from, in whole or in part, use of the BlazeTorch, and
indemnify, defend and hold the Indemnified Parties harmless, from any and all
claims, demands, actions, causes of action, losses or liabilities whatsoever arising
from or related to participation in any activity and any loss, damage or injury,
including death, that may be sustained by User, or caused to others or their
property by User, whether caused by the negligence of the Indemnified Parties or
otherwise. User also agrees to pay all costs, including reasonable attorneys’ fees
and disbursements, incurred by any Indemnified Party in defending an
investigation, claim or suit brought by or on behalf of User.
/The Basics

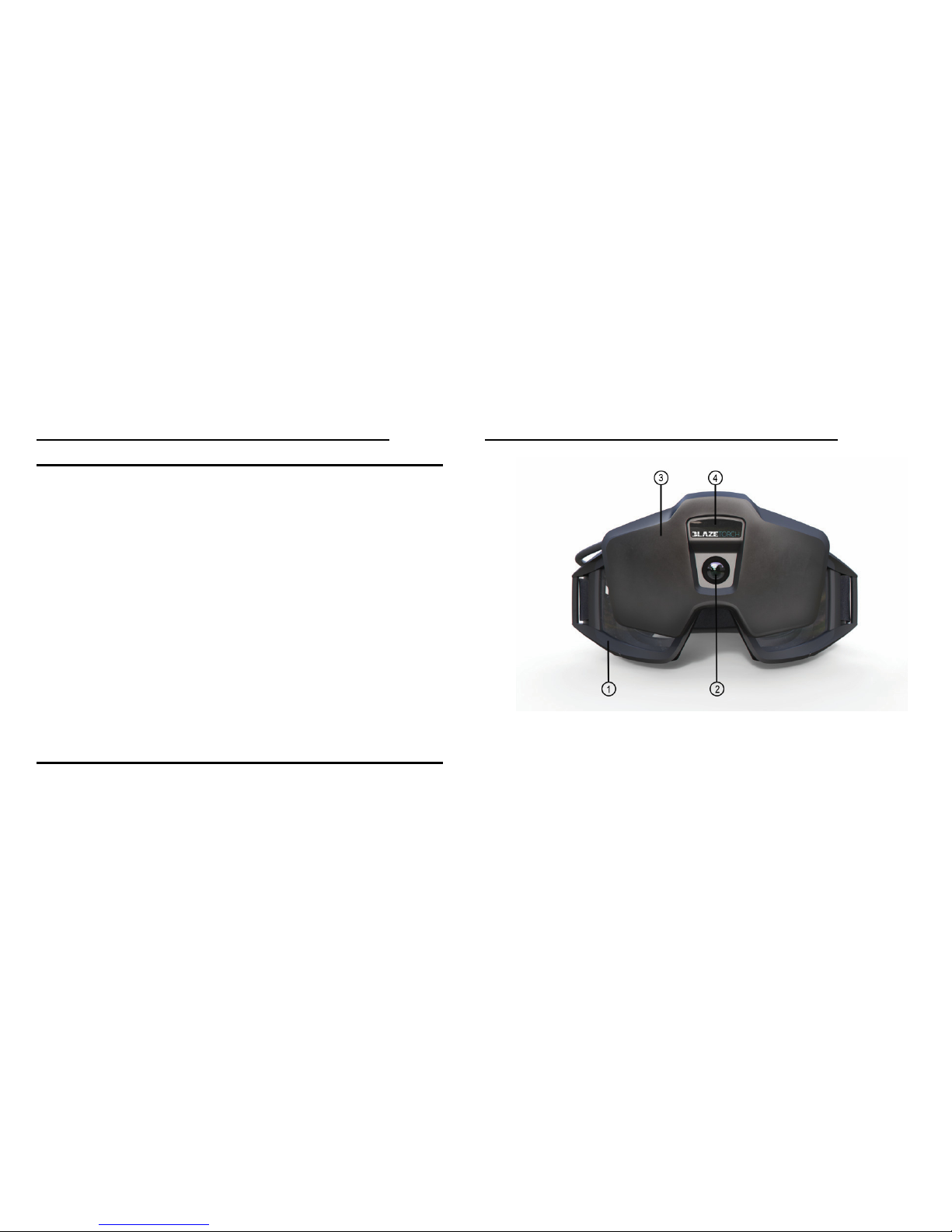

1. Revision Desert Locust® goggle system
2. Camera lens
3. Display module
4. IR illuminator
/The Basics /The Basics
CAUTION: Use only a clean, soft cloth to wipe the displays. DO NOT
use any type of cleaning agent. Failure to follow this instruction could
damage the displays.
8. Power Module
9. USB charging port
10. Power On/Off
11. Display power port
12. Adjustable strap
13. Over-the-head strap
5. OLED micro displays
6. Micro SD card slot
7. Microphone
/The Basics /The Basics

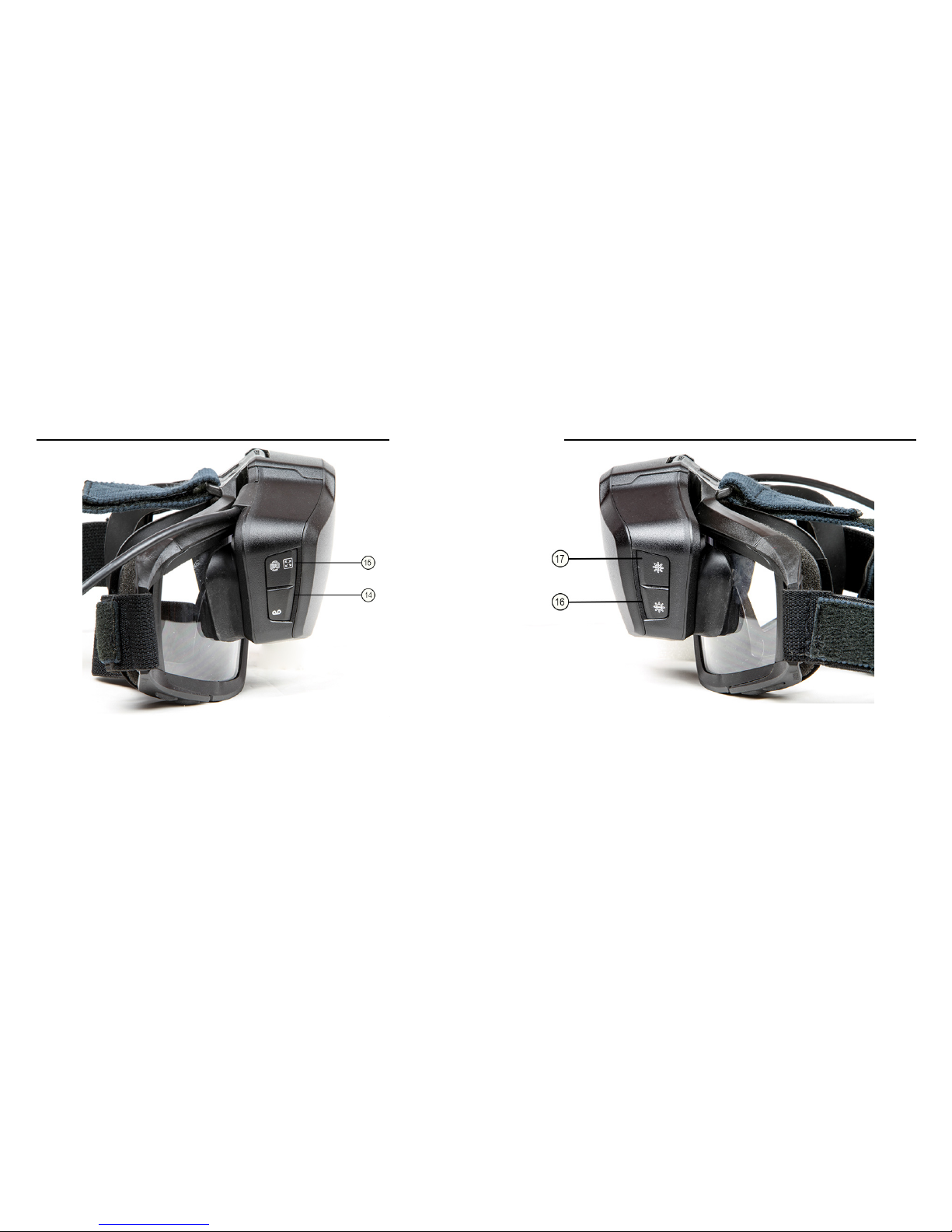

14. Record Start/Stop
15. Momentary press - Illuminator On/Off
Long press - Zoom In/Out
16. Decrease brightness
17. Increase brightness
/Getting Started
CHARGING THE BATTERY
1. Plug the micro USB cable into the USB
charging port.
2. Charge the battery by connecting the camera
to a computer or other USB charging adapter
Whenchargingwithacomputer,besurethatthecomputeris
connectedtoapowersource.Ifthecamerapowerlightdoesnotturn
on,useadifferentUSBport.
Theincludedlithium‐ionbaerycomesparallycharged.Nodamage
occurstothecameraorbaeryifusedpriortoafullcharge.
/ Getting Started
using the included USB cable. The Charge
Indicator will show the following:
- Solid Green: Charging
- Indicator off: Fully Charged
- Blinking Green: Faulty Battery
WARNING: Using a wall charger other than a BLAZE Wall Charger can
damage the BLAZE battery and could result in fire or leakage. Only use
chargers marked: output 5V 1A. If you do not know the voltage and
current of your charger, use the included USB cable to charge the
camera from your computer
/Getting Started
Install the micro SD card
Lift the protective cover and insert a formatted micro
SD card into the card slot. BlazeTorch can accept
up to 128 GB cards.
/ Using BlazeTorch
Power On/Off Switch
The power button is located at the bottom of the
Power Module. Push to turn On, push and hold
briefly to turn Off.
/Using BlazeTorch
Display Brightness

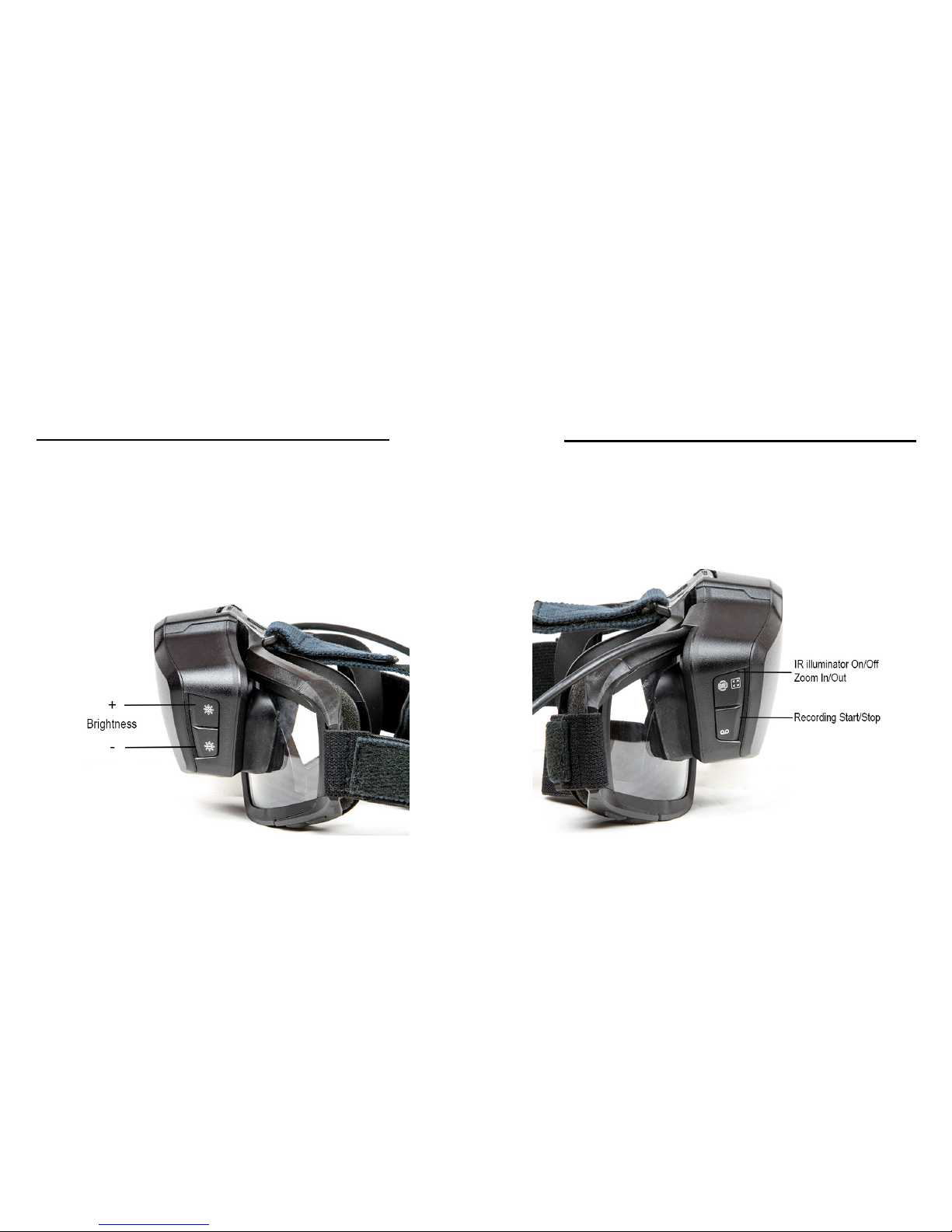

1. Adjust the brightness to a comfortable setting.
2. Use the top left button to increase brightness.
3. Use the lower left button to decrease brightness.
/ Using BlazeTorch
IR Illuminator On/Off
If required, turn on the IR illuminator by momentarily
pushing the lower right button. Push again to turn
off.
/Using BlazeTorch / Using BlazeTorch
Zoom In/Out
Push and hold for 2 seconds to zoom in or out
Digital Video Recording (DVR)
1. DVR ON, Push and hold button, DVR indicator
will appear.
2. START recording. Momentarily push button.
RED recording indicator will be displayed.
3. STOP recording. Momentarily push button.
RED recording indicator will disappear.
4. DVR OFF, Push and hold button. DVR
indicator will disappear.
/Using BlazeTorch / Using BlazeTorch
Video Transfer
Remove the SD card and insert into any computer,
tablet or cell phone for playback and editing.
Share your edited clips with other night time
enthusiasts on the BlazeTorch Night Portal:
www.blazethenight.com
Page intentionally left blank
/Using BlazeTorch
Strap Adjustments
1. The left and right straps may be adjusted for
proper and comfortable fit, using the Velcro
tabs.
2. The Over-The-Head strap should be used
during activities that might cause the headset
to slip down or when wearing a helmet.
/ Using BlazeTorch
eMagin is dedicated to providing the best possible
service. To reach BlazeTorch Customer Support, visit
www.blazethenight.com
Blaze, BlazeTorch, are trademarks or registered
trademarks of eMagin Corp. in the US and internationally.
Other names and marks are the property of their
respective owners.
/ Customer Support
/ Trademarks
/ Regulatory Information
