Emerson EARC6RE1 User manual

EMERSON
Q U I E T K O O L
Models
EARC6RE1
EARC8RE1
EARC10RE1
EARC12RE1
Electronic Window Air Conditioner
Operating Instructions

INTRODUCTION
IMPORTANT SAFETYINSTRUCTION ............................................................................ 1
ELECTRICAL REQUIREMENTS .................................................................................... 2
PACKING LIST .............................................................................................................3
INSTALLATION&ASSEMBLYINSTRUCTIONS ................................................................4
USING YOUR AIR CONDITIONER ................................................................................. 9
REMOTE CONTROL INSTRUCTIONS ......................................................................... 11
CARE AND CLEANING........................................................................................................................................... 12
TROUBLESHOOTING ................................................................................................. 13

•Plug into a grounded 3 prong outlet. •Do not use an extension cord.
•Do not remove the ground prong. •Unplug the air conditioner before servicing.
•Do not use a plug adapter. •Use two or more people to move and install the air
conditioner.
IMPORTANT SAFETY INSTRUCTIONS
Before installing and using your air conditioner, please read this owner’s manual carefully. Store this manual in a safe place
for future reference. Your safety and the safety of others is very important to us. Please pay attention to all safety messages
outlined in this owner’s manual.
WARNING: To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow the following basic
precautions:
This is a safety alert symbol.
This symbol alerts you to potential hazards that can harm you or others or even cause death.
All safety messages will directly follow the safety alert symbol and/or the words
” DANGER” or “WARNING”.
Failure to immediately follow these instructions may cause
serious injury or even death.
All Safety messages alert you of potential hazards, how to reduce the chance of injury,
and what can happen if instructions are not followed correctly.

ELECTRICAL REQUIREMENTS
The electrical ratings for your air conditioner are listed on the model and serial number label
located on the front left side of the unit (when facing the front).
Specific electrical requirements are listed in the chart below. Follow the requirements below
for the type of plug on the power supply cord.
Wiring Requirements Power Supply Cord
•115 volts (103 min.-127max)
•0-8 amps
•10-amp time-delay fuse or
circuit breaker
•Use on single outlet circuit only
Recommended Ground Method
For your personal safety, this air conditioner must be grounded. This air conditioner is equipped with a 3-prong power supply cord with a
grounded plug. To minimize the possibility of electrical shock, the cord must be plugged into a 3-prong outlet and grounded in
accordance with all local codes and ordinances. If no 3-prong outlet is available, it is the customer's responsibility to have a properly
grounded 3-prong outlet installed by a qualified electrician.
It is the customer's responsibility: Copies of the standards listed may be obtained from:
•To contact a qualified electrician National Fire Protection Association
•To assure that the electrical installation is adequate and in conformance with the One Battery march Park
National Electrical Code, ANSI/NFPA 70 一latest edition, and all local codes and ordinances. Quincy, Massachusetts 02269

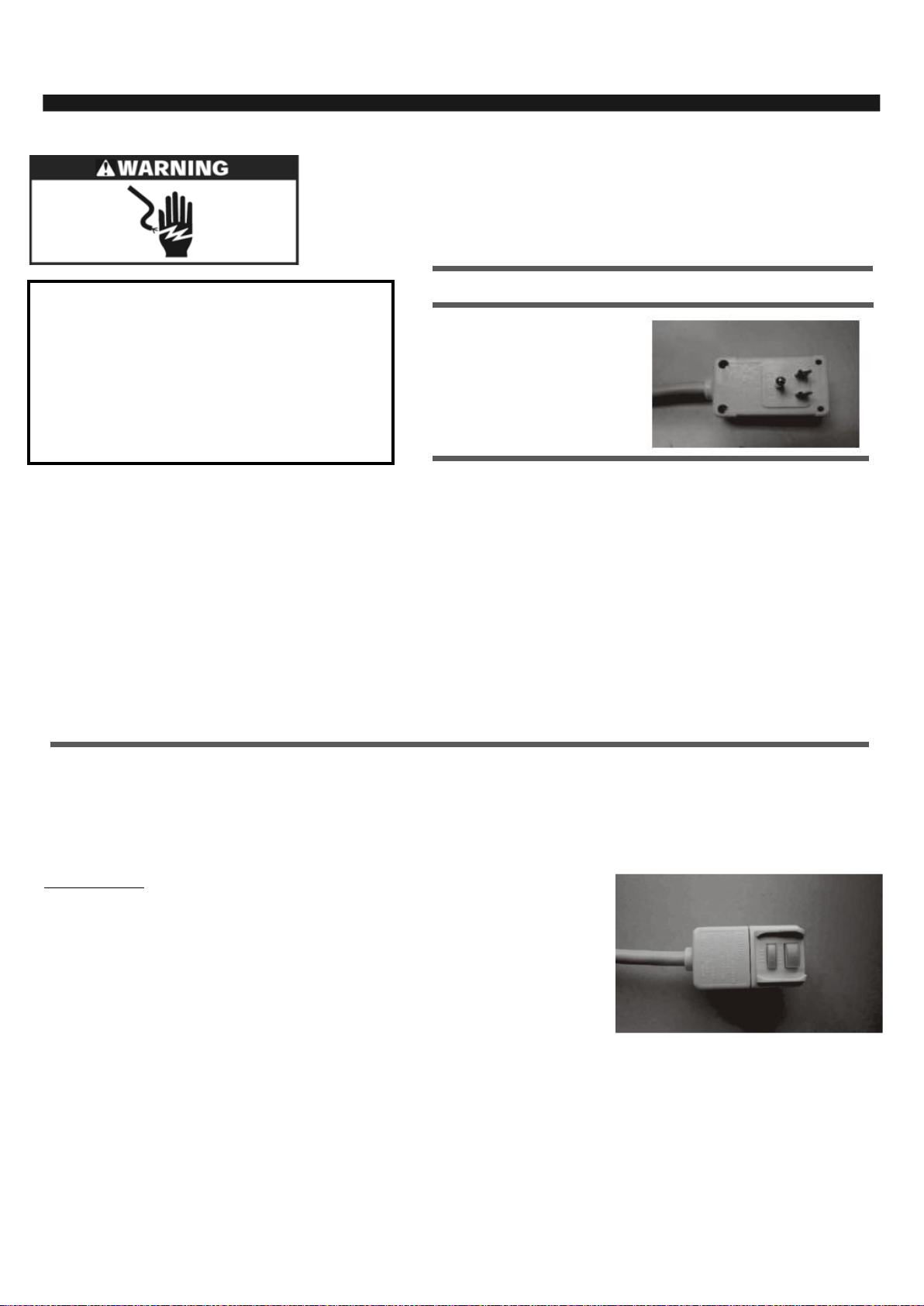

LCDI Power Cord and Plug
This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord that is required by UL. This
power supply cord contains state-of-the-art electronics that sense leakage current. If the cord is damaged and leakage occurs, power
will be disconnected from the unit. The test and reset buttons on the LCDI Plug are used to check if the plug is functioning properly.
To test the plug:
1 . Plug power cord into a grounded 3-prong outlet
2. Press the RESET button (on some units a green light will turn on).
3. Press the TEST Button, the circuit should trip and cut all power to the air conditioner
(on some units a green light may turn off).
4.Press the RESET button for use. You will hear a click and the A/C is not ready for use.
Notes
•The RESET button must be engaged for proper use.
•The power supply cord must be replaced if it fails to trip when the TEST button is pressed and the unit fails to reset.
•Do not use the power supply cord or plug as an ON/OFF switch. The power supply cord is designed as a protection device only. A
damaged power supply cord must be replaced with a new power supply cord.
•The power supply cord and plug contain no user-serviceable parts. Opening the tamper-resistant case voids all warranty and
performance claims.
Notes: Your unit’s power cord and plug may differ from the one shown.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove the ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire. or electrical shock.

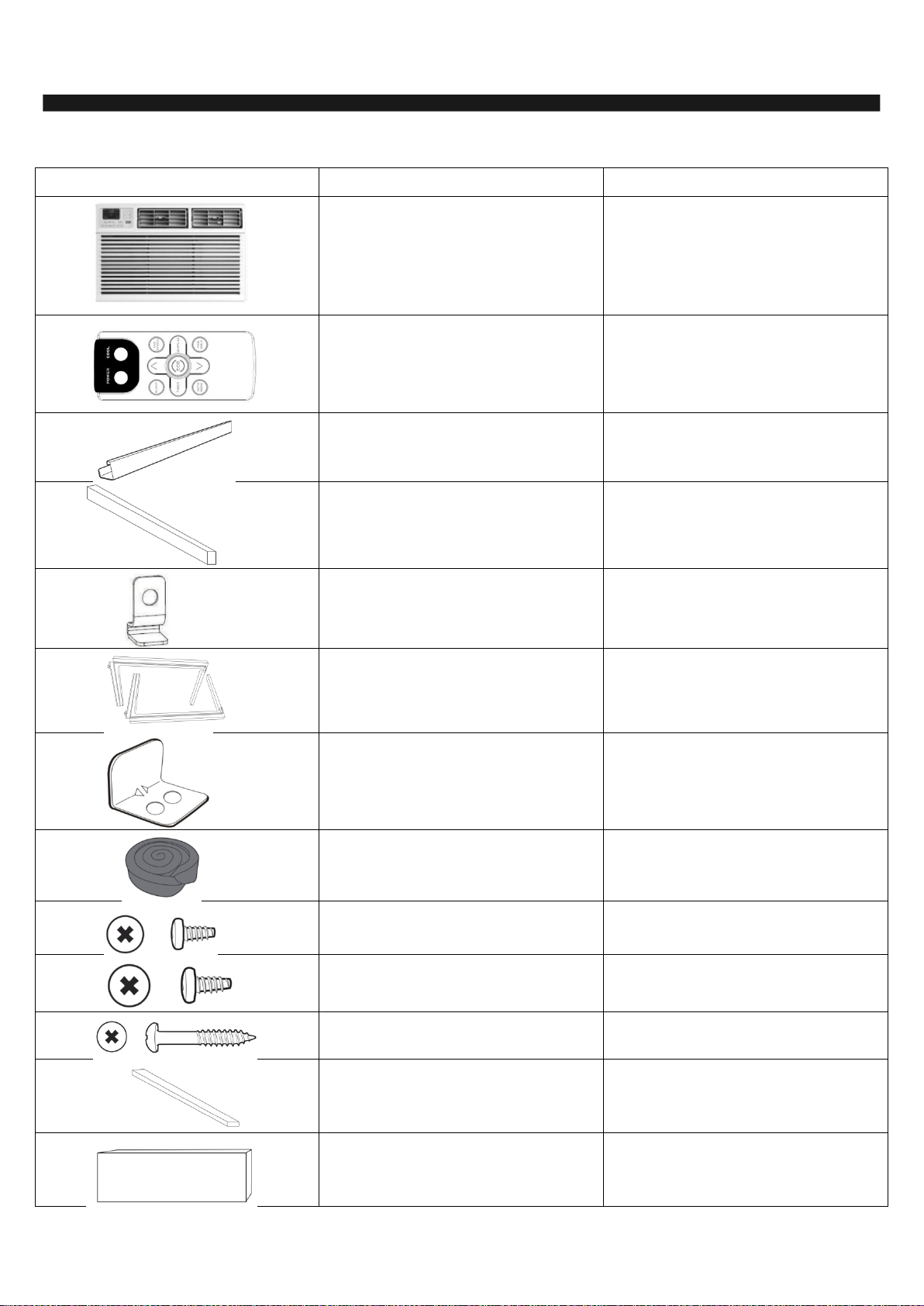

PACKING LIST
(appearance may vary)
PART
QUANTITY
Window Air Conditioner
1
Remote Control
1
Top Mounting Rail
(With sponge)
1
Top Mounting Rail Seal Strip
(Sponge, stick to top mounting rail bottom)
1
Lock Frame
2
Filler Panels
(With "Left"& "Right" remark on the front
face)
2
Sash Lock (Two holes)
1
Window Sash Seal
(Sponge)
1
3/8" Screws
4
1/2" Screws
3
3/4" Screws
4
Foam Top Window Gasket
(Thin sponge for back-up use)
1
Insulation strip (Sponge)
2

DISCLAIMER
ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER'S MANUAL ARE THE
PRESENTATION OF THE MANUFACTURER. SOLEUS INTERNATIONAL HAS NOT CONDUCTED INDEPENDENT TESTS FOR
THE INFORMATION AND THE SPECIFICATIONS PRESENTED HEREWITH.
INSTALLATION & ASSEMBLY INSTRUCTIONS (USED FOR 6K/8K models)
Some assembly is required for your new air conditioner. Please read and follow these instructions carefully.

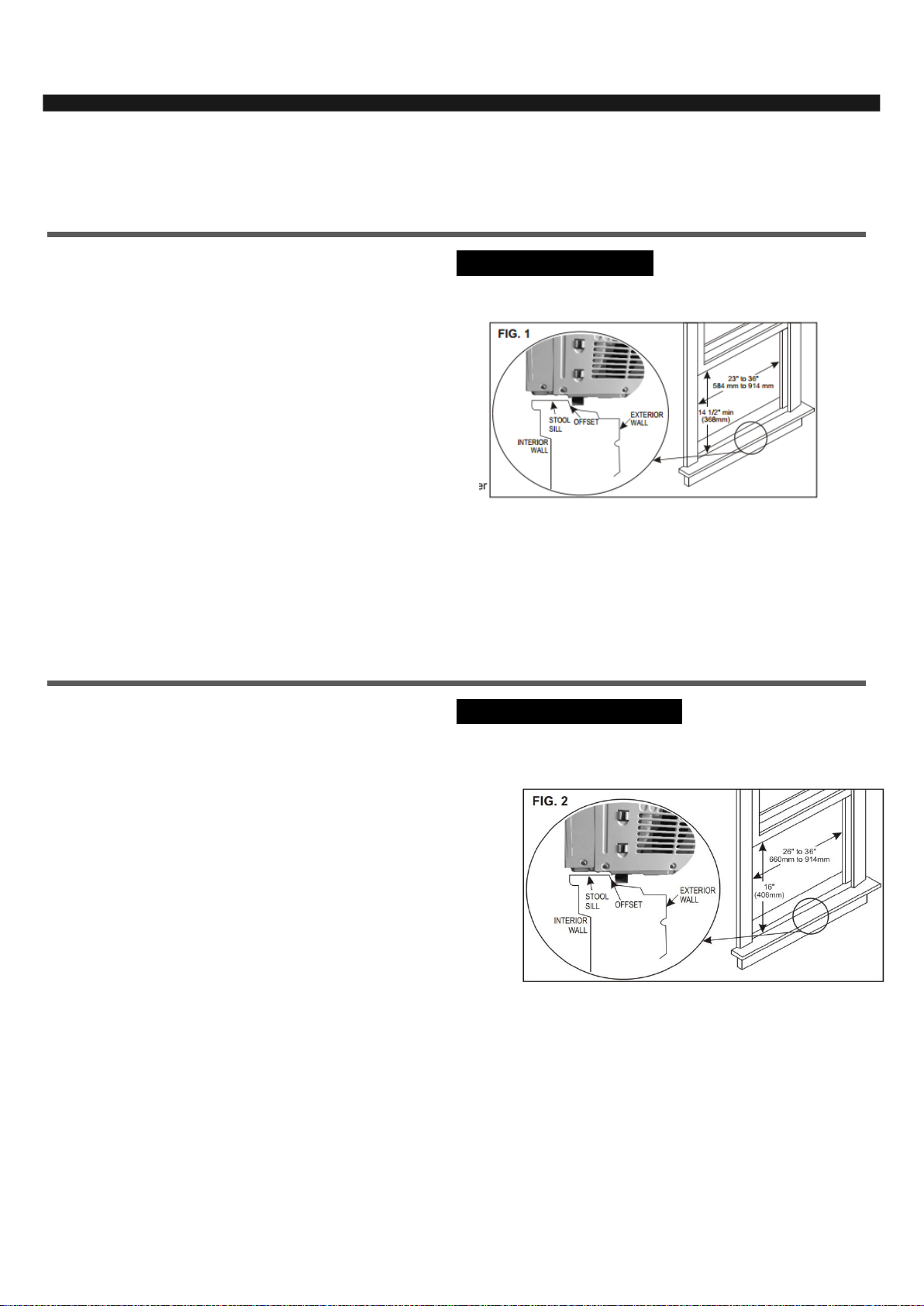

1. This air conditioner is designed to be installed in a
standard double-hung window with a window width
between 23" and 36" (584 mm - 914 mm).
2. The air conditioner can be installed without the
accordion panels to fit in a narrow window opening.
See the window dimensions.
3. The lower sash (the lower part of the window that
moves up and down) must allow for 14.5" of vertical NOTE: Save the product packaging and installation instructions for
clearance when open (See FIG. 1). future reference. Store the air conditioner in the
4. All supporting parts must be secured to firm wood, product box when not in use for an extended period of time.
masonry, or metal pieces.
5. The electrical outlet must be within reach of the power cord.
INSTALLATION & ASSEMBLY INSTRUCTIONS (USED FOR 10K/12K models)
Some assembly is required for your new air conditioner. Please read and follow these instructions carefully.
1. This air conditioner is designed to be installed in a
Standard double-hung window with a window width
between 26" and 36" (660 mm - 914 mm).
2.The air conditioner can be installed without the accordion
panels to fit in a narrow window opening. See the window dimensions.
3.The lower sash (the lower part of the window that moves up and down)
must allow for 16" of vertical clearance when open (See FIG.2).
4.All supporting parts must be secured to firm wood, masonry, or metal.
5.The electrical outlet must be within reach of the power cord. NOTE: Save the product packaging and installation
instructions for future reference. Store the air
conditioner in the product box when not in use
for an extended period of time.

Top Rail Assembly
The top rail must be assembled prior to installing the air conditioner in the window
Tools Needed: Phillips Screwdriver
Attaching the Top Rail to the Air Conditioner
1. Remove the air conditioner from the box and place on a hard & flat surface.
2. Remove top rail from the top of the packaging material as shown in FIG. A
3. Align the hole in the top rail with those in the top of the unit as shown in FIG. B
4. Secure the top rail to the unit with 3/8" screws as shown in FIG. C.
NOTE: For safety reasons, all 4
screws must be used to attach
the top rail.
CAUTION
When handling the unit, be careful to avoid cuts from the sharp
metal edges and aluminum fins on the front and rear coils.

INSTALLATION & ASSEMBLY INSTRUCTIONS (cont’d)
MOUNTING HARDWARE
3/4" Screws
1/2" Screws
Qty
4
3
Lock Frame
3
Sash Lock
1
TOOLS NEEDED
How to Install
NOTE: Top Rail and Sliding Panels at each side are offset to
provide a proper pitch towards the rear of 5/16".
This is necessary for proper condensed water utilization and
drainage. If you are not using the Slide Panels for any reason, this
pitch to the rear must be maintained!
Place unit on floor, a bench or a table. There is a
Left and Right Window Filler Panel - be sure to use the
proper panel for each side. Once panel is installed, the
flange for securing the panel in place to the window sill will be
facing into the room.

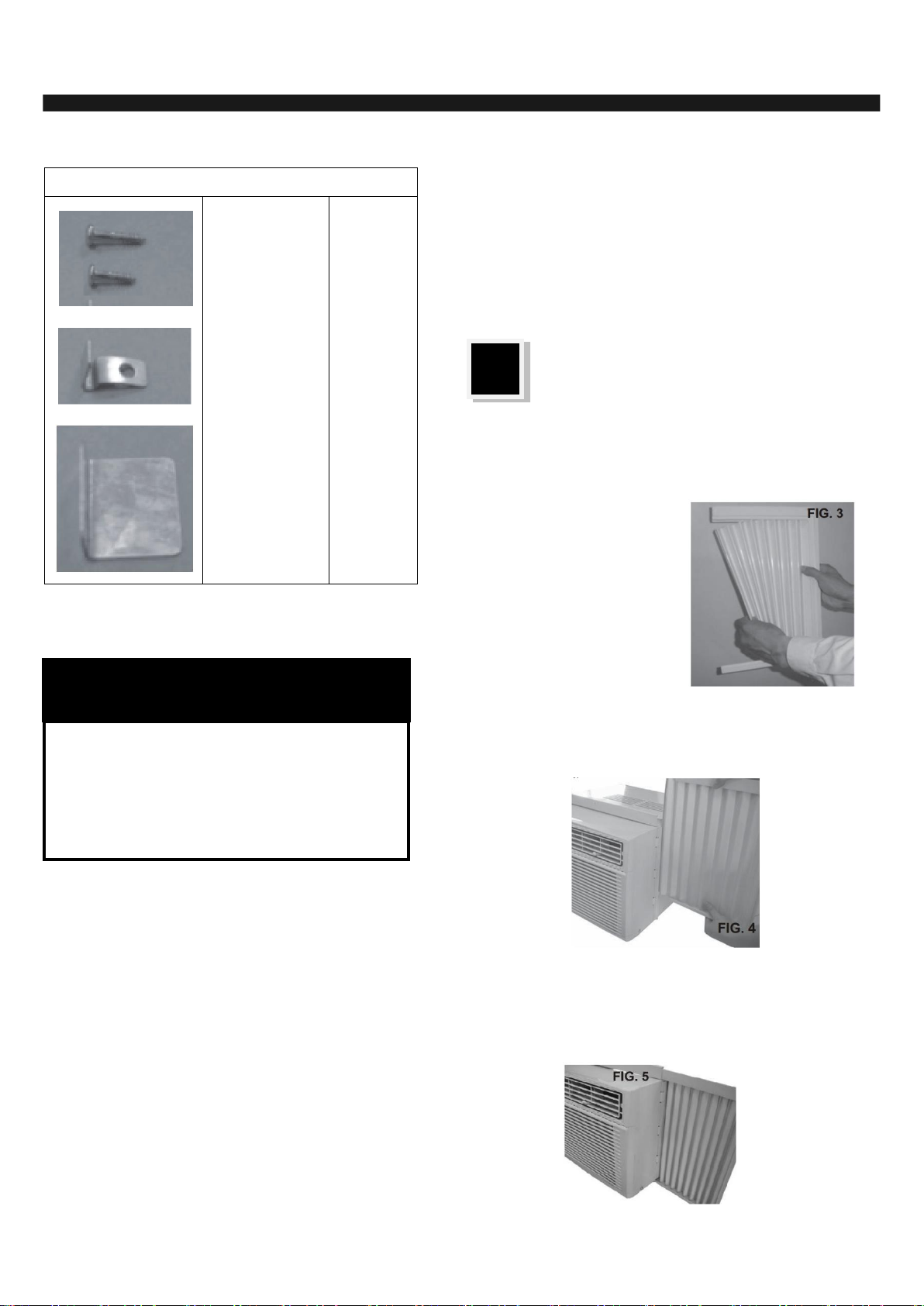

A. Hold the Accordion Panel in one hand and gently pull back the
center to free the open end.
See Figure3.
B. Slide the free end of the panel into the cabinet as shown in
Figures 4. Slide the panel down. Be sure to leave enough space to
slip the top and bottom of the frame into the rails on the cabinet.
C. Once the panel has been installed on the side of the cabinet,
make sure it sits securely inside the frame channel by making
slight adjustments. Slide the top and bottom ends of the frame into
the top and bottom rails of the cabinet.
Figure 5.
D. Slide the panel all the way in and repeat on the other side.
CAUTION
When handling the unit, be careful to avoid cuts from
the sharp metal edges and aluminum fins on the front
and rear coils.

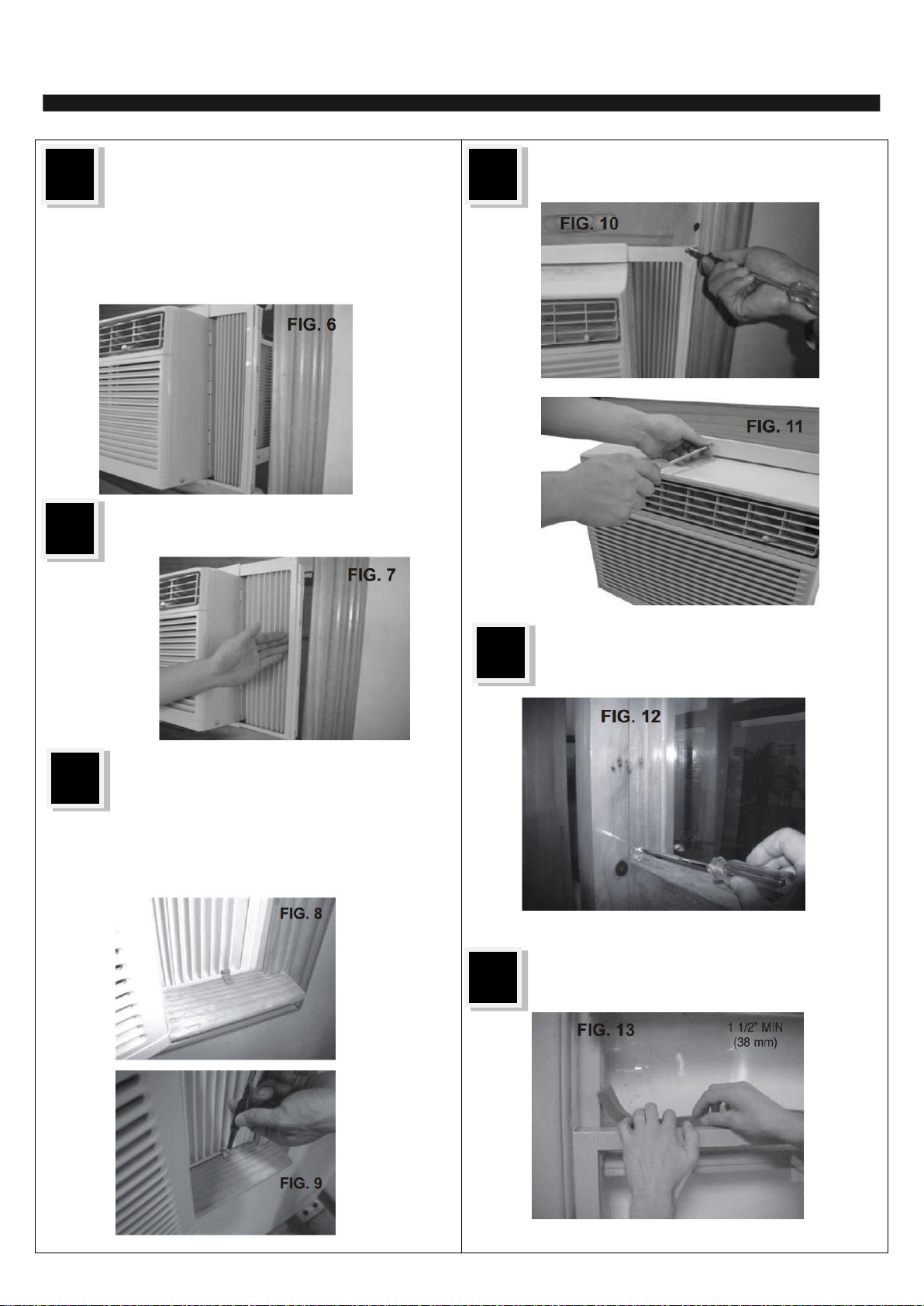

1

Keeping a firm grip on the air conditioner, carefully
place the unit into the window opening so the bottom
of the air conditioner frame is against the window sill
(FIG.6). Carefully close the window behind the top rail of the unit.
(We suggest keeping a downward angle, to let accumulated
rain water to drain out from back of the unit.)
Extend the side panels out against the window frame
(FIG.7).
Place the frame lock between the frame panels and
the window sill as shown (FIG.8).
Drive 3/4" (19 mm) locking screws through the frame
lock and into the sill (FIG.9).NOTE: To prevent window sill from
splitting, drill 1/8" (3 mm) pilot holes before driving screws.
Drive 1/2" (12.7mm) locking screws through frame
holes into window sash (FIG. 10/11).
To Secure lower sash in place, attach right angle
sash lock with 3/4" (19 mm) screw as shown
(FIG.12).
Cut foam seal and insert in the space between the
upper and lower sashes (FIG.13).
2
4
3
5
6
7

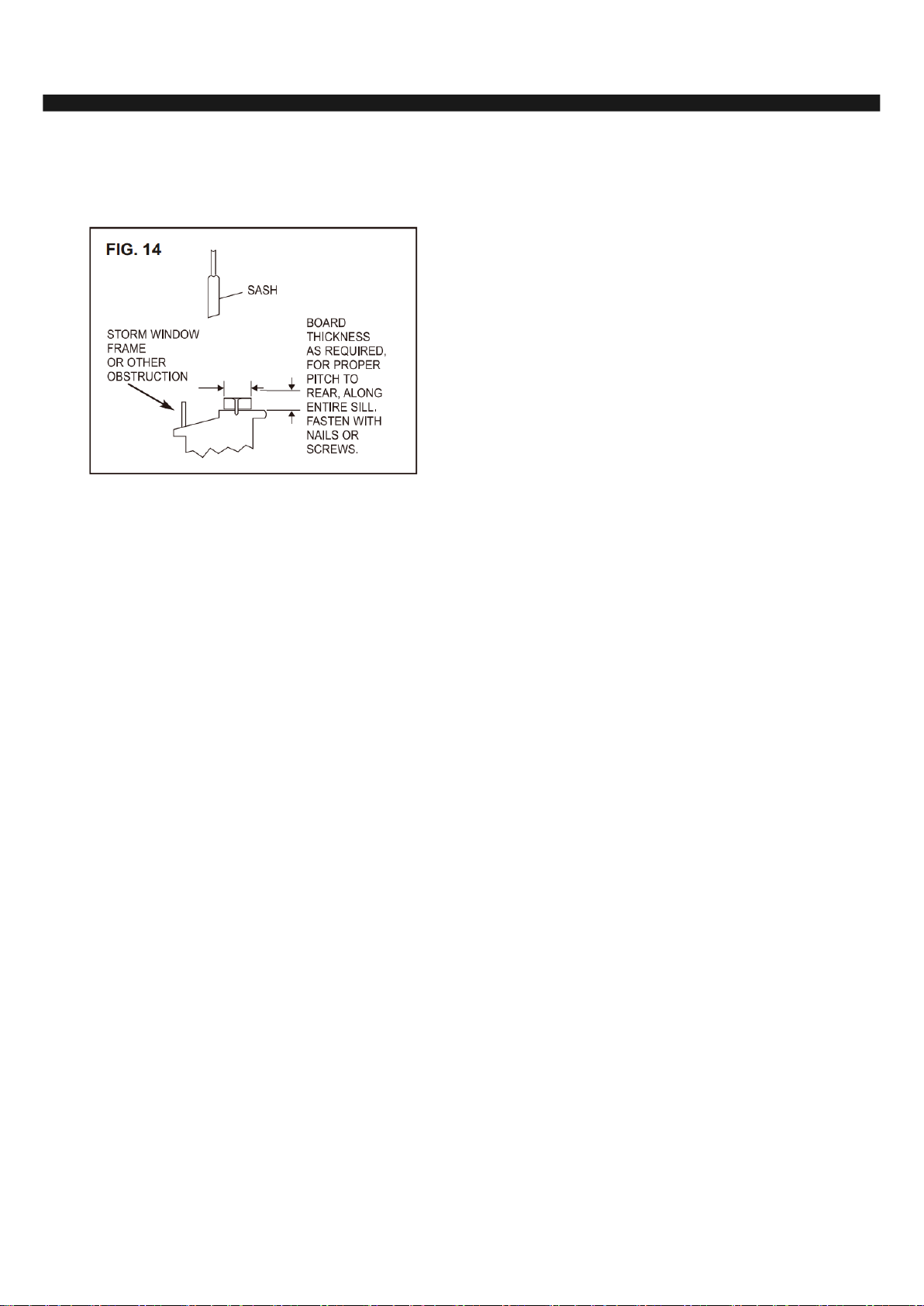

If AC is Blocked by Storm Window
Add wood as shown in FIG.14, or remove storm window before air
conditioner is installed.
If Storm Window Frame must remain, be sure the drain holes or
slots are not caulked or painted shut. Accumulated Rain Water or
Condensation must be allowed to drain out.
Removing AC From Window
* Turn AC off, and disconnect power cord.
* Remove sash seal from between windows, and unscrew safety
lock.
* Remove screws installed through frame and frame lock.
*Close (slide) side panels into frame.
* Keeping a firm grip on air conditioner, raise sash and carefully
"rock" air conditioner backward to drain any condensate water in
base of unit. Be careful not to spill any remaining water while lifting
unit from window. Store parts WITH air conditioner.
AIR CONDITIONER USE
Operating your air conditioner properly helps you to obtain the best
possible results.
This section explains proper air conditioner operation.
IMPORTANT:
■ If you turn off the air conditioner, wait at least 3 minutes before
turning it back on. This prevents the air conditioner from blowing a
fuse or tripping a circuit breaker.
■Do not try to operate your air conditioner in the cooling mode
when outside temperature is below 65℉(18℃). The inside
evaporator coil will freeze up, and the air conditioner will not
operate properly.
NOTE: In the event of a power failure, your air conditioner will
keep its settings and will operate at the previous settings when the
power is restored.

USING YOUR AIR CONDITIONER

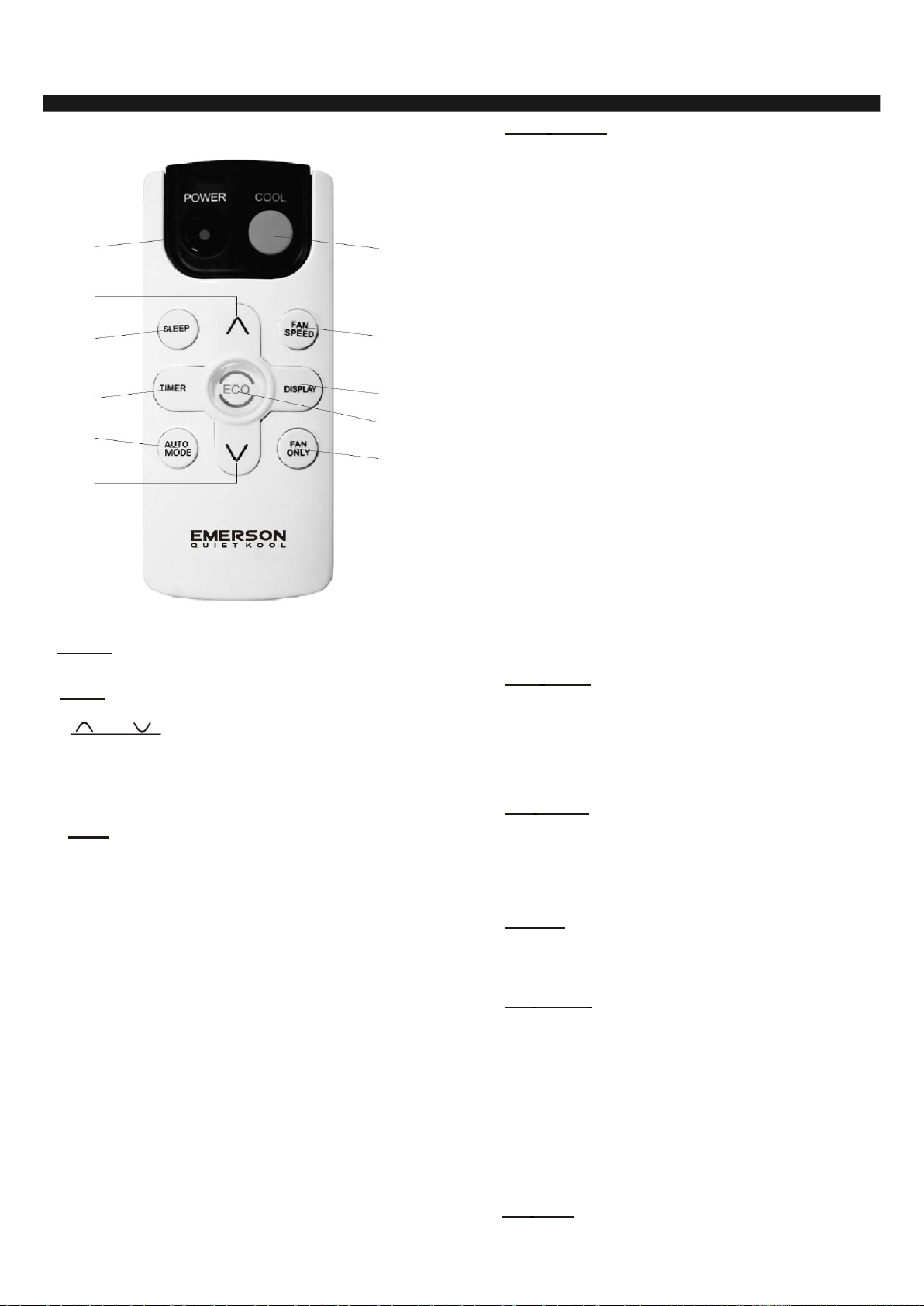

Electronic Control Panel & Remote Control
NOTE: This display always shows the room temperature in FAN MODE
except when setting the temperature or the timer.
Normal Operating Sounds
•You may hear a pinging noise caused by water hitting the condenser,
on rainy days, or when the humidity is high. This design feature helps
remove moisture and improve efficiency.
•You may hear the thermostat click when the compressor cycles on
and off.
•Water will collect in the base pan during rain or days of high humidity.
The water may overflow and drip from the outside part of the unit.
•The fan may run even when the compressor is not on.
1.Digital Display: Without timer setting, the operation modes
displayed are Cooling, Dry, Fan and Auto, and the set temperature will
be displayed.
Time will be displayed under timer setting.
2. ∧and ∨Button: Use these buttons on the control panel and remote
to increase or decrease the Set Temperature or Timer.
Temperature range: 61℉~88℉or 16℃~31℃.
3.Power Button: Turn the air conditioner on and off.
4.Mode Button: Press the mode button to cycle through the various
modes: Cool, Dry, Fan and Auto.
Cool Mode: The cooling function allows the air
conditioner to cool the room and de-humidify the room.
Press the MODE button to activate the cooling function.
To optimize your air conditioner’s operation,adjust the
temperature and the speed by pressing the buttons.
Dry Mode: This function reduces the humidity of the air
to make the room more comfortable. Press MODE
button to set the DRY mode. The air conditioner will
start, alternating cooling and air fan cycles
automatically.
Fan Mode: The conditioner will only circulate the air; no
cooling will occur. Press MODE button to set the FAN
mode. When pressing the FAN SPEED button, the
speed changes in the following sequence: Hi, Med and
Lo (in FAN mode only). In AUTO mode the unit
automatically chooses the fan speed and the mode of
operation (COOL, DRY or FAN).
5. Timer Button: Use these buttons on the control
panel and remote to set the Timer.
Timer Off: The timed stop is programmed bypressing
the TIMER button. Set the rest time by pressing the
button ∧or ∨until the desired time is reached; then
press TIMER button again to confirm your setting.
Timer On: When the unit is off, press TIMER button a
first time; set the temperature by pressing the ∧or ∨
button. Press TIMER button asecond time, set the start
time by pressing the button ∧or ∨. Press TIMER
button athird time to confirm the setting, then the time
remaining until the unit auto-starts will appear on the
display.
Note: The air conditioner can be set to automatically
turn off or on in a delay of 0.5-24 hours. Each press of
the"∧" or "∨"button will increase or decrease the
timer. Thetimer can be set in 0.5 hours increments up
to 10 hours, and in 1hour increments for 10 hours or
more. The SET light will turn on while setting.
To cancel the setting, press the TIMER
button again.

USING YOUR AIR CONDITONER
Electronic Control Panel & Remote Control
6. Eco Button: When the unit is in ECO mode, the
light will turn on. In ECO mode, the unit will
turn off once the room is cooled to the set
temperature. The fan will also be off at this point.
The unit will turn back on when the room
temperature rises above the set temperature.
Before the compressor stars, the fan will
run 10 minutes –stop 20 seconds - and
again, to save energy.
7. Sleep Button: Press the SLEEP button, the Sleep
Light will be on after 10 seconds, and all the lights will
be off. In SLEEP mode, the air-conditioner will
automatically adjust the temperature and fan
speed to make the room more comfortable during
the night.
8. Fan Speed Button: Press the FAN SPEED button
to choose the fan speed options. You can choose
Hi, Med, Lo or auto speed in COOL mode and
choose Hi, Med, Low in FAN mode.
9. Filter Button: When the Filter Check light comes
on, it can be turned off by pressing the Filter Check
button. After the compressor has been working for 500
hours, the Filter Check light will turn on to remind the
user to clean the filter.
10.Directional Louvers: To direct the airflow,usehorizontal wheel
to control the horizontal direction,andair deflector to control the
vertical direction.

REMOTE CONTROL
1.Power: To turn the air conditioner on and off.
2.Cool: Press the COOL button to select COOL mode.
3. and :Use these buttons on the control panel
and remote to increase or decrease the Set
Temperature or Timer.
Temperature range: 61℉~88℉or 16℃~31℃.
.
4. Sleep: Press the SLEEP button, the Sleep
Light will be on after 10 seconds, and all the lights will
be off. In SLEEP mode, the air-conditioner will
automatically adjust the temperature and fan
speed to make the room more comfortable during
the night. The set temperature will automatically raise by
1℃every 30-60 minutes and at most change six times
until the set temperature is 28℃.
Battery Size: AAA
NOTE: Do not mix old and new batteries or different types
of AAA batteries.
5. Timer Button: Use these buttons on the control
panel and remote to set the Timer.
Timer Off: The timed stop is programmed bypressing
the TIMER button. Set the rest time by pressing the
button ∧or ∨until the desired time is reached; then
press TIMER button again to confirm your setting.
Timer On: When the unit is off, press TIMER button a
first time; set the temperature by pressing the ∧or ∨
button. Press TIMER button asecond time, set the start
time by pressing the button ∧or ∨. Press TIMER
button athird time to confirm the setting, then the time
remaining until the unit auto-starts will appear on the
display.
Note: The air conditioner can be set to automatically turn
off or on in a delay of 0.5-24 hours. Each press of the"∧"
or "∨"button will increase or decrease the timer. The
timer can be set in 0.5 hours increments up to 10 hours,
and in 1hour increments for 10 hours or more. The SET
light will turn on while setting. To cancel the setting, press
the TIMER button again.
6. Auto Mode: Press AUTO MODE button to select
AUTO mode directly. In this mode the fan speed and the
temperature are set automatically according to the room
temperature (tested by the built-in temperature sensor).
7. Fan Speed: Press the FAN SPEED button to
choose the fan speed options. You can choose Hi, Med,
Lo or auto speed in COOL mode and choose Hi, Med, Lo
in FAN mode.
8. Display: Press the DISPLAY button, to switch off/on
all lights or LED display.
9. Eco Button: When the unit is in ECO mode, the
light will turn on. In ECO mode, the unit will turn off once the
room is cooled to the set temperature. The fan will also be
off at this point. The unit will turn back on when the room
temperature rises above the set temperature. Before the
compressor stars, the fan will run 10 minutes –stop 20
seconds –and again, to save energy.
10. Fan Only: Press the Fan Only button to select FAN
ONLY mode.

CARE AND CLEANING
Clean your air conditioner to keep it looking new and to minimize
dust build up.
Air filter Cleaning
The air filter should be checked at least once every month to see
if it needs cleaning. Trapped particles and dust can build up in
the filter and may decrease airflow as well as cause the cooling
coils to accumulate frost. to clean the air filter:

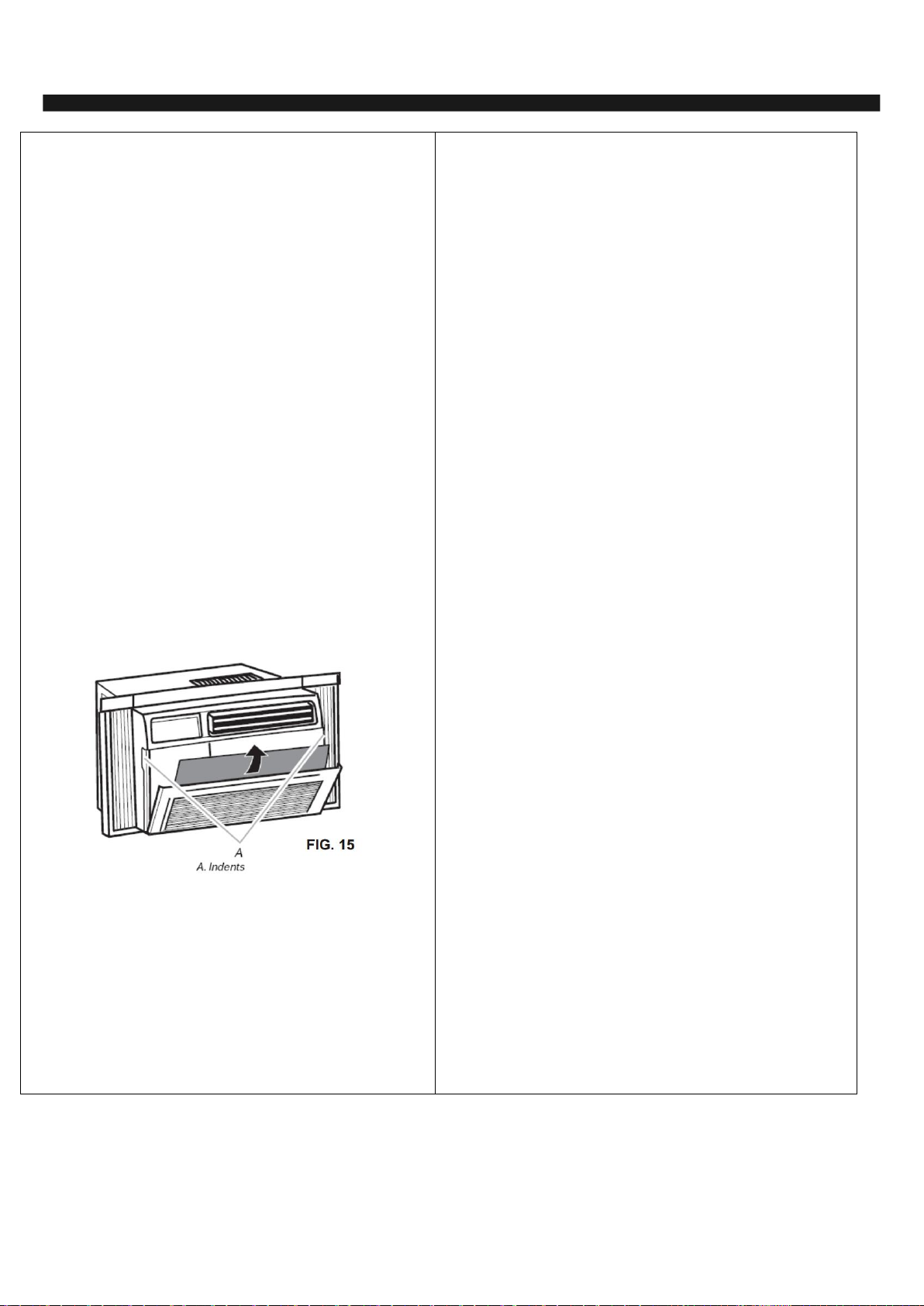

1. Remove the filter by sliding it out from the front right side of
the air conditioner. (See FIG.15)
2. Wash the filter using liquid dish soap and warm water. Rinse
the filter thoroughly. Gently shake the filter to remove
excess water.
3. Let the filter dry completely before placing it into the air
conditioner.
4. If you do not wish to wash the filter, you may vacuum the
filter to remove the dust and other particles.
Wear and Tear
To minimize wear and tear on the air conditioner, always wait at
least 3 minutes before changing modes. This will help prevent
the compressor from overheating and the circuit breaker from
tripping.
Cabinet Cleaning
To clean the air conditioner cabinet:
•Unplug the air conditioner to prevent shock or a fire hazard.
The cabinet and front panel of the air conditioner may be dusted
with an oil-free cloth or washed with a cloth dampened in a
solution of warm water and mild liquid soap. Rinse thoroughly with
a damp cloth and wipe dry.
•Never use harsh cleaners, wax or polish on the cabinet front.
•Be sure to wring excess water from the cloth before wiping
around the controls. Excess water in or around the controls may
cause damage to the air conditioner.
Winter Storage
To store the air conditioner when it is not in use for an extended
period of time, remove it care-fully from the window according to
the installation instructions and cover it with plastic or place it in
the original box.

TROUBLESHOOTING
PROBLEM
POSSIBLE CAUSES
SOLUTIONS
The Air Conditioner
will not start
The air conditioner is
unplugged
•Make sure the air conditioner plug is pushed
completely into the outlet
The fuse is blown/circuit
breaker is tripped.
•Check the house fuse/circuit breaker box and replace
the fuse or reset the breaker.
Power failure
•The unit will automatically re-start when power is
restored.
•There is a protective time delay (approx.3 minutes) to
prevent tripping of the compressor overload. For this
reason. the unit may not start normal cooling for
3minutes after it is turned back no.
The current interrupter device
is tripped.
•Press the RESET button located on the power cord
plug.
•If the RESET button will not stay engaged,
discontinue use of the air conditioner and contact a
qualified service technician.
The Air Conditioner
does not cool as it
should
Airflow is restricted
•Make sure there are no curtains, blinds, or furniture
blocking the front of the air conditioner
The temperature control may
not be set correctly.
•Set the temperature control to a higher value
The air filter is dirty
•Clean the filter, See the Cleaning and Care Section
of the manual
The room may be too warm
•Please allow time for the room to cool down after
turning on the air conditioner.
Cold air is escaping
•Check for open furnace registers and cold air returns
The cooling coils are frozen
•See “Air Conditioner Freezing UP " below.
The Air Conditioner is
freezing up
ice blocks the air flow and
stops the air conditioner from
cooling the room
•Set the MODE to HIGH FAN or HIGH COOL and set
TEMP to 1 or 2
The Remote Control is
not working (if
included with your air
conditioner)
The batteries are inserted
incorrectly
The batteries may be dead
•Check the position of the batteries.
•Replace the batteries

TROUBLESHOOTING (CONT.)
PROBLEM
POSSIBLE CAUSES
SOLUTIONS
Water is dripping outside
Hot and humid weather
•This is normal
Water is dripping inside the
room
The air conditioner is not
correctly tilted outside.
•For proper water drainage. make sure the
air conditioner is slightly tilted downward
from the front of the unit to the rear.
Water collects in the base
pan
Moisture removed from the air is
draining into the base pan.
•This is normal for a short period in areas
with low humidity and nor-mal for a longer
period in areas with high humidity.
For any questions or Technical Support,
Please call customer service:1-844-882-2622
Or email: [e-mail]

EMERSON
Q U I E T K O O L
