Emerson COPELAND FDCKA-ZS09-TFM User manual

Water Cooled Scroll
Condensing Unit - User Manual

2
Table of Contents
Content Page
Introduction 3
Safety Information 4
Nomenclature 6
Dimensional Drawings & Data 6
Performance Data (50Hz & 60Hz) 7
Features & Benefits 13
Scope of Supply 14
Electrical Connections 15
Installation & Startup 16
Operational Checklist 20

Introduction
Emerson Water-Cooled Scroll Condensing Units are fitted with high efficient
Copeland Scroll Compressors.
This document is designed to help the contractor and customer for the
installation, commissioning & operation of Emerson’s Water-Cooled Scroll
Condensing Unit.
Scope of supply – Check page number 10 of this manual for detailed scope
of supply.
Disclaimer
Thank you for purchasing the Emerson™ Water-Cooled Scroll Condensing
Unit. We hope that this product meets your intended refrigeration require-
ment. Please read through this operation manual to familiarize yourself with
the installation, commissioning, and operation of this product. Please do
read the following information in this page before proceeding with the rest
of the manual.
The Emerson™ Water-Cooled Scroll refrigeration condensing units should
only be installed by suitably qualified and experienced refrigeration
technicians. No responsibility can be accepted for damage caused by
inexperienced or inadequately trained site technicians or improper system
design. All instructions and procedures described in this manual are based
on good refrigeration trade practices as applicable to this particular product.
The installation contractor may prefer to use variations to these recommen-
dations. However, the methods described in this manual represent the
minimum requirements to avoid any subsequent warranty claims for this
equipment and its components. These instructions do not cover the
fundamentals of good electrical or refrigeration practice and are therefore
intended for use only by qualified and/or experienced personnel or
technicians.
For any additional query, please consult your local sales office, quoting unit
model and serial number as shown on the nameplate. In case of ambiguity,
the wiring diagram supplied with each unit takes precedence over the
diagram in this manual.
3

1. Safety Information
1.1 Installation and commissioning work on CDU shall be carried out only
by qualified, refrigeration personnel who have been trained and instructed.
1.2 Water Cooled Scroll Condensing Unit is manufactured according to the
latest safety standards. Emphasis has been placed on the user’s safety. For
relevant standards please refer to the manufacturer’s declaration, available
on request. You are strongly advised to follow these safety instructions.
1.3 Icon explanation
1.4 Safety Statements
a. Only qualified and authorized refrigeration personnel are permitted to
install, commission and maintain this equipment.
b. Electrical connections must be made by qualified electrical personnel.
c. All valid standards for connecting electrical and refrigeration equip-
ment must be observed.
d. The national legislation and regulations regarding personnel protec-
tion must be observed.
Use personal safety equipment. Safety goggles, gloves, protective clothing,
safety boots and hard hats should be worn where necessary.
20
25
30
35
40
45
50
55
11K Suction superheat
20°C Suction gas return
Condensing temperature °C
4

1.5 General Instructions
1.6 Safety Refrigerants/Lubricant
a. Please use correct refrigerant as designed to work in safe operating envelope.
b. Compressor is supplied with an initial oil charge. The standard oil charge for use
with HFC refrigerant is polyol ester (POE) lubricant Emkarate RL 32 3MAF.
WARNING
System breakdown! Personal injuries! Never install a system in the field
and leave it unattended when it has no charge, a holding charge, or with
the service valves closed without electrically locking out the system.
System breakdown! Personal injuries! Only approved refrigerants and
refrigeration oils must be used.
WARNING
High shell temperature! Burning! Do not touch the compressor until it has
cooled down. Ensure that other materials in the area of the compressor do
not get in touch with it. Lock and mark accessible sections.
CAUTION
Overheating! Bearing damage! Do not operate compressors without
refrigerant charge or without being connected to the system.
CAUTION
Compressors contain oil & refrigerant under pressure. Release pressure
from both high & low side of compressor before servicing.
CAUTION
Tube brazing & compressor operation can produce hot surfaces. To avoid
burns, allow surfaces to cool.
5

2. Nomenclature
3. Dimensional Drawings & Data
F M C K A - Z S 1 1 - T F 7 - 0
Family
series
F-series
Compressor model
reference
Coaxial
condenser
model
Revision no. Bill of material
0 – Base supply
Unit voltage code
Code Voltage supply-phase
TFM 380/420V +10% - 3~ -50Hz
TF7 380V +10% - 3~ -60Hz
CFV 220/230V +10% - 1~ -60Hz
Code
M
L
Application Refrigerant
Medium temperature R134A
Low temperature R-404A
ZB, ZS
ZF
6

Mechanical Data - 60Hz
Mechanical Data - 50Hz
Condensing Unit Model Compressor Model
Receiver
Capacity
(I)
Depth/Width
[D/W] (mm)
Height [H]
(mm)
Suction Ø
[SL] (")
Liquid Ø
[LL] (")
Water
Inlet FPT
(")
Water
Outlet ODF
(")
Net
Weight
(Kg)
Gross
Weight
(Kg)
FDCKA-ZS09-TFM ZS09KAE-TFD-600 3.9 460/618 495 5/8 1/2 3/8 5/8 39 49
FDCKA-ZS11-TFM ZS11KAE-TFD-600 3.9 460/618 495 5/8 1/2 3/8 5/8 39 49
FDCKA-ZS13-TFM ZS13KAE-TFD-600 3.9 460/618 495 5/8 1/2 3/8 5/8 39 49
FMCKA-ZB15-TFM ZB15KQE-TFD-559 3.9 460/610 471 3/4 1/2 3/8 5/8 42 52
FMCKA-ZB19-TFM ZB19KQE-TFD-559 3.9 460/610 471 3/4 1/2 3/8 5/8 44 54
FMCKA-ZB21-TFM ZB21KQE-TFD-559 3.9 460/610 494 3/4 1/2 3/8 5/8 44 54
FMCNA-ZB26-TFM ZB26KQE-TFD-559 7.9 570/680 510 7/8 1/2 3/4 7/8 62 77
FMCNA-ZB29-TFM ZB29KQE-TFD-559 7.9 570/680 527 7/8 1/2 3/4 7/8 66 81
FMCNA-ZB38-TFM ZB38KQE-TFD-559 7.9 570/680 545 1 1/8 1/2 3/4 7/8 70 85
FMCNA-ZB45-TFM ZB45KQE-TFD-559 7.9 570/680 545 1 1/8 1/2 3/4 7/8 72 87
FMCPA-ZB48-TFM ZB48KQE-TFD-559 7.9 610/725 559 1 1/8 1/2 3/4 1 1/8 76 91
FLCKA-ZF06-TFM ZF06KQE-TFD-551 3.9 460/610 477 3/4 1/2 3/8 5/8 42 52
FLCKA-ZF09-TFM ZF09KQE-TFD-551 3.9 460/610 499 3/4 1/2 3/8 5/8 44 54
FLCNA-ZF11-TFM ZF11KQE-TFD-551 7.9 570/680 515 7/8 1/2 3/4 7/8 61 76
FLCNA-ZF13-TFM ZF13KQE-TFD-551 7.9 570/680 545 7/8 1/2 3/4 7/8 71 86
FLCNA-ZF15-TFM ZF15KQE-TFD-551 7.9 570/680 545 1 1/8 1/2 3/4 7/8 72 87
FLCNA-ZF18-TFM ZF18KQE-TFD-551 7.9 570/680 545 1 1/8 1/2 3/4 7/8 74 89
Condensing unit model Compressor model
Receiver
capacity
(l)
Depth/ width
[D/W]
(mm)
Height [H]
(mm)
Suction Ø
[SL]
(″)
Liquid Ø
[LL]
(″)
Water
inlet FPT
(″)
Water outlet
ODF (″)
Net
weight
(kg)
Gross
weight
(kg)
FMCKA-ZS 11-TF7 ZS11KAE-TF7-600 3.9 460/610 495 5/8 1/2 3/8 5/8 39 49
FMCKA-ZB 15-TF7 ZB15KQE-TF7-559 3.9 460/610 471 3/4 1/2 3/8 5/8 42 52
FMCKA-ZB 19-TF7 ZB19KQE-TF7-559 3.9 460/610 471 7/8 1/2 3/8 5/8 44 54
FMCNA-ZB 21-TF7 ZB21KQE-TF7-559 7.9 570/680 496 7/8 1/2 3/4 7/8 60 75
FMCNA-ZB 26-TF7 ZB26KQE-TF7-559 7.9 570/680 510 7/8 1/2 3/4 7/8 62 77
FMCNA-ZB 29-TF7 ZB29KQE-TF7-559 7.9 570/680 527 1 1/8 1/2 3/4 7/8 66 81
FMCNA-ZB 38-TF7 ZB38KQE-TF7-559 7.9 570/680 545 1 1/8 1/2 3/4 7/8 71 86
FMCPA-ZB 45-TF7 ZB45KQE-TF7-559 7.9 610/725 555 1 1/8 1/2 3/4 1-1/8 76 91
FLCKA-ZF 06-CFV ZF06KQE-PFV-551
3.9
460/610
477
3/4 1/2 3/8 5/8
45 55
FLCNA-ZF 09-CFV ZF09KQE-PFV-551 7.9 570/680 501 3/4 1/2 3/4 7/8 62 77
FLCNA-ZF 11-CFV ZF11KQE-PFV-551 7.9 570/680 515 7/8 1/2 3/4 7/8 62 77
FLCNA-ZF 13-TF7 ZF13KQE-TF7-551
7.9
570/680
546
7/8 1/2 3/4 7/8
73 88
FLCNA-ZF 15-TF7 ZF15KQE-TF7-551 7.9 570/680 546 1 1/8 1/2 3/4 7/8 73 88
FLCPA-ZF 18-TF7 ZF18KQE-TF7-551
7.9
610/725
546
1 1/8 1/2 3/4 1-1/8
76 91
7

Envelopes
Electrical Data - 50Hz
Electrical Data - 60Hz
20
25
30
35
40
45
50
55
-20 -15 -10 -5 0 5 10 15
11K Suction superheat
20°C Suction gas return
Evaporating temperature °C
Condensing temperature °C
20
25
30
35
40
45
50
55
-45 -40 -35 -30 -25 -20 -15 -10 -5
20°C Suction gas return
Evaporating temperature °C
Condensing temperature °C
Evaporating temperature °C
20
25
30
35
40
45
50
55
-45 -40 -35 -30 -25 -20 -15 -10 -5
20°C Suction gas return
Evaporating temperature °C
Condensing temperature °C
R134a R404A
Condensing Unit Model Compressor Model C o mp r e s s o r M a x i mu m
Operating Current (A)
Compressor Locked
Rotor Current (A)
FDCKA-ZS09-TFM ZS09KAE-TFD-600
3.0 27.0
FDCKA-ZS11-TFM ZS11KAE-TFD-600 3.3 27.0
FDCKA-ZS13-TFM ZS13KAE-TFD-600 4.0 29.0
FM CKA-ZB15-TFM ZB15KQE-TFD-559
4.9 26.0
FM CKA-ZB19-TFM ZB19KQE-TFD-559 6.5 32.0
FM CKA-ZB21-TFM ZB21KQE-TFD-559 7.2 40.0
FM CNA-ZB26-TFM ZB26KQE-TFD-559
8.9 46.0
FM CNA-ZB29-TFM ZB29KQE-TFD-559 10.0 50.0
FM CNA-ZB38-TFM ZB38KQE-TFD-559 12.8 65.5
FM CNA-ZB45-TFM ZB45KQE-TFD-559
13.1 74.0
FM CPA-ZB48-TFM ZB48KQE-TFD-559
14.0 101.0
FLCKA-ZF06-TFM ZF06KQE-TFD-551 5.0 26.0
FLCKA-ZF09-TFM ZF09KQE-TFD-551 6.0 40.0
FLCNA-ZF11-TFM ZF11KQE-TFD-551
7.1 46.0
FLCNA-ZF13-TFM ZF13KQE-TFD-551 8.0 51.5
FLCNA-ZF15-TFM ZF15KQE-TFD-551 10.0 64.0
FLCNA-ZF18-TFM ZF18KQE-TFD-551
12.5 74.0
Condensing unit model Compressor model
C o mp r e s s o r ma x i mu m
operating current
(A)
Compressor locked
rotor current
(A)
FM CKA-ZS 11-TF7 ZS11KAE-TF7-600 3.9 29
FM CKA-ZB 15-TF7 ZB15KQE-TF7-559 5.1 27
FM CKA-ZB 19-TF7 ZB19KQE-TF7-559 6.0 30
FM CNA-ZB 21-TF7 ZB21KQE-TF7-559 7.2 39
FM CNA-ZB 26-TF7 ZB26KQE-TF7-559 8.8 41
FM CNA-ZB 29-TF7 ZB29KQE-TF7-559 10.0 54
FM CNA-ZB 38-TF7 ZB38KQE-TF7-559 13.0 64
FM CPA-ZB 45-TF7 ZB45KQE-TF7-559 13.1 70
FLCKA-ZF 06-CFV ZF06KQE-PFV-551 17.1 61
FLCNA-ZF 09-CFV ZF09KQE-PFV-551 20.2 88
FLCNA-ZF 11-CFV ZF11KQE-PFV-551 24.7 109
FLCNA-ZF 13-TF7 ZF13KQE-TF7-551 10.0 57
FLCNA-ZF 15-TF7 ZF15KQE-TF7-551
12.0 64
FLCPA-ZF 18-TF7 ZF18KQE-TF7-551
14.0 70
8

Fluid data - 50Hz
R134a
Medium temperature
-15 -10 -5 0 5 -15 -10 -5 0 5
30 0.07 0.08 0.10 0.12 0.14 2.76 4.00 4.55 6.48 7.86
35 0.07 0.08 0.10 0.12 0.14 2.76 3.45 4.55 6.07 7.86
40 0.07 0.08 0.10 0.11 0.14 2.76 3.45 4.55 5.79 7.72
45 0.06 0.08 0.09 0.11 0.13 2.76 3.45 4.55 5.79 7.17
30 0.08 0.10 0.12 0.14 0.17 3.45 4.69 6.34 8.14 10.62
35 0.08 0.10 0.11 0.14 0.16 3.45 4.69 5.93 8.14 10.07
40 0.08 0.09 0.11 0.14 0.16 3.45 4.69 5.93 7.86 9.93
45 0.08 0.09 0.11 0.13 0.15 3.45 4.69 5.93 7.45 9.93
30 0.09 0.11 0.13 0.16 0.19 4.14 5.93 7.72 10.20 12.82
35 0.09 0.11 0.13 0.16 0.19 4.14 5.38 7.31 9.51 12.69
40 0.09 0.11 0.13 0.15 0.18 4.14 5.38 7.31 9.51 12.13
45 0.09 0.11 0.13 0.15 0.18 4.14 5.38 7.03 8.83 12.00
30 0.11 0.13 0.16 0.19 0.22 5.52 7.31 9.79 12.55 17.10
35 0.10 0.12 0.15 0.18 0.22 4.83 6.76 9.10 12.55 16.41
40 0.10 0.12 0.15 0.18 0.21 4.83 6.76 9.10 11.86 15.72
45 0.10 0.12 0.15 0.18 0.21 4.83 6.62 8.41 11.58 15.03
30 0.12 0.15 0.18 0.22 0.26 6.21 8.69 11.86 16.27 21.37
35 0.12 0.14 0.18 0.21 0.25 6.21 8.69 11.58 15.58 20.68
40 0.12 0.14 0.17 0.21 0.24 6.21 8.14 11.17 14.89 19.86
45 0.11 0.14 0.17 0.20 0.24 6.21 8.00 10.89 14.20 19.17
30 0.15 0.19 0.22 0.27 0.32 8.96 12.69 16.82 23.03 30.75
35 0.15 0.18 0.22 0.26 0.32 8.96 12.00 16.82 22.34 29.92
40 0.15 0.18 0.21 0.26 0.31 8.96 12.00 16.13 21.37 28.54
45 0.15 0.17 0.21 0.25 0.30 8.27 11.45 15.44 20.68 27.17
30 0.18 0.21 0.26 0.31 0.37 11.72 12.27 12.82 14.07 16.13
35 0.17 0.21 0.25 0.30 0.37 11.72 11.72 12.82 14.07 16.13
40 0.17 0.20 0.25 0.30 0.35 11.72 11.72 12.82 14.07 15.44
45 0.16 0.20 0.24 0.29 0.35 11.72 11.72 12.41 13.38 15.44
30 0.19 0.23 0.28 0.34 0.41 11.72 12.27 13.51 15.03 17.65
35 0.19 0.23 0.28 0.33 0.40 11.72 12.27 13.51 15.03 17.51
40 0.19 0.23 0.27 0.33 0.39 11.72 12.27 13.51 14.75 16.96
45 0.18 0.22 0.27 0.32 0.38 11.72 12.27 12.82 14.34 16.82
30 0.25 0.31 0.38 0.45 0.54 13.10 14.20 16.41 19.72 25.65
35 0.25 0.30 0.37 0.44 0.53 12.41 14.20 16.00 19.44 24.27
40 0.25 0.30 0.36 0.43 0.51 12.41 13.65 16.00 18.75 23.44
45 0.24 0.29 0.35 0.42 0.50 12.41 13.65 15.31 18.48 22.75
30 0.30 0.37 0.45 0.54 0.65 13.79 16.27 19.86 25.51 34.34
35 0.30 0.36 0.44 0.53 0.63 13.79 15.58 19.17 24.41 32.82
40 0.29 0.35 0.43 0.51 0.62 13.79 15.58 18.48 23.44 31.44
45 0.28 0.35 0.42 0.50 0.60 13.79 15.03 18.48 22.75 29.92
30 0.35 0.42 0.51 0.61 0.72 7.58 10.62 14.34 19.31 25.65
35 0.35 0.42 0.50 0.59 0.71 7.58 10.62 14.07 18.62 24.82
40 0.34 0.41 0.49 0.58 0.69 7.58 10.07 13.65 18.34 23.58
45 0.33 0.40 0.48 0.57 0.67 6.89 9.93 12.96 17.65 22.75
FMCPA-ZB48-TFM
FMCKA-ZB21-TFM
FMCNA-ZB26-TFM
FMCNA-ZB29-TFM
FMCNA-ZB38-TFM
FMCNA-ZB45-TFM
FDCKA-ZS09-TFM
FDCKA-ZS11-TFM
FDCKA-ZS13-TFM
FMCKA-ZB15-TFM
FMCKA-ZB19-TFM
Condensing Unit Model
Condensing
Temperature
(°C)
Water Flow Rate (l/s) Pressure Drop (kPa)
Evaporating Temperature (°C)
9

Operating Conditions: 20 °C Suction Gas Return Temperature and 3K Sub Cooling
4.4 °C Suction Gas Return Temperature
Fluid data - 50Hz
R404a
Low temperature
-40 -35 -30 -25 -20 -15 -40 -35 -30 -25 -20 -15
30 1.13 1.41 1.83 2.25 0.68 0.71 0.80 0.81
35 1.07 1.33 1.70 2.10 0.74 0.78 0.87 0.89
40 1.00 1.24 1.57 1.95 0.81 0.86 0.95 0.98
45 0.93 1.16 1.45 1.80 0.90 0.96 1.04 1.08
30 1.37 1.71 2.19 2.70 0.81 0.85 0.91 0.94
35 1.29 1.61 2.04 2.52 0.88 0.93 0.99 1.03
40 1.21 1.51 1.88 2.34 0.97 1.03 1.08 1.12
45 1.13 1.40 1.74 2.16 1.08 1.14 1.19 1.23
30 1.54 1.93 2.50 3.08 0.93 0.98 1.07 1.10
35 1.45 1.81 2.32 2.88 1.01 1.07 1.17 1.20
40 1.37 1.69 2.14 2.67 1.11 1.18 1.27 1.32
45 1.28 1.57 1.98 2.46 1.23 1.31 1.39 1.44
30 1.32 1.66 2.07 2.54 3.10 3.76 1.17 1.23 1.30 1.37 1.45 1.54
35 1.25 1.57 1.95 2.41 2.93 3.55 1.28 1.33 1.40 1.47 1.55 1.64
40 1.17 1.48 1.84 2.26 2.75 3.33 1.40 1.46 1.52 1.59 1.67 1.75
45 1.09 1.38 1.71 2.11 2.56 3.09 1.55 1.60 1.66 1.73 1.80 1.89
30 1.76 2.24 2.80 3.46 4.23 5.12 1.45 1.47 1.51 1.57 1.64 1.73
35 1.67 2.13 2.65 3.27 3.99 4.83 1.60 1.62 1.65 1.70 1.77 1.86
40 1.58 2.01 2.50 3.07 3.74 4.52 1.77 1.78 1.81 1.85 1.92 2.00
45 1.48 1.88 2.34 2.86 3.48 4.20 1.95 1.96 1.98 2.03 2.09 2.16
30 2.24 2.83 3.51 4.32 5.26 6.36 1.79 1.82 1.86 1.93 2.03 2.14
35 2.13 2.69 3.34 4.09 4.97 6.00 1.95 1.97 2.02 2.09 2.17 2.28
40 2.01 2.54 3.14 3.84 4.66 5.62 2.13 2.15 2.20 2.26 2.34 2.45
45 1.88 2.37 2.93 3.58 4.33 5.22 2.32 2.35 2.39 2.45 2.54 2.64
30 2.53 3.25 4.10 5.09 6.23 7.53 1.87 1.93 2.00 2.08 2.19 2.30
35 2.40 3.07 3.86 4.78 5.86 7.09 2.06 2.12 2.19 2.28 2.37 2.49
40 2.27 2.88 3.61 4.47 5.47 6.62 2.27 2.33 2.41 2.49 2.59 2.70
45 2.15 2.70 3.36 4.14 5.06 6.13 2.51 2.58 2.65 2.74 2.84 2.95
30 3.11 4.01 5.06 6.27 7.67 9.30 2.21 2.33 2.45 2.58 2.73 2.90
35 2.93 3.78 4.76 5.89 7.21 8.74 2.44 2.56 2.68 2.82 2.97 3.14
40 2.76 3.54 4.45 5.49 6.72 8.14 2.68 2.82 2.95 3.09 3.24 3.41
45 2.61 3.31 4.13 5.08 6.20 7.50 2.96 3.10 3.25 3.40 3.55 3.72
30 3.82 4.84 6.03 7.42 9.06 11.00 2.79 2.89 3.01 3.14 3.29 3.46
35 3.62 4.59 5.71 7.01 8.54 10.35 3.03 3.13 3.25 3.39 3.55 3.71
40 3.42 4.33 5.37 6.57 7.99 9.65 3.29 3.40 3.53 3.67 3.83 4.00
45 3.19 4.04 5.00 6.11 7.41 8.94 3.59 3.71 3.84 3.98 4.14 4.31
FLCNA-ZF11-TFM
FLCNA-ZF13-TFM
FLCNA-ZF15-TFM
FLCNA-ZF18-TFM
FDCKA-ZS09-TFM
FDCKA-ZS11-TFM
FDCKA-ZS13-TFM
FLCKA-ZF06-TFM
FLCKA-ZF09-TFM
Condensing Unit Model
Condensing
Temperature
(°C)
Capacity(kW) Power Input (kW)
Evaporating Temperature (°C)
10

Fluid data - 60Hz
R134a
Medium temperature
Note:Operating conditions : 20°C suction gas return temperature and 3K subcooling
-15 -10 -5 0 5 -15 -10 -5 0 5
30 0.10 0.12 0.14 0.17 0.21 4.8 6.6 8.4 11.2 14.4
35 0.09 0.12 0.14 0.17 0.20 4.8 6.1 8.4 10.9 14.2
40 0.09 0.12 0.14 0.16 0.19 4.8 6.1 8.0 10.2 13.5
45 0.09 0.11 0.13 0.16 0.19 4.8 6.1 7.7 10.2 12.8
30 0.13 0.16 0.19 0.23 0.28 6.9 9.9 13.4 17.9 24.2
35 0.13 0.15 0.19 0.22 0.27 6.9 9.4 13.0 17.3 22.9
40 0.13 0.15 0.18 0.22 0.26 6.9 9.2 12.3 17.0 22.1
45 0.12 0.15 0.18 0.22 0.26 6.2 8.7 12.3 16.3 21.4
30 0.15 0.18 0.22 0.27 0.32 9.0 12.0 16.8 22.8 30.1
35 0.15 0.18 0.22 0.26 0.31 8.3 12.0 16.1 22.1 29.3
40 0.15 0.17 0.21 0.26 0.30 8.3 11.3 15.5 21.4 27.9
45 0.14 0.17 0.21 0.25 0.30 8.3 11.3 15.0 20.4 27.0
30 0.18 0.23 0.28 0.33 0.40 11.7 12.3 13.5 15.0 17.5
35 0.18 0.22 0.27 0.33 0.39 11.7 12.3 13.1 14.8 17.0
40 0.18 0.22 0.26 0.32 0.38 11.7 12.3 12.8 14.4 16.8
45 0.18 0.22 0.26 0.32 0.37 11.7 12.3 12.8 14.4 16.1
30 0.21 0.26 0.32 0.39 0.46 11.7 13.0 14.6 16.7 20.6
35 0.21 0.25 0.31 0.38 0.45 11.7 13.0 14.2 16.4 19.9
40 0.20 0.25 0.30 0.37 0.44 11.7 13.0 14.2 16.4 19.2
45 0.20 0.25 0.30 0.36 0.43 11.7 12.4 13.9 15.7 19.0
30 0.23 0.28 0.34 0.42 0.50 12.4 13.7 15.3 18.1 22.6
35 0.23 0.28 0.34 0.41 0.49 12.4 13.7 15.3 17.8 21.9
40 0.22 0.27 0.33 0.40 0.48 12.4 13.0 14.9 17.4 21.3
45 0.22 0.27 0.33 0.39 0.46 12.4 13.0 14.6 17.1 20.6
30 0.31 0.38 0.46 0.56 0.67 13.8 16.3 20.3 26.8 36.6
35 0.30 0.37 0.45 0.55 0.66 13.8 16.3 19.9 25.8 35.1
40 0.30 0.36 0.44 0.53 0.64 13.8 16.3 19.6 25.1 33.5
45 0.29 0.36 0.43 0.52 0.62 13.8 15.6 19.2 24.2 32.2
30 0.37 0.45 0.55 0.66 0.80 8.3 12.0 16.8 22.8 29.9
35 0.36 0.44 0.54 0.65 0.78 8.3 11.3 16.1 21.7 29.1
40 0.35 0.43 0.53 0.63 0.75 7.6 11.3 15.5 20.7 27.7
45 0.35 0.42 0.51 0.61 0.73 7.6 10.6 14.8 20.0 26.4
FMCNA-ZB 29-TF7
FMCNA-ZB 38-TF7
FMCPA-ZB 45-TF7
FMCKA-ZS 11-TF7
FMCKA-ZB 15-TF7
FMCKA-ZB 19-TF7
FMCNA-ZB 21-TF7
FMCNA-ZB 26-TF7
Condensing unit model Condensing
temperature (°C)
Water flow rate (I/s) Pressure drop (kPa)
Evaporating temperature (°C)
11

Fluid data - 60Hz
R404a
Low temperature
-40 -35 -30 -25 -20 -15 -40 -35 -30 -25 -20 -15
30 1.58 2.00 2.49 3.08 3.72 4.51 1.37 1.39 1.45 1.54 1.65 1.77
35 1.48 1.89 2.36 2.90 3.52 4.25 1.52 1.53 1.58 1.66 1.77 1.89
40 1.38 1.77 2.21 2.71 3.28 3.96 1.70 1.69 1.73 1.81 1.91 2.03
45 1.28 1.66 2.07 2.53 3.05 3.69 1.89 1.87 1.90 1.97 2.07 2.19
30 2.23 2.82 3.52 4.31 5.25 6.36 1.71 1.76 1.83 1.93 2.04 2.17
35 2.11 2.67 3.31 4.07 4.95 5.98 1.88 1.93 1.99 2.08 2.19 2.32
40 1.98 2.51 3.11 3.81 4.63 5.60 2.08 2.11 2.17 2.26 2.36 2.49
45 1.85 2.34 2.91 3.55 4.31 5.19 2.29 2.32 2.38 2.45 2.55 2.68
30 2.75 3.49 4.34 5.36 6.54 7.91 2.05 2.13 2.23 2.36 2.52 2.71
35 2.62 3.31 4.13 5.07 6.18 7.47 2.26 2.33 2.43 2.56 2.71 2.89
40 2.47 3.11 3.87 4.75 5.80 7.01 2.49 2.56 2.66 2.78 2.93 3.10
45 2.31 2.91 3.60 4.43 5.39 6.48 2.74 2.81 2.91 3.03 3.17 3.34
30 3.04 3.92 4.94 6.12 7.47 9.00 2.24 2.30 2.39 2.50 2.65 2.82
35 2.86 3.68 4.63 5.74 7.02 8.48 2.46 2.52 2.60 2.71 2.85 3.02
40 2.69 3.44 4.32 5.35 6.54 7.92 2.70 2.76 2.85 2.95 3.09 3.25
45 2.53 3.20 3.99 4.93 6.04 7.32 2.98 3.05 3.13 3.23 3.36 3.52
30 3.86 4.87 6.07 7.48 9.14 11.07 2.70 2.79 2.92 3.07 3.26 3.49
35 3.65 4.60 5.72 7.05 8.60 10.41 2.94 3.06 3.19 3.35 3.53 3.76
40 3.42 4.32 5.36 6.59 8.03 9.71 3.19 3.34 3.49 3.66 3.85 4.07
45 3.19 4.02 4.98 6.11 7.44 8.99 3.47 3.65 3.83 4.01 4.21 4.43
30 4.60 5.85 7.29 8.97 10.94 13.25 3.27 3.37 3.52 3.72 3.96 4.24
35 4.37 5.54 6.90 8.47 10.30 12.45 3.57 3.66 3.81 4.02 4.26 4.54
40 4.13 5.23 6.49 7.94 9.64 11.63 3.88 3.98 4.13 4.34 4.59 4.87
45 3.89 4.91 6.07 7.40 8.96 10.78 4.21 4.32 4.48 4.69 4.95 5.24
FLCPA-ZF 18-TF7
FLCKA-ZF 06-CFV
FLCNA-ZF 09-CFV
FLCNA-ZF 11-CFV
FLCNA-ZF 13-TF7
FLCNA-ZF 15-TF7
Condensing unit model Condensing
temperature (°C)
Capacity(kW) Power Input (kW)
Evaporating temperature (°C)
Note:Operating conditions : 20°C suction gas return temperature and 3K subcooling
12

4. Features & Benefits
5. Physical Layout of Condensing Unit
Efficiency
- High efficiency Copeland™ ZB/ZF/ZS compressors for multiple application.
Reliability
- Compressors are supplied with internal thermal protectors that safeguards
against motor overheating and high current.
- Dual compliance for better reliability.
Smooth Operation
- Scroll compressor has an inbuilt check valve that isolates high pressure gas,
allowing the compressor to start unloaded with low inrush currents.
- Less vibration.
Maintenance
- Optimal layout of components for easy serviceability.
13

The Condenser Pressure Regulator could be selected from below table. This
could be provided as additional accessory.
The maximum operating pressure limit on the water side of the Co-axial
condenser is 500 psig. However, for the given requirement, please ensure that
the water side pressure is within the maximum limit of water pressure
regulator.
6. Scope of Supply
- High efficiency scroll compressor
- Co-axial condenser
- Compressor with Oil Sight Glass and Crank Case Heater
- HP/LP switch
- Condenser pressure regulator to be provided by the customer as required.
14
New Models Condenser Pressure Regulator
PCN
FDCKA-ZS09-TFM-0 510-0049-00
FDCKA-ZS11-TFM-0 510-0049-00
FDCKA-ZS13-TFM-0 510-0049-00
FMCKA-ZB15-TFM-0 510-0049-00
FMCKA-ZB19-TFM-0 510-0049-00
FMCKA-ZB21-TFM-0 510-0049-00
FMCNA-ZB26-TFM-0 510-0049-02
FMCNA-ZB29-TFM-0 510-0049-02
FMCNA-ZB38-TFM-0 510-0049-02
FMCNA-ZB45-TFM-0 510-0049-02
FMCPA-ZB48-TFM-0 510-0049-02
FLCKA-ZF06-TFM-0 510-0049-00
FLCKA-ZF09-TFM-0 510-0049-00
FLCNA-ZF11-TFM-0 510-0049-02
FLCNA-ZF13-TFM-0 510-0049-02
FLCNA-ZF15-TFM-0 510-0049-02
FLCNA-ZF18-TFM-0 510-0049-02

7. Electrical Connections
15

8. Installation, System Processing and Commissioning
Utmost care must be taken while handling the Water-Cooled Scroll
condensing unit. Please go through the contents below to ensure proper
handling.
a. Inspection
Inspect the condensing unit and any accessories shipped with them for
damages or shortages before and during unloading. All items on bill of lading
should be accounted for prior to signing the shipping receipt. Note any
shortages or damage on delivery receipt (specify the extent and type of
damage found). Unit should be inspected carefully for concealed damage.
Notify Emerson sales/application personnel of the damage immediately. Do
not repair the unit until instructed by Emerson’s representative.
The system is shipped with a holding charge of dry nitrogen. Check to see
that pressure is still in the unit upon receipt. Report lack of pressure
immediately to the Emerson’s application/sales representative.
b. Location and Fixing
Generally installed on the top of the cold room to reduce the connection
length between the condensing unit and the evaporator. Enough space to be
provided around the unit for easy service. Also ensure easy access to the unit.

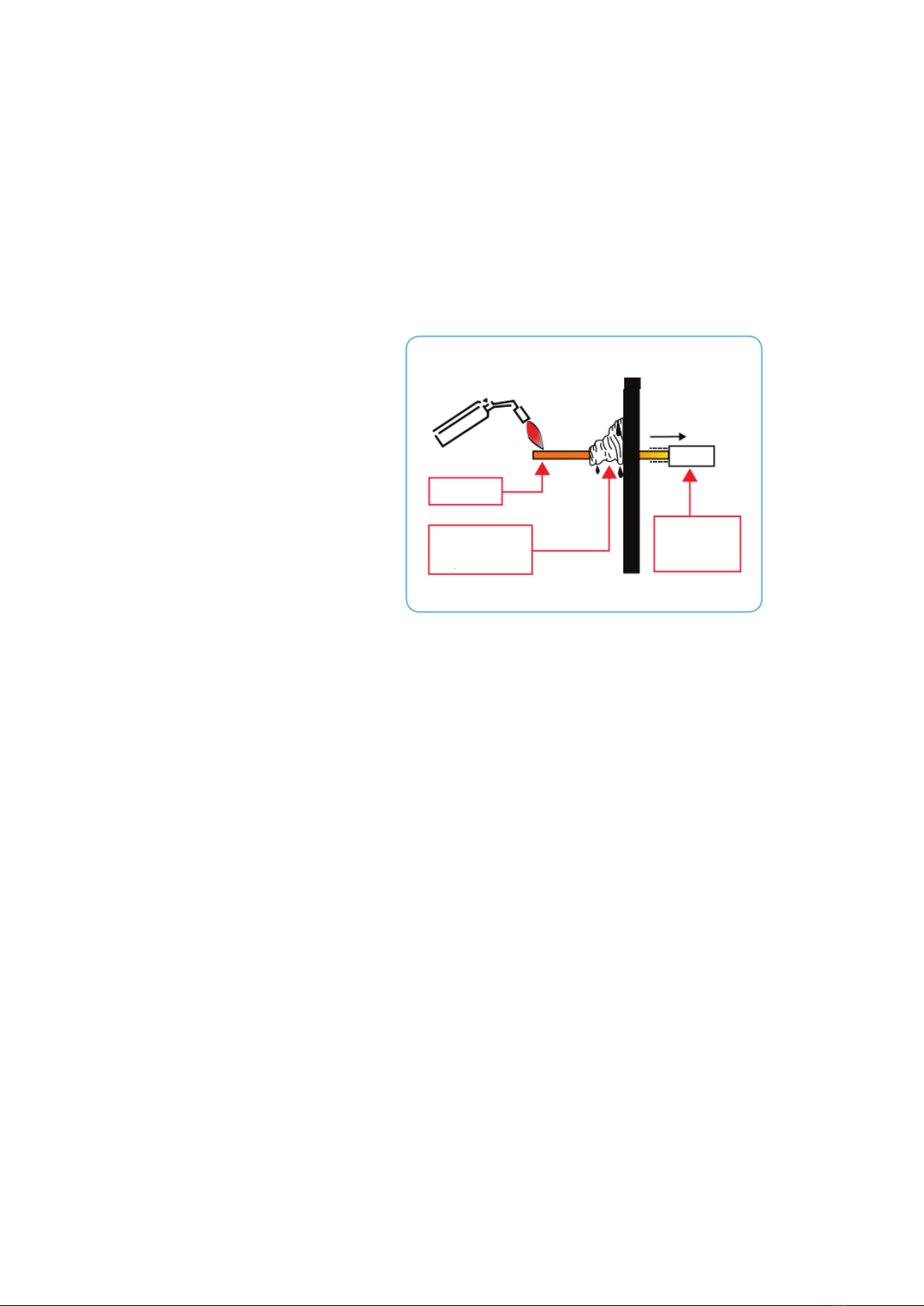

c. Refrigeration Piping Installation
All interconnecting pipes should be of refrigeration grade, clean, dehydrated
and must remain capped at both ends until installation. Even during installa-
tion, if the system is left for any reasonable period (say two hours), pipes
should be re- capped to prevent moisture and contaminants from entering
the system.
Do not assume that the service connection sizes on the unit (at the service
valves) are the correct size to run your interconnecting refrigeration pipes.
The service valve sizes have been selected for convenience of installation and
in some cases (larger units) these may be considered too small. However, for
the very short pipe run within our units, these service connection sizes are
adequate.
The pipe should be sized to ensure optimum performance and proper oil
return. The sizing must also consider the full capacity range through which
this particular unit will need to operate.
16

Pipe runs should be kept as short as possible, using the minimum number of
directional changes. Use large radius bends and avoid trapping of oil and
refrigerant. This is particularly important for the suction line. The suction line
should ideally slope gently towards the unit. Recommendation slope is
1/200~1/250. P traps, double risers and reduced pipe diameters may be
required for suction lines where long vertical risers cannot be avoided. All
pipes should be adequately supported to prevent sagging which can create
oil traps.
The recommended pipe clamp support distance is shown in the table.
d. Refrigerant line insulation
- Insulate suction lines from the evaporators to the condensing unit with
minimum of 1” thickness closed-cell type insulation.
- Long liquid lines run in areas exposed to high temperatures should be fully
insulated with minimum 1/2” insulation.
- Suction and liquid lines should never be taped or soldered together.
e. Electrical
- All electrical work must be done in accordance with the National Electrical
Code and existing local codes.
- Power supply must be the same as specified on the unit’s name plate.
- Voltage fluctuations in excess of 10 percent must be corrected.
- Before starting the unit, ensure that all protective devices are in place
and that all wiring is secure.
f. Brazing Recommendation
Maintain a flow of oxygen-free nitrogen through the system at a very low
pressure during brazing. Nitrogen displaces the air and prevents the forma-
tion of copper oxides in the system. If copper oxidization is allowed to form,
the copper oxide material can later be swept through the system and block
screens such as those protecting capillary tubes, thermal expansion valves,
and accumulator oil return holes. This minimizes any entry of contaminants
and moisture.
Tube Dia
Max distance between 2 clamp
supports
1/2 inch
1.2 M
5/8 inch
1.5 M
7/8 inch
1.8M
1 1/8 inch
2.1M
1 3/8 inch
2.3M
17

- Remove the liquid line connection cap.
- Then remove the suction connection cap.
- Open both valves midway.
- Care should be taken to avoid the holding charge from releasing too
quickly.
- Be sure tube fitting inner diameter and tube outer diameter are clean prior
to assembly.
- Recommended brazing materials: a copper / phosphorous or copper /
phosphorous / silver alloy rod should be used for joining copper to copper
whereas to join dissimilar or ferric metals, use a silver alloy rod, either flux
coated or with a separate.
- Use a double tip torch.
g. Start-up & Operation
Initial pressure test (by vacuum and nitrogen)
Step-by-step
• Use a 4-port gauge manifold with 3/8” hose and connections to the
vacuum pump. The vacuum gauge does not have to be connected for this
part of the process.
• Connect the gauges to service ports provided on receiver valve and suction
tube. In order to remove any non-condensable that may have entered the
system during installation, follow these steps:
• Start the vacuum pump. The evaporator fan should be running and the
compressor crankcase heater is energized at this point. This will involve
powering up the unit so it is important to disconnect the live feed wire to
the compressor contactor (so the compressor cannot run and the crank
case heater can be energized).
• Open both valves on the manifold and then open the main vacuum valve
on the pump. Run the system until the vacuum level of -0.85 bar (as read
on manifold gauge) is achieved.
• Shut off the main vacuum pump valve. Check for vacuum rise using the
manifold compound gauge. A rise would indicate a large leak.
• If vacuum holds for 10 minutes, break vacuum with Nitrogen. Check the
name plate of the unit / compressor for allowable leak test pressure.
Ensure that pressure regulators are installed on the Nitrogen cylinders.
Check for leaks and repair leakage.
End of tube
During brazing
protect housing with
damp cloth
During brazing
pull back fire
insulation
OUTSIDE INSIDE UNIT
18

Leak Check
The success of all the subsequent commissioning depends on a leak free
system, free of contaminants, free of oxides, free of non-condensable’ s, that
has been evacuated to a low vacuum and charged with the prescribed refrig-
erant.
Leak test is particularly important for field-connected systems. Typically, field
systems lose as much as 20%–30% of their refrigeration charge annually. This
is not only an unnecessary expense but also damages the environment. Com-
pressor oil can be lost at the same time as refrigerant and eventually lead to
compressor failure. (Time spent on leak test will eventually reduce the time
spent on the evacuation process).
Ensure that all service valves are open during the leak test process. It is
important to recheck all joints within the unit as well as the external joints.
a. The unit is shipped with a holding charge of dry nitrogen and should be
leak free.
b. Ensure that the test pressure do not exceed the system design pressures.
c. Do not expose system pressure control LP to test pressures above the
design pressure. This can damage the pressure controls.
d. Using an approved, calibrated electronic gas leak detector, leak test the
entire system paying attention to all joints (you might have to charge
small quantity of refrigerant before charging the Nitrogen to enable this
procedure).
e. Periodically check functionality of the electronic leak detector during this
process.
f. To further check system integrity, spray a soapy water solution over joins
then visually inspect for bubbles.
g. Leave the system under pressure for a designated period (24 Hours).
h. Check and record the ambient temperatures and the system pressure with
calibrated approved instruments. This process is to be carried out every
8-12 hours during the pressure testing process.
i. If the test pressures cannot be maintained, repeat the leak testing process
employing the isolation of sections of the system to determine the source
of leaks. Repair the leak and repeat the leak testing process until system
can be signed off as leak free and approved by authorized personnel.
j. Record findings and confirm pressure testing process completion.
19

Evacuation
a. After the system is leak checked, connect approved dual stage vacuum
pump sized to application with preferably fresh oil to evacuate the system.
b. Ensure all inline system shut-off valves and solenoid valves are fully open.
c. Evacuate the system to 300 microns.
d. A triple evacuation is recommended in case of using analog gauges as we
might not know the exact vacuum level being achieved
Charging and commissioning
Reminder
- The scroll compressor design requires system charging with liquid
refrigerant into the liquid line.
- Do not vapor charge the Water Cooled Scroll unit. After ensuring all valves
are opened and system is evacuated properly, only then start the
refrigerant charging process. Also ensure that LP cutout is not by-passed
during the charging process.
Step-by-step:
1. Ensure that there is no power supply to the Water Cooled Scroll unit.
The liquid line solenoid needs to be kept open for the charging process and
this may require a temporary power feed to it.
2. Connect the refrigerant cylinder to main service hose and purge line at
the manifold end.
3. Ensure correct orientation of the refrigerant cylinder. Follow cylinder
labeling/instructions so that liquid refrigerant can be charged into the
system. This will be charged through the high-pressure side of the manifold
and Water Cooled Scroll unit liquid service valve. Ensure that at least 70-80%
of the required refrigerant charging is done by this method.
4. The compressor can then be started, and the unit continued to be
charged (with the controlled liquid refrigerant through the suction service
valve). The quantity of charge should always be measured. See note.
5. The system needs to be operated down to its design evaporating tem-
perature before you can be sure the charge is correct. It is at this point that
the normal refrigeration operational checks can be carried out - such as
checking the liquid line sight glass for bubbles and the operating pressures.
Refrigerant charging is regarded full/complete when the operating tempera-
ture of the system has been stable for some time and the liquid line sight
glass is clear.
20
