Section 1: Optional Module 9: Probus DPV1 Interface
Optional Module 9: Probus DPV1 Interface
Section 1: Optional Module 9: Probus
DPV1 Interface
The OM9 Probus DPV1 interface is an electronic module that allows you to connect
the Bettis SCE300 electrical actuator to a Probus DP network. The module has its own
microprocessor and control program. It works as a pure bus interface and does not affect
the actuator control integrity. It is installed inside the actuator housing and takes the
electrical power from the actuator power supply module.
The RS485 interface is located on the module board. The Probus network is fully isolated
from the actuator electronics. The OM9 Probus DPV1 is designed to support Probus
DPV0 cyclic communication and acyclic communication as per Probus DPV1 extension.
For details about SCE300 actuator, please refer to Installation, Operation and Maintenance
Manual for Bettis SCE300 electric actuator.
NOTE:
For decommissioning instructions, please refer to the relevant section in the SCE300
Installation, Operation and Maintenance Manual.
!WARNING
SCE300 actuator must be electrically isolated before any disassembling or reassembling
operations. Before any disassembling or reassembling operations, please follow the
relevant paragraph of the basic installation and operating manual (latest revision available)
in detail.
!WARNING
The electronic parts of the SCE300 actuators and all option modules can be damaged
by a discharge of static electricity. Before you start, touch a grounded metal surface to
discharge any static electricity.
! WARNING
It is assumed that the installation, conguration, commissioning, maintenance and repair
works are carried out by qualied personnel and checked by responsible specialists.
! WARNING
Repair work, other than operations outlined in this manual, is strictly reserved to qualied
Emerson personnel or to personnel authorized by the company itself.

August 2022
Installation, Operation and Maintenance Manual
VCIOM-17121-EN Rev. 0
2
Section 1: Optional Module 9: Probus DPV1 Interface
Optional Module 9: Probus DPV1 Interface
NOTE:
Based on the Wiring Diagram printed on the board (i.e., DE5687R00E or DE5687R00G
and subsequent), the board may have a soldered jumper or a dip switch on the Probus
Termination. Please read the manual for the relevant description.
Figure 1 DE5687R00E
Figure 2 DE5687R00G

Installation, Operation and Maintenance Manual
VCIOM-17121-EN Rev. 0 August 2022
3
Section 2: Operation and Storage
Operation and Storage
Section 2: Operation and Storage
The module is designed to work and to be stored in the same environment as the actuator.

August 2022
Installation, Operation and Maintenance Manual
VCIOM-17121-EN Rev. 0
4Distinguish Old/New Models
Section 3: Distinguish Old/New Models
Figure 3 Label for non-US market - digits X7X8 on product coding chart
Section 3: Distinguish Old/New Models
It is important to distinguish between SCE300 old models and the new ones. To install
the board on base actuator, in fact, it is necessary to choose the correct mechanical parts
from the kit. Furthermore, the meaning of some data exchanged on the Probus interface
depends on model (old or new); differences will be explained in the following paragraphs.
Figures 3 and 4 allow to distinguish old version of SCE300 from the new version
(on the labels, the digits of Product Number are boxed); furthermore, the logic boards with
heatsink identies old version models, while logic boards without heatsink identies new
version models.
Figure 4 Label for US market – digit 6 on product coding chart

Installation, Operation and Maintenance Manual
VCIOM-17121-EN Rev. 0 August 2022
5
Section 3: Distinguish Old/New Models
Distinguish Old/New Models
Figure 5 Example of SCE300 old version (heatsink present)
Figure 6 Example of SCE300 old version (heatsink not present)

August 2022
Installation, Operation and Maintenance Manual
VCIOM-17121-EN Rev. 0
6Installation
Section 4: Installation
Section 4: Installation
To assemble the OM9 into the SCE300 actuator, proceed as follows:
• Ensure that all the parts received with the OM9 are available as described in
paragraph optional kits.
• Using paragraph optional kits, select only mechanical parts (screws and spacers)
depending on actuator models.
• Gather the right tools for the assembly and for setting the actuator controls.
• With an Allen wrench of 5 mm, unscrew the cover screws, see Figure 7.
Figure 7
• Remove the actuator cover, see Figure 8.
Figure 8
Follow one of the following assembling procedures depending on actuator model.

Installation, Operation and Maintenance Manual
VCIOM-17121-EN Rev. 0 August 2022
7
Installation
Section 4: Installation
4.1 Assembling Procedure for Models 63-125 Nm
Old Version (US or Non-US Market)
• Detect the black cable required for the OM9 which is already included in the basic
actuator, see Figure 9.
Figure 10
• Connect the at cable furnished into the kit to connector J1 on OM9,
see Figure 10.
Figure 9

August 2022
Installation, Operation and Maintenance Manual
VCIOM-17121-EN Rev. 0
8Installation
Section 4: Installation
• Tighten the 3 metal spacers, see Figure 12.
Figure 12
Figure 13
• Connect OM9 at cable to connector J8 on the logic board, see Figure 13.
spacer
• Unscrew the 3 screws, see Figure 11: 3 pcs M3x10.
Figure 11
screw

Installation, Operation and Maintenance Manual
VCIOM-17121-EN Rev. 0 August 2022
9
Installation
Section 4: Installation

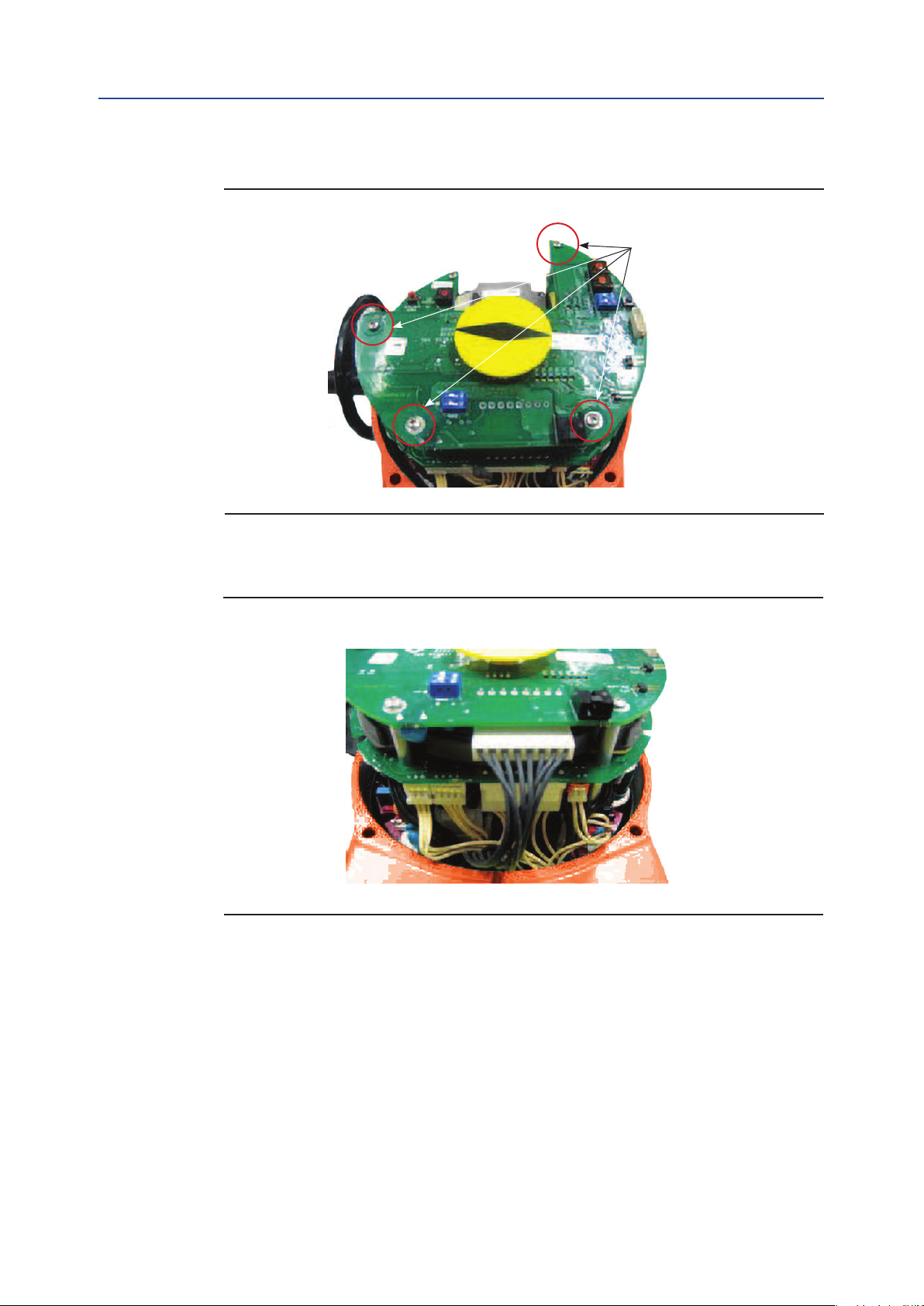

• Place the OM9 card onto the spacer and tighten the 4 screws, see Figure 14.
Figure 14
• Connect the 8-pin connector to connector J3 on OM9, see Figure 15.
Figure 15
screw

August 2022
Installation, Operation and Maintenance Manual
VCIOM-17121-EN Rev. 0
10 Installation
Section 4: Installation
4.2 Assembling Procedure for Models
250-500-1000-2000 Nm Old Version
(US or Non-US Market)
• Detect the black cable required for the OM9 which is already included in the basic
actuator; disassemble local mechanical indicator, see Figure 16.
Figure 16
• Connect the at cable furnished into the kit to connector J1 on OM9,
see Figure 17.
Figure 17

• Connect the 8-pin connector to connector J3 on OM9, see Figure 20.
Installation, Operation and Maintenance Manual
VCIOM-17121-EN Rev. 0 August 2022
11
Installation
Section 4: Installation
• Connect OM9 at cable to connector on the logic board, see Figure 18.
Figure 18

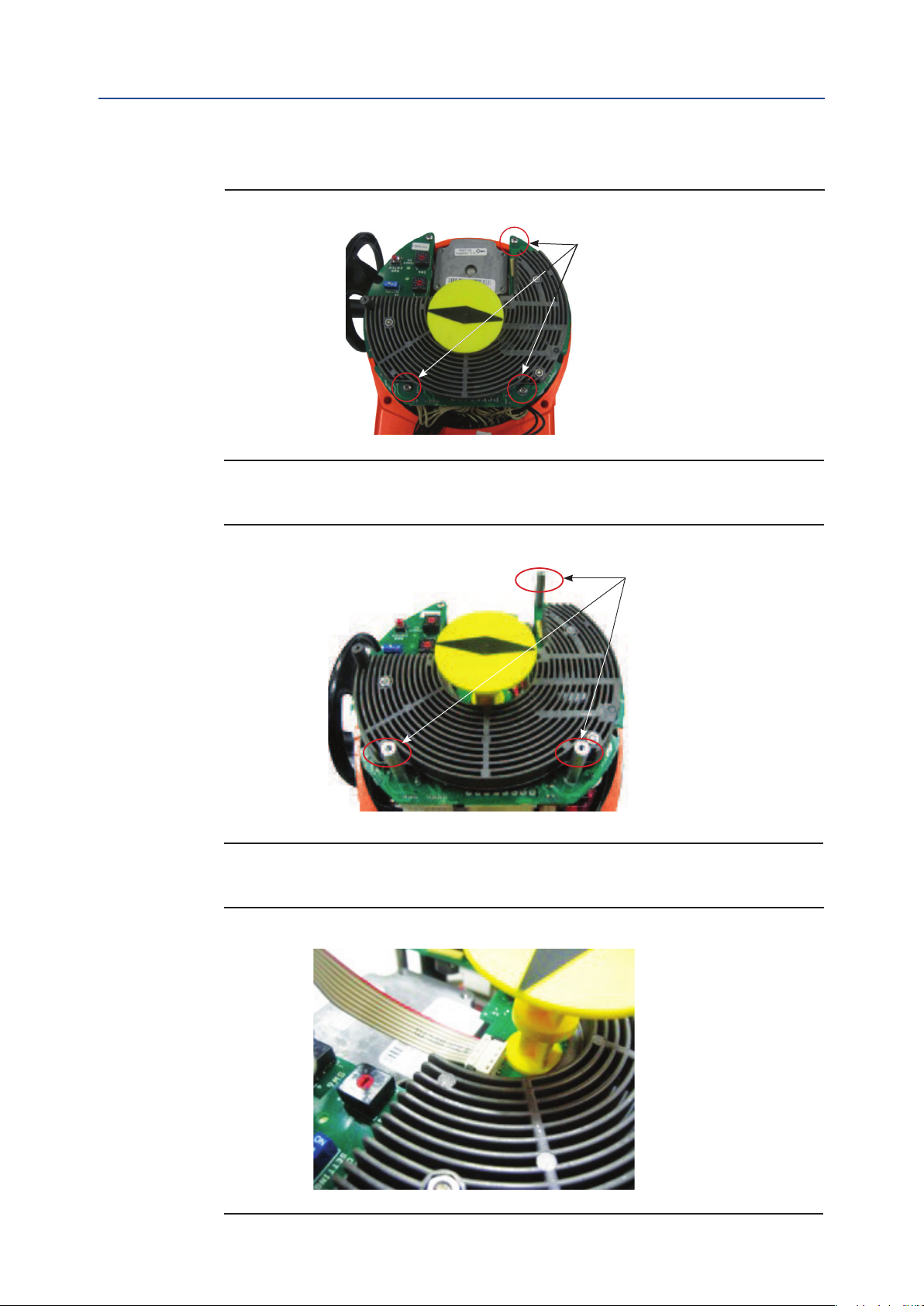

• Place the OM9 card onto the heatsink spacers and tighten the 4 screws; assemble
local mechanical indicator, see Figure 19.
Figure 19
Figure 20
screw

August 2022
Installation, Operation and Maintenance Manual
VCIOM-17121-EN Rev. 0
12 Installation
Section 4: Installation
4.3 Assembling Procedure for Models 63-125 Nm
New Version (US or Non-US Market)
• Detect the black cable required for the OM9 which is already included in the basic
actuator, see Figure 21.
Figure 21
• Connect the at cable furnished into the kit to connector J1 on OM9,
see Figure 22.
Figure 22

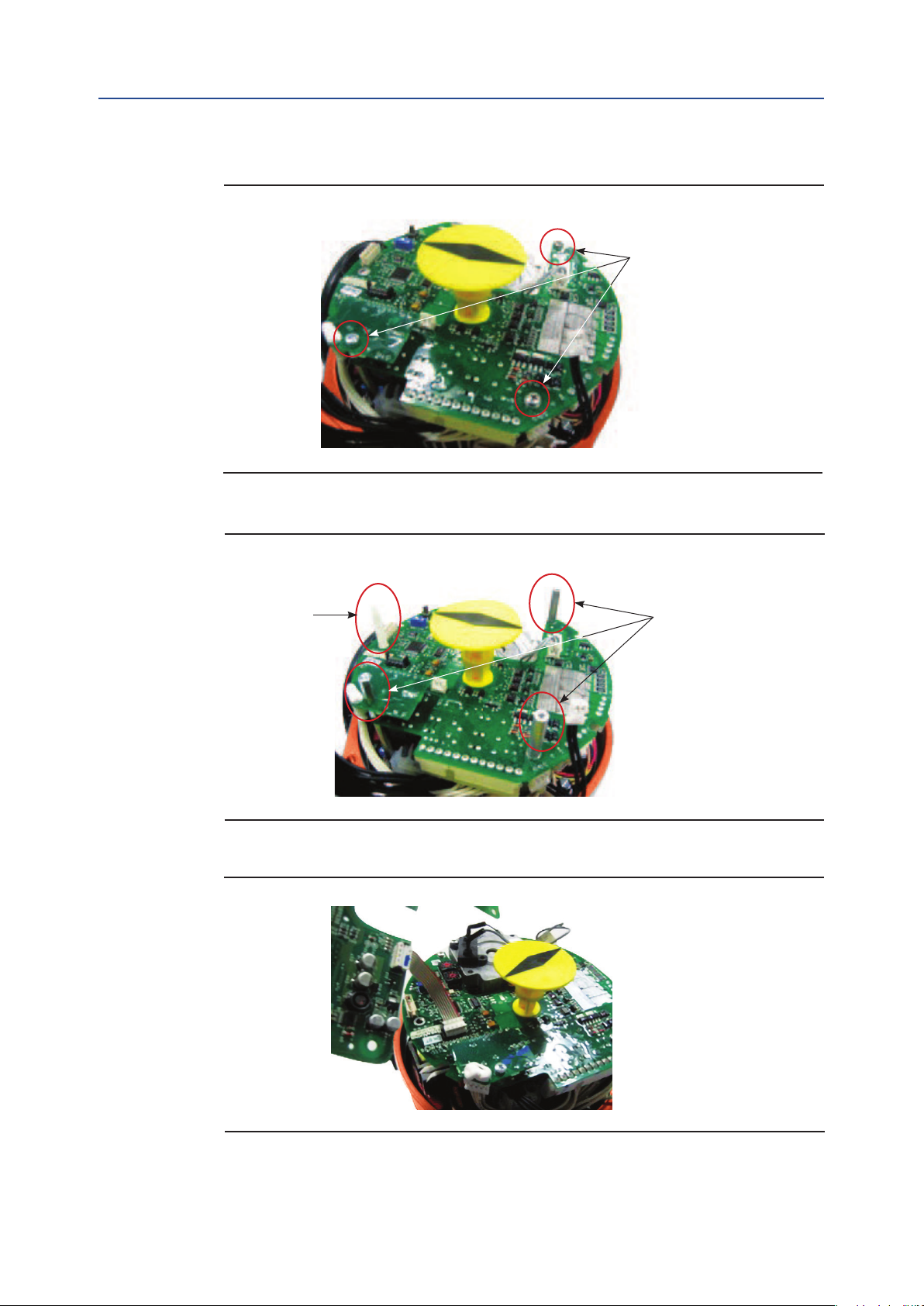

• Tighten the 3 metal spacers; insert the plastic spacer, see Figure 24.
plastic spacer metal spacer
Installation, Operation and Maintenance Manual
VCIOM-17121-EN Rev. 0 August 2022
13
Installation
Section 4: Installation
• Unscrew the 3 screws, see Figure 23.
Figure 23
Figure 24

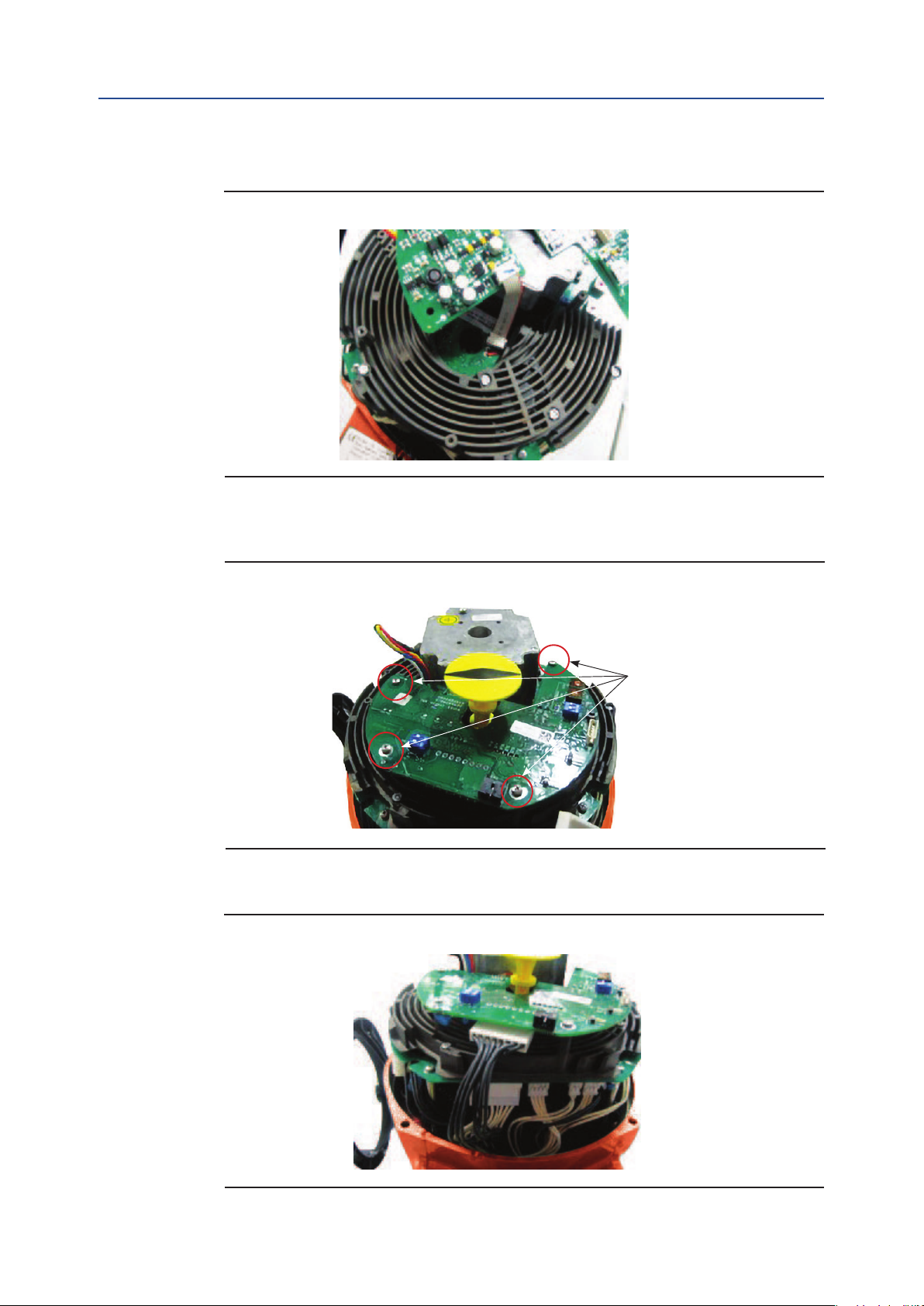

• Connect OM9 at cable to connector on the logic board, see Figure 25.
Figure 25
screw

• Place the OM9 card onto the spacers and tighten the 3 screws, see Figure 26.
• Connect the 8-pin connector to connector J3 on OM9, see Figure 27.
M3x8
August 2022
Installation, Operation and Maintenance Manual
VCIOM-17121-EN Rev. 0
14 Installation
Section 4: Installation
Figure 27
Figure 26
screw

• Tighten the 3 metal spacers and unscrew the screw that xes the motor cable,
see Figure 30.
Installation, Operation and Maintenance Manual
VCIOM-17121-EN Rev. 0 August 2022
15
Installation
Section 4: Installation
4.4 Assembling Procedure for Models
250-500-1000-2000 Nm New Version
(US or Non-US Market)
• Detect the black cable required for the OM9 which is already included in the basic
actuator; disassemble local mechanical indicator, see Figure 28.
Figure 28
• Connect the at cable furnished into the kit to connector J1 on OM9,
see Figure 29.
Figure 29
Figure 30
metal spacer
screw

August 2022
Installation, Operation and Maintenance Manual
VCIOM-17121-EN Rev. 0
16 Installation
Section 4: Installation
• Disassemble the local mechanical indicator and connect the OM9 at cable to the
connector on the logic board, see Figure 31.
Figure 31
• Place the OM9 card onto the spacers and tighten the 4 screws; assemble the local
mechanical indicator, see Figure 32.
Figure 32
screw
• Connect the 8-pin connector to connector J3 on OM9, see Figure 33.
Figure 33
NOTE:
Please note that all the connectors provided with the base actuator and all optional cards
are different from each other (in terms of design and number of pins). In no way is it
possible to make a wrong connection.
• The OM9 card is now connected.
• Replace the actuator cover and x it properly.
Table of contents
Other Emerson Recording Equipment manuals

Emerson
Emerson AE4-1395 Manual

Emerson
Emerson QuickPanel+ IC755C S06RD Series User manual

Emerson
Emerson SPS 4001B User manual

Emerson
Emerson ROSEMOUNT Analytical IMPS 4000 User manual

Emerson
Emerson Keystone OM11 User manual

Emerson
Emerson Bettis RTS User manual

Emerson
Emerson Keystone OM9 - EPI2 User manual

Emerson
Emerson Blue Wireless Easy Install 1F98EZ-1621 User manual

Emerson
Emerson ROSEMOUNT Analytical SPS 4000 Series User manual

Emerson
Emerson ControlWave GFC IStran User manual
