Emerson Blue Wireless Comfort Interface - Homeowner User Guide
HOMEOWNER USER GUIDE
1F98EZ-1621
EMERSON
®
BLUE
™
Wireless Comfort Interface

Message to Homeowners
Congratulations on choosing the Emerson Blue Wireless Control System!
This system features an intuitive Comfort Interface that utilizes wireless
technology for precise and reliable temperature control found in all
Emerson products.
The Emerson Blue Wireless Control System consists of a Comfort
Interface, Equipment Control Module, Return Air Sensor and optional
Indoor/Outdoor Remote Sensors (F145RF-1600). The Comfort Interface
provides a large, uncluttered display for adjustments to your home’s
temperature, humidity, and system conguration. Powered with batteries,
it communicates wirelessly to the Equipment Control Module and
Return Air Sensor (located near your furnace and air handler). For added
performance, this system can be congured to work with up to 3indoor
and 1outdoor Remote Sensor(s) (sold separately).
When “Change ”appears in the display, a new set of premium brand
AA alkaline batteries should be installed. If the house will be unoccupied
for an extended period, it is recommended that new batteries be installed
before leaving.
Need Help? For assistance with this product, please call 800-284-2925.
Page
Overview............................................... 3
Quick Start Guide................................... 6
Set CurrentTime and Day ...................... 6
Energy Saving Pre-Program................... 8
ProgrammingYour Comfort Interface ...... 9
Planning Your Program .......................... 9
Programming Tips – Copy Program........ 9
Heating and Cooling Worksheets ...........10
Enter Heating Program..........................11
Enter A/C Program ..................................15
UsingYour Comfort Interface .................. 16
Operating Your System ..........................16
Operating Your Fan ................................16
Page
Temporary Program Override ................17
Permanent Temperature Hold................17
Auxiliary Heating ...................................18
Dual Fuel Setpoint .................................18
Averaging with Indoor Remote Sensor...18
System Diagnostics ...............................18
Humidication and Dehumidication
Control ..............................................18
Humidity and Outdoor Temperature
Display ..............................................19
Replacing Batteries................................20
Conguration Menu Options................... 23
Homeowner Help Line............................ 28
Table of Contents

3Emerson Blue Wireless Comfort Interface - Homeowner User Guide
Overview
Room
Temperature
Time of Day
System
Indicator
Heat Button A/C
Button
Setting
Temperature
Day
of Week
Fan
Indicator
Run Button
Menu Button
Setting
Up/Down
Fan
Button
OFF Button
Wireless
Icon
Battery Status
Full charge
Half capacity
Change = Replace
Batteries
Comfort Interface Display
Other Display Icons
1
8
9
10
15 12
13
18
19
21
20
22
7
11
14
16
17
5
6
2
4
3

4Emerson Blue Wireless Comfort Interface - Homeowner User Guide
Overview
1. “Heat”, “A/C”, “Fan”, and “O” button labels. When lled, indicates system
mode selected.
2. “Connect”, “Time”, Schedule”, and “Next Day” additional button labels in
additional display modes.
3. “Aux” indicates congured for Heat Pump. “Aux” indicates Auxiliary
(Emergency) stage selected.
4. “Auto”indicates auto changeover mode can be selected. “Auto” indicates
System is in Auto changeover mode.
5. “Run” identies button to begin running the program, “Hold” identies button
to press to hold temperature.
6. “Menu” identies button to press for menus. “Copy” identies button to copy
program in Schedule mode.
7. “°C” indicates temperature displayed in Celsius.
8. “Limit” indicates temperature is adjusted to the limit set in the conguration
menu.
9. “Set” indicates desired temperature.
10. “Temp Hold” indicates temperature is changed for temporary length of time
and will return to program temperature, “Hold” indicates temperature will be
maintained until “Run” is pressed.

5Emerson Blue Wireless Comfort Interface - Homeowner User Guide
Overview Overview
11. “ ” indicates that Comfort Interface is in either partial or full keypad lock.
12. Indicates program period, “Morn” “Day” “Eve” or “Night”.
13. “Wireless Setup” appears when in the wireless set up mode.
14. “Humidity” indicates Humidity is being displayed instead of current time.
15. “Outdoor” indicates display is showing outdoor temperature (if outdoor
sensor is installed) instead of time.
16. Indicates afternoon (PM). No indication for Morning (AM).
17. “%” display is showing Humidity setting instead of Time of Day.
18. “Month” “Year” “Date” displays when setting time and date.
19. “Call for Service” displays when a fault occurs in the system.
20. “Change Filter” “Change Pad” displays if lter timer or humidier timer is set
and time has expired.
21. “Searching” in Wireless Setup appears when searching for components,
“Connected” displays to show connected to wireless component or “Failed”
appears to indicate loss of communication.
22. Dehumidication/Humidication indicator.

6Emerson Blue Wireless Comfort Interface - Homeowner User Guide
Quick Start Guide
Set Current Time and Day

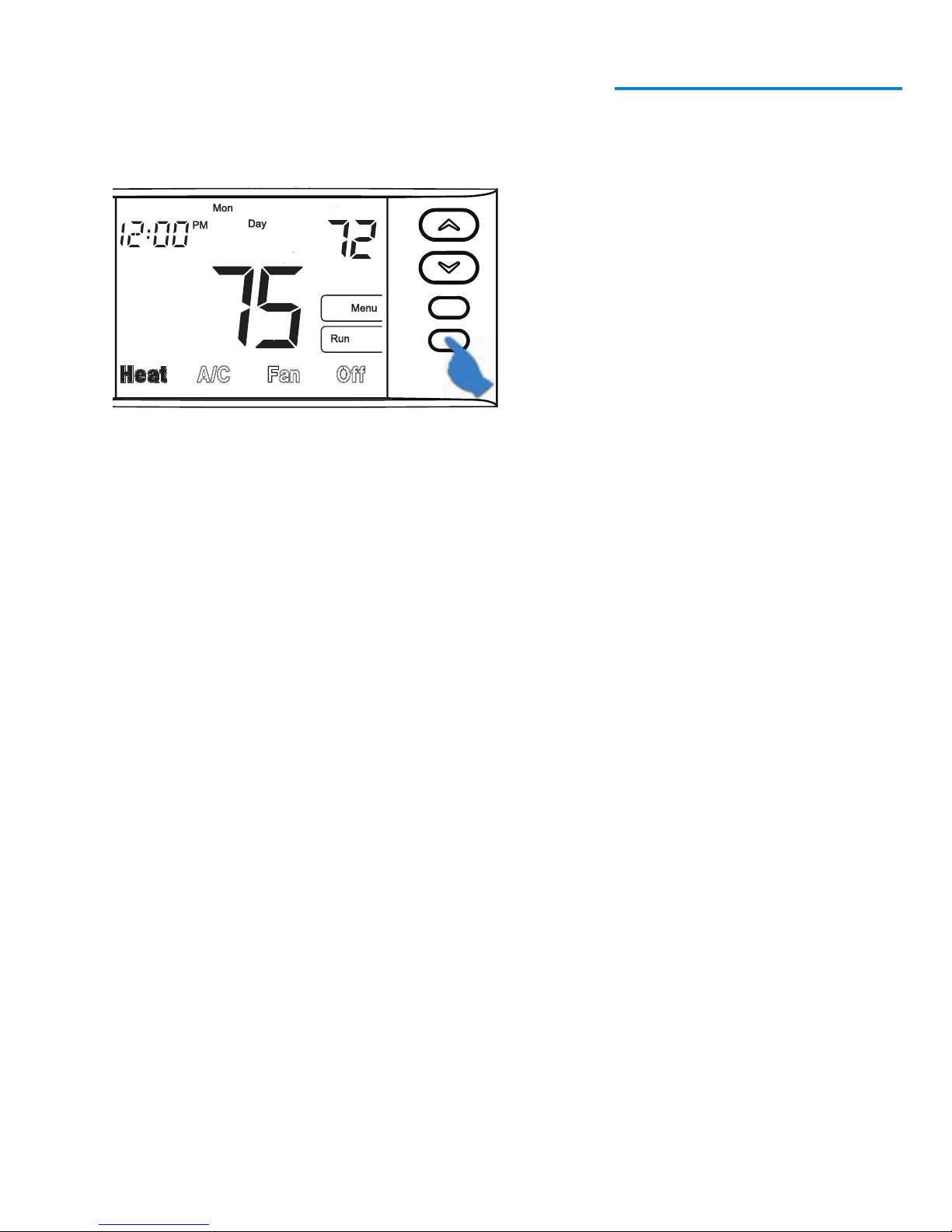

1. On the Home screen, press Menu button to display additional selections.
2. Press the Time button to display hour and “A” (AM) or “P” (PM) in the clock display.

7Emerson Blue Wireless Comfort Interface - Homeowner User Guide
Quick Start Guide Quick Start Guide
3. Press the or button to adjust the hour and “A” (AM) or “P” (PM).
4. Press Time to display the minutes.
5. Press the or button to adjust the minutes.
6. Press Time to display the year, month, and day of week.
7. Press the or button to adjust.
8. Press Run to return to home screen.

8Emerson Blue Wireless Comfort Interface - Homeowner User Guide
Energy Saving Pre-Program
This Comfort Interface is set up for 7independent day programming with 4time/
temperature periods per day. If the factory programming meets your needs, skip to
the “UsingYour Comfort Interface” section, page 15. If you wish to change the heat-
ing or A/C schedules, please proceed to the “ProgrammingYour Comfort Interface”
section on next page.
Factory Pre-Programmed schedule for two period Day / Night programs
Day Night
Heating Program 6:00 AM 70°F 10:00 PM 62°F
A/C Program 6:00 AM 75°F 10:00 PM 78°F
Factory Pre-Programmed schedule for four periods per day, all days of the week
Wake Up
(Morning)
Leave For
Work (Day)
Return Home
(Evening)
Go To Bed
(Night)
Heating
Program 6:00 AM 70°F 8:00 AM 62°F 5:00 PM 70°F 10:00 PM 62°F
A/C
Program 6:00 AM 75°F 8:00 AM 83°F 5:00 PM 75°F 10:00 PM 78°F
Quick Start Guide
If you prefer your Comfort Interface to be non-programmable, refer to the
“Conguration Menu Options”, menu # 03, page 20.

9Emerson Blue Wireless Comfort Interface - Homeowner User Guide
ProgrammingYour Comfort Interface
PlanningYour Program
The Worksheet on page 10 allows you to pencil in your own program times and tem-
peratures. Factory settings are listed on Monday (for Monday thru Friday), Saturday
and Sunday.
If you are re-programming all 7 days, ll in all lines with the times and temperatures
you want. Use this worksheet as a guide to reprogram the Comfort Interface. Keep
the following guidelines in mind when planning your program.
>In Heating, lower temperatures will save energy.
>In A/C, higher temperatures will save energy.
Programming Tips - Copy Program
When programming your Comfort Interface,you may copy the program from one
day to another day. To copy a program:
1. In Schedule mode, enter the program for the day.
2. Press Copy. The copied day will be solid and the ashing day(s) identies where
the copied program will be saved.
3. Press Next Day to change the day(s) where the copied program will be saved.
4. Press Copy. The program is now copied to the new day(s).
Quick Start Guide

10 Emerson Blue Wireless Comfort Interface - Homeowner User Guide
A/C
Program
Wake Up
(Morning)
Leave For Work
(Day)
Return Home
(Evening)
Go To Bed
(Night)
MON 6:00 AM 75°F 8:00 AM 83°F 5:00 PM 75°F 10:00 PM 78°F
TUE
WED
THU
FRI
SAT 6:00 AM 75°F 8:00 AM 75°F 5:00 PM 75°F 10:00 PM 78°F
SUN 6:00 AM 75°F 8:00 AM 75°F 5:00 PM 75°F 10:00 PM 78°F
Worksheet for Re-Programming 7-Day Program
Heating
Program
Wake Up
(Morning)
Leave For Work
(Day)
Return Home
(Evening)
Go To Bed
(Night)
MON 6:00 AM 70°F 8:00 AM 62°F 5:00 PM 70°F 10:00 PM 62°F
TUE
WED
THU
FRI
SAT 6:00 AM 70°F 8:00 AM 70°F 5:00 PM 70°F 10:00 PM 62°F
SUN 6:00 AM 70°F 8:00 AM 70°F 5:00 PM 70°F 10:00 PM 62°F
Fill in the blank worksheet with your desired times and temperatures:
ProgrammingYour Comfort Interface

11Emerson Blue Wireless Comfort Interface - Homeowner User Guide
2. Press Schedule button. The display will show the day and period being
programmed with the time and temperature. The temperature will be  ashing to
indicate it can be adjusted.
Enter Heating Program
1. In Heat mode, press the Menu button to display additional button selections.
Program Period
Program
Temperature
Flashing
Program Time
System Mode
ProgrammingYour Comfort Interface

12 Emerson Blue Wireless Comfort Interface - Homeowner User Guide
3. Press the or button to set the temperature for that period.
4. Press the Time button and use the or button to change the period’s start
time in 15 minute increments.
Note: If indoor remote sensors are installed proceed to step 5, otherwise skip to step 6.
Temperature
Setting
Program Time
Flashing
ProgrammingYour Comfort Interface

13Emerson Blue Wireless Comfort Interface - Homeowner User Guide
5.FOR INDOOR REMOTE SENSORS ONLY: Press Time again and use the
or button to deactivate or activate the Comfort Interface’s internal
temperature sensor. A display showing dashes (--) indicates it has been
deactivated. This setting makes your system rely upon the temperature from
the remote sensor(s) to control temperature.
ProgrammingYour Comfort Interface
Current Temperature
Flashing
Indicates Internal
Sensor is O
Indicates Internal
Sensor is On

14 Emerson Blue Wireless Comfort Interface - Homeowner User Guide
7. Press Next Day and repeat the previous steps to program the remaining days.
ProgrammingYour Comfort Interface
6. Press Schedule to advance to the next period. Using the Time and or
buttons, program the remaining periods for that day.
Note: Use the Copy button to copy the currents day’s program to any other day
(see page 9).

15Emerson Blue Wireless Comfort Interface - Homeowner User Guide
Enter A/C Program
Press A/C to place Comfort Interface in air conditioning mode. Set the A/C program
following the previous steps for heating.
ProgrammingYour Comfort Interface
OperatingYour System
8. Press Run to exit programming.

16 Emerson Blue Wireless Comfort Interface - Homeowner User Guide
OperatingYour System
Press Heat or A/C button to select Heating or Cooling. Press O  to turn Heating or
A/C o .
UsingYour Comfort Interface
OperatingYour Fan
The Fan will run automatically with Heat or Cool. To run the fan continuously, press
Fan button.

17Emerson Blue Wireless Comfort Interface - Homeowner User Guide
Temporary Program Override
This feature overrides the program temperature setting for a two hour period. Press
or button to adjust the temperature. The display will show “Temp Hold” to
the left of the desired temperature. To cancel the temporary setting and return to the
program, press Run. Example: If you turn up the heat during the morning program, it
will automatically return to the programmed temperature two hours later.
UsingYour Comfort Interface
Permanent Temperature Hold
The Permanent Temperature Hold feature bypasses the program and holds the
temperature inde nitely.
Press the Hold button once. The display will show “Hold” to the left of the
temperature setting. Press or button to adjust the temperature you want.
To cancel the permanent hold setting at any time and return to the program, press
Run button. Displays after
pressing Hold

18 Emerson Blue Wireless Comfort Interface - Homeowner User Guide
UsingYour Comfort Interface
Auxiliary Heating
If your heating system is a heat pump, the system activates Auxiliary Heating when
the outside temperature is too cold for the heat pump to eciently heat the home.
You can manually activate the auxiliary heating and bypass the heat pump by
pressing and holding the Heat button until Aux changes to Aux. To resume heat
pump operation without auxiliary press the Heat button again.
Dual Fuel Setpoint (requires the outdoor remote sensor and a heat
pump with aux gas heat)
This feature turns on auxiliary gas heat and turns o the heat pump when the
outdoor temperature falls below the user dened “Dual Fuel Setpoint”. To
change the “Dual Fuel Setpoint”, see further instructions in “Conguration Menu
Options”, menu # 21, page 23.
Averaging with Indoor Remote Sensor(s)
The Comfort Interface displays the average of the local sensor and any indoor remote
sensors unless a device has been deactivated.
System Diagnostics
“Call for Service” will be displayed if your heating or air conditioning system needs a
qualied service technician to service the equipment.
Humidication and Dehumidication Control
This feature controls the humidity level inside your home. To change the
humidication and dehumidication setpoints, see further instructions in
“Conguration Menu Options”, menu #s 07 and 08, page 21.

19Emerson Blue Wireless Comfort Interface - Homeowner User Guide
UsingYour Comfort Interface
Humidity and Outdoor Temperature Display
The Comfort Interface can be congured to display the current humidity inside your
home and/or the current outdoor temperature (if outdoor sensor is installed). When
turned on, the display will cycle time, humidity, and/or outdoor temperature. See
“Conguration Menu Options”, menu #s 11 and 12, page 21.

20 Emerson Blue Wireless Comfort Interface - Homeowner User Guide
UsingYour Comfort Interface
+
+
-
-
+
+
-
-
Pull interface o base
4“AA” Batteries
Rear view of Comfort Interface
Optional Indoor/Outdoor Remote Sensors
If a sensor is not communicating or the batteries are dead and need to be replaced,
the Comfort Interface display will alternately ash time/temperature and remote
sensor number (RS1, RS2, RS3or ORS)/two dashes (--).
Replacing Batteries
Replace batteries when “Change ” is
displayed.
