EMG F-H1 Service manual

INSTALLATION INFORMATION
EMG MODELS: F-H1, F-H1A, F-H2, F-H2A, F-H3, F-H3A
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
warranty covers only those pickups and accessories sold by authorized EMG Dealers. This warranty is not transferable.
© 2009 Copyright EMG INC. All Rights Reserved.
PO BOX 4394
SANTA ROSA, CA
95402 USA
P [phone]
F [phone]
EMGPICKUPS.COM
0230-0222A
*Note: Magnet Type: A (Alnico) A/S (Alnico/Steel) C (Ceramic) C/S (Ceramic/Steel)
(1) Wired in Series
(2) Loaded with 500K Volume and Tone with a 20’ (6M) cable
(3) Loaded with 1 MegOhm / 47pf
SPECIFICATIONS: MODEL:
F-H1 F-H1A F-H2 F-H2A F-H3 F-H3A
Logo Color Silver Gold SIlver Gold Silver Gold
Magnet Type * C/S A/S C/S A/S C/S A/S
Inductance (Henries) (1) 7.15 7.80 4.53 4.90 7.40 7.67
DC Resistrance (kOhm) 13.65 13.65 8.40 8.40 13.65 13.65
Resonant Frequency (KHz) (2) 1.65 1.65 2.22 2.12 1.72 1.72
Resonant Frequency (KHz) (3) 3.12 3.00 4.00 3.82 3.00 2.92
Impedance at Resonance (kOhm) (2) 74.00 80.80 63.30 65.40 80.20 83.30
FLOYD MODELS
BLACK RED
GREEN
WHITE
STUD BOBBIN
SCREW BOBBIN
+_
+_
COIL 1
COIL 2
EMG-HZ COIL WIRING
Installation notes:
All EMG-HZ Pickups are compatible with each other. The connector system is an easy method of installation, avoiding the need to solder.
Older HZ Pickup Systems may need to be soldered, while the newer systems can be easily connected and modified. If you have an older
EMG-HZ Pickup you can install it with the new system. Refer to the B157 Buss data sheet to solder pickups without connectors.
EMG Accessory Circuits like the VLPF, EXG, SPC or RPC Controls can be added to any EMG Pickup System, all have buffered inputs and can
be used on either passive or active pickups. SPECIAL NOTE: The Red Wire of the HZ Pickup is NOT for battery power, it is a coil wire.
The B157 Pickup Buss is included with the EMG-HZ Pickups. If your installation is passive only and doesn’t require a battery the RED V+ port
of the Buss will not be used. If you decide to add active circuitry the B157 can power as many as 5 accessories. There are many EMG
Accessories that can be added to your instrument easily. Go to http://www.emgpickups.com .
Each Pickup Includes:
1 ea 5-Pin cable pre-wired in Humbucking Series format
2 ea 500K Pots with quick-connect solderless connectors
1 ea B157 Buss Board
1 ea #11 1/4 inch Phone Jack
2 ea Adjustment screws and springs

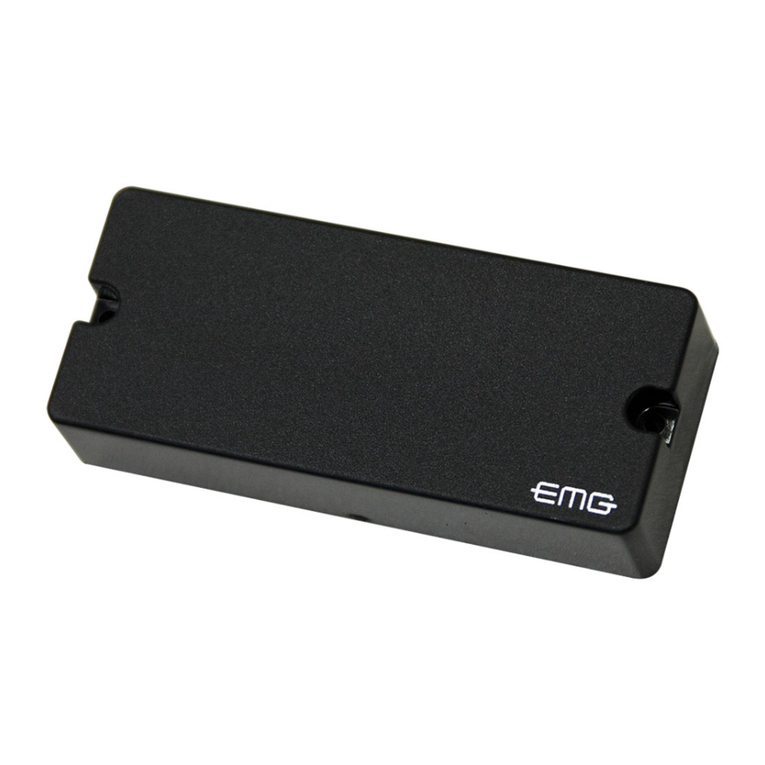

All EMG-HZ Pickups are direct replacement for Humbucking size Pickups.
The 5-Wire cable allows Series/Parallel switching or simple
single/dual-coil combinations can be used.
Pole Spread:
Standard Pole Piece spread is .388 (9.85mm) for Tune-o-matic bridges
Floyd Rose Pole Piece spread is .420 (10.67mm) for Floyd Rose bridges
Models H4 and H4A feature Bar Poles and are suitable for either bridge style
2.75
1.50
3.08
3/48 MOUNTING HOLES
.90
.42 TYP

Diagram #3
One Pickup
One Volume
Diagram #4
One Pickup
One Volume
One Tone
TIP
SLEEVE
Diagram #5
FROM TONE
OR VOLUME
Diagram #1
Diagram #2
Installation Instructions:
EMG Models: FH-1, F-H1A, F-H2, F-H2A, F-H3, F-H3A
B159A
General Notes:
Every attempt has been made to make this a solderless installation.
There are some instances where this is not possible;
1) If your instrument uses the long panel output jack, soldering will be required
2) Instruments with two pickups may need soldering to the selection
switch in some installations.
If you are installing only one pickup use the instructions on this page.
If you are installing two pickups go to page 3 and begin there.
HZ (FH1) INSTRUCTIONS Page 2
VOLUME250K 500K
B159A
VOLUME250K 500K
T
S
OUTPUT
T
S
OUTPUT
GREEN AND SHIELD
RED
BLACK AND WHITE
EMG-HZ Wire Order:
Pin 1 Green (GRN)
Pin 2 White (WHT)
Pin 3 Braid (GND)
Pin 4 Red (RED)
Pin 5 Black (BLK)
Soldering to the 151 Panel Jack:
If your instrument has a long Panel Jack like the one below
you will have to solder the output cable as shown.
Ground (Black) to the Sleeve
Signal (White) to the Tip
250K 500K
B160A
TONE
EMG
Installation (One Pickup Guitars):
1) Plug the pickup cable onto the EMG Pickup header as shown
in Diagram #1 and route the cable to the control cavity.
If the cable is too long, wind up the excess and keep it
under the pickup if possible.
Diagram #2 shows the factory pre-wired cable. The Green
wire and shield are pre-wired to Pin 1 and the Red wire is
pre-wired to Pin 2. The Red wire is the signal output from
the pickup. The White and Black wires are wired together and
covered with shrink tubing. This is standard humbucking series
wiring.
Master Volume control only
2) Refer to Diagram #3.
Plug both the Pickup cable and the output
cable onto the Volume control as shown, then go to step 4.
Master Volume and Tone control
3) Refer to Diagram #4.
Plug the Pickup cable onto the Volume
control as shown. Plug a coax cable from the Volume control
to the Tone control. Plug the output cable onto the tone
control as shown.
4) Connect the wires of the output cable to the output jack by
pushing the connectors on as shown.
WHITE wire to the TIP (T) contact,
BLACK wire to the SLEEVE (S) contact
We suggest that you plug in the instrument and
test it before closing the control cavity.
MASTER
VOLUME
FROM PICKUP
MASTER
TONE
OUTPUT CABLE
OUTPUT CABLE
MASTER
VOLUME
FROM PICKUP

Installation Instructions:
EMG Models: FH-1, F-H1A, F-H2, F-H2A, F-H3, F-H3A
HZ (FH1) INSTRUCTIONS Page 3
VOLUME250K 500K
B159A
EMG
T
S
OUTPUT
BRIDGE PICKUP (POSITION 1)
NECK PICKUP (POSITION 2)
OUTPUT (POSITION 3)
NECK PICKUP
BRIDGE PICKUP
Diagram #6b
2 Pickups
Toggle Style Select Switch
Master Volume & Master Tone
MASTER
TONE
FROM NECK PICKUP
FROM BRIDGE PICKUP
MASTER
VOLUME
OUTPUT CABLE
****Tips and Tricks****
****Tips and Tricks****
Start your installation by:
Start your installation by:
1) Remove the strings
1) Remove the strings
2) Remove any existing Pickups and controls
2) Remove any existing Pickups and controls
(remember the order and function of each control)
(remember the order and function of each control)
3) Determine a good spot for the Pickup Buss and make sure the
3) Determine a good spot for the Pickup Buss and make sure the
cable or wires from the selection switch will reach the Pickup Buss,
cable or wires from the selection switch will reach the Pickup Buss,
4) Install the EMG Volume and Tone Controls and tighten them in.
4) Install the EMG Volume and Tone Controls and tighten them in.
5) Then install the pickups keeping any excess cable under the pickup
5) Then install the pickups keeping any excess cable under the pickup
rather than in the control cavity.
rather than in the control cavity.
GROUND
BRIDGE P/U
NECK P/U
OUTPUT
OUTPUT TO MASTER VOLUME
2 Pickups / Toggle Select Switch / Master Volume and Tone
1) Install the Pickups and route the Pickup cables to the control cavity.
If the cables are too long, wind up the excess and keep it under the pickup.
2) Mount the Volume and Tone controls into the body.
Plug both Pickup cables onto the Pickup Buss (BLACK Shroud) as shown,
Refer to Diagram #6a
Bridge Pickup to Position 1
Neck Pickup to Position 2.
3) Plug a coax cable from the Pickup Buss (Position 3) to the Master Volume
control as shown in Diagram #6b.
4) Plug a coax cable from the Master Volume to the Master Tone as shown.
5) Strip the insulation from the switch wires and Insert them into the GREEN
Terminal Block and tighten the screws with a small screwdriver.
The Bridge pickup goes to the BR Terminal
The Neck pickup goes to the NK Terminal
The Output of the switch goes to the O Terminal
If there is a ground wire coming from the switch, insert it into one of the black
terminals on the terminal block.
6) Plug the output cable onto the Master Tone control and connect the output
wires to the output jack by pushing the connectors on as shown.
WHITE wire onto the TIP (T) contact,
BLACK wire onto the SLEEVE (S) contact
We suggest that you plug in the instrument and test it before closing the
control cavity.
Diagram #6a
1) Install the Pickups and route the Pickup cables to the control cavity.
If the cables are too long, wind up the excess and keep it under the pickup.
2) Mount the Volume and Tone controls into the body.
Plug both pickup cables onto the Volume controls as shown.
Plug a coax cable from the Bridge Volume control to the Pickup Buss (Position 1)
Plug a coax cable from the Neck Volume control to the Pickup Buss (Position 2)
3) Plug a coax cable from the Pickup Buss (Position 3) to the Master Tone
control as shown.
4) Strip the insulation from the switch wires and Insert them into the GREEN
Terminal Block and tighten the screws with a small screwdriver.
The Bridge pickup goes to the BR Terminal
The Neck Pickup goes to the NK Terminal
The Output of the switch goes to the O Terminal
If there is a ground wire coming from the switch, insert it into one of the black
terminals on the terminal block.
5) Plug the output cable onto the Tone control and connect the wires to the
output jack by pushing the connectors on as shown.
WHITE wire onto the TIP (T) contact,
BLACK wire onto the SLEEVE (S) contact
We suggest that you plug in the instrument and test it before closing the
control cavity.
2 Pickups / Toggle Select Switch / 2 Volumes and Master Tone
Refer to Diagram #7 (Next Page)
250K 500K
B160A
TONE
EMG
Installation (Two Pickup Guitars with Selection switch):
Guitars with two pickups and a selection switch will use the EMG B157 Pickup Buss.
The Pickup Buss is a convenient way to wire your guitar without soldering.
There is a separate sheet attached to these instructions that describes the
Pickup Buss in detail. Since you are installing passive EMG-HZ Pickups the RED
Shroud of the B157 Pickups Buss will not be used. It is for battery power.
In all installations it’s best to find a place to mount the Pickup Buss in the control
cavity before starting. Then, after the cables are routed use the velcro to mount it
securely.

NK VOLUME
HZ (FH1) Page 4
VOLUME250K 500K
B159A
EMG
VOLUME250K 500K
B159A
EMG
1) Install the Pickups and route the cables to the control cavity.
If the cables are too long, wind up the excess and keep it under the pickup.
2) Mount the Volume and Tone controls into the body
Plug both Neck and Bridge pickup cables onto the Volume Controls as shown.
Plug a coax cable from the Bridge (BR) Volume control to the Pickup Buss
(Position 1).
Plug a coax cable from the Neck (NK) Volume control to the Pickup Buss
(Position 2).
3) Plug a coax cable from the Bridge (BR) Volume control to the Bridge (BR) Tone
control as shown.
4) Plug a coax cable from the Neck (NK) Volume control to the Neck (NK) Tone
control as shown.
5) Strip the insulation from the switch wires and Insert them into the GREEN
Terminal Block and tighten the screws with a small screwdriver.
The Bridge pickup goes to the BR Terminal
The Neck Pickup goes to the NK Terminal
The Output of the switch goes to the O Terminal
If there is a ground wire coming from the switch, insert it into one of the black
terminals on the terminal block.
6) Plug the output cable onto the Pickup Buss (Position 3) and push the
connectors onto the jack as shown.
WHITE wire onto the TIP (T) contact,
BLACK wire onto the SLEEVE (S) contact
We suggest that you plug in the instrument and test it before closing the
control cavity.
T
S
OUTPUT
T
S
FROM NECK PICKUP
FROM BRIDGE PICKUP
BR VOLUME
NK TONE
BR TONE
Diagram #8
2 Pickups
2 Volume (either volume will act as a master)
2 Tone
Toggle Style Switch
OUTPUT
NK VOLUME
FROM NECK PICKUP
FROM BRIDGE PICKUP BR VOLUME
MASTER
TONE
Diagram #7
2 Pickups
Toggle Style Switch
Volume each Pickup (Volumes are independent)
Master Tone
OUTPUT CABLE
GROUND
BRIDGE P/U
NECK P/U
OUTPUT
GROUND
BRIDGE P/U
NECK P/U
OUTPUT
OUTPUT CABLE
2 Pickups / Toggle Select Switch / 2 Volumes and 2 Tones)
Refer to Diagram #8
250K 500K
B160A
TONE
EMG
250K 500K
B160A
TONE
EMG
250K 500K
B160A
TONE
