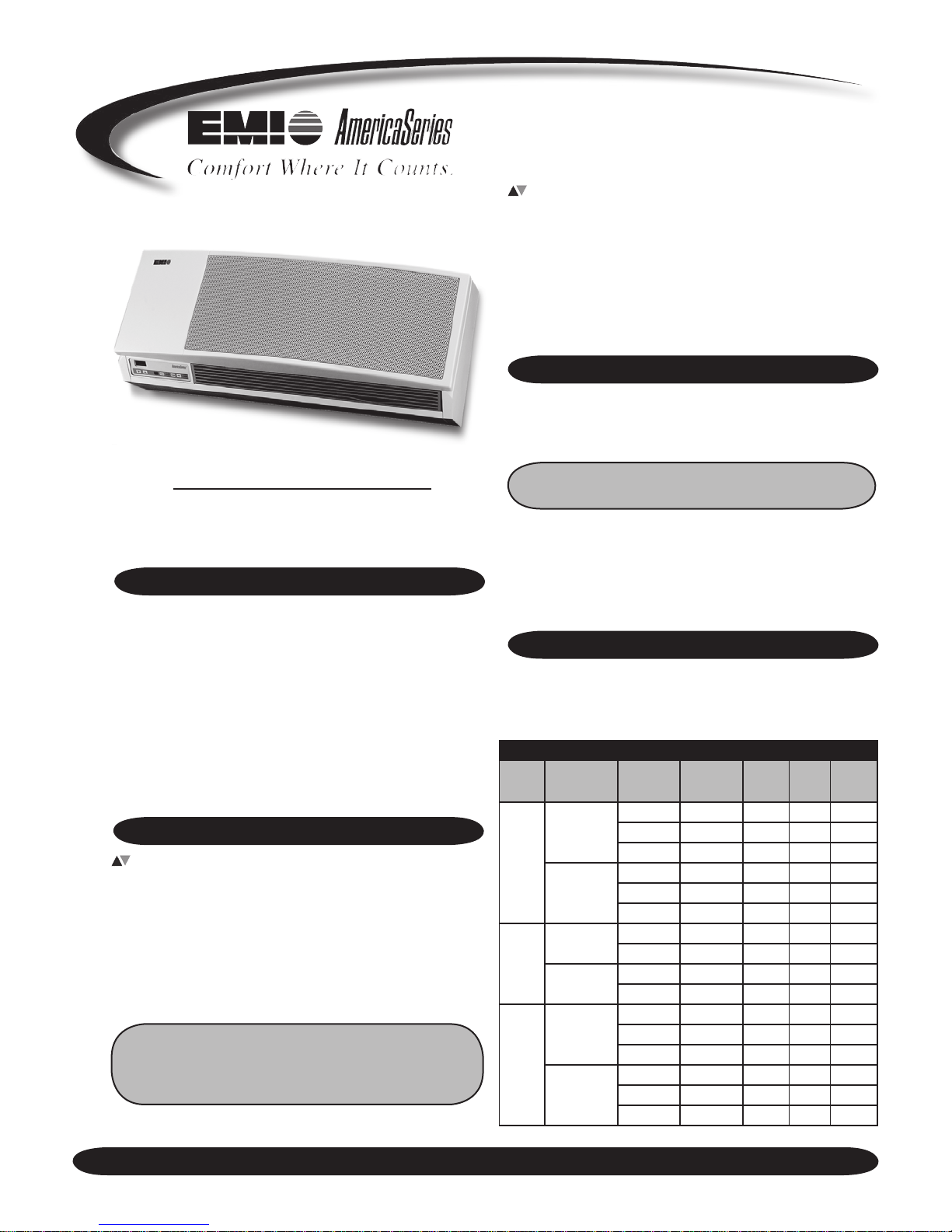

EMI High Wall Air Handler WCP User manual

Web: http://www.enviromaster.comEnviromaster International LLC
PRODUCT DESCRIPTION
The WCP is a contemporary design, chilled water air handler
that combines attractive appearance in any decor, with the
highly efcient conditioning of small to mid size commercial
or residential spaces. Equipped with unit mounted infrared
compatible controls, optional hand held remote also
available.
Units provide up to a nominal 30,000 Btuh of cooling. Electric
heat options are available for up to 5KW of supplemental
heat. It can be paired with a matching capacity chilled water
supply.This allAmerican made unit offers ease of installation,
operation and service.
Factory Installed Controls/Components:
• Relays and connections for chilled water supply
• Unit mounted digital controls as standard:
– Large ¾” LCD display
– Anti-short cycle protection
– Fan purge (fan remains on for 60 seconds after
heat/cool call dropped for improved efciency)
• Auto/high/low fan operation
• Low Volt transformer
NOTE: Auto fan operation automatically selects
fan speed according to heating or cooling demand.
Constant fan operation is manually selected high or
low speed.
Materials of Construction:
• Cabinet (available in designer white with grey discharge
vanes) fabricated of cold roll steel with structural stiff-
eners
• Air inlet panel made from high impact polystyrene with
perforated steel grille
• Discharge grille constructed of high temperature Noryl
• Condensate drain pan made from galvanized steel
(G90U) with anti-corrosion coating
OPTIONAL EQUIPMENT
• Hand held infra-red remote controller (a separate hand
held remote controller used to command the on-board
controls).
NOTE:Unit mounted controls are fully functional
without the remote controller.
• Field installed condensate pump
• 24V remote thermostat with controls & relays
• Chilled water control valve (N/C 24V ac, 20VA max. or
8 VA max. on units with condensate pumps)
• Electric heat with automatic reset high temperature
cutout and redundant high temperature fuse link.
INSTALLER SUPPLIED ITEMS
• Power wiring & low voltage wiring
• Mounting screws and fasteners
• Chilled water & condensate piping
WCP
HigH Wall air Handler
SpecificationS and performance
P/N# 240003248 Rev. A [06/08]
AIR HANDLER STANDARD FEATURES
2 PiPe CHilled Water Fan Coil
Nominal Capacities: 9000, 12000,
15000, 18000, 24000, 30000 Btuh
WCP CAPACITIES
Model Nominal
Capacaties Total
Capacity Sensible
Capacity Fluid
Temp. Fluid
Flow PD
Ft. H
2
0
09/12
9,000 7,375 6,732 45 1 0.8
10,801 8,272 45 2 3.8
13,270 9,279 45 3 8.0
12,000
8,387 7,189 40 1 0.8
12,481 8,950 40 2 3.9
15,643 10,304 40 38.1
15 /18
15,000 15,624 13,477 45 2 4.4
19,761 15,367 45 39.1
18,000 17,724 14,379 40 2 4.5
23,073 16,763 40 3 9.3
24/30
24,000
20,563 17,564 45 32.3
29,031 21,178 45 6 8.3
32,320 22,539 45 917.7
30,000
23,600 18,887 40 32.4
34,400 23,423 40 68.4
38,790 25,351 40 917.9
Made in Rome, New York, USAWCP Chilled Water Air Handler
WCP Dimensions and Specications
NOTE: Due to EMI’s ongoing development programs, design and specications may change without notice.
Enviromaster International LLC
5780 Success Drive, Rome, NY 13440
www.enviromaster.com
WCP PHYSICAL DIMENSIONS
Model Width “A” Height “B” Depth “C” Width “D” Width “E” Width “F” Width “G” Width “H” Width “I” Shipping
Wt.
09/12 36½” 14½” 10¾” 32” 9” 24½” 8” 18” 16” 85
15/18 47½” 14½” 10¾” 32” 10” 34½” 8” 18” 27” 115
24/30 57½” 14½” 10¾” 42” 10” 44½” 8” 27” 28” 115
36 57½” 17” 11¼” 42” 10” 44½” 10½” 25” 28½” 115
WCP ELECTRICAL SPECIFICATIONS
Model # Volts/HZ/
Phase
Fan Total
Amps Min.
Volt
Min.
Ampacity
(1)
Max
Fuse (1)
FLA HP
09A, 12A 115/60/1 0.64 0.03 0.64 104 0.8 15
09D, 12D 208/230/60/1 0.34 0.02 0.34 197 0.43 15
15A, 18A 115/60/1 1.2 0.083 1.2 104 1.5 15
15D, 18D 208/230/60/1 0.56 0.07 0.56 197 0.7 15
24A, 30A 115/60/1 1.2 0.083 1.2 104 1.5 15
24D, 30D 208/230/60/1 0.56 0.07 0.56 197 0.7 15
(1) If electric heaters are installed, use Min Amp and Max Fuse from Heater Options Chart.
DISCHARGE AIR SPEED AND FLOW
(230V High Speed Fan)
Model CFM Coil FPM Throw/Ft.
9/12 310 Dry 960 16
15/18 600 Dry 1412 26
24/30 750 Dry 1400 25
36 750 Dry 1400 25
WCP OBSERVED
SOUND VALUES
(230V High Speed Fan)
Model DbA
9/12 48
15/18 51
24/30 54
36 54
WCP ELECTRIC HEAT OPTIONS
Model Voltage KW Heater
Amps Total
Amps Min. Cir.
Amps Max
Fuse
9/12 230 313.1 13.5 16.8 20
15/18 230 313.1 13.6 17 20
24/30 230 521.7 22.3 27.9 30
36 230 521.7 22.3 27.9 30
CONNECTIONS
WCP
Chilled Line
Size Drain Size
1/2” I.D. 1/2” I.D.
5/8” I.D. 1/2” I.D.
5/8” I.D. 1/2” I.D.
3/4” I.D. 1/2” I.D.
