Eminent PL369 User manual

LOCKS

PAD LOCK
code: PL369
COMBINATION LOCK INSTRUCTION
1. The preset open combination at factory is 0-0-0.
2. Turn shackle 90° (as fig. shown) after the lock is opened, push shackle downward and press firmly,
then turn dials to your desired numbers.
3. Release shackle, your new combination is now set.
LOCKS
PL369
Shackle size: Ø3.2mm
W32 x D15 x H56.5mm
Housing material: ABS
Weight: 20g

TSA FIXED LOCK
code: TSA192
COMBINATION LOCK INSTRUCTION
The original combination is 0-0-0.
To set your own combination, please follow these easy steps:
Setting
Push A and hold it without releasing. Turn D to the combination of your choice. Release A.
Locking
Turn D to the combination you have Set Put B into the slots C.
Turn D to any combination other than the one you set.
Unlocking
Turn D to the combination you set Push E in the direction of arrow.
LOCKS
The zipper lock is preset at 0-0-0

TSA PAD LOCK
code: TSA302
COMBINATION LOCK INSTRUCTION
The original combination is 0-0-0.
To set your own combination, please follow these easy steps:
1. Pull up the shackle to open the lock (A).
2. Rotate the shackle 90° counterclockwise and press all
the waydown (B). Hold down and continue to turn
another 90° counterclockwise (C).
3. Set your own combination by turning the dials.
4. Turn the shackle back as normal. Then the setting is completed.
To reset to a new combination, please repeat steps 1 to 4 above.
Please remember your new combination.
A
B
C
LOCKS
Shackle
Dials

TSA FIXED LOCK
code: QL275
LOCKS
unlocking direction diagram
TO OPEN THE LOCK TO RESET THE LOCK
STEP 1
Turn the dials to the last
set combination. The
original combination,
set from factory, is
0-0-0.
STEP 2
According to the arrow
guidance on the lock
body, rotate the lock 45
degrees in the direction
of illustrated arrow.
STEP 1
Turn the dials to the last
set combination. The
original combination, set
from factory, is 0-0-0.
Slide down the Reset
Button A to RESET
position.
STEP 2
Turn the dials
to set your own
combination.
STEP 3
Slide up the Reset
Button A to RESET to
the original position.
Your lock will now open
at your own personal
combination.
SETTING YOUR OWN COMBINATION

TSA FIXED LOCK
code: JY-D216
COMBINATION LOCK INSTRUCTION
The original number is preset at 0-0-0.
TO SET YOUR PERSONAL COMBINATION, PLEASE FOLLOW THE BELOW STEPS
1. Set the dials (2) at its original numbers 0-0-0
aligned to the indication line (3)
2. Open the lock by pushing the button (4)
3. Press down the reset button (1) with a tool until you hear a “click“ sound.
4. Set the dials (2) to any number you want; for example 8-8-4
5. Push the button (4) towards the direction of arrow and the reset
button (1) will be back when you hear the “click“ sound.
Your new personal combination is now memorised.
LOCKS
Button
push to open 4
Dials 2
Reset Button 1
Indication Line 3

TSA FIXED LOCK
code: JY-D216
RESET
To reset the combination, please follow steps 1 - 5 by using the last memorised combination.
HOW TO USE THE COMBINATION LOCK
1. Allign the dials (2) to the indication line (3) by using last memorised numbers,
than push the button (4) to the left to open the lock
2. Press down the lock body to latch the luggage, then turn the dials (2) randomly
to any numbers except those which were last memorised.
LOCKS
Button
push to open 4
Dials 2
Set Button 1
Indication Line 3

TSA FIXED LOCK
code: TSA669
COMBINATION LOCK INSTRUCTION
To set your own combination, follow these steps:
1. 0pen the lock A (The original number is 0-0-0).
2. Press down the reset button B with a tool until you hear the “click“ sound.
3. Set your combination by turning the dials C (for example 8-8-8).
4. Push the button A to the open position and let the reset button slide back until hear the “click“ sound.
Now your personal combination is set. Remember your personal combination by heart.
WARNING
If the cylinder is opened, please pay attention to lock it again by rotating it 90° anticlockwise.
(Any tool which can be inserted in the cylinder is OK)
RESET
To reset the combination, please follow steps 1 - 4 by using the last memorised combination.
LOCKS
A
C
B

TSA FRAME LOCK
code: EM048
COMBINATION LOCK INSTRUCTION
Your combination lock is preset at 0-0-0. You may leave it at this setting or
reset to your own confidential setting as follows:
1. Open your case and locate the change shift lever
extending from the back of the lock.
2. Move the change shift lever from A to B.
3. Set three dials to a number you are familiar with.
4. Leave dials set to your combination, return shift lever from B to A.
5. Record your personal combination you can reset at any time
RESET
To reset the combination, please follow steps 1 - 4 by using the last memorised
combination.
Lever
B
B
A
A
LOCKS

TSA FIXED LOCK
code: TSA13102
COMBINATION LOCK INSTRUCTION
To set your own combination, follow these steps:
1. 0pen the lock A (The original number is 0-0-0).
2. Press down the reset button B with a tool until you hear the “click“ sound.
3. Set your combination by turning the dials C (for example 8-8-8).
4. Push the button A to the open position and let reset button back until hear the “click“ sound.
Now your personal combination is set.
Remember your personal combination by heart.
RESET
To reset the combination, please follow steps 1 - 4 by using the last memorised combination.
LOCKS
Button A
Dials C
Reset Button B
press down to reset
Push to open

TSA FIXED LOCK
code: JY-B101
COMBINATION LOCK INSTRUCTION
To set your own combination, follow these steps:
1. 0pen the lock A (The original number is 0-0-0).
2. Press down the reset button B with a tool until you hear the “click“ sound.
3. Set your combination by turning the dials C (for example 8-8-8).
4. Push the button A to the open position and let reset the button back until hear the “click“ sound.
Now your personal combination is set.
Remember your personal combination by heart.
RESET
To reset the combination, please follow steps 1 - 4 by using the last memorised combination.
LOCKS
Button A
push to open
Dials C
Reset Button B
press down to reset

TSA FINGERPRINT LOCK
code: ZL-751

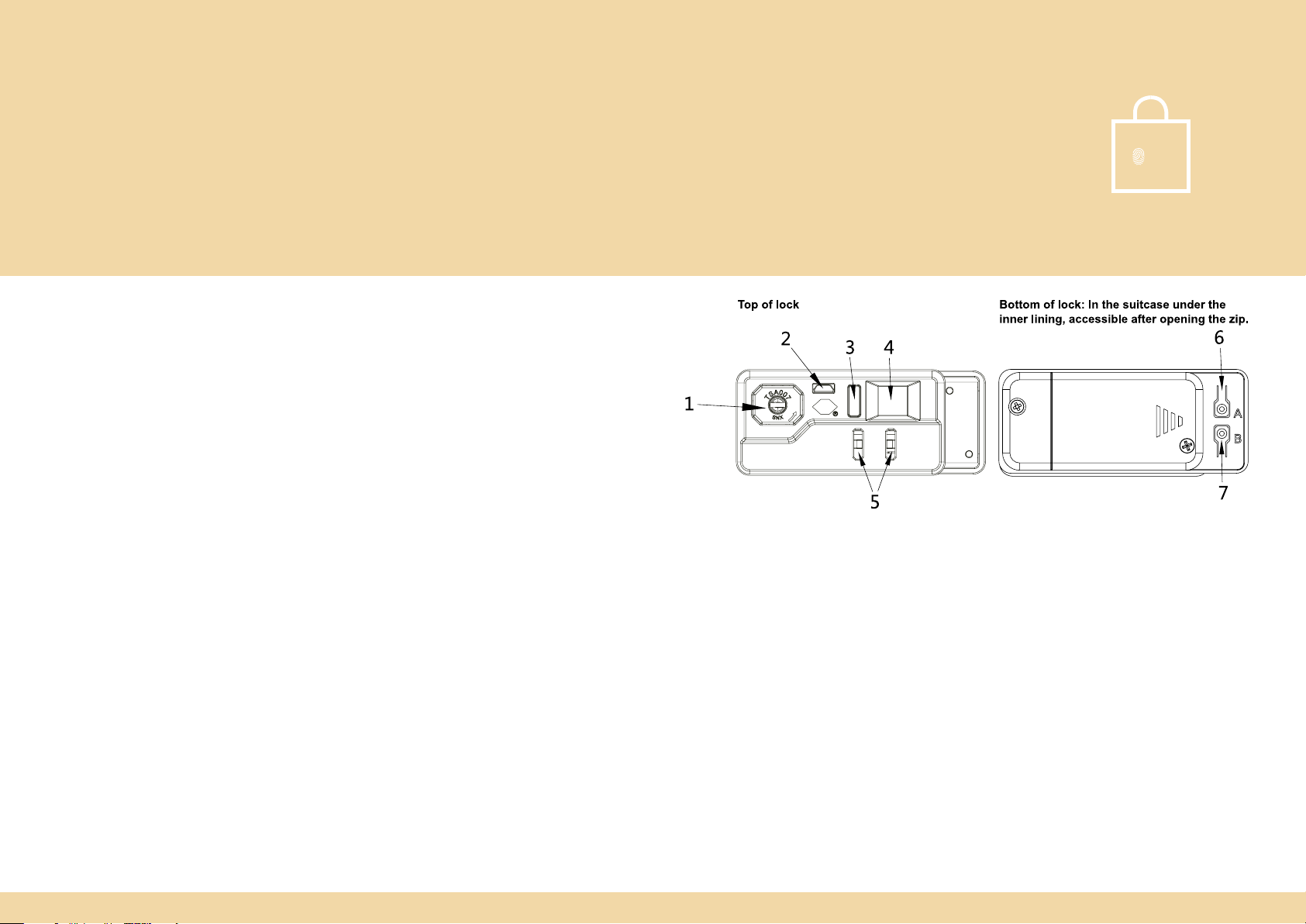

HOW TO RESET YOUR FINGERPRINT LOCK
Function indication area
1. Release button
2. Charging port
3. Power/Light
4. Fingerprint Sensor
5. Holes for puller
6. A Push button to enroll fingerprints
7. A+B Press A+B to delete registered fingerprints
FINGERPRINTS REGISTRATION: Without any registered fingerprint
1. Press “A” and the green light will flash
2. Put the finger you need to register on the sensor screen for 6 times
Note: the direction of the fingerprints should be the same
3. Enter the next new fingerprint only after the buzzer “beep” a sound
4. Wait for the light o for seconds if confirming not to enroll any new fingerprint for registration
FINGERPRINTS REGISTRATION: Registered fingerprints are existed
1. Press “A” and the red light will flash
2. Unlock by any registered fingerprint you registered
Note: There is only one chance to unlock and repeat the 1st step to unlock again if the recognition process is wrong
3. The green light will flash if confirming successful
4. Put the finger you need to register on the sensor screen for 6 times
Note: the direction of the fingerprints should be the same
5. Enter the next new fingerprint only after the buzzer “beep” a sound
6. Wait for the light o for seconds if confirming not to enroll any new fingerprint for registration
L CKS

TSA FINGERPRINT LOCK
code: ZL-751
DELETE FINGERPRINTS
1. Press “A” + “B”, now the red and green lights will flash alternatively for 5 times
2. Then the red and green lights will be on simultaneously
3. Now the system returns to initialization and standby
OPEN THE LOCK
1. Press down the power button, enter the registered fingerprints on the sensor screen before the red light is o
2. The light will turn green with correct fingerprints.
3. Press the button to release the zipper puller before the light flashes o.
Note: The red light continues to flash and buzzer beeps for warning, “ beep” “beep” “beep” 3 sounds, if the fingerprint
recognition fails. Please make sure these fingerprints are registered and the direction should be corresponding to the
registered one.
POWER SUPPLY
1. Battery Specification: 3 PCS “AAA battery“ (i.e., No. 7 batteries, alkaline batteries are also applicable)
2. Battery installation: in accordance with the instructions of “+“ “-“ installing the battery, then press the “button lights“.
Please close the battery cover after the battery is properly installed, which the indicator appears alternating red and
green flashes.
3. External power supply: when the battery is exhausted, the user can be connected to the Micro USB on the fingerprint
lock for providing power to unlock.
4. Battery life: 2500 times unlock or standby for 1 years, but will vary by the type of battery
L CKS

TSA FIXED LOCK
code: E-290UX
COMBINATION LOCK INSTRUCTION
1. Following the arrow, push the button (A) as in figure 1.
2. Turn the three dials (D) to your preferred three-digit code.
3. Push the button (A) back to its original position as in figure 2.
Now your personal combination is set down. Remember your pesonal combination by heart.
4. External USB port : Put your Power Bank into the pocket. Connect it via USB cable to Micro USB port
(G) as in Figure 3. Open (F), plug the electronic device into the USB port (H) to charge as in Figure 4
Power bank and USB cable are not included in the luggage.
RESET
To reset the combination, please follow steps 1 - 3 by using the last memorised combination.
LOCKS
Figure 4
F
H
push the button A
F
BD A
C E
Figure 1 Figure 2
Figure 3
G

TSA FIXED LOCK
code: YF17102
COMBINATION LOCK INSTRUCTION
The original number is preset to 0-0-0
To set your own combination, follow these steps:
1. Open the lock by pushing the button (1).
2. Turn the reset button (2) from “OFF” to “SET“.
3. Set the dials (3) to your personal combination – for example 8-8-8.
4. Turn the reset button (2) from “SET” to “OFF”.
Your new personal combination is now set. To reset the combination please follow steps 1- 4 by using the last set
combination.
HOW TO USE THE COMBINATION LOCK
1. Align the last set combination with the number dials (3), then push the button (1) to open the lock.
2. Press down the movable part of the lock to latch the lock, then turn the dials (3) randomly to any
numbers except those of the set combination. Now your suitcase is locked.
LOCKS
Button (1)
Display
Window
(4)
Reset
button (2)
Dial (3)
