EMobility LRT Home Essential+ 11kW User manual

Installation instructions
LRT Home Essential+ 11kW
LRT Home Essential+ 22kW

2/ 20 LRT Home Essential+ 11/22kW installation instructions
Manufacturer
LRT Automotive GmbH
Telephone [phone]
Impexstr. 7
Fax [phone]
69190 Walldorf
E-Mail [email protected]
Germany
URL www.lrt-emobility.de
All rights to this document are owned by LRT Automotive GmbH.
LRT Automotive GmbH reserves the right to make changes or improvements to its products without notice.
Reproduction, excerpt or reference without prior written consent is prohibited.
© 2021
Version
Date of issue
Amendments
1.0
07/05/2021
First edition

LRT Home Essential+ 11/22kW installation instructions 3/ 20
Content
1About this document 4
2Safety 6
2.1 Intended use 6
2.2 Foreseeable misuse 6
2.3 Safety instructions 7
2.4 Warranty and disclaimer 8
3Description 9
3.1 Structure 9
3.2 Function 11
3.3 Technical data 11
4Installation 12
4.1 Scope of delivery 12
4.2 Wall mounting 13
4.3 Electrical connection 14
5Commissioning 14
6Testing the safety function 15
7Disposal 16
8CE Declaration of Conformity 17

4/ 20 LRT Home Essential+ 11/22kW installation instructions
1About this document
Read these installation instructions before installation, commissioning and maintenance. This is a prerequisite for safe
working and trouble-free use.
Observe the safety instructions and warnings in this documentation.
Keep the documentation accessible to all users.
This documentation is a permanent part of the described product and must be handed over to the buyer at the time
of sale.
Scope
The installation instructions apply to the models:
→LRT Home Essential+ 11kW
→LRT Home Essential+ 22kW
Target group
The installation instructions are intended for:
→Electricians
Qualification of electricians
Installation, maintenance and repair work on the charging station may only be carried out by qualified electricians.
They must be trained in the use of a mains connection.
Due to their technical training, knowledge and experience as well as knowledge of the relevant standards and
regulations, electricians are able to carry out work on electrical systems and to recognise possible dangers
independently.
In Germany, qualified electricians must comply with the provisions of the accident prevention regulation German
Social Accident Insurance (DGUV) Regulation 3 (e.g. master electrician). In other countries, corresponding regulations
apply and must be observed.

LRT Home Essential+ 11/22kW installation instructions 5/ 20
Safety instructions
Structure of safety instructions:
SIGNAL WORD
Nature and source of the danger
Warning signs
Consequences of disregarding the danger
→Measures to avert the danger
→…
The signal word indicates the level of risk as well as the severity of possible injuries:
Signal word
Meaning
DANGER
This signal word is used to indicate an imminently dangerous situation which, if
not avoided, will result in serious injury or death.
WARNING
This signal word is used to indicate an imminently dangerous situation which, if
not avoided, will result in serious injury or death..
CAUTION
This signal word is used to indicate an imminently dangerous situation which, if
not avoided, will result in serious injury or death..
ATTENTION
This signal word without a warning sign is used to indicate a possible danger of
property damage.
NOTE
This signal word indicates additional information that is useful for the user, such
as such as measures to simplify operation and cross-references.
The warning sign indicates the type of danger.
Warning signs
Meaning
General warning sign, danger of personal injury
Warning of electrical voltage
Mandatory signs
Meaning
Important note, danger of property damage
Cross-reference
Information, tip

6/ 20 LRT Home Essential+ 11/22kW installation instructions
2Safety
2.1 Intended use
NOTE
Observe the intended use.
The protection of persons and the charging station is not guaranteed if the
charging station is not used in accordance with its intended use.
→Only use the charging station in accordance with its intended use.
→LRT Automotive GmbH is not liable for damage caused by improper use.
→Read these installation instructions before using the charging station.
Knowledge of the operating instructions is part of the intended use.
The LRT Home Essential Plus is a three-phase charging station for electric vehicles. This is a stand-alone solution
without a higher-level control system. However, it can be connected to a HEMS via a MODBUS interface. The charging
station is used exclusively for charging electric vehicles in accordance with charging mode 3 as per IEC 61851. It may
only be installed and operated in purely residential areas.
Only operate the charging station under the specified operating conditions, see chapter 3.3 Technical data.
The charging station
→is suitable for charging with alternating current (AC).
→has been designed and manufactured according to the international standard IEC 61851.
→meets the requirements of protection class IP44.
→is suitable for outdoor use.
→is intended for use in private areas, e.g. private properties.
→is intended exclusively for stationary installation.
→may only be installed and operated in purely residential areas
NOTE
Do not use extension cables, cable drums, multiple sockets or adapters to
operate the charging station.
2.2 Foreseeable misuse
The charging station may only be operated within the technical data specified by LRT Automotive GmbH. Any use
other than that described in chapter 2.1 Intended use is considered improper use. The manufacturer is not liable for
any damage resulting from this.
Possible foreseeable misuse:
→Use of extension cables, cable drums, multiple sockets or adapters for the operation of the charging station
→Charging with other charging modes
→Use in the non-private sector
→Use in mixed and industrial areas
→Use in an environment with aggressive media (e.g. sea air) or highly dusty media (e.g. desert) or in an explosive
atmosphere
→Operation outside the specified operating conditions, see chapter 3.3 Technical data
→Modifications or changes to the charging station

LRT Home Essential+ 11/22kW installation instructions 7/ 20
2.3 Safety instructions
NOTE
Observe the installation instructions.
Failure to observe the installation instructions and the resulting improper use
of the charging station can result in life-threatening personal injury and
property damage to the charging station or the vehicle.
→Read the installation instructions before using the charging station.
→Keep the documentation accessible to all users.
DANGER
Warning of dangerous electrical voltage!
Touching electrical cables can result in a fatal electric shock.
→Always keep the charging station housing closed. As long as the
charging station is connected to the power supply, there is a risk of
injury from touching components inside. Always disconnect the power
supply before carrying out installation, maintenance or repair work on
the charging station.
→Do not leave children unattended near the charging station while
charging is in progress.
DANGER
Warning of electromagnetic interference radiation!
Charging stations from LRT Automotive GmbH, which are operated as
intended, comply with the European directive on electromagnetic
compatibility with regard to interference radiation. In the event that persons
with pacemakers or defibrillators wish to carry out activities at charging
stations and their equipment, LRT Automotive GmbH cannot make any
statement about the suitability of these medical devices.
→LRT Automotive GmbH recommends that affected persons only carry out
work on the charging station after consulting the manufacturer of these
medical devices.
→Do not store flammable, explosive, chemical or other hazardous substances near the charging station.
→Do not clean the vehicle or the area around the charging station with a pressure washer while the vehicle is
connected to the charging station. The plug connection is not resistant to pressurised water.

8/ 20 LRT Home Essential+ 11/22kW installation instructions
2.4 Warranty and disclaimer
LRT Automotive GmbH accepts responsibility only for the condition of the charging station as delivered and for all
work carried out by LRT specialist personnel and official partner companies.
The manufacturer's warranty is void upon:
→Failure to observe the safety and operating instructions.
→Improper handling and improper use of the charging station.
→Unauthorised and improper installation, maintenance and repair of the charging station.
→Modifications or changes to the charging station.
→Damage caused by fire, flood and other natural disasters.
→Transport damage or damage caused during installation.

LRT Home Essential+ 11/22kW installation instructions 9/ 20
3Description
3.1 Structure
1
Charger housing
4
Charging cable with coupling
2
Cover screw connection
5
Power cable connection
3
Holder for charging cable
6
LED display
Fig. 1: Housing of the charging station outside
1
2
3
5
4
6

10 / 20 LRT Home Essential+ 11/22kW installation instructions
1
Contactor/charging cable connection
5
Power cable strain relief
2
Charging cable strain relief
6
RCD / power cable connection
3
Charging cable feedthrough
7
Test button
4
Power cable feedthrough

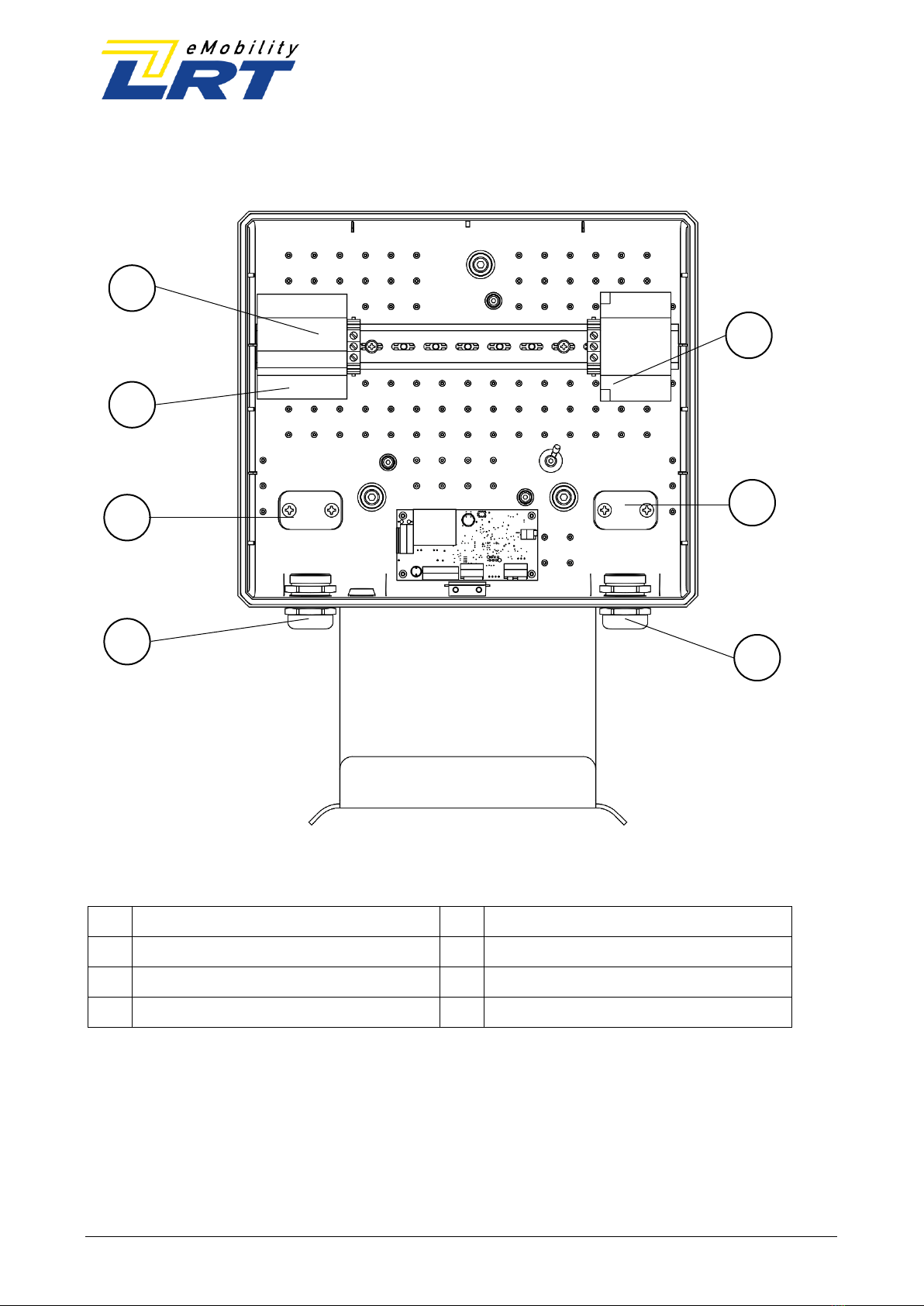

Fig. 2: Housing of the charging station inside
1
2
3
4
5
6
7

LRT Home Essential+ 11/22kW installation instructions 11 / 20
3.2 Function
The LRT Home Essential Plus is a three-phase charging station for charging electric vehicles according to charging
mode 3 as per IEC 61851 with alternating current (AC).
Functional element
Function
Type 2 cable
Coupling for connecting the vehicle
LED display
Status display of the charging station
RCCB type A + DC-Current detection
Fuse
3.3 Technical data
General data
Model
Home Essential Plus 11
Home Essential Plus 22
Part number
AC09C
AC10C
Housing dimensions LxWxH
48x36x13 cm
Housing material
PC/ABS V0 + MB
Weight
6.6 kg
Cable length
5 m
Electrical
Model
Home Essential Plus 11
Home Essential Plus 22
Charging mode
Mode 3 –C
Three-phase alternating current
3P + N + PE
Supply voltage
400 V AC ±10 %
Mains frequency
50/60 Hz
Max. current
16 A
32 A
Max. charging power
11 kW
22 kW
Overvoltage category
III
Charge coupling
Charging cable type 2 IEC 62196
RCCB
30mA AC Typ-A RCCB + 6mA DC-Current detection
Connection
3phase to RCCB
Protection class
IP44

12 / 20 LRT Home Essential+ 11/22kW installation instructions
Ambient conditions
Model
Home Essential Plus 11
Home Essential Plus 22
Ambient temperature
-40 °C –45 °C
Storage temperature
-40 °C –70 °C
Max. humidity
5 % –95 %, non-condensing
Max. height above sea level
2000 m
4Installation
DANGER
Warning of dangerous electrical voltage!
Touching electrical cables can result in a fatal electric shock.
→The charging station may only be installed and fused by a qualified
electrician.
→The charging station may only be installed in purely residential areas.
→Observe the local safety regulations and legal requirements.
4.1 Scope of delivery
→Pre-assembled charging station housing with charging cable
→Drilling template
→3 universal dowels
→3 washers
→3 seals
→3 fixing screws
→Installation instructions
→Operating instructions

LRT Home Essential+ 11/22kW installation instructions 13 / 20

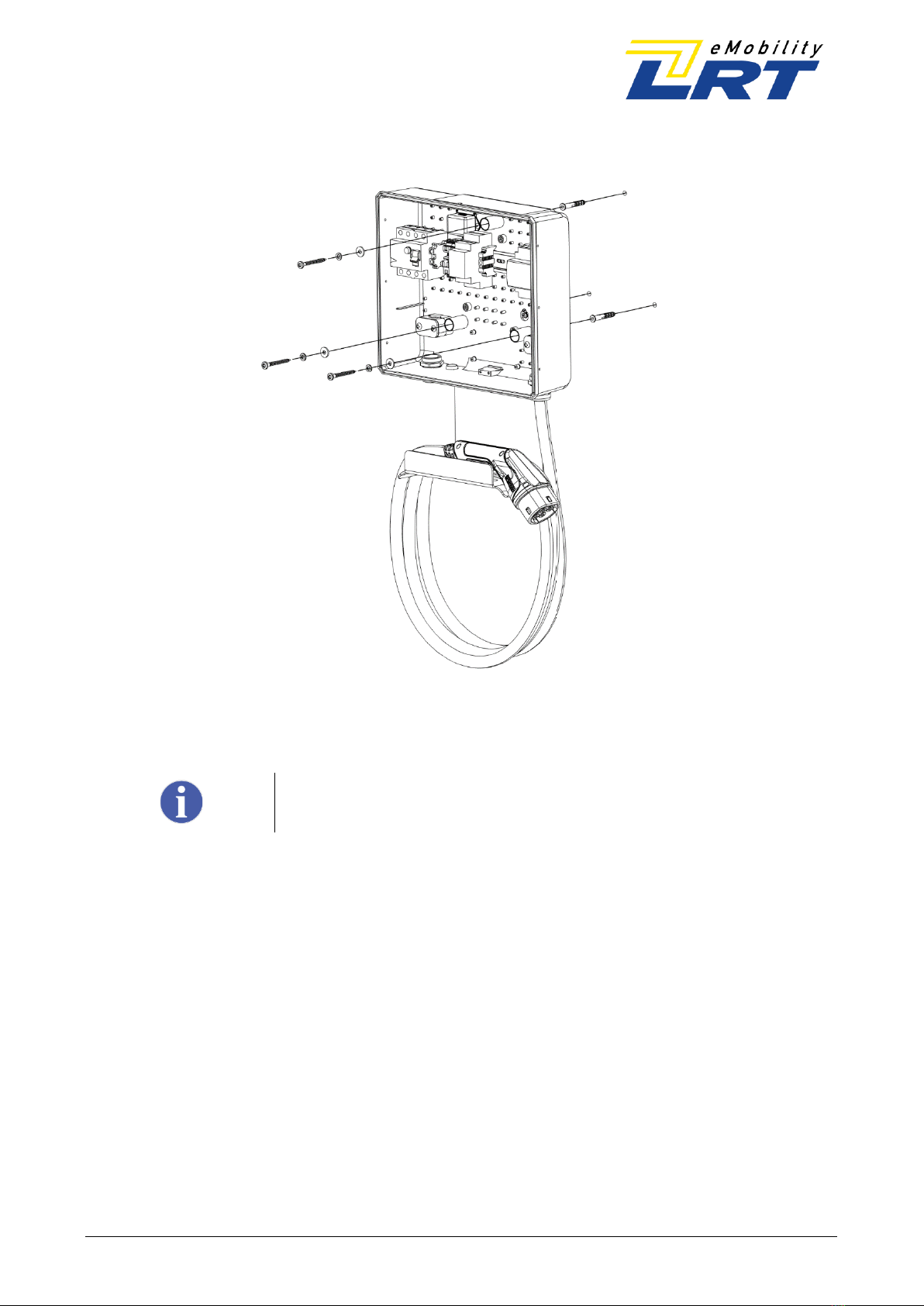

4.2 Wall mounting
1. Use the enclosed drilling template to mark the 3 drill holes on the wall. Ensure that the drilling template is
correctly aligned.
2. Drill the marked 3 holes, Ø 8 mm, approx. 60 mm deep.
3. Insert the dowels into the drill holes. The dowels are 8-mm universal dowels.
If the universal dowels are not suitable for fastening the charging station to the
intended wall, use other dowels.
4. Loosen the 7 screws on the sides and top of the housing.
5. Carefully disconnect the cable from the LED printed circuit board and put the cover aside.
6. Hold the open charging station against the wall with one hand so that the mounting holes are over the drill
holes.
7. Place the washers and seals and fasten the charging station with the 3 screws provided. Be careful not to
damage the components inside the charging station.
8. Do not release the charging station until all 3 screws are firmly tightened.

14 / 20 LRT Home Essential+ 11/22kW installation instructions
4.3 Electrical connection

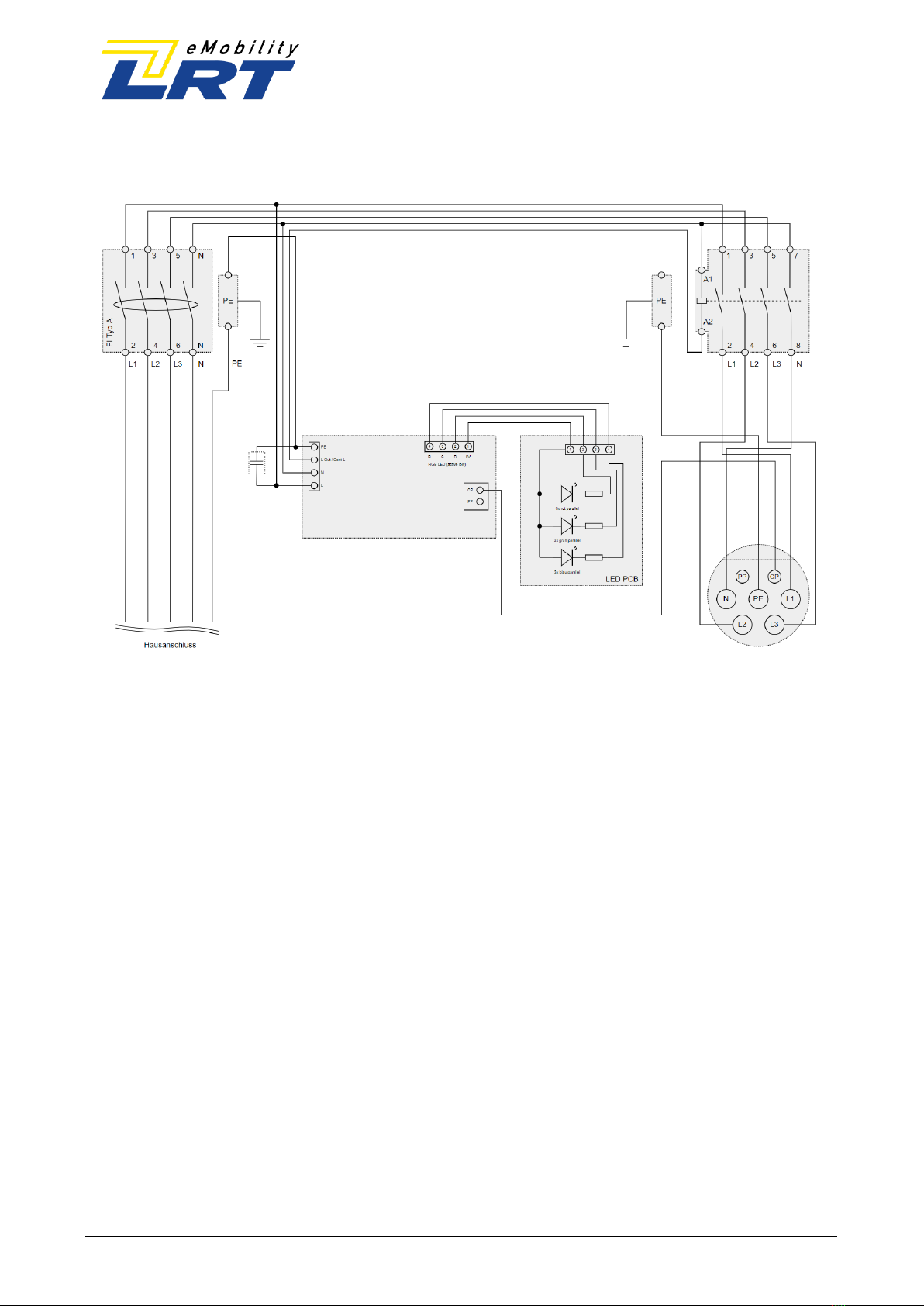

Fig. 4: Circuit diagram
1. Connect the cable to the power supply according to the circuit diagram.
2. Plug the cable back into the LED printed circuit board and close the cover.
3. Apply light pressure to the centre of the cover with one hand while securing it with the 7 screws. Do not
remove your hand from the cover until all 7 screws are tight.
4. Put the charging station into operation.
5Commissioning
Check the following points before commissioning:
→Is the charging station firmly connected to the wall?
→Is the housing undamaged and closed?
→Is the charging cable undamaged? The sheathing must not be cracked and no metal must be exposed.
→Is the coupling of the charging cable clean and dry?
Proceed only if the answer to all the questions is yes.
1. Switch on the RCCB.
2. The charging station starts the automatic function test. The function test takes approx. 7 seconds, the LED
display flashes white.
3. After the function test, the LED indicator flashes green. The charging station is ready to be connected to an
electric vehicle.
4. Plug the coupling of the charging cable into the socket on the vehicle side.
Installation contactor

LRT Home Essential+ 11/22kW installation instructions 15 / 20
5. As soon as the vehicle is connected to the charging station, the LEDs light up yellow and blue during the
charging process.
→The vehicle requests the charging process and begins charging.
Cancelling the charging process
The charging process can be cancelled if the driver wants to use his vehicle before it is fully charged.
There are two options for cancelling the charging process:
→via the controls in the vehicle,
→by switching off the fuse on the building side.
The process should be cancelled using the controls on the vehicle. Only if this is not possible for safety reasons (e.g. if
the vehicle is on fire) should the building security system be switched off.
Charging will resume when the fuse is turned back on and the charging cable is connected to the vehicle.
Malfunction or failure
In the event of a fault or failure, disconnect the charging station from the supply voltage by switching off the fuse on
the building side. Troubleshooting and repair may only be carried out by a qualified electrician.
NOTE
If the building or wallbox fuse trips, do not simply switch it back on. This may
result in damage to the charging station, the vehicle, etc.
→Disconnect the vehicle from the charging station.
→Find and eliminate the reason for tripping.
The fuse can then be switched on and the charging station reconnected to the
vehicle.
Meaning of the LED display
LED display
Operating status
White flashing
Function test
Lights green
Ready to connect
Lights yellow
Connected to vehicle
Lights blue
Charging
Lights red
Malfunction
6Testing the safety function
For charging stations with a built-in personal protection switch (RCCB), its function must be checked twice a year by
pressing the test button. The test button is located on the top of the personal protection switch and is labelled "Test".
Triggering the RCCB after pressing the test button disconnects the power supply to the charging station.
After releasing the test button, the charging station starts the automatic function test. The function test takes approx.
7 seconds, the LED display flashes white.
After the function test, the LED indicator flashes green. The charging station is ready to be connected to an electric
vehicle.

16 / 20 LRT Home Essential+ 11/22kW installation instructions
7Disposal
The charging station is a device that must be disposed of in accordance with national and regional regulations for
waste electrical and electronic equipment.
The charging station may only be dismantled and disposed of by a qualified electrician.

LRT Home Essential+ 11/22kW installation instructions 17 / 20
8CE Declaration of Conformity

18 / 20 LRT Home Essential+ 11/22kW installation instructions
Notes

LRT Home Essential+ 11/22kW installation instructions 19 / 20
