ACT Quantum GSE User manual

710-00037.1
ADVANCED CHARGING
TECHNOLOGIES

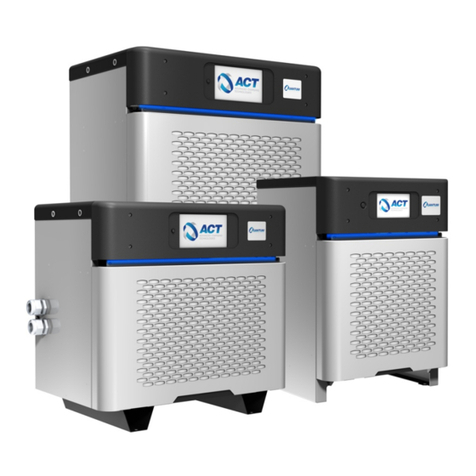

Quantum GSE
Maintenance Manual

710-00037.1
2
2
© 2020 Advanced Charging Technologies. All rights reserved
Contact Information:
Advanced Charging Technologies
17260 Newhope Street
Fountain Valley, CA 92708
http://www.act-chargers.com/
Main
877-228-5922
Sales
877-228-5922
Service
877-228-5922
[e-mail]

710-00037.1
3
3
QUANTUM CHARGER MAINTENANCE
The Quantum charger streamlined design emphasizes ease of maintenance. Below is the list of the
maintenance procedures:
1) Air Filter
Regularly inspect air filters and clean or replace as necessary. Location and environmental conditions
must be taken into account when determining the frequency that the filter is cleaned or replaced. In the
outdoor environment, the filters should be checked at least
quarterly
.
The air filters are located in the front and back covers. The filters need to be changed or blown out or
washed in warm soapy water (the filter must be completely dried prior to reinstall). Ensure that the filter
is clean with no tears and in good sound condition before installation.
2) Rust inspection
The charger should be inspected for rust formation
quarterly
. The charger chassis is made of aluminum
that is resistant to rust. However, the rust needs to be checked near the inlet fans of the power
modules as shown in the picture below. In order to expose the power module, please remove the front
cover and front labyrinth.

710-00037.1
4
4
3) Battery Cables inspection
Regularly inspect the DC cables for wear. If the DC cables or connectors become worn or damaged with
signs of cracks or tears, they should be immediately replaced by qualified personnel with a cable of the
same rating.
Inspect the EURO connector housing and make sure there is no damage.
Inspect the tips of the battery connector for signs of pitting due to arcing. Replace the tips as needed.

710-00037.1
5
5
Check the torque lines inside the charger. If needed, make sure the torque is around 21 Ft-Lbs. (+0 /- 10%)

710-00037.1
6
6
4) Gasket inspection
Check the gasket for ailments, issues or tears. The gasket needs to have sponginess to it and should flex
back to the original shape after pressure is applied.
5) Screen Cover inspection
The plastic front screen cover needs to be inspected to ensure it is not brittle. If a screen protector is
used, check the screen protector as well.
6) General inspections
Since this is an outdoor charger, insect nests might form and could block the airflow. Check the chassis
cavity to ensure there is no air restriction.

710-00037.1
7
7
ACT SERVICE CONTACT INFORMATION
If you experience any problems AFTER performing the necessary maintenance above,
please call ACT Customer Service [phone].
