EMOJO BOBCAT PRO User manual

OWNER’S MANUAL

Instructions
Warnings
Explanatory diagram of the overall ebike configuration
Schematic diagram of the electric bicycle
Main technical parameters
Throttle control
Correct operation stages
Pedal assist mode control
Error codes
Charging the battery
Seat adjustment

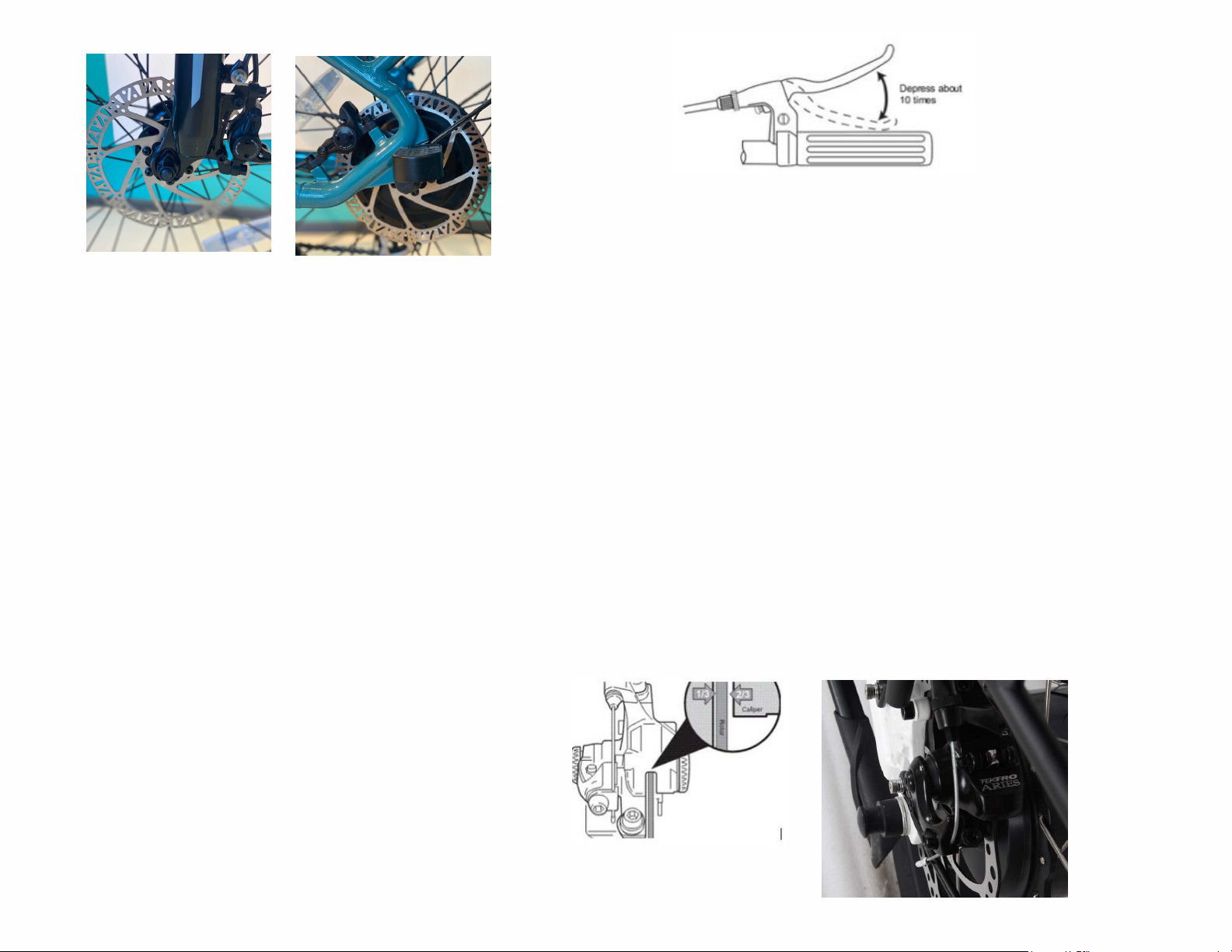

Disc brakes
Tire pressure and brake adjusment

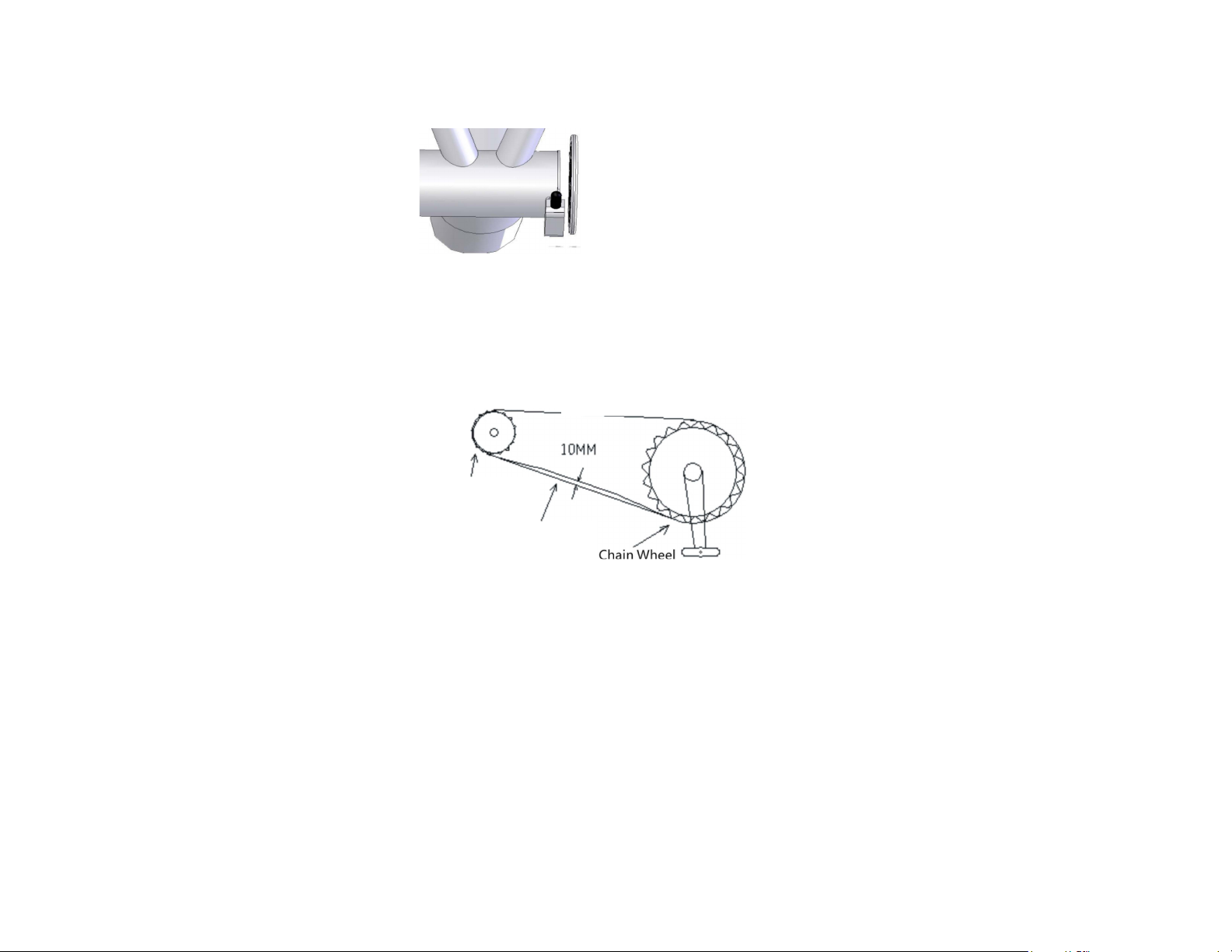

Chain adjustmen and Hall sensor
Maintenance table
Power shut off troubleshooting
Folding mechanism
Front suspension and handlebar adjustment
FAQ
Storage and disposal
Contact us
1
2
3
4
5
6
7
10
11,12
16
17
18
19
15
13
14
20
21
22
23
8,9
CONTENTS

1
Instructions
1. Please read the manual carefully before using your EMOJO electric bic ycle.
2. Make sure all parts are locked tightly, such as the frame joint, handlebar, seat post and pedal, etc. Before using. Do
not use the electric bicycle before carefully reading the instructions and knowing about the performance of the electric bicycle.
Do not lend the electric bicycle to anyone who does not know how to operate it.
3. Develop a habit of charging when the power of the battery pack shows a red light. Please charge and maintain the battery
pack consistently to have longer service; if the bicycle is not to be used for a long period, it is suggested to turn power of the
battery pack to the OFF position and charge-discharge the battery once per month.
4. Frequent braking, starting, uphill, still starting, muddy and uneven ground, overloading of people and goods will assume larger
electricity, thus influencing the travel mileage. If you want to get the best travel mileage, we suggest you follow the following
instructions:
Ride the bicycle to a certain speed by pedaling prior to turning on pedal-assist or throttle power.
Try to decrease the frequency of braking and starting while maintaining safe riding habits.
Please assist with pedal when the slope angle is steep, or the wind speed is fast.
5. When you lift the battery, please do not insert any metal objects (such as wires, keys, etc) into the charging socket or bridge the
negative and positive poles of the battery cell. This can cause battery short-circuit, resulting in a fire and putting your safety at risk.
6. This e-bike is not intended to be ridden through water. When the water level inundates the controller, electrical circuitry or
motor hub, it is possible that it will cause short circuit and damage the circuit, please pay attention to avoid burning down the
electronic control system!
7. The standard load weight of this bike is 300 lbs. (including the cyclist), overloading may cause the travel mileage to decrease,
or cause the spare parts of the bike damage and reduce working life of battery.
8. Warranty will be void if a non-approved battery charger or other non-original EMOJO spare parts are used.
9. M inors, p regnant women or anyone that does not have f ull de x terity o f hands and legs should not use this product.
10. P lease check the tightening state o f f ront a x le, bottom bracket shell, rear a x le, etc. f re q uently in use.
11. C hildren younger than 16 should not ride the electric bicycle.

2
Warnings
Please pay attention to the following items for your safety:
Battery warnings
Battery warnings
Disassembling and refitting the bicycle may bring hidden safety hazards
to your electric bike, therefore, causing risk.
Do not keep, approach or store the battery near high heat sources.
Avoid areas near flammable or explosive liquids or gas.
Do not tamper or disassemble the charger. Avoid dropping or
smashing it violently.
Charge your battery in a well ventilated area, free of humidity and far
from flammable or explosive objects.
While charging, there should be no foreign objects on the charger or
the battery shell.
Avoid contact between teh conductive objects and the battery poles
at the same time to avoid short-circuit and damaging the battery.
Always keep your hands dry while plugging and unplugging the power
plug and when handling the battery.
The battery is not a toy, do keep children away.
Do not disassemble the battery case, do not attempt to make any
modifications or external connections. You will lose your warranty. Do not drop the battery, do not immerse in water and keep it away from
high-humidity areas.
Do not attempt to short-circuit the battery electrodes, which can
damage the battery, the bicycle controller and the charger.
Makesure to check the set up and stability of the brakes, saddle,
frame, handlebar, wheels , etc. before riding to make sure all is in
proper working condition.
Avoid riding through sharp objects like stairs or rocks
which can damage the tires and wheels.
Do not attach any objects to the handlebar that may obstruct your
vision or handling.
This bicycle is for a single rider, not intended to carry any passengers.
Always wear a helmet.
Downhill speed should be moderate, please do not apply the front
brake fully when slamming the brakes at high speed to avoid the front
wheel from locking and losing control.
The brakes should not be oiled to avoid causing iffy braking and
endangering your personal safety.
Wear appropriate protecting apparel when riding under the rain.
Never use an umbrella and/or operate the bicycle with one hand.

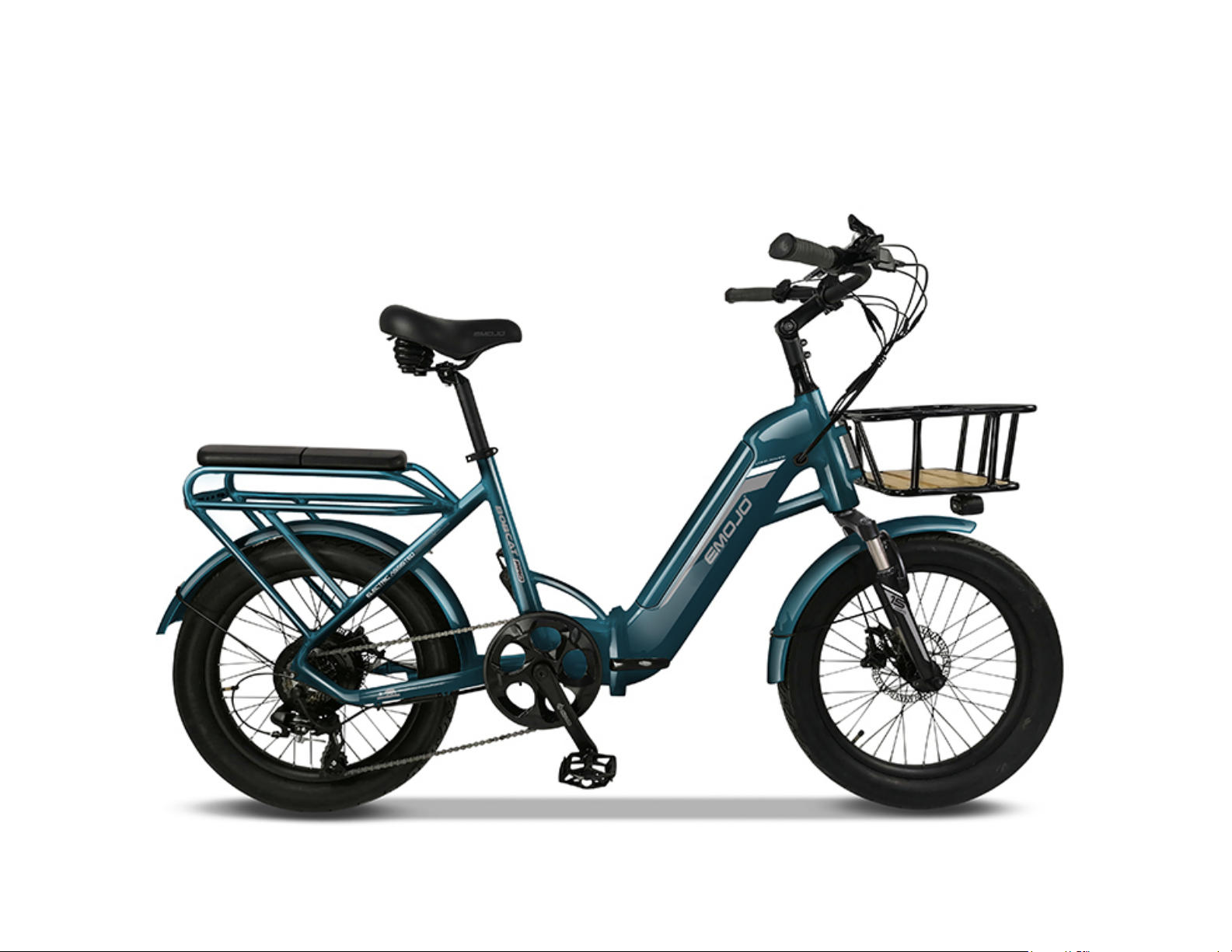

Explanatory diagram of the overall ebike configuration
Actual product may slightly differ from this picture
Seat
Passenger
seat
Transmission chain
Front
suspension
Seat post
Seat post quick release
lever
3
QQuick connectors
Rear disc
brake
Front disc brake
Pedal
Front cargo
basket. 30Lbs.
payload
Handlebar
angle
andjadjustment
mechanism
Front fender
Front lights
Rear fender
Tail light
Front brake caliper
Electric motor
Motor quick connector
Mechanical
gears shifter
Battery
Folding hinge
Folding
release lever/
lock
3

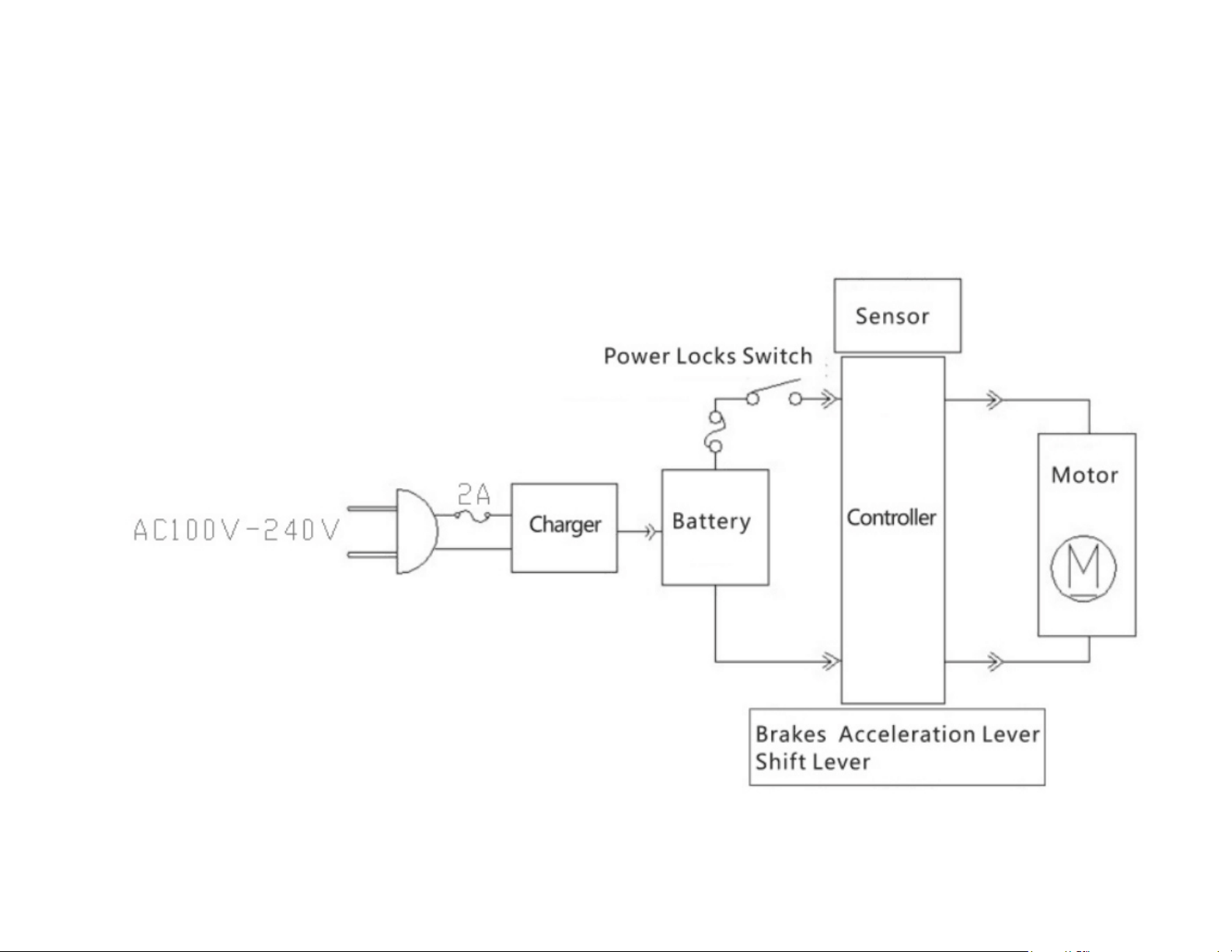

Schematic diagram of the electric bicycle
4
48V
4

Main technical parameters
Index
58Lbs
300Lbs
Winter:60 miles
I
Summer: 65miles
Item
Total bicycle weight in lbs.
Max. load (including cyclist, passenger and cargo
Travel Mileage on a single Charge Miles w/PAS
Power Consumption on a single Charge ( P(kilowatt)
Power Consumption per Kilometer (kilowatt(
Battery TType
Voltage / Capacity
Motor TType
Motor Rated output power
Rated voltage
Uunder-voltage
Protection
Charger
<0<0.6 .6
<<1.22
Lithium Ion Battery
48 Volts, 15 amps
PPermanent Magnet DC Hi-Speed Motor 500W
30.5V±0.5V/41.5 V±0.5V
48 V
30.5V
15A+/-
5
5
48 v 2A
4 to 5 hours (instant charge after 2 hours)
AC 110-220V
48 V
2 A
Controller
Over-current Protection Model
Durati on of Charge
Main Appliance Input Voltage
Main Appliance Output voltage
Charging Current

Hand Throttle Control
Your electric bike is equipped with a power and throttle control on the
right hand side. To power on your bike first make sure to turn on your bike
by pressing and holding the M button on the left side.
You control the throttle by pushing with your thumb the paddle, the farther
you push from its resting position, the more power is delivered to the
motor to accelerate. When you want to slow down, you simply release the
throttle and let it return to its resting position and simultaneously apply the
brakes.
When the pedal assist mode is set to "0", the pedal assist and throttle function(s) do not engage. When the pedal assist mode is set to "5" the
pedal assist function will engage to the maximum speed level and the throttle will accelerate the bike forward. The throttle control is operated
on the right hand side.
When you want to slow down, you simply release the throttle and let it return to its resting position and simultaneously apply the brakes.
Thumb Throttle
6

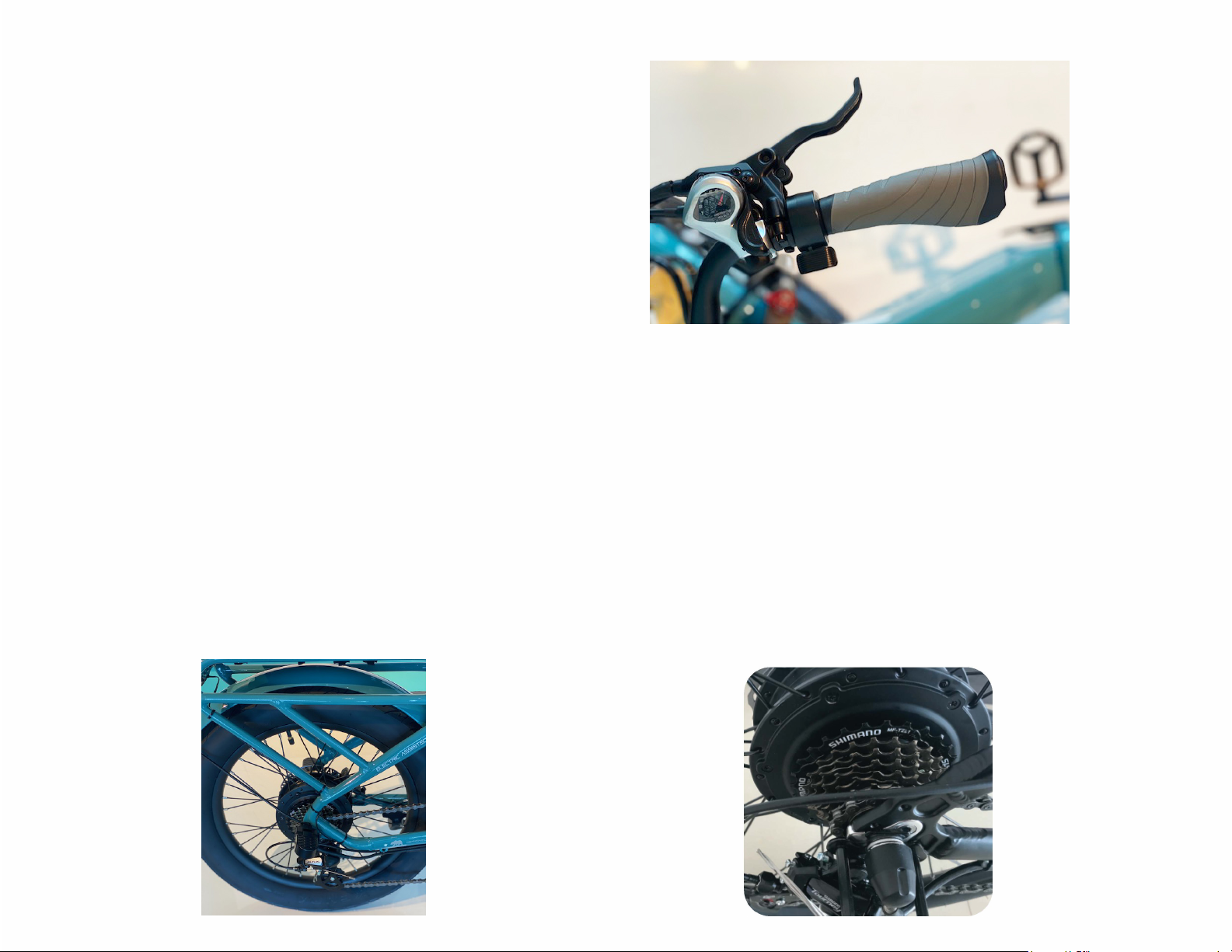

Mechanical gears
This EMOJO electric bike is equipped with 7 mechanical gears in addition to the pedal assist levels. The first gear is for eas ier and uphill pedaling,
the last gear is for maximum speed on leveled ground or downhills. Change gears only when pedaling. The rear wheel c ontains seven chain
sprockets. When the chain is around the largest sprocket, you are in the 1st gear which is the "lowest" gear. The high gear wi ll have the dérailleur
positioned so that the chain is directed around the smallest gear selector and cause it to change gear. Adjustments require fine tunning and should
be made by a qualified technician.
Avoid changing gears rapidly from 1st to the 7th gear or vice-versa. If you change multiple gears too quickly, you could have the chain come off the
front sprocket.
Thumb shifter up
7-gears cassette
Thumb shifter down
Derrailleur
6

Correct operation stages
! Warning:
! "For your safety, please practice in a closed track the first time you ride your ebike". After mastering the controls of an electric bicycle, you may
ride on regular roads and follow the traffic rules consciously. Do not let inexperienced people ride the electric bicycle, do not disassemble and refit
the electric bicycle. please pay attention and brake in advance to allow longer braking distance in rainy or snowy weather.
Start: Press and hold the M button on the left handlebar
controls.
Motor On/Pedal Assist
Start pedaling and the electric bicycle will drive forward normally. If you stop pedaling,
the electric motor will stop working, but it will still drive forward a short distance because
of inertia.
You can adjust the level of electric assistance by toggling the up and down arrows.
There are 5 levels of electrical assistance, level 5 being the highest.
Throttle only
You can use the thumb throttle only and the bicycle will move without you having to pedal. Click the M button on the handlebar control to turn
on the system, with your right thumb press down the throttle, the further you push the throttle the faster it accelerates. To stop or reduce the
speed release the throttle and apply the brakes the electric motor will stop working, but it will still drive forward a short distance because of
inertia.
Note: A: For your safety concern, please hold the grip tightly
with both hands while riding, and please brake in a timely manner when necessary.
B: This bicycle has the function of brake power cut. The brakes will cut off the motor power to ensure safety of riding. Always check your brakes
and cables before riding.
7
Pull to brake. Brake sensor will shut off motor power.

Pedal Assist Mode Control
Please read the following steps and images to help
you understand how to read and operate all the
functions.
8

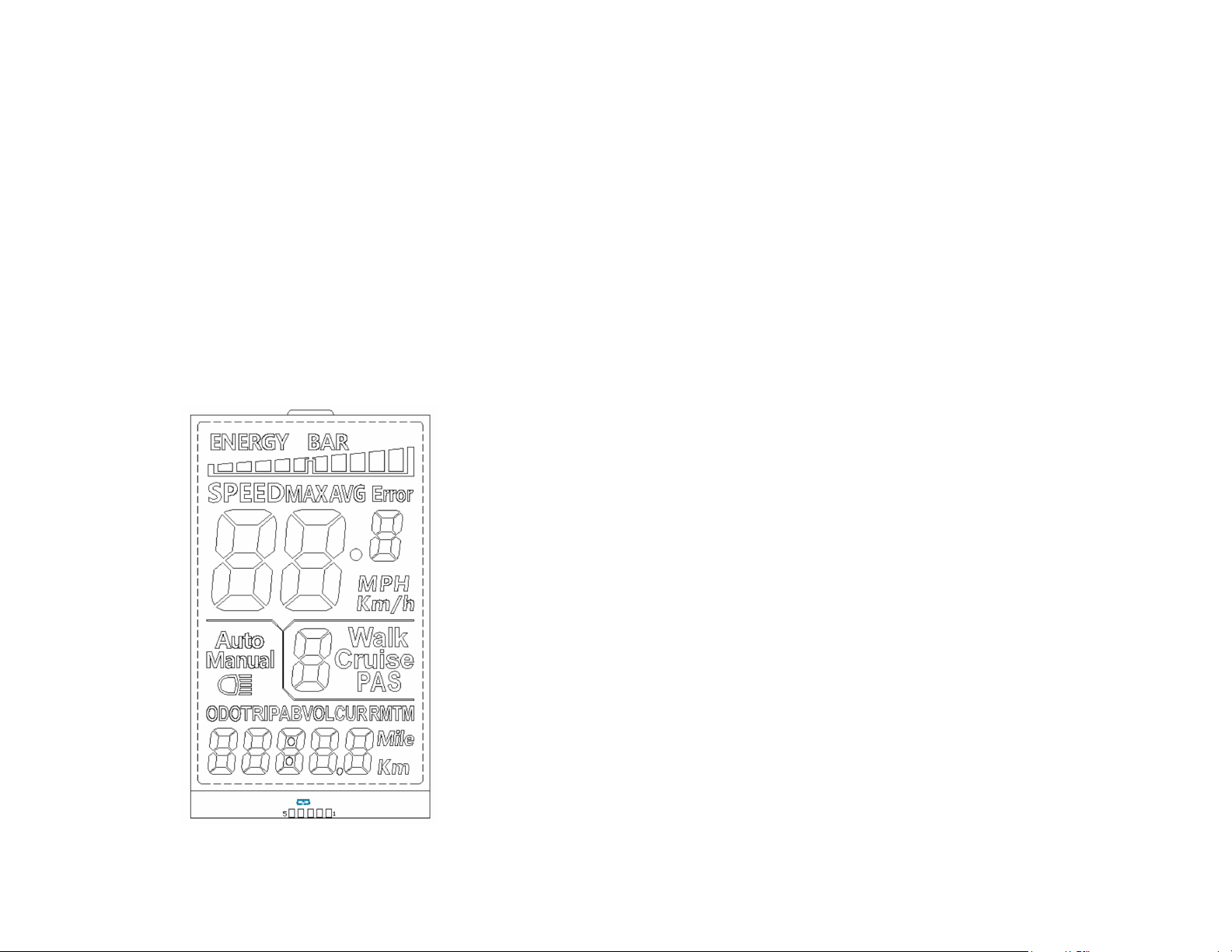

◆Display Interface
After switching on the ebike system, the display shows current speed and total
distance except, battery indicator and assistance level
◆To change the indicated information, press the MODE button to show in turn as
follows: Current Speed (Km/h) → Trip Distance (Km) Trip Time (Hour) → Max.
Speed (Km/h) → Avg. Speed (Km/h) → Motor-output (W) →Current Speed
(Km/h).
◆Switching PAS Off: There is a preset setting which allows your bike to cruise at
a steady speed of 3.7 MPH (6Km/h), the letter "P" is shown at the screen. To
engage this cruise control feature press and hold the "-" button for a few
seconds until the letter "P" shows on the screen. To disengage this function
press the brakes.
Press the power button (M button) on the handlebar controls
located near the left grip to tum it on.
You can adjust the pedal assist power level to have more power
by hitting the [ +] button (right button) and can move to a lower
level power by hitting the [-] button (left button).
When not riding your bike, you can tum off the meter by holding
down the power button (M button) for several seconds.
◆Manual Clearance Function
Among of all functions, Trip Distance, Trip Time, Max.
Speed and Avg. Speed, can only be cleared manually.
If the above functions need to be cleared, After switching
on the E-bike system and parking the E-bike, please to hold
the MODE button and the DOWN button for 2 s, the above
functions can be cleared at the same time.

9

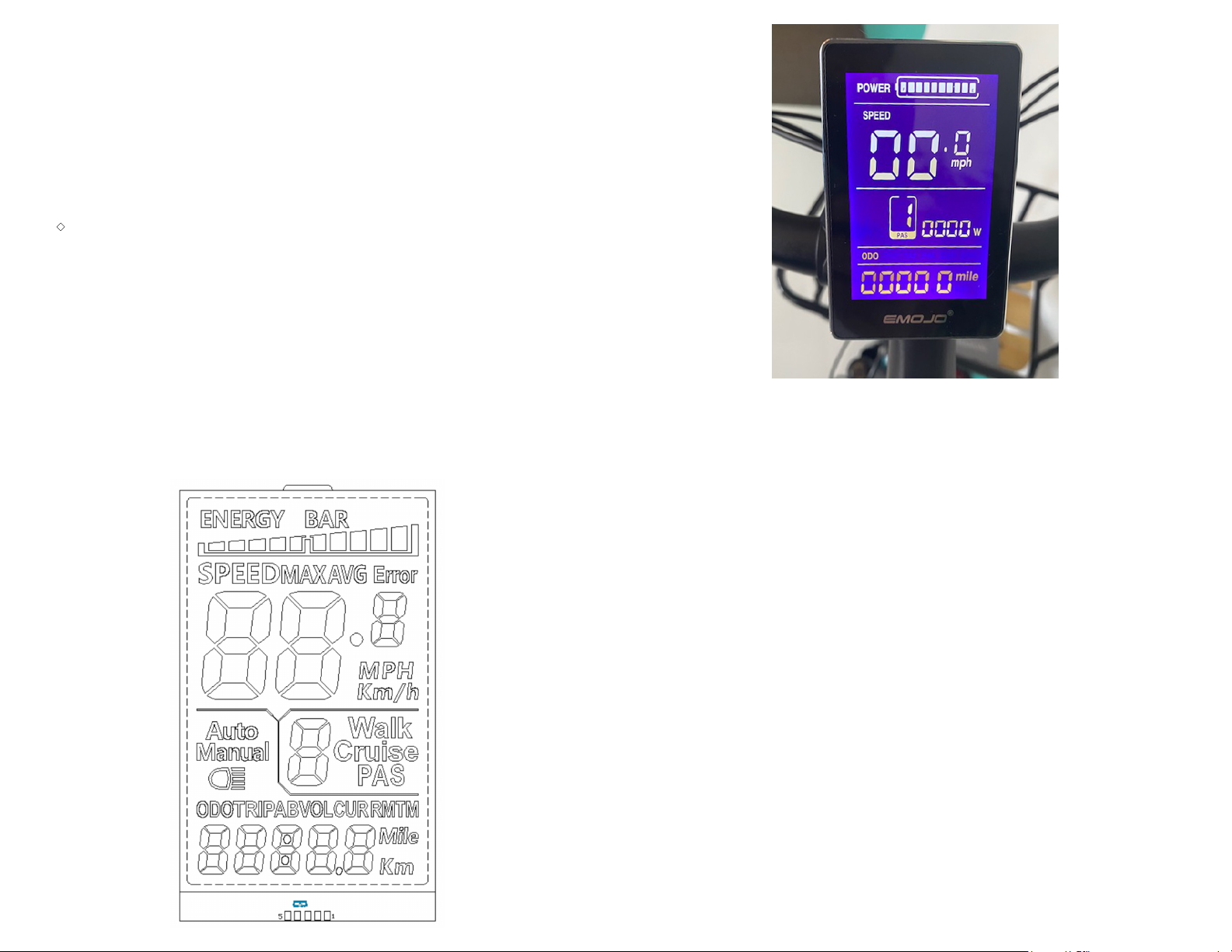

Pedal Assist Mode LCD Screen
The LCD meter monitors pedal assist, speed, odometer, trip
distance, riding time, and battery energy level. To tum the meter
on, make sure the battery is fully inserted into the bike.
RIDING MODE
Press the power button (M button) on the two button selector
located near the left grip on the handlebars to tum the meter on.
You can adjust the pedal assist power level to have more power
by hitting the [ +] button (first button top to bottom) and can move
to a lower level power by hitting the [-] button (third button top to
bottom).
When not riding the bike, you can tum off the meter by holding
down the power button (M button) for several seconds.
Free Ride



Throttle Only



Display functions
1-Power On/Off
Pr ess the M button to powe r on the display. To power o ff display and power
supply to the bicycle press and hold for 3 seconds
2-Pedal assist (PAS)
The system has 5 PA S assistance modes , use the + -buttons to scroll
between modes
3-Riding Modes
Walk: Walking boost, Cruise: Constant speed cruise, PAS: Pedal assist
levels.
4- Multi function display
Press the M button once to switch between Total Mileage: ODO, Single
Mileage: TRIP A, dingle Mileage: TRIP B, current Voltage VOL, operating
Current: CUR, Display Booting Time: TM , Riding Time
The riding time will be saved up to 100 hours unless you reset it
5- Battery Level Indicator (Energy bar)
Indicates battery level, there are 5 levels, each segment stands for 20% charge
7-Speed Indicator
Shows the speed either in MPH or KM/h
8-PAS Level
BATTERY LEVEL
SPEED
ERROR CODE
ODOMETER/TRIP
LIGHTS ON/OFF
Indicates the level of motor assistance. Use the+ - buttons to
switch b etween PAS levels
9-Lights: Turn your display ON, then press and hold the UP
arrow for a few seconds to turn on the lights. To turn them
off press and hold again the UP arrow.

10
Error Code Definition
0 Normal system, no error
1 Reserved, no function
2 Brake sensor error
3 PAS sensor failure
4 6 km/h capped top speed
5 Real time cruising
6 Low battery
7 Electric motor failure
8 Throttle failure
9 Controller failure
10 Communication-receiving error
11
12 BMS communication error
13 LED light failure
Communication-sending error
End user adjustable settings
The display allows for a series of adjustments on the settings, however some are reserved exclusively for the use of a certified
technician of the manufacturer. For those others within reach of the end user please follow the below list of settings.
To enter the program mode, press and hold the UP and DOWN arrows for a few seconds. Use the M button to navigate navigate
through the settings and up and down t change settings in each program. The settings will automatically save if you leave the display
to go back to the home screen:
P01: Back-light Brightness (1: darkest; 3: brightest)
P02: Mileage Unit (0: KM; 1: MILE)
P04: Display sleep time (0: never, other figures refer to the sleep time) Unit: minute
P08: Speed Limit
Range: 0-100km/h, parameter 100 indicates no speed limit.
This parameter limits the max. speed of the vehicle.
For example, input value 25 means the max. speed is 25km/h, the vehicle traveling speed can only reach the preset value. Deviation:
±1km/h (applies to both PAS and throttle mode).
Note: The above-mentioned values are measured by metric unit (kilometers). When the measuring unit is switched to imperial unit
(mile), the speed value displayed on the panel will be automatically switched to corresponding imperial unit, however the speed limit
value in the imperial unit interface won’t change accordingly.
P16: ODO Zero-Out: Long press the upper key for 5 seconds and ODO will zero out.
Error codes
In the event of a system malfunction the screen will display an error code. You can troubleshoot the problem by identifying
the code from the following chart.

Charging the battery
1. Always charge the battery fully for the first time. When the battery level is low (20% or less), plug it to charge it, use only the original charger provided
with the battery.
Slide open the protective
hatch to access the charging
port on the left side
11
2. Insert the charging pin of the charger into the battery charging plug; pay attention to the direction of the pins, do not insert a ny other foreign objects or dismantle
3. Connect the power plug of charger into a household AC power outlet. Please do not insert the plug into the AC around water or with wet hands, avoid causing
electric shock hazards.
4. Please check the charger indicator. When the LED indicator on the charger is red, it indicates the battery is charging, when the indicator is green, it
indicates charging completed.
5. After charging completes, please pull out the charger power plug from the househ
old AC and disconnect the plug from the battery

Attention:
I. Make sure the charger is the original charger.
2. All charging plugs must be inserted tightly.
3. The average charging time of the whole battery pack is 5 hours, please
operate in strict accordance with above instructions and keep charger away
from children.
4. Please do not charge under the rain or in wet environments..
Battery mounting and removal
Installing the attery
Your bike comes with the battery installed and integrated into the main frame. You will seldom need to remove the battery, but shall you need to remove it for
replacement or to perform a deeper cleaning on your ebike you can easily remove it:.
Park the electric bicycle, turn the key clockwise until battery front section is free, hold the battery on the front side with one hand and gently pull it out. Use
both hands to pull the battery out.
12
Note: While installing and removing, do not use exreme force to avoid damaging the battery pack and other components.
Turn the key
to lock or
unlock the
battery.

Seat adjustment
Adjust the seat to the proper height.
a)Release the clamp lever
b) Lift or push the seat pole to the desired height
c) Close the clamp lever tightly to lock the seat into position.
Please note that when adjusting the height of the seat post, it has to keep the inserting depth above the safety line, if you rise the post beyond
the safety line it may fall off while riding, no matter how tight it is.
13
Ssafety Line

Disc brakes
Figure 1
(b)
14
Cal i p er
al ig nm e nt
adj u stm e nt
bolts
D i sc
Caliper
FFree rotation between
disc and caliper.
Your electric bike is equipped with disc brakes for maximum
reliability. Applying hand pressure to the brake levers will
engage the brake pads against the brake rotor, creating friction
and slowing down the wheel. The more hand pressure applied
to the brake lever, the faster the bike will come to a stop.
Check the front disc handle gap by depressing the brake lever
about 10 times to check that everything is operating correctly
(Fig. 1 ) If necessary you can ad j ust the brake by turning the
dial on cable (shown with a red arrow). Your front wheel must
spin free at all times without any friction from the brake when
not applied.
The rear brake should always be applied before or along with
the front brake. Applying only the front brake to slow or stop at
high speeds may result in the rider being ejected from the
saddle and continuing forward over the handlebars. It is best to
apply even pressure to both brake levers when slowing or
stopping.
Bicycles equipped with disc brakes will occasionally make a
slight scraping noise when the wheels are turning without the
brakes being applied. This is normal.
Make sure that the brake lever does not contact the handlebar
when full hand pressure is applied (b) The contact point should
feel firm and solid. If the lever travels all the way to the
handlebar or feels spongy, they may require service by a
qualified bicycle technician.
If the brakes are still not operating correctly, they may require
further adjustment by an experienced bicycle mechanic.
WARNING:
• Disc brake rotors become hot during use. Do not touch
or come in contact with the disc rotor shortly after use.
• Wet weather will require a longer distance to stop. Brake
earlier and avoid sudden stops when riding in wet
conditions.
New Brakes Bed-in Procedure
New brakes will require a "bed-in" procedure prior to your
first ride which will ensure the most consistent and powerful
braking feel.
Find a safe riding area that will allow for moderate
speed. Remain seated during the entire procedure for optimal
results.
IMPORTANT:The caliper might need to be adjusted and
aligned to ensure there is no constant friction when the brake
is not applied avoiding unpleasant noises, premature wear or
poor braking. If necessary, adjust your calipers by loosening
the sockethead bolts, and gently moving the caliper with your
hand until is centered and aligned with the disc. While holding
with your hand the caliper in the correct position, tighten the
adjustment bolts again.

Tire
4 inch
Max. tire pressure:
40 psi
 


 

15
Tire size: 20 x 3.0
Tube size: 20 x 3.0
4. Pedal Installation and Adjustment:
Take out pedals from the accessory box, install one of the pedals (pedals are marked with the letters "L" and "R" to indicate the side they
belong to). When installing the pedals, insert the wrench stuck on the flat end of pedal axial head, and twist into the crank in clockwise direction.
5. Check and Adjustment of Tire Pressure
Keep proper air pressure, the space between tire and ground contact is about 4 inches long when riding on the electric bicycle.
6. Brake Adjustment
A. When brake lever reaches 1/3 of unstressed state, the power will be cut out completely, when it is at 1/2, bike can brake completely.
B. The distance between brake pad of front wheel and rim should not be more than 2mm, when the brake pads wear down, timely adjustment is
possible, after adjustment, the brake pad should not interfere with other spare parts. When a worn brake pad reaches 1/2 of its thickness, it must
be replaced.

16
I: The distance between the sensor and the disk shall be 3-5 millimeters
Installing the sensor on the side of chain ring, when forwarding the chain ring, the power
assistance is effective.
Magnetic disk
3-Smm
Sensor
8. The Adjustment of Chain Tension The over relaxation of the check and adjus t regularly. The chain would cause chain failing thus
threatening safety or damaging the motor. It is suggested to adjustment requirements: in case of single constant speed, when fixed gear, press the chain
with hand, the range of the tension is within 10mm from horizontal line.
Freewheel
Chain
Common Faults and Maintenance
Common Faults
Power on, there is no indicator on meter:
Push thumb throttle, the motor does not
work:
Motor kicks in, but speed is low
Short Mileage
Abnormal Noise of the Bike
Troubleshooting
Check the battery power, if battery is low, it is possible that the power will fail, or some blown
fuses of the controller are burned out.
Check whether the speed controlling wire of left brake levers fail, and whether the
connector of the controller or motor fails.
Check whether the brake is locked, the tightness of chain is proper; the air pressure of tire is
proper; check whether the battery power is full, if not, please charge the battery.
If the battery has not been in use for a long time, please recharge the battery in advance.
Check whether the brake rubs against the rim because of tightness, and whether the tire
pressure is full. Check whether the battery is full, if not, please recharge it.
Check for all screws and bolts to be properly tightened.
7. Adjustment of Power Assisting Hall Sensor
A: Turn the bike upside down, have it rest on the
floor.

Battery Not Charging
Check the charger and power. Check whether the battery connection is in good condition
and is stable. Check whether the charger plugs board fails. Check for any blown fuses
in the battery case or any disconnected wiring.
Note: if you experience problems contact your retailer, dealer or the manufacturer.
R egu I ar maiin t enance t a bl e
I: Inspection A. Adjust R: Replace L: Lubrication T: Tight lock
Items to be Inspected
1. If the steering of handlebar loosens or wears down
2. If pedal, axis loosens or wears down
3. If the tire inflation is proper and the cover tire wears down
4. If anterior- posterior axis shift, axis bowl, hub spindle looses or
wears down
5. If middle axis bowl, hub spindle, axle cap loosens or wears down
6. If the chain is loose
7. If the brake shoe wears down
8. If the wheel rim deflects or deforms
9. If the frame and front fork deform or are damaged
10. If spokes break down or becomes loose
11. If the brake operates smoothly
12. If brake lever is at its proper position
13. If the reflector is dirty or damaeged
14. If the horn is loud or the front lie:ht is brie:ht
15. If the charger plug and power line wears down or breaks off
16. If the height of saddle and handlebar is proper
17. All screws positions are tight
Note: Ll- recommends using No.68 IIL hydraulic Lubricant L2-
recommends using No2. Calcium-based Grease.
60 days
A, T
T
T
A, Ll
A, L2
I
A
A
I
180 days 360 days
I, L2 I, L2
I, Ll I, Ll
I R
I, L2
I, L2
A, Ll I, Ll
A, L2 I, L2
R R
I
I
I I
I I
I I
A A
I I
I I
I
A A
I, T T
17

F ig . 1
18
Power Shut Off Troubleshooting
If your electric bicycle experiences a sudden power shut off while in use, this can be related to several reasons but the problem has an easy fix.
PROBLEM
The LCD starts to blink repeatedly followed by a power shut off. (Make sure the battery is not depleted)
1-Check the motor quick connector on the right side by the tail of the frame. Fig. 1
If the battery is not depleted and the quick connector cable is all in place, contact your shop or EMOJO tech support: [email protected].
Register your ebike
To activate your warranty please register your ebike online.
You can scan with your phone this QR code and fill in the information, it takes
2 minutes!
