Lacros Scamper S200 XL Operation instructions

CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL)
VERSION CE 1.4 EN
1
LACROS SCAMPER S200 (XL) /S400 (XL)
ELECTRIC FOLDING BIKE

CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL)
VERSION CE 1.4 EN
2
For your safety
Your safety is very important, so read the following safety advices carefully. More safety tips are listed further in
the manual:
1. The LACROS Electric bike is equipped with an electromotor. It is very important that you are familiar with the
bike as soon as possible. We advise you to choose the first "practice rides" for easy roads with little traffic and
a smooth road surface.
2. When you want to ride, do not stand on the pedal, but first sit on the saddle and then start pedaling.
3. Ride the first rides preferably without electrical support to get familiar with your bike. After this you can start
with a low setting (motor support).
4. The LACROS bicycles have been tested by our employees. If you have any doubts about the bicycle and/or the
electrical installation of the bicycle, please contact us immediately.
5. Never expose the battery and the charger directly in the sun or heat surfaces. The battery is protected against
heat, but heating is better avoided.
6. Never use a charger other than the one supplied by Shinga B.V. It is very important for your safety to always
use the original charger.
7. The brakes are equipped with an "ABS" protection. As a result, the support stops when you use the brakes.
8. We recommend wearing a helmet while cycling.
The LACROS bicycles are delivered in accordance with the most recent European guidelines (page 3), if you have
any questions or comments, do not hesitate to contact us.
We are always available for users of LACROS bicycles:
E-mail: [e-mail]
Phone: [phone]
Thank you for your trust,
Ton van den Oetelaar
Director Shinga B.V.

CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL)
VERSION CE 1.4 EN
3
Quality Standard
Your product is an electric folding bike. The bicycle can be folded at 2 locations, on the handlebar stem and
halfway at the frame. The bike is equipped with a pedal support system which is powered by an external battery.
The battery can be in different locations, such as on the luggage carrier or in the frame. The battery is charged via
an external charger. This external charger is a separate product and is already provided with a CE mark (for
example, the Low Voltage Directive and the EMC Directive).
The input voltage of the battery is 36V, the motor has a power capacity of 250W and the maximum speed of the
bike is 25 km/h.
Guidelines:
Based on the above product description, the following guidelines apply:
•EMC-directive: 2014/30/EU
•Machine directive: 2006/42/EG
The Low Voltage Directive does not apply because the input voltage is only 36V. The charger of the battery is
separately marked with a CE mark.
Based on the above guidelines, a number of (corresponding) standards apply.
The following relevant documents must be mentioned in this context and are also used as input for all other
documentation:
•NEN-EN 15194:2015 Cycles (Electrically power assisted cycles - EPAC Bicycles)
•NEN-EN-ISO 4210-1:2014 and
•EN ISO 12100:2010

CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL)
VERSION CE 1.4 EN
4
Index
For your safety............................................................... 2
Quality Standard ........................................................... 3
1. Unfolding the bicycle.............................................. 5
Magnetic lock ................................................................ 5
Unfolding the frame ...................................................... 5
Secure the frame clamp................................................. 5
Unfold and secure the steering wheel ........................... 5
Unfold the pedals .......................................................... 5
2. Folding the bicycle.................................................. 6
Folding the pedals ......................................................... 6
Handlebar clamp ........................................................... 6
Frame clamp.................................................................. 6
Folding the frame .......................................................... 6
Secure folded condition ................................................. 6
3. How to use the bicycle ........................................... 7
Switch on the battery and read the battery status ....... 7
▪ SAMA-Display ........................................................ 7
Turn on the display ........................................................ 7
Switch bicycle LED lights on and off .............................. 7
Thumb lever walk assist ................................................ 7
Switch between the 9 levels of motor support .............. 8
Additional options of the display................................... 8
USB-input display .......................................................... 8
▪ Bigstone-display .................................................... 9
Turn on the display.........................................................9
Switch bicycle LED lights on and off ...............................9
Thumb lever Walk Assist ................................................9
Switch between the 9 levels of motor support...............9
Additional options of the display....................................9
USB-input display .........................................................10
The Shifter (1)...............................................................10
The Shifter (2)...............................................................10
How the electrical support work ..................................10
4. Battery and Charge ...............................................11
General.........................................................................11
Charge recommendation..............................................11
Warning .......................................................................11
How to charge the battery ...........................................12
Removing the battery...................................................12
5. Range....................................................................12
6. Safety rules ...........................................................13
7. Legal requirements ...............................................14
Environment .................................................................14
Periodic maintenance and malfunctions ......................14
8. Technical specifications ........................................15
Maintenance ................................................................15
The valves.....................................................................15
Frame number..............................................................15
9. EC declaration...........................................................16

CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL)
VERSION CE 1.4 EN
5
1. Unfolding the bicycle

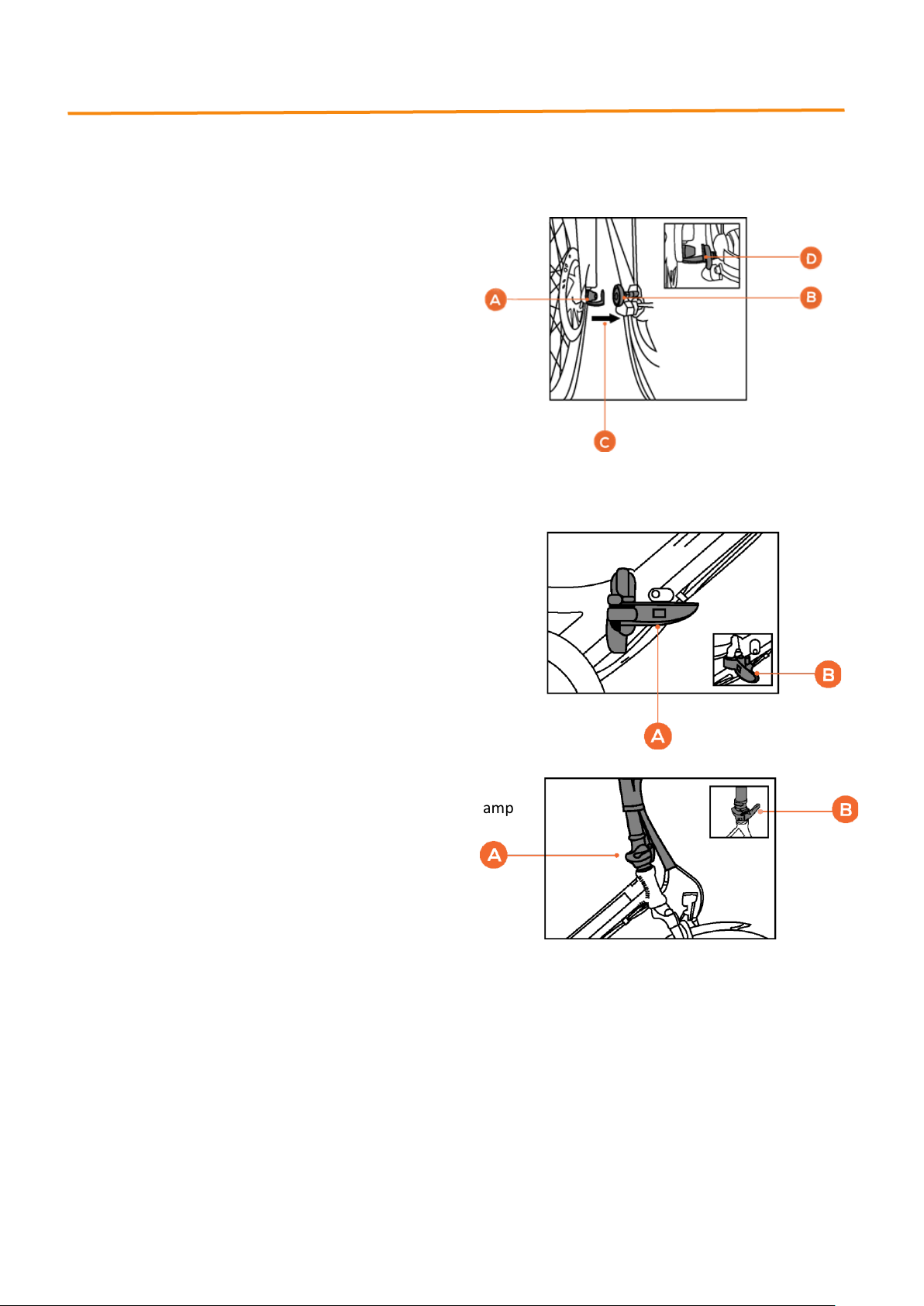

Magnetic lock
Push the wheels apart to remove them from their
magnetic lock.
A = Metal locking plate
B = Magnet
C = Direction in which you can lock
D = Locked position
Unfolding the frame
To unfold the frame, slide the wheels apart until the frame
is in a straight position. It is easy to stand on the left side
of the bike.
Secure the frame clamp
Secure the frame clamp (A + B) (middle hinge mounting on the
right of the frame tube) by first securing the latch with the frame
and then locking the clamp by pushing the clamp against the
frame. Secure the lock with the locking clip (located just above
the frame clamp) on the frame clamp.
Unfold and secure the steering wheel
Pull the handlebar (A) up and secure it with the handlebar clamp
(B). Make sure that the Pin fits properly in the handlebar
clamp. Secure the clamp with the locking ring by rotating
towards the clamp (located on the steering column near
the clamp).
Unfold the pedals
Unfold the pedals by pulling the pedal to its horizontal position.
The pedal will automatically return to its correct position.

CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL)
VERSION CE 1.4 EN
6
2. Folding the bicycle
Folding the pedals
Fold down the bicycle's stand and fold the pedals in by pushing the entire
pedal towards the bike and then folding it up or down.
Note: Position the pedals in a position so that it will not get in the way
when the frame is folded.
Handlebar clamp
Release the steering, first by rotating the locking ring (A)
away from the clamp. Open the clamp (B) so you can
fold the steering.
Frame clamp
Open the middle hinge mounting (right on the frame tube)
by moving the locking clip upwards. Pull the clamp (A + B) outwards so
that it comes loose. The frame is now open and ready to fold.
Note: Do not use excessive force to release the clamp.
Folding the frame
Stand to the left of the bike and fold the front wheel to the rear
wheel so that the wheels are close together. Under the bottom
bracket there is a triangular support on which the bicycle can rest
when folded.
Secure folded condition
Secure the bicycle by placing the wheels against each other so
that the magnets (A + B + D) connect each other (C). It is advisable
to provide the handlebar and frame with protection during
transport by means of, for example a blanket.

CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL)
VERSION CE 1.4 EN
7
3. How to use the bicycle

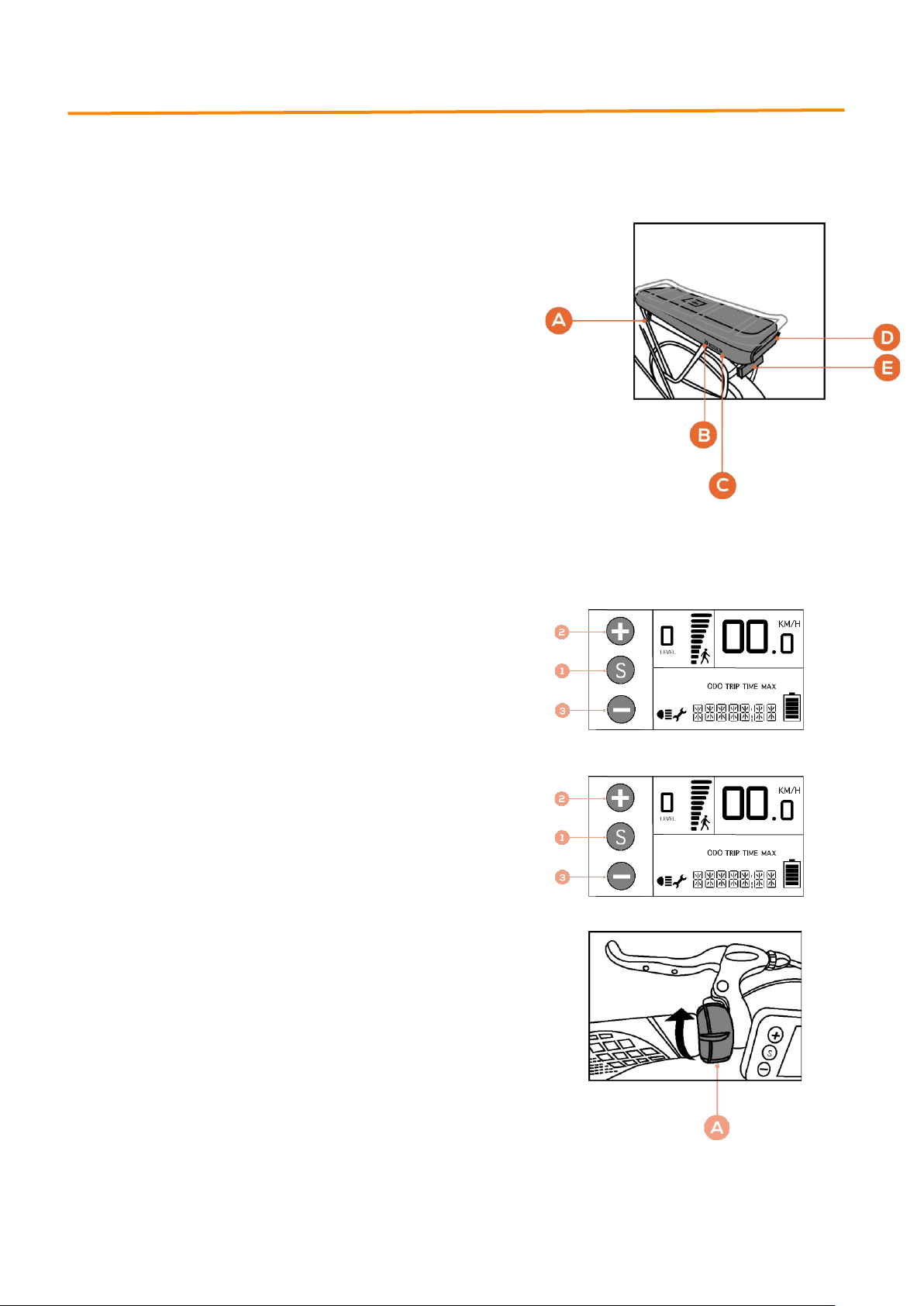

Switch on the battery and read the battery status
The battery is located on the luggage rack with the Scamper.
Switch on the electrical system with the button on the left side of
the battery (B). (note, you only have the battery activated, the
display is still off) The number of lights indicates the battery
charge. This is a rough indication of the battery charge. If you
want to turn off the battery, press and hold the on / off button for
4 seconds until you see the display go out.
A = Lock
B = On/off button
C = Indicator
D = Rear light
E = Brake light
▪SAMA-Display
Turn on the display
Press (1) to turn on the bicycle electrical circuit. A menu now
appears on the display, the electric circuit is switched on.
1 = On/Off button
2 = motor support up/light
3 = motor support down
Switch bicycle LED lights on and off
Press (2) for ± 2 seconds to turn the lights on. A light-symbol will
appear on the display. Press (2) for 2 seconds to turn off lights.
Thumb lever walk assist
By pushing the thumb lever (A) forward when stationary,
you activate the walk assist which provides support from
0 km/h to 6 km/h. By using the thumb lever while cycling,
the electrical support goes directly to its maximum (25 km/h).

CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL)
VERSION CE 1.4 EN
8
Switch between the 9 levels of motor support
The electrical motor support has 9 levels. The active
setting is displayed on the top left of the display. You can
increase or decrease the support by using the (+) and (-)
buttons.

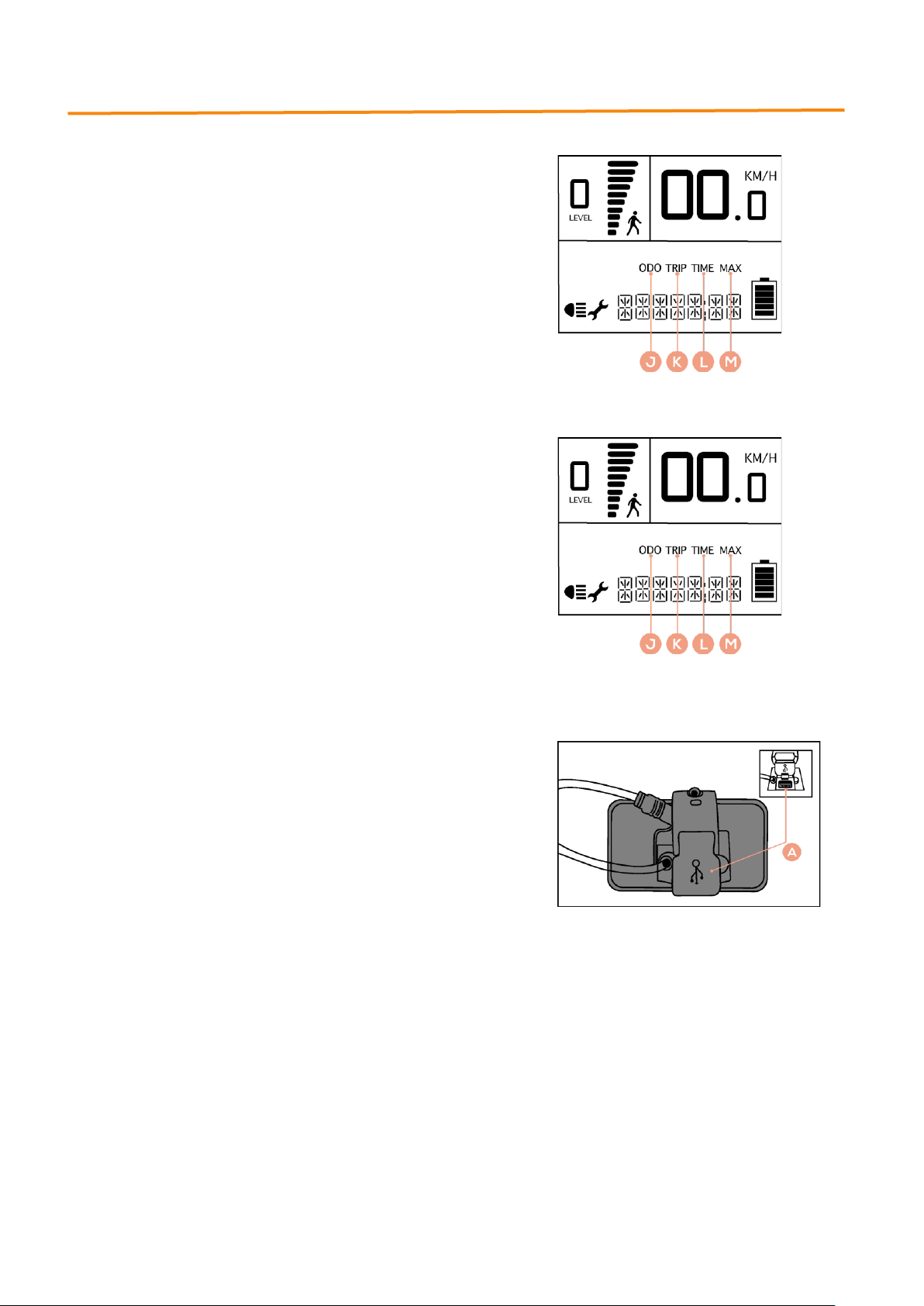

Additional options of the display
By pressing the (S) button briefly in succession, you can scroll
through various data:
(J) = Total Km / Miles reading (ODO)
(K) = Trip reading (TRIP)
(L) = Cycle time (TIME)
(M) = Maximum speed (MAX)
Reset Trip, Time and Maximum speed data by pressing
the (S) and the (-) buttons together for 2 seconds.
USB-input display
Below the display you will find a USB port (A) where for
example your phone or navigation device can be charged
while cycling. This charging only works when the display
is turned on.

CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL)
VERSION CE 1.4 EN
9
▪Bigstone-display
Turn on the display
Press the ”M” button (1) on the left of the display to activate
the bicycle's electrical circuit. (Note that the battery is already
turned on) A menu will now appear on the display, the electrical
circuit is switched on.
Switch bicycle LED lights on and off
Press the “+” button (2) for ± 2 seconds to turn on the
bicycle lights. A Light symbol appears in the display.
Press the "+" button (2) again for 2 seconds to switch off
the bicycle lights.
Thumb lever Walk Assist
By pushing the thumb lever (A) down when stationary, you
activate the walking mode which provides support from
0 km/h to 6 km/h. Note: The walking position using the thumb lever
does not work when the bicycle is in support position "0".
By using the thumb lever while cycling, the electric support
goes directly to its maximum (25 km/h).
Switch between the 9 levels of motor support
The electrical motor support has 9 levels. The active
setting is displayed at the bottom left of the display. You can
increase or decrease the support by using the (+) and (-)
buttons.
Additional options of the display
Briefly pressing the "M" key successively scrolls through
various data at the bottom of the display:
(J) = Total Km/Miles reading (ODO)
(K) = Trip reading (TRIP)
(L) = Cycling time (TIME)
(M) = Maximum speed (MAX)
Reset Trip, Time and Maximum speed data by pressing the (-) button
for 2 seconds.

CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL)
VERSION CE 1.4 EN
10
USB-input display
Below the display you will find a USB-port (A) where you can, for
example, charge your telephone or navigation while cycling. This
charging only works when the display is on.
Press the "M" key and the "+" for 2 seconds to activate the USB.
The Shifter (1)
The shift mechanism of the derailleur is located on the steering
wheel, which has a (A) and (B) Finger control. By pressing (B) you
switch up, by pushing (A) you switch down.
Note: You must keep pedaling while switching gears. However, it is
better for the gears that you do not put excessive force on the
pedals during the shift.
The Shifter (2)
The shift mechanism of the derailleur is located on the steering
wheel, which has a (B) and (C) thumb control. By pressing (B) you
switch up, by pushing (C) you switch down.
How the electrical support work
The bicycle use PAS (pedal support) through a magnet-rotation sensor. This means that the electrical support
starts the moment the pedals go around. In addition, there is a thumb lever on the left side of the handlebar to
activate the maximum support quickly and easily (which is independent of the motor support 1 to 9). As long as
you continue to hold this thumb lever forward (while pedaling), the motor will give the maximum support, similar
to support position 9 on the display.
Support is interrupted when:
-You stop pedaling.
-The brakes are used.
-Release the thumb lever if you use it.
