AIRMOTIV VAULTA AVL- 6.5

Contents

Airmotiv Vaulta AVL - 6.5 ..................................................................................................................................1

Introduction ...........................................................................................................................................................3

About This Manual...............................................................................................................................................4

Airmotiv Vaulta AVL - 6.5 Features ...............................................................................................................5

Unpacking...............................................................................................................................................................6

Airmotiv Vaulta AVL - 6.5 Specications.......................................................................................................7

Choosing Where To Install Your Speakers....................................................................................................8

Installing Your Airmotiv Vaulta AVL - 6.5 Speakers...................................................................................9

Care and Maintenance .................................................................................................................................... 12

Emotiva Audio Corporation Five-Year Limited Warranty .................................................................... 13

Notes...................................................................................................................................................................... 16

Airmotiv®Vaulta™AVL - 6.5

Page 2

AIRMOTIV VAULTA AVL- 6.5

Page 3

AIRMOTIV VAULTA AVL- 6.5

Introduction

Thank you for purchasing our new Emotiva Airmotiv™ Vaulta AVL- 6.5 ceiling speaker.

The Emotiva Airmotiv series of speakers represents the culmination of years of research and

experience in producing home and professional loudspeakers oering both excellent technical

performance and superb sound quality. Our Airmotiv speakers were designed from the start to be

equally at home in an audiophile stereo system or a high-end home theater.

Our design philosophy is simple: if a speaker can reproduce the entire audible spectrum, as

accurately as possible, with very little distortion or coloration, then it will sound good - whether

you’re playing classical music, or jazz, or the sound track of your favorite blockbuster movie.

For high-frequency reproduction, we chose our Airmotiv™ folded ribbon tweeter. This tweeter,

which we introduced in our Airmotiv Stealth studio monitors, oers excellent frequency response,

very low distortion, great detail retrieval, and high power handling capability. And, last but certainly

not least, the Airmotiv folded ribbon tweeter sounds superb at all listening levels.

For middle and low frequencies we chose advanced woven ber cones, which deliver smooth

response over the entire audio spectrum, and blend well with our Airmotiv tweeters.

The crossover network used in each Airmotiv speaker was carefully designed and optimized to work

perfectly with the drivers we chose for each, and features audiophile quality lm capacitors, high

quality inductors, and precision resistors in critical locations.

The Airmotiv Vaulta AVL- 6.5 was specically designed to be ceiling mounted and works especially

well as a ceiling or height speaker in immersive audio installations. Of course, you can also use the

Vaulta AVL- 6.5 in stereo pairs, anywhere that ceiling mounted speakers are preferred.

The Airmotiv Vaulta AVL- 6.5 features an attractive magnetically attached grill, which is supplied

in a neutral white color, but can be custom painted to match your room decor. The Vaulta AVL- 6.5

sounds great on its own, and is timbre-matched to the other speakers in our Airmotiv series, which

makes it an excellent choice for adding height speakers when it’s time to upgrade your current

surround sound system to the latest immersive audio technology.

If you’ve been searching for a superb sounding ceiling speaker, at an aordable price, then your

search is over... you’ve found Airmotiv Vaulta.

Happy listening!

The Emotiva Team

Page 4

AIRMOTIV VAULTA AVL- 6.5

About This Manual

This manual will provide you with all the information you need to achieve great performance,

accurate sound, and many years of reliable service from your Airmotiv speakers.

We suggest that you read through the entire manual; we kept things as short and direct as

possible. Even if you’re an expert user, you will probably nd some interesting information and

useful suggestions.

You may wish to record serial numbers or other purchase information on the Notes page at the

back of this manual.

Page 5

AIRMOTIV VAULTA AVL- 6.5

Airmotiv Vaulta AVL - 6.5 Features

The Emotiva Airmotiv speakers were designed to deliver superb sound for any audiophile stereo

or home theater sound system. When paired with any high-quality power amplier, all of the

Airmotiv speakers will deliver clean, uncolored, properly balanced sound with very low distortion

and outstanding rendition of even the nest details. All of the speakers in the Airmotiv series were

carefully timbre matched to work well together, and to deliver a cohesive audio image in any

stereo or surround sound installation. The Airmotiv Vaulta AVL - 6.5 is designed to be mounted in

the ceiling, and is ideal as a height speaker for immersive audio, or as a ceiling speaker to deliver

high quality music in a second zone or playroom.

The following are a few of the feature highlights of the Airmotiv Vaulta AVL - 6.5:

• Airmotiv™ 25mm folded ribbon tweeter - delivers at frequency response, low distortion,

smooth o-axis response, and excellent dispersion, for pinpoint image localization with

today’s immersive audio systems. The tweeter in the Vaulta AVL - 6.5 can be adjusted over

a range of about 40 degrees, allowing high frequencies to be directed toward the listening

position, for optimum image localization in immersive audio installations.

• Advanced 6.5” woven ber mid/woofer with NBR roll surround - delivers smooth

frequency response, lifelike detailed midrange, and crisp clean low frequencies at all listening

levels.

• Simple yet secure mounting system - allows the Vaulta AVL - 6.5 to be easily installed with

only a few tools, and ensures that it will remain rmly in place after installation.

• Attractive magnetically attached metal grill - is held rmly in place by six powerful rare-

earth magnets, ensuring that the grill will remain rmly in place during normal operation, but

can be easily removed for cleaning. The grill is shipped with an attractive neutral white nish,

and can be custom painted to match your ceiling or room decor.

• Precision crossover - is carefully optimized to work perfectly with the drivers in the Airmotiv

Vaulta AVL - 6.5, and features audiophile quality lm capacitors, high quality inductors, and

precision resistors in critical locations.

• Transparent tweeter overload protection - has no eect on sound quality at normal

listening levels, but protects the tweeter from damage due to occasional overloads.

• High-quality gold plated pushbutton terminals - for simple secure connection and long

worry-free service life.

• Full ve year warranty - ensures that you’ll be able to enjoy your Airmotiv speakers for years

to come.

You can nd more information about the Emotiva Airmotiv Vaulta AVL - 6.5 on our website at

www.emotiva.com.

Page 6

AIRMOTIV VAULTA AVL- 6.5

Unpacking

Your Airmotiv Vaulta AVL - 6.5 loudspeakers were carefully packed and should reach you in perfect

condition. If you notice any shipping damage or other issues when you unpack them, please

contact Emotiva immediately.

Gently remove your Airmotiv loudspeakers from the packing carton and remove all wrappings

and shipping material. Always handle the speaker by the support frame or the rear. DO NOT press

directly on the cone or surround of the mid / woofer.

It is important to save the box and all packing materials in case your Airmotiv speakers ever need

to be moved or shipped back to the factory for service.

Please keep your sales receipt in a safe place. It is the easiest way to verify your purchase date for

warranty purposes, and may also be required if you ever have to le an insurance claim.

We truly value customer feedback and would like to hear from you.

Page 7

AIRMOTIV VAULTA AVL- 6.5

Airmotiv Vaulta AVL - 6.5 Specications

Driver Complement

High frequency driver: 25 mm Airmotiv folded ribbon tweeter.

Low frequency driver: 6-1/2 inch woven ber cone mid/woofer with NBR roll surround.

Electrical Specications

Crossover frequency: 3.7 kHz.

Crossover slope: 12 dB / octave.

Frequency response: 70 Hz - 40 kHz +/- 5 dB.

Nominal impedance: 8 Ohms.

Eciency: 85 dB / 1 watt.

Power handling capability: 150 watts nominal.

Terminals: Gold plated spring return pushbuttons.

Mechanical Specications

Mounting cutout diameter: 8 inches.

Mounting frame diameter: 9 inches.

Grill diameter: 9-1/4 inches.

Minimum depth clearance required: 4 inches (measured from front surface of ceiling).

Maximum mounting thickness: 1-1/8 inches (maximum thickness of ceiling material).

Grill thickness: 1/4 inch (measured from front surface of ceiling).

Weight: 4.2 pounds.

Page 8

AIRMOTIV VAULTA AVL- 6.5

Choosing Where To Install Your Speakers

Your Airmotiv Vaulta AVL - 6.5 loudspeakers are designed to sound great no matter where you

install them. But, of course, room acoustics will aect how they sound and how they interact

with the rest of your system. For example, if you’re installing a pair of Vaulta AVL - 6.5 speakers to

add stereo sound in a second zone or playroom, certain locations will enable them to deliver the

most balanced sound, and the best stereo experience, for most of the listeners in the room. And,

if you’re installing a set of Vaulta speakers as height speakers for use with the immersive sound

system in your home theater room, the locations you choose will largely be determined by the

requirements of the immersive sound system you’ve chosen.

Choosing Where To Install Vaulta Speakers In An Immersive Home Theater System

If you plan to use your Airmotiv Vaulta AVL - 6.5 speakers as part of an immersive audio system

that features Dolby Atmos®or DTS-X™ then where you install them will be determined by the

requirements of the system you choose. If you have an immersive sound system, controlled by

a surround sound processor or home theater receiver, you should set the size selection for your

Vaulta AVL - 6.5 speakers to “small”, and leave the crossover setting set to 80 Hz, which is the

default for most systems.

Choosing Where To Install a Stereo Pair of Vaulta Speakers

When installing a stereo pair of Vaulta speakers in a second zone or playroom, the location you

choose will depend to some extent on how you use the room. For example, if you’re installing

your Vaulta speakers in your den, and your normal listening position is seated on a couch in front

of the TV... then the best location for your speakers, which will deliver the best stereo image for

listeners seated on the couch, will be in front of the couch, equidistant from it, and separated

as widely as possible. However, if there is no specic preferred listening position, then simply

positioning them as far apart as possible will give the best stereo experience to the largest

number of listeners. And, if you have a large or irregularly shaped room, you may consider

installing two pairs, to provide more complete coverage. The Vaulta AVL - 6.5 is rated at 8 Ohms.

Therefore, if your amplier is rated to handle 4 Ohm speakers, you can safely connect a pair of

Vaulta speakers, wired in parallel, to the speaker output of each channel.

The bass response of the Airmotiv Vaulta AVL - 6.5 extends to below 70 Hz, which blends smoothly

with most subwoofers. However, if you plan to use them without a sub, you can increase their bass

output by mounting them close to a corner of your ceiling.

A Few Words On Wall Installations

While we consider the Airmotiv Vaulta AVL - 6.5 to be an in-ceiling speaker, they can safely operate

at any angle, and there is no specic restriction against mounting them in an angled ceiling,

or even in a wall. Note, however, that the fully enclosed walls in most modern homes DO NOT

provide sucient depth clearance for the AVL - 6.5.

DTS, the Symbol, DTS and the Symbol together, DTS:X, and the DTS:X logo are registered trademarks or trademarks of DTS, Inc in

Page 9

AIRMOTIV VAULTA AVL- 6.5

Installing Your Airmotiv Vaulta AVL - 6.5 Speakers

Installing your new Airmotiv Vaulta AVL - 6.5 loudspeakers will require the use of tools such as a

drill, screwdriver, and saw. The installer should be familiar with the use of such tools, and familiar

with all applicable building and re codes. Care must be taken to ensure that the ceiling area

where you wish to install your Vaulta loudspeakers is strong enough to support them, is free

of all obstructions, and provides adequate depth clearance. When cutting mounting holes and

running wires, special care must be taken to avoid electrical wiring, water and gas pipes, and air

conditioning and heating ducts or conduits. Failure to avoid existing wiring or pipes may result in

personal injury and / or property damage.

If you are not comfortable with the above considerations then we strongly suggest that you

employ the services of a professional A/V installer or contractor.

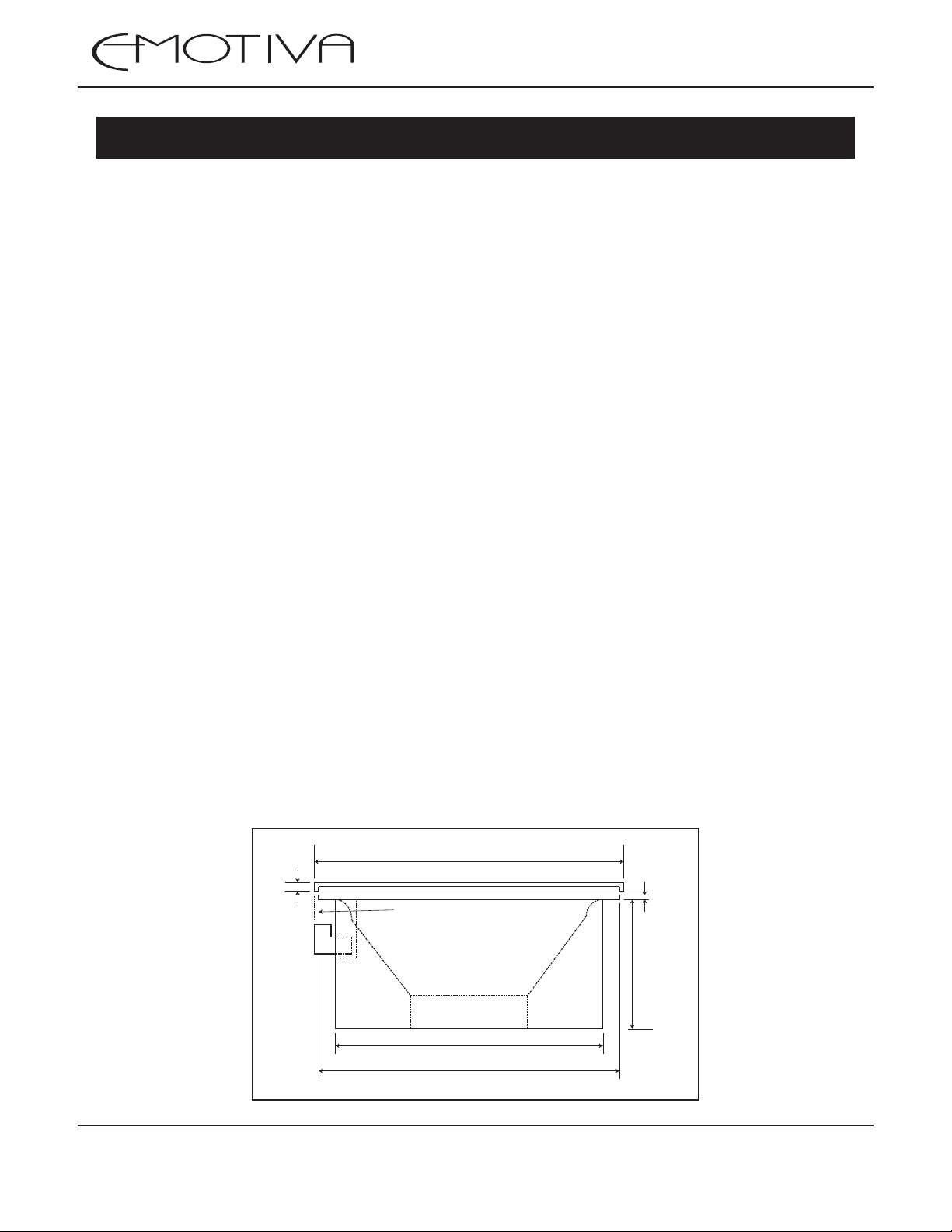

Your Airmotiv Vaulta AVL - 6.5 loudspeakers are designed to mount in a round hole 8”in diamater.

The mounting frame on the front of the speaker is 9” in diameter, and extends an additional 1/2”

outside the diameter of the mounting hole, and the grills extend another 1/8” beyond that.

The locking arms, which hold the speaker in position when they are engaged, extend

approximately 3/4” beyond the diameter of the mounting hole at four points around its

circumference in the rear. We suggest maintaining a clearance of at least 2” between your Vaulta

speaker and any joists, pipes, wires, or light xtures that may interfere with your loudspeakers.

To ensure clearance in a plasterboard or other ceiling that employ ceiling joists, we suggest

locating your Vaulta loudpseakers at least 2” from the nearest joist. To ensure both adequate

clearance and optimum strength when mounting your Vaulta AVL - 6.5 loudspeakers in a drop

ceiling, we recommend mounting them near the center of a tile whenever possible.

When installing wiring for in-ceiling speakers, use only cable that is rated for in-wall or in-ceiling

use (UL standard CL2, CL3 and CM; CSA standard FT4).

Refer to the illustrations that follow for details about the required clearances for mounting your

Airmotiv Vaulta loudspeakers.

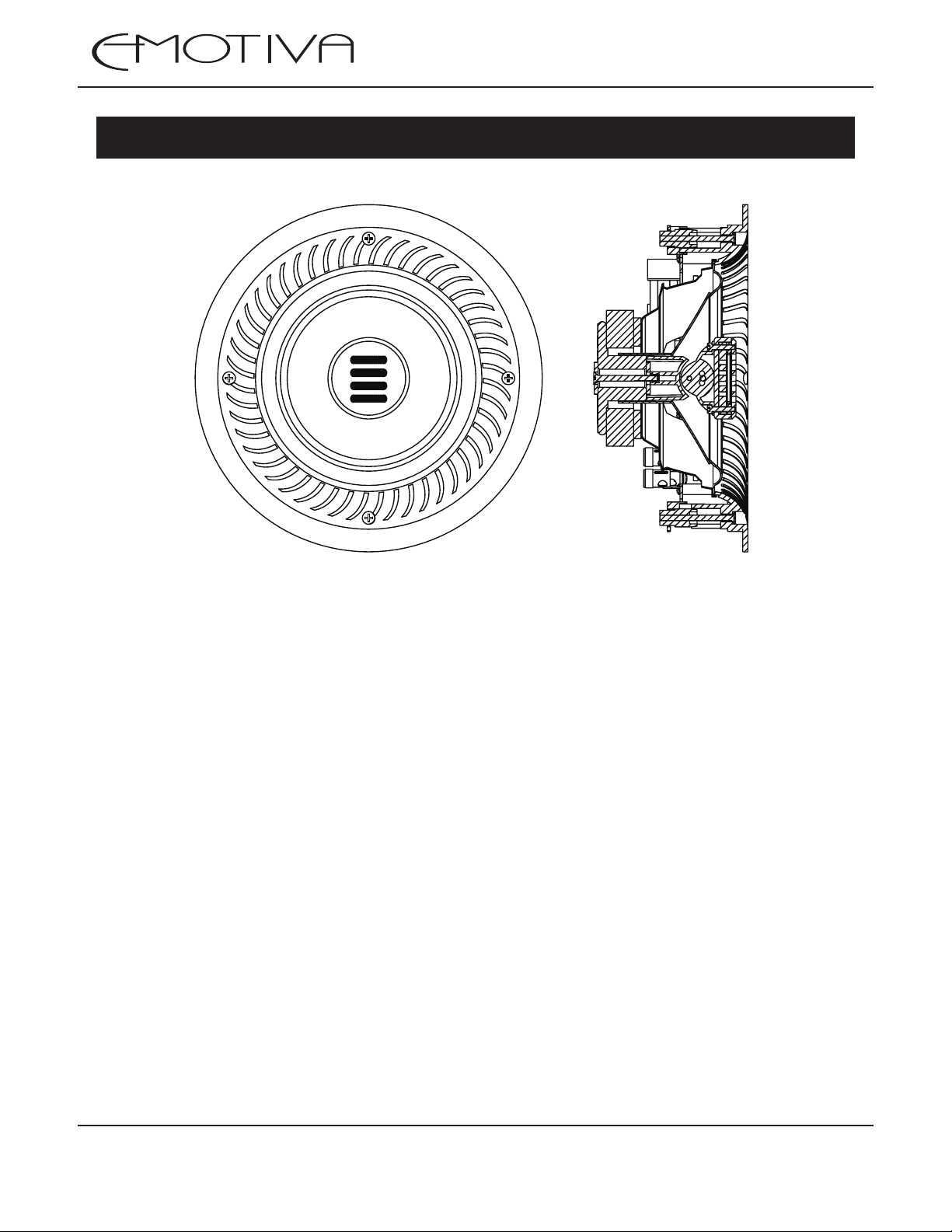

GRILL DIAMETER 9-3/8”GRILL

THICKNESS

1/4”

CUTOUT DIAMETER 8”

MOUNTING FRAME DIAMETER 9”

MINIMUM

DEPTH

CLEARANCE

4”

NOTE:

WHEN IN LOCKED POSITION THE LOCKING ARMS

EXTEND 1/8” BEYOND THE MOUNTING FRAME EDGE

(Be sure to leave clearance at four points for

locking arms to swing into locked position.)

MOUNTING

FRAME

THICKNESS

1/8”

Page 10

AIRMOTIV VAULTA AVL- 6.5

1) Before installing your Airmotiv Vaulta AVL - 6.5 loudspeakers you should rst run appropriate

speaker cable to the location where they are to be installed. We suggest using high quality

moderately heavy gauge speaker cable rated for in-wall or in-ceiling use (14 gauge or thinner

is usually most appropriate for ceiling speakers).

2) Choose the location for each of your Vaulta loudspeakers.

3) Double check to conrm that you have adequate clearance behind and to the sides of your

chosen location.

4) Mark an 8” circle at the location where each speaker is to be installed using the provided

template.

5) Carefully cut out the 8”round mounting hole for each speaker using a drywall saw or utility

knife - whichever is appropriate for your ceiling material.

6) Pull your pre-installed speaker cables out through the hole and trim them to the proper length.

Allow some slack so you have room to work with the wires.

7) For optimum sound quality, we suggest placing a block of full-thickness berglass insulation

above each speaker, extending at least 18” in each direction, if space permits you to do so.

8) Strip the ends of each wire in your speaker cable to prepare for connecting them to your Vaulta

speakers.

9) At this point look closely at your Vaulta loudspeakers and note the direction in which the

tweeter tilts. Plan to orient each Vaulta speaker so that you can adjust the tilt of the tweeter

towards your your prime listening position.

10) Connect the speaker wires to the terminals on each Vaulta speaker, lift the speaker into

position, and tighten the locking screws to engage the locking arms and lock each speaker

into position.

11) Adjust the angle of each tweeter and attach the grill to the speaker.

(Refer to the illustrations on the next page for details.)

NOTE:

BE CAREFUL HOW YOU SUPPORT THE SPEAKER DURING INSTALLATION.

You may support the weight of the speaker by placing your hand or hands against the front of

the mounting frame.

DO NOT attampt to support the speaker by placing your hand or ngers directly on the cone or

suspension of the mid/woofer. Doing so will result in damage to your speaker.

NOTE:

WE STRONGLY RECOMMEND USING A MANUAL SCREWDRIVER FOR THIS OPERATION.

DO NOT overtighten the mounting screws. Screws must be tight enough to pull the locking

arms against the top of the ceiling and hold the speaker rmly in place. If the screws are

overtightened the locking arms may cause the surface of the ceiling to buckle, resulting in a

less secure installation, and a speaker that fails to sit ush against the ceiling.

Page 11

AIRMOTIV VAULTA AVL- 6.5

SPEAKER

WALL

LOCKING

ARMS

FRONT

VIEW

SIDE VIEW (EXPANDED)

TIGHTENING MOUNTING SCREWS (ClockWise)

First rotates locking arms into position; then tightens them against wall.

MOUNTING SCREW

LOCKING ARM

(ENGAGED)

LOCKING ARMS ENGAGEDLOCKING ARMS NOT ENGAGED

TWEETER TILTS ONLY

IN THIS DIRECTION

(approx. +/- 20 degrees)

THE TWEETER TILTS IN THE DIRECTION OF THE ARROW INDICATED BELOW.

Before tightening the mounting screws position or rotate the speaker to

allow the tweeter to be tilted towards the listening position.

Page 12

AIRMOTIV VAULTA AVL- 6.5

Care and Maintenance

Periodic Maintenance

Your Airmotiv Vaulta loudspeakers require no periodic maintenance or calibration.

Cleaning the Grill

• The grill of the Airmotiv Vaulta loudspeaker should normally be cleaned with a rag dampened

with plain water. DO NOT spray water directly onto or into the speaker and DO NOT use

abrasive or chemical cleaners. Gently dry the surface with a clean soft rag after cleaning.

• If necessary, use a mild detergent, wipe the surface with a rag dampened with plain water

afterwards to rinse it, and then gently dry the surface with a clean soft rag.

• If something nasty does get on the grill of your Vaulta speaker, use a rag dampened with a

weak solution of dish detergent or other mild cleaning liquid, followed by a rag dampened

with plain water, and then dry with a clean rag.

Custom Painting The Grill On Your Vaulta AVL - 6.5

The grill of your Airmotiv Vaulta AVL - 6.5 loudspeaker is supplied with a neutral white nish. The

grill can be painted in custom colors to match your room or ceiling. However, if you do so, care

must be exercised to avoid blocking up the perforations, which would seriously compromise

sound quality.

• Remove the grill from your Vaulta loudspeaker.

• Remove the cloth scrim from inside the metal grill by peeling it o - and discard it.

(The cloth scrim cannot be colored or replaced.)

• Place the metal grill on a dropcloth and paint it as follows:

DO NOT use a roller or standard wall or trim paint.

(It is too thick and will block the perforations in the grill.)

You may use commercial or custom matched spray paint.

You may use latex wall paint - but ONLY if you apply it with a spray gun after diluting it

according to the manufacturer’s specications for use with a spray applicator.

• Apply several light coats, from several dierent angles to ensure full coverage, allowing the

paint to dry between coats.

• Replace the grill when dry.

NOTE:

REMOVING THE CLOTH SCRIM WILL ALTER THE SOUND SIGNATURE SLIGHTLY.

This step should be performed before performing speaker and room calibration.

Page 13

AIRMOTIV VAULTA AVL- 6.5

Emotiva Audio Corporation Five-Year Limited Warranty

What does this warranty cover?

Emotiva Audio Corporation (Emotiva) warrants its products against defects in materials and workmanship.

This warranty, and all rights provided hereunder, is limited to the original owner. In the event the original

owner transfers ownership of the Product prior to the expiration of the applicable term described below, this

Warranty shall terminate immediately upon such transfer of ownership.

This Warranty only applies to Products purchased directly from Emotiva or any of its Authorized Dealers or

International Distributors.

Emotiva warrants any replacement product or part furnished hereunder against defects in materials and

workmanship for the longer of the following: (i) the amount of time remaining under the original warranty, or

(ii) 120 days from your receipt of the repaired or replaced product. The duration described in this paragraph

is hereinafter referred to as the“Term”.

TO THE FULLEST EXTENT PERMITTED BY LAW, ALL IMPLIED WARRANTIES RELATED TO THE ORIGINAL

PRODUCT AND ANY REPLACEMENT PRODUCT OR PARTS (INCLUDING IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE EXPRESSLY LIMITED TO THE TERM

OF THIS LIMITED WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED

WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

The original owner must make a claim within the Term of the Warranty. A claim shall not be valid (and

Emotiva has no obligation related to the claim) if it is not made within the Term and if it is not made in strict

compliance with the requirements of the “How do you get service?”section.

How long does this coverage last?

This warranty commences on the date of retail purchase by the original retail purchaser and runs for a period

of ve years thereafter. This warranty is non-transferable to any person that owns the warranted product

during the Term. Emotiva warrants any replacement product or part furnished hereunder against defects

in materials and workmanship for the longer of the following: (i) the amount of time remaining under

the original warranty, or (ii) 120 days from your receipt of the repaired or replaced product. The duration

described in this paragraph is hereinafter referred to as the “Term”.

*Accessories, cables, Big Ego, Little Ego, and remote controls have a one-year warranty to the original owner.

The CD transport mechanism on the ERC-3 has a two-year warranty to the original owner.

What will Emotiva do?

Emotiva will, at its option, either: (i) repair the product, or (ii) replace the product with a new consumer

product which is identical or reasonably equivalent (in Warrantor’s sole discretion) to the product. In the

event Warrantor, in its sole discretion, is unable to replace or repair the Product or it is not commercially

practicable to do so, then: (i) if the claim was submitted during the rst 365 days of the Term, Warrantor shall

refund to you the purchase price that you paid for the Product; and (ii) if the claim was submitted after the

rst 365 days of the Term, Emotiva shall issue you a credit equal to the purchase price that you paid for the

product. The credit may only be used for the purchase of merchandise from Emotiva, and cannot be used for

freight charges.

When a Product or part is repaired or replaced, any replacement item becomes your property and the

replaced item becomes Emotiva’s property. When a refund or credit is given, the Product for which the

refund or credit is provided must be returned to Emotiva and becomes Emotiva’s property.

Page 14

AIRMOTIV VAULTA AVL- 6.5

What is not covered by this warranty?

This warranty does not apply: (i) to damage caused by use with products not manufactured by Emotiva,

where the non-Emotiva product is the cause of the damage; (ii) to damage caused by service or

maintenance performed by anyone who is not a representative of Emotiva; (iii) to damage caused by

accident, abuse, misuse, ood, re, earthquake or other external causes; (iv) to a product or part that has

been modied after its retail purchase, where the modication caused or contributed to the damage; (v)

to consumable parts, such as batteries or failure of or damage to the Product caused by batteries; (vi) if any

Emotiva serial number has been removed or defaced on the product; (vii) glass or plastic panels, cabinetry,

trim or other appearance items; (viii) cosmetic wear or damage to remote controls by user.

EMOTIVA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM

OR RELATED TO ANY DEFECTS IN OR DAMAGES TO ITS PRODUCTS. SOME STATES DO NOT ALLOW THE

EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR

EXCLUSION MAY NOT APPLY TO YOU.

How do you get service?

In order to make a claim under the Warranty, you must:

1. Call or e-mail a customer service representative at 1-877-EMO-TECH (1-877-366-8324) or

suppor[email protected]. You must provide a description of your problem, the serial number of the Product

for which the warranty claim is being made, and the original purchase date.

2. Then, you will be provided with a warranty service authorization number (“WS”).

3. Next, you must ship the Product to the following address, with the WS written in large, bold numbers

on the outside of the box, and with the letters“WS”written before the number, for example: WS1234.

Parcels arriving without a WS number on the outside of the box will be refused. The customer pays for the

shipping to Warrantor. Warrantor pays for the shipping back to the customer within the continental United

States only. Customer is responsible for shipping charges on all other warranty claims.

Emotiva Audio Corporation

Attn: Repair Department

139 Southeast Parkway Court

Franklin, TN 37064

Units will be refused by Emotiva for the following:

Product was sent without the WS#

Product was sent with inadequate packaging.

Product was damaged in transit.

Product was shipped collect for shipping charges.

How does state law apply?

This warranty gives you specic legal rights, and you may also have other rights which vary from state to

state.

What if my product is damaged on the way to you?

Emotiva is not liable for damages that may incur while an item is in transport to us. Please purchase

insurance when you ship your item. If your Product was not adequately packaged, we will refuse receipt

and the damaged package will be returned to you at your cost. If you do not have the original Emotiva

Audio packaging, please check with our sales department to purchase replacement-shipping cartons.

Page 15

AIRMOTIV VAULTA AVL- 6.5

How does the Warranty and service apply to international orders?

The Product Warranty is only valid in the country where the Emotiva product was originally shipped via

an authorized dealer, distributor, or direct from the Emotiva factory. The Warranty is subject to change

at any time depending on the laws and regulations within your specic country. Please check with your

distributor for a complete understanding of the warranty in your county.

If you purchased your Emotiva Product outside of the USA and wish to have it serviced at the factory, all

freight charges are your responsibility. If you do not have an authorized distributor or repair center in your

country, your Product must come back to the Emotiva USA factory for warranty service.
