EMP E2512A User manual

9970002204, REV E, 4/16/2012 © 2010 EMP WP29
Installation Manual

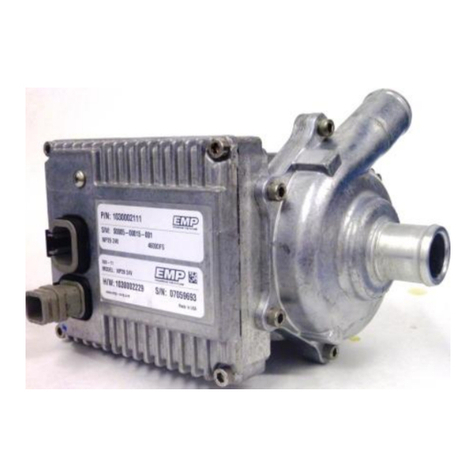

WP29 Electric Water Pump



Part Number Serial Number(s)
1030002xxx All
LPE Rev A, 2-May-2013 E2512A
Installation Manual
E2512A & WP29
Electric Water Pump

Introduction
9970002204, REV E, 4/16/2012 © 2011 EMP 2
EMP
2701 North 30th Street
Escanaba, Michigan 49829
Phone: [phone]
www.emp-corp.com
[e-mail]
The information contained in this manual is updated periodically. While great care is taken in compiling the information contained in this manual, EMP
cannot assume liability for losses of any nature arising from any errors and/or omissions.
The information and specifications contained throughout this manual are up to date at the time of publication. EMP reserves the right to change the
content of this manual at anytime without notice
LPE Rev A, 2-May-2013

Table of Contents
9970002204, REV E, 4/16/2012 © 2011 EMP 3
SAFETY ................................................................................................................................................ 4
Warnings, Cautions & Notes ............................................................................................................. 4
Product Safety Warnings................................................................................................................... 5
Specifications........................................................................................................................................ 6
Dimensions........................................................................................................................................ 6
Hole Locations/Bolt Spacing.............................................................................................................. 6
Mounting Screws ............................................................................................................................... 7
Material Listing of Major External and Fluid Contacting Parts ........................................................... 7
Operating Range ............................................................................................................................... 9
Rated Environmental Conditions ....................................................................................................... 9
Electrical Specifications................................................................................................................... 10
Parts List ............................................................................................................................................. 11
Schematics ......................................................................................................................................... 11
Controller Connectors ......................................................................................................................... 13
Wire Connections................................................................................................................................ 13
Installation........................................................................................................................................... 14
Pump Orientation ............................................................................................................................ 14
Plumbing ......................................................................................................................................... 15
Troubleshooting .................................................................................................................................. 16
LPE Rev A, 2-May-2013

Safety
9970002204, REV E, 4/16/2012 © 2011 EMP 4
SAFETY
Warnings, Cautions & Notes
Three types of headings are used in this manual to stress your safety and safe
operation of the WP29. They appear in the text as follows:
WARNING:
THIS SYMBOL IS USED TO MAKE YOU AWARE OF AN UNSAFE CONDITION, HAZARD,
OR PRACTICE THAT CAN RESULT IN PERSONAL INJURY OR DEATH.
CAUTION:
THIS SYMBOL IS USED TO ALERT YOU TO A CONDITION OR PRACTICE THAT CAN
CAUSE DAMAGE TO THE WP29 OR THE VEHICLE, OR BOTH.
NOTE: Is used to provide additional information that requires special attention by the
technician.
LPE Rev A, 2-May-2013

Safety
9970002204, REV E, 4/16/2012 © 2011 EMP 5
Product Safety Warnings

  !
   " 
#
  

  
!
$

  
%&'

()**


+,-   
./



,

0  

  "


(
.
!123456(
2)37&8999:979
(:&
A block-off plug is supplied with this pump
for use when this connector is not used (traditional on/off control wiring configuration).
LPE Rev A, 2-May-2013

Specifications
9970002204, REV E, 4/16/2012 © 2011 EMP 6


Specifications
Dimensions
Hole Locations/Bolt Spacing
LPE Rev A, 2-May-2013

Specifications
9970002204, REV E, 4/16/2012 © 2011 EMP 7
Mounting Screws
,; <,:&8
  = -:&>/ "

Material Listing of Major External and Fluid Contacting Parts
Item Quantity Description Material Fluid Contact
1 1 Cover Cast Aluminum (413)
2 1 Housings Cast Aluminum (413) YES
3 10 Bolt 18 – 8 Stainless Steel
4 1 Volute Cast Aluminum (413) YES
5 1 Impeller (Internal) 304 Stainless Steel YES
6 1 Shaft 1020 Carbon Steel YES
7 1 Product Label M - 714
8 2 Connector Dupont Zytel Nylon 70G33L


7:6444%&'1
)3
Hose Clamps
When making the inlet and outlet hose connections to the pump it is strongly recommended to use
SAE20CT worm drive type hose clamps. Torque worm drive clamps to 70 +/-10 in lbs.Spring type
clamps are not recommended.
LPE Rev A, 2-May-2013

Specifications
9970002204, REV E, 4/16/2012 © 2011 EMP 8
Identification
•The pump voltage (12V or 24V) is identified with the attached label.
The pump serial number is located on the label attached to the housing of the pump. (See below.)
Part Information Location
The label containing the part information is located on the outside surface of the pump.
Label Details
Figure 1: Part Label
Date Code
Serial Number
Country of Origin
Hardware Part
Number
Bar Code
EMP Programmed
Assembly Number or
Customer Part Number
Software Calibration
Number
Customer optional
information
LPE Rev A, 2-May-2013

Specifications
9970002204, REV E, 4/16/2012 © 2011 EMP 9
Operating Range
Table 1: Operating Range
,4-:&?/

;699

0

,4-&;?/

;699

0

4-:&?/ >89 0

4-&;?/ >89 0

Rated Environmental Conditions
Table 2: Environmental Conditions
Note:
If Controller Operating Temp exceeds 266f
(130c) the pump will shut off and stay off until
the temperature drops to 257°F (125°C)
Coolant Recommendation

 ! 
""
""

#$%" "
 &'()"
 " 

$"   """"
 " " "
 
, &97°*-'8°1/
 @;9°*-@;9°1/
,4 &8>°*-:&8°1/
4 @;9°*-@;9°1/
% :>;94!
LPE Rev A, 2-May-2013

Specifications
9970002204, REV E, 4/16/2012 © 2011 EMP 10
Electrical Specifications
Vehicle Battery Parameters
12V Pump
Parameter Min Nom Max Units
Vin – Operating 9.0 13.5 16 V
Operating current - - 25(1)(2) A
Ignition off current - - 300 µA
Motor off current - 80 - mA
Inrush current - - 205(3) A
Inrush current duration - - 270 µS
24V Pump
Parameter Min Nom Max Units
Vin – Operating 18 27.0 32 V
Operating current - - 15(1)(2) A
Ignition off current - - 300 µA
Motor off current - 60 - mA
Inrush current - - 370(3) A
Inrush current duration - - 250 µS
(1): Peak current is based on the software current limit. 25 amps is the standard current limit for a 12V pump and 15 amps is the standard
current limit for a 24V pump for serial numbers > 07065826.
(2): The pump shuts down when the internal controller temperatures reaches 130˚C at this point the pump will stop running until the internal
controller temperature drops below 125c. Once the safe value is reached, the pump will restart. No ignition cycle is required to restart the pump.
(3): The inrush current occurs when the controller first receives the required voltage on the ignition pin. This current inrush is due to the
charging of the bulk capacitors in the controller. The inrush current numbers are worst case. They were measured with a battery as the source
with a harness that was 3ft in length (very low source impedance). Anything done in the application to increase the source impedance will have
a significant (downward) impact on these numbers. This current is not generated every time the motor is started, but only when the ignition line
is first applied.
LPE Rev A, 2-May-2013
