EMPERO EMP.350 User manual

1
CUTTER MIXER
Kasap Tip Dik Buzdolapları
CONTENTS
A GENEREAL INFORMATION Page 2
A1 PRODUCT DESCRIPTION Page 3
A2 TECHNICAL INFORMATION Page 3
A3 TRANSPORTATION Page 4
A4 UNPACKING Page 4
B INSTALLATION Page 4
C SAFETY INSTRUCTIONS Page 5
D OPERATION Page 6
E CLEANING & MAINTENANCE Page 7
F TROUBLESHOOTING Page 8
G SPARE PART LIST- EXPLODING DRAWINGS Page 9
H ELECTRIC CIRCUIT SCHEMA Page 13

2
CUTTER MIXER
Kasap Tip Dik Buzdolapları
A GENERAL INFORMATION
Before installing the appliance, read operation and maintenance instructions
carefully.Wrong installation and part changing may damage the product or may cause
injury on people.These are not in our company’s responsibility to damage the
appliance intentionally,negligence,detriments because of disobeying instructions and
regulations,wrong connections.Unauthorized intervention to appliance invalidates the
warranty.
1. This instruction manual should be kept in a safe place for future reference.
2. Installation should be made in accordance with ordinances and security rules of
that country by a qualified service personnel.
3. This appliance has to be used by trained person.
4. Please turn off the appliance immediately in the event of malfunction or failure.The
appliance should be repaired only by authorized service personnel.Please demand
original spare part.

3
CUTTER MIXER
Kasap Tip Dik Buzdolapları
A1 PRODUCT DESCRIPTION
*Professional Cutter Mixer,that provides high efficiency has been designed to be used in
industrial kitchens.
Product Code
Dimensions (mm)
Weight (kg)
Packaging
Dimensions (mm)
EMP.350
340x260x550
19
400x300x560
SD.01Y
250x490x365
20
530x360x440
A2 TECHNICAL INFORMATION
Product
Code
Capacity
(lt)
Tank
Dimensions
(mm)
Power
(Kw)
Operating
Voltage
(V)
Cable
(mm²)
Fuse
(A)
EMP.350
8
240x180
0,37
220
3x1,5
10
SD.01Y
8
240x180
0,37
220
3x1,5
10

4
CUTTER MIXER
Kasap Tip Dik Buzdolapları
A3 TRANSPORTATION
*This appliance can be moved by hand from area to area.Do not crash and drop the appliance
while transporting.
A4 UNPACKING
*Please unpack the package according to the security codes and ordinances of current
country and get rid from the pack.Parts which contacts with food are produced by stainless
steel.All plastic parts are marked by material’s symbol.
*Please check that all the parts of appliance had come completely and if they are damaged or
not during the shipping.
B INSTALLATION
*Please place the product to straight and sturdy ground,please take necessary steps against
possibility of overturn.
*Technician who will serve for installation and service for the appliance must be professional
on this subject and must have installation and service licenses by the company.
*Connection to Electric Power Supply must be done by authorized person .
*Please be sure that the voltage connected to appliance must be equal with the voltage which
is on appliance’s label.
This appliance must be connected to an earthed outlet in accordance with safety rules
and standards.
*Appliance’s earthing must be connected to earthing line on panel which is nearest to electric
installation.
*Connection to the main fuse and leak current fuse must be done in accordance with the
current regulations.
!

5
CUTTER MIXER
Kasap Tip Dik Buzdolapları
C SAFETY INSTRUCTIONS
*Do not use the appliance in insufficient lighted place.
*Do not touch the moving attachments while the appliance operates.
*Do not install the appliance in the presence of flammable or explosive materials.
*Do not operate the appliance when the machine is empty.
*Do not load so less or more than appliance’s capacity.
*Do not attempt to use the appliance without suitable protective equipments.
*Because of any reason if there is a fire or flame flare where the appliance is
used,turn off all gas valves and electric contactor switch quickly and use fire
extinguisher .Never use water to extinguish the fire.
*All the damages because of not having earthing connection will not be on
warranty.
*When the appliance is stopped,the blade in the tank will go on turning for a while.Do
not put your hands into the tank at that time.

!
!
!
!
!
!

!

6
CUTTER MIXER
Kasap Tip Dik Buzdolapları
D OPERATION
*Control Panel;
A: OFF/ STOP BUTTON
B: ON/ START BUTTON
*Operating;
Before operating the appliance,clean the blade and tank with wet cloth and dry.
Provide the ducts on cutting blades to pass on to the shaft.
After loading the materials into the tank,put the lid on the tank.
Press START button to operate the appliance.
If it is wanted to add material without opening the lid while the appliance is working,solid
materials can be added through lid space after dividing into small pieces.
Press STOP button to turn off the appliance.
After the operation completed,unplug the power supply.

7
CUTTER MIXER
Kasap Tip Dik Buzdolapları
E CLEANING & MAINTENANCE
CLEANING AND MAINTENANCE AFTER EVERY USE
Clean outer surface of appliance,tank and cutting blade with hot water and then dry.
Always turn off the appliance and disconnect from the power supply before cleaning.
Do not use abrasive cleaning chemicals as these can leave harmful residues.
Do not clean the appliance by spraying water directly,otherwise electric motor may
get damaged.
PERIODIC CLEANING AND MAINTENANCE
Maintenance should be done by qualified person.
Get the periodic maintenance of the appliance once in every 15 days.
The Cutter Mixer requires low maintenance (Motor and ball bearings are lubricated ).
Maintenance of appliance’s contactor should be done by compressed air according
to frequency of use.
Maintenance of cutting blade ;
Grind the blade with aqueous grinding wheels without disrupting blade angle.

8
CUTTER MIXER
Kasap Tip Dik Buzdolapları
F TROUBLESHOOTING
THE APPLIANCE DOESN’T OPERATE
1. Check if the appliance is plugged in.
2. Check the electrical connections and
voltage.
3. Check the dividing tank’s lid.
THE APPLIANCE IS NOISY
1. Check the blades.If the ducts on blade
are not passed into the shafts,blade may
move and may damage the tank.
2. Check that if there is material
accumulated in the tank.
3. If the motor is noisy,stop it and call
authorized service.
4. If hard materials are put into the dividing
tank,stop the appliance.Take off the
hard materials.
THE APPLIANCE STOPPED
1. The appliance can stop due to low
voltage.In this situation check the
voltage.
2. If the appliance is overloaded,turn off
the appliance and allow to cool down by
taking off some materials from bowl.
WARNING
In case of a change on voltage while
operating ; appliance will give warning by
sound and stop operating. In this case
please replug the appliance.
If Cutter Mixing is not done at suitable quality
If any function of security doesn’t work
Do not use the appliance.
*If these problems are still going on,contact with our authorized service.

9
CUTTER MIXER
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING

10
CUTTER MIXER
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE:EMP.350
NO
PRODUCT NAME
P.CODE
1
FUNNEL
Y.EMP.350.001
2
LID
Y.EMP.350.002
3
BLADE
Y.EMP.350.003
4
SWITCH PLASTIC
Y.EMP.350.004
5
PAN
Y.EMP.350.005
6
HANDLE
Y.EMP.350.006
7
RUBBER
Y.EMP.350.007
8
TOP PLATFORM
Y.EMP.350.008
9
O'RING
Y.EMP.350.009
10
BEARING BLOCK SHAFT
Y.EMP.350.010
11
SEAL (20X35X7)
Y.EMP.350.011
12
BEARING BLOCK
Y.EMP.350.012
13
MOTOR
Y.EMP.350.013
14
BASE FRAME
Y.EMP.350.014
15
PANEL
Y.EMP.350.015
16
FEET
Y.EMP.350.016
17
STOPPLE
Y.EMP.350.017
18
BLADE SCREW
Y.EMP.350.018
19
MAGNET
Y.EMP.350.019
20
SWITCH
Y.EMP.350.020
21
TOP BLADE PLASTIC
Y.EMP.350.021
22
BOTTOM BLADE PLASTIC
Y.EMP.350.022
23
BLADE FLAKE
Y.EMP.350.023
24
BLADE GROUP
Y.EMP.350.024

11
CUTTER MIXER
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING

12
CUTTER MIXER
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE : SD.01Y
NUMBER
PRODUCT NAME
PRODUCT CODE
1
BASE FRAME
Y.SD.01Y.001
2
FEET
Y.SD.01Y.002
3
PAN
Y.SD.01Y.003
4
HANDLE SCREW
Y.SD.01Y.004
5
HANDLE SWITCH PLASTIC
Y.SD.01Y.005
6
SWITCH
Y.SD.01Y.006
7
HANDLE SHAFT
Y.SD.01Y.007
8
HANDLE SPHERE
Y.SD.01Y.008
9
PAN PLASTIC
Y.SD.01Y.009
10
SWITCH PLASTIC
Y.SD.01Y.010
11
FIXING PLASTIC
Y.SD.01Y.011
12
BEARING BLOCK SHAFT
Y.SD.01Y.012
13
SEAL (18X25X6)
Y.SD.01Y.013
14
BEARING BLOCK
Y.SD.01Y.014
15
BALL BEARING (6202 2RS)
Y.SD.01Y.015
16
BEARING BLOCK PULLEY
Y.SD.01Y.016
17
BEARING BLOCK POLYAMID
Y.SD.01Y.017
18
MOTOR
Y.SD.01Y.018
19
MOTOR PULLEY
Y.SD.01Y.019
20
BELT (660J)
Y.SD.01Y.020
21
FUNNEL
Y.SD.01Y.021
22
LID
Y.SD.01Y.022
23
BLADE TOP PLASTIC
Y.SD.01Y.023
24
BLADE BOTTOM PLASTIC
Y.SD.01Y.024
25
BLADE
Y.SD.01Y.025
26
BLADE GROUP
Y.SD.01Y.026
27
PANEL
Y.SD.01Y.027
28
SEGMAN (472-35)
Y.SD.01Y.028
29
BLADE FLAKE
Y.SD.01Y.029
30
BLADE SCREW
Y.SD.01Y.030

13
CUTTER MIXER
Kasap Tip Dik Buzdolapları

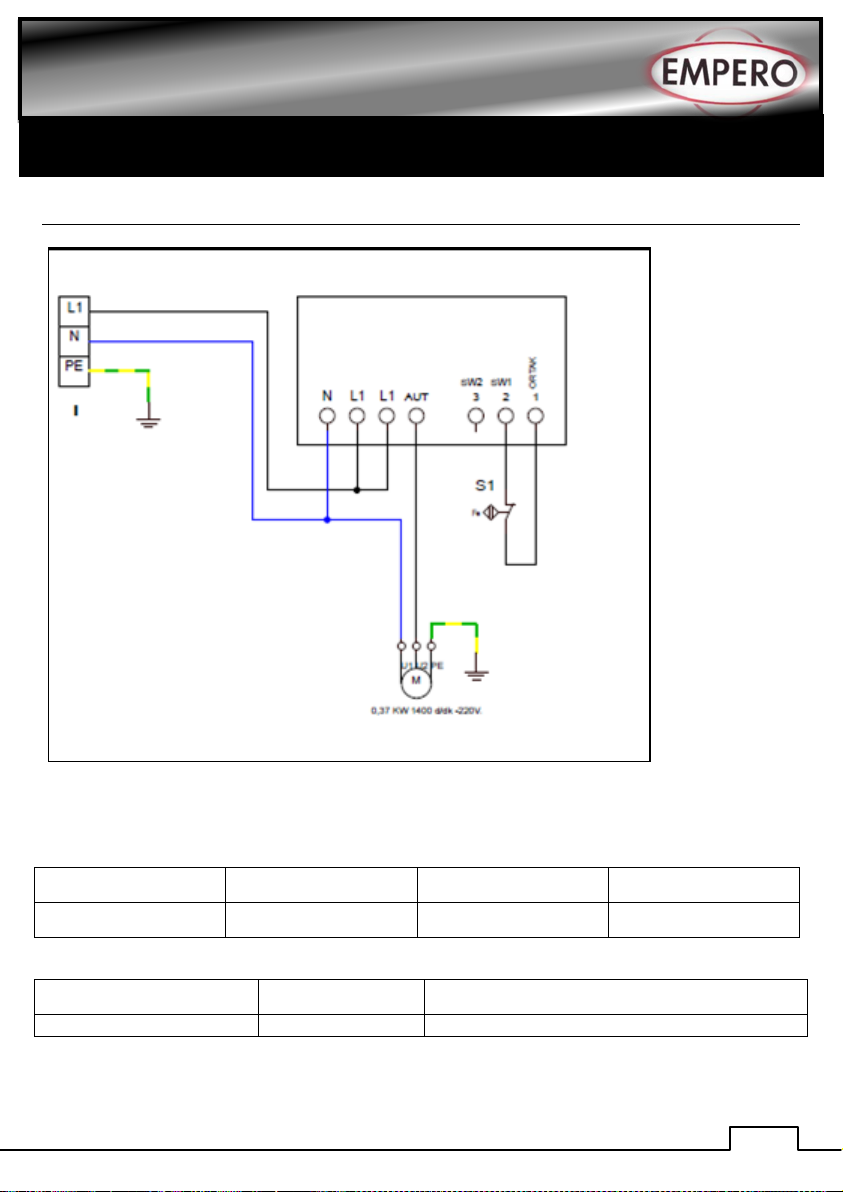

H ELECTRIC CIRCUIT SCHEMA
EMP.350
PRODUCT CODE
POWER (KW)
RPM
VOLTAGE
EMP.350
0,37
900
220
I
M
S1
Terminal
Motor
Magnetic Sensor

14
CUTTER MIXER
Kasap Tip Dik Buzdolapları
H ELECTRIC CIRCUIT SCHEMA
SD.01Y
PRODUCT CODE
POWER (KW)
RPM
VOLTAGE
SD.01Y
0,37
1400
220
I
M
S2
S1
Terminal
Motor
Mechanic Win Switch
Magnetic Cover Switch
