INSTALLATION INSTRUCTIONS
AND OWNER’S MANUAL
FOR USE ONLy WITh A LISTED gAS-FIRED UNvENTED
DECORATIvE ROOM hEATER NOT TO ExCEED 40,000
bTU/h. Do not build a wood re.
IMPORTANT! Read these instructions carefully before in-
stalling or operating this gas appliance. These instructions
should be left with the homeowner for future reference.
WARNINg
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Refer to this manual. For
assistance or additional information, con-
sult a qualied installer, service agency or
the gas supplier.
Do not attempt to modify or alter the construction of the
rebox or its components. Any modication or alteration of
construction may void the warranty of this rebox. Children
and adults should be alerted to the hazards of high surface
temperature and should stay away to avoid burns or clothing
ignition. Young children should be carefully supervised when
they are in the same room as the rebox.
Carefully review the instructions supplied with the decorative
type unvented room heater for the minimum replace size
requirement. Do not install a vent-free log set in this rebox,
unless this rebox meets the minimum dimensions required
for the installation.
SELECT vENT-FREE
UNIvERSAL FIREbOxES
GAS-FIRED
UNIvERSAL FIREbOx
FOR ALL vENT-FREE
LOg SETS MODELS:
vFS32Fb0F-6
vFS36Fb0F-6
vFS36Fb2hF-6
vFS42Fb0F-6
vFS42Fb2hF-6
WARNINg
FIRE OR ExPLOSION hAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
— Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or any other appliance.
— WhAT TO DO IF yOU SMELL gAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
— Installation and service must be
performed by a qualied installer,
service agency or the gas supplier.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
ANSI Z21.91
Ventless Fireplace
Enclosures
for Gas Fired
Decorative Type
Unvented Room
Heaters

39010-0-1018Page 2
TAbLE OF CONTENTS
Important Safety Information........................................................................................... 3
Introduction ..................................................................................................................... 3
Clearances...................................................................................................................... 4
Firebox Installation Instructions ................................................................................. 6 - 8
Installing Hood ........................................................................................................... 8 - 9
Gas Line Connection ...................................................................................................... 9
Optional Fresh Air Kit Installation Instructions ....................................................... 10 - 12
Optional FBB5 Single Speed Blower Installation Instructions................................ 13 - 15
Junction Box Wiring Installation Instructions................................................................. 16
Maintenance ................................................................................................................. 16
Master Parts Distributor List.......................................................................................... 17
How To Order Repair Parts........................................................................................... 17
Parts List ....................................................................................................................... 18

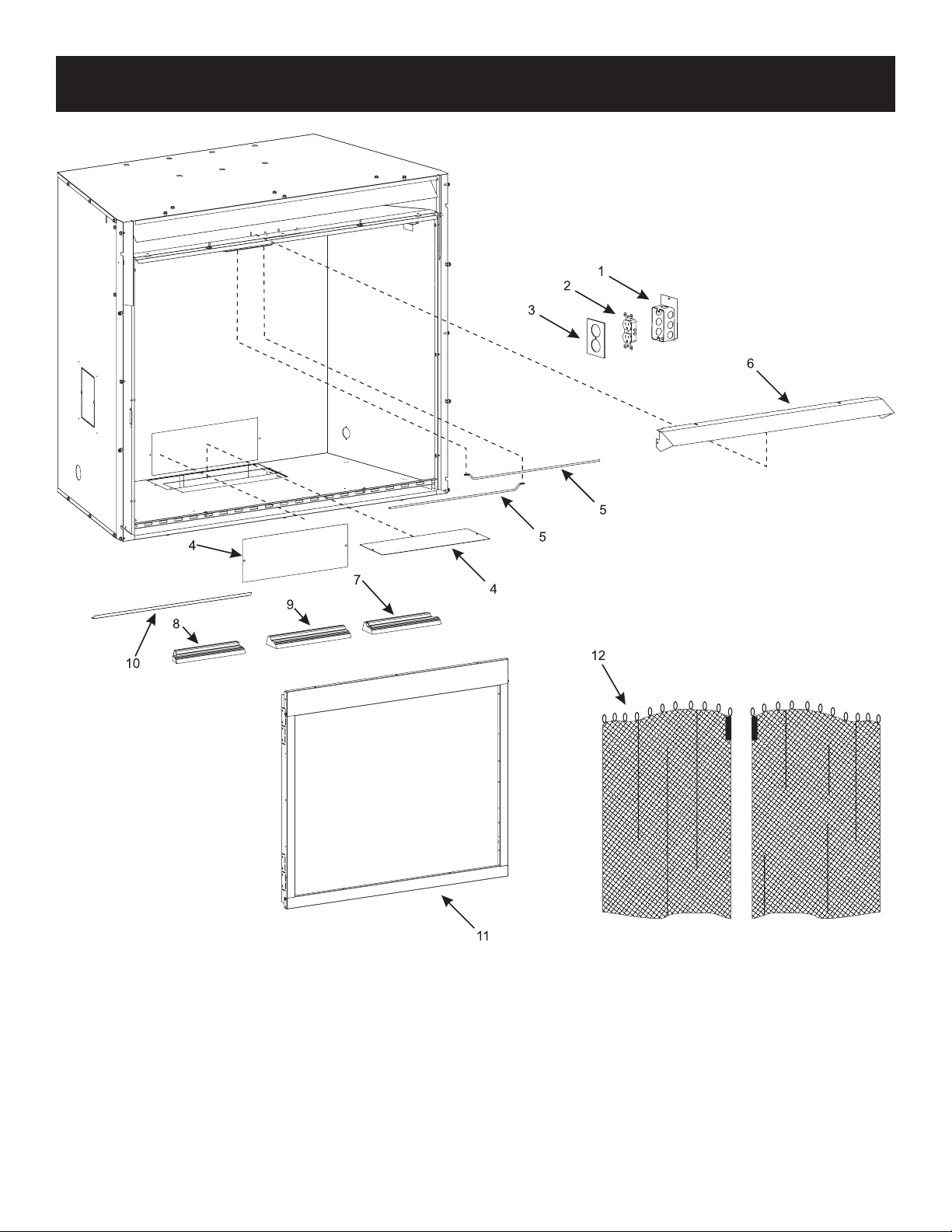

Parts View..................................................................................................................... 19
Accessories............................................................................................................ 20 - 21
Warranty........................................................................................................................ 22
Appliance Service History ............................................................................................. 23
SECTION PAgE

39010-0-1018 Page 3
The installation must conform with local codes or, in
the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1 (latest edition) and to the National
electrical Code, ANSI/NFPA70 (latest edition).
NOTICE: Installation and repair should be done by a
qualied service person. The appliance should be in-
spected before use and at least annually by a qualied
service person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding material,
etc. It is imperative that control compartment, burners
and circulating air passageways of the appliance be
kept clean.
Any safety screen or guard removed for servicing an
appliance must be replaced prior to operating the appli-
ance. Provide adequate combustion and ventilation air.
The ow of combustion and ventilation air MUST NOT
be obstructed.
Provide adequate clearance around air openings into
the combustion chamber and adequate accessibility
clearance for servicing and proper operation. NEVER
obstruct the front opening of the appliance.
This Empire Comfort Systems, Inc. rebox and its
components have been tested and will operate safely
when installed in accordance with this installation
manual. Read all instructions before starting installation,
then follow these instructions carefully during
installation to maximize rebox benet and safety.
Report to your dealer any parts damaged in shipment.
The Empire Comfort Systems, Inc. warranty will be
voided by, and Empire Comfort Systems, Inc. disclaims
any responsibility for the following actions:
• Installation of any damaged rebox.
• Modication of the rebox or any of the components
parts thereof.
• Installation other than as instructed by Empire
Comfort Systems, Inc.
• Installation and/or use of any component part
or accessory not approved by Empire Comfort
Systems, Inc. in combination or assembly with
a Empire Comfort Systems, Inc. firebox, not
withstanding any independent testing laboratory
or other third party approval of such component
part or accessory.
Any such action may create a possible re hazard.
Consult your local building codes.
Firebox Screen.
The rebox screen must be in place when the rebox
is operating.
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installermusthaveownerlloutandmailwarrantycard
suppliedwithrebox.
3. Installer should show owner how to start and operate
logsetthatisinstalledintorebox.
Important
All correspondence should refer to complete Model Number,
Serial Number.
Notice: During initial ring of this rebox with a log set
installed, its paint will bake out, and smoke will occur. To
prevent triggering of smoke alarms, ventilate the room in
which the unit is installed.
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization
equipment or accessories and repair and servicing of
equipmentshallbeperformedonlybyaqualiedagency.
The term "qualied agency" means any individual, rm,
corporation or company which either in person or through
a representative is engaged in and is responsible for (a)
the installation or replacement of gas piping or (b) the
connection, installation, repair or servicing of equipment,
who is experienced in such work, familiar with all precautions
required and has complied with all the requirements of the
authority having jurisdiction.
Commonwealth of Massachusetts: The installation
mustbemadebyalicensedplumberorgastterinthe
Commonwealth of Massachusetts. The Commonwealth of
Massachusettsrequiresthataexibleapplianceconnector
cannot exceed three feet in length.
Sellers of Unvented Propane or Natural Gas-Fired
supplemental room heaters shall provide to each
purchaser a copy of 527 CMR 30 upon sale of the unit.
In the Commonwealth of Massachusetts, Unvented
Propane and Natural Gas-Fired space heaters shall be
prohibited in bedrooms and bathrooms.
The installation must conform with local codes or, in the
absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1/NFPA 54.*
*Available from the American National Standards Institute,
Inc., 11 West 42nd St., New York, N.Y. 10036.
IMPORTANT SAFETy INFORMATION
INTRODUCTION

39010-0-1018Page 4

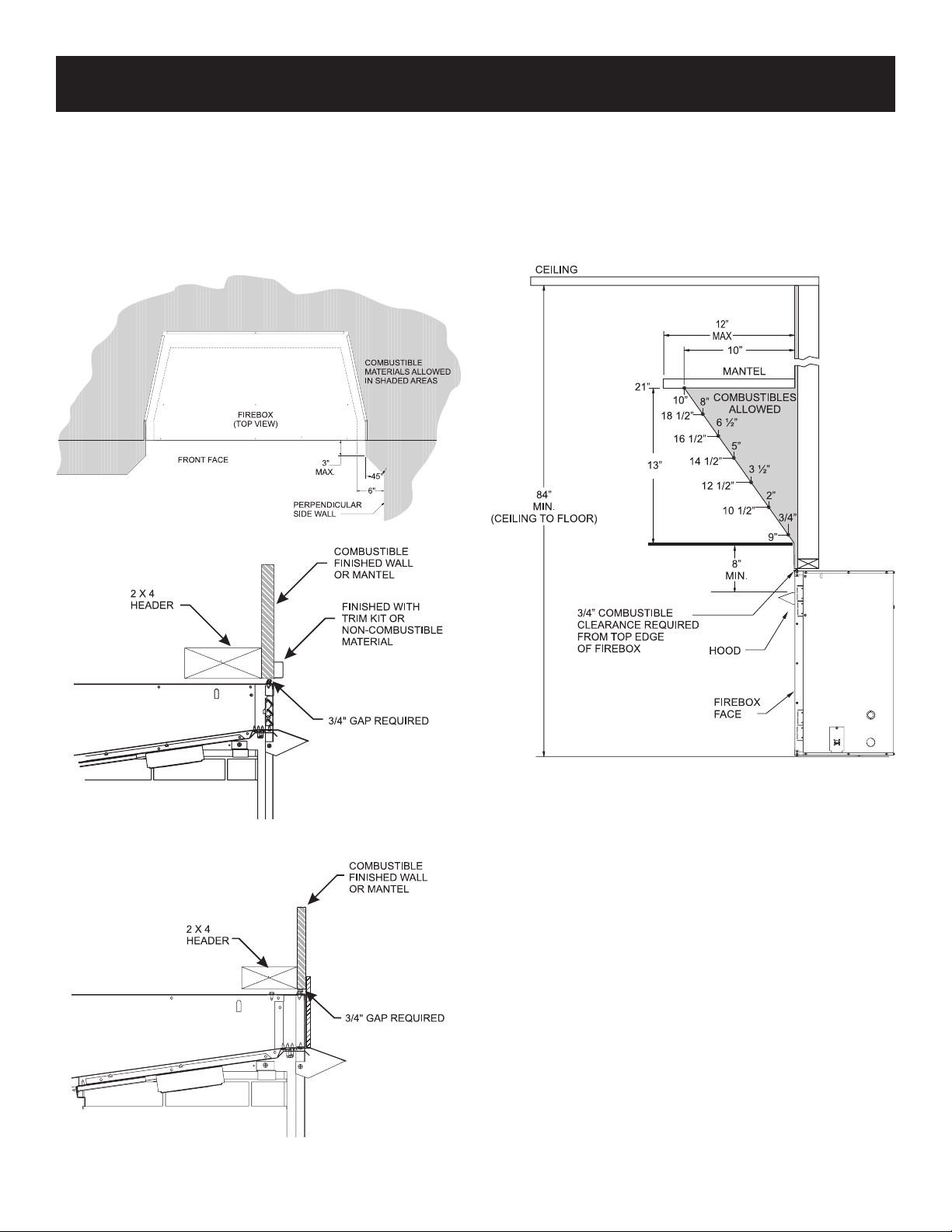

Ceiling Clearances: The ceiling height should not be less than
84inchesfromthebottomoftherebox.See Figure 4.
Mantel Clearances: Ventfreereboxmodelsmustusethe
hoodsuppliedwiththerebox,oroneoftheoptionalhoodkits
available for each model. If a combustible mantel is installed, it
must meet the clearance requirements detailed below.
Leaveatleast36inchesclearancefromthefrontoftherebox.
Figure 4 - Clearances to Combustibles
CLEARANCES
Sidewall Clearances:Theclearancefromtheinsideoftherebox
to perpendicular combustible side wall should not be less than 6
inches. See Figure 1.
Firebox Side and Back Clearances:Thereboxoutercasingside
andbackangesarezeroclearancetocombustibles.
Top Framing and Finishing: Combustible nishing materials
requires 3/4 inch to top of unit. There are two shoulder bolts attached
to the unit to maintain the minimum clearance. See Figures 2 and 3.
Figure 1
Figure 2 - Louvered Models
Figure 3 - Flush Models

39010-0-1018 Page 5
This page intentionally left blank.

39010-0-1018Page 6
Vent-Free Firebox Framing Dimensions (in inches)
Model
A b C
Framing
Height
Framing
Width
Framing
Depth
VFS32FB 38-7/8 35-3/8 23-3/8
VFS36FB 38-7/8 40-3/8 23-3/8
VFS42FB 38-7/8 44-3/8 23-3/8
Attention:Add3-3/4inchesto"A"Dimensionwhenusingush
mantel base.
Any vent-free Gas Log Heater must be “For use with approved ANSI
Z21.11.2 unvented room heater.”
Follow and complete the installation instructions of the gas log set
andtherequirementsofthisrebox.
Checkallttingsforleaksbeforelightingthegaslogset.
Inplanningtheinstallationfortherebox,itisnecessarytodetermine
where the unit is to be installed and whether optional accessories
are desired. Gas supply piping should also be planned at this time.
A Gas Shut-Off Must Be In This Line.
Thereboxcanbemountedonanyofthesesurfaces:
1. Aathardcombustibleornon-combustiblesurface.
2. A raised platform of combustible or non-combustible material.
3. Recessedintotheoorasillustratedby Figure 5.
4. Supportedunderallfourcornersofthereboxsothatcontact
is made on all four perimeter edges on the bottom of the unit
(Example: Four concrete masonry blocks).
Ifthereboxisinstalleddirectlyoncarpeting,tileorothercombustible
materialotherthanwoodooring,itshouldbeinstalledonametal
or wood panel extending the full width and depth of the unit.
At this point, you should have decided what components to include
inyourinstallation,andwherethereboxistobelocated.Ifthis
has not been done, stop and consult your dealer for assistance
with this planning.
Planning Your Installation
Please note that the optional VFA2 Fresh Air kit available for use
with the Vent Free Firebox must be installed at the time of the initial
installation. Refer to pages 10, 11 and 12 for detailed instructions
for the air kit.
Accessory kits such as the FBB5 Blower kit, Trim kits, Mantels, Full
Cabinet Mantels, plus other Decorative Frame, Hood, and Door
accessorykitsmaybeinstalledafterthereboxissecuredtothe
framed opening.
Refer to the instructions provided with each of the optional accessory
kits for proper installation and operation.
Firebox Framing
Fireboxframingcanbebuiltbeforeorafterthereboxissetinplace.
Framing should be positioned to accommodate wall covering and
reboxfacingmaterial.Thereboxframingshouldbeconstructed
of 2 x 4 lumber or heavier. The framing headers may rest on the
topofthereboxstandoffs.RefertoFigures 6 and 7forrebox
framing dimensions.
Figure 5 Figure 6
FIREbOx INSTALLATION INSTRUCTIONS

39010-0-1018 Page 7
Figure 7
Firebox Dimensions
FIREBOX INSTALLATION INSTRUCTIONS (CONT'D)
INNER FIREBOX DIMENSIONS (in inches)
Without Brick
Index Letter vFS32 vFS36 vFS42
A 31 36 40
B 23-1/2 28-1/2 32-1/2
C 18-1/8 18-1/8 18-1/8
D 29-1/8 29-1/8 29-1/8
E 31-1/2 31-1/2 31-1/2
With Brick
Index Letter vFS32 vFS36 vFS40
A 29-5/16 34-5/16 38-5/16
B 22-5/16 27-5/16 31-5/16
C 17-1/4 17-1/4 17-1/4
D 29-1/8 29-1/8 29-1/8
E 31-1/2 31-1/2 31-1/2
OUTER FIREBOX DIMENSIONS (in inches)
Flush
Index Letter vFS32 vFS36 vFS42
A 38-1/16 38-1/16 38-1/16
B 34-1/4 39-1/4 43-1/4
C 23-3/16 23-3/16 23-3/16
D 25-1/16 30-1/16 34-1/16
E - - -
F 31 36 40
G 31-5/8 31-5/8 31-5/8
H 2 2 2
I 33-5/8 33-5/8 33-5/8
J - - -
K 7-9/16 7-9/16 7-9/16
L 40-7/16 42-15/16 44-15/16
M 70-15/16 75-15/16 79-15/16
N 4-1/4 4-1/4 4-1/4
L
M
G
I
A
H
F
B
K
N
C
OUTER FIREBOX DIMENSIONS
INNER FIREBOX DIMENSIONS
E
B
A
C
D
TOP VIEW SIDE VIEW
C
D
L
M
G
I
A
H
F
B
K
N
C
OUTER FIREBOX DIMENSIONS
INNER FIREBOX DIMENSIONS
E
B
A
C
D
TOP VIEW SIDE VIEW
C
D
OUTER FIREbOx DIMENSIONS INNER FIREbOx DIMENSIONS
L
M
G
I
A
H
F
B
K
N
C
OUTER FIREBOX DIMENSIONS
INNER FIREBOX DIMENSIONS
E
B
A
C
D
TOP VIEW SIDE VIEW
C
D
L
M
G
I
A
H
F
B
K
N
C
OUTER FIREBOX DIMENSIONS
INNER FIREBOX DIMENSIONS
E
B
A
C
D
TOP VIEW
SIDE VIEW
C
D
L
M
G
I
A
H
F
B
K
N
C
OUTER FIREBOX DIMENSIONS
INNER FIREBOX DIMENSIONS
E
B
A
C
D
TOP VIEW
SIDE VIEW
C
D

39010-0-1018Page 8
Locating Firebox
Placereboxinframingopening.Usethetabsonthesideofthe
reboxtoattachreboxtoframing.Differenttablocationscanbe
usedfornishingmaterialswiththicknessesof1/2inchand5/8inch.
See Figure 8.
Framingtabs should t directly againstframingmaterial. Use at
least one nail per bracket to secure in place.
Checksquarenessofthereboxpriortosecuringtoframedopening.
See Figure 9.
Figure 8
Ablackhoodthatisfurnishedwitheachrebox(oroptionalhood)
MUST be installed before the rebox is used. Failure to do so
may create a possible re hazard. The hood is located behind
upper louver, or inside the rebox on ush face units. If brass,
stainless steel, or hammered pewter hoods are desired, they can
be purchased as an option. Attachment is the same as the standard
black hood.
Flush Face Models
1. Onushfacemodels,looselyattachtwoscrews(A)toholdthe
reboxtoptofacepanel,thenslidethehoodangebetweenthe
reboxtopandfacepanelandre-tightenthescrews.
2. Install one screw at each end of the hood as shown (C).
Louvered Models
1. If you have a louvered model, remove upper louver.
2. Placethetophoodangeontopoftherebox,theninstallthree
screwsthroughthereboxtopfrombelowandscrewintothe
pilotholesinthehoodange(B).
3. Install one screw at each end of the hood as shown (C).
4. Re-install louver.
CAUTION: The hood must be installed prior to operation of
appliance. See Figure 10.
Flush Face Models
Figure 10
Figure 9
FIREBOX INSTALLATION INSTRUCTIONS (CONT'D)
INSTALLINg hOOD
B
C
INNER FIREBOX TOP
Louvered Models
ACAC

39010-0-1018 Page 9
Thereboxisdesignedtoaccepta3/8-inchgaslineforanapproved
vent-freegaslogset.Havethelineinstalledbyaqualiedservice
person in accordance with all building codes. Consult local building
codes to properly size the gas supply line leading to the 3/8-inch
hook-up at the unit. The state of Massachusetts requires that a
exibleapplianceconnectorcannotexceedthreefeetinlength.
Gasaccessholesareprovidedonbothsidesoftherebox.See
Figure 11.
When installing optional ceramic ber side panels into rebox,
laypanelonaatsurface.Removethegaslineknockout(round
depression) in the appropriate side panel using a drill or utility knife.
Check gas type. Use only the gas type indicated on the gas log
set rating plate. If the gas listed on the plate is not your type of gas
supply, DO NOT INSTALL. Contact your dealer for proper model.
Alwaysuseanexternalregulatorforallpropanereboxestoreduce
the supply tank pressure to a maximum of 14 inch w.c. This is in
additiontotheregulatorttedtothelogset.
WARNINg
Connection directly to an unregulated propane tank can
cause an explosion.
Install only a ANSI Z21.11.2 vent-free burner and log set into this
rebox.
Figure 11
Extended Hoods
Ifyournon-combustiblefacingmaterialisover1"inthicknessthatwillbeusedtonishthisrebox,anextendedhoodisavailablethatwill
extend out 2" farther out into the room. Contact your local dealer for details.
Finishing
Alljoints(top,bottomandsides),wherethewallordecorativefacingmaterialmeetsthereboxsurroundshouldbesealedwithanon-
combustible material.
Hearthextensionsarerecommended,butnotrequiredforthesereboxes.
VB4H32BL Standard Black VB4H36BL Standard Black VB4H42BL Standard Black
VB4H32BR Polished Brass VB4H36BR Polished Brass VB4H42BR Polished Brass
VB4H32SS Stainless Steel VB4H36SS Stainless Steel VB4H42SS Stainless Steel
VB4H32HP Hammered Pewter VB4H36HP Hammered Pewter VB4H42HP Hammered Pewter
INSTALLING HOOD (CONT'D)
gAS LINE CONNECTION
Brick Panel
Figure 12
GAS ACCESS HOLES

39010-0-1018Page 10
OPTIONAL FRESh AIR KIT INSTALLATION INSTRUCTIONS
3. Insert Slide Assembly through the cut-out as shown in Figure
15. Before you fasten ensure that the handle penetrates the
innerreboxwall.See Figure 16. Fasten the Slide Assembly
with the four 10 x 1/2 Hex Head Screws provided.
Figure 15
Figure 16
4. Fasten the Handle Retainer to the rebox side with two
10 x 1/2 Phillips Truss Head Screws as shown in Figure 16.
The optional Fresh Air Kit is designed to introduce outside air to
thereboxasdesired.Itmustbeinstalledpriorto,oratthetimeof
reboxinstallationtoframing.TheFreshAirkitmustbeinstalled
prior to the installation of wallboard or other nishing materials
around the unit.
Hardware needed (not provided):
• 4 inch Aluminum Flex Duct
• 2 Band Clamps
Tools needed:
• Gloves
• Metal snips
• 5/16 inch Nut Driver
• Phillips Screwdriver
CAUTION: Sharp edges
Slide Assembly Installation
1.
Begin by removing the rectangular cutout located on the left
side of the unit. Use gloves and sheet metal snips to create the
opening for the Air Door assembly to install into. See Figure 13.
Figure 13
2. Bend the tab out of the way. See Figure 14.
Figure 14

39010-0-1018 Page 11
OPTIONAL FRESh AIR KIT INSTALLATION INSTRUCTIONS
5. Push the handle for Open position and pull the handle for the
Closed position. See Figure 17.
Figure 17
Completion Of Air Kit Installation
1. Determinethelengthof4inchdiameterrigidorexductcon-
nector(installersupplied)youwillneedfromtherebox/re-
place to the exterior surface of the outside wall, where the air
kit hood will be installed. Add a few extra inches to the length
to allow for easier attachment of the outside duct connection
prior to securing the outside rain cap hood to the building.
2. Secure the 4 inch diameter duct to the Slide Assembly collar
onthereboxwithbandclampsorscrews(installersupplied).
3. Run the other end of the duct through the exterior wall cutout.
4. From the outside of the building, connect the duct to the collar
on the outside air vent assembly with band clamp or screws
to secure (installer supplied).
5. Secure the Outside Air Vent Assembly to the outside wall with
the four 10 x 1 1/2 Hex Head Slotted Screws provided. Seal
with caulk as necessary. See Figure 18.
6. Figure 19 illustrates the various options for installation of the
air duct run possibilities.
NOTICE: In installations where the ex duct would normally be
straight (without turns), it is recommended a turn or dip be added
in the run to reduce air velocity.
OUTSIDE
AIR VENT ASSY
CAULKING
WALL
Caulk And Install Duct Termination
Figure 18
RECOMMENDED TO
ELIMINATE COLD AIR
DRAFT
Figure 19

39010-0-1018Page 12
OPTIONAL FRESh AIR KIT INSTALLATION INSTRUCTIONS
1
2
3
PARTS LIST
INDEx NO. PART NO. DESCRIPTION
1 29259 Outside Air Vent Assembly
2 29257 Slide Assembly
3 29263 Handle Retainer
hARDWARE PACK

39010-0-1018 Page 13
OPTIONAL FBB5 SINGLE SPEED BLOWER INSTALLATION INSTRUCTIONS
ATTENTION: It is recommended to install the blower assembly
before connecting gas inlet supply line.
Wiring
The appliance, when installed, must be electrically grounded in
accordance with local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70, if an external
electrical source is utilized. This appliance is equipped with
a three-prong [grounding] plug for your protection against
shock hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove the
grounding prong from this plug. For an ungrounded receptacle,
an adapter, which has two prongs and a wire for grounding, can be
purchased, plugged into the ungrounded receptacle and its wire
connected to the receptacle mounting screw. With this wire com-
pleting the ground, the appliance cord plug can be plugged into the
adapter and be electrically grounded.
CAUTION
Label all wires prior to disconnection when servicing con-
trols. Wiring errors can cause improper and dangerous op-
eration. Verify proper operation after servicing.
NOTICE: Junction box on right side of replace must be pre-
wiredattimeofreplaceinstallationforusewithblowerassembly.
A standard wall ON/OFF wall switch or optional SCV1 Variable
SpeedControlKitshouldbeinstalledtoactivatepowertothere-
place, and control the operation of the FBB5 Blower assembly. It
is recommended that installation of the wiring be performed by a
qualiedelectrician.See Figure 20.
1. Ifinstalled,turnOFFgassupplytorebox/gaslog.
2. Ifapplicable,turnOFFelectricsupplytorebox.
CAUTION
All wiring should be done by a qualied electrician and
shall be in compliance with all local, city and state build-
ing codes. Before making the electrical connection, make
sure that main power supply is disconnected. The appli-
ance, when installed, must be electrically grounded in ac-
cordance with local codes, with the national electrical code
ansi/nfpa 70 (latest edition).
Figure 20
A factory installed junction box is located on the lower right
sideofthereplace.Wiring mustbefed tothejunction box
and attached to the receptacle that is provided. From right
sideofthereplace,removethescrewsecuringthejunction
box assembly. Leave approximately 6" of wire in the junction
box for connection.
Attach black wire to one side of the receptacle and white wire
to opposite side of receptacle. The ground wire should be at-
tached to the green (ground) screw.
Attention: If installed, do not damage gas inlet supply line
whenblowerassemblyisinsertedintorebox.Insomecases,
removal the gas inlet supply line may be necessary.
Blower Installation
1. Remove cover plate.
See Figure 21.
Figure 21
2. Removeairdeectorbyremovingthefourscrewssecuringit
to the blower assembly.
Figure 22
3. Insert blower assembly into interior at rear. Position blower
assembly so that you center the blower assembly in the
opening,thenpushtheblowerassemblyagainstreboxback.
The magnets on the back and bottom of blower assembly will
hold blower assembly in place.
4. Once the blower assembly is in position, use a screwdriver to
bendtheupperrighttabonthereboxaway.

39010-0-1018Page 14
OPTIONAL FBB5 SINGLE SPEED BLOWER INSTALLATION INSTRUCTIONS
5. Next,ndthefancontrol switchandwire assembly.Feed the
wiresthroughtheholeatthetopoftherebox,andsecurethe
fan control switch with the two screws provided. See Figure 23.
FANCONTROL
WIRE ASSEMBLY
Figure 23
6. Thefancontrolwireswillslidedownbetweenthereboxand
outer wrap near the blower assembly. See Figure 23.
7. One fan control wire will have a 1/4” female terminal that must
be attached to the open terminal on the blower motor. See
Figure 26, Connection A.
8. The other fan control wire has a 1/4” male terminal. Attach this
terminal to the open terminal on the blower power cord. See
Figure 26, Connection B.
9. Route the wires away from moving parts of the blower assem-
bly and retain wires together near the blower motor using the
plastic purse clip provided.
10. To complete the installation, plug the power cord into the junc-
tionboxreceptacleattherightrearcornerofthereboxouter
wrap. See Figure 24.
Figure 24
11. If room permits, the power cord can be located from the out-
side of the unit looking through the junction box access hole
(with the junction box removed), then plug up the power cord
before reinstalling the pre-wired junction box.
12. Once all connections are made electrically, it is recommended
that you test the blower fan control operation by turning on
power to the blower (CAUTION: 110 Volt). Then apply heat to
thefancontrolswitchinsidethereboxwithalighterormatch
until blower is activated. Once blower is activated, check for
proper operation. Do not place hands near blower assembly
or other wiring while power is on.
13. Replace blower access plate.
14. This completes the installation of the optional FBB5 Blower kit
accessory.
NOTICE:
This blower is equipped with a heat activated fan control
switch. Blower will operate when the replace warms up, and will
turnoffautomaticallywhenthereboxcoolsdown.

39010-0-1018 Page 15
OPTIONAL FBB5 SINGLE SPEED BLOWER INSTALLATION INSTRUCTIONS
Blower Motor
The blower motor does not have oiling holes. Do not attempt to oil
the blower motor.
Blower Wheels
The blower wheels will collect lint and could require periodic clean-
ing. If the air output decreases or the noise level increases, it indi-
cates a dirty blower wheel. Remove fan and clean blower wheels.
WARNINg
Unplugging of blower accessory will not stop the heater
from cycling. To turn off gas to the heater (millivolt mod-
el): push in gas control knob slightly and turn clockwise to
“OFF.” Do not force. To turn off gas on direct ignition model,
turn gas line valve to “OFF.”
Figure 25
INDEx NO. PART NO. DESCRIPTION
1 R7731 Blower Assembly
2 R9901 Fan Control Switch
3 R8147 Wire Assembly
4 R7615 Cord Set
Figure 26

39010-0-1018Page 16
JUNCTION bOx WIRINg INSTALLATION INSTRUCTIONS
Keep the control compartment, logs and burner area surrounding
the logs clean by vacuuming or brushing area at least twice a year.
THE LOGS CAN GET VERY HOT – HANDLE ONLY WHEN COOL.
Always turn off gas to the pilot before cleaning. For relighting, refer
to lighting instructions located on the log set.
Neverobstructtheowofthecombustionandventilationair.Keep
thefrontofthereboxclearofallobstaclesandmaterials.
Screens must be closed during operation.
MAINTENANCE
CAUTION
All wiring should be done by a qualied electrician and shall
be in compliance with all local, city and state building codes.
Before making the electrical connection, make sure that main
power supply is disconnected. The appliance, when installed,
must be electrically grounded in accordance with local codes
or, in the absence of local codes, with the national electrical
code ansi/nfpa 70 (latest edition)
A factory installed junction box is located on the lower right hand side
oftherebox.Wiringmustbefedtothejunctionboxandattached
to the receptacle that is provided. Remove the knockout in the
installed junction box to accept wiring into the junction box. Install
a UL listed cable clamp (not supplied) in the knockout hole. Leave
approximately 6 inches of wire in the junction box for connection.
Attach black wire to one side of the receptacle and white wire to
opposite side of receptacle. The ground wire should be attached
to the green (neutral) screw.
Install the receptacle into the junction box. Attach cover plate.
Figure 27

39010-0-1018 Page 17
To Order Parts Under Warranty, please contact your local Empire dealer. See the dealer locator at www.empirecomfort.
com. To provide warranty service, your dealer will need your name and address, purchase date and serial number, and the
nature of the problem with the unit.
To Order Parts After the Warranty Period, please contact your dealer or one of the Master Parts Distributors listed below.
This list changes from time to time. For the current list, please click on the Master Parts button at www.empirecomfort.com.
Please note: Master Parts Distributors are independent businesses that stock the most commonly ordered Original
Equipment repair parts for Heaters, Grills, and Fireplaces manufactured by Empire Comfort Systems Inc.
MASTER PARTS DISTRIbUTOR LIST
Parts Not Under Warranty
Parts can be ordered through your Service Person, Dealer, or a Master Parts Distributor. See this page for the Master Parts Distribu-
tors list. For best results, the service person or dealer should order parts through the distributor. Parts can be shipped directly to the
service person/dealer.
Warranty Parts
Warranty parts will need a proof of purchase and can be ordered by your Service Person or Dealer. Proof of purchase is required for
warranty parts.
AllpartslistedinthePartsListhaveaPartNumber.Whenorderingparts,rstobtaintheModelNumberandSerialNumberfromthe
name plate on your equipment. Then determine the Part Number (not the Index Number) and the Description of each part from the fol-
lowing illustration and part list. Be sure to give all this information . . .
Appliance Model Number Part Description
Appliance Serial Number Part Number
Type of Gas (Propane or Natural)
Do not order bolts, screws, washers or nuts. They are standard hardware items and can be purchased at any local hardware store.
Shipmentscontingentuponstrikes,resandallcausesbeyondourcontrol.
hOW TO ORDER REPAIR PARTS
Dey Distributing
1401 Willow Lake Boulevard
Vadnais Heights, MN 55101
Phone: [phone]
Toll Free: 800-397-1339
Website: www.deydistributing.com
Parts: Heater, Hearth and Grills
F. W. Webb Company
200 Locust Street
Hartford, CT 06114
Phone: [phone]
Toll Free: 800-243-9360
Fax: [phone]
Toll Free Fax: [phone]
Websites: www.fwwebb.com & www.victormfg.com
Parts: Heater, Hearth and Grills
East Coast Energy Products
10 East Route 36
West Long Branch, NJ 07764
Phone: [phone]
Toll Free: 800-755-8809
Fax: [phone]
Website: www.eastcoastenergy.com
Parts: Heater, Hearth and Grills

39010-0-1018Page 18
PARTS LIST
INDEx
NO.
PART NO. DESCRIPTION
vFS32Fb0F vFS36Fb0F vFS42Fb0F
1 39520 39520 39520 JUNCTION BOX ASSEMBLY
2 R3492 R3492 R3492 RECEPTACLE
3 R3491 R3491 R3491 COVER, JUNCTION BOX
4 38973 38973 38973 BLOWER COVER PLATE (QUANTITY 2)
5 R7051 R7052 R7053 ROD, SCREEN (QUANTITY 2)
6 39517 39518 39519 HOOD
7 R9292 R9292 R9292 HEARTH LEDGE, RIGHT
8 R9293 R9293 R9293 HEARTH LEDGE, LEFT
9 R9294 R9295 R9296 HEARTH LEDGE, CENTER
10 23004 23004 23004 HEARTH RETAINER
11 39509 39510 39511 FACE ASSEMBLY
12 R8213 R8202 R8202 SCREEN CURTAIN

39010-0-1018 Page 19
PARTS vIEW

39010-0-1018Page 20
Accessory Description Model Numbers
Fan Kit
Designedtoprovideforcedairow. FBB5
Variable Speed Control Kit
Wall mounted variable speed control for use
with FBB5 blower SCV-1
Brick Liners
Liner for Firebox Contact dealer for all available
optional liner kits
Fresh Air Kit
Deluxe and Premium Fireboxes VFA2
Frame Kits
3-Piece Frame Kits
Black, Stainless Steel or Hammered Pewter
Contact dealer for all available
optional frame kits
Standard Hood Brass hood = BR
Stainless Steel = SS
Hammered Pewter = HP
Contact dealer for all available
optional hood accessories
ACCESSORIES
