Empire Comfort Systems DVCC32BP30N-3 User manual

Page 1
HOT GLASS
DO NOT TOUCH
NEVER
WILL
CAUSE BURNS.
GLASS
UNTIL COOLED.
ALLOW CHILDREN
TO TOUCH GLASS.
WARNING
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and shall
be installed for the protection of children and other at-risk
individuals.
This appliance may be installed in
an aftermarket, permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by state or
local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certied kit is used.
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
— Do not store or use gasoline or other am-
mable vapors and liquids in the vicinity of
this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
— Installation and service must be per-
formed by a qualied installer, service
agency or the gas supplier.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
DIRECT VENT
ZERO CLEARANCE GAS
FIREPLACE HEATER SERIES
MILLIVOLT (MV)
DVCC(32,36,42)BP3(0,2)(N,P)-3
INTERMITTENT PILOT (IP)
DVCC(32,36,42)BP7(0,2)(N,P)-3
This replace is design
certied in accordance
with American National
Standard/CSA Standard
ANSI Z21.88/CSA 2.33
and by Underwriters
Laboratories as a Direct
Vent Gas Fireplace
Heater and shall be
installed according to
these instructions.
GAS-FIRED
UL FILE NO. MH30033
INSTALLATION INSTRUCTIONS
37606

37606-4-0718Page 2
TABLE OF CONTENTS
SECTION PAGE
Attention Installer ........................................................................................................................... 3
Before You Start ..........................................................................................................................4-5
Carton Contents ............................................................................................................................. 6
Introduction .................................................................................................................................... 7
Homeowner Reference Information ............................................................................................... 7
Specications ................................................................................................................................. 8
Accessories ................................................................................................................................... 9
Fireplace Dimensions .................................................................................................................. 10
Fbb10 Blower Kit Installation (Optional) ................................................................................. 11-13
Clearances ................................................................................................................................... 14
Termination Clearances ............................................................................................................... 15
Vent Terminal Clearances ............................................................................................................ 16
Gas Supply .................................................................................................................................. 17
Safety Information For Users Of Lp Gas ..................................................................................... 18
Locating Fireplace ....................................................................................................................... 19
Junction Box Wiring Installation Instructions ............................................................................... 19
Millivolt Standing Pilot Wiring Diagram ........................................................................................ 20
Ipi Electronic System Wiring Diagram ......................................................................................... 21
Installation ...............................................................................................................................22-25
Vent Framing ..........................................................................................................................26-27
Vent System Identication ........................................................................................................... 28
Special Vent Systems .................................................................................................................. 28
Venting Fireplace - Top ...........................................................................................................29-32
Examples - Top Vent Run ............................................................................................................ 33
Horizontal Termination ................................................................................................................. 34
Vertical Termination ................................................................................................................35-36
Dvvk-4F Flex Vent Instructions ...............................................................................................37-38
Millivolt Standing Pilot Lighting Instructions ................................................................................. 39
Millivolt Operating Instructions ..................................................................................................... 40
Millivolt Standing Pilot Troubleshooting ....................................................................................... 41
Intermittent Pilot Lighting Instructions .......................................................................................... 42
Ipi Electronic System Operating Instructions ............................................................................... 43
Intermittent Pilot Control System Troubleshooting ..................................................................44-45
Millivolt Parts View - Dvcp(32,36,42)Bp3 ..................................................................................... 46
Millivolt Parts List - Dvcp(32,36,42)Bp3 ....................................................................................... 47
Ip Parts View - Dvcp(32,36,42)Bp7 ............................................................................................. 48
Ip Parts List - Dvcp(32,36,42)Bp7 ................................................................................................ 49
Maintenance And Service .......................................................................................................50-51
Important Safety Information - Installer ........................................................................................ 52
Requirements For Massachusetts ............................................................................................... 53
Annual Fireplace Inspection Checklist ......................................................................................... 54
Master Parts Distributor List ........................................................................................................ 55
How To Order Repair Parts .......................................................................................................... 55
Warranty ...................................................................................................................................... 56

37606-4-0718 Page 3
ATTENTION INSTALLER:
Fireplace Installation Checklist
Use this checklist in conjunction with the instructions in this manual.
Customer: _____________________________________
Lot/Address: ___________________________________
_______________________________________________
Model: ________________________________________
Serial # ________________________________________
Date Installed: __________________________________
Fireplace Location: ______________________________
Installer: _______________________________________
Dealer Phone #: _________________________________
_______________________________________________
Empire recommends the following:
• Keep this checklist visible on the replace until the installation is complete.
• Photograph the installation and copy this completed checklist for your le.
Comments: Further description of the issues, who is responsible (Installer/Builder/Other, etc) and corrective action needed:
___________________________________________________________________________________________________________
Comments communicated to party responsible _____________________by_____________________ on ______________________
FIREPLACE INSTALLATION COMMENTS
Veried clearances to combustibles (pg. 14) ........................................................................ o____________________
Fireplace is leveled and secured .......................................................................................... o____________________
VENTING/CHIMNEY/PowerFlow™ HEAT DISTRIBUTION
Venting conguration complies to vent diagrams (pg. 29) .................................................... o____________________
Venting installed, locked, secured in place with correct clearance ....................................... o____________________
Firestops installed................................................................................................................. o____________________
Exterior wall/roof ashing installed and sealed..................................................................... o____________________
Terminations installed and sealed (pgs. 34-36) .................................................................... o____________________
Light unit and test venting before enclosing the replace .................................................... o____________________
ELECTRICAL (pgs. 19-21)
Unswitched power (110-120 VAC) provided to the replace ................................................ o____________________
GAS (pgs. 17-18)
Proper appliance for fuel type............................................................................................... o____________________
Was a conversion performed? .............................................................................................. oYes oNo
Leak check performed and inlet pressure veried ................................................................ o____________________
FINISHING (pgs. 23-24)
Non-combustable board installed as required ...................................................................... o____________________
Veried all clearances meet installation manual requirements ............................................. o____________________
Mantels and wall projections meet requirements ................................................................. o____________________
Granite or Clean Face nishing complies with clearance requirements screen ................... o____________________
Barrier for glass front properly installed ................................................................................ o____________________
FIREPLACE SETUP
All packaging and protective materials removed (inside & outside of replace) .................. o____________________
Media installed correctly ....................................................................................................... o____________________
Firebox glass door cleaned, installed, and secured ............................................................. o____________________
Accessories installed properly .............................................................................................. o____________________
Started Fireplace and veried no gas leaks exist ................................................................. o____________________
Manual envelope and all of its contents removed from inside/outside the
replace and given to party responsible for use and operation ............................................ o____________________
Provide homeowner with “Scratch & Sniff” odor card .......................................................... o____________________

37606-4-0718Page 4
BEFORE YOU START
Television Considerations
Installing a television above a replace has become increasingly
popular; however, the area above any replace gets hot and most
TV manufacturers recommend against placing their products
near a heat source.
If you install a television above this replace, Empire Comfort
Systems accepts no responsibility for damage or injuries. Follow
the television manufacturer’s installation instructions, including
any recommendations regarding proximity to heat sources.
If you have a TV above your replace, turn off the replace and
let it cool completely before servicing or touching any buttons on
the TV.
Sample Warnings and Denitions:
DANGER
Indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE: Addresses practices not related to personal injury.
____________________________________________________
Read all instructions before starting installation and
follow them carefully to ensure safety. Failure to follow
the instructions will void the warranty and may cause a
re hazard.
The warranty will be voided by, and the warranter disclaims
any responsibility for the following actions:
• Installation by anyone other than the dealer or his agent.
• Installation of any damaged replace or component.
• Modication of the replace or direct vent system.
• Installation other than as instructed by Empire Comfort
Systems.
• Improper positioning of logs, glass door, or accessories.
• Installation and/or use of any component part not
manufactured or approved by Empire Comfort Systems.
All correspondence should refer to complete Model Number, Serial
Number and type of gas. Fill out the Homeowner Reference Section.
(See Page 3).
Unpacking The Fireplace
1. Cut away shrink-wrap material around the unit.
Retain instruction manual and instruction sheets.
2. Remove non-combustible board from the rear of the
replace, and place in a safe location. It will be needed
for installation.
3. Get help to lift replace.

37606-4-0718 Page 5
BEFORE YOU START (CONT’D)
Accessories
Most accessories install much more easily before tting the
replace to the opening.
For example, it takes just 10-15 minutes to install the blower side
before it’s framed in. Once the replace is framed in, it takes up
to an hour.
Preparation
This replace and its components are safe when installed
in accordance with this Manual. Report any parts damaged
in shipment to your dealer. Do not install the replace with
damaged, incomplete or substitute parts.
Installation Considerations
• Gas supply piping – right or left side entrance
• Electrical supply and connections 120V, 60Hz, 1 Amp,
right side entrance
• Allowable replace mounting surfaces:
1. A at, hard, combustible or non-combustible surface
2. A raised platform of combustible or non-combustible
material.
3. The four corners of the replace onto non-combustible
material so that contact is made on all four perimeter
edges on the bottom of the replace – such as on cinder
blocks (where allowed by local codes).
• If the replace is installed directly on carpeting, tile or other
combustible material other than wood ooring, it should be
installed on a metal or wood panel extending the full width
and depth of the replace.
• This replace is designed to be installed in a zero-clearance
enclosure. Combustible material can come in contact with
the side standoff spacers, and the replace can be secured
to combustible framing with the framing brackets provided
with the replace.
Planning the installation
First determine where the replace will be located and what
accessories will be installed.
Your location must allow for:
• Venting – either vertical or horizontal. Choose a vent
conguration, (See Pages 34-36) and make sure the required
access through attics and walls is not blocked by other utilities
such as water lines, sewer vents, gas lines, etc. If access
is blocked, you will need to move the utilities or relocate the
replace.
• Gas supply piping (right or left side of entrance) – see pipe
size and specs on (Page 17).
• Electrical supply requirements
(120V, 60Hz, 1 Amp) (right side entrance)
• Proper framing required for installation of the replace.
See framing dimensions on (Page 22).
• Finishing the replace – drywall thickness, tile or stone
thickness, and the desired decorative accessories can affect
how you frame the opening and how you attach the nailing
anges to set the proper depth. (See Pages 23 and 24) for
nishing details, before you begin.

37606-4-0718Page 6
CARTON CONTENTS
123
4
LP
56
7
9
8
10
INDEX NUMBER DESCRIPTION
QUANTITY SUPPLIED
DVCC(32,36,42)BP3
SERIES
DVCC(32,36,42)BP7
SERIES
1Rock Wool 1 1
2Receptacle Cover 1 2
3Receptacle 1 2
4Flue Restrictor Assembly - (See Page 30) 1 1
510 X 1/2 Phillips Screw 12 12
6#8 X 1 Self-Drilling Drywall Screw 8 8
7AA Battery 0 4
8 AC Adaptor 0 1
9Backer Stud 4 4
10 Burner Cover 1 1
See Parts Lists on pages 48 - 51 for ordering replacement parts. Do not order batteries, bolts, screws, washers or nuts. They are
standard hardware items and can be purchased at any local hardware store.
NOTICE: Items not shown to scale.

37606-4-0718 Page 7
INTRODUCTION
The information in this manual pertains to all models and gas
control systems unless otherwise noted.
Instructions to Installer
1. Leave this manual with homeowner.
2. Have the homeowner complete the product registration card
or register online at www.empirecomfort.com
3. Show the homeowner how to start and operate the replace.
Notes to Installer
• This direct-vent replace is designed to:
- Operate with combustion air drawn from outside of the
building.
- Expel all exhaust gases to the outside of the building.
• The installation must conform with local codes or, in the
absence of local codes, with the National Fuel Gas Code
ANSI Z223.1/NFPA 54* Natural Gas and Propane Installation
Code, or CSA B149.1 in Canada. * Available from the
American National Standards Institute, Inc. 11 West 42nd
St., New York, N.Y. 10036
• Any alteration of the original design, installation other than
as shown in these instructions, or use with a type of gas not
shown on the rating plate is the responsibility of the person
and company making the change.
• This replace is not for use with solid fuels.
• These replace models may be installed in a bedroom or
bed-sitting room in the U.S.A. and Canada.
WARNING
Any change to this replace can be dangerous. Improper
installation or use can cause serious injury or death from
re, burns, explosion or carbon monoxide poisoning.
Fireplace Certication
This replace is design certied in accordance with American
National Standard/CSA Standard ANSI Z21.88/CSA 2.33 and by
Underwriters Laboratories as a Direct Vent Gas Fireplace Heater
and shall be installed according to these instructions.
Consult your local building code agency, prior to installation,
to ensure compliance with local codes-including permits and
inspections.
The replace, when installed, must be electrically grounded in
accordance with local codes or, in absence of local codes, with
the National Electric Code ANSI/NFPA 70 or Canadian Electric
code, CSA C22.1, if an external electrical source is utilized.
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization
equipment or accessories and repair and servicing of equipment
shall be performed only by a qualied agency. The term “qualied
agency” means any individual, rm, corporation or company
which either in person or through a representative is engaged
in and is responsible for (a) the installation or replacement of
gas piping or (b) the connection, installation, repair or servicing
of equipment, who is experienced in such work, familiar with all
precautions required and has complied with all the requirements
of the authority having jurisdiction.
Commonwealth of Massachusetts: The installation must be
made by a licensed plumber or gas tter in the Commonwealth
of Massachusetts. Requirements on Page 53.
High Altitude (USA)
When installing this replace at an elevation above 2000 feet
(in the United States) it may be necessary to decrease the input
rating by changing the existing burner orice to a smaller size.
Generally, input should be reduced 4 percent for each 1000 feet
above sea level.
High Altitude (CANADA)
Altitude: 0-4500 feet (0-1370 meters)
When installing this replace at an elevation above 4500 feet
(in Canada), check with local authorities.
Consult your local gas utility for assistance in determining the
proper orice for your location.

37606-4-0718Page 8
SPECIFICATIONS
DVCC32NAT DVCC32LP DVCC36NAT DVCC36LP DVCC42NAT DVCC42LP
Input BTU/Hr Maximum 24,000 22,000 24,000 24,000 26,500 26,500
Input BTU/Hr Minimum
(millivolt only)
18,000 18,000 18,000 19,000 18,000 22,000
KWH (Maximum) 7.03 6.45 7.03 7.03 8.35 7.77
KWH (Minimum) 5.27 5.27 5.28 5.57 6.15 6.3
Orice 42 54 42 1.45mm 2.45mm 1.55mm
Air Shutter Opening 1/4-in Full Open 1/4-in Full Open 1/8-in Full Open
Gas Inlet Shutoff Valve (Pipe) 1/2 NPT 1/2 NPT 1/2 NPT 1/2 NPT 1/2 NPT 1/2 NPT
NOTICE: Air shutter settings are factory minimum settings. Some venting congurations may require minor air shutter adjustments for
optimum performance.
GAS SUPPLY PRESSURES
Gas Type Maximum Minimum Manifold
NAT 14.0-in 4.5-in 3.5-in
LP 14.0-in 10.8-in 10.0-in
Remote Control Options
And Accessories Description Models Used On
FRBC Millivolt Battery Remote ON/OFF ALL
FRBTC Millivolt Battery Remote Thermostat ALL
TMW Millivolt Wireless Wall Thermostat ALL
TRW Millivolt Reed Switch Wall Thermostat ALL
FWS-1 Direct Ignition/Millivolt Wall Switch ALL
FRBTP Battery Operated Remote Control with Programmable Thermostat ALL
RVKN-1 Remote Kit, NAT (Stepper Motor) DVCC(32,36,42)BP7N
RVKP-1 Remote Kit, LP (Stepper Motor) DVCC(32,36,42)BP7P
Venting Options Description
DVVK-4TSP Top vent kit (horizontal) - 4-½-in to 6-in (114.3mm to 152mm) wall thickness
DVVK-4TP Top vent kit (horizontal) - 8-in to 12-in (203mm to 305mm) wall thickness
DVVK-4VP Vertical vent kit
DVVK-4F Horizontal ex vent kit (4-ft FLEX)
SD46DVA-FCFX7 Flex Adaptor Collar (must be used with ex kits)
Conversion Kits Description Models Used On
31768 Conversion Kit, DV (Natural to Propane) DVCC32BP(30,32)
31769 Conversion Kit, DV (Propane to Natural) DVCC32BP(30,32)
31770 Conversion Kit, DV (Natural to Propane) DVCC36BP(30,32)
31771 Conversion Kit, DV (Propane to Natural) DVCC36BP(30,32)
31772 Conversion Kit, DV (Natural to Propane) DVCC42BP(30,32)
31773 Conversion Kit, DV (Propane to Natural) DVCC42BP(30,32)
32874 Conversion Kit, DV (Natural to Propane) DVCC32BP(70,72)
32875 Conversion Kit, DV (Propane to Natural) DVCC32BP(70,72)
32876 Conversion Kit, DV (Natural to Propane) DVCC36BP(70,72)
32877 Conversion Kit, DV (Propane to Natural) DVCC36BP(70,72)
32878 Conversion Kit, DV (Natural to Propane) DVCC42BP(70,72)
37560 Conversion Kit, DV (Propane to Natural) DVCC42BP(70,72)

37606-4-0718 Page 9
ACCESSORIES
The following accessory parts can be obtained from your Empire Comfort Systems dealer. If you need additional information beyond what
your dealer can furnish, contact Empire Comfort Systems Inc., 918 Freeburg Ave., Belleville, Illinois 62220-2623.
OPTIONAL
Model Number Description Models Used On
FBB10 Blower, Auto Variable-Speed ALL
LK6 Lighting Kit, 120 V ALL
REQUIRED
Model Number Description Models Used On
DG1BKP Decorative Glass, Crushed, Black ALL
DG1BUC Decorative Glass, Crushed, Blue ALL
DG1CLF Decorative Glass, Crushed, Clear ALL
REQUIRED
This unit requires Ceramic Fiber Logs to complete the replace interior. Contact your Empire Comfort Systems Dealer (See Page 55)
for further information. Do not operate the replace without the Ceramic Fiber Logs installed.

37606-4-0718Page 10
FIREPLACE DIMENSIONS
INDEX
LETTER DIMENSION DESCRIPTION DVCC32 DVCC36 DVCC42
(Inches)
A The maximum height of replace face (excluding standoffs) 38-1/4 38-1/4 40-1/4
BThe maximum width of the replace face (excluding nailing anges) 34-7/16 37-7/16 43-7/16
CThe maximum depth of the replace 17-1/2 17-1/2 17-1/2
DThe height of the replace opening 31-3/8 31-3/8 33-3/8
E The width of the replace opening 31 34 40
F The interior depth of the replace (not shown) 11-1/2 11-1/2 11-1/2
G The rear exterior width of the replace 23-15/16 26-15/16 32-15/16
I Width from the left side of the replace to the centerline of vent 12 13-1/2 16-1/2
JDepth from back of replace to centerline of top vent 6-3/4 6-3/4 6-3/4
K Height from the bottom of the replace to the left gas line opening 2 2 2
LDepth from the front of the replace to the left gas line opening 4-5/8 4-5/8 4-5/8
M Depth from rear of replace to gas line opening 12-5/16 12-5/16 12-5/16
NViewing area height 24-7/8 24-7/8 26-3/8
O Viewing area width 27-1/2 30-1/2 36-1/2
PDepth from front of replace to centerline of vent 10-3/4 10-3/4 10-3/4
QDistance from oor to bottom replace opening 7/8 7/8 7/8
R Distance from oor to top replace opening 32-1/4 32-1/4 34-1/4
G
I
J
C
GAS LINE
ACCESS
R
B
E
D
Q
VENT COLLAR
NAILING
FLANGES
SIDE SPACER
BARRIER SCREEN ASSEMBLY
&
GLASS FRAME ASSEMBLY
GAS LINE
ACCESS
RATING PLATE AND
LABELS INSIDE
GAS CONTROL AND
SWITCHES INSIDE
A
K
L
LEFT VIEW
FRONT VIEW
TOP VIEW
RIGHT VIEW
P
M
GAS LINE
ACCESS
N
O

37606-4-0718 Page 11
FBB10 BLOWER KIT INSTALLATION (OPTIONAL)
BEFORE FIREPLACE IS INSTALLED IN WALL
1. With power completely turned off, remove plate and four
screws from left panel. See Figure 1.
Figure 1
2. Install the blower onto the pre-bent brackets on the blower
plate. Ensure the Velcro connects to secure the blower in
place. See Figure 2.
Back side of Blower
showing Velcro
Figure 2
3. Route wiring through opening created in Step 1.
4. Secure blower assembly into place per step 2 with velcro.
5. Install thermo disc by snapping into valve bracket burner
assembly. See Figure 3.
Figure 3
6. Connect Power source into outlet on the bottom right side of
the replace.
AFTER FIREPLACE IS INSTALLED IN WALL
NOTICE: Do not handle barrier screen or door assembly
with your bare hands! (Always Wear Gloves)
1. Turn off power and gas. Lift barrier screen and pull away
from the unit. See Figure 4.
Figure 4
2. Pull out to release both latches at bottom of rebox
assembly. See Figure 5.
Figure 5
3. Disengage Glass Frame by pulling outward in a swinging
motion. Place Glass Frame aside in a safe out-of-the-way
location. See Figure 6.
Figure 6

37606-4-0718Page 12
FBB10 BLOWER KIT INSTALLATION (OPTIONAL) (CONT’D)
4. Remove the modern cover by lifting off. See Figure 7.
(At installation modern cover is behind valve)
Figure 7
5. Remove the two screws securing the liner brackets to the
rebox as shown in Figure 8. (If liner is installed)
Figure 8
6. Remove liners as shown in Figure 9. (If installed)
Figure 9
7. Remove burner cover by lifting off. See Figure 10.
Figure 10
8. Remove log support by unscrewing two screws securing the
metal plate to the log support. Retain log support and screws
for reassembly. See Figure 11.
Figure 11
9. Remove the four screws securing burner and slide to right
then lift burner off. See Figure 12.
Figure 12

37606-4-0718 Page 13
10. Remove ten screws and lift burner assembly. Disconnect the
gas line. See Figure 13.
Figure 13
11. Remove the four #10 x 1/2 screws securing the left latch
assembly to the underside of the rebox and set aside.
See Figure 14.
Figure 14
12. Install blower through rebox cutout. See Figure 15.
Figure 15
13. Install the blower onto the prebent brackets on the blower
plate. Ensure the Velcro connects to secure the blower in
place. See Figure 16.
Back side of Blower
showing Velcro
Figure 16
FBB10 BLOWER KIT INSTALLATION (OPTIONAL) (CONT’D)
14. Reinstall the left latch assembly removed in step 11.
See Figure 14.
15. Install thermo disc by snapping into valve bracket burner
assembly. See Figure 17.
Figure 17
16. Reconnect gas line and turn gas on. Check for leaks.
17. Reinstall the burner assembly and ten screws removed in
step 10. See Figure 13.
18. Reinstall the burner and four screws removed in step 9.
See Figure 12.
19. Reinstall the log support and secure it with metal plate and
two screws removed in step 8. See Figure 11.
20. Replace burner cover removed in step 7. See Figure 10.
21. Replace liner and bracket if removed in steps 5 and 6.
See Figures 8 & 9.
22. Replace modern cover removed in step 4. See Figure 7.
23. Replace decorative media.
24. Turn on power.
25. Reinstall the glass frame removed in steps 2 and 3.
See Figures 5 & 6.
26. Replace barrier screen removed in step 1. See Figure 4.
6
2
3
4
1
5
7
BLOWER ASSEMBLY PARTS LIST
INDEX
NO.
PART
NO DESCRIPTION QTY
1R2804 BLOWER ASSEMBLY 1
2R7649 FAN, CONTROL L120-20 1
3R2099 CORD SET, 30 INCHES 1
4R4192 RHEOSTAT, KNOB 1
5R4186 RHEOSTAT, 3.0 AMP 115 VAC 1
610088 RHEOSTAT BOX BRACKET 1
7R11768 WIRE HARNESS, FAN CONTROL 1
Figure 18

37606-4-0718Page 14
CLEARANCES
CLEARANCE TO COMBUSTIBLES
(Inches)
Back 0
Side 0
Floor 0
Top Framing Edge See Below
SEE MANTLE CHART FOR
MAXIMUM MANTEL DEPTH
GLASS FRONT
FINISHED WALL
(NON-COMBUSTIBLE)
SEE MANTEL CHART
FOR MINIMUM HEIGHT
OF MANTLE ABOVE UNIT
2"x4" HEADER
MINIMUM TO
CHASE TOP
24”
FINISHED WALL
(COMBUSTIBLE)
9”
(NON-COMBUSTIBLE)
BOARD
SCREW HEAD
Figure 19
Combustible Material
No greeting cards, stockings or ornamentation of any type should
be placed on or attached to the replace. The ow of heat can
ignite combustibles.
FIREPLACE
(TOP VIEW)
PERPENDICULAR
SIDE WALL
45°
6
3
MAX.
FRONT FACE (SIDE)
COMBUSTIBLE
MATERIALS ALLOWED
IN SHADED AREAS
Figure 20
Mantel Chart
FIREPLACE OPENING
G
F
E
D
C
B
INDEX
LETTER
DISTANCE FROM TOP
EDGE OF FIREPLACE
(VERTICAL)
DISTANCE FROM
FIREPLACE FRONT
(HORIZONTAL)
(Inches)
A 18 12
B 6 0
C 9 2-1/4
D11 3-3/4
E14 6
F 16-3/4 8
G 18 10
Figure 21
Clearances
Clearance from bottom edge of replace to ceiling is 72-inches.
Clearance from side of replace to adjacent sidewall is 6-inches.
Refer to framing dimensions on page 22.
NOTICE: 72 inch minimum applies when unit is installed in wall
above oor level.
72”
(183cm)
6” (152mm)
Figure 22

37606-4-0718 Page 15

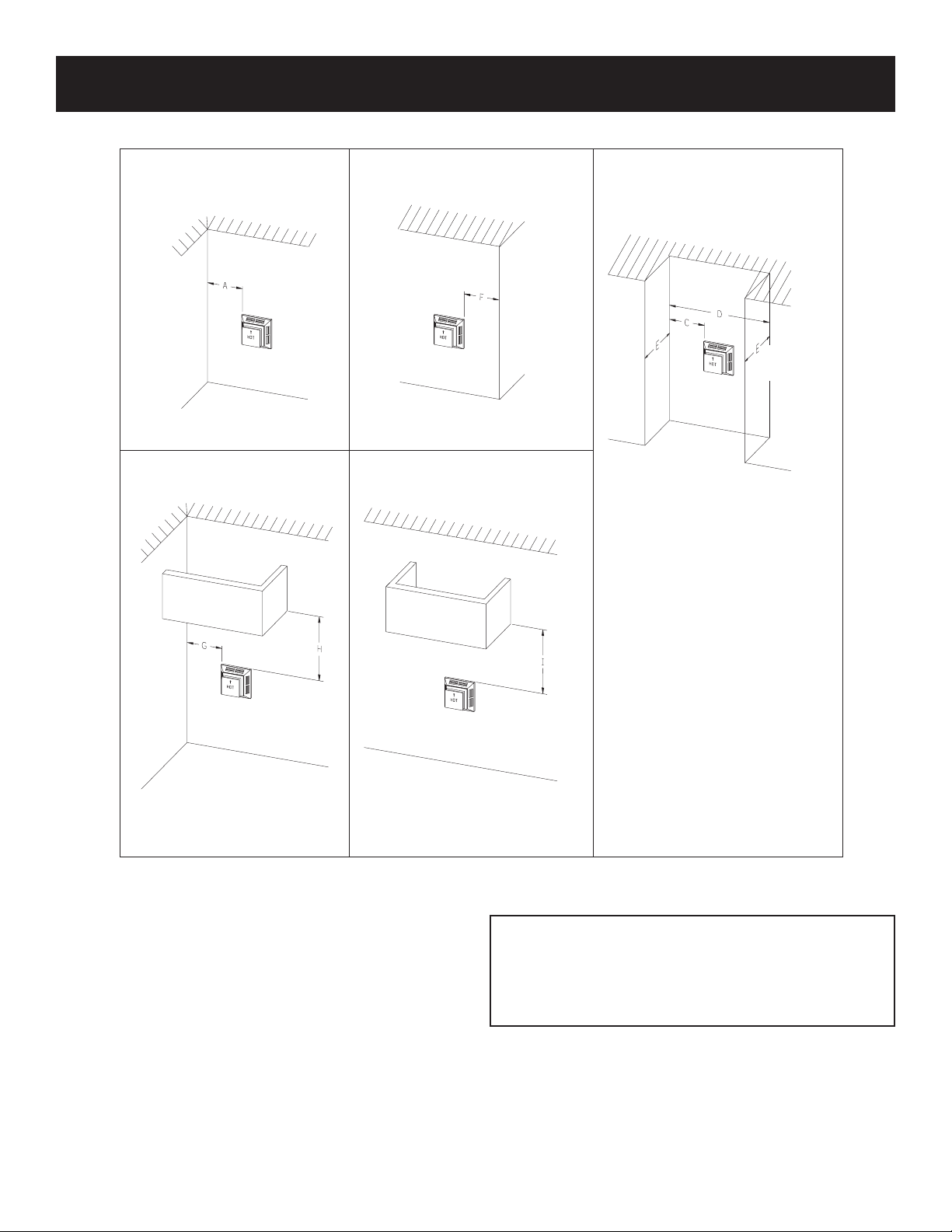

TERMINATION CLEARANCES
Termination clearance for buildings with combustible and noncombustible exteriors.
Figure 23
RECESSED LOCATION
OUTSIDE CORNER
INSIDE CORNER
“A”=COMBUSTIBLE 9-in (229mm)
= NONCOMBUSTIBLE2-in (51mm)
“F”=COMBUSTIBLE 6-in (152mm)
= NONCOMBUSTIBLE 6-in (152mm)
BALCONY
WITH PERPENDICULAR SIDE WALL
BALCONY
WITH NO SIDEWALL
“C”=CLEARANCE FROM CORNER
IN RECESSED LOCATION
COMBUSTIBLE 9-in (229mm)
NONCOMBUSTIBLE 2-in (51mm)
“D”=MINIMUMWIDTHFOR BACK WALL
OF A RECESSED LOCATION
COMBUSTIBLE 38-in (965mm)
NONCOMBUSTIBLE 24-in (610mm)
“E”=MAXIMUM DEPTHOF48-in (1219mm)
FOR RECESSED LOCATION
“G”=COMBUSTIBLE 9-in (229mm)
= NONCOMBUSTIBLE 2-in (51mm)
“H”=COMBUSTIBLE18-in (457mm)
= NONCOMBUSTIBLE 12-in (305mm)
“I” = COMBUSTIBLE 12-in (457mm)
= NONCOMBUSTIBLE 12-in (305mm)
Vertical Sidewall Installations
Important! Minimum clearance between vent pipes and
combustible materials is 3 inches (76 millimeter) on top, and 2
inches (25 millimeter) on bottom and sides.
Important! When vent termination exits through foundation less
than 20 inches (508 millimeter) below siding outcrop, the vent
pipe must extend outward so that the horizontal vent termination
is located ush to, or beyond the outcrop siding.
Information on Various Venting Routes and Components
Important: Locate the replace in such a way that minimizes the
number of offsets and horizontal vent length.
Venting system must maintain a balance between the
combustion air intake and the ue gas exhaust. Limitations to
vent congurations apply.
ATTENTION: Vinyl Soft, Vinyl Ceiling, Vinyl Overhang
Disclaimer
Clearances are to heat resistant material (i.e. wood, metal). This
does not include vinyl. Empire Comfort Systems Inc. will not be held
responsible for heat damage caused from terminating under vinyl
overhangs, vinyl ceilings or vinyl ventilated/unventilated softs.

37606-4-0718Page 16
Figure 24
VENT TERMINAL CLEARANCES
Canadian Installations1 US Installations2 Canadian Installations1 US Installations2
A= Clearance above
grade, veranda, porch,
deck, or balcony
12-in (30cm) 12-in (30cm) I= Clearance to service
regulator vent outlet 3ft (91cm) 6ft
B= Clearance to window or
door that may be open
6-in (15cm) for appli-
ances ≤ 10,000 Btuh
(3kW), 12-in (30cm) for
appliances > 10,000
Btuh (3kW) and ≤
100,000 Btuh (30kW),
36-in (91cm) for appli-
ances > 100,000 Btuh
(30kW)
6-in (15cm) for appli-
ances ≤ 10,000 Btuh
(3kW), 9-in (23cm) for
appliances > 10,000
Btuh (3kW) and ≤
50,000 Btuh (15kW),
12-in (30cm) for appli-
ances > 50,000 Btuh
(15kW)
J= Clearance to nonme-
chanical air supply
inlet to building or the
combustion air inlet to
any other appliance
6-in (15cm) for appli-
ances ≤ 10,000 Btuh
(3kW), 12-in (30cm) for
appliances > 10,000
Btuh (3kW) and ≤
100,000 Btuh (30kW),
36-in (91cm) for appli-
ances > 100,000 Btuh
(30kW)
6-in (15cm) for appli-
ances ≤ 10,000 Btuh
(3kW), 9-in (23cm) for
appliances > 10,000
Btuh (3kW) and ≤
50,000 Btuh (15kW),
12-in (30 cm) for appli-
ances > 50,000 Btuh
(15kW)
C= Clearance to
permanently
closed window
12-in (30cm) 12-in (30cm)
K= Clearance to a
mechanical air
supply inlet
6ft (1.83m)
3ft (91cm) above if
within 10ft (3m)
horizontally
D= Vertical clearance
ventilated soft located
above the terminal within
a horizontal distance of
2 feet (61 cm) from the
center line of the terminal
24-in (61cm) 24-in (61cm)
L= Clearance above
paved sidewalk or
paved driveway
located on public
property
7ft (2.13m) † 7ft (2.13m) †
E= Clearance to
unventilated
soft
12-in (30cm) 12-in (30cm)
M= Clearance under
veranda, porch
deck, or balcony
12-in (30cm) ‡ 12-in (30cm) ‡
F= Clearance to
outside corner 6-in (15cm) 6-in (15cm) 1In accordance with the current CSA B149.1, Natural Gas and Propane Installation Code
G= Clearance
inside corner 9-in (23cm) 9-in (23cm) 2In Accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code
H= Clearance to each side
of center line extended
above meter/regulator
assembly
3ft (91cm) within a
height 15ft (4.5m)
above the meter/regula-
tor assembly
3ft (91cm)
† A vent shall not terminate directly above a sidewalk or paved driveway that
is located between two single family dwellings and serves both dwellings
ATTENTION: Vinyl Soft, Vinyl Ceiling, Vinyl Overhang
Disclaimer
Clearances are to heat resistant material (i.e. wood, metal). This
does not include vinyl. Empire Comfort Systems Inc. will not be
held responsible for heat damage caused from terminating under
vinyl overhangs, vinyl ceilings or vinyl ventilated/unventilated softs.
‡ Permitted only if veranda,, porch, deck, or balcony is fully open on a mini-
mum of two sides beneath the oor.
* For clearances not specied in ANSI Z223.1/NFPA 54 or CSA B149.1, one
of the following shall be indicated:
Clearance in accordance with local installation codes and the requirements of the
gas supplier.

37606-4-0718 Page 17
GAS SUPPLY
The gas pipeline can be brought in through the right or left side of
the appliance. Consult the current National Fuel Gas Code, ANSI
Z223.1 CAN/CGA-B149 (.1 or .2) installation code.
2”
4 5/8”
RIGHT SIDE OF FIREBOX
Figure 25
Figure 26
Recommended Gas Pipe Diameter
Pipe
Length
Schedule 40 Pipe
Inside Diameter
Tubing, Type L
Outside Diameter
(Inches) (Inches)
Nat LP Nat LP
0-10 feet 1/2 3/8 1/2 3/8
10-40 feet 1/2 1/2 5/8 1/2
40-100 feet 1/2 1/2 3/4 1/2
100-150 feet 3/4 1/2 7/8 3/4
NOTICE: Never use plastic pipe. Check to conrm whether your
local codes allow copper tubing or galvanized.
NOTICE: Because some municipalities have additional local codes,
consult your local authority and installation code.
The use of the following gas connectors is recommended:
— ANSI Z21.24 Appliance Connectors of Corrugated Metal Tubing
and Fittings.
— ANSI Z21.45 Assembled Flexible Appliance Connectors of
Other Than All-Metal Construction
The above connectors may be used if acceptable by the authority
having jurisdiction. The Commonwealth of Massachusetts requires
that a exible appliance connector cannot exceed three feet in length.
A gas valve and ground joint union should be installed in the gas
line upstream of the gas control to aid in servicing. It is required
by the National Fuel Gas Code that a drip leg be installed near the
gas inlet. See Figure 25. This should consist of a vertical length of
pipe tee connected into the gas line that is capped on the bottom
in which condensation and foreign particles may collect.
Installing a New Main Gas Supply Valve (Check Local Code)
Each appliance should have its own manual gas supply valve.
A manual main gas supply valve should be located in the vicinity of the
unit. Where none exists, or where its size or location is not adequate,
contact your local authorized installer for installation or relocation.
Compounds used on threaded joints of gas piping shall be resistant
to the action of liqueed petroleum gases.
The gas lines must be checked for leaks by the installer. This should
be done with a soap solution watching for bubbles on all exposed
connections, and if unexposed, a pressure test should be made.
WARNING
Never use an exposed ame to check for leaks. Appliance
must be disconnected from piping at inlet of control valve and
pipe capped or plugged for pressure test. Never pressure test
with appliance connected; control valve will sustain damage!
Figure 27
NOTICE: The millivolt gas controls are equipped with a captured
screw type pressure test point, therefore it is not necessary to provide
a 1/8 inch test point up stream of the control.
On direct ignition valves, hex plugs may be replaced with hose ttings
for pressure checks, then reinstalled before operating replace.
When using copper or ex connector use only approved ttings.
The replace and its individual shut off valve must be disconnected
from supply piping system during any pressure testing of that system
at test pressures in excess of 1/2 psig (3.5kPa).
The replace must be isolated from the gas supply piping system
by closing its individual manual shut off valve during any pressure
testing of the gas supply piping system at test pressures equal to
or less than 1/2 psig (3.5kPa).
WARNING
Pressures in excess of 1/2 psig (14 inches w.c.) (3.5kPa) on
the replace gas valve, may damage the valve.
Checking Manifold Pressures
Both Propane and Natural gas valves have a built-in pressure regulator.
Natural gas models will have a manifold pressure of approximately 3.5
inches w.c. (.871kPa) at the valve outlet with the inlet pressure to the
valve from a minimum of 4.5 inches w.c. (1.120kPa) for the purpose
of input adjustment to a maximum of 14.0 inches w.c. (3.484kPa).
Propane gas models will have a manifold pressure approximately 10.0
inches w.c. (2.49kPa) at the valve outlet with the inlet pressure to the
valve from a minimum of 10.8 inches w.c. (2.68kPa) for the purpose
of input adjustment to a maximum of 14.0 inches w.c. (3.484 kPa).
Gas Supply Pressure (inches w.c.)
Minimum Normal Maximum
Natural Gas 4.5 7.0 14.0
LP (Propane) 10.8 11.0 14.0
Manifold Pressure (inches w.c.)
Natural Gas 3.5 - Normal (HI)
LP (Propane) 10.0 - Normal (HI)

37606-4-0718Page 18
SAFETY INFORMATION FOR USERS OF LP GAS
Propane (LP-Gas) is ammable and can cause res
and explosions. In its natural state, propane is odor-
less and colorless. You may not know all the following
safety precautions which can protect both you and your
family from an accident. Read them carefully now, then
review them point by point with the members of your
household. Someday when there may not be a minute to
lose, everyone’s safety will depend on knowing exactly
what to do. If, after reading the following information,
you feel you still need more information, please contact
your gas supplier.
LP-GAS WARNING ODOR
If a gas leak happens, you should be able to smell the
gas because of the odorant put in the LP-Gas. That’s
your signal to go into immediate action!
• Do not operate electric switches, light matches, or your
phone. Do not do anything that could ignite the gas.
• Get everyone out of the building, vehicle, trailer, or area.
Do that IMMEDIATELY.
• Close all gas tank or cylinder supply valves.
• LP-Gas is heavier than air and may settle in low areas
such as basements. When you have reason to suspect
a gas leak, keep out of basements and other low areas.
Stay out until reghters declare them to be safe.
• Use your neighbor’s phone and call a trained LP-Gas
service person and the re department. Even though
you may not continue to smell gas, do not turn on the
gas again. Do not re-enter the building, vehicle, trailer,
or area.
• Finally, let the service technician and reghters check for
escaped gas. Have them air out the area before you return.
Properly trained LP-Gas service people should repair the
leak, then check and relight the gas appliance for you.
NO ODOR DETECTED - ODOR FADE
Some people cannot smell the odor of the chemical put
into the gas. You must nd out if you can smell the odor-
ant in propane. Smoking can decrease your ability to smell.
Being around an odor for a time can affect your sensitivity or
ability to detect that odor. Sometimes other odors in the area
mask the gas odor. People may not smell the gas odor or
their minds are on something else. Thinking about smelling
a gas odor can make it easier to smell.
The odorant in LP-Gas is colorless, and it can fade
under some circumstances. For example, if there is an
underground leak, the movement of the gas through soil
can lter the odorant. Odorants in LP-Gas also are subject
to oxidation. This fading can occur if there is rust inside the
storage tank or in iron gas pipes.
The odorant in escaped gas can adsorb or absorb onto or
into walls, masonry and other materials and fabrics in a room.
That will take some of the odorant out of the gas, reducing
its odor intensity.
LP-Gas may stratify in a closed area, and the odor intensity
could vary at different levels. Because it is heavier than air,
there may be more odor at lower levels. Always be sensitive
to the slightest gas odor. If you detect any odor, treat it as a
serious leak. Immediately go into action as instructed earlier.
SOME POINTS TO REMEMBER
• Learn to recognize the odor of LP-Gas. Your local LP-
Gas Dealer can give you a “Scratch and Sniff” pamphlet.
Use it to nd out what the propane odor smells like. If
you suspect that your LP-Gas has a weak or abnormal
odor, call your LP-Gas Dealer.
• If you are not qualied, do not light pilot lights, perform
service, or make adjustments to appliances on the LP-
Gas system. If you are qualied, consciously think about
the odor of LP-Gas prior to and while lighting pilot lights
or performing service or making adjustments.
• Sometimes a basement or a closed-up house has a musty
smell that can cover up the LP-Gas odor. Do not try to
light pilot lights, perform service, or make adjustments
in an area where the conditions are such that you may
not detect the odor if there has been a leak of LP-Gas.
• Odors fade, due to oxidation by rust or adsorption on
walls of new cylinders and tanks. Therefore, people
should be particularly alert and careful when new tanks
or cylinders are placed in service. Odor fade can occur
in new tanks, or reinstalled old tanks, if they are lled
and allowed to set too long before relling. Cylinders
and tanks which have been out of service for a time may
develop internal rust which will cause odor fade. If such
conditions are suspected to exist, a periodic sniff test of
the gas is advisable. If you have any question about
the gas odor, call your LP-Gas dealer. Aperiodic sniff
test of the LP-Gas is a good safety measure under
any condition.
• If, at any time, you do not smell the LP-Gas odorant and
you think you should, assume you have a leak. Then take
the same immediate action recommended above for the
occasion when you do detect the odorized LP-Gas.
• If you experience a complete “gas out,” (the container
is under no vapor pressure), turn the tank valve off im-
mediately. If the container valve is left on, the container
may draw in some air through openings such as pilot light
orices. If this occurs, some new internal rusting could
occur. If the valve is left open, then treat the container
as a new tank. Always be sure your container is under
vapor pressure by turning it off at the container before
it goes completely empty or having it relled before it is
completely empty.

37606-4-0718 Page 19
NOTICE: Island and Room Divider installation is possible as long as the horizontal portion of the vent system does not exceed 20 feet
with a minimum vertical run of 8 feet. See details in Venting Section.
When you install your Direct Vent Fireplace in Room divider or Flat on wall corner positions, a minimum of 6 inches clearance must be
maintained from the perpendicular wall and the front edge of the appliance.
Figure 28
LOCATING FIREPLACE
JUNCTION BOX WIRING INSTALLATION INSTRUCTIONS
BLACK (HOT)
BRASS SCREWS
JUNCTION BOX
WHITE (NEUTRAL)
BARE (GROUND)
SILVER SCREWS
GREEN
SCREWS
12
0 VOLT POWER SUPPLY
JUNCTION BOX WIRING
Figure 29
Junction Box
For electric accessories such as a light kit or blower, make all
wiring connections inside the junction box located on lower right
side of replace.
Attach black to black and white to white. The ground wire should be
attached to the ground on the junction box. See Figure 29.
NOTICE: A one inch diameter hole should be use to pass wiring
through studs.
CAUTION
All wiring should be done by a qualied electrician and shall be in compliance with all local, city and state building codes. Before making
the electrical connection, make sure that the main power supply is disconnected. The appliance, when installed, must be electrically
grounded in accordance with local codes, or in the absence of local codes, with the National Electrical Code ANSI/NFPA 70 (Latest Edition).

37606-4-0718Page 20
Figure 30
R10947
MILLIVOLT STANDING PILOT WIRING DIAGRAM (BP3 SERIES)
WIRING
If any of the original wire supplied with this unit must be replaced.
Use no. 18, 150°C wire or its equivalent.
