Empire VFP36SB2E(L Quick start guide

INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
DO NOT ATTEMPT TO MODIFY OR ALTER THE CONSTRUC-
TION OF THE FIREBOX OR ITS COMPONENTS. ANY MODI-
FICATION OR ALTERATION OF CONSTRUCTION MAY VOID
THE WARRANTY OF THIS FIREBOX.
CHILDREN AND ADULTS SHOULD BE ALERTED TO THE
HAZARDS OF HIGH SURFACE TEMPERATURE AND
SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IG-
NITION.
YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED
WHEN THEY ARE IN THE SAME ROOM AS THE FIREBOX.
PREMIUM UNIVERSAL FIREBOX FOR
ALL VENT-FREE LOG SETS
SEE-THROUGH FIREBOX MODELS:
VFP36SB2E(L,F)-3
PENINSULA FIREBOX MODELS:
VFP36PB2E(L,F)-3
GAS-FIRED
ANSI Z21.91 Ventless Fireplace Enclosures for use with any
ANSI Z21.11.2 Gas Fired Decorative Type Unvented Room
Heaters
EMPIRE
EMPIRE
Comfort Systems
WARNING: Improper installation, adjustment, alteration,
service or maintenance can cause injury or property dam-
age. Refer to this manual. For assistance or additional infor-
mation, consult a qualied installer, service agency or the
gas supplier.
Carefully review the instructions supplied with the decora-
tive type unvented room heater for the minimum replace
size requirement.
DO NOT INSTALL A VENT-FREE LOG SET IN THIS FIREBOX,
UNLESS THIS FIREBOX MEETS THE MINIMUM DIMENSIONS
REQUIRED FOR THE INSTALLATION.
FOR USE ONLY WITH A LISTED GAS-FIRED UNVENTED
DECORATIVE ROOM HEATER NOT TO EXCEED
40,000 BTU/H.
DO NOT BUILD A WOOD FIRE.
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
— Do not store or use gasoline or other ammable va-
pors and liquids in the vicinity of this or any other ap-
pliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neigh-
bor’s phone. Follow the gas supplier’s instruc-
tions.
• If you cannot reach your gas supplier, call the re
department.
— Installation and service must be performed by a quali-
ed installer, service agency or the gas supplier.
WARNING: If the information in these instructions are
not followed exactly, a re or explosion may result caus-
ing property damage, personal injury or loss of life.
Page 1

27451-6-0614Page 2
SECTION PAGE
Important Safety Information .................................................................................. 3
Introduction ............................................................................................................. 3
Clearances ......................................................................................................... 4 - 5
Firebox Installation Instructions...........................................................................6 - 8
Installing Hood ................................................................................................... 8 - 9
Gas Line Connection............................................................................................... 9
Wiring Instructions for Installing a Dual Switch / Receptacle ................................ 10
LK2 Accent Light Accessory.................................................................................. 10
Optional Single Speed Blower Installation Instructions.................................. 11 - 13
Maintenance.......................................................................................................... 13
Parts List ............................................................................................................... 14
See-Through Firebox Parts View .......................................................................... 15
Peninsula Firebox Parts View ............................................................................... 16
Accessories.................................................................................................... 17 - 18
Master Parts Distributor List...................................................................................19
How To Order Repair Parts ....................................................................................19
Warranty.................................................................................................................20
TABLE OF CONTENTS

27451-5-0614 Page 3
The installation must conform with local codes or, in
the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1 (latest edition) and to the National
electrical Code, ANSI/NFPA70 (latest edition).
NOTE: Installation and repair should be done by a quali-
ed service person. The appliance should be inspected
before use and at least annually by a qualied service
person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding material, etc. It is
imperative that control compartment, burners and circu-
lating air passageways of the appliance be kept clean.
Any safety screen or guard removed for servicing an
appliance must be replaced prior to operating the appli-
ance. Provide adequate combustion and ventilation air.
The ow of combustion and ventilation air MUST NOT
be obstructed.
Provide adequate clearance around air openings into
the combustion chamber and adequate accessibility
clearance for servicing and proper operation. NEVER
obstruct the front opening of the appliance.
This Empire Comfort Systems Inc. firebox and its
components have been tested and will operate safely
when installed in accordance with this installation
manual. Read all instructions before starting installation,
then follow these instructions carefully during
installation to maximize rebox benet and safety.
Report to your dealer any parts damaged in shipment.
The Empire Comfort Systems Inc. warranty will be
voided by, and Empire Comfort Systems Inc. disclaims
any responsibility for the following actions:
- Installation of any damaged rebox.
- Modication of the rebox or any of the components
parts thereof.
- Installation other than as instructed by Empire
Comfort Systems Inc.
- Installation and/or use of any component part
or accessory not approved by Empire Comfort
Systems Inc. in combination or assembly with
a Empire Comfort Systems Inc. firebox, not
withstanding any independent testing laboratory or
other third party approval of such component part
or accessory.
Any such action may create a possible re hazard.
Consult your local building codes.
Firebox Screen.
The rebox screen must be in place when the rebox
is operating.
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installermusthaveownerlloutandmailwarrantycard
suppliedwithrebox.
3. Installer should show owner how to start and operate
logsetthatisinstalledintorebox.
Important
All correspondence should refer to complete Model Number,
Serial Number.
Notice: During initial ring of this rebox with a log set
installed, its paint will bake out, and smoke will occur. To
prevent triggering of smoke alarms, ventilate the room in
which the unit is installed.
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization
equipment or accessories and repair and servicing of
equipmentshallbeperformedonlybyaqualiedagency.
The term "qualied agency" means any individual, rm,
corporation or company which either in person or through
a representative is engaged in and is responsible for (a)
the installation or replacement of gas piping or (b) the
connection, installation, repair or servicing of equipment,
who is experienced in such work, familiar with all precautions
required and has complied with all the requirements of the
authority having jurisdiction.
State of Massachusetts: The installation must be made
byalicensedplumberorgastterintheCommonwealth
of Massachusetts. The state of Massachusetts requires
thataexibleapplianceconnectorcannotexceedthree
feet in length.
Sellers of unvented propane or natural gas-fired
supplemental room heaters shall provide to each
purchaser a copy of 527 CMR 30 upon sale of the unit.
In the State of Massachusetts, unvented propane and
natural gas-red space heaters shall be prohibited in
bedrooms and bathrooms.
The installation must conform with local codes or, in the
absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1/NFPA 54.*
*Available from the American National Standards Institute,
Inc., 11 West 42nd St., New York, N.Y. 10036.
IMPORTANT SAFETY INFORMATION
INTRODUCTION

27451-6-0614Page 4
CLEARANCES
Sidewall Clearances:Theclearancefromtheinsideoftherebox
to perpendicular combustible side wall should not be less than 1
3/4". See Figures 1a and 1b.
36”
MIN.
42”
MIN.
(CEILING TO
TOPOFHOOD
)
1 3/4”MIN.
PERPENDICULAR
COMBUSTIBLE
SIDEWALL
Figure 1a - See Through Firebox Clearances
36”
MIN.
42”
MIN.
(CEILING TO
TOPOFHOOD
)
1 3/4”MIN.
PERPENDICULAR
COMBUSTIBLE
SIDEWALL
Figure 1b - Peninsula Firebox Clearances
Combustible material clearance from front of rebox: 36"
minimum
Firebox Side and Back Clearances: The rebox outer casing
side(s) require a minimum 1/2" clearance to combustibles.
Top Framing and Finishing: Combustible framing may rest on
topofstandoffs.Combustiblenishingmaterialsmayextendtothe
top standoff screws on the front edge of the top outer wrap. See
Figures 2a and 2b.
Figure 2a - Louvered Models
FIREBOX
STAND OFF
COMBUSTIBLE
FINISHED WALL
OR MANTEL
2X4
HEADER
TOP OUTER
WRAP
FINISH WITH TRIM KIT
OR NON-COMBUSTIBLE
MATERIAL AS DESIRED.
Figure 2b - Flush Models

27451-5-0614 Page 5
CLEARANCES
Ceiling Clearances: The ceiling height should not be less than 42"
from the top of the hood. See Figures 3a and 3b.
MANTEL
STANDARD
HOOD
17 ½”
10”
12”
MAX
42”
MIN.
(CEILING TO
TOPOF HOOD)
4½”
MIN.
FIREBOX
FACE
84”
MIN.
(CEILING TO FLOOR)
CEILING
COMBUSTIBLES
ALLOWED
3/8” COMBUSTIBLE
CLEARANCE REQUIRED
FROM TOP EDGE
OF FIREBOX
8”
6½”
5”
3½”
1½”
0”
6½”
9”
11”
13”
15”
Figure 3a - Mantel Clearances with Standard Hood
MANTEL
13”
10”
12”
MAX
42”
MIN.
(CEILING TO
TOPOF HOOD)
8”
MIN.
84”
MIN.
(CEILING TO FLOOR)
CEILING
COMBUSTIBLES
ALLOWED
22”
8”
20”
6½”
18”
5”
16”
3½”
14 ½”
2½”
24 ½”
0”
FIREBOX
FACE
EXTENDED HOOD
(VB4H SERIES)
(NOT AVAILABLE ON
PENINSULA OPEN END)
3/8” COMBUSTIBLE
CLEARANCE REQUIRED
FROM TOP EDGE
OF FIREBOX
Figure 3b - Mantel Clearances with Optional Extended Hood
Mantel Clearances: Ventfreereboxmodelsmustusethehood
suppliedwiththerebox,oroneoftheoptionalhoodkitsavailable
for each model. If a combustible mantel is installed, it must meet
the clearance requirements detailed below.
Grate Clearance: The minimum clearance between the front legs
ofthegrateandthefrontedgesofthereboxis11/2".

27451-6-0614Page 6
FIREBOX INSTALLATION INSTRUCTIONS
Any vent-free Gas Log Heater must be “For use with approved ANSI
Z21.11.2 unvented room heater.”
Follow and complete the installation instructions of the gas log set
andtherequirementsofthisrebox.
Checkallttingsforleaksbeforelightingthegaslogset.
Inplanningtheinstallationfortherebox,itisnecessarytodetermine
where the unit is to be installed and whether optional accessories
are desired. Gas supply piping should also be planned at this time.
A gas shut off must be in this line.
Thereboxcanbemountedonanyofthesesurfaces:
1. Aathardcombustibleornon-combustiblesurface.
2. A raised platform of combustible or non-combustible material.
3. Recessedintotheoorasillustratedby Figure 4.
4. Supportedunderall(4)cornersofthereboxsothatcontact
is made on all four perimeter edges on the bottom of the unit
(Example: Four (4) concrete masonry blocks).
FLUSH FACE LOUVERED
COMBUSTIBLE MATERIALS ALLOWED
Figure 4
Ifthereboxisinstalleddirectlyoncarpeting,tileorothercombustible
materialotherthanwoodooring,itshouldbeinstalledonametal
or wood panel extending the full width and depth of the unit.
At this point, you should have decided what components to include
inyourinstallation,andwherethereboxistobelocated.Ifthis
has not been done, stop and consult your dealer for assistance
with this planning.
Planning Your Installation
Accessory kits such as the FBB5 Blower kit, Trim kits, Mantels, plus
other Decorative Frame, Hood, and Door accessory kits may be
installedafterthereboxissecuredtotheframing.
Refer to the instructions provided with each of the optional accessory
kits for proper installation and operation.
Firebox Framing
Fireboxframingcanbebuiltbeforeorafterthereboxissetinplace.
Framing should be constructed to accommodate wall covering and
reboxfacingmaterial.Thereboxframingshouldbeconstructed
of 2 x 4 lumber or heavier. The framing headers may rest on the
topofthereboxstandoffs.RefertoFigure 5 forreboxframing
dimensions.
Note: On Peninsula models, a maximum weight of 250 lbs. is
recommended when construction materials are supported by the
top standoff spacers.

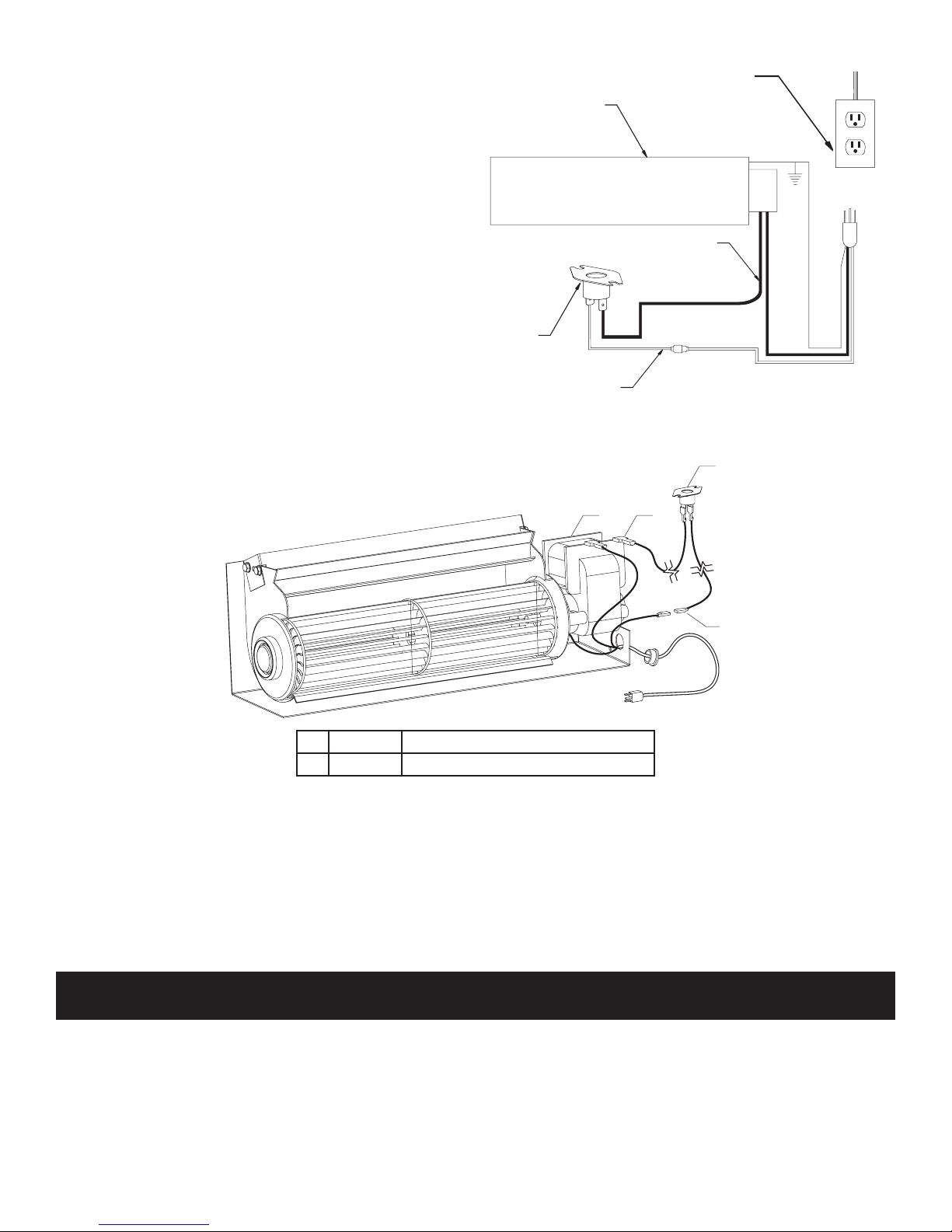

A
B
C
Framing - Peninsula
A
B
C
Framing - See-Through
Premium Vent-Free Firebox Framing Dimensions (in
inches)
"A" "B" "C"*
Model Framing
Height
Framing
Width
Framing
Depth
VFP36SB 41 1/2" 40" 23"*
VFP36PB 41 1/2" 39"** 23"*
Attention: Add height of base to "A" Dimension when elevat-
ingreboxifinstallingonanelevatedbase.
Framing dimension A incudes a three inch clearance for
standoffs on rebox.
*Dimension"C"assumesuseof1/2"wallboardushtoboth
front faces.
** Peninsula model framing width assumes use of 1/2" wall
boardushtotheendface.
Figure 5

27451-5-0614 Page 7
Figure 6
Firebox Dimensions
FIREBOX INSTALLATION INSTRUCTIONS (continued)
LOUVERED PANELS FLUSH PANELS
VFP36SB VFP36PB VFP36SB VFP36PB
A38 1/8" 38 1/8" 38 1/8" 38 1/8"
B39" 39" 39" 39"
C24" 24" 24" 24"
D25 1/2" 25 1/2" 25 1/2" 25 1/2"
E36" 36" 36" 36"
F34 1/4" 35 1/4" 34 1/4" 35 1/4"
G29 1/8" 29 1/8" 29 1/8" 29 1/8"
H41 1/8" 41 1/8" 41 1/8" 41 1/8"
I1 1/4" 1 1/4" 1 1/4" 1 1/4"
J6 1/8" 6 1/8" 6 1/8" 6 1/8"
K7 1/2" 7 1/2" 7 1/2" 7 1/2"
L6" 6" 6" 6"
M27 5/8" 27 5/8" 27 5/8" 27 5/8"
N36 7/8" 36 7/8" 36 7/8" 36 7/8"
O2 1/8" 2 1/8" 2 1/8" 2 1/8"
SEE THRU
LOUVERED
OR
FLUSH
PENINSULA
LOUVERED
OR
FLUSH
H
B
C
A
N
E
M
J
D
F
G
H
B
A
N
E
M
J
D
I
2 9/16”
2 9/16”
L
K
L
F
I
2 9/16”
O
K
O

27451-6-0614Page 8
FIREBOX INSTALLATION INSTRUCTIONS (continued)
INSTALLING HOOD
Locating Firebox
Place rebox in framed opening.Attach the framing brackets to
thereboxandsecurereboxtoframing.Differentholelocations
canbeusedfornishingmaterialswiththicknessesof3/8",1/2"
and 3/4". Secure the brackets with screws provided using two per
framing bracket. See Figure 7.
Framingbracketsshouldtdirectlyagainstframingmaterial.Use
at least one nail or screw per bracket to secure in place.
IMPORTANT!Checksquarenessofthereboxpriortosecuringto
framed opening. See Figure 8.
ATTACH (4)
FRAMING BRACKETS
TO SIDE(S) OF FIREBOX
PRIORTO INSTALLING
UNIT TO FRAMED OPENING
Figure 7
FIREBOX OPENING
CHECK TO SEE
THAT BOX IS SQUARE
PRIOR TO ATTACHING TO
FRAMING
Figure 8
Blackhoodsarefurnishedwitheachrebox(ortheoptionalhood(s))
andMUSTbe installed before the rebox is used.Failure to do
somaycreateapossiblerehazard.Forshippingpurposes,the
hoodsarelocatedbehindtheupperlouver(s),orinsidetherebox
onushfaceunits.Ifbrass,stainlesssteel,orhammeredpewter
hoods are desired, they can be purchased as an option. Attachment
is the same as the standard black hood.
Louvered Models
1. Removeupperlouver,orushpanel.
2. Placethetophoodangeontopoftheinnerreboxtop,then
installthreescrewsthroughthereboxtopfrombelowandscrew
intothepilotholesinthehoodange(B).
3. Install one (1) screw at each end of the hood as shown (C).
4. Re-installlouver(s)orushpanel(s).
Caution: All hoods must be installed prior to operation of appliance.
See Figure 9.
Louvered Models
B
C
INNER FIREBOX TOP
Figure 9

27451-5-0614 Page 9
Thereboxisdesignedtoacceptagaslineforanapprovedvent-
freegaslogset.Havethelineinstalledbyaqualiedserviceperson
in accordance with all building codes. Consult local building codes
to properly size the gas supply line leading to the connection of the
logsetburner.ThestateofMassachusettsrequiresthataexible
appliance connector cannot exceed three feet in length.
Gas access holes are provided through the side panel(s) of
the firebox. See Figure 10. Carefully remove the indented
knockout in the ceramic brick panel using a drill or utility knife.
See Figure 11.
Check gas type. Use only the gas type indicated on the gas log
set rating plate. If the gas listed on the plate is not your type of gas
supply, DO NOT INSTALL. Contact your dealer for proper model.
AlwaysuseanexternalregulatorforallLPreboxestoreducethe
supply tank pressure to a maximum of 14" w.c. This is in addition
totheregulatorttedtothelogset.
WARNING: CONNECTION DIRECTLY TO AN
UNREGULATED L.P. TANK CAN CAUSE EXPLOSION.
InstallonlyaANSIZ21.11.2vent-freelogsetintothisrebox.
Figure 10
Figure 11
INSTALLING HOOD (continued)
GAS LINE CONNECTION
GAS LINE
ACCESS
HOLES
Extended Hoods
If your non-combustible facing material is over 1" in thickness and
willbeusedtonishthisrebox,extendedhoodsareavailablethat
will extend out 2" farther into the room. Extended hoods are not
available for the peninsula open ends. Contact your local dealer
for details.
Extended Hoods
VB4H36BL Standard Black (1 each)
VB4H36BR Polished Brass (1 each)
VB4H36SS Stainless Steel (1 each)
VB4H36HP Hammered Pewter (1 each)
Finishing
All joints (top, bottom and sides), where the wall or decorative
facingmaterialmeetsthereboxsurroundshouldbesealedwitha
non-combustible material.
Hearthextensionsarerequiredforthesereboxes.
Flush panels, louvers, and decorative louver panels are
interchangeable, and may be mixed and matched as desired (i.e.
Flush panel on bottom with louvered panel at top, or vice versa).

27451-6-0614Page 10
WIRING INSTRUCTIONS FOR INSTALLING A DUAL SWITCH / RECEPTACLE
In order to install both the optional Blower and Accent Light acces-
sories, it will be necessary to install the junction box so that the
Duplex Receptacle wiring is split. This will allow each side of the
receptacle to operate independently off separate wall switches.
See diagram below.
Note: To operate the FBB5 Blower accessory with a variable
speed control, the SCV1 Variable Speed Control Kit should be in-
stalled to control the power to one side of the duplex receptacle.
#1
ACCENT LIGHT
WALL SWITCH
#2
BLOWER
WALL
SWITCH
REMOVE TABON HOT SIDE
OF DUPLEX RECEPTACLE
TO SPLIT LUGS
PLUG
FOR
CONTROLS
PLUG
FOR
BLOWER
FIREPLACE
CONTROL
COMPARTMENT

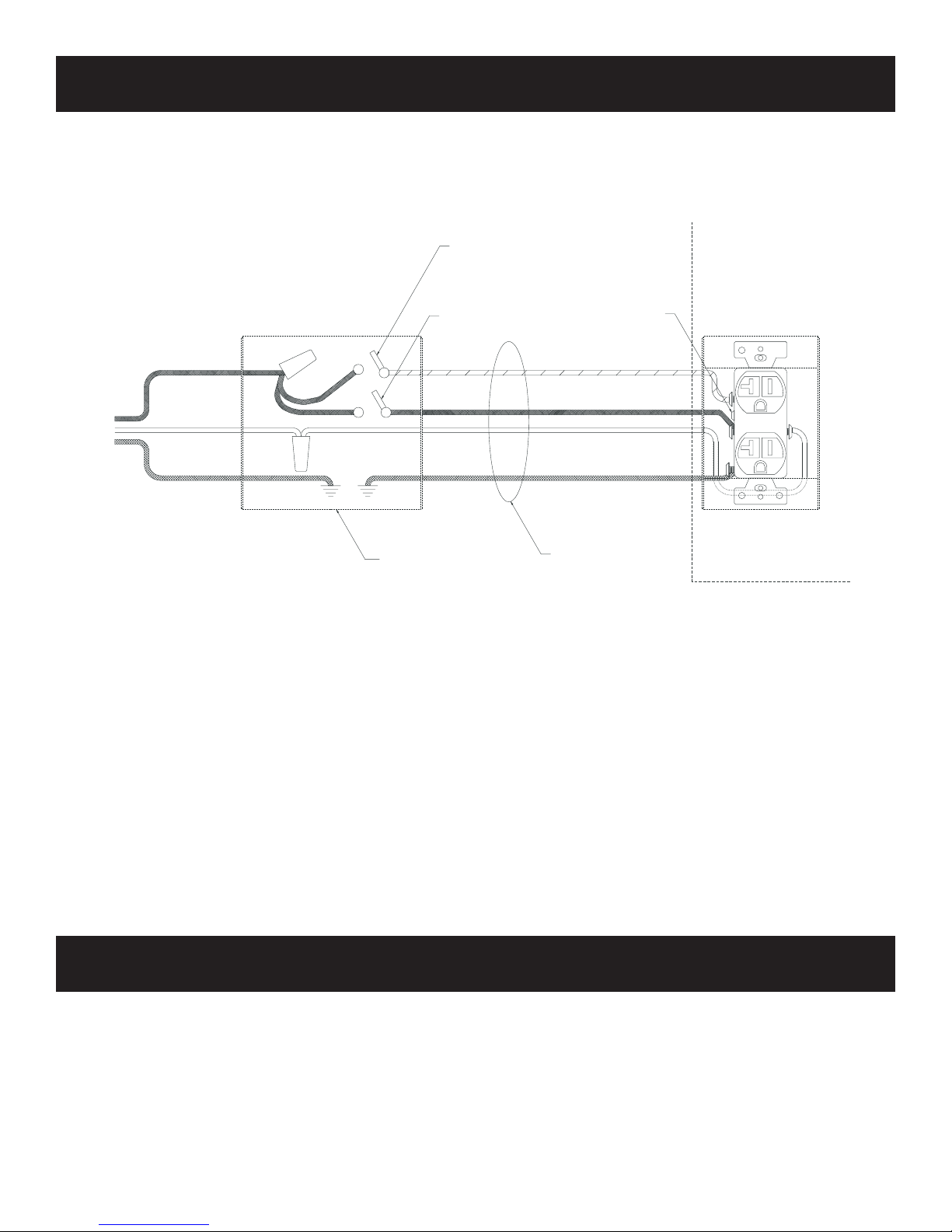

DUAL SWITCH ELECTRICAL WIRING TO FIREPLACE RECEPTACLE
RED
BLACK
WHITE
3-WIRE, GROUNDED
CONDUCTOR
(BY OTHERS)
DOUBLE SWITCH BOX
(INSTALLER PROVIDED)
BLACK
WHITE
GROUND
TO 120V
CIRCUIT
BREAKER
LK2 ACCENT LIGHT ACCESSORY
1. To wire Junction Box Receptacle, remove the tab on the side
of the receptacle (hot side) to split receptacle. This will be
required to separate blower and Accent Light circuits.
2. Power for switched and live sides of Duplex Receptacle must
come from the same power source. (One circuit breaker on
main panel must switch all power off.)
3. From the wall box to the replace a 3-wire conductor with
ground is recommended, however (2) two-wire conductors
with grounds may be used in place of a 3-wire conductor with
a ground if the black wires from the Accent Light and blower
accessoriesareidentied.
4. Two wall switches may be used to activate the two receptacle
plugs independently.
Note: Wiring to the Junction Box should be run through the 7/8"
diameteraccessholelocatedononeofthesidesofthereplace
outer wall. A Romex type connector is provided and should be
used to protect and restrain the wiring where it passes through
thereplaceouterwall.TheJunctionBoxshouldbepositionedin
thelowercompartmentofthereplace/reboxsothatitdoesnot
interfere with moving parts of the blower assembly. The Junction
Box incorporates magnets on the bottom side to retain and reduce
the chance of movement or vibration during blower operation.
Note: If only the blower option is to be installed, wiring may be
performed as described and illustrated in the following Blower In-
stallation section.
An Accent Light Kit model LK2 is available for installation in
the top of the rebox. Providing the junction box has been pre-
wired with separate circuits as described in the "Wiring for a dual
switch/receptacle" section, the Accent Light kit may be installed at
anytimeonlouveredmodels,oronushpanelmodelspriortothe
upperpanelsbeingcoveredwithnishingmaterials.
Follow the instructions provided with the LK2 Accent Light kit for
properinstallationinthereplace/rebox.

27451-5-0614 Page 11
OPTIONAL SINGLE SPEED BLOWER INSTALLATION INSTRUCTIONS
Attention: Install blower assembly before connecting
gas inlet supply line.
Wiring
The appliance, when installed, must be electrically grounded in
accordance with local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70, if an external
electrical source is utilized. This appliance is equipped with
a three-prong [grounding] plug for your protection against
shock hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove the
grounding prong from this plug. For an ungrounded receptacle,
an adapter, which has two prongs and a wire for grounding, can be
purchased, plugged into the ungrounded receptacle and its wire
connected to the receptacle mounting screw. With this wire com-
pleting the ground, the appliance cord plug can be plugged into the
adapter and be electrically grounded.
Caution: Label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and dangerous op-
eration. Verify proper operation after servicing.
Note: Junction box is to be located in the lower compartment of
thereboxandmustbepre-wiredattimeofreboxinstal-
lation for use with blower assembly. A standard ON/OFF
wall switch or optional SCV1 Variable Speed Control Kit
should be installed to activate power to the Junction Box
and provide power for the operation of the FBB5 Blower as-
sembly. It is recommended that installation of the wiring be
performedby aqualied electrician.See Figures 12 and
13.
1. Ifinstalled,turnOFFgassupplytorebox/gaslog.
2. Ifapplicable,turnOFFelectricsupplytorebox.
CAUTION: ALL WIRING SHOULD BE DONE BY A QUALI-
FIED ELECTRICIAN AND SHALL BE IN COMPLIANCE WITH
ALL LOCAL, CITY AND STATE BUILDING CODES. BEFORE
MAKING THE ELECTRICAL CONNECTION, MAKE SURE
THAT MAIN POWER SUPPLY IS DISCONNECTED. THE
APPLIANCE, WHEN INSTALLED, MUST BE ELECTRICAL-
LY GROUNDED IN ACCORDANCE WITH LOCAL CODES,
WITH THE NATIONAL ELECTRICAL CODE ANSI/NFPA 70
(LATEST EDITION).
To install the blower kit, access the junction box, or install a light
kit,remove theaccesscover plateand/or lower louversorush
panelsasillustratedbygures13and14.
A factory included junction box is located on the lower right side
oftherebox.Wiringmustbefedthroughthe7/8"diameterhole
providedonthelowersideoftherebox,andsecuredtotheouter
wrap with the clamp provided. Leave approximately 6” of wire in
the junction box for connection.
Attach black wire to one side of the receptacle and white wire to
opposite side of receptacle. The ground wire should be attached
to the green (ground) screw. See Figure 12.
Install the receptacle into the junction box as illustrated.
Attach cover plate. Place Junction Box so that it is approximately 8
to 12" away from the outer wrap wall. Secure wiring at outer wrap
ofreplacewithwireclampprovided.
Attention: If installed, do not damage gas inlet supply line when
blowerassemblyisinsertedintorebox.Insomecases,removal
of the gas inlet supply line may be necessary.
3. Determinewhichtypeofreboxyouhavepriortoinstallation.
See Figures 13 and 14.
Figure 12
Figure 13 - Flush Or Louvered Models
BLOWER AND JUNCTION
BOX ACCESS COVER
PLATE
Figure 14 - Flush Face Models With Raised Hearth Exten-
sions

27451-6-0614Page 12
4. Insertblowerassembly intointerior,bottomof rebox.Posi-
tion blower assembly so that you align the notch on back of
blower assembly with the center screw on side/end panel,
thenpush the blower assembly againstreboxouter panel.
The blower wheel must be centered with the side/end wall of
therebox.Themagnetsonthebackandbottomofblower
assemblywillsufcientlyholdblowerassemblyinplace.See
Figure 16.
5. Once the blower assembly is in position, locate the plug but-
toninthetopcorneroftherebox.Removetheplugwitha
standard screwdriver and discard plug.
6. Next, nd the fan control switch and wire assembly. Feed
thewiresthroughtheholeatthetopoftherebox.Feedthe
wiresoverthereboxtopanddownbetweenthereboxside
and outer wrap then, secure the fan control switch with (2) #6
screws provided. See Figure 15.
7. Thefancontrolwireswillslidedownbetweenthereboxand
outer wrap near the blower assembly. See Figure 16.
8. One fan control wire will have a 1/4” female terminal that must
be attached to the open terminal on the blower motor. See
Figure 19, Connection A.
9. The other fan control wire has a 1/4” male terminal. Attach this
terminal to the open terminal on the blower power cord. See
Figure 19, Connection B
10. Route the wires away from moving parts of the blower assem-
bly and retain wires together near the blower motor using the
plastic purse clip provided.
11. To complete the installation, plug the power cord into the junc-
tion box receptacle previously installed in the bottom of the
rebox.See Figures 16 and 18.
12. Once all connections are made electrically, it is recommended
that you test the blower fan control operation by turning on
power to the blower (Caution: 110 Volt). Then apply heat to
thefancontrolswitchinsidethereboxwithalighterormatch
until blower is activated. Once blower is activated, check for
proper operation. Do not place hands near blower assembly
or other wiring while power is on.
13. Replacebloweraccessplateandlouversorushpanels.See
Figures 13 and 14.
14. This completes the installation of the optional FBB5 Blower kit
accessory.
Note: This blower is equipped with a heat activated fan control
switch.Blowerwilloperatewhenthereboxwarmsup,and
willturnoffautomaticallywhenthereboxcoolsdown.The
time will vary for the activation of the fan control switch de-
pendingonseveralfactorsincludingrebox/logsetsizing,
BTU input variables, and log set positioning. Generally, it
may take from 5 to 20 minutes to activate blower/fan control
from a cold start.
FAN CONTROL
SWITCH LOCATION
Figure 15
JUNCTION
BOX
HEARTH
POWER CORD BLOWER ASSEMBLY
(CENTER AND INSTALL
AGAINST OUTER WRAP
AS SHOWN)
WIRES
FROM FAN
CONTROL
SWITCH
OUTER
WRAP
Figure 16
USE SCVI VARIABLE SPEED
CONTROL OPTION, OR STANDARD
ON/OFF WALL SWITCH TO
OPERATE OPTIONAL BLOWER
Figure 17

27451-5-0614 Page 13
Blower Motor
The blower motor does not have oiling holes. Do not attempt to oil
the blower motor.
Blower Wheels
The blower wheels will collect lint and could require periodic clean-
ing. If the air output decreases or the noise level increases, it indi-
cates a dirty blower wheel. Remove fan and clean blower wheels.
1 FBB5 BLOWER ASSEMBLY COMPLETE
2 R8199 FAN CONTROL SWITCH
1
2
A
B
110 VOLT AC
JUNCTION BOX
WHITE
FAN
SWITCH
BLACK
FAN/MOTOR
ASSEMBLY
Figure 18
Figure 19
Keep the control compartment, logs and burner area surrounding
the logs clean by vacuuming or brushing area at least twice a year.
THE LOGS CAN GET VERY HOT – HANDLE ONLY WHEN COOL.
Always turn off gas to the pilot before cleaning. For relighting, refer
to lighting instructions located on the log set.
Neverobstructtheowofthecombustionandventilationair.Keep
thefrontofthereboxclearofallobstaclesandmaterials.
Screens must be closed during operation.
MAINTENANCE

27451-6-0614Page 14
PARTS LIST
Use Only Manufacturer’s Replacement Parts. Use of Any Other Parts Could Cause Injury Or Death.
Index
Number
Part Number Description
VFP36SB2EL VFP36SB2EF VFP36PB2EL VFP36PB2EF
1----FIREBOX ASSEMBLY
2 17149 17149 17149 17149 TOP STANDOFF
3 R9655 R9655 R9655 R9655 INSULATION - TOP
4 24067 24067 24067 24067 INSULATION SUPPORT
5 R7052 R7052 R7052 R7052 SCREEN ROD
6 - - R9633 R9633 SCREEN ROD
7 R9631 R9631 R9631 R9631 BRICK PANEL - SIDE BULK
8 19945 19945 19945 19945 BRICK LINER BRACKET
9 20145 20145 20145 20145 HOOD
10 - - 24056 24056 PENINSULA HOOD
11 20073 20073 20073 20073 INNER AIR BAFFLE
12 18807 18807 18807 18807 LOUVER ASSEMBLY - UPPER
13 18808 18808 18808 18808 LOUVER ASSEMBLY - LOWER
14 - - 24059 24059 UPPER LOUVER ASSEMBLY
15 - - 24058 24058 LOWER LOUVER ASSEMBLY
16 19990 19990 19990 19990 BLOWER COVER PLATE
17 23004 23004 23004 23004 HEARTH RETAINER
18 R9293 R9293 R9293 R9293 HEARTH LEDGE - LEFT
19 R9295 R9295 R9295 R9295 HEARTH LEDGE - CENTER
20 R9292 R9292 R9292 R9292 HEARTH LEDGE - RIGHT
21 - - R9634 R9634 HEARTH LEDGE
22 10554 10554 10554 10554 NAILING FLANGE
23 - 24051 - 24051 FLUSH PANEL - UPPER - LONG
24 - 24052 - 24052 FLUSH PANEL - LOWER - LONG
25 - - - 24054 FLUSH PANEL - UPPER - SHORT
26 - - - 24053 FLUSH PANEL - LOWER - SHORT
27 19401 19401 19401 19401 BRICK LINER BRACKET - LOWER
N/S R8201 R8201 R8201 R8201 CURTAIN SCREEN
QTY 4 - VFP36SB, QTY 5 - VFP36PB
N/S - Not Shown
See Page 15 for See-Through Models VFP36SB2E(L,F) Parts View for ordering parts.
See Page 16 for Peninsula Models VFP36PB2E(L,F) Parts View for ordering parts.

27451-5-0614 Page 15
SEE-THROUGH FIREBOX PARTS VIEW
1
2
3
4
5
8
78
9
11
12
13
16
17
18
19
20
22
7
24
23
27
23
12
13
9
11
24
20
19
18
27
17
3
4

27451-6-0614Page 16
PENINSULA FIREBOX PARTS VIEW
1
2
3
4
5
6
78
9
10
11
12
13
14
15
16
17
18
19 20
21
22
25
26
23
24
27
12
23
24
13
9
11
3
4
20 19
18
17

27451-5-0614 Page 17
Accessory Description Model Numbers
Fan Kit
Designedtoprovideforcedairow.
Note:Forusewithlouveredorushpanelmodels.
FBB5
Variable Speed Control Kit
Wall mounted variable speed control for use with
FBB5 blower SCV-1
Frame Kits
Standard 3-Piece Frame Kits
Black, Brass, Stainless Steel, or Hammered Pewter
Extruded Aluminum Frame Kits
Black, Brass, Stainless Steel, or Hammered Pewter
For use with See-Through models:
VFP36SB2E(L,F) ONLY
Contact dealer for all available
optional frame kits
Bottom Trim Strip
Available as optional kits in Black, Brass, Ham-
meredPewter,andStainlessSteelnishes.
For VFP36SB2E(F,L) ONLY
Contact dealer for all available
optional trim accessories
Standard Hood Brass hood = BR
Stainless Steel = SS
Hammered Pewter = HP
Contact dealer for all available
optional hood accessories
Accent Light Kit
Optionallightkitthatinstallsintopofreboxtoen-
hance logset. Operates with a Rheostat control to
vary brightness of light for desired effect.
R9645 - REPLACEMENT BULB -
(25W , 300°C, 125-130 VAC)
LK2
ACCESSORIES

27451-6-0614Page 18
Extended 4" Hoods Extended hoods that extend out 2" farther than the stan-
dard hoods, to accommodate thicker surround materials.
Available as optional kits in Black, Brass, Hammered
Pewter,andStainlessSteelnishes.
Note: Not available for Peninsula open ends.
Contact dealer for all available
optional hood accessories
Louvers
Styles include Slat, Mission, Arch, and Leaf Patterns.
Available as optional kits in Black, Brass, Hammered
Pewter,andStainlessSteelnishes.
Contact dealer for all available
optional louver accessories
Decorative Door Kits Available as optional kits in Black, Brass, Hammered
Pewter,andStainlessSteelnishes.
Contact dealer for all available
optional frame kit accessories
Decorative Frame Kits Available as optional kits in Black, Brass, Hammered
Pewter,andStainlessSteelnishes.
Contact dealer for all available
optional decorative door kit
accessories
Mantel Systems Availableinvariousstylesandnishes. Contact dealer for all available
mantel options.
Flush Panel Kits
Flush panel kits may be used to replace louvered panels
asdesiredfortheSee-ThroughandPeninsularebox
models.
Available in black only.
FPK22 (For Peninsula open end)
FPK36 (For See-Through and
Peninsula front openings)
Decorative Liner Kits
Decorative liner kits replace brick liner as optional kit.
Availableinstainlesssteelandreectiveblack
Contact dealer for all available
decorative liner kits.
ACCESSORIES (continued)

27451-5-0614 Page 19
To Order Parts Under Warranty, please contact your local Empire dealer. See the dealer locator at www.empirecomfort.
com. To provide warranty service, your dealer will need your name and address, purchase date and serial number, and the
nature of the problem with the unit.
To Order Parts After the Warranty Period, please contact your dealer or one of the Master Parts Distributors listed below.
This list changes from time to time. For the current list, please click on the Master Parts button at www.empirecomfort.com.
Please note: Master Parts Distributors are independent businesses that stock the most commonly ordered Original
Equipment repair parts for Heaters, Grills, and Fireplaces manufactured by Empire Comfort Systems Inc.
MASTER PARTS DISTRIBUTOR LIST
Parts Not Under Warranty
Parts can be ordered through your Service Person, Dealer, or a Master Parts Distributor. See this page for the Master Parts Distribu-
tors list. For best results, the service person or dealer should order parts through the distributor. Parts can be shipped directly to the
service person/dealer.
Warranty Parts
Warranty parts will need a proof of purchase and can be ordered by your Service Person or Dealer. Proof of purchase is required for
warranty parts.
AllpartslistedinthePartsListhaveaPartNumber.Whenorderingparts,rstobtaintheModelNumberandSerialNumberfromthe
name plate on your equipment. Then determine the Part Number (not the Index Number) and the Description of each part from the fol-
lowing illustration and part list. Be sure to give all this information . . .
Appliance Model Number Part Description
Appliance Serial Number Part Number
Type of Gas (Propane or Natural)
Do not order bolts, screws, washers or nuts. They are standard hardware items and can be purchased at any local hardware store.
Shipmentscontingentuponstrikes,resandallcausesbeyondourcontrol.
HOW TO ORDER REPAIR PARTS
Dey Distributing
1401 Willow Lake Boulevard
Vadnais Heights, MN 55101
Phone: [phone]
Toll Free: 800-397-1339
Website: www.deydistributing.com
Parts: Heater, Hearth and Grills
Victor Division of F. W. Webb Company
200 Locust Street
Hartford, CT 06114
Phone: [phone]
Toll Free: 800-243-9360
Fax: [phone]
Toll Free Fax: [phone]
Websites: www.fwwebb.com & www.victormfg.com
Parts: Heater, Hearth and Grills
East Coast Energy Products
10 East Route 36
West Long Branch, NJ 07764
Phone: [phone]
Toll Free: 800-755-8809
Fax: [phone]
Website: www.eastcoastenergy.com
Parts: Heater, Hearth and Grills
Able Distributors
2501 North Central Avenue
Chicago, IL 60639
Phone: [phone]
Toll Free: 800-880-2253
Fax: [phone]
Website: www. abledistributors.com
Parts: Heater

27451-6-0614Page 20
WARRANTY
Empire Comfort Systems Inc. warranties this hearth product to be free from defects at the time of purchase and for the periods speci-
edbelow.Hearthproductsmustbeinstalledbyaqualiedtechnicianandmustbemaintainedandoperatedsafely,inaccordancewith
the instructions in the owner’s manual. This warranty applies to the original purchaser only and is not transferable. All warranty repairs
mustbeaccomplishedbyaqualiedgasappliancetechnician.
Limited Lifetime Parts Warranty with a Five-Year Limited Labor Warranty – Combustion Chamber and Heat Exchanger
If the combustion chamber or heat exchanger (see parts list) fails because of defective workmanship or material, Empire will repair
or replace at Empire’s option.
 Withinveyearsfromthedateofpurchase,Empirewillpayreasonablelabortohavethedefectivepartrepairedorreplacedat
Empire’s option.
Limited Five-Year Parts & Labor Warranty – All Other Components
(Except Remote Controls, Thermostats, Accessories and Replacement Parts)
 Shouldanypartfailbecauseofdefectiveworkmanshipormaterialwithinveyearsfromthedateofpurchase,Empirewill
repair or replace at Empire’s option.
 Withinveyearsfromthedateofpurchase,EmpirewillpayreasonablelabortohavethatdefectrepairedatEmpire’soption.
Limited One-Year Parts Warranty – Remote Controls, Thermostats, Accessories, and Parts
Should any remote control, thermostat, accessory, or other part fail because of defective workmanship within one year from
the date of purchase, Empire will repair or replace at Empire’s option.
Duties Of The Owner
 Theappliancemustbeinstalledbyaqualiedinstallerandoperatedinaccordancewiththeinstructionsfurnishedwiththeap-
pliance.
A bill of sale, cancelled check, or payment record should be kept to verify purchase date and establish warranty period.
Ready access to the appliance for service.
What Is Not Covered
Damages that might result from the use, misuse, or improper installation of this appliance.
Travel, diagnostic costs and freight charges on warranted parts to and from the factory.
Claims that do not involve defective workmanship or materials.
Unauthorized service or parts replacements.
Removal and reinstallation cost.
Inoperable due to improper or lack of maintenance.
How To Get Service
To make a claim under this warranty, please have your receipt available and contact your installing dealer. Provide the dealer
withthemodelnumber,serialnumber,typeofgas,andpurchaseverication.Theinstallingdealerisresponsibleforprovidingserviceand
will contact the factory to initiate any warranted parts replacements. Empire will make replacement parts available at the factory. Shipping
expenses are not covered.
If, after contacting your Empire dealer, service received has not been satisfactory, contact: Consumer Relations Department,
Empire Comfort Systems Inc., PO Box 529, Belleville, Illinois 62222, or send an e-mail to [email protected] with “Consumer Rela-
tions” in the subject line.
Your Rights Under State Law
 Thiswarrantygivesyourspeciclegalrights,andyoumayalsohaveotherrights,whichvaryfromstatetostate.
EMPIRE
EMPIRE
Comfort Systems
Empire Comfort Systems Inc.
918 Freeburg Ave. Belleville, IL 62220
If you have a general question about our products, please e-mail us at
[email protected].
If you have a service or repair question, please contact your dealer.
www.empirecomfort.com
