04 PRODUCT INTRODUCTION
Intended use
Infrared Forehead Thermometer intended to measure
human body temperature by measuring ear canal or
forehead.
Scope of application
It is suitable for displaying the body temperature of the
measured object by measuring the heat radiation in the
ear canal or forehead.
Features
·Non-touching type infrared temperature measurement.
·Display with multiple colours and backlight: white, green,
orange and red.
·Memory for 9 measurements.
·Measurement selectable in degrees Fahrenheit(°F)or
Celsius(°C). (Celsius is factory setting).
·Instant measurement within 1 second.
·Convenient and economical design without earmu,
whichcan save subsequent use costs.
·Sound can be swithed on and o.
·The machine idle time of 30seconds,
turn o power automatically.
> Note
The measurement results of this device are not a substitute
for a medical diagnosis by a professional doctor. If you have
any questions about the results of your measurement, please
contact your doctor and follow the instructions.

05
Depending on the measurement method used, dierent
values are obtained. Therefore, the WHO provides refer-
ence values for the ›normal‹ human body temperature.
Measurement methods Normal body temperature
Anal temperature: 36.6~38°C
Oral temperature: 35.5~37.5°C
Axillary temperature: 34.7~37.3°C
Cochlear temperature: 35.8~38°C
The human body temperature
Human body temperature is basically constant, but it is
not completely unchanging. It changes constantly in the
course of a day, the details as follows.
·At night:
Body temperature is at its lowest (below 37°C) due to sleep
and decreasing activity.
·In the morning: Higher.
From warm bed to cool room, muscles contract and
produce heat.
·Midday: Highest.
After lunch, the human body reaches its highest tempera-
ture and the body naturally adjusts.
·Three or four in the afternoon: Lower.
Due to physical exertion, blood sugar drops.
·Evening: Lowest.
Due to the sunset, the room temperature drops.
ABOUT BODY TEMPERATURE

06
01 Head cover
02 Probe
03 Display (screen)
04 Measurement button
05 Memory button
06 Power button (main switch)
07 Battery cover
DEVICE DESCRIPTION
1 2 3
4
5
6
7
Memory storage
Sound on
Battery indicator
Messurement result
Ear temperature messurement
Forehead temperature
messurement
Temperature unit
(C= celsius, F = fahrenheit)
Objects messurement

07

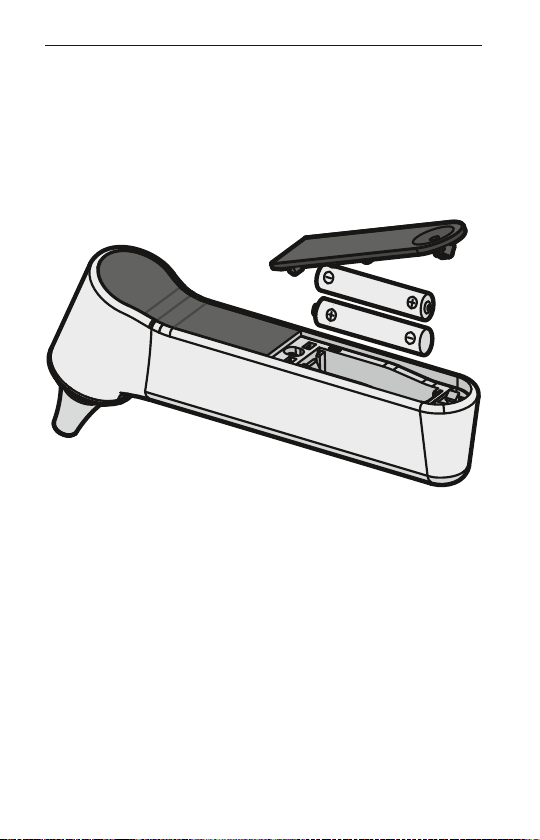

The procedure
1. Press the indentation at the bottom of the battery cover, it
should automatically spring open.
2. To remove inserted batteries, press rmly on the upper end
of the battery › –‹.
3. Insert two 1.5V AAA batteries. Pay attention to the polarity.
Insufficient voltage warning
If the battery voltage is insucient, the LCD display will
show ›LO ‹ and the battery symbol will light up continu-
ously. You should replace the battery soon.
BATTERY INSTALLATION
> Note
If you do not use the unit for a long time, please remove the
battery. The batteries may discharge and/or leak liquid.
It is recommended to use alkaline batteries.
Dispose of used batteries according to local regulations.

08
Sound function: switch on/off
1. Press the Memory button when the unit is switched on to
switch the sound on or o.
The screen shows icon, i.e. the sound is switched on, a
short beep sounds to conrm.
2. Press the Memory button again, the icon disappears,
i.e. the sound is switched o.
Switching the temperature unit
·With the unit switched o, press and hold the Memory
button for 6 seconds. or ashes on the display.
·Press the Memory button again to change the unit.
·The thermometer switches o automatically if there is
noinput or press the Power button to switch o.
Memory function
·If you press the Memory button when the thermometer is
switched o, the unit can read and store 9 sets of readings
in sequence.
·The thermometer switches o automatically if there is
noinput or press the Power button to switch o.
Backlight
·When the measured temperature is < 34,
the background is illuminated red and indicates LO.
·When the measured temperature value is 34 ~ 37.1° C,
thebackground is illuminated green.
·When the measured temperature value is 37.2 ~ 38.1° C,
the background is illuminated orange.
·When the measured temperature value is 38.2 ~ 43.0° C,
the background is illuminated red.
·When the measured temperature value is > 43.0° C,
thebackground is illuminated red and indicates HI.
SETTINGS

09
Measuring the ear temperature
1. Remove the Head cover.
2. Press the Power button to switch on.
·The display shows the last measured value.
·The icon appears on the display.
3. Carefully insert the thermometer into your ear canal and
press the Measurement button.
·After a short time you will hear a signal tone and
you can see the measurement result.
Measuring the forehead temperature
1. Put the Head cover on the device.
2. Press the Power button to switch it on.
·The display shows the last measured value.
·The icon appears on the display.
3. Hold the thermometer in front of your forehead at a
distance of 0~5mm and press the Measurement button.
·After a short time you will hear a signal tone and
you can see the measurement result.
Measuring objects
1. Put the Head cover on the device.
2. Press and hold the Power button for 6 seconds to switch on.
·The display shows the last measured value.
·The icon appears on the display.
3. Point the thermometer at the object and
press the Measurement button.
·After a short time you will hear a signal tone and
you can see the measurement result.
> Note
If you do not hear the beep, the temperature measurement is
not yet complete. Do not remove the thermometer yet.
TEMPERATURE MEASUREMENT

10 APPENDIX
Frequently asked questions
Display Reasons Solutions
HI
If the temperature of the
target object is higher than the
measuring range (higher than
43°C for the ear), the display
shows ›HI‹.
If the sensor is not properly
placed in the ear canal or the
measurement distance is too
far during measurement, the
measurement result may be
too low.
If the sensor is contaminated,
the reading may be too low;
the sensor should be cleaned
with an alcohol swab.
Lo
If the temperature of the target
object is lower than the meas-
uring range (lower than 34° for
the ear), the display shows ›LO‹.
Er.H
The operating temperature of
this unit is limited upwards to
40°C. If the ambient temper-
ature exceeds this point, the
display shows an error message
›Er.H‹.
When using this product, the
ambient temperature should
not be higher than 40°C.
Er.L
The operating temperature
of this unit is limited to 10°C
at the bottom. If the ambient
temperature falls below this
point, the display shows an
error message ›Er.H‹.
When using this product, the
ambient temperature should
not be lower than 10°C.
Err
If the ambient temperature
changes rapidly by 5degrees,
an error message is displayed
during measurement in the
object temperature mode,
then the unit switches o
automatically.
If ›Err‹ is displayed, place the
unit in the room where meas-
urement is to be taken for more
than 30 minutes before taking
the next measurement.
If mishandled, a beep will be heard when the sound setting is
active. (a short tone will be heard)

11APPENDIX
Troubleshooting
Problems Reasons Solutions
There is no display when
the unit is switched on.
The battery is empty. Replace the batteries.
The polarity of the
batteries is wrong.
The polarity of the
batteries corresponds
to that in the battery
compartment.
The measurement
temperature is low.
The measurement posi-
tion is not correct.
Measure the tempera-
ture correctly according
to the instructions.
There is dirt in the
sensor or ear.
Remove the contamina-
tion before measuring.
Large temperature
changes during contin-
uous measurement.
The measurement
interval is too short.
The interval between
measurements
should be more than
10seconds.
Cleaning and maintenance
This thermometer uses highly sensitive technology to determine the
temperature of the target object.
Contamination (dust, dandru, ...) can aect the measurement accuracy and
bacterial injections could occur.
We therefore recommend cleaning after each use.
> Sensor
Use an alcohol swab (without water) to clean the sensor. This prevents the
transfer of germs after the end of the temperature measurement (note:
never wash the product directly under the water pipe).
> Housing
Wipe the product with a soft and dry cloth so that it does not get scratched.
Do not clean directly with water.

12
Service Centre
·Emporia Service Centre
[email protected]
Monday-Friday, 12-4pm
·United Kingdom · EN
www.emporiatelecom.co.uk/support/contact
[phone]
·Ireland · EN
www.emporiatelecom.ie/support/contact
[phone]
·Please have your proof of purchase ready.
Warranty
The consumer (customer) is granted a durability guarantee under
thefollowing conditions, without prejudice to his claims for defects against
the seller:
·This guarantee applies to new devices purchased in the European Union.
The guarantor is emporia telecom GmbH + CoKG,
Industriezeile 36, A-4020Linz.
·New devices and their components that show a defect due to manufac-
turing and/or material faults within 12months of purchase will be replaced
or repaired free of charge with a device that corresponds to the state of
theart.
·This guarantee does not apply if the defect in the equipment is due to
improper handling and/or failure to observe the operating instructions.
·The proof of purchase, with the date of purchase,
is valid as proof of guarantee.
·To redeem this guarantee, pleasecontact our hotline.
APPENDIX

13
Precautions
·Depending on the activated mode, the device measures only the body
temperature or the surface of objects.
·Ask your doctor to explain the measured value of your bodytemperature.
·Do not use the device for any purpose other than taking bodytemperature.
·Do not use mobile phones near this product.
·Do not apply devices that generate electromagnetic elds near thisproduct.
·Do not attempt to disassemble or repair this unit yourself.
·Do not subject the unit to strong mechanical stress such as bending or
stretching. Do not apply strong pressure to the unit or drop it to theoor.
·This device cannot be used for diagnosing diseases. It cannot be used in
emergency medicine or for continuous measurement duringsurgery.
·Keep children away from the device. For children up to 12years of age,
themeasurement must be taken by an adult.
·Patients must not self-diagnose and self-treat based on the reading,
thismust be done by instructions from a doctor.
·Children under 12years of age and persons who cannot articulate their
feelings must not use the device.
·Do not use the device on persons suering from inammation of
theexternal auditory canal, otitis media or other diseases of the ears.
Conditions of use
Temperature: from +10° to +40°C
Humidity: from 15 % to 93 % relative humidity
Storage conditions
Temperature: from -25 to +55
Humidity: from 0 % to 93 % relative humidity
APPENDIX

14
Proper use
1. It can be dangerous for patients to make treatment decisions based
onmeasurement results; please follow the doctor's instructions.
·Independent decisions by the patient could lead to a worsening of
thecondition.
2. Do not touch the infrared sensor with your hands or
blow air on it withyour mouth.
·If the infrared sensor is damaged or contaminated,
false readings could result.
3. If there is a temperature dierence between the storage place and the
room where the measurement is taken, place the unit in the room where
the measurement is to be taken for more than 30 minutes before taking the
next measurement.
·Incorrect measurement results may result.
4. Keep the product out of the reach of children.
·If a child tries to take a measurement on its own, it could injure its ear.
If a battery or the transparent cover is swallowed,
contact your doctor immediately.
5. Do not take a body temperature reading near an air conditioner.
·Avoid a negative inuence on the measurement accuracy.
6. Use an alcohol swab to clean the surface of the sensor before and after each
use. (If you see stains, cloudiness or water drops on the infrared sensor glass,
clean it carefully with an alcohol swab).
·Using toilet paper and pads for the face could scratch the infrared sensor,
resulting in inaccurate results.
·Avoid transmitting ear disease and aecting the accuracy of
themeasurement.
7. The product has been mechanically damaged.
·There is a possibility that the measurement result is not correct.
8. If the device comes into contact with water or is even submerged,
dryit completely before use. Especially water on the surface of thesensor
must be removed with a cotton swab.
·The priority is to avoid compromising safety and reducing
measurementaccuracy.
APPENDIX

15
Caution
1. Do not use this product on people suering from external inammation of
the ear canals, otitis media or any other ear condition.
·It would be possible to cause an aggravation by doing so.
2. Do not use this product immediately after swimming, bathing or
if there is water in the ear.
·It is possible that lower readings will be displayed.
3. Do not place a dead battery in an exposed location.
·The battery could break.
4. If the ear temperature is measured, the product must be switched to ear
temperature mode.
·Inaccurate readings could result.
Recommendations
1. Inform your doctor that the temperature was taken with an
earthermometer.
2. Ensure that the product is not subjected to intensive mechanical inuences,
is not dropped on the oor, stepped on or shaken.
3. Do not disassemble, repair or modify the product.
4. Avoid the entry of liquids (such as alcohol, water drops, hot water, etc. )
into the unit, as it is not waterproof.
5. The product must be kept clean in a dry place.
6. Contact your dealer if any problems occur;
you cannot repair the product yourself.
7. Do not use the product in the presence of electromagnetic elds.
8. Dispose of waste and residues of this product according to local laws
andregulations.
APPENDIX

16 APPENDIX
Technical data
·Model: EMP-THERMO-22 (PG-IRT1603)
·Dimension: 31× 175 × 72mm
·Weight: approx. 77g (without batteries)
·Measuring range: 34°-43° C (93.2-109.4° F)
·Object temperature: 0°-93.2° C (32-199.7° F)
·Resolution ratio: 0.1°C/°F
·Measurement location: Laboratory
·Accuracy: ± 0.2°C (35°- 42° C)
± 0.4°F (95°-107.9° F)
other temperature ±0.3°C
·Operating environment: 10°-40°C (50°-104° F),
relative maximum humidity
15%-93 % RH
·Air pressure: 70-106kPa
·Transport and storage: -25° to +55°C (-13° to 131°F)
relative maximum humidity 0%-93% RH
·Air pressure: 50-106kPa
·Display: LCD display,
4 bit numbers and special symbols
·Sounds and signals:
· A short beep is heard when the unit is switched on and when the unit is
ready to measure.
· The measurement is terminated with a simultaneous long beep.
· System error or malfunction: 3 × short beep.
· Fever alarm:10× short beeps to emphasise the urgency.
·Memory: The last 9 measurement results can be
stored in the memory.
·Automatic switch-off: If no input is made, the thermo-
meter automatically switches o after
30seconds.
·Battery: 2 × 1.5V AAA batteries,
Alkaline batteries are recommended
·Expected lifetime: 5 years

17
Declaration of conformity
Manufactur: Shenzhen Pango Medical Electronics Co., Ltd;
No.25 1stIndustry Zone, Fenghuang Road,
Xikeng Village, Henggang Town,
Longgang District, Shenzhen, 518115Guang-
dong, P.R. CHINA
Importer: EMPORIA Telecom GmbH & Co. KG
Industriezeile 36 · 4020 Linz · Austria
Website: www.emporia.eu
Model: EMP-THERMO-22 (PG-IRT1603)
Product description: Infrared thermometer
TÜV-Rheinland LGA Products GmbH (0197), Tillystraße 2, 90431 Nürn-
berg, Germany has issued the following EU type-examination certicates
(Report Nr: 10918551-100 & 10918835-100):
The item described above complies with the relevant Union harmonisa-
tion legislation:
·Directive 93/42/EEC concerning medical devices, Annex II excluding (4)
·ENISO 13485 (2016)
The requirements of Annex II, excluding Section 4 of Directive 93/42/EEC,
forthe devices listed are met.
That the manufacturer referred to above has established and applies a
quality system such that periodic surveillance is carried out in accordance
with AnnexII, Section 5 of the Directive referred to above. For the placing on
the market of classIII devices covered by this certicate, an EC design-exam-
ination certicate according to Annex II, section4 is required.
For the accuracy of the information
Eveline Pupeter, CEO, emporia Telecom
01.10.2022
APPENDIX

18 APPENDIX
Manufacturer directive and declaration
> Electromagnetic emission
This infrared thermometer (EMP-THERMO-22) can be used in an electro-
magnetic environment specied below. The customer or user must ensure
that the product is used in the appropriate environment.
Directive Compliance Electromagnetic
Environment– Directive
RF Emissionen
CISPR 11 Group1
The EMP-THERMO-22 uses RF energy
only for internal functions. There-
fore, RF emissions are very low and
interference with nearby electronic
equipment is unlikely to occur.
RF Emissionen
CISPR 11 ClassB
The EMP-THERMO-22 is used
indoors. The power source is DC3V
Harmonic
emissions
IEC61000-3-2
—
Voltage uctua-
tions/ spurious
emissions
IEC 61999-3-3
—

19APPENDIX
> Electromagnetic immunity
This infrared thermometer (EMP-THERMO-22) can be used in an electro-
magnetic environment specied below. The customer or user must ensure
that the product is used in the appropriate environment.
Immunity test
Test level
IEC60601
(as amended)
Compliance
level
Electromagnetic
environment –
directive
Electrostatic
discharge (ESD)
IEC61000-4-2
±8kV contact
±2kV, ±4kV,
±8kV, ±15kV
air
±8 kV contact
±2 kV, ±4 kV,
±8 kV, ±15 kV
air
Floors should be
made of wood,
concrete or
ceramic tiles. If
oors are covered
with synthetic
materials, the
relative humidity
should be at least
30%.
Power frequency
(50/60Hz)
magnetic eld
IEC61000-4-8
30A/m, 50/60Hz 30 A/m, 50/60Hz
Magnetic elds
should corre-
spond in energy
frequency to
characteristic
elds in a
commercial
or hospital
environment.
Note: UT is the AC mains voltage before applying the test level.
RF performed
IEC61000-4-6
3Vrms
150kHz - 80MHz
6Vrms
150kHz - 80MHz
outside ISM
bandsa
—
Portable and mobile RF
communication equip-
ment should be used no
closer than the recom-
mended distance from
the infrared thermometer
determined by the applied
equation applicable to
the frequency of the
transmitter.

20
Radiated RF
IEC61000-4-3
10V/m
80MHz - 2.7GHz 10V/m
Recommended distance:
d= [3.5V1]√P
d= [3.5E1]√P 80-800 MHz
d= [7E1]√P 800 MHz-2.7GHz
If Pis the maximum
emitted energy of the
transmitter in watts (W)
specied by the manu-
facturer, then dis the
recommended distance in
metres (m).
Field strengths from
xed RF transmitters,
determined from elec-
tromagnetic monitoring,
should be less than the
compliance levels in
each frequency range.
Interference may occur in
the vicinity of equipment
marked with the following
symbol.
Note:
·For 80MHz and 800MHz, the higher frequency range may be used.
·These guidelines may not correspond to all situations.
·Electromagnetic transmission is aected by absorption and reection
from structures, objects and people.
1. The ISM (Industrial. Scientic and Medical) bandwidths between 0.15MHz
and 80MHz are 6.765 MHz to 6.795 MHz; 13.553MHz to 13.567 MHz;
26.957MHz to 27.283 MHz; and 40.66MHz to 40.70MHz.
Amateur wave bandwidths between 0.15 MHz and 80 MHz are 1.8MHz to
2.0MHz. 3.5 MHz to 4.0MHz. 5.3 MHz to 5.4 MHz. 7MHz to 7.3 MHz. 10.1MHz
to 10.15MHz. 14 MHz to 14.2MHz. 18.07MHz to 18.17 MHz. 21.0MHz to
21.4MHz. 24.89 MHz to 24.99MHz. 28.0 MHz to 29.7 MHz and 50.0MHz to
54.0MHz.
APPENDIX
