1.0 Introduction
The Mitsubishi EVO 4-8 ECU is designed to be plugged into the OEM harness to allow for a
true “Plug and Play” install. The system is based on the KV Series Motorsport ECU, so all the
same features are available excluding any limitations based around the OEM connector
system. An Expansion port is included giving access to unused Input channels. CAN Bus 2 is
also available providing additional I/O expandability.
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL
WWW.EMTRON.WORLD
© EMTRON AUSTRALIA PTY LTD MAY 2018
3
2.0 Plugin Features
General
▪KV8 ECU based platform.
oDual 100MHz processors
o32MB ECU logging memory
oOver 1000 logging channels available
o1Hz to 500Hz logging rate
▪Aluminium 6061 Grade CNC billet enclosure
▪Compatible with all Emtron proven motorsport features(Launch Control, Rolling
Launch, Anti-Lag, Traction Control)
▪Upgradeable to run the Emtron fuel model through installation of a flex meter, fuel
temperature and fuel pressure sensor
▪Idle speed closed loop control using DBW with advanced Throttle Mass Flow (TMF)
airflow calculations
▪Knock control with high speed digital filtering for each cylinder using the OEM sensor
with selectable centre frequency and bandwidth
▪Pre-configured Calibration file loaded providing a comprehension tuning platform
▪Input Expansion Capabilities through DTM connector
o3x User Analog Volt Inputs (Fuel Temperature, Fuel Pressure, Inlet
Temperature)
o1x User Digital Input (Flex Meter Input and switch inputs)
o2x User Analog Inputs
▪Emtune software for tuning and data analysis
Communications
▪CAN 2.0B Bus 2: User CAN Bus for I/O expansion (Lambda, EGT)
▪High Speed Ethernet 100Mbps for tuning software connection
Operating Temperature
▪Recommended operating range: -30 to 85°C (-22 to 185°F)
Physical
▪Enclosure Size 160 mm x 162 mm x 38 mm
▪890g
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL
WWW.EMTRON.WORLD
© EMTRON AUSTRALIA PTY LTD MAY 2018
4
3.0 Installation
3.1 Expansion Port
The ECU's input capabilities can be expanded using the expansion connection which is a
male DTM 12 Way. See Table 3.0.
These additional inputs can be connected to any sensor, but the recommended sensors are
indicated in brackets.
Pin
Function
1
Analog Sensor 0V Reference
2
5V Vref2 Supply
3
AN 8 (e.g. Fuel Temp or Inlet Temp)
4
AN 11 (e.g. Fuel Temp or Inlet Temp)
5
AN 12 (e.g. Fuel Pressure)
6
DI 6 (e.g. Ethanol Content Sensor)
7
ANV 13
8
ANV 14
9
14V Out Protected (e.g. ELC2 Power Supply).
Post ECU serial numbers 2700 only.
10
ECU Ground (e.g. ELC2 or E85 Sensor Ground)
Post ECU serial numbers 2700 only.
11
CAN 2 Hi
12
CAN 2 Lo
Table 3.0 - Expansion Port Pinout (DTM06-12SA)
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL
WWW.EMTRON.WORLD
© EMTRON AUSTRALIA PTY LTD MAY 2018
5
3.2 CAN Bus 2 Wiring
The ECU CAN Bus 2 is reserved for Emtron CAN Bus devices, expanding the IO capability of
the ECU. The following devices can be connected:
▪ELC1/2 (Emtron Lambda to CAN 1/2 channel)
▪ETC4/ETC8M (Emtron Thermocouple to CAN 4/8 channels)
▪EIC10/EIC16M (Emtron Input to CAN 10/16 Channel)
For more information on each device refer to the downloads section on the website:
(emtron.world/downloads)
Emtron ELC/ETC4/EIC10 to CAN
All these CAN devices share a common power, ground and CAN pinout using a 4-way DTM.
See Table 3.1.
Pin
Function
Wire Colour
1
Ground
BLACK
2
CAN Lo
GREEN
3
CAN Hi
YELLOW
4
12V Supply
RED
Table 3.1. CAN Device Power and CAN Deustch Connector Pinout
To help with installation time, each CAN Device pin can be directly connected into the ECU
IO Expansion port. Pinout information is shown Table 3.2.
Name
ECU IO Expansion 12-Way DTM
CAN Device 4-Way DTM
Ground
Pin 8
Pin 1
CAN 2 Lo
Pin 12
Pin 2
CAN 2 Hi
Pin 11
Pin 3
Power
Pin 7
Pin 4
Table 3.2. IO Expansion to CAN Device wiring
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL
WWW.EMTRON.WORLD
© EMTRON AUSTRALIA PTY LTD MAY 2018
6
The following points should be noted when using the CAN Bus:
▪CAN Bus High and Low are differential signals, so twisted pair MUST be used. Failing to
do so will compromise the entire CAN Bus System. It is recommended to twist the CAN
wire pairs at a minimum one twist per 40mm of cable.
▪In some extreme environments, shielded twisted pair may be required to help with
reliability and data integrity.
▪The less connectors in any transmission system the better. Unnecessary connectors are
almost guaranteed to present an impedance discontinuity and hence may cause
reflections and data loss.
▪CAN Bus termination must be done correctly by using a 120 ohm 0.25W resistor at each
END of the bus system. See the example in Figure 3.1.
▪Maximum Stub length to a device from the main Bus is recommended at 0.3m, in
accordance with High-Speed ISO 11898 Standard specification. See Figure 3.2.
ALL Emtron CAN devices do not include an on-board CAN termination resistor, allowing the
device to be wired at any position on the Bus. CAN Bus termination must be done correctly
by using a 120 ohm 0.25W resistor at each end of the bus system as mentioned above.

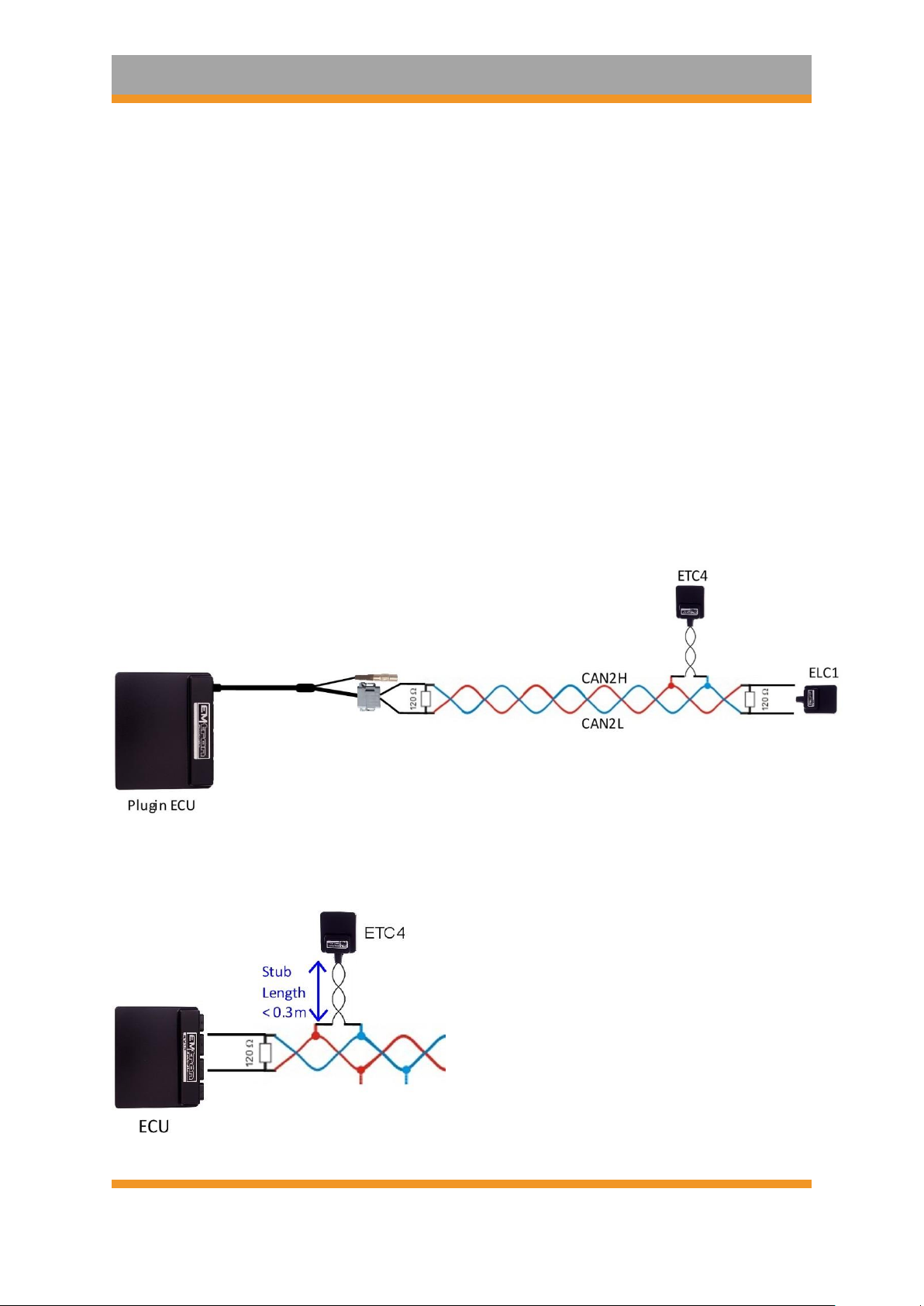

Figure 3.1. CAN Bus Wiring Example. ECU and ELC1 at each end with 120 Ohm Termination
Figure 3.2. CAN Bus Wiring Example. Stub Length less than 0.3m
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL
WWW.EMTRON.WORLD
© EMTRON AUSTRALIA PTY LTD MAY 2018
7
3.3 Sensor Wiring
5V VRef2 Sensor Supply Pin (Pin 2 of Expansion port)
This is a 250mA 5V output designed to supply automotive sensors.
Sensor 0V Reference Pin (Pin 1 of Expansion port)
This pin should be connected directly to the 0V (Ground) pin on any low current analog
sensor, for example Pressure or Temperature. Figures 3.3 and 3.4 show the correct and
incorrect wiring system.
•DO NOT connect the 0V Reference pin directly to the Engine Block or ECU Ground. This
is a dedicated and specialised 0V/ground output for analog sensors.
•DO NOT connect frequency-based sensor grounds to the 0V Reference pin; for example,
an Ethanol content sensor. Use Pin 8 (Ground) in the Expansion port.
Figure 3.3. Correct Pressure Sensor 0V Wiring
Figure 3.4. Incorrect Pressure Sensor 0V Wiring
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL
WWW.EMTRON.WORLD
© EMTRON AUSTRALIA PTY LTD MAY 2018
8
3.4 Ethanol Content Sensor wiring

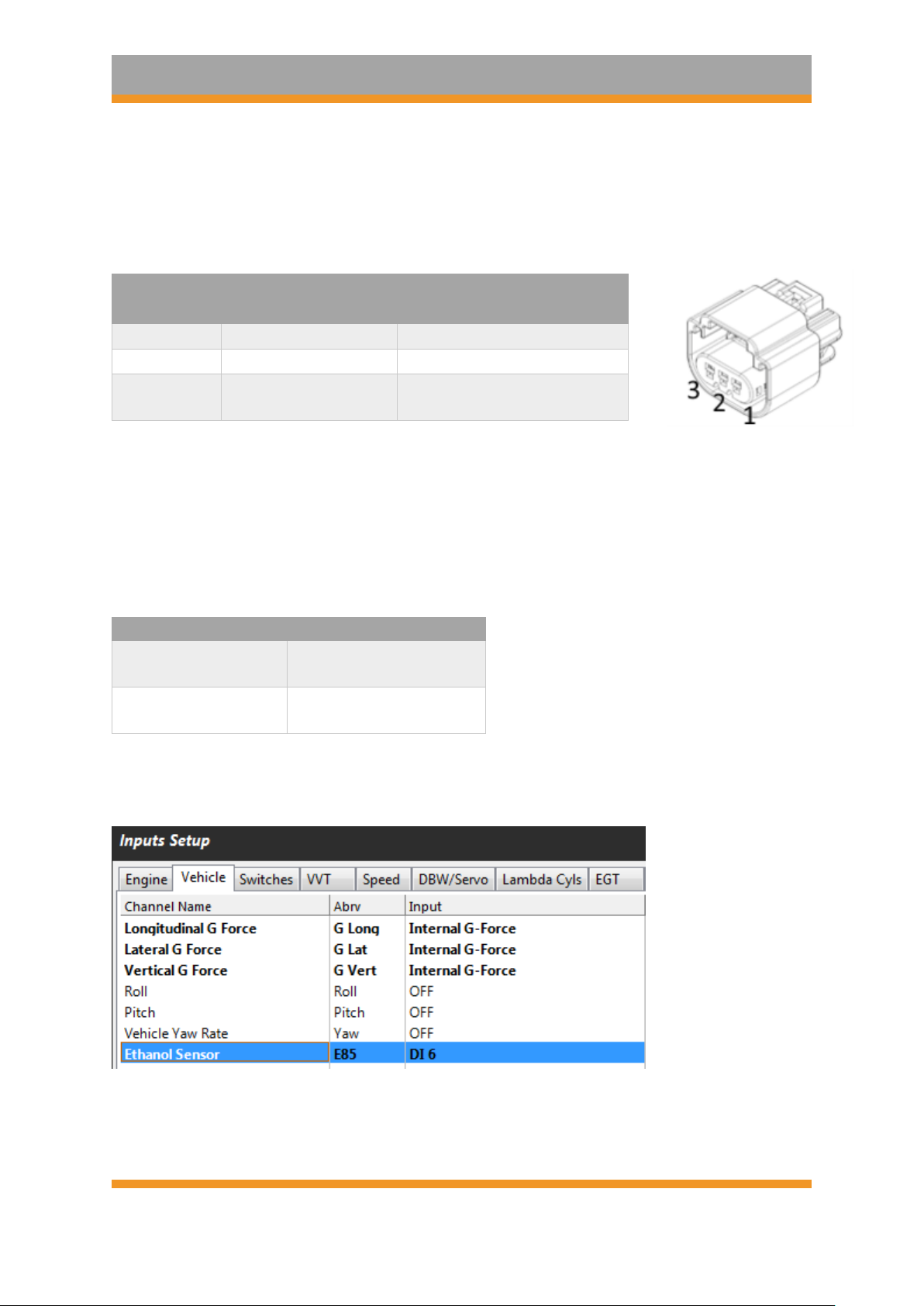

An Ethanol Content sensor can be wired into the ECU using the Expansion port. The
following channel assignment is recommended for the GM sensor:
GM Sensor
Pinout
Expansion Port
Description
Pin 1
Pin 9.14V Protected
Supply, 8V or 14V
Pin 2
Pin 10.ECU Ground
Ground
Pin 3
Pin 6.DI 6
Output. Temperature and
Ethanol Content
NOTE:
▪DO NOT connect the Ethanol Content sensor ground to the “Analog Sensor 0V
Reference”. Use the ECU Ground from Pin 10 in the Expansion port.
▪The Ethanol sensor produces a frequency based output. Suitable ECU channels are DI 1-
8.
Description
Calibration
Ethanol Content (%)
50Hz = 0% Ethanol
150Hz = 100% Ethanol
Fuel Temperature
1ms = -40 DegC
5ms = 125 DegC
To config the ECU for this sensor, select the Ethanol Sensor Input Source to DI6. The ECU will
automatically decode the Ethanol Content and Fuel Temperature.
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL
WWW.EMTRON.WORLD
© EMTRON AUSTRALIA PTY LTD MAY 2018
9

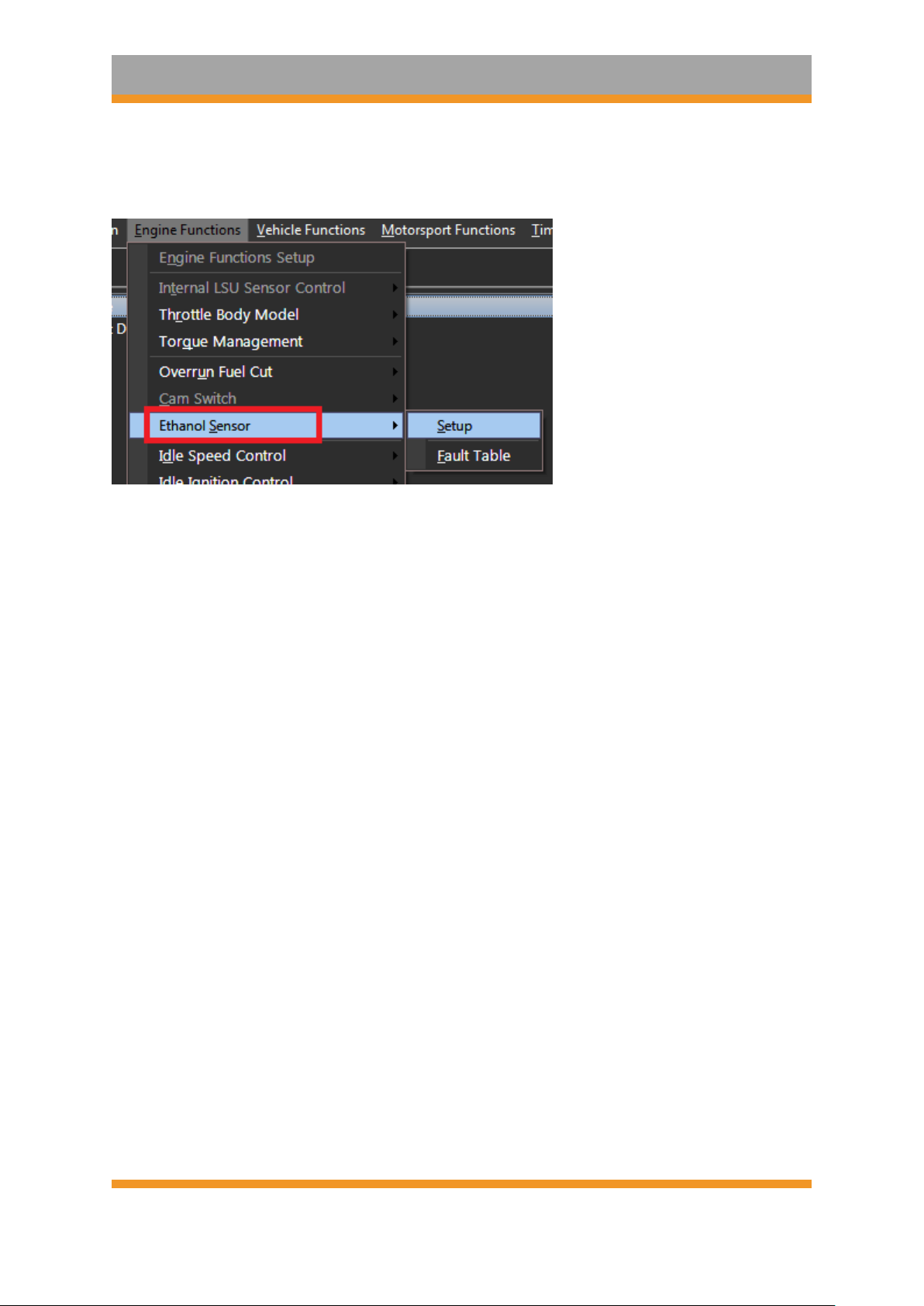

Once the Ethanol Senor has been assigned an input, more settings become available in the
Tuning View -> Engine Functions menu.
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL
WWW.EMTRON.WORLD
© EMTRON AUSTRALIA PTY LTD MAY 2018
10
4.0 ECU Channel Assignment
ECU Channel - Injection
Function
Injection Channel 1
Fuel Injector Cylinder 1
Injection Channel 2
Fuel Injector Cylinder 2
Injection Channel 3
Fuel Injector Cylinder 3
Injection Channel 4
Fuel Injector Cylinder 4
Injection Channel 5
Rear Lambda Heater
Injection Channel 6
Front Lambda Heater
Injection Channel 7
A/C Fan Relay
Injection Channel 8
CE Light
Injection Channel 9
Not Used
Injection Channel 10
Not Used
Injection Channel 11
Not Used
Injection Channel 12
Not Used
ECU Channel - Ignition
Function
Ignition Channel 1
Ignition Cylinder 1/4
Ignition Channel 2
Ignition Cylinder 2/3
Ignition Channel 3
CE Light
Ignition Channel 4
IC Spray Lamp
Ignition Channel 5
Alternator Load Control
Ignition Channel 6
Fuel Pump Relay
Ignition Channel 7
Fuel Pump Speed Relay
Ignition Channel 8
A/C Clutch Relay
Ignition Channel 9
Not Used
Ignition Channel 10
Not Used
Ignition Channel 11
Not Used
Injection Channel 12
Not Used
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL
WWW.EMTRON.WORLD
© EMTRON AUSTRALIA PTY LTD MAY 2018
11
ECU Channel - Analog Inputs
Function
Analog Voltage 1
MAP
Analog Voltage 2
TPS
Analog Voltage 3
02 Front
Analog Voltage 4
02 Rear
Analog Voltage 5
Not Used
Analog Voltage 6
Not Used
Analog Voltage 7 (Pull-up Channel)
Engine Temperature
Analog Voltage 8 (Pull-up Channel)
(IO Expansion port)
Analog Voltage 9 (Pull-up Channel)
Intake Temperature (IO Expansion port)
Analog Voltage 10 (Pull-up Channel)
Fuel Tank Temp (USDM) (IO Expansion port)
Analog Voltage 11 (Pull-up Channel)
IO Expansion port)
Analog Voltage 12 (Pull-up Channel)
IO Expansion port)
Analog Voltage 13
Not Used
Analog Voltage 14
Not Used
NOTE: Analog Voltage Channels 7-12 have switchable pull-ups which are suitable for
temperature measurement.
ECU Channel - Digital Inputs
Function
Digital Input 1
MAF Reset
Digital Input 2
Vehicle Speed
Digital Input 3
Clutch Switch
Digital Input 4
Power Steer Pressure Switch
Digital Input 5
Alternator FR Signal
Digital Input 6
IO Expansion port (Ethanol Sensor)
Digital Input 7
MAF
Digital Input 8
I/C Spray Switch - Auto
Digital Input 9
I/C Spray Switch - Manual
Digital Input 10
ACD Input
Digital Input 11
Ignition Start
Digital Input 12
A/C Pressure Switch
Digital Input 13
IO Expansion port
Digital Input 14
IO Expansion port
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL
WWW.EMTRON.WORLD
© EMTRON AUSTRALIA PTY LTD MAY 2018
12
ECU Channel - Auxiliary Outputs
Function
Auxiliary 1
Purge Solenoid
Auxiliary 2
Wastegate Solenoid
Auxiliary 3
Tacho
Auxiliary 4
Engine Fan Relay
Auxiliary 5
Stepper Motor A1
Auxiliary 6
Stepper Motor A2
Auxiliary 7
Stepper Motor B1
Auxiliary 8
Stepper Motor B2
Auxiliary 9
Fuel Pressure Solenoid
Auxiliary 10
I/C Spray Relay
Auxiliary 11
Engine Fan Relay
Auxiliary 12
Sec Air/EGR Solenoid
Auxiliary 13
EV08 Crank ground/EVO7 Cat Light
Auxiliary 14
Not Used
Auxiliary 15
Not Used
Auxiliary 16
Not Used
ECU Channel - Crank/Cam
Function
Crank Index
Crank Sensor
Sync Sensor
Cam Position - Inlet LH
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL
WWW.EMTRON.WORLD
© EMTRON AUSTRALIA PTY LTD MAY 2018
13
5.0 Plug-in Specific Information
5.1 Fuel Model
The base ECU calibration is supplied in Speed Density mode. It is recommended to install an
Emtron 4Bar MAP sensor and wire it to a spare ANV Input in the Emtron expansion port.
The ECU may also be configured to run on MAF only or using a combination MAF and Speed
Density (MAP).
5.2 Inlet Air Temperature
ECU Pin 72 is assigned to the Inlet Air Temperature Sensor. The sensor is physically located
in the Mass Air Flow Meter. This is not ideal for the fuel model and it is recommended to
install an inlet air temperature sensor in the inlet manifold. This can be wired directly to pin
3 in the Emtron expansion port connector as shown in Table 3.0. Anv8 may then be
assigned in the inputs setup page in Emtune.
Some EVO models have an inlet air temperature sensor fitted however this is not accounted
for in the Emtron Plugin ECU. It is recommended to wire to the expansion port connector.
5.3 ECU Pin 40 Configuration
ECU Pin 40 configuration will depend on the model. A low current, low side driver is
connected to this pin controlled by Auxiliary Output 13.
EVO 8- Crank/Cam Sensor Ground
This is a ground pin for the Crank and Cam sensors and acts as an immobiliser function. Aux
13 needs to be switched ON to provide a ground and allow the engine to start.
EVO 4-7 –CAT Light
This is the CAT light and requires a ground to switch the light on. Aux 13 can be used to
control this light.
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL
WWW.EMTRON.WORLD
© EMTRON AUSTRALIA PTY LTD MAY 2018
14
6.0 Diagnostic Trouble Codes (DTCs)
On initial installation it is advised to clear all the DTC's if error(s) are reported. To check:
connect to Emtune and look at the DTC status in the bottom toolbar. If there are Errors the
status box will be Red as shown in Figure 6.0.

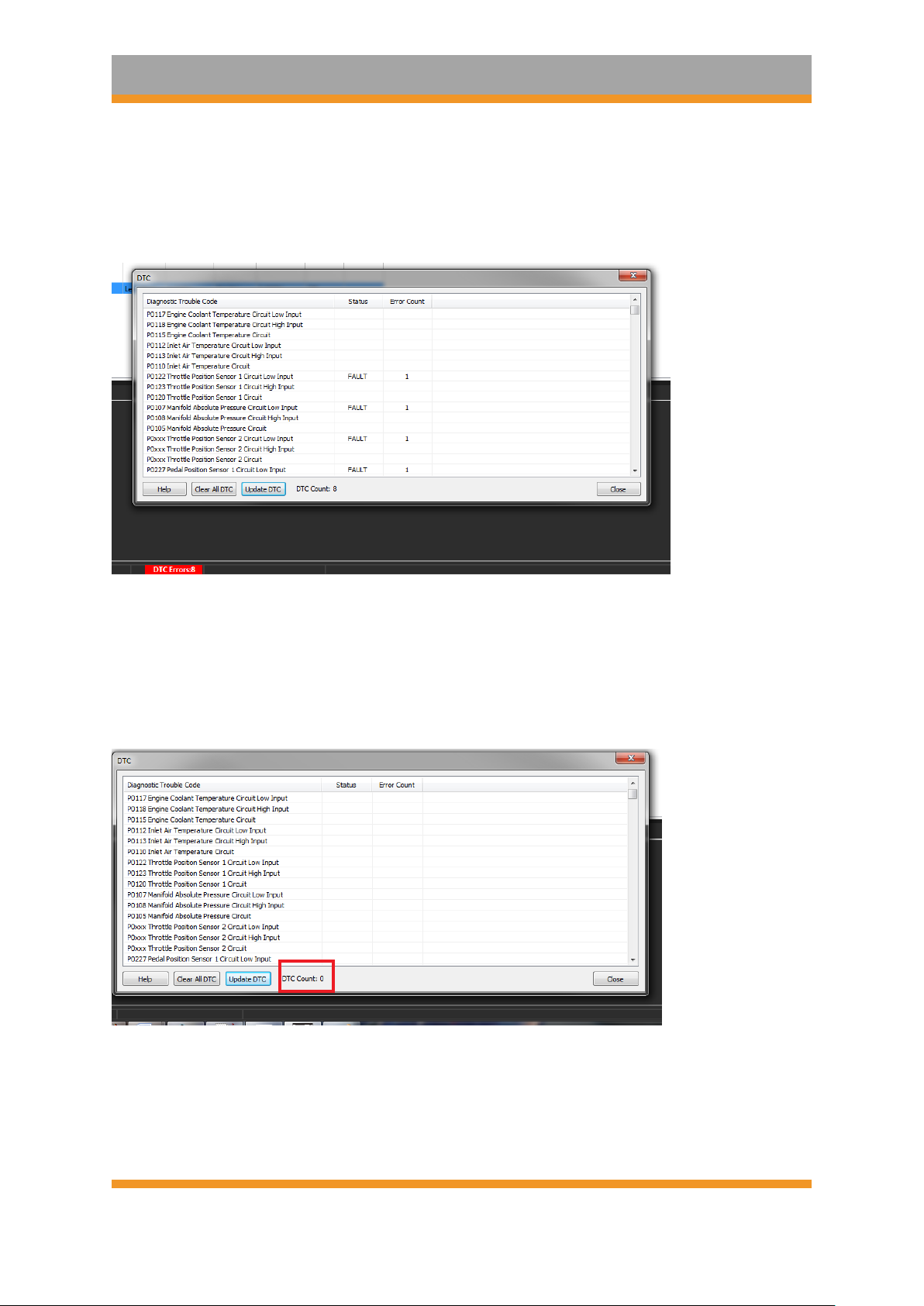

Figure 6.0. DTC example showing 8 errors.
To open the DTC window, click on the DTC Status box in the bottom toolbar OR use the File
menu -> Open DTC. Next select "Clear ALL DTCs” and confirm all the Error Codes have been
removed; the DTC Status box should go Green indicating this as shown in Figure 6.1. Close
the DTC window.
Figure 6.1. DTC example showing no errors.
If the Error Codes have not all been removed, select "Update DTC" then use the DTC
window to locate the sensor that is on fault.
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL
WWW.EMTRON.WORLD
© EMTRON AUSTRALIA PTY LTD MAY 2018
15
7.0 Ordering Information
Product
Part Number
Emtron Mitsubishi EVO 4-8 Plugin
1609-52248
Emtron Ethernet Tuning Cable (1.5m)
553-15
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL
WWW.EMTRON.WORLD
© EMTRON AUSTRALIA PTY LTD MAY 2018
16
Appendix A –EVO 4-8 ECU Pinout
Pin
Function
Channel Assignment
1
Injector 1
INJ 1
2
Injector 3
INJ 3
3
Fuel Pressure Solenoid
AUX 9
4
Stepper Motor Coil A1
AUX 5
5
Stepper Motor Coil B1
AUX 6
6
EGR Solenoid Relay
AUX 12
7
N/C
8
Fuel Pump Relay
IGN 6
9
Purge Solenoid
AUX 1
10
Ignition Coil 1 & 4
IGN 1
11
Wastegate Solenoid
AUX 2
12
ECU 14V from Main Relay
ECU SUPPLY
13
Engine Block/Power Ground
ECU GROUND
14
Injector 2
INJ 2
15
Injector 4
INJ 4
16
Evaporative Purge Solenoid
17
Stepper Motor Coil A2
AUX 6
18
Stepper Motor Coil B3
AUX 8
19
Volume Airflow Sensor Reset Signal
DI 1
20
Engine Fan Speed low (EVO 4-6)
AUX 11
21
Engine Fan PWM Control (EVO 7-8)
AUX 4
22
A/C Clutch Relay
IGN 8
23
Ignition Coil 2 & 3
IGN 2
24
N/C
25
ECU 14V from Main Relay
ECU SUPPLY
26
Engine Block/Power Ground
ECU GROUND
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL
WWW.EMTRON.WORLD
© EMTRON AUSTRALIA PTY LTD MAY 2018
17
Pin
Function
Channel Assignment
31
N/C
32
A/C Fan Relay High
INJ 7
33
Alternator G Terminal
IGN 5
34
A/C Fan Relay Low
IGN 3
35
I/C Spray Lamp
IGN 4
36
CE Light
INJ 8
37
Power Steer Pressure Switch
DI 4
38
ECU Main Relay Control
MAIN EFI RELAY
39
Fuel Pump Speed
IGN 7
40
Crank/Cam sensor ground (EVO8) / CAT (EVO
4-7)
AUX 13
41
Alt FR terminal (Field response) - Freq Based
DI 5
42
N/C
43
Clutch Switch
DI 3
44
I/C Spray Switch - Auto
DI 8
45
AC Pressure Switch
DI 12
46
N/C
Pin
Function
Channel Assignment
51
Immobiliser
52
N/C
53
Sec Air Solenoid (EVO7)
54
O2 Heater Rear
INJ 5
55
I/C Spray Relay (EVO7)
AUX 10
56
Diagnostics –OBD II Pin 1
57
I/C Spray Relay (EVO8)
AUX 10
58
Tacho
AUX 3
59
N/C
60
O2 Heater Front
INJ 6
61
N/C
62
Diagnostics –OBD II Pin 7
MITSUBISHI EVO 4-8 PLUGIN ECU USER MANUAL
WWW.EMTRON.WORLD
© EMTRON AUSTRALIA PTY LTD MAY 2018
18
Pin
Function
Channel Assignment
71
Start Switch
DI 11
72
Intake Air Temperature
ANV 9
73
Manifold Absolute Pressure Sensor
ANV 1
74
N/C
75
O2 Sensor Signal Rear
ANV 4
76
O2 Sensor Signal Front
ANV 3
77
Fuel Tank Temperate (USDM)
ANV 10
78
Knock Sensor
KNOCK 1+
79
N/C
80
Battery Backup (+12 Constant)
Internal Flywheel Supply
81
+ 5V Supply
+5V Vref1
82
Ignition Switch
Ignition Switch
83
Engine Coolant temperature
ANV 7
84
Throttle Position Sensor
ANV 2
85
External Barometric Pressure
86
Vehicle Speed
DI 2
87
ACD Signal/Idle Switch
DI 10
88
Cam Signal
Sync Sensor
89
Crank Signal
Crank Index
90
Volume Air Flow Sensor
DI 7
91
I/C Spray Switch - Manual
DI 9
92
Sensor Ground (MAP, TPS)
Sensor 0V Reference
Table of contents
