Chapter 1: Introduction
With seamless viewing technology, ENUTV-DITF provides an excellent combination of
speed and stability. This advanced seamless viewing technology can always keep smooth
video streaming even though in unstable transmission conditions.
ENUTV-DITF brings high quality video and audio directly to your computer.
This compact tuner stick features built-in ISDB-T/SBTVD receiver, high-performance
external antenna, and high speed USB 2.0 interface. Now, you can enjoy your favorite TV
shows even on a road trip!
The design of ENUTV-DITF matches your style. It is fully compatible with your desktop or
laptop PC. Its compact design with high speed USB2.0 interface lets you enjoy high quality
digital TV programs anywhere using the digital antenna. It comes with a friendly software
application complete with recording features. Never miss your favorite shows with
scheduled recording. With ENUTV-DITF build-in application, you can record digital TV
perfectly to files.

3
www.encore-usa.com
1.1 Features
2-in-1 Product: Digital TV Tuner / Digital Video Recorder
Watch free-to air ISDB-T/SBTVD TV programs in Windows on your PC or Notebook
ISDB-T full segment TV standard support
Real-time MPEG4 recording
Scheduled recording and time-shift live TV: watch and record your favorite TV
shows
H.264 High Quality Video Compression: crystal clear picture quality
Time-shifting playback, simultaneously watch and record the TV program with
immediate replay and pause
Support subtitle or closed captioning
Still image snapshots
Support EPG (Electronic Program Guide) and schedule recording (EPG feature
depends on television broadcast used in different regions)
Support Windows
®
7 / XP , Windows Vista
®
Full function infrared remote control

4
www.encore-usa.com
1.2 System Requirements
Available USB 2.0 port
Pentium
®
4 2.0 GHz or above / equivalent AMD
®
Athlon™ CPU
Minimum 256MB memory
Minimum 100MB free hard disk space
Microsoft Windows
®
7 / XP; Windows Vista
®
32bit/64bit
Graphic Card : 1024x768, DirectX
®
9.0c or above compatible graphic card
Sound Card: AC97 compatible PCI sound card
CD or DVD ROM Drive
Notes:
To support High definition TV, the minimum requirement is one of the following
video cards with DX-VA (DirectX Video Acceleration) enabled:
ATI Radeon 7200 or above
nVidia Geforce MX 440 or above
Intel 82865 or above
To support HDTV 1080p with subtitle/DTV CC: a Pentium IV 2.8 GHz processor
(or higher) is recommended. The minimum requirement is one of the following
video cards with DX-VAenabled:
ATI Radeon X700 (256M RAM) or above
nVidia Geforce FX 6200 (256M RAM) or above

5
www.encore-usa.com
1.3 Specifications
1.4 Package Contents
ENUTV-DITF
Remote control
Installation CD
User manual
USB cable
TV Antenna
Antenna adapter
Device Interface USB 2.0
TV Tuner ISDB-T / SBTVD (Full-seg)
Channel Frequencies VHF 170 ~ 240 MHz
UHF 470 ~ 862 MHz
Antenna Connector 75ΩCoaxial Input (for free-to-air ISDB-T / SBTVD)
Video Output Resolution
Up to Full HD 1080P
Digital Video Format MPEG-4 AVC (H.264)
Digital Audio Format MPEG-4 HE-AACv2
Dimension 95 x 30 x 15 mm

6
www.encore-usa.com
Chapter 2: Getting Started
2.1 Device Driver Installation
Insert the provided CD into the CD-ROM drive, and then follow the on-screen instructions
below.
1. Insert the provided CD into the
CD-ROM drive. The setup screen
should automatically appear.
2. Click the” Software Driver” icon..
3. Choose the Language which you
use. And then click “Next” to
continue.
4. Click “Next” to start installation.

7
www.encore-usa.com
5. Click “Next” button to continue.
6. Click “Install” button.
7. Click “Next” button to continue.

8
www.encore-usa.com
8. Click “Finish” button.
9. Click “Finish” button to close the
wizard.
10. Connect the ENUTV-DITF to PC
USB Hub.

9
www.encore-usa.com

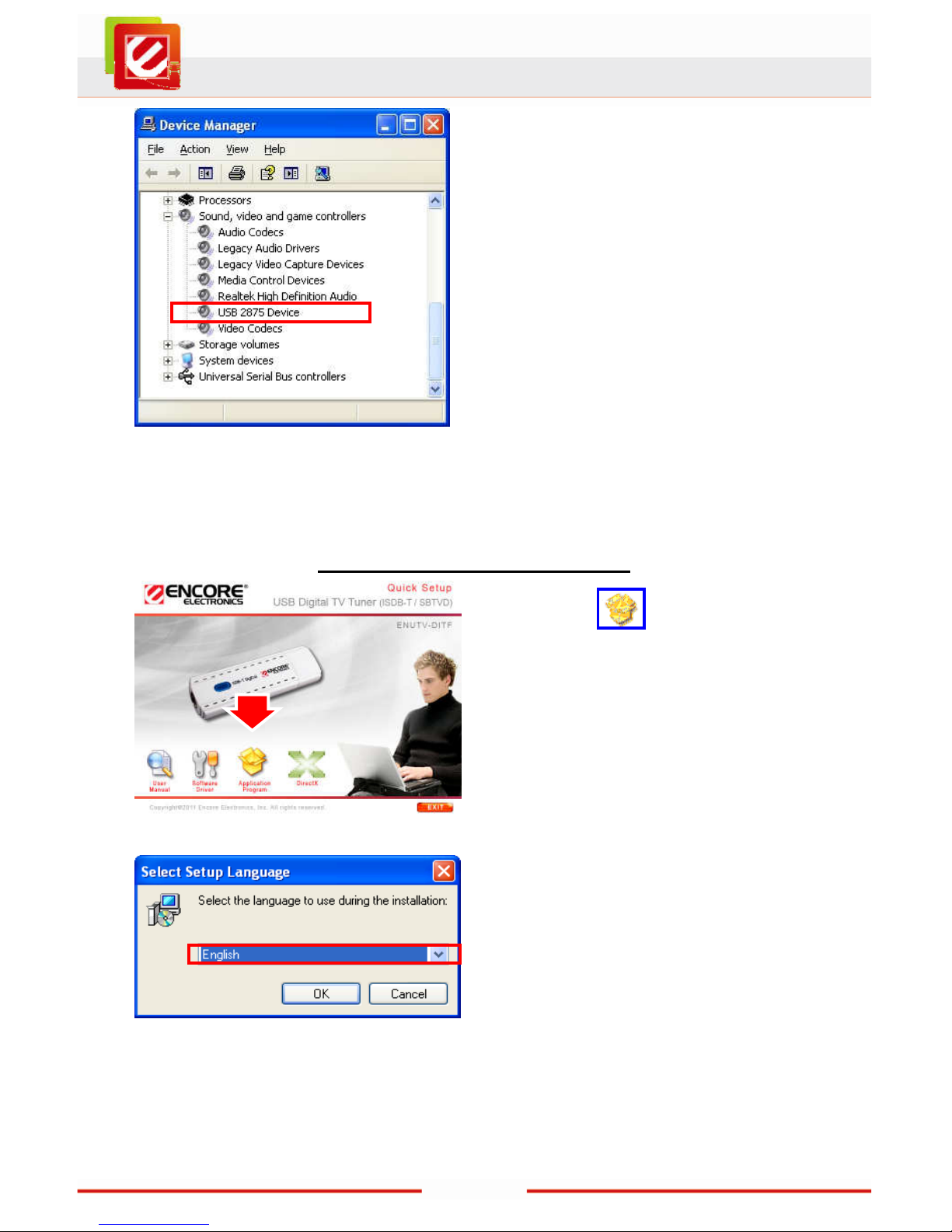

11. To examine if this device is properly
installed, you can go to “Device
Manager” in Windows
®
.
12. Open “Sound, video and game
controllers” and you should see”
USB 2875 Device” now.
2.2 Install the BlazeDTV software
1. Click the” Application
Program” icon.
2. Choose the Language which you use.
And then click “OK” to continue.

10
www.encore-usa.com
3. Click “Next” button to start the
Installation.
4. Please read the LicenseAgreement
and select “I accept the agreement”.
5. Click “Next” button to continue.
6. Click “Next” button to accept the
default location or choose a different
folder.

11
www.encore-usa.com

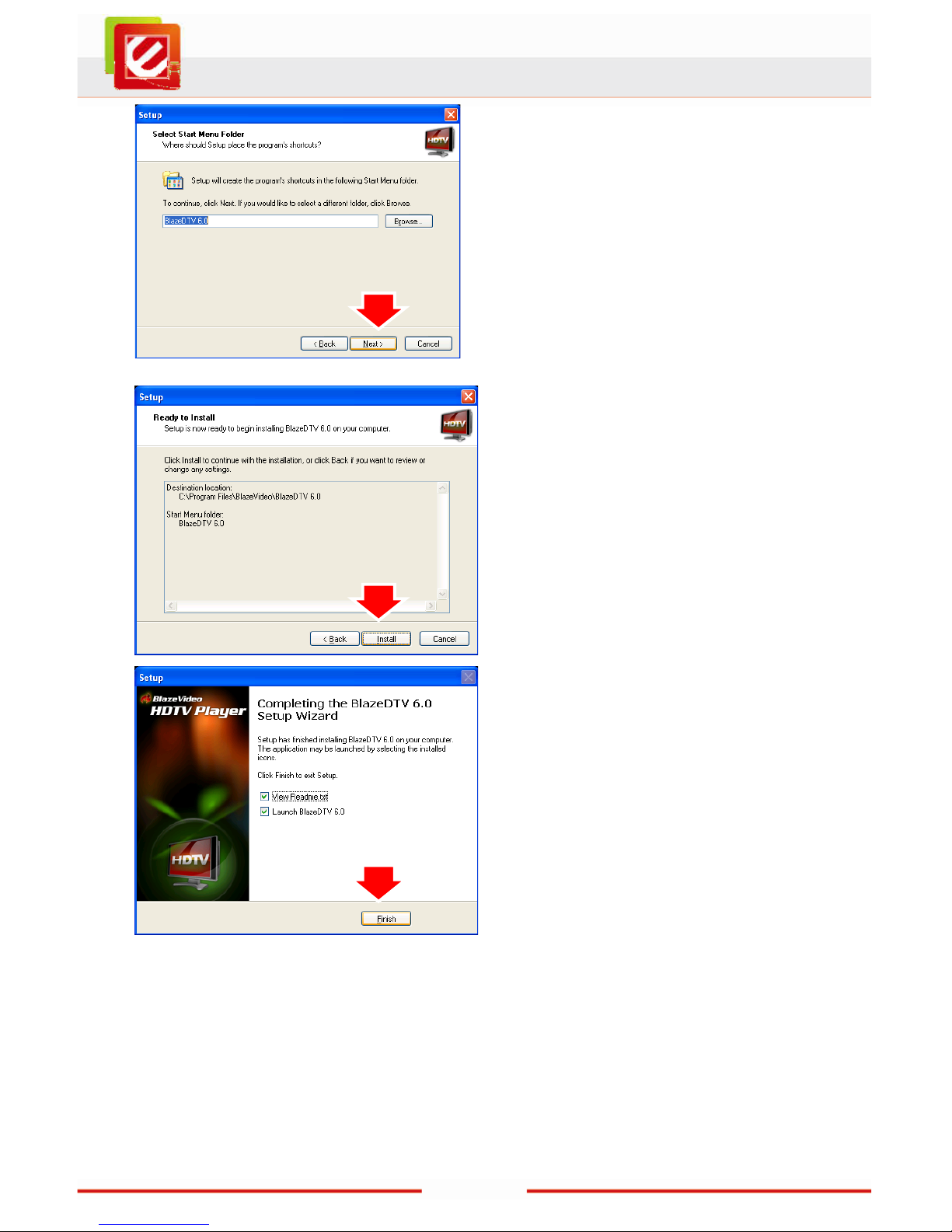

7. Click “Next” button.
8. Click “Install” button.
9. Click “Finish” button.
10. Then restart your computer.

12
www.encore-usa.com
Chapter 3: Launch the BlazeDTV
3.1 Setting the BlazeDTV software
Please check TV antenna cable connecting to ENUTV-DITF first, and then check
ENUTV-DITF connecting to PC USB port.
Notes:
We highly recommend you use the outdoor antenna for better signal reception.
Follow the on-screen instructions and the guidance below.

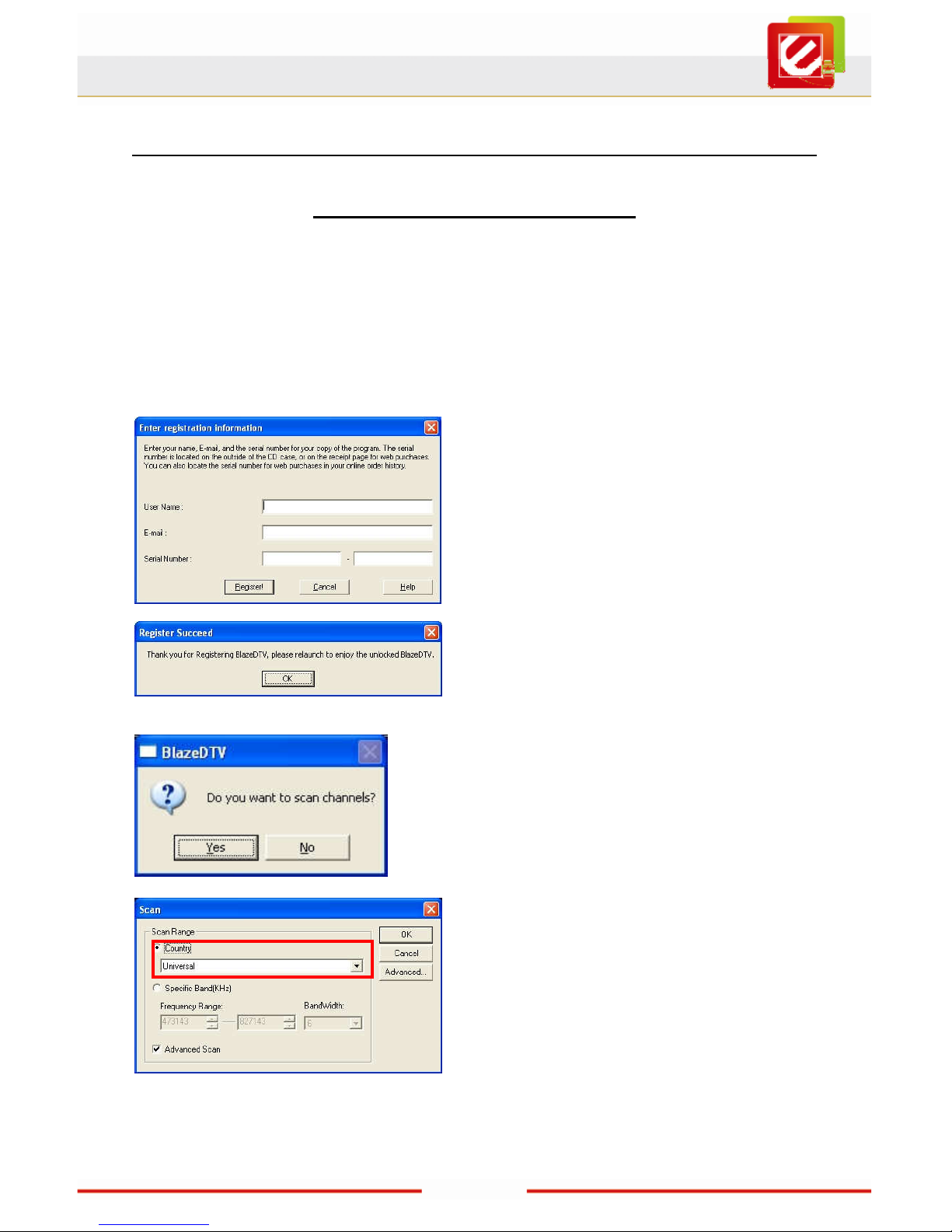

1. The first time you launch BlazeDTV, it will
ask you to enter the serial number. You can
find it on CD disk bag.
2. Clink “OK” to launch software.
3. Click "Yes" button to scan channels.
4. Choose the Country and then click “OK” to
continue. Then System will auto scan all
channels.

13
www.encore-usa.com
3.2 Main Function
Button/Icon Name Description
EPG Open TV EPG window / playback
Play Play TV or Media
Time Shift / Pause Time Shift (for TV) or pause playback
Stop Stop the current playback / Click play to
restart playback.

14
www.encore-usa.com
Record Record TV
Previous Skip to play previous TV channel / DVD
chapter
Browse Browse channel
Next Skip to play next TV channel / DVD
chapter
Open Select playback type
Subtitles Select Subtitles: Select language caption
if there are multiple language captions.
Audio Select Audio: Click to select audio if there
are various audio options.
Capture Capture video as “.bmp” still image
Volume Control Drag slider bar to adjust volume
Mute Turn on/off audio
Media Type Display playback type
Playback status Display playback status
Signal Quality Display TV signal quality
Signal Strength Display TV signal strength
Channel/chapter Display current TV channel / DVD
chapter information
Time Display current time of TV / DVD
Fast backward Fast backward, switch between 1X, 2X,
4X, 8X, 16X at each press
Slider bar Drag the slider to new position for

15
www.encore-usa.com
playback. (Only available on Professional
Version)
Fast Forward Fast forward, switch between 1X, 2X, 4X,
8X, 16X at each press
Open Floating
Panel Show Floating Panel
Show Advanced
Panel Show / Hide Advanced Panel
Minimize
Click it, the control panel and the view
window will be minimized and displayed
as icons on system toolbar.
Exit Exit BlazeDTV

16
www.encore-usa.com
Chapter 4: Remote Control
The Remote Control allows you to operate the device remotely. Aim the front of the
Remote Control at the Remote Control Receiver window and press the control buttons as
you would.
4.1 Installing Batteries
Please draw out the plastic from remote control. And then put in battery.
4.2 Remote controller functions
For default button assignments, please refer to the list below:
1. ON/OFF: Open/Close the program
2. REC: Start to record TV programs
3. Full Screen: Full screen display
4. SNAP: Still image snapshot
5. 0-9 key: Number keys
6. Vol+/Vol-: Click to increase/decrease volume
7. Ch+/Ch-: Click to switch previous/next channel
8. EPG: show the Electronic Program Guide
9. Timeshift: start Timeshift feature
10. Recall: Return to the last TV channel
11. Stop: Stop the recording

17
www.encore-usa.com
Chapter 6: Technical Support
Please visit www.encore-usa.com for the latest product information and downloads.
International tech support hotlines are listed on the back cover
Appendix A: User’s Notice
This manual is provided “as is” without warranty of any kind, either express or implied,
including but not limited to the implied warranties or conditions of merchantability or fitness
for a particular purpose. In no event shall we, its directors, officers, employees or agents
be liable for any indirect, special, incidental, or consequential damages (including
damages for loss of profits, loss of business, loss of use or data, interruption of business),
even if we have been advised of the possibility of such damages arising from any defect or
error in this manual or product.
Specifications and information contained in this manual are furnished for information use
only, and are subject to change at any time without notice, and should not be construed as
a commitment by us. We assume no responsibility or liability for any errors or inaccuracies
that may appear in this manual, including the products and software described in it.
No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form or by any means, except documentation kept by the purchaser for
backup purposes, without the express written permission of us.
Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing by us; or (2)
the serial number of the product is defaced or missing.
Products and corporate names appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identification
or explanation and to the owners’ benefit, without intent to infringe.
Windows, MS-DOS, and DirectX are registered trademarks of Microsoft
Corporation.
Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.
The product name and revision number are both printed on the product itself. Manual
revisions are released for each product design represented by the digit before and after
the period of the manual revision number. Manual updates are represented by the third
digit in the manual revision number.

18
www.encore-usa.com
