1 Safety instructions
1.1 Designated use
The ToF Adapter is an adapter set for connecting the Commubox FXA291 to
ToF devices, pressure transmitters and the Gammapilot M.
The manufacturer does not accept liability for damages resulting from incorrect use or
use other than that designated.
1.2 Installation, commissioning and operation
• The device must be installed, connected, commissioned and serviced only by
qualified and authorized specialist personnel (e.g. electrical technician) and in strict
compliance with these instructions, the applicable standards, legal regulations and,
if necessary, certificates.
• The specialist personnel must have read and understood these instructions and
must follow the instructions contained therein.
• Changes and repairs to the device may be carried out only if expressly permitted in
the Operating Instructions.
• If faults cannot be rectified, the device must be taken out of service and secured
against unintentional commissioning.
• Damaged devices must not be commissioned and must be labeled as defective.
1.3 Operational and process safety
• To guarantee operational and process safety, alternative monitoring measures must
be taken while configuring, testing or servicing the device.
• The device is designed to meet state-of-the-art safety requirements, has been
tested, and has left the factory in a condition in which it is safe to operate. The
relevant regulations and European standards have been observed.
• Take note of information on nameplate.
• Devices for use in hazardous areas are fitted with an additional nameplate. When
using in hazardous areas, compliance with the relevant national standards is
mandatory. The device is accompanied by separate Ex documentation, which forms
an integral part of these Operating Instructions. The installation regulations,
connection data and safety instructions in the Ex documentation must be observed.
The documentation number of these instructions is also indicated on the additional
nameplate.
1.4 Return
Follow the instructions in the Operating Instructions.

Safety instructions ToF Adapter FXA291
4Endress+Hauser
1.5 Symbols used
1.5.1 Safety symbols
1.5.2 Electrical symbols
Symbol Meaning
A0011189-EN
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will
result in serious or fatal injury.
A0011190-EN
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can
result in serious or fatal injury.
A0011191-EN
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can
result in minor or moderate injury.
A0011192-EN
NOTE!
This symbol contains information on procedures and other facts, which do not
result in personal injury.
Symbol Meaning
A0018338
Ground connection
A grounded terminal which, from the operator's point of view, is grounded via a
grounding system.
A0018339
Protective ground connection
A terminal that must be connected to ground before other connections are
established.
GEFAHR
WARNUNG
VORSICHT
HINWEIS

ToF Adapter FXA291 Safety instructions
Endress+Hauser 5
1.5.3 Symbols for types of information
1.5.4 Symbols in graphics
Symbol Meaning
A0011182
Allowed
Indicates procedures, processes or actions that are allowed.
A0011183
Preferred
Indicates procedures, processes or actions that are preferred.
A0011184
Forbidden
Indicates procedures, processes or actions that are forbidden.
A0011193
Tip
Indicates additional information.
A0015484
Reference to page
Refers to the relevant page number.
, , ... Series of steps
Symbol Meaning
1, 2, 3, 4, ... Numbering for main positions
, , ... Series of steps
A, B, C, D, ... Views
A0011187
Hazardous area
Indicates a hazardous area.
A0011188
Safe area (non-hazardous area)
Indicates a non-hazardous area.
-
.

Product description ToF Adapter FXA291
6Endress+Hauser
2 Product description
A0023045

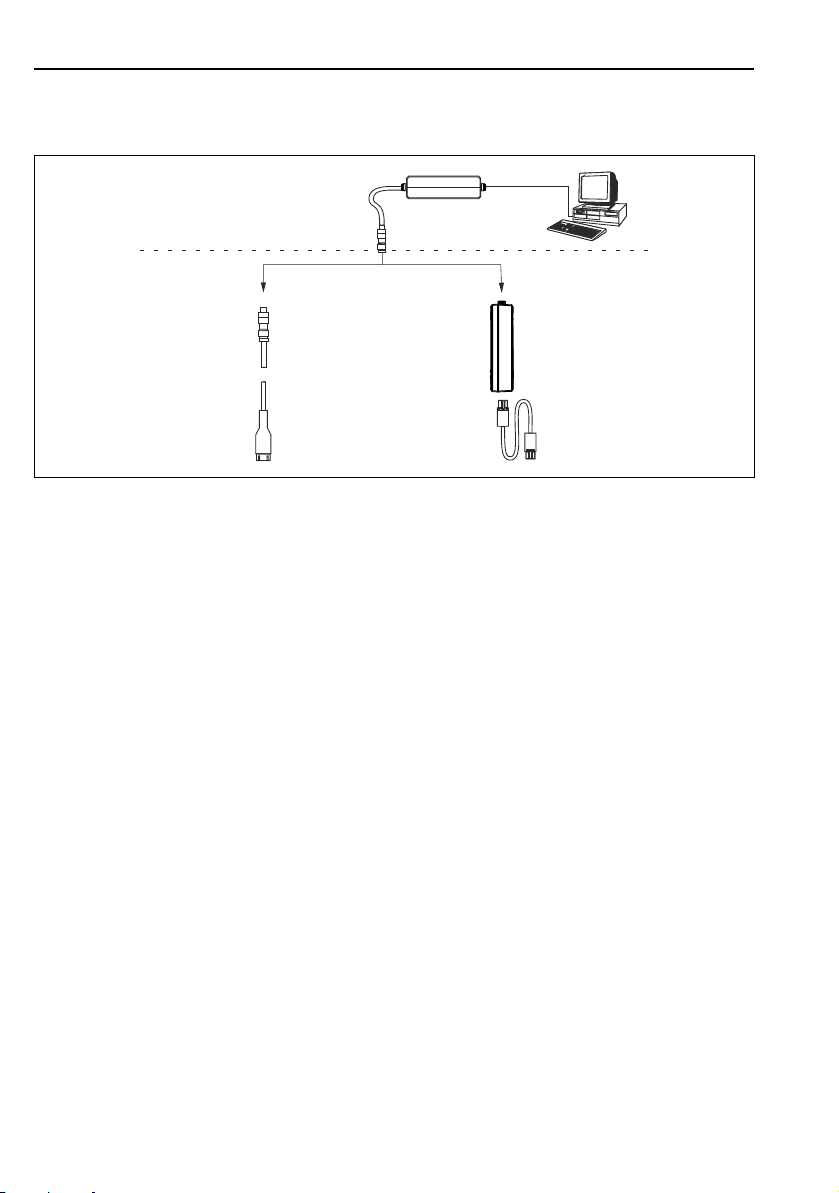

ACablefordevicegroup1
BCablefordevicegroup2
Commubox FXA291
ToF Adapter
FXA291
AB

ToF Adapter FXA291 Incoming acceptance and product identification
Endress+Hauser 7
3 Incoming acceptance and product identification
3.1 Incoming acceptance
Check the packaging and the contents for damage.
Check that the goods supplied are complete and compare the scope of delivery with
your order details.
3.2 Product identification
The following options are available for measuring device identification:
•Nameplatedata
• Order code with breakdown of the device features on the delivery note
• Enter serial numbers from nameplates in W@M Device Viewer
(www.endress.com/deviceviewer): All information on the measuring device is
displayed.
For an overview of the technical documentation supplied, enter the serial number
from the nameplates in the W@M Device Viewer (www.endress.com/deviceviewer)

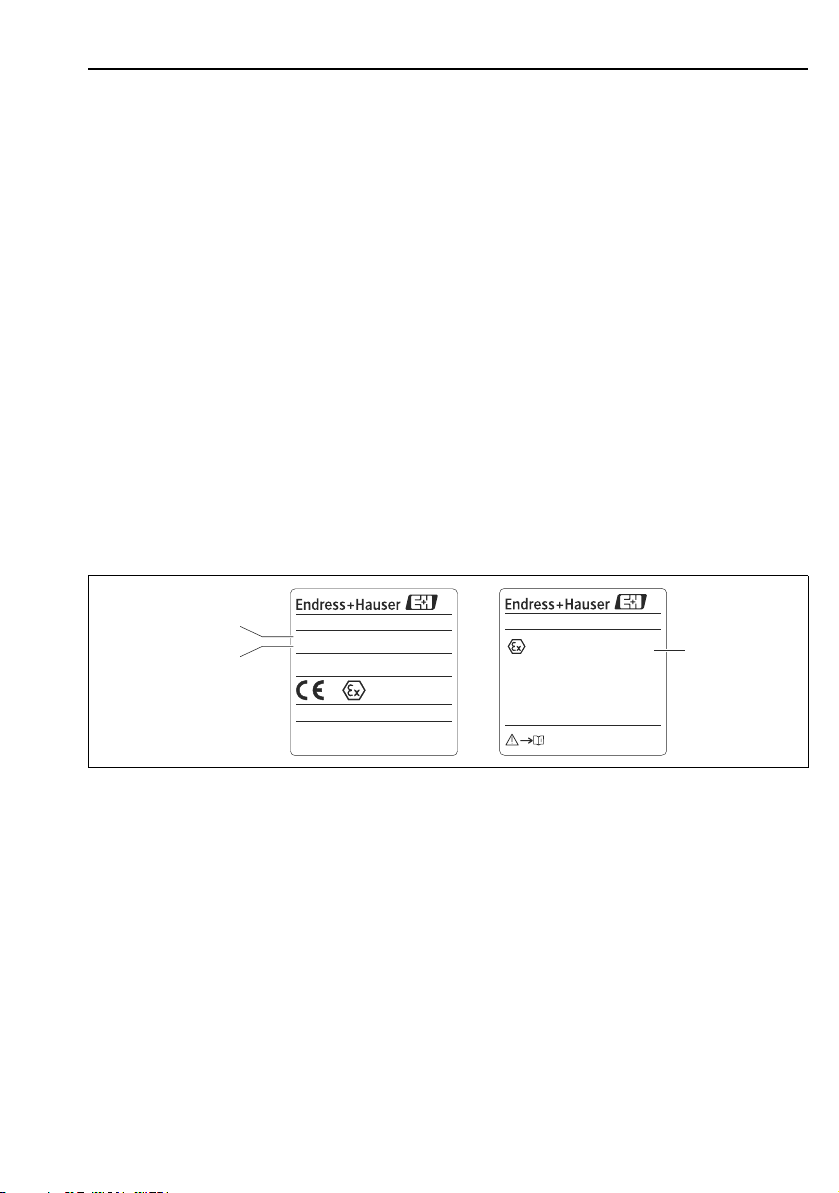

3.2.1 Nameplate
A0023046
1 Order code
2 Serialnumber
3 Approval-specific data
1
3
0032
ToF Adapter FXA291
ToF Adapter FXA291
Order Code:
Ser.-No.:
Dat./Insp.: 1
Made in Germany D-79689 Maulburg
2

Incoming acceptance and product identification ToF Adapter FXA291
8Endress+Hauser
3.3 Scope of delivery
• 1 x ToF Adapter FXA291 (order number: 71007843)
• one cable for each device group 1 and 2
Not included:
• Commubox FXA291 (order number: 51516983)
• Cable for Tank Side Monitor NRF590 (order number: 71027289)
3.4 Documentation supplied:
3.4.1 Safety instructions
Additional Safety Instructions (XA01181F) are supplied with certified device versions.
The nameplate indicates which safety information applies to your device version.
3.5 Certificates and approvals
CE mark, Declaration of Conformity
The device is designed to meet state-of-the-art safety requirements, has been tested,
and has left the factory in a condition in which it is safe to operate. The device complies
with the applicable standards and regulations as listed in the EC declaration of
conformity and thus complies with the statutory requirements of the EC directives. By
applying the CE mark, Endress+Hauser confirms that the device has passed the
necessary tests.
3.6 Registered trademarks
ToF®
Registered trademark of Endress+Hauser GmbH+Co.KG, Maulburg, Germany

ToF Adapter FXA291 Electrical connection
Endress+Hauser 9
4 Electrical connection
NOTICE
Destruction of the device possible
Use only cables pre-terminated by Endress+Hauser. The device is suitable only for
connection to certified, intrinsically safe equipment with Ex ia type of protection.
4.1 Connection data
4.2 Connecting to devices of device group 1
4.2.1 Connecting to the Prosonic FMU860/861/862
Connect the Commubox FXA291 to the service interface in the Prosonic
FMU860/861/862.
A0023047
Intrinsically safe power circuit (e.g. Commubox FXA291)
Ui7.5 V
Ii1 A
Pi2 W
Ci= 0 nF
Li= 0 μH
Intrinsically safe output circuit
Uo3.75 V
Io9.4 mA
Po8.7 mW
Co= 100 μF
Lo= 340 mH
Ui7.5 V
Ii1 A
Pi2 W
Ci= 0 nF
Li= 0 μH
Commubox FXA291
Prosonic FMU860/861/862

Electrical connection ToF Adapter FXA291
10 Endress+Hauser
4.3 Connection with devices of devices group 2
4.3.1 Connecting to ToF device

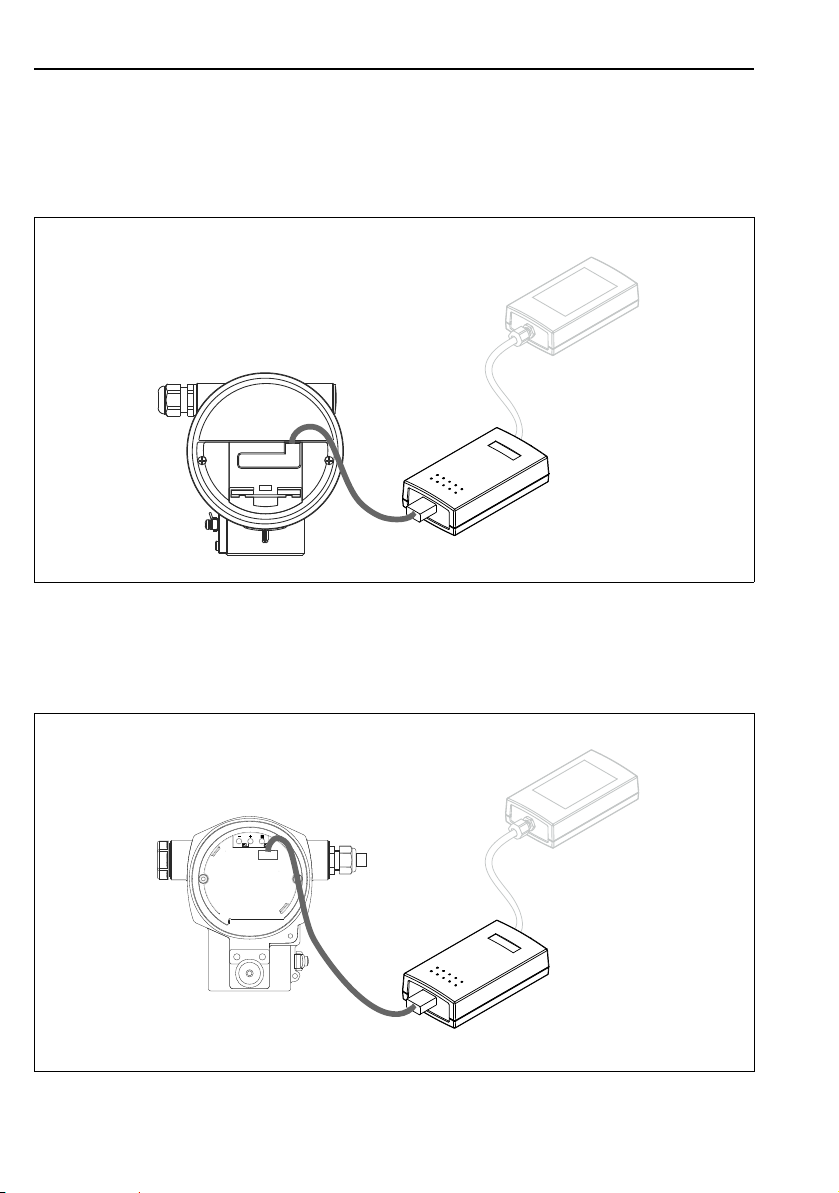

Connect the ToF Adapter FXA291 to the device's display connector.
A0023048
4.3.2 Connecting to pressure transmitter
Connect the ToF Adapter FXA291 to the device's display connector.
A0023049
Commubox FXA291
Gammapilot M FMG60
Levelflex M FMP4x
Micropilot M FMR2xx
Micropilot S FMR53x, FMR540
Prosonic M FMU4x
Prosonic T FMU30
ToF Adapter FXA291
Commubox FXA291
Cerabar S PMC71, PMP7x
Deltabar S PMD7x, FMD7x
Deltapilot S FMB70
ToF Adapter FXA291

ToF Adapter FXA291 Operation
Endress+Hauser 11
5Operation
5.1 Overview of operating options
5.1.1 Local operation
A0023050

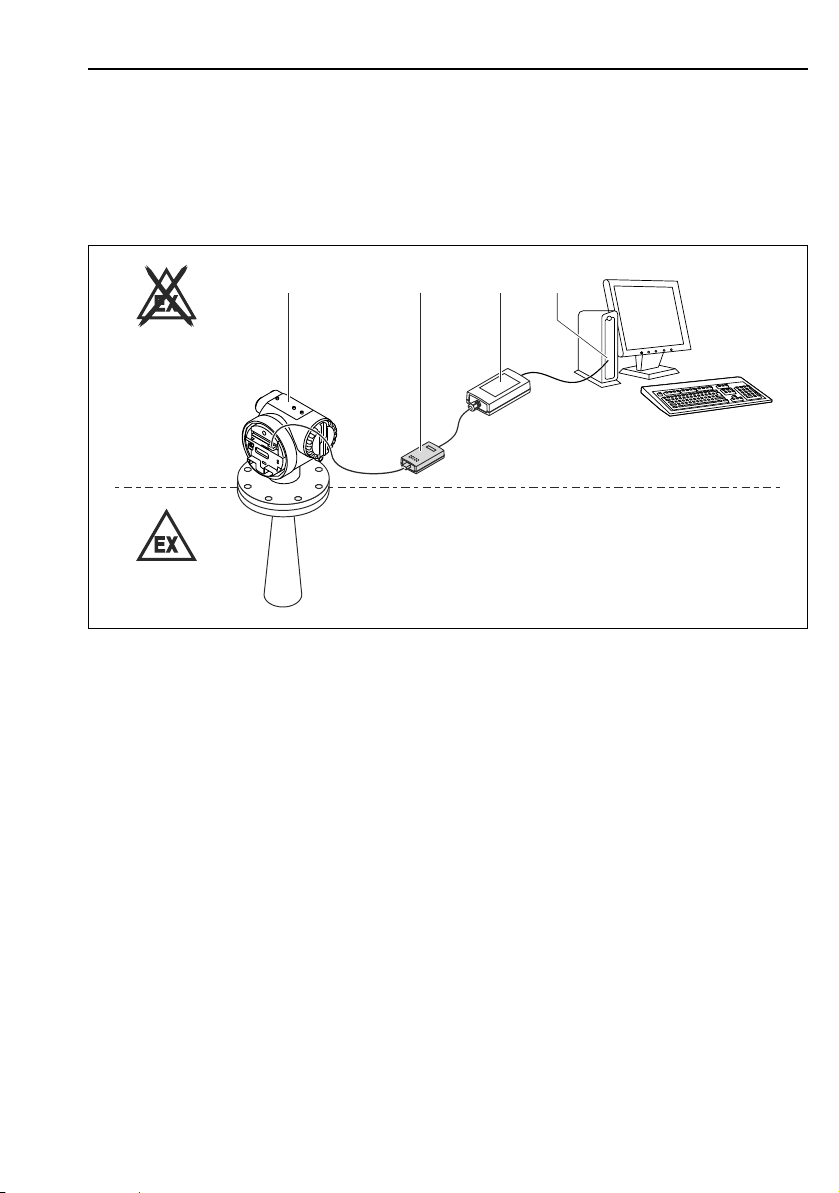

1 ToF device (e.g. Micropilot M)
2 ToF Adapter FXA291
3 Commubox FXA291
4 USB connection
Operation is performed using a Personal Computer, a Commubox FXA291 with ToF
Adapter FXA291 (USB) and the operating software "FieldCare". FieldCare is a graphical
operating program for measuring devices from Endress+Hauser. It assists with
commissioning, data back-up, signal analysis and documentation of the measuring
point.
5.1.2 Operation with FieldCare
FieldCare is Endress+Hauser's plant asset management tool based on FDT technology.
With FieldCare, you can configure all Endress+Hauser devices as well as devices from
other manufacturers that support the FDT standard. Hardware and software
requirements can be found on the Internet:
www.de.endress.com ▸Search: FieldCare ▸FieldCare ▸Technical data.
1234

Operation ToF Adapter FXA291
12 Endress+Hauser
FieldCare supports the following functions:
• Configuration of transmitters in online operation
• Loading and saving device data (upload/download)
• Documentation of the measuring point
Connection options:
• Commubox FXA291 with ToF Adapter FXA291 via service interface

ToF Adapter FXA291 Commissioning
Endress+Hauser 13
6 Commissioning
NOTICE
If using the ToF Adapter FXA291 with FDT/DTM software (e.g. FieldCare), the
special IPC devices DTMs (according to the communication protocol) and „Level
Pressure FXA193 CommDTM“ must be used. The DTMs are supplied on the
FieldCare-CD-ROM.
7 Maintenance and repair
7.1 Cleaning
When cleaning the device externally, ensure that the cleaning agent used does not
attack the housing surface and seals.
7.2 Repair
The Endress+Hauser repair concept does not envisage any repairs:
For further information, please contact Endress+Hauser Service.
7.3 Return
The device may be returned in the event of an incorrect delivery or order. As an
ISO-certified company, Endress+Hauser is required by law to follow certain procedures
when handling returned products that are in contact with the medium.
To ensure that your device is returned swiftly, safely and in a professional manner,
please read the procedures and conditions on the Endress+Hauser website at
www.services.endress.com/return-material
7.4 Disposal
When disposing of the device, the device components must be separated and recycled
based on the materials involved.
7.5 Contact addresses for Endress+Hauser
Contact addresses can be found on our homepage: www.endress.com/worldwide.
If you have any questions, please contact your Endress+Hauser subsidiary.

Technical data ToF Adapter FXA291
14 Endress+Hauser
8Technicaldata
8.1 Permitted ambient temperature range
-20 °C ≤Ta≤70 °C
8.2 Degree of protection
IP30
8.3 Supplementary Documentation
This documentation can be found on our product pages at "www.endress.com".
8.3.1 Certificates and approvals
Ex approval
The Ex certificates available can be found in the ordering information.
Observe the relevant safety instructions (XA01181F).

Endress+Hauser 15
ToF Adapter FXA291
Index
C
CE mark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
D
Declaration of Conformity . . . . . . . . . . . . . . . . . . 8
Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
E
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . 9
External cleaning . . . . . . . . . . . . . . . . . . . . . . . . 13
I
Incoming acceptance . . . . . . . . . . . . . . . . . . . . . . 7
N
Nameplate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
R
Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Return. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
S
Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . 8
T
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
U
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

www.addresses.endress.com
71240651
