Endress+Hauser FieldPort SWA50 Manual

Application
The FieldPort SWA50 converts the HART signal of the
connected HART field device to a reliable and encrypted
Bluetooth® or WirelessHART signal. The FieldPort SWA50 can
be retrofitted to all 2-wire and 4-wire HART field devices in
both hazardous and non-hazardous areas. The robust stainless
steel housing allows the FieldPort SWA50 to be installed even
in harsh industrial environments.
The combination of the Bluetooth® version of the SWA50 with
a FieldEdge SGC200 delivers fast and easy connection to the
Netilion Cloud.
The WirelessHART version of the SWA50 can be easily
integrated into any WirelessHART network.
Your benefits
• Reliable transmission of the measured process values
through the connected FieldPort SWA50 via encrypted
Bluetooth® or WirelessHART communication
• Easy to retrofit all 2-wire or 4-wire HART field devices
• Easy connection of all HART field devices to the
Netilion Cloud
• Loop-powered adapter, without affecting the process signal
• Easily accessible, wireless, onsite diagnostic information of
connected HART field device
Products Solutions Services
Technical Information
FieldPort SWA50
Intelligent Bluetooth® and/or WirelessHART adapter for
all HART field devices
TI01468S/04/EN/01.19
unbekannt
2019-09-30

FieldPort SWA50
2 Endress+Hauser
Table of contents
About this document ........................ 3
Symbols .................................... 3
Function and system design ................... 3
Function ................................... 3
System architecture of SWA50 Bluetooth version ........ 4
System architecture of SWA50 WirelessHART version ..... 5
Input (wired interface) ....................... 5
Inputs ..................................... 5
Communication interface and protocol version .......... 5
Output (wireless interface) .................... 5
Communication interface ........................ 5
Transmission frequency band ..................... 6
Range ..................................... 6
Transmission power ............................ 6
Device variables .............................. 6
Diagnostics ................................. 6
Power supply .............................. 7
Electrical connection ........................... 7
Terminal assignment ........................... 8
FieldPort SWA50 grounding ...................... 9
Supply voltage ............................... 9
Power consumption ........................... 10
Terminals ................................. 10
Cable entry ................................. 10
Cable specification ............................ 10
Installation ............................... 10
Mounting methods ........................... 10
Mounting instructions ......................... 11
Lightning protection .......................... 11
Environment .............................. 12
Ambient temperature range ..................... 12
Storage temperature range ...................... 12
Climate class ............................... 12
Degree of protection .......................... 12
Vibration resistance ........................... 12
Shock resistance ............................. 12
Electromagnetic compatibility (EMC) ............... 12
Mechanical construction .................... 12
Design, dimensions ........................... 12
Weight ................................... 13
Materials .................................. 13
Human interface ........................... 14
Operating concept ............................ 14
Local operation .............................. 14
Certificates and approvals ................... 14
CE mark ................................... 14
Ex approval ................................ 14
Radio approvals .............................. 14
Ordering information ....................... 15
Scope of delivery ............................. 15
Accessories ............................... 15
Device-specific accessories ...................... 15
Supplementary documentation ............... 17
Standard documentation SWA50 .................. 17
Supplementary device-dependent documentation for
SWA50 ................................... 17
Standard documentation for SGC200 ............... 17
Standard documentation for SGC500 ............... 17
Standard documentation for SMT70 ................ 17
Standard documentation for SMT77 ................ 17
Standard documentation for SWA70 ................ 17
Standard documentation for SWG70 ................ 18
Registered trademarks ...................... 18
Radio approvals ........................... 18
Europe ................................... 18
Canada and United States ....................... 18
Japan .................................... 19

FieldPort SWA50
Endress+Hauser 3
About this document
Symbols Safety symbols
DANGER
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or
fatal injury.
WARNING
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or
fatal injury.
CAUTION
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in minor or
medium injury.
NOTICE
This symbol contains information on procedures and other facts which do not result in personal
injury.
Symbols for certain types of information
Symbol Meaning
Permitted
Procedures, processes or actions that are permitted.
Preferred
Procedures, processes or actions that are preferred.
Forbidden
Procedures, processes or actions that are forbidden.
Tip
Indicates additional information.
Reference to documentation.
A
Reference to page.
Reference to graphic.
Visual inspection.
Function and system design
Function The FieldPort SWA50 converts the HART signal of the connected HART field device to a reliable and
encrypted Bluetooth® or WirelessHART signal. The FieldPort SWA50 can be retrofitted to all 2-wire
or 4-wire HART field devices.
The Endress+Hauser SmartBlue app or the Endress+Hauser Field Xpert is used to configure the
FieldPort SWA50 and to visualize the measured values and status of the connected HART field
device.
HART field devices can be connected to the Netilion Cloud via the FieldPort SWA50 and a FieldEdge
device.
For detailed information on the Netilion Cloud, see https://netilion.endress.com
The WirelessHART version of the SWA50 can be integrated into any WirelessHART network via a
WirelessHART-Fieldgate, such as SWG70.
In addition, the WirelessHART version can be operated as follows:
• Local configuration with FieldCare SFE500 or DeviceCare via DTM for SWA50
• Remote configuration with FieldCare SFE500 via WirelessHART Fieldgate SWG70 and DTM for
SWA50 and SWG70

FieldPort SWA50
4 Endress+Hauser
NOTICE
Safety applications with control functions via Bluetooth signal or WirelessHART signal
Undesirable behavior of safety application
‣Do not use a wireless signal such as Bluetooth or WirelessHART in a safety application with a
control function.
System architecture of
SWA50 Bluetooth version
134 5 6 9
Netilion
7
210 11
8
 1 System architecture of SWA50 Bluetooth version
1 HART field device with FieldPort SWA50, remote mounting
2 Encrypted wireless connection via Bluetooth®
3 HART field device with FieldPort SWA50, direct mounting
4 FieldEdge SGC200 (not included in scope of delivery)
5 LTE connection
6 Netilion Cloud
7 Application Programming Interface (API)
8 https Internet connection
9 Internet browser-based Netilion Service app or user application
10 Endress+Hauser SmartBlue app
11 Endress+Hauser Field Xpert, e.g. SMT7x

FieldPort SWA50
Endress+Hauser 5
System architecture of
SWA50 WirelessHART
version
2567 9
Netilion
8 10 1
3 4
12
13
6
15 14
1
11

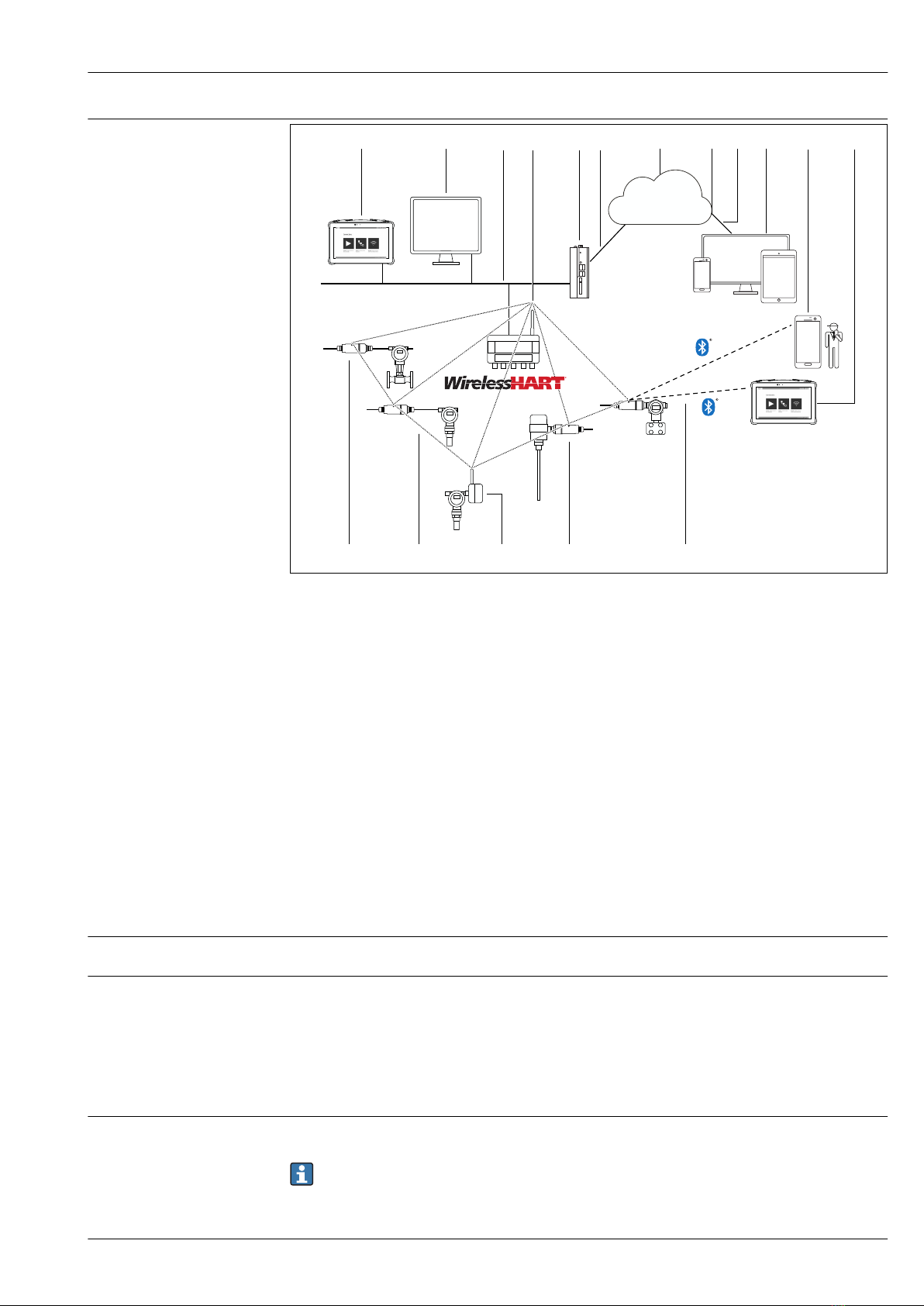

 2 System architecture of SWA50 WirelessHART version
1 Endress+Hauser Field Xpert, e.g. SMT7x
2 Host application / FieldCare SFE500
3 Ethernet communication
4 WirelessHART-Fieldgate, e.g. SWG70
5 FieldEdge SGC500 (not included in scope of delivery)
6 https Internet connection
7 Netilion Cloud
8 Application Programming Interface (API)
9 Internet browser-based Netilion Service app or user application
10 Endress+Hauser SmartBlue app
11 Encrypted wireless connection via Bluetooth®
12 HART field device with FieldPort SWA50, direct mounting
13 HART field device with WirelessHART adapter, e.g. SWA70
14 Encrypted wireless connection via WirelessHART
15 HART field device with FieldPort SWA50, remote mounting
Input (wired interface)
Inputs A point-to-point connection to a 2-wire or 4-wire HART field device
Communication interface
and protocol version
Field devices with HART 5, HART 6 or HART 7
Output (wireless interface)
Communication interface Bluetooth
Bluetooth IEEE 802.15.1
In addition to the FieldPort SWA50, there can be only one other HART master in the HART
loop of the SWA50.

FieldPort SWA50
6 Endress+Hauser
WirelessHART
• WirelessHART communication interface (IEC 62591)
• HART version 7.5, backward-compatible with previous HART versions
Transmission frequency
band
2.4 GHz (ISM band)
Range The range depends on the alignment of the FieldPort SWA50, the mounting location and the
environmental conditions.
100°60°
A0043409
 3 Range of opening angle
Bluetooth
Up to 40 m without obstacles when FieldPort SWA50 is optimally aligned
WirelessHART
Up to 200 m without obstacles when FieldPort SWA50 is optimally aligned
Transmission power 0 dBm or 10 dBm, configurable for adaptation to national regulations
Device variables You can read out the following data via Bluetooth® using the Endress+Hauser SmartBlue app or
the Field Xpert:
For all HART field devices:
• Measured value output current of HART field device
• Device information, configuration data and HART information of FieldPort SWA50
Also for Endress+Hauser HART field devices:
• Measured values PV, SV, TV and QV of HART field device
• Additional device information of HART-7- or HART-6 field device
• HART information of HART field device
• Status as per NAMUR NE 107 of HART field device if available
The HART field device must be connected.
The following data can be read out via the Bluetooth version of the FieldPort SWA50 and the
Endress+Hauser FieldEdge SGC200(Netilion Cloud):
• Process variables PV and SV of HART field device if available
• Status as per NAMUR NE 107 of HART field device if available
The HART field device must be connected.
For the WirelssHART version of the FieldPort SWA50 and the Endress+Hauser
FieldEdge SGC500(Netilion Cloud)
For detailed information, see the Operating Instructions for the FieldPort SWA50
WirelessHART→  17
Diagnostics 1 LED
Green: Flashes twice at start-up to indicate that the device is operational
The LED is located on the electronic insert and is not visible from the outside.

FieldPort SWA50
Endress+Hauser 7
Power supply
Electrical connection 2-wire HART field device with passive current output
Some grounding concepts require a shielded cable. If connecting the cable shield to the
FieldPort SWA50, you must use an EMC cable gland. See ordering information, feature 060,
option B.
+
–
3
2
+
–
1
IN+
IN–
OUT+
OUT–
A0040494

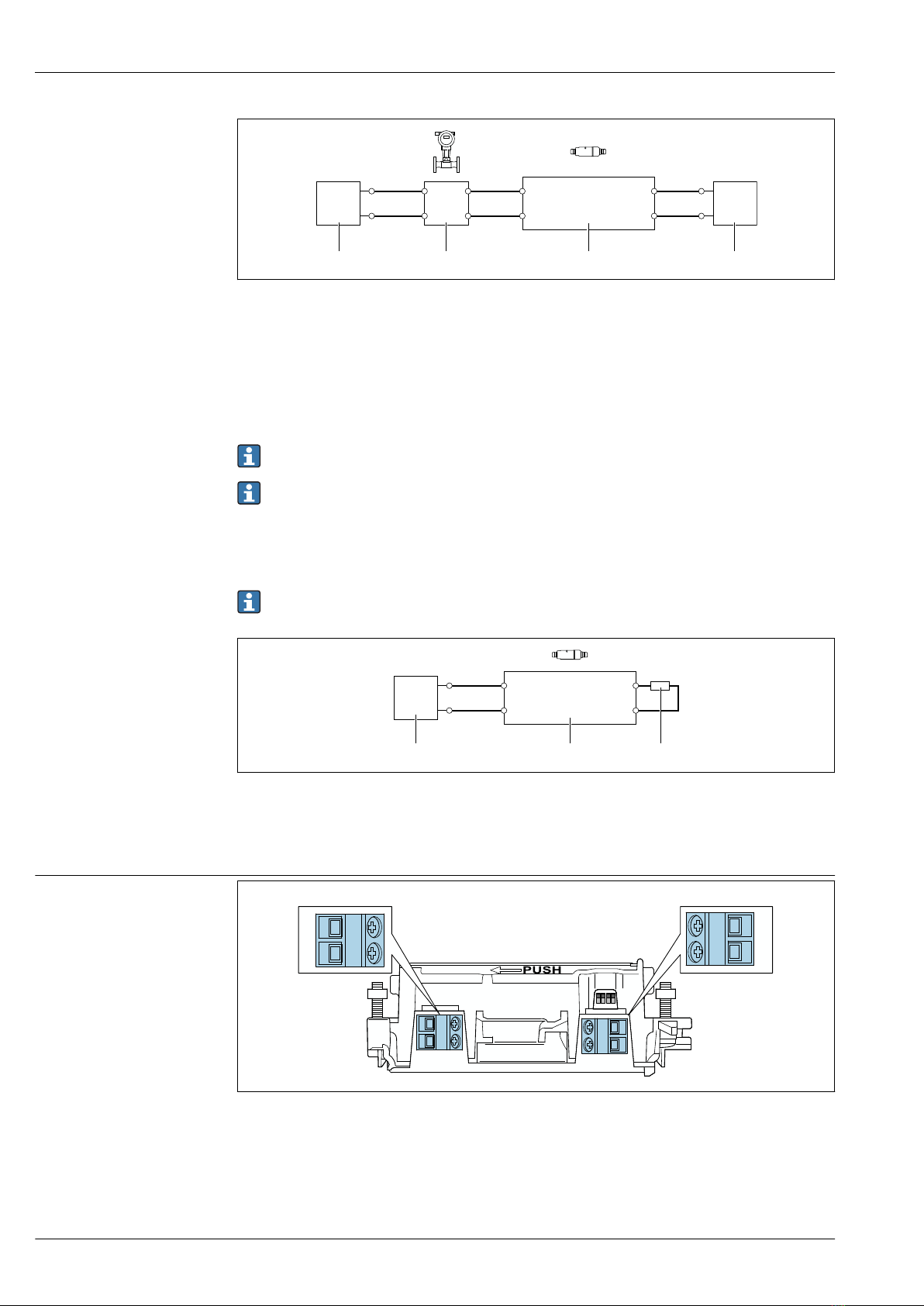

 4 Electrical connection for 2-wire HART field devices with passive current output (optional grounding not
shown)
1 Supply voltage or PLC with active current input or transmitter with active current input
2 Electronic insert SWA50
3 2-wire field device 4 to 20 mA-HART
4-wire HART field device with passive current output
Some grounding concepts require shielded cables. If connecting the cable shield to the FieldPort
SWA50, you must use an EMC cable gland. See ordering information, feature 060, option B.
+
–
3
2
+
–
1
+
–
4
IN+
IN–
OUT+
OUT–
+
–
A0040491
 5 Electrical connection for 4-wire HART field devices with passive current output (optional grounding not
shown)
1 Supply voltage or PLC with active current input or transmitter with active current input
2 Electronic insert SWA50
3 4-wire field device with passive 4 to 20 mA-HART output
4 Supply voltage for 4-wire field device
4-wire HART field device with active current output
Some grounding concepts require a shielded cable. If connecting the cable shield to the
FieldPort SWA50, you must use an EMC cable gland. See ordering information, feature 060,
option B.

FieldPort SWA50
8 Endress+Hauser
+
–
23
+
–
1
+
–
4
IN+
IN–
OUT+
OUT–
+
–
A0040492
 6 Electrical connection for 4-wire HART field devices with active current output (optional grounding not
shown)
1 Supply voltage for 4-wire HART field device
2 4-wire field device with active 4 to 20 mA-HART output
3 Electronic insert SWA50
4 PLC or transmitter with passive current input (optional), alternatively wire bridge between terminals OUT+
and OUT–
You must connect a PLC, a transmitter or a wire bridge to terminals OUT+ and OUT–.
If you select the "direct mounting" version and the "4-wire HART field device with active current
output and PLC or transmitter" electrical connection version, you can use core cross-sections of
0.75 mm² at maximum. If larger core cross-sections are required, we recommend remote
mounting.
FieldPort SWA50 without HART field device
With this connection version, you can preconfigure the FieldPort SWA50.
2
+
–
1
IN+
IN–
OUT+
OUT–
3
A0040493
 7 FieldPort SWA50 without HART field device (optional grounding not showing)
1 Supply voltage, FieldPort SWA50, 10 to 30 VDC
2 Electronic insert SWA50
3 Resistor 1.5 kOhm and min. 0.5 W between terminals OUT+ and OUT–
Terminal assignment
12
1234
ON
OFF
–
+IN
OUT –
+
-
+IN
OUT –
+
A0040495
 8 FieldPort SWA50 terminal assignment
1 Input terminal IN
2 Output terminal OUT

FieldPort SWA50
Endress+Hauser 9
Application Input terminal IN Output terminal OUT
2-wire HART field device
→  4,  7
Cable from supply voltage, PLC with
active current output or transmitter with
active current output
Cable to 2-wire HART field device
4-wire HART field device with
passive current output
→  5,  7
Cable from supply voltage, PLC with
active current output or transmitter with
active current output
Cable to 4-wire HART field device
4-wire HART field device with
active current output
→  6,  8
Cable from 4-wire field device with active
4 to 20 mA HART output
PLC or transmitter with passive
current output (optional),
alternatively wire bridge between
terminals OUT+ and OUT–
FieldPort SWA50 without field
device
→  7,  8
Cable from supply voltage for FieldPort
SWA50
Resistor between terminals OUT+
and OUT–
FieldPort SWA50 grounding "Direct mounting" version
With the "direct mounting" version, the FieldPort SWA50 is grounded via the field device or the
metal conduit.
"Remote mounting" version
With the "remote mounting" version, ground the FieldPort SWA50 via the optional mounting bracket
or a grounding clip provided by the customer.
Optional mounting bracket
If using the mounting bracket, ground the FieldPort SWA50 via the grounding screw.
Mounting bracket
Grounding clip provided by customer
The grounding clip provided by the customer must meet the following requirements:
• Diameter: approx. 40 mm
• Stainless steel
• If the FieldPort SWA50 is used in a hazardous area: suitable for hazardous areas as per
DIN EN 62305, Sheet 3 and DIN EN 62561-1
1
A0041808
 9 Grounding via grounding clip
1 Example of grounding clip provided by customer
Supply voltage • Loop-powered 4 to 20 mA
• 24 V DC (min. 4 V DC, max. 30 V DC): min. 3.6 mA loop current required for start-up

FieldPort SWA50
10 Endress+Hauser
Voltage drop
• If internal HART communication resistor is deactivated
• 3.2 V in operation
• < 3.8 V at start-up
• If internal HART communication resistor is activated (270 Ohm)
• < 4.2 V at 3.6 mA loop current
• < 9.3 V at 22.5 mA loop current
To select the supply voltage, pay attention to the voltage drop via the FieldPort SWA50. The
remaining voltage must be high enough to enable the start-up and operation of the HART field
device.
Power consumption Max. 0.2 W at 22 mA and with internal HART communication resistor (270 Ohm)
Terminals 2 x 2-pin screw terminals
Cable entry • "Remote mounting" version: 2 cable glands
• "Direct mounting" version: 1 cable gland and 1 direct cable entry from field device
Cable glands supplied
• Ex t-version: no cable glands. Dummy plugs are supplied.
• Ordering information, feature "060", option "B": M20 x 1.5 plastic version
• Ordering information, feature "060", option "C": M20 x 1.5 EMC version
Cable specification Use cables that are suitable for the anticipated minimum and maximum temperatures.
Observe grounding concept of the plant.
2 x 0.25 mm² to 2 x 1.5 mm²
You can use unshielded cable with or without ferrules and shielded cable with or without ferrules.
If you select the "direct mounting" version and the "4-wire HART field device with active current
output and PLC or transmitter" electrical connection version, you can use core cross-sections of
0.75 mm² at maximum. If larger core cross-sections are required, we recommend remote
mounting.
Installation
Mounting methods • Remote mounting
• Direct mounting on HART field device via either M20 or NPT 1/2" connection adapter
For remote mounting, we recommend the optional mounting bracket. Alternatively, you can secure
the remote version using pipe clips.

FieldPort SWA50
Endress+Hauser 11
132
A0043240

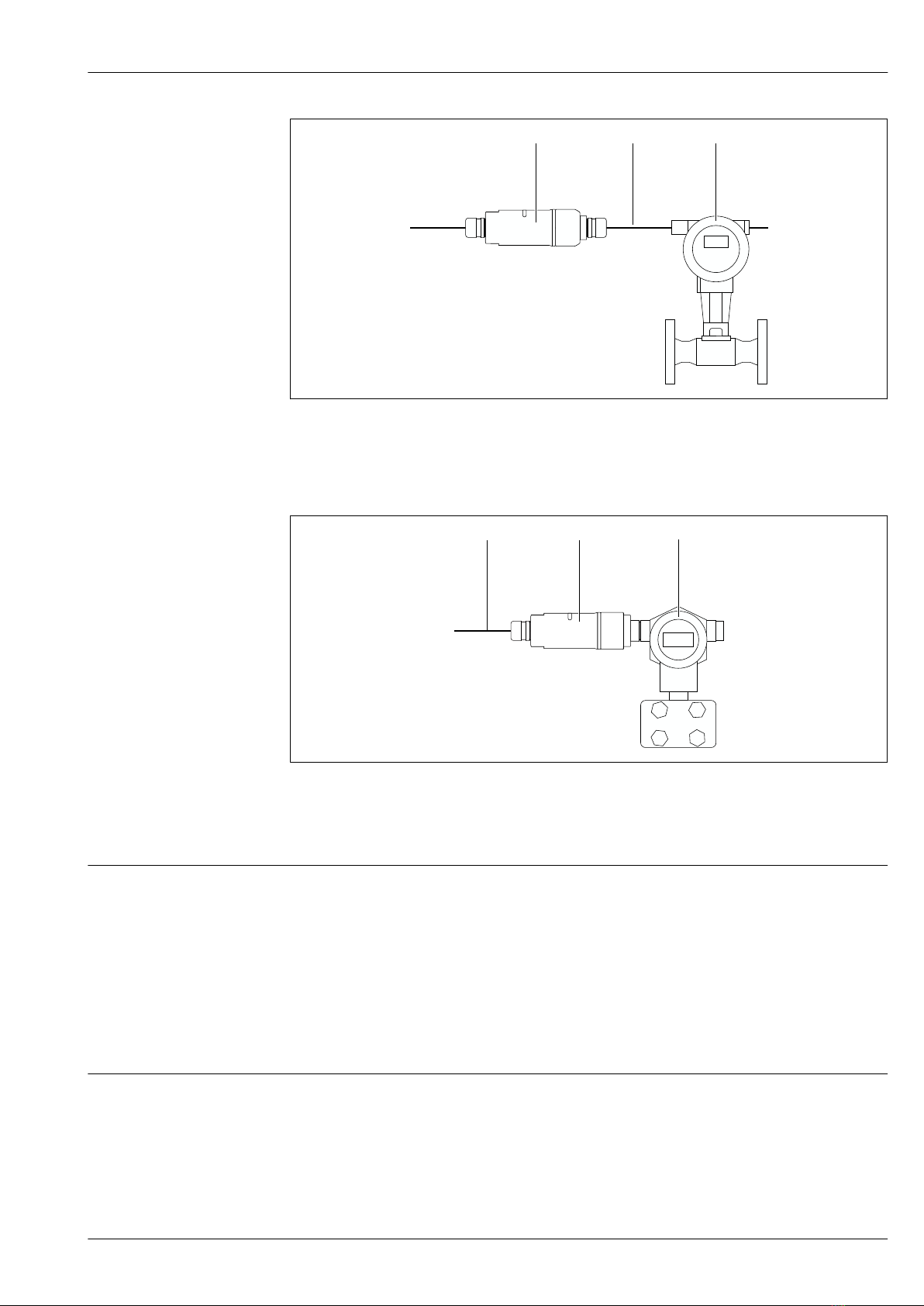

 10 Example of remote mounting
1 FieldPort SWA50 "remote mounting" version
2 Cable
3 HART field device
132
A0043241
 11 Example of direct mounting
1 Cable
2 FieldPort SWA50 "direct mounting" version
3 HART field device
Mounting instructions • Pay attention to range. →  6
• Observe a distance of at least 6 cm from walls and pipes. Pay attention to the expansion of the
Fresnel zone.
• Avoid mounting in close proximity to high-voltage devices.
• Pay attention to the effect of vibrations at the mounting location. →  12
Additional mounting information for Bluetooth version:
Mount within the visual range of a FieldEdge SGC200.
Additional mounting information for WirelessHART version:
Mount within the visual range of a WirelessHART adapter, such as SWA50, SWA70, or a
WirelessHART gateway, such as SWG70.
Lightning protection • Do not mount the FieldPort SWA50 at the highest point of the system.
• Ground the housing of the FieldPort SWA50.

FieldPort SWA50
12 Endress+Hauser
Environment
Ambient temperature range • –40 to +85 °C (–40 to +185 °F)
• Ex version for temperature class T4: –40 to +70 °C (–40 to +158 °F)
Storage temperature range –40 to +85 °C (–40 to +185 °F)
Climate class As per IEC 60068-2-38 test Z/AD
Degree of protection When housing is closed, tested according to:
• IP68 / NEMA 6P (24 h at 1 m under water)
• IP66 / NEMA 4X
Vibration resistance As per IEC 60068-2-64:2008
• a(RMS) = 50 m/s²
• f = 5 to 2000 Hz
• t = 3 planes x 2 h
Vibration resistance tested only for "remote mounting" version.
Shock resistance As per IEC 60068-2-27:2008
300 m/s² [= 30 gn] + 18 ms
Electromagnetic
compatibility (EMC)
Electromagnetic compatibility as per EN 61326 series and NAMUR recommendation EMC (NE 21)
Mechanical construction
Design, dimensions "Remote mounting" version
1 1
2
Ø 41.9 (1.65)
35.1 (1.38)
114.6 (4.51)
79.5 (3.13)
Ø 39.9 (1.57)
SW 36
(36 AF)
SW 27
(27 AF)
A0040484
 12 Dimensions of "remote mounting" version in mm (in)
1 M20 cable gland
2 Transmission window

FieldPort SWA50
Endress+Hauser 13
"Direct mounting" version
132
Ø 41.9 (1.65)
33.6 (1.32)
113.1 (4.45)
79.5 (3.13)
Ø 39.9 (1.57)
Ø 15 (0.59)
SW 36
(36 AF)
132.1 (5.20)
SW 24
(24 AF)
A0040483
 13 Dimensions of "direct mounting with M20" version in mm (in)
1 Connection adapter with M20 thread
2 Transmission window
3 M20 cable gland
13
2
Ø 42 (1.65)
33.6 (1.32)
113.1 (4.45)
79.5 (3.13)
Ø 39 (1.54)
SW 36
(36 AF)
146 (5.75)
SW 24
(24 AF)
A0043218
 14 Dimensions of "direct mounting with NPT" version in mm (in)
1 Connection adapter with 1/2 NPT thread
2 Transmission window
3 M20 cable gland
Weight Max. 500 g
Materials Housing
Stainless steel 1.4404 (316L)

FieldPort SWA50
14 Endress+Hauser
Cable entries
• Standard: plastic
• EMC version: brass
Connection adapter
• M20 thread: stainless steel. 1.4404 (316L)
• NPT 1/2" thread: stainless steel. 1.4404 (316L)
Seals
• Design ring (housing – cover seal): PC
• O-ring: EPDM
• Transmission window seal: silicone
Human interface
Operating concept The FieldPort SWA50 can be operated as follows:
• Via smartphone or tablet with the Endress+Hauser SmartBlue app
• Via Endress+Hauser Field Xpert SMT7x tablet PC
In addition, the WirelessHART version can be operated as follows:
• Local configuration with FieldCare or DeviceCare via DTM for SWA50
• Remote configuration with FieldCare via WirelessHART-Fieldgate SWG70 and DTM for SWA50
and SWG70
Local operation You can enable and disable the following functions via DIP switches.
• Bluetooth communication
• Firmware update
• Configuration via Bluetooth
The DIP switches are located on the electronic insert.
Certificates and approvals
Currently available certificates, approvals and other documentation are available at
www.endress.com > Downloads
CE mark The device meets the legal requirements of the applicable EU Directives. These are listed in the
corresponding EU Declaration of Conformity along with the standards applied.
Endress+Hauser confirms successful testing of the device by affixing to it the CE mark.
Ex approval All explosion-protection data are provided in separate Ex documentation. The relevant Ex
documentation is delivered with the Ex devices as standard. The Ex documentation is also available
in the Downloads area of the Endress+Hauser website.
Explosion-protected smartphones and tablets
Mobile end devices with Ex approval must be used in hazardous areas.
Document type: Safety Instructions, certificates
Depending on the approval, safety instructions are supplied with the device, e.g. XA. This
documentation is an integral part of the Operating Instructions. The nameplate indicates the Safety
Instructions (XA) that are relevant to the device.
Radio approvals The device has the following radio approvals:
• Radio equipment directive (RED) 2014/53/EU
• FCC/ISED Canada Part 15.247

FieldPort SWA50
Endress+Hauser 15
Ordering information
Detailed information on the product structure are available as follows:
• On the Endress+Hauser website: www.endress.com → Enter "SWA50" in the search field → Click
the icon to the right → Product Configurator opens → Configure product
• From your Endress+Hauser Sales Center: www.addresses.endress.com
Scope of delivery • FieldPort SWA50
• Optional accessory: mounting bracket
Accessories
Various accessories are available for the device, and can be ordered with the device or at a later stage
from Endress+Hauser. Detailed information on the order code in question is available from your local
Endress+Hauser Sales Center or on the product page of the Endress+Hauser website:
www.endress.com.
Device-specific accessories Mounting bracket
Order number
71487573
Material
Stainless steel 1.4404 (316L)
2
13 4
A0043312

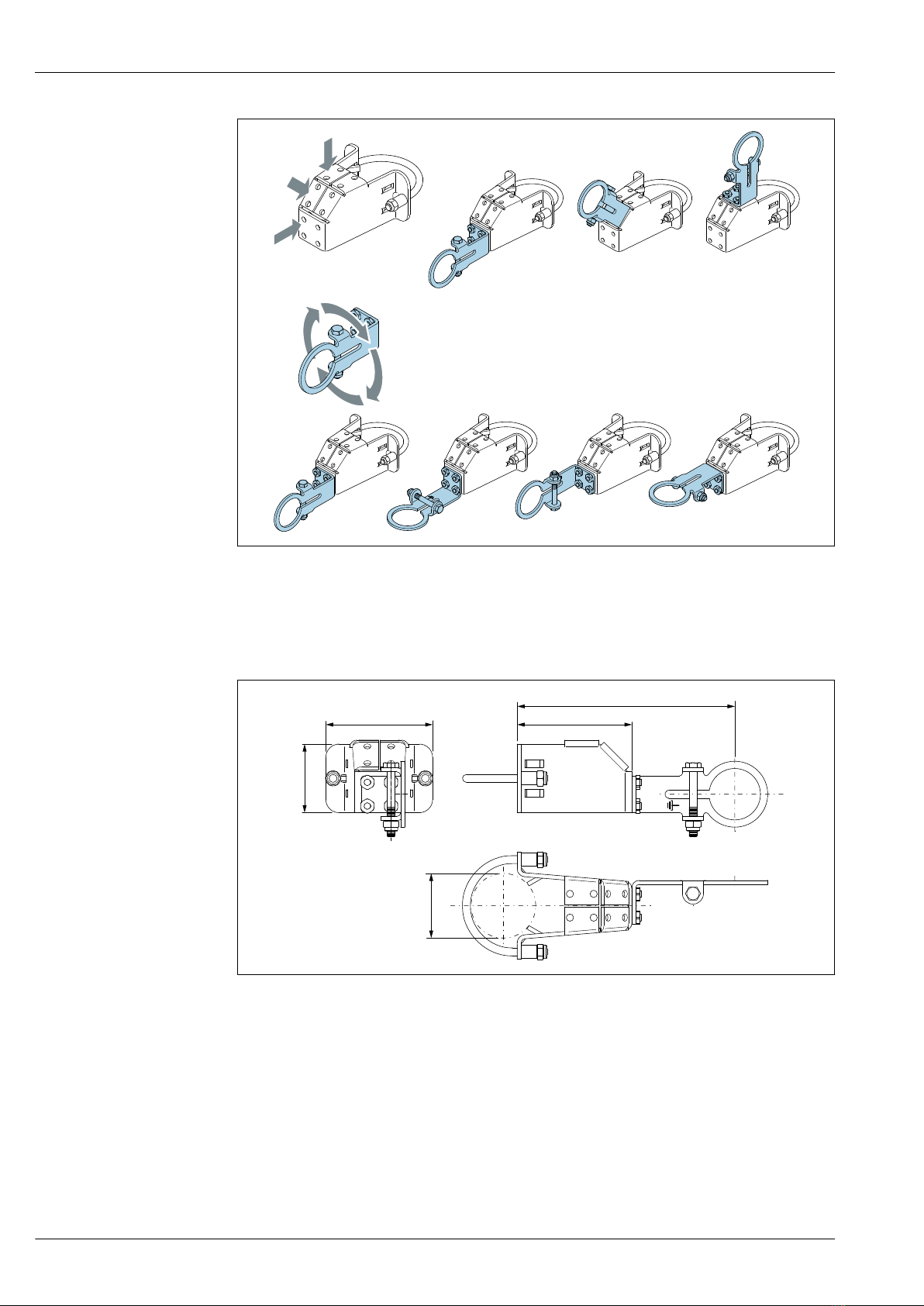

 15 FieldPort SWA50 mounted via optional mounting bracket
1 Hexagonal-headed bolt for grounding
2 Support bracket
3 Mounting bracket
4 Round bracket
Mounting and alignment options
The mounting bracket can be mounted as follows:
• On pipes with a maximum diameter of 65 mm
• On walls
The FieldPort can be aligned as follows using the support bracket:
• Via the various mounting positions on the mounting bracket
• By rotating the support bracket

FieldPort SWA50
16 Endress+Hauser
1
2
A0043411
 16 Alignment options via support bracket
1 Various mounting positions on support bracket
2 By rotating the support bracket
Dimensions
87 (3.43)
Ø 65
(Ø 2.56)
81 (3.19)
165 (6.50)
52 (2.05)
A0043313
 17 Dimensions of mounting bracket – pipe mounting

FieldPort SWA50
Endress+Hauser 17
103 (4.06)
78 (3.07)
18 (0.71)
4.75 (0.19)
18 (0.71)
28 (1.10)
40
(1.75)
33
(1.30)
A0043410
 18 Dimensions of retaining bracket – wall mounting
Supplementary documentation
Standard documentation
SWA50
Operating Instructions
• Bluetooth: BA01987S
• WirelessHART: BA02046S
Brief Operating Instructions
WirelessHART: KA01436S
Supplementary device-
dependent documentation
for SWA50
All explosion-protection data are provided in separate Ex documentation. The relevant Ex
documentation is delivered with the Ex devices as standard. The Ex documentation is also available
in the Downloads area of the Endress+Hauser website.
Standard documentation for
SGC200
Technical Information
TI01468S
Brief Operating Instructions / Operating Instructions
KA01428S
Standard documentation for
SGC500
Technical Information
TI01525S
Operating Instructions
BA02035S
Standard documentation for
SMT70
Technical Information
TI01342S
Operating Instructions
BA01709S
Standard documentation for
SMT77
Technical Information
TI01418S
Operating Instructions
BA01923S
Standard documentation for
SWA70
Technical Information
TI00026S
Operating Instructions
BA00061S

FieldPort SWA50
18 Endress+Hauser
Standard documentation for
SWG70
Technical Information
TI00027S
Operating Instructions
BA00064S
Registered trademarks
Bluetooth®
Registered trademark of the Bluetooth Special Interest Group (SIG), Kirkland, Washington, USA
HART®
Registered trademark of the FieldComm Group, Austin, Texas, USA
WirelessHART ®
Registered trademark of the FieldComm Group, Austin, Texas, USA
Radio approvals
Europe This device meets the requirements of the "Radio Equipment Directive" (RED) 2014/53/EU:
• EN 300 328 V2.1.1
• EN 301 489-1 V2.1.1
• EN 301 489-17 V3.1.1
• EN 62311: 2008
Canada and United States FCC ID: LCGSWA5
IC: 2519A-SWA50
This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS
standard(s).
Operation is subject to the following two conditions:
• this device may not cause harmful interference, and
• this device must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications made to this equipment not expressly approved by
Endress+Hauser SE+Co. KG may void the FCC authorization to operate this equipment.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• reorient or relocate the receiving antenna
• increase the separation between the equipment and receiver
• connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
• consult the dealer or an experienced radio/TV technician for help with radiofrequency radiation
exposure information.
This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20 cm
(7.87 in) between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.

FieldPort SWA50
Endress+Hauser 19
Changes or modifications made to this device that are not expressly approved by Endress+Hauser
may void the FCC authorization to operate this device. This device must be installed to ensure a
minimum antenna separation distance of 20 cm from all persons.
Français
Le présent appareil est conforme aux CNR d'industrie Canada applicables aux appareils radio exempts
de licence.
L'exploitation est autorisée aux deux conditions suivantes :
• L'appareil ne doit pas produire de brouillage, et
• L'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
Les changements ou modifications apportées à cet appareil non expressément approuvée par
Endress+Hauser SE+Co. KG peut annuler l'autorisation FCC d'utiliser cet appareil.
Déclaration d'exposition aux radiations
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm
(7.87 in) de distance entre la source de rayonnement et votre corps.
Ce transmetteur ne doit pas être placé au même endroit ou utilisé simultanément avec un autre
transmetteur ou antenne.
Japan 電気通信事業法
Japanese Radio Law and Japanese Telecommunications Business Law Compliance.
This device is granted pursuant to the Japanese Radio Law (電波法) and the Japanese
Telecommunications Business Law (電気通信事業法).
This device should not be modified (otherwise the granted designation number will become invalid).

www.addresses.endress.com
