Endress+Hauser FieldPort SWA50 User manual

Products Solutions Services
Operating Instructions
FieldPort SWA50
Intelligent Bluetooth® adapter for HART field
devices
BA01987S/00/EN/04.21-00
71558886
2021-12-01

Revision history FieldPort SWA50
2 Endress+Hauser
Revision history
Product version Operating Instructions Changes Comments
1.00.XX BA01987S/04/EN/02.20 – Initial version
1.00.XX BA01987S/04/EN/03.21 Supply voltage Corrections
1.00.XX BA01987S/04/EN/04.21 Alignment
Range
Note on status signal
Notes and references
"Diagnostics" section
Amendments and changes

FieldPort SWA50 Table of contents
Endress+Hauser 3
Table of contents
1 About this document ........... 5
1.1 Document function ................... 5
1.2 Symbols ............................ 5
1.3 Terms and abbreviations .............. 7
1.4 Valid versions ....................... 7
1.5 Documentation ...................... 7
1.6 Registered trademarks ............... 8
2 Basic safety instructions ....... 8
2.1 Requirements for personnel ........... 8
2.2 Designated use ...................... 8
2.3 Workplace safety .................... 9
2.4 Operational safety ................... 9
2.5 Product safety ....................... 9
2.6 IT security .......................... 9
2.7 Device-specific IT security ............ 10
3 Product description ........... 10
3.1 Function ...........................10
3.2 System architecture of the FieldPort
SWA50 Bluetooth version ............ 11
4 Incoming acceptance and
product identification ......... 12
4.1 Incoming acceptance ................ 12
4.2 Product identification ................ 12
4.3 Storage and transport ............... 13
5 Mounting ...................... 13
5.1 Mounting instructions ............... 13
5.2 Range ............................. 13
5.3 Mounting methods .................. 15
5.4 Mounting the "direct mounting"
version ............................ 16
5.5 Mounting the "remote mounting"
version ............................ 27
5.6 Installing the FieldPort SWA50 with
mounting bracket ................... 33
5.7 Post-mounting check ................ 37
6 Electrical connection .......... 38
6.1 Supply voltage ...................... 38
6.2 Cable specification .................. 38
6.3 Terminal assignment ................ 39
6.4 Stripping in the case of a cable gland for
shielded cable ...................... 39
6.5 2-wire HART field device with passive
current output ...................... 40
6.6 4-wire HART field device with passive
current output ...................... 40
6.7 4-wire HART field device with active
current output ...................... 41
6.8 FieldPort SWA50 without HART field
device ............................. 42
6.9 FieldPort SWA50 grounding .......... 43
6.10 Post-connection check ............... 44
7 Operating options ............. 44
7.1 Overview of operating options ........ 44
7.2 SmartBlue app ......................45
7.3 Field Xpert SMTxx .................. 45
8 Commissioning ................ 45
8.1 Prerequisites ....................... 45
8.2 Putting the FieldPort SWA50 into
operation .......................... 46
9 Operation ...................... 51
9.1 Hardware locking ................... 51
9.2 LED ............................... 52
10 Description of SmartBlue app
for SWA50 ..................... 53
10.1 Menu overview (Navigation) .......... 53
10.2 "Device information" page ............ 53
10.3 "Application" menu .................. 56
10.4 "FieldPort SWA50" menu ("System"
menu) ............................ 57
10.5 "Field device" menu ("System" menu) .... 60
11 Maintenance .................. 61
11.1 General maintenance ................ 61
11.2 Updating the firmware ...............61
12 Diagnostics and
troubleshooting ............... 64
12.1 Diagnostics ........................ 64
12.2 Troubleshooting .................... 64
13 Repair .......................... 65
13.1 General notes ...................... 65
13.2 Disposal ........................... 65

Table of contents FieldPort SWA50
4 Endress+Hauser
14 Accessories .................... 65
15 Technical data ................. 65
16 Appendix ...................... 66
16.1 Menu overview (Navigation) .......... 66

FieldPort SWA50 About this document
Endress+Hauser 5
1 About this document
1.1 Document function
These Operating Instructions provide all of the information that is required in various phases
of the life cycle of the device including:
• Product identification
• Incoming acceptance
• Storage
• Installation
• Connection
• Operation
• Commissioning
• Troubleshooting
• Maintenance
• Disposal
1.2 Symbols
1.2.1 Safety symbols
DANGER
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.2.2 Symbols for certain types of information
Symbol Meaning
Permitted
Procedures, processes or actions that are permitted.
Preferred
Procedures, processes or actions that are preferred.
Forbidden
Procedures, processes or actions that are forbidden.
Tip
Indicates additional information.

About this document FieldPort SWA50
6 Endress+Hauser
Symbol Meaning
Reference to documentation
A
Reference to page
Reference to graphic
Notice or individual step to be observed
1.
,
2.
,
3.
… Series of steps
Result of a step
Help in the event of a problem
Visual inspection
1.2.3 Symbols in graphics
Symbol Meaning Symbol Meaning
1, 2, 3,... Item numbers
1.
,
2.
,
3.
… Series of steps
A, B, C, ... Views A-A, B-B, C-C, ... Sections
-
Hazardous area
.
Safe area (non-hazardous area)
1.2.4 Electrical symbols
Symbol Meaning
Direct current
Alternating current
Direct current and alternating current
Ground connection
A grounded terminal which, as far as the operator is concerned, is grounded via a
grounding system.
Potential equalization connection (PE: protective earth)
Ground terminals that must be connected to ground prior to establishing any other
connections.
The ground terminals are located on the interior and exterior of the device:
• Interior ground terminal: potential equalization is connected to the supply network.
• Exterior ground terminal: device is connected to the plant grounding system.

FieldPort SWA50 About this document
Endress+Hauser 7
1.2.5 SmartBlue app icons
Icon Meaning
SmartBlue
Accessible field devices
Home
Menu
Settings
1.3 Terms and abbreviations
Term Description
DeviceCare Universal configuration software for Endress+Hauser HART, PROFIBUS, FOUNDATION
Fieldbus and Ethernet field devices
DTM Device Type Manager
FieldCare Scalable software tool for device configuration and integrated plant asset management
solutions
Loop-powered adapter Loop-powered adapter
1.4 Valid versions
Component Version
Software V1.00.xx
Hardware V1.00.xx
1.5 Documentation
FieldPort SWA50
Technical Information TI01468S
1.5.1 Safety Instructions (XA)
Depending on the approval, the following Safety Instructions (XA) are supplied with the
device. They are an integral part of the Operating Instructions.
The nameplate indicates the Safety Instructions (XA) that are relevant to the device.

Basic safety instructions FieldPort SWA50
8 Endress+Hauser
1.6 Registered trademarks
HART®
Registered trademark of the FieldComm Group, Austin, Texas, USA
Bluetooth®
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG,
Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and
trade names are those of their respective owners.
Apple®
Apple, the Apple logo, iPhone, and iPod touch are trademarks of Apple Inc., registered in the
U.S. and other countries. App Store is a service mark of Apple Inc.
Android®
Android, Google Play and the Google Play logo are trademarks of Google Inc.
2 Basic safety instructions
2.1 Requirements for personnel
The personnel for installation, commissioning, diagnostics and maintenance must meet the
following requirements:
‣Trained, qualified specialists: must have a relevant qualification for this specific role and
task and have been trained by Endress+Hauser. Experts at the Endress+Hauser service
organization.
‣Personnel must be authorized by the plant owner/operator.
‣Personnel must be familiar with regional and national regulations.
‣Before starting work: personnel must read and understand the instructions in the manual
and supplementary documentation as well as the certificates (depending on the
application).
‣Personnel must follow instructions and comply with general policies.
Operating personnel must meet the following requirements:
‣Personnel are instructed and authorized according to the requirements of the task by the
facility's owner-operator.
‣Personnel follow the instructions in this manual.
2.2 Designated use
The FieldPort SWA50 is a loop-powered adapter that converts the HART signal of the
connected HART field device into a reliable and encrypted Bluetooth signal. The FieldPort
SWA50 can be retrofitted to all 2-wire or 4-wire HART field devices.
The Bluetooth signal may not be used to replace the wiring in the case of safety applications
with a control function.
Incorrect use
Non-designated use can compromise safety. The manufacturer is not liable for damage caused
by improper or non-designated use.

FieldPort SWA50 Basic safety instructions
Endress+Hauser 9
2.3 Workplace safety
For work on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
If working on and with the device with wet hands:
‣Due to the increased risk of electric shock, gloves must be worn.
2.4 Operational safety
Risk of injury!
‣Operate the device only if it is in proper technical condition, free from errors and faults.
‣The operator is responsible for interference-free operation of the device.
Modifications to the device
Unauthorized modifications to the device are not permitted and can lead to unforeseeable
dangers:
‣If modifications are nevertheless required, consult with Endress+Hauser.
2.5 Product safety
This device is designed in accordance with good engineering practice to meet state-of-the-art
safety requirements, has been tested, and left the factory in a condition in which it is safe to
operate.
The device fulfills general safety requirements and legal requirements. It also complies with
the EU/EC directives listed in the device-specific EU Declaration of Conformity.
Endress+Hauser confirms this by affixing the CE mark to the device.
2.6 IT security
We only provide a warranty if the device is installed and used as described in the Operating
Instructions. The device is equipped with security mechanisms to protect it against any
inadvertent changes to the device settings.
IT security measures in line with operators' security standards and designed to provide
additional protection for the device and device data transfer must be implemented by the
operators themselves.

Product description FieldPort SWA50
10 Endress+Hauser
2.7 Device-specific IT security
2.7.1 Access via Bluetooth® wireless technology
Signal transmission via Bluetooth® wireless technology uses a cryptographic technique
tested by Fraunhofer AISEC.
• Connection via Bluetooth® is not possible without specific Endress+Hauser devices or the
SmartBlue app.
• Only one point-to-point connection between one FieldPort SWA50 device and one
smartphone or tablet is established.
• The Bluetooth® wireless technology interface can be protected incrementally by means of
hardware locking. →  51
• The hardware locking cannot be disabled or bypassed using operating tools.
3 Product description
3.1 Function
The FieldPort SWA50 converts the HART signal of the connected HART field device to a
reliable and encrypted Bluetooth® or WirelessHART signal. The FieldPort SWA50 can be
retrofitted to all 2-wire or 4-wire HART field devices.
With the Endress+Hauser SmartBlue app and the Endress+Hauser Field Xpert, you have the
following capabilities:
• Configuration of the FieldPort SWA50
• Visualization of the measured values of the connected HART field device
• Visualization of the current combined status, consisting of the status for the FieldPort
SWA50 and the status of the connected HART field device
HART field devices can be connected to the Netilion Cloud via the FieldPort SWA50 and a
FieldEdge device.
Detailed information on Netilion Cloud: https://netilion.endress.com
NOTICE
Safety applications with control functions via Bluetooth signal
Undesirable behavior of safety application
‣Do not use a wireless signal such as Bluetooth in a safety application with a control
function.

FieldPort SWA50 Product description
Endress+Hauser 11
3.2 System architecture of the FieldPort SWA50 Bluetooth version
34 5 6 9
Netilion
7
210 11
8
1
A0040482
 1 System architecture of SWA50 Bluetooth version
1 HART field device with FieldPort SWA50, remote mounting
2 Encrypted wireless connection via Bluetooth®
3 HART field device with FieldPort SWA50, direct mounting
4 FieldEdge SGC200
5 LTE connection
6 Netilion Cloud
7 Application Programming Interface (API)
8 https Internet connection
9 Internet browser-based Netilion Service app or user application
10 Endress+Hauser SmartBlue app
11 Endress+Hauser Field Xpert, e.g. SMTxx

Incoming acceptance and product identification FieldPort SWA50
12 Endress+Hauser
4 Incoming acceptance and product identification
4.1 Incoming acceptance
• Check the packaging for visible damage arising from transportation
• Open the packaging carefully
• Check the contents for visible damage
• Check that the delivery is complete and nothing is missing
• Retain all the accompanying documents
The device may not be put into operation if the contents are found to be damaged
beforehand. In this case, please contact your Endress+Hauser Sales Center:
www.addresses.endress.com
Return the device to Endress+Hauser in the original packaging where possible.
Scope of delivery
• FieldPort SWA50
• Cable glands as per ordered version
• Optional: mounting bracket
Documentation included in delivery
• Operating Instructions
• Depends on the version ordered: Safety Instructions
4.2 Product identification
4.2.1 Nameplate
The nameplate of the device is lasered onto the housing.
Additional information about the device is available as follows:
• Enter the serial number specified on the nameplate into the Device Viewer
(www.endress.com → Product tools → Access device specific information → Device Viewer
(from the serial number to device information and documentation) → Select option → Enter
serial number): All information relating to the device is then displayed.
• Enter the serial number specified on the nameplate into the
Endress+Hauser Operations App: All information relating to the device is then displayed.
4.2.2 Manufacturer's address
Endress+Hauser SE+Co. KG
Hauptstraße 1
79689 Maulburg
Germany
www.endress.com

FieldPort SWA50 Mounting
Endress+Hauser 13
4.3 Storage and transport
• The components are packed in such a way that they are fully protected against shock when
in storage and during transportation.
• The permitted storage temperature is –40 to +85 °C (–40 to 185 °F).
• Store the components in the original packaging in a dry place.
• Where possible, only transport the components in the original packaging.
5 Mounting
5.1 Mounting instructions
• Pay attention to the alignment and range. →  13
• Observe a distance of at least 6 cm from walls and pipes. Pay attention to the expansion of
the Fresnel zone.
• Avoid mounting in close proximity to high-voltage devices.
• For a better connection, mount the FieldPort SWA50 in sight of a FieldEdge SGC200.
• Pay attention to the effect of vibrations at the mounting location.
For detailed information on the range and vibration resistance, see the Technical
Information for FieldPort SWA50 →  7
We recommend that you protect the FieldPort SWA50 against precipitation and direct
sunlight. In order not to reduce signal quality, do not use a metal cover.
5.2 Range
The range depends on the alignment of the FieldPort SWA50, the mounting location
and the environmental conditions.
As the antenna of the WirelessHART gateway or FieldEdge is normally aligned vertically,
we also recommend mounting the FieldPort SWA50 vertically. If the antennas are
aligned differently, this can greatly reduce the antenna range.

Mounting FieldPort SWA50
14 Endress+Hauser
60°
80°
80° 80°
30° 30°
30°
30°
40°
100°
40°
120°
A0043409

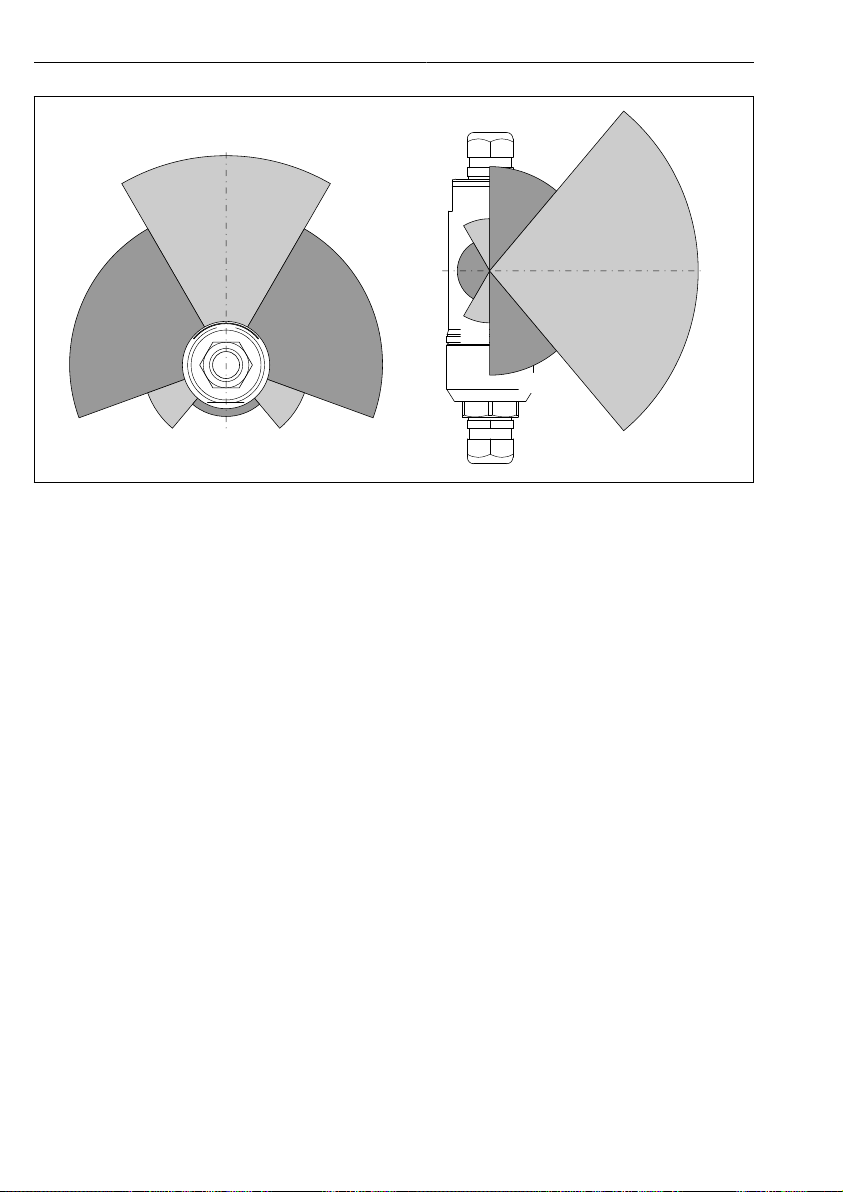

 2 Different ranges depending on the position of the transmission window
Bluetooth
Up to 40 m without obstacles when FieldPort SWA50 is optimally aligned
WirelessHART
Up to 200 m without obstacles when FieldPort SWA50 is optimally aligned

FieldPort SWA50 Mounting
Endress+Hauser 15
5.3 Mounting methods
5.3.1 "Direct mounting" version
1
2
4
5
7
6
3
A0043241
 3 Example of direct mounting
1 Cable
2 FieldPort SWA50 "direct mounting" version
3 HART field device
4 Bottom housing section
5 Transmission window
6 Design ring
7 Top housing section
Montage sequence for the "direct mounting" version: →  16

Mounting FieldPort SWA50
16 Endress+Hauser
5.3.2 "Remote mounting" version
1
4
2
5
7
3
6
A0043240
 4 Example of remote mounting
1 HART field device
2 Cable
3 FieldPort SWA50 "remote mounting" version
4 Bottom housing section
5 Transmission window
6 Design ring
7 Top housing section
For remote mounting, we recommend the optional mounting bracket. Alternatively, you
can secure the remote version using pipe clips.
Mounting sequence for the "remote mounting" version: →  27
5.4 Mounting the "direct mounting" version
NOTICE
Damaged seals.
IP degree of protection is no longer guaranteed.
‣Do not damage seals.

FieldPort SWA50 Mounting
Endress+Hauser 17
NOTICE
Supply voltage is present during installation.
Possible damage to the device.
‣Switch off supply voltage prior to installation.
‣Make sure the device is de-energized.
‣Secure it against being switched back on.
"Direct mounting" overview: →  15
Electrical connection: →  38
Tools required
• Wrench AF24
• Wrench AF36
Mounting the FieldPort SWA50
1.
1.
2.
A0040564
2.
1.
2.
A0040565

Mounting FieldPort SWA50
18 Endress+Hauser
3.
A0041512
4.
A0040500
5.
A0040502

FieldPort SWA50 Mounting
Endress+Hauser 19
6.
A0040501

Mounting FieldPort SWA50
20 Endress+Hauser
7.
+ IN + IN
7 28(0. )
7 28(0. )
28 (1.10)
-
+IN
OUT –
+
A0041551
Ensure that the cores are of sufficient length to be connected in the field device. Do not
shorten the cores to the required length until you are connecting them in the field
device.
If you use a cable gland for a shielded cable, pay attention to the information on
stripping the wire →  39.
• Electrical connection for 2-wire HART field devices with passive current output:
→  40
• Electrical connection for 4-wire HART field devices with passive current output:
→  40
• Electrical connection for 4-wire HART field devices with active current output:
→  41
• Electrical connection for FieldPort SWA50 without HART field device: →  42
