Endress+Hauser Micropilot M FMR244 Technical specifications

KA1010F/00/EN/12.09
71030600
Brief Operating Instructions
Micropilot M FMR244
Level-Radar
These are Brief Operating Instructions.
For more detailed information, please refer to the Operating Instructions and the
additional documentation on the CD-ROM provided.
These Brief Operating Instructions are not intended to replace the Operating
Instructions provided in the scope of supply.
The complete device documentation consists of:
• These Brief Operating Instructions
• A CD-ROM with:
– The Operating Instructions
– Approvals and safety certificates
– Additional device-specific information

Table of Contents Micropilot M FMR244 PROFIBUS PA
2Endress+Hauser
Table of Contents
1 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Installation, commissioning and operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3 Operational safety and process safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.5 Safety icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1 Quick installation guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Incoming acceptance, transport, storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.4 Post-installation check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

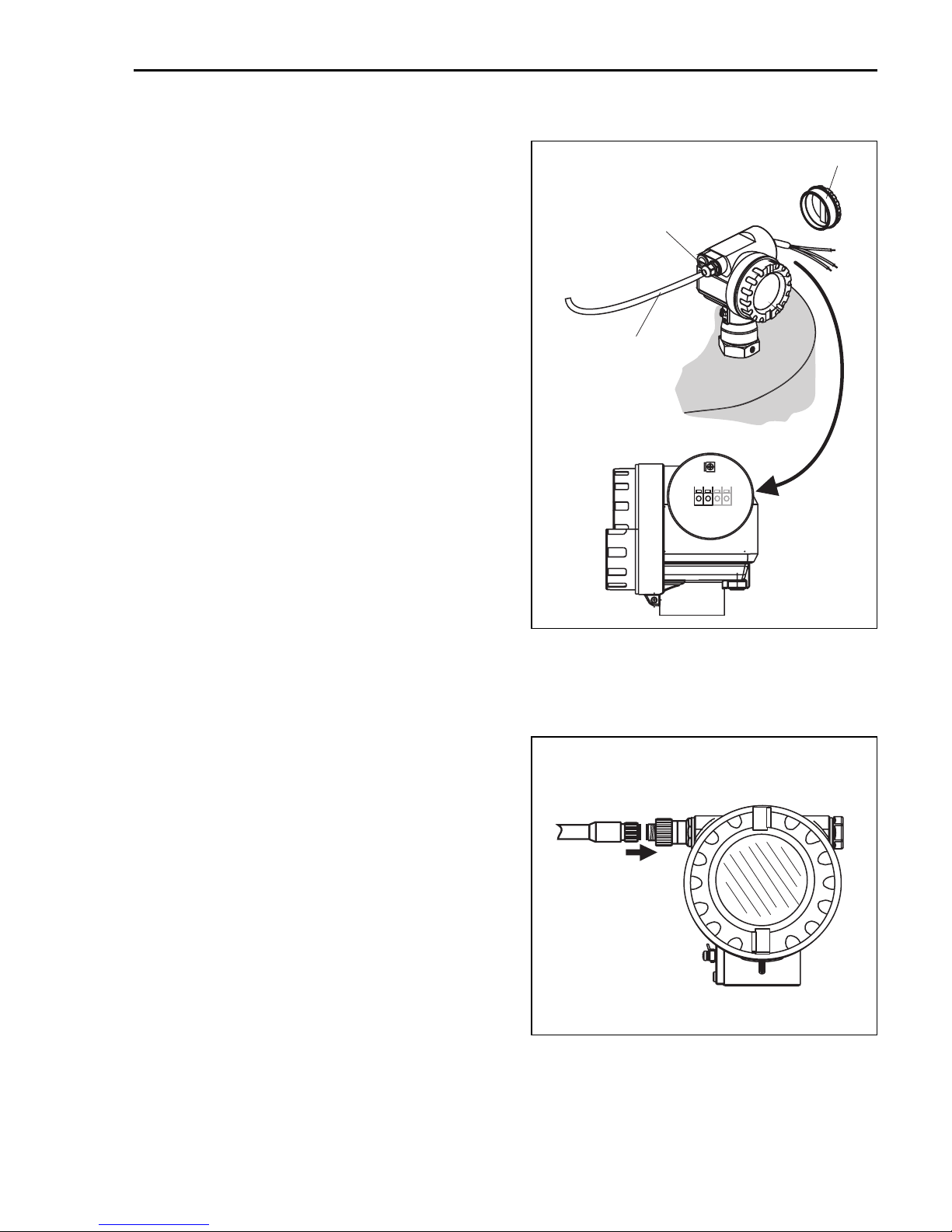

3.1 Wiring in F12 housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

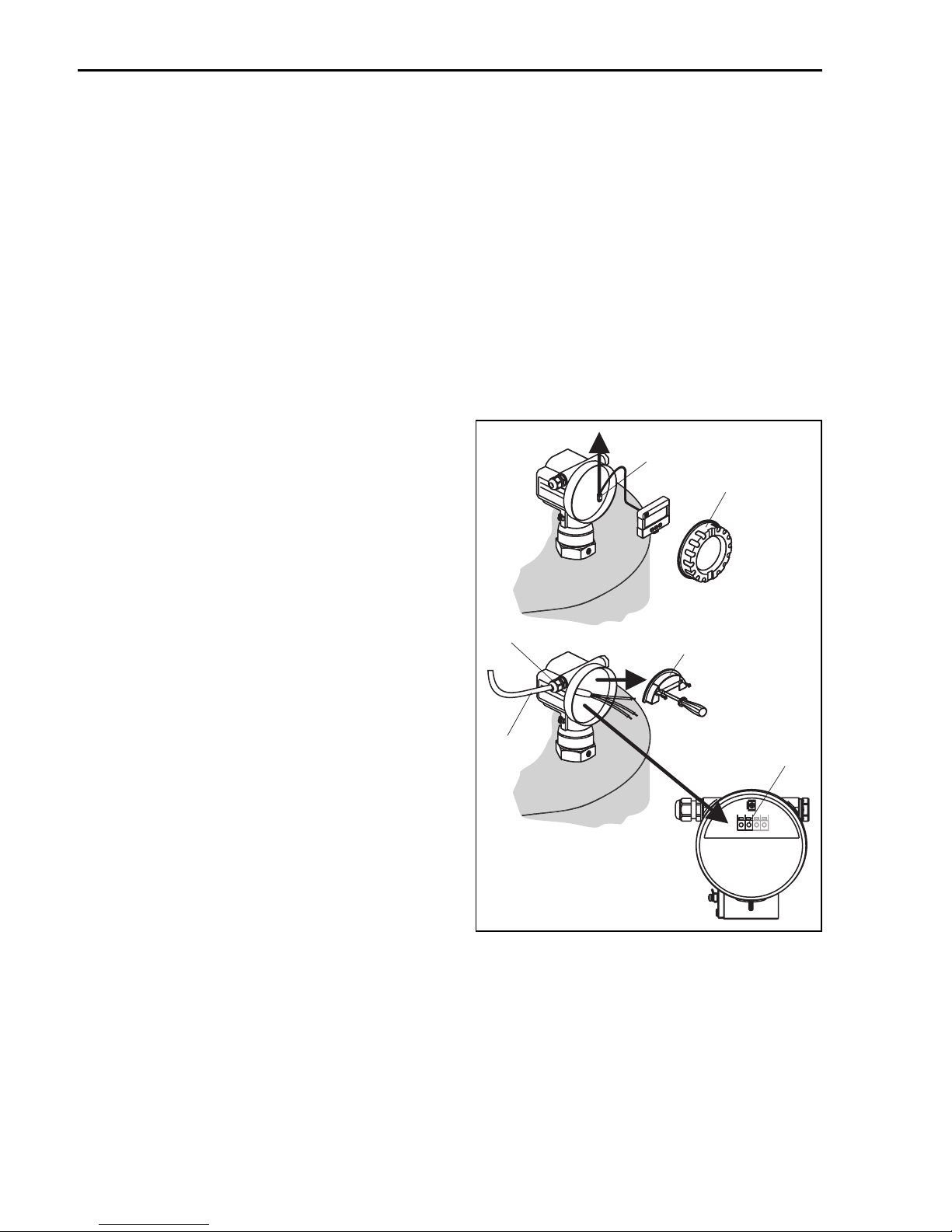

3.2 Wiring in T12 housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.3 Wiring with M12 plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.4 Terminal assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.5 Cable specification PROFIBUS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.6 Connecting the measuring unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.7 Screening/potential matching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.8 Degree of protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.9 Post-connection check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.1 General structure of the operating menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.2 Display and operating elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.3 Device address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5 Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.1 Function check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.2 Switching on the measuring device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.3 Overview Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.4 Basic Setup with the device display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.5 Envelope curve with the instrument display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Micropilot M FMR244 PROFIBUS PA Safety instructions
Endress+Hauser 3
1 Safety instructions
1.1 Designated use
The Micropilot M is a compact radar level transmitter for the continuous, contactless
measurement of liquids, pastes, sludge and solids. The device can also be freely mounted outside
closed metal vessels because of its operating frequency of about 26 GHz and a maximum
radiated pulsed energy of 1 mW (average power output 1μW). Operation is completely harmless
to humans and animals.
1.2 Installation, commissioning and operation
• The instrument must only be installed, connected, commissioned and maintained by qualified
and authorized specialists (e.g. electrical technicians) in full compliance with the instructions
in this manual, the applicable norms, legal regulations and certificates (depending on the
application).
• The specialist must have read and understood this manual and must follow the instructions it
contains. If you are unclear on anything in these Brief Operating Instructions, you must read
the Operating Instructions (on the CD-ROM). The Operating Instructions provide detailed
information on the instrument/measuring system.
• The instrument may only be modified or repaired if such work is expressly permitted in the
Operating Instructions (see CD-ROM).
• If faults cannot be rectified, the instrument must be taken out of service and secured against
unintentional commissioning.
• Do not operate damaged instruments. Mark them as defective.
1.3 Operational safety and process safety
• Alternative monitoring measures must be taken to ensure operational safety and process safety
during confiugration, testing and maintenance work on the instrument.
• The instrument is safely built and tested according to state-of-the-art technology and has left
the factory in perfect condition as regards technical safety. The applicable regulations and
European standards have been taken into account.
• Pay particular attention to the technical data on the nameplate.
• If the instrument is to be installed in an explosion hazardous area, then the specifications in
the certificate as well as all national and local regulations must be observed. The instrument
is accompanied by separate "Ex documentation", which is an integral part of this Operating
Instructions. The installation regulations, connection values and Safety Instructions listed in
this Ex document must be observed. The documentation number of the related Safety Instruc-
tions is also indicated.

Safety instructions Micropilot M FMR244 PROFIBUS PA
4Endress+Hauser
1.3.1 FCC approval
This instrument complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This instrument may not cause harmful interference, and
2. this instrument must accept any interference received, including interference that may
cause undesired operation.
"Caution!
Changes or modifications not expressly approved by the part responsible for compliance could
void the user’s authority to operate the equipment.
1.4 Return
Follow the instructions on returning the instrument as outlined in the Operating Instructions on
the CD-ROM provided.
1.5 Safety icons
Safety conventions
#Warning!
A warning highlights actions or procedures which, if not performed correctly, will lead to personal injury,
a safety hazard or destruction of the instrument.
"Caution!
Caution highlights actions or procedures which, if not performed correctly, may lead to personal injury or
incorrect functioning of the instrument.
!Note!
A note highlights actions or procedures which, if not performed correctly, may indirectly affect operation
or may lead to an instrument response which is not planned.

Micropilot M FMR244 PROFIBUS PA Mounting
Endress+Hauser 5
2 Mounting
2.1 Quick installation guide
L00-FMR244xx-17-00-00-en-006
2.2 Incoming acceptance, transport, storage
2.2.1 Incoming acceptance
Check the packing and contents for any signs of damage. Check the shipment, make sure
nothing is missing and that the scope of supply matches your order.
2.2.2 Transport
"Caution!
Follow the safety instructions and transport conditions for instrument of more than 18 kg
(39.69 lbs). Do not lift the measuring instrument by its housing in order to transport it.
2.2.3 Storage
Pack the measuring instrument so that is protected against impacts for storage and transport. The
original packing material provides the optimum protection for this.
The permissible storage temperature is -40 °C to +80 °C (-40 °F to +176 °F) or
-50 °C to +80 °C (-58 °F to +176 °F).
#
90°
90°
90°
90°
90°90°
60
90°90°
Observe orientation when installing!
Installation in tank (free space):
Mark on process connector facing
the nearest tank wall!
Installation in stilling well:
Mark on process connector
pointed towards the slots
or vent holes!
mark at threaded boss
AF 60
max. torque: 20 Nm (14.75 lbf ft)
Caution!
Tighten instrumen
t
only at the
threaded boss.

Mounting Micropilot M FMR244 PROFIBUS PA
6Endress+Hauser
2.3 Installation
2.3.1 Mounting kit
Beside a key AF 60 for installation you need the following tool:
• 4 mm (0.16 in) Allen wrench for turning the housing.
2.3.2 General installation instructions
• Marker is aligned towards tank wall.
• Install the device using the threaded boss (AF 60) only. Observe the max. torque of 20 Nm
(14.75 lbf ft)!
• After mounting, the housing can be turned 350° in order to simplify access to the display and
the terminal compartment, →ä13.
2.3.3 Installation in tank (free space)
Standard installation - 40 mm (1.57 in)
antenna
• For optimum measurement, the horn antenna
should extend below the nozzle. Nozzle
heights up to 500 mm (19.7 in) can be accep-
ted if this should not be possible due to
mechanical reasons.
!Note!
Please contact Endress+Hauser for application
with higher nozzle.
• The antenna must be aligned vertically.
L00-FMR244xx-17-00-00-en-002
Antenna size 40 mm (1½")
D [mm (in)] 39 (1.54)
H [mm (in)] < 85 (3.35)
H
ØD

Micropilot M FMR244 PROFIBUS PA Mounting
Endress+Hauser 7

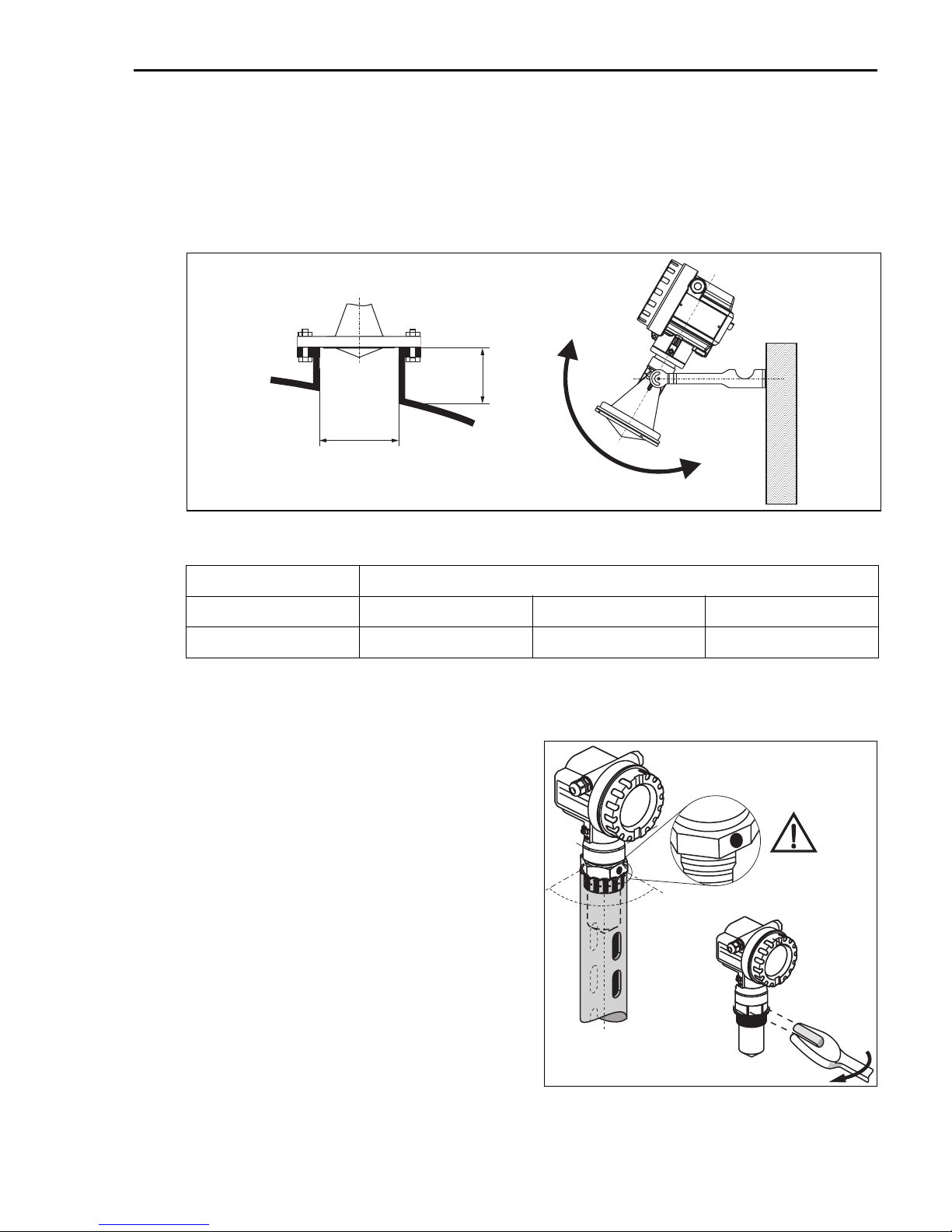

Standard installation - 80 mm (3.15 in) antenna
• The marker is located directly below the housing neck on the stainless steel feedthrough.
• As an option for flange mounting, a variable flange seal (see "Accessories") can be used to align
the device (solid applications).
• If using a mounting bracket , the device can be aligned at the bracket (solid applications).
L00-FMR244xx-17-00-00-xx-011
2.3.4 Installation in stilling well
Antenna size 80 mm (3")
D [mm (in)] 80 (3.15) 100 (3.94) 150 (5.91)
H [mm (in)] < 500 (19.7) < 500 (19.7) < 500 (19.7)
H
ØD
For installations in a stilling well, follow the
engineering hints (→ä9) and note the
following points:
• Marker is aligned toward slots.
• Measurements can be performed through
an open ball valve without any problems.
L00-FMR244xx-17-00-00-en-007
90°90°
60
AF 60
max. torque: 20 Nm (14.75 lbf ft)
Caution!
Use only the
threaded boss

Mounting Micropilot M FMR244 PROFIBUS PA
8Endress+Hauser
2.3.5 Orientation
• Recommended distance (1) wall - outer
edge of nozzle: ~1/6 of tank diameter.
Nevertheless the device should not be
installed closer than 15 cm (5.91 in) to the
tankwall.
• Not in the centre (3), interference can
cause signal loss.
• Not above the fill stream (4).
• It is recommended to use a weather pro-
tection cover (2) in order to protect the
transmitter from direct sun or rain.
Assembly and disassembly is simply done
by means of a tension clamp (see Opera-
tion Instruction on the CD-ROM).
L00-FMR2xxxx-17-00-00-xx-008
1
234

Micropilot M FMR244 PROFIBUS PA Mounting
Endress+Hauser 9
2.3.6 Engineering hints
Tank installations
• Avoid any installations (1), like limit
switches, temperature sensors, etc., inside
the signal beam (→ä10).
• Symmetrical installations (2), i.e. vacuum
rings, heating coils, baffles, etc., can also
interfere with the measurement.
Optimization options
• Antenna size: the bigger the antenna, the
smaller the beam angle, the less
interference echoes.
• Mapping: the measurement can be
optimized by means of electronic
suppression of interference echoes.
• Antenna alignment: refer to
BA249F/00/EN.
• Stilling well: a stilling well can always be
used to avoid interference.
• Metallic screens (3) mounted at a slope
spread the radar signals and can,
therefore, reduce interference echoes.
• For mounting in solid applications use the
variable flange seal to align the device
towards the product surface (see
TI345F/00/EN, "Accessories").
Please contact Endress+Hauser for further
information.
L00-FMR2xxxx-17-00-00-xx-009
1
3
2
a

Mounting Micropilot M FMR244 PROFIBUS PA
10 Endress+Hauser

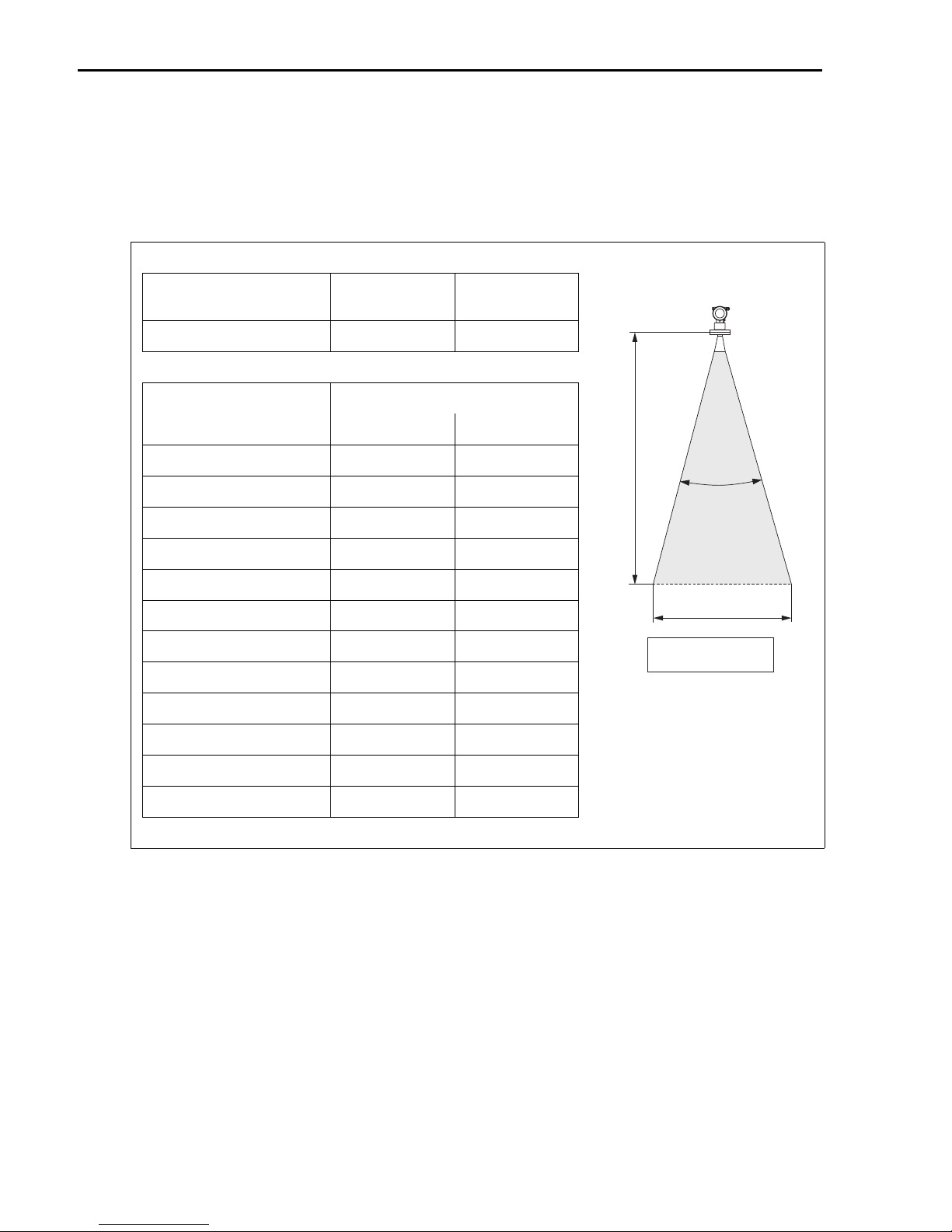

2.3.7 Beam angle
The beam angle is defined as the angle α where the energy density of the radar waves reaches
half the value of the maximum energy density (3dB-width). Microwaves are also emitted outside
the signal beam and can be reflected off interfering installations. Beam diameter Was function
of antenna type (beam angle α) and measuring distance D:
2.3.8 Measuring conditions in liquids
• In case of boiling surfaces, bubbling or tendency for foaming, use FMR230 or FMR231.
Depending on its consistence, foam can either absorb microwaves or reflect them off the foam
surface. Measurement is possible under certain conditions.
• In case of heavy steam development or condensate the max. measuring range of FMR240
may decrease depending on density, temperature and composition of the steam
È use FMR230 or FMR231.
L00-FMR2xxxx-14-00-06-de-027
Antenna size
(horn diameter) 40 mm (1½") 80 mm (3")
Beam angle α23° 10°
Measuring
distance (D)
Beam diameter (W)
40 mm (1½") 80 mm (3")
3 m (9.8 ft) 1,22 m (4 ft) 0,53 m (1.7 ft)
6 m (20 ft) 2,44 m (8 ft) 1,05 m (3.4 ft)
9 m (30 ft) 3,66 m (12 ft) 1,58 m (5.2 ft)
12 m (39 ft) 4,88 m (16 ft) 2,10 m (6.9 ft)
15 m (49 ft) 6,10 m (20 ft) 2,63 m (8.6 ft)
20 m (66 ft) 8,14 m (27 ft) 3,50 m (11 ft)
25 m (82 ft) 10,17 m (33 ft) 4,37 m (14 ft)
30 m (98 ft) −5,25 m (17 ft)
35 m (115 ft) −6,12 m (20 ft)
40 m (131 ft) −7,00 m (23 ft)
45 m (148 ft) −7,87 m (26 ft)
60 m (197 ft) −10,50 m (34 ft)
a
D
W
a
D
_
=2
2..
tan
W

Micropilot M FMR244 PROFIBUS PA Mounting
Endress+Hauser 11
• For the measurement of absorbing gases such as ammonia NH3or some fluorocarbons1),
please use FMR230 in a stilling well.
• The measuring range begins, where the beam hits the tank bottom. Particularly with dish
bottoms or conical outlets the level cannot be detected below this point.
• In case of media with a low dielectric constant (groups A and B), the tank bottom can be
visible through the medium at low levels (low height C). Reduced accuracy has to be expected
in this range. If this is not acceptable, we recommend positioning the zero point at a distance
C(see Fig.) above the tank bottom in these applications.
• In principle it is possible to measure up to the tip of the antenna with FMR230/231/240.
However, due to considerations regarding corrosion and build-up, the end of the measuring
range should not be chosen any closer than A(see Fig.) to the tip of the antenna.
For FMR244/245, the end of measuring range should not be chosen closer than A(see Fig.)
to the tip of the antenna, especially if there is development of condensate.
• The smallest possible measuring range Bdepends on the antenna version (see Fig.).
• The tank diameter should be greater than D(see Fig.), the tank height at least H(see Fig.).
L00-FMR2xxxx-17-00-00-en-009
1) Affected compounds are e.g. R134a, R227, Dymel 152a
A [mm (in)] B [m (ft)] C [mm (in)] D [m (ft)] H [m (ft)]
150 (5.91) > 0,2 (0.7) 50 to 250
(1.97 to 9.84) > 0,2 (0.7) > 0,3 (1)
100%
0%
B
A
C
H
ØD

Mounting Micropilot M FMR244 PROFIBUS PA
12 Endress+Hauser

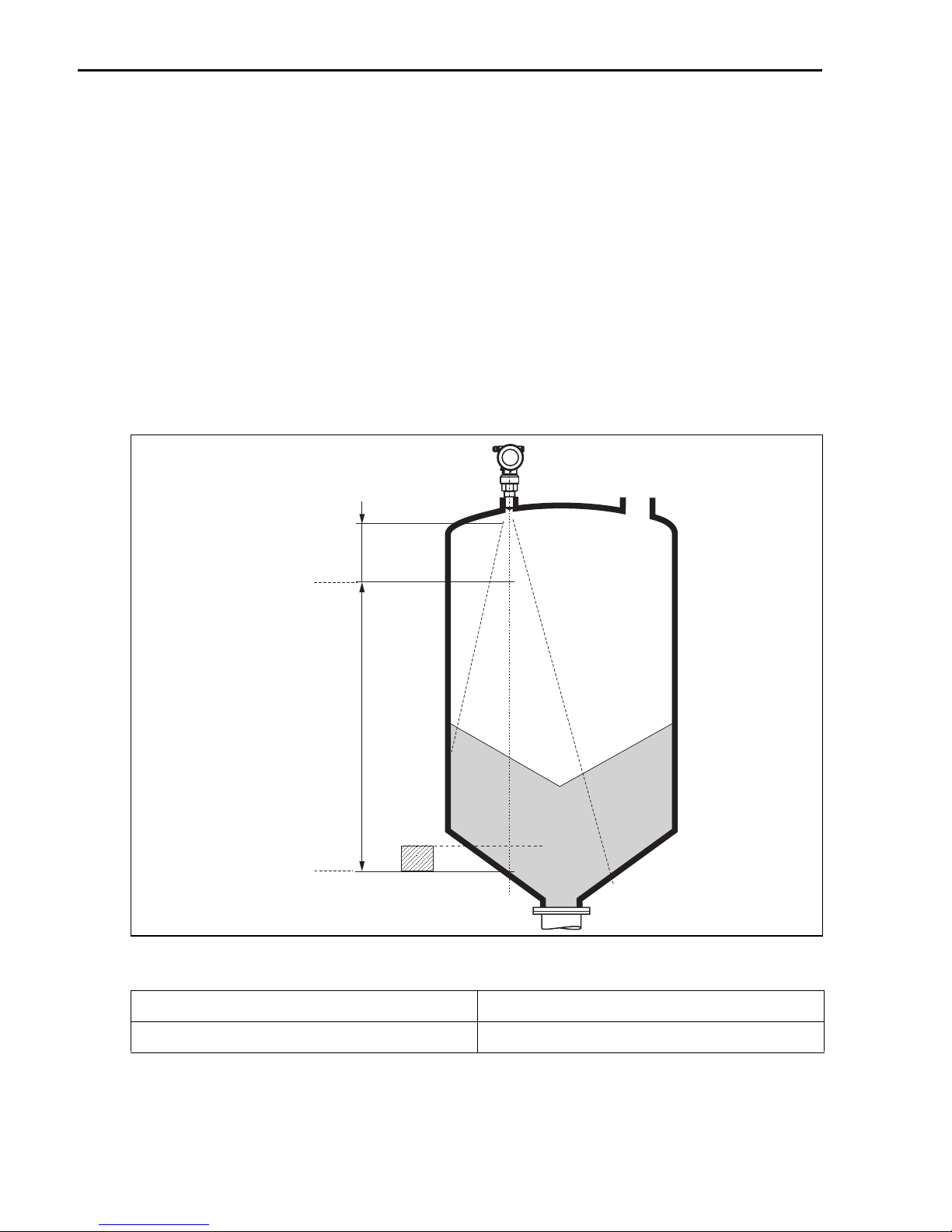

2.3.9 Measuring conditions in solids
• The measuring range begins, where the beam hits the bottom. Particularly with conical outlets
the level cannot be detected below this point.
The maximum measuring range can be increased in such applications by using a top target
positioner (see TI345F/00/EN).
• In case of media with a low dielectric constant (groups A and B), the bottom can be visible
through the medium at low levels. In order to guarantee the required accuracy in these cases,
it is recommended to position the zero-point at a distance Cabove the bottom (see Fig.).
• In principle it is possible to measure up to the tip of the antenna with the Micropilot M.
However, due to considerations regarding abrasion and build-up and depending on the
orientation of the product surface (angel of repose), the end of the measuring range should be
at a distance of A(see Fig). If required, and if some conditions (high DC value, flat angle of
repose) are met, shorter distances can be achieved.
L00-FMR250xx-17-00-00-en-001
A [mm (in)] C [mm (in)]
approx. 400 (15.7) 50 to 150 (1.97 to 5.91)
100%
0%
A
C
Measuring range

Micropilot M FMR244 PROFIBUS PA Mounting
Endress+Hauser 13
2.3.10 Turn housing
After mounting, the housing can be turned 350° in order to simplify access to the display and
the terminal compartment. Proceed as follows to turn the housing to the required position:
• Undo the fixing screws (1).
• Turn the housing (2) in the required direction.
• Tighten up the fixing screws (1).
L00-FMR2xxxx-17-00-00-en-011
2.4 Post-installation check
After the measuring instrument has been installed, perform the following checks:
• Is the measuring instrument damaged (visual check)?
• Does the measuring instrument correspond to the measuring point specifications such as pro-
cess temperature/pressure, ambient temperature, measuring range, etc.?
• Is the flange marking correctly aligned (→ä5)?
• Have the flange screws been tightened up with the respective tightening torque?
• Are the measuring point number and labeling correct (visual check)?
• Is the measuring instrument adequately protected against rain and direct sunlight (see Chapter
"Accessories" in the Operating Instruction on the CD-ROM)?
1
1
22
F12 housing T12 housing
allen key
4 mm (0.16 in)
max. torque 0.5 Nm (0.37 lbf ft)

Wiring Micropilot M FMR244 PROFIBUS PA
14 Endress+Hauser
3 Wiring
#Warning!
When using the measuring instrument in hazardous areas, installation must comply with the
corresponding national standards and regulations and the Safety Instructions or Installation or
Control Drawings.
"Caution!
Before connection please note the following:
• The power supply must be identical to the data on the nameplate.
• Switch off power supply before connecting up the instrument.
• Use screened, twisted wire pair.
3.1 Wiring in F12 housing
1. Unscrew housing cover (1).
2. Remove any display (2) if fitted.
3. Remove cover plate from terminal
compartment (3).
4. Pull out terminal module (4) slightly
using "pulling loop".
5. Insert cable (5) through gland (6).
6. Make connection (see terminal
assignment).
7. Re-insert terminal module (4).
8. Tighten cable gland (6).
9. Tighten screws on cover plate (3).
10. Insert display (2) if fitted.
11. Screw on housing cover (1).
12. Switch on power supply.
L00-FMR244xx-04-00-00-xx-001
3
4
5
6
1
2
ENDRESS+HAUSER
12 34

Micropilot M FMR244 PROFIBUS PA Wiring
Endress+Hauser 15
3.2 Wiring in T12 housing
3.3 Wiring with M12 plug
1. Unscrew housing cover (1).
2. Insert cable (2) through gland (3).
3. Connect cable screen to the grounding
terminal (4) within the terminal
compartment.
4. Make connection (see terminal
assignment).
5. Tighten cable gland (3).
6. Screw on housing cover (1).
7. Switch on power supply.
L00-FMR244xxx-04-00-00-xx-002
1
3
2
12 34
1. Insert plug (1) into bushing (2).
2. Screw firmly.
3. Ground the device according to the
desired safety concept.
L00-FMP4xxxx-04-00-00-xx-002
1
2

Wiring Micropilot M FMR244 PROFIBUS PA
16 Endress+Hauser
3.4 Terminal assignment
L00-FMP4xxxx-04-00-00-en-007
3.5 Cable specification PROFIBUS
Twisted, screened pairs must be used. The following cable types can be used, for example:
• Siemens 6XV1 830-5BH10 (grey)
• Kerpen CEL-PE/OSCR/PCV/FRLA FB-02YS(ST)YFL (grey)
• Belden 3076F (orange)
3.6 Connecting the measuring unit
Cable entry
• Cable gland: M20x1.5
• Cable entry: G½ or ½NPT
• PROFIBUS PA M12 plug
Supply voltage
The following values are the voltages across the terminals directly at the instrument:
Current consumption
• Device basic current: max. 13 mA
• Error current FDE (Fault Disconnection Electronic): 0 mA
Supply voltage 9 V to 32 V (non Ex)
max. voltage: 35 V
Polarity sensitive No
FISCO / FNICO compliant in accordance to
IEC60079-27
Yes
34 12
PA- PA+
plant ground

Micropilot M FMR244 PROFIBUS PA Wiring
Endress+Hauser 17
Overvoltage protector
The level transmitter Micropilot M with T12-housing (housing version "D", see ordering
information) is equipped with an internal overvoltage protector (600 V surge arrester) according
to DIN EN 60079-14 or IEC 60060-1 (impulse current test 8/20 μs, Î = 10 kA, 10 pulses).
Connect the metallic housing of the Micropilot M to the tank wall or screen directly with an
electrically conductive lead to ensure reliable potential matching.
Connection with M12 plug
The Micropilot M PROFIBUS PA sensor version with M12 plug is supplied ready wired and need
only be connected to the bus by means of a suitable cord set.
3.7 Screening/potential matching
• You achieve optimum screening against disturbances if the screening is connected on both
sides (in the cabinet and on the device). If you have to reckon with potential equalisation cur-
rents in the plant, only earth screening on one side, preferably at the transmitter.
• When using in hazardous areas, you must observe the applicable regulations and the separate
Ex documentation.
3.8 Degree of protection
• with closed housing: IP65, NEMA4X (higher degree of protection e. g. IP68 on request)
• with open housing: IP20, NEMA1 (also ingress protection of the display)
• antenna: IP68 (NEMA6P)
"Caution!
Degree of protection IP68 NEMA 6P applies for M12 PROFIBUS PA plugs only when the
PROFIBUS cable is plugged in.
3.9 Post-connection check
After wiring the measuring instrument, perform the following checks:
• Is the terminal allocation correct (→ä16)?
• Is the cable gland tight?
• Is the M12 plug screwed tight?
• Is the housing cover screwed tight?
• If auxiliary power is available:
Is the instrument ready for operation and does the liquid crystal display show any value?

Operation Micropilot M FMR244 PROFIBUS PA
18 Endress+Hauser
4Operation
4.1 General structure of the operating menu
The operating menu is made up of two levels:
•Function groups (00, 01, 03, …, 0C, 0D):
The individual operating options of the instrument are split up roughly into different function
groups. The function groups that are available include, e.g.: "basic setup", "safety
settings.", "output", "display", etc.
•Functions (001, 002, 003, …, 0D8, 0D9):
Each function group consists of one or more functions. The functions perform the actual
operation or parameterisation of the instrument. Numerical values can be entered here and
parameters can be selected and saved. The available functions of the "basic setup" (00)
function group include, e.g.: "tank shape" (002), "medium property" (003), "process
cond." (004), "empty calibr." (005), etc.
If, for example, the application of the instrument is to be changed, carry out the following pro-
cedure:
1. Select the "basic setup" (00) function group.
2. Select the "tank shape" (002) function (where the existing tank shape is selected).
4.1.1 Identifying the functions
For simple orientation within the function menus, for each function a position is shown on the
display.
L00-FMRxxxxx-07-00-00-en-005
The first two digits identify the function group:
•basic setup 00
•safety settings 01
•linearisation 04
...

Micropilot M FMR244 PROFIBUS PA Operation
Endress+Hauser 19
The third digit numbers the individual functions within the function group:
Here after the position is always given in brackets (e.g. "tank shape" (002)) after the described
function.
4.2 Display and operating elements
Four lines with 20 characters each. Display contrast adjustable through key combination.
L00-FMxxxxxx-07-00-00-en-001
The LCD display can be removed to ease operation by simply pressing the snap-fit (see graphic
above). It is connected to the device by means of a 500 mm (19.7 in) cable.
•basic setup 00 →•tank shape 002
•medium property 003
•process cond 004
...
ENDRESS + HAUSER
E
+
–
ENDRESS+HAUSER
MICROPILOTII
ENDRESS+HAUSER
MICROPILOTII
IP65
IP65
OrderCode:
Ser.-No.:
OrderCode:
Ser.-No.:
Messbereich
Measuringrange
Messbereich
Measuringrange
U16...36VDC
4...20mA
U16...36VDC
4...20mA
max.20m
max.20m
MadeinGermany Maulburg
MadeinGermany Maulburg
T>
70°C:
At>85°C
T>
70°C:
At>85°C
LCD
(liquid crystal display)
Symbols
3 keys
snap-fit

Operation Micropilot M FMR244 PROFIBUS PA
20 Endress+Hauser
4.2.1 Display
L00-FMRxxxxx-07-00-00-en-003
4.2.2 Display symbols
The following table describes the symbols that appear on the liquid crystal display:
+21dB 09C
10.002.305m
0.00
ENDRESS + HAUSER
E
+
–
Headline Position indicator
Main value
Unit
Symbol
Selection list
Help text
Envelope
curve
Bargraph
Symbol Meaning
ALARM_SYMBOL
This alarm symbol appears when the instrument is in an alarm state. If the symbol flashes, this indicates a
warning.
LOCK_SYMBOL
This lock symbol appears when the instrument is locked, i.e. if no input is possible.
COM_SYMBOL
This communication symbol appears when a data transmission via e.g. HART, PROFIBUS PA or
FOUNDATION Fieldbus is in progress.
