Endress+Hauser Liquicap M FMI51 User manual

BA00297F/00/EN/13.10
71128821
Valid as of software version:
FW: V 01.00.00
HW: V 01.00
Operating Instructions
Liquicap M FMI51, FMI52
FEI57C PFM
Capacitance level measurement

Liquicap M FMI51, FMI52 (PFM) Table of contents
2Endress+Hauser
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . 3
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Installation, commissioning and operation . . . . . . . . 3
1.3 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4 Notes on safety conventions and icons . . . . . . . . . . 4
2 Identification . . . . . . . . . . . . . . . . . . . . 5
2.1 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.3 Certificates and approvals . . . . . . . . . . . . . . . . . . . 12
2.4 Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3 Installation . . . . . . . . . . . . . . . . . . . . . 13
3.1 Quick installation guide . . . . . . . . . . . . . . . . . . . . 13
3.2 Incoming acceptance, transport, storage . . . . . . . . 13
3.3 Planning instructions . . . . . . . . . . . . . . . . . . . . . . 14
3.4 Measuring condition . . . . . . . . . . . . . . . . . . . . . . . 15
3.5 Minimum probe length for nonconductive media
(<1μs/cm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.6 Installation examples . . . . . . . . . . . . . . . . . . . . . . 16
3.7 With separate housing . . . . . . . . . . . . . . . . . . . . . 21
3.8 Installation instructions . . . . . . . . . . . . . . . . . . . . . 24
3.9 Post-installation check . . . . . . . . . . . . . . . . . . . . . 26
4 Wiring. . . . . . . . . . . . . . . . . . . . . . . . . 27
4.1 Recommendations for connection . . . . . . . . . . . . . 27
4.2 Wiring and connecting . . . . . . . . . . . . . . . . . . . . . 28
4.3 Post-connection check . . . . . . . . . . . . . . . . . . . . . 31
5 Operation . . . . . . . . . . . . . . . . . . . . . . 32
5.1 Operating options . . . . . . . . . . . . . . . . . . . . . . . . . 32
5.2 Display and operating elements . . . . . . . . . . . . . . . 32
5.3 Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6 Commissioning. . . . . . . . . . . . . . . . . . 33
6.1 Function check . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6.2 Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7 Maintenance. . . . . . . . . . . . . . . . . . . . 34
8 Accessories. . . . . . . . . . . . . . . . . . . . . 35
8.1 Protective cover . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.2 Shortening set for FMI52 . . . . . . . . . . . . . . . . . . . 35
8.3 Commubox FXA195 HART . . . . . . . . . . . . . . . . . 35
8.4 HAW56x surge arrester . . . . . . . . . . . . . . . . . . . . 35
8.5 Weld-in adapter . . . . . . . . . . . . . . . . . . . . . . . . . . 35
9 Troubleshooting . . . . . . . . . . . . . . . . . 35
9.1 Error analysis. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
9.2 Application errors . . . . . . . . . . . . . . . . . . . . . . . . . 36
9.3 Possible measuring errors . . . . . . . . . . . . . . . . . . . 36
9.4 Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
9.5 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
9.6 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9.7 Software history . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9.8 Contact addresses at Endress+Hauser . . . . . . . . . . 38
10 Technical data . . . . . . . . . . . . . . . . . . . 38
10.1 Technical data: probe . . . . . . . . . . . . . . . . . . . . . . 38
10.2 Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
10.3 Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
10.4 Performance characteristics . . . . . . . . . . . . . . . . . . 39
10.5 Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
10.6 Operating conditions: Environment . . . . . . . . . . . . 42
10.7 Operating conditions: Process . . . . . . . . . . . . . . . . 44
10.8 Certificates and approvals . . . . . . . . . . . . . . . . . . . 46
10.9 Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Liquicap M FMI51, FMI52 (PFM) Safety instructions
Endress+Hauser 3
1 Safety instructions
1.1 Designated use
Liquicap M FMI51, FMI52 are compact, capacitance level transmitters for the continuous
measurement of liquids.
1.2 Installation, commissioning and operation
Liquicap M is designed to meet state-of-the-art safety regulations and complies with the applicable
requirements and EC Directives. If used improperly or other than intended, the device can,
however, be a source of application-related danger, e.g. product overflow as a result of incorrect
installation or configuration. For this reason, installation, electrical connection, commissioning,
operation and maintenance of the measuring system must only be carried out by trained technical
personnel authorized to perform such work by the owner-operator. The technical personnel must
have read and understood these Operating Instructions and must follow the instructions they
contain. The device may only be repaired or modified if expressly permitted in the Operating
Instructions.
1.3 Operational safety
When performing configuration, testing and maintenance work on the device, alternative
supervisory measures must be taken to guarantee the operational safety and process safety.
1.3.1 Ex area
When using the measuring system in Ex-areas, the appropriate national standards and regulations
have to be observed. Separate Ex documentation, which constitutes an integral part of this
documentation, is supplied with the device. The installation procedures, connection data and safety
instructions it contains must be observed.
• Make sure that the technical staff has adequate training.
• The special measuring and safety-related requirements for the measuring points must be
observed.

Safety instructions Liquicap M FMI51, FMI52 (PFM)
4Endress+Hauser
1.4 Notes on safety conventions and icons
To highlight safety-related or alternative processes, we have designed the following safety
instructions where every instruction is indicated by a corresponding pictogram.
Safety instructions
#Warning!
Draws attention to activities or procedures that can result in serious injuries to persons, a safety risk
or the destruction of the device if not carried out properly.
"Caution!
Draws attention to activities or procedures that can result in injuries to persons or the defective
operation of the device if not carried out properly.
!Note!
Draws attention to activities or procedures that have an indirect effect on operation, or can trigger an
unforeseen device reaction if not carried out properly.
Type of protection
0Explosion-protected equipment tested for type examination
If this sign can be found on the nameplate of the device, the device can be operated in hazardous
areas or non-hazardous areas in accordance with the approval
-Ex area
This symbol in the drawings in these Operating Instructions indicates Ex-areas. Devices located in
Ex-areas, or cables for such devices, must have appropriate explosion protection.
.Safe area (non-hazardous area)
This symbol in the drawings in these Operating Instructions indicates non-Ex areas. Devices in non-
hazardous areas must also be certified if connecting cables lead into hazardous areas.
Electrical symbols
%Direct current
A terminal to which direct voltage is applied or through which the direct current flows.
&Alternating current
A terminal to which alternating voltage (sine wave) is applied or through which the alternating
current flows.
)Ground connection
A grounded terminal which, from a user's point of view, is grounded via a grounding system.
*Protective earth connection
A terminal that has to be grounded before any other connections may be established.
+Equipotential connection
A connection that has to be connected to the grounding system of the plant. This can be a potential
matching line or a star grounding system, depending on national or company codes of practice.
Immunity to temperature change of the connecting cables
Means that the connecting cables have to withstand a temperature of 85 °C at least.
t >85°C

Liquicap M FMI51, FMI52 (PFM) Identification
Endress+Hauser 5
2 Identification
2.1 Device designation
2.1.1 Nameplate
You can take the following technical data from the nameplate of the device:

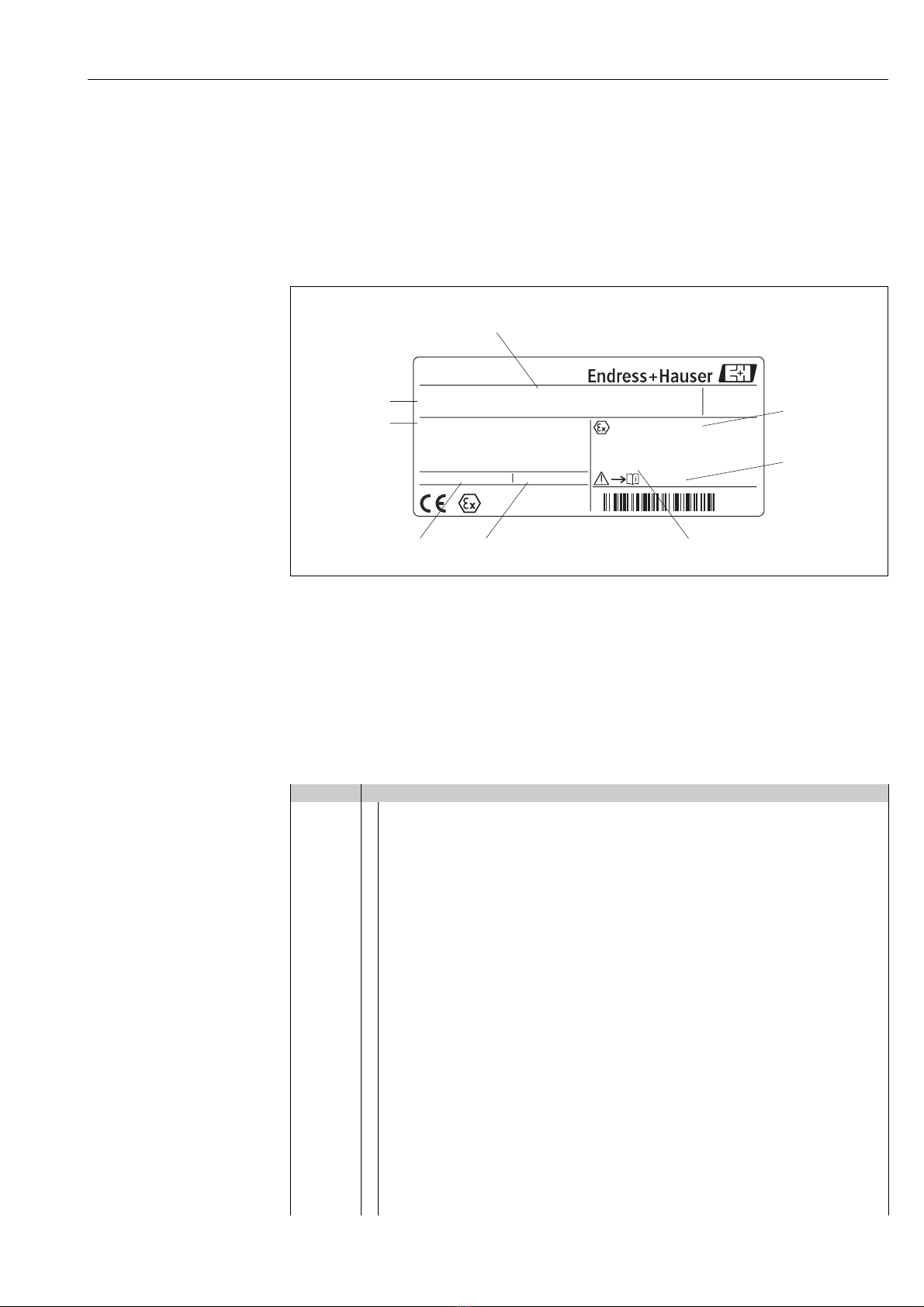

L00-FMI5xxxx-18-00-00-en-001
Information on the Liquicap M nameplate (example)
2.1.2 Product structure
!Note!
The product structure is used to identify the alphanumeric order number (see nameplate: Order
Code).
Liquicap M FMI51 (device identification)
250002075 - -
Dat.:
IP66/ IP67
NEMA4X
MWP:
≤
Ta
≤
+60°C
-40°C
Liquicap M
Order Code.:
Ser.No.:
XA327F
BVS 05 ATEX E 103 X
ATEX II 1/2 G EEx ia IIB T6
ATEX II 1/2 G EEx ia IIC T6
L1 = 1000
L3 = 1000
L = 2000
07/05
Made in Germany, D- 79689 Maulburg
Output:
XXXXXXXXXXXXX
mm
mm
mm
FEI57C
FMI51-xxxxxxxxxxxxxx
U: 14,8 V DC
25bar
Z 65.13.xxx
PFM
Order number
(see ordering information)
Approval No.
ATEX
Safety information
Serial number
Ambient temperature
at housing
Electronic insert
WHG approval
(German Water Resources Act)
Max. permissible pressure
in tank
10 Approval:
A Non-hazardous area
B Non-hazardous area, WHG
C ATEX II 1/2 GD Ex ia IIC T6
D ATEX II 1/2 GD Ex ia IIC T6, WHG
E ATEX II 1/2 GD Ex ia IIB T6
F ATEX II 1/2 GD Ex ia IIB T6, WHG
G ATEX II 1/2 G Ex d (ia) IIB T6, WHG
H ATEX II 1/2 GD Ex ia IIC T6,
XA, note safety instruction (XA) (electrostatic charging)!
J ATEX II 1/2 GD Ex ia IIC T6, WHG
XA, note safety instruction (XA) (electrostatic charging)!
K ATEX II 1/2 G Ex ia IIC T6, WHG
XA, note safety instruction (XA) (electrostatic charging)!
L ATEX II 1/2 G Ex de (ia) IIC T6, WHG
XA, note safety instruction (XA) (electrostatic charging)!
M ATEX II 3 GD Ex nA II T6, WHG
XA, note safety instruction (XA) (electrostatic charging)!
N CSA General Purpose, CSA C US
P CSA/FM IS Cl. I, II, III Div. 1+2 Gr. A-G
R CSA/FM XP Cl. I, II, III Div. 1+2 Gr. A-G
S TIIS Ex ia IIC T3
T TIIS Ex d IIC T3
1 NEPSI Ex ia IIC T6
2 NEPSI Ex d(ia) IIC T6
4 NEPSI Ex nA IIC T6
5 IECEx Ga/Gb Ex ia IIC T6; Ex iaD 20/ Ex tD A21

Identification Liquicap M FMI51, FMI52 (PFM)
6Endress+Hauser
6 IECEx Ga/Gb Ex ia IIC T6
Y Special version, to be specified
20 Inactive Length L3:
Price per 100 mm/1 inch
L3: 100 to 2000 mm/4 to 80 inch for 316L
L3: 150 to 1000 mm/6 to 40 inch for PTFE fully insulated
Protection against condensate + bypassing container nozzles
1 Not selected
2 ... mm, 316L
3 ... mm, 316L + fully insulated PTFE
5 ... inch, 316L
6 ... inch, 316L + fully insulated PTFE
9 Special version, to be specified
30 Active Probe Length L1; Insulation:
Price per 100 mm/1 inch
L1: 100 to 4000 mm/4 to 160 inch for ∅10 mm, ∅16 mm
L1: 150 to 3000 mm/6 to 120 inch for ∅22 mm (fully insulated)
A ... mm L1, 10 mm rod, 316L; PTFE
B ... mm L1, 16 mm rod, 316L; PTFE
C ... mm L1, 22 mm rod, 316L; PTFE
D ... mm L1, 16 mm rod, 316L; PFA
E ... mm L1, 10 mm rod, 316L; PTFE + ground tube
F ... mm L1, 16 mm rod, 316L; PTFE + ground tube
G ... mm L1, 16 mm rod, 316L; PFA + ground tube
H ... inch L1, 0.4 inch rod, 316L; PTFE
K ... inch L1, 0.6 inch rod, 316L; PTFE
M ... inch L1, 0.9 inch rod, 316L; PTFE
N ... inch L1, 0.6 inch rod, 316L; PFA
P ... inch L1, 0.4 inch rod, 316L; PTFE + ground tube
R ... inch L1, 0.6 inch rod, 316L; PTFE + ground tube
S ... inch L1, 0.6 inch rod, 316L; PFA + ground tube
Y Special version, to be specified
50 Process Connection: ∅inactive length
(mm)
Threaded connection
GCJ G ½, 316L, 25 bar Thread ISO228 22
GDJ G ¾, 316L, 25 bar Thread ISO228 22
GEJ G 1, 316L, 25 bar Thread ISO228 22
GGJ G 1½, 316L, 100 bar Thread ISO228 43
RCJ NPT ½, 316L, 25 bar Thread ANSI 22
RDJ NPT ¾, 316L, 25 bar Thread ANSI 22
REJ NPT 1, 316L, 25 bar Thread ANSI 22
RGJ NPT 1½, 316L, 100 bar Thread ANSI 43
Hygiene connection
GQJ G ¾ 316L, 25 bar, EHEDG Thread ISO228 –
Accessories installation, weld-in adapter
GWJ G 1 316L, 25 bar, EHEDG Thread ISO228 –
Accessories installation, weld-in adapter
MRJ DN50 PN40, 316L DIN11851 22/43***
UPJ Universal adapter 44 mm 316L, 16 bar –
Tri-Clamp connection
TCJ DN25 (1"), EHEDG 316L, Tri-Clamp ISO2852 22
TJJ DN38 (1½"), EHEDG 316L, Tri-Clamp ISO2852 22
TJK DN38 (1½"), EHEDG PTFE >316L, 3A Tri-Clamp ISO2852 22
TDJ DN40-51 (2"), 316L, Tri-Clamp ISO2852 43
TDK DN40-51 (2"), EHEDG PTFE >316L, 3A, Tri-Clamp ISO2852 –
TNJ DN38 (1½"), 316L, 3A, EHEDG Tri-Clamp ISO2852 –
clamp detachable
EN flanges
B0J DN25 PN25/40 A, 316L Flange EN1092-1
(DIN2527 B)
22
B1J DN32 PN25/40 A, 316L Flange EN1092-1
(DIN2527 B)
22
B2J DN40 PN25/40 A, 316L Flange EN1092-1
(DIN2527 B)
22
10 Approval:

Liquicap M FMI51, FMI52 (PFM) Identification
Endress+Hauser 7
B3J DN50 PN25/40 A, 316L Flange EN1092-1
(DIN2527 B)
22/43***
CRJ DN50 PN25/40 B1, 316L Flange EN1092-1
(DIN2527 C)
43
DRJ DN50 PN40 C, 316L Flange EN1092-1
(DIN2512 F)
43
ERJ DN50 PN40 D, 316L Flange EN1092-1
(DIN2512 N)
43
BSJ DN80 PN10/16 A, 316L Flange EN1092-1
(DIN2527 B)
43
CGJ DN80 PN10/16 B1, 316L Flange EN1092-1
(DIN2527 C)
43
DGJ DN80 PN16 C, 316L Flange EN1092-1
(DIN2512 F)
43
EGJ DN80 PN16 D, 316L Flange EN1092-1
(DIN2512 N)
43
BTJ DN100 PN10/16 A, 316L Flange EN1092-1
(DIN2527 B)
43
CHJ DN100 PN10/16 B1, 316L Flange EN1092-1
(DIN2527 C)
43
PTFE clad
B0K DN25 PN25/40, PTFE >316L Flange EN1092-1
(DIN2527)
–
B1K DN32 PN25/40, PTFE >316L Flange EN1092-1
(DIN2527)
–
B2K DN40 PN25/40, PTFE >316L Flange EN1092-1
(DIN2527)
–
B3K DN50 PN25/40, PTFE >316L Flange EN1092-1
(DIN2527)
–
BSK DN80 PN10/16, PTFE >316L Flange EN1092-1
(DIN2527)
–
BTK DN100 PN10/16, PTFE >316L Flange EN1092-1
(DIN2527)
–
ANSI flanges
ACJ 1" 150 lbs RF, 316/316L Flange ANSI B16.5 22
ANJ 1" 300 lbs RF, 316/316L Flange ANSI B16.5 22
AEJ 1½" 150 lbs RF, 316/316L Flange ANSI B16.5 22
AQJ 1½" 300 lbs RF, 316/316L Flange ANSI B16.5 22
AFJ 2" 150 lbs RF, 316/316L Flange ANSI B16.5 22/43***
ARJ 2" 300 lbs RF, 316/316L Flange ANSI B16.5 22/43***
AGJ 3" 150 lbs RF, 316/316L Flange ANSI B16.5 43
ASJ 3" 300 lbs RF, 316/316L Flange ANSI B16.5 43
AHJ 4" 150 lbs RF, 316/316L Flange ANSI B16.5 43
ATJ 4" 300 lbs RF, 316/316L Flange ANSI B16.5 43
AJJ 6" 150 lbs RF, 316/316L Flange ANSI B16.5 43
AUJ 6" 300 lbs RF, 316/316L Flange ANSI B16.5 43
PTFE clad
ACK 1" 150 lbs, PTFE >316/316L Flange ANSI B16.5 –
ANK 1" 300 lbs, PTFE >316/316L Flange ANSI B16.5 –
AEK 1½" 150 lbs, PTFE >316/316L Flange ANSI B16.5 –
AQK 1½" 300 lbs, PTFE >316/316L Flange ANSI B16.5 –
AFK 2" 150 lbs, PTFE >316/316L Flange ANSI B16.5 –
ARK 2" 300 lbs, PTFE >316/316L Flange ANSI B16.5 –
AGK 3" 150 lbs, PTFE >316/316L Flange ANSI B16.5 –
AHK 4" 150 lbs, PTFE >316/316L Flange ANSI B16.5 –
JIS flanges
KCJ 10K 25 RF, 316L Flange JIS B2220 22
KEJ 10K 40 RF, 316L Flange JIS B2220 22
KFJ 10K 50 RF, 316L Flange JIS B2220 22/43***
KGJ 10K 80 RF, 316L Flange JIS B2220 22/43***
KHJ 10K 100 RF, 316L Flange JIS B2220 22/43***
KRJ 20K 50 RF, 316L Flange JIS B2220 43
PTFE clad
KCK 10K 25 RF, PTFE >316L Flange JIS B2220 –
KEK 10K 40 RF, PTFE >316L Flange JIS B2220 –
KFK 10K 50 RF, PTFE >316L Flange JIS B2220 –
KGK 10K 80 RF, PTFE >316L Flange JIS B2220 –
KHK 10K 100 RF, PTFE >316L Flange JIS B2220 –
YY9 Special version, to be specified
50 Process Connection: ∅inactive length
(mm)

Identification Liquicap M FMI51, FMI52 (PFM)
8Endress+Hauser
60 Electronics; Output:
A FEI50H; 4 to 20 mA HART + display
B FEI50H; 4 to 20 mA HART
C FEI57C; PFM
V None; Prepared for FEI5x + display, cover high, transparent
W None; Prepared for FEI5x, cover flat
Y Special version, to be specified
70 Housing:
1 F15 316L IP66, NEMA4X
2 F16 polyester IP66, NEMA4X
3 F17 aluminum IP66, NEMA4X
4 F13 aluminum
+ gas-tight probe seal
IP66, NEMA4X
5T13Alu
+ gas-tight probe seal
+ separate connection compartment
IP66, NEMA4X
6 F27 316L
+ gas-tight probe seal
IP68, NEMA6P
9 Special version, to be specified
80 Cable Entry:
A Gland M20 (Ex d > thread M20)
B Thread G ½
C Thread NPT ½
D Thread NPT ¾
EPlugM12
Y Special version, to be specified
90 Type of Probe:
L4: 300 to 6000 mm/12 to 240 inch
1 Compact
2 2000 mm L4 cable > separate housing
3 ....mm L4 cable > separate housing
4 80 inch L4 cable > separate housing
5 ....inch L4 cable > separate housing
9 Special version, to be specified
100 Additional Option:
A Basic version
B PWIS free, PWIS = paint-wetting impairment
substances
C Metal probe rod surface refining**
D EN10204-3.1, (316L wetted parts/pressurized), inspection certificate
E EN10204-3.1, NACE MR0175 (316L wetted parts/pressurized),
inspection certificate
F SIL Declaration of Conformity
S GL marine certificate
Y Special version, to be specified
FMI51 Product designation
* With this option, the complete device is cleaned for applications free from paint-wetting impairment substances.
** With this option, the surface of the probe rod (316L) is passivated and acts as additional corrosion protection
*** Depends on the probe rod ∅(10 mm -> 22 mm; 16 mm -> 43 mm; 22 mm rod not with inactive length)

Liquicap M FMI51, FMI52 (PFM) Identification
Endress+Hauser 9
Liquicap M FMI51 (device identification)
10 Approval:
A Non-hazardous area
B Non-hazardous area, WHG
E ATEX II 1/2 GD Ex ia IIB T6
F ATEX II 1/2 GD Ex ia IIB T6, WHG
G ATEX II 1/2 G Ex d (ia) IIB T6, WHG
H ATEX II 1/2 GD Ex ia IIC T6,
XA, note safety instruction (XA) (electrostatic charging)!
J ATEX II 1/2 GD Ex ia IIC T6,
XA, note safety instruction (XA) (electrostatic charging)!
K ATEX II 1/2 G Ex ia IIC T6, WHG
XA, note safety instruction (XA) (electrostatic charging)!
L ATEX II 1/2 G Ex de (ia) IIC T6, WHG
XA, note safety instruction (XA) (electrostatic charging)!
M ATEX II 3 GD Ex nA II T6, WHG
XA, note safety instruction (XA) (electrostatic charging)!
N CSA General Purpose, CSA C US
P CSA/FM IS Cl. I, II, III Div. 1+2 Gr. A-G
R CSA/FM XP Cl. I, II, III Div. 1+2 Gr. A-G
S TIIS Ex ia IIC T3
T TIIS Ex d IIC T3
1 NEPSI Ex ia IIC T6
2 NEPSI Ex d(ia) IIC T6
4 NEPSI Ex nA IIC T6
5 IECEx Ga/Gb Ex ia IIC T6; Ex iaD 20/ Ex tD A21
6 IECEx Ga/Gb Ex ia IIC T6
Y Special version, to be specified
20 Inactive Length L3:
Price per 100 mm/1 inch
L3: 100 to 2000 mm/4 to 80 inch for 316L
L3: 150 to 1000 mm/6 to 40 inch for PFA fully insulated
Protection against condensate + bypassing container nozzles
1 Not selected
2 ... mm L3, 316L
3 ... mm L3, 316L + fully insulated PFA
5 ... inch L3, 316L
6 ... inch L3, 316L + fully insulated PFA
9 Special version, to be specified
30 Active Probe Length L1; Insulation:
Price per 1000 mm/10 inch
L1: 420 to 10000 mm/17 to 400 inch; fully insulated
A ... mm L1, 316; FEP
B ... mm L1, 316; PFA
C ... inch L1, 316; FEP
D ... inch L1, 316; PFA
Y Special version, to be specified
50 Process Connection: ∅inactive length (mm)
Threaded connection
GDJ G ¾, 316L, 25 bar Thread ISO228 22
GEJ G 1, 316L, 25 bar Thread ISO228 22
GGJ G 1½, 316L, 100 bar Thread ISO228 43
RDJ NPT ¾, 316L, 25 bar Thread ANSI 22
REJ NPT 1, 316L, 25 bar Thread ANSI 22
RGJ NPT 1½, 316L, 100 bar Thread ANSI 43
Hygiene connection
GWJ G 1 316L, 25 bar, EHEDG Thread ISO228 –
Accessories installation, weld-in adapter
MRJ DN50 PN40, 316L DIN11851 43
UPJ Universal adapter 44 mm 316L, 16 bar, EHEDG –
Tri-Clamp connection
TCJ DN25 (1"), EHEDG 316L, Tri-Clamp ISO2852 22
TJJ DN38 (1½"), EHEDG 316L, Tri-Clamp ISO2852 22
TJK DN38 (1½"), EHEDG PTFE >316L, 3A Tri-Clamp ISO2852 22
TDJ DN40-51 (2"), 316L, Tri-Clamp ISO2852 43

Identification Liquicap M FMI51, FMI52 (PFM)
10 Endress+Hauser
TDK DN40-51 (2"), EHEDG PTFE >316L, 3A, Tri-Clamp ISO2852 –
EN flanges
B0J DN25 PN25/40 A, 316L Flange EN1092-1
(DIN2527 B)
22
B1J DN32 PN25/40 A, 316L Flange EN1092-1
(DIN2527 B)
22
B2J DN40 PN25/40 A, 316L Flange EN1092-1
(DIN2527 B)
22
B3J DN50 PN25/40 A, 316L Flange EN1092-1
(DIN2527 B)
43
CRJ DN50 PN25/40 B1, 316L Flange EN1092-1
(DIN2527 C)
43
DRJ DN50 PN40 C, 316L Flange EN1092-1
(DIN2512 F)
43
ERJ DN50 PN40 D, 316L Flange EN1092-1
(DIN2512 N)
43
BSJ DN80 PN10/16 A, 316L Flange EN1092-1
(DIN2527 B)
43
CGJ DN80 PN10/16 B1, 316L Flange EN1092-1
(DIN2527 C)
43
DGJ DN80 PN16 C, 316L Flange EN1092-1
(DIN2512 F)
43
EGJ DN80 PN16 D, 316L Flange EN1092-1
(DIN2512 N)
43
BTJ DN100 PN10/16 A, 316L Flange EN1092-1
(DIN2527 B)
43
CHJ DN100 PN10/16 B1, 316L Flange EN1092-1
(DIN2527 C)
43
PTFE clad
B0K DN25 PN25/40, PTFE >316L Flange EN1092-1
(DIN2527)
–
B1K DN32 PN25/40, PTFE >316L Flange EN1092-1
(DIN2527)
–
B2K DN40 PN25/40, PTFE >316L Flange EN1092-1
(DIN2527)
–
B3K DN50 PN25/40, PTFE >316L Flange EN1092-1
(DIN2527)
–
BSK DN80 PN10/16, PTFE >316L Flange EN1092-1
(DIN2527)
–
BTK DN100 PN10/16, PTFE >316L Flange EN1092-1
(DIN2527)
–
ANSI flanges
ACJ 1" 150 lbs RF, 316/316L Flange ANSI B16.5 22
ANJ 1" 300 lbs RF, 316/316L Flange ANSI B16.5 22
AEJ 1½" 150 lbs RF, 316/316L Flange ANSI B16.5 22
AQJ 1½" 300 lbs RF, 316/316L Flange ANSI B16.5 43
AFJ 2" 150 lbs RF, 316/316L Flange ANSI B16.5 43
ARJ 2" 300 lbs RF, 316/316L Flange ANSI B16.5 43
AGJ 3" 150 lbs RF, 316/316L Flange ANSI B16.5 43
ASJ 3" 300 lbs RF, 316/316L Flange ANSI B16.5 43
AHJ 4" 150 lbs RF, 316/316L Flange ANSI B16.5 43
ATJ 4" 300 lbs RF, 316/316L Flange ANSI B16.5 43
AJJ 6" 150 lbs RF, 316/316L Flange ANSI B16.5 43
AUJ 6" 300 lbs RF, 316/316L Flange ANSI B16.5 43
PTFE clad
ACK 1" 150 lbs, PTFE >316/316L Flange ANSI B16.5 –
ANK 1" 300 lbs, PTFE >316/316L Flange ANSI B16.5 –
AEK 1½" 150 lbs, PTFE >316/316L Flange ANSI B16.5 –
AQK 1½" 300 lbs, PTFE >316/316L Flange ANSI B16.5 –
AFK 2" 150 lbs, PTFE >316/316L Flange ANSI B16.5 –
ARK 2" 300 lbs, PTFE >316/316L Flange ANSI B16.5 –
AGK 3" 150 lbs, PTFE >316/316L Flange ANSI B16.5 –
AHK 4" 150 lbs, PTFE >316/316L Flange ANSI B16.5 –
JIS flanges
KCJ 10K 25 RF, 316L Flange JIS B2220 22
KEJ 10K 40 RF, 316L Flange JIS B2220 22
KFJ 10K 50 RF, 316L Flange JIS B2220 43
KGJ 10K 80 RF, 316L Flange JIS B2220 43
KHJ 10K 100 RF, 316L Flange JIS B2220 43
KRJ 20K 50 RF, 316L Flange JIS B2220 43
PTFE clad
50 Process Connection: ∅inactive length (mm)

Liquicap M FMI51, FMI52 (PFM) Identification
Endress+Hauser 11
KCK 10K 25 RF, PTFE >316L Flange JIS B2220 –
KEK 10K 40 RF, PTFE >316L Flange JIS B2220 –
KFK 10K 50 RF, PTFE >316L Flange JIS B2220 –
KGK 10K 80 RF, PTFE >316L Flange JIS B2220 –
KHK 10K 100 RF, PTFE >316L Flange JIS B2220 –
YY9 Special version, to be specified
60 Electronics; Output:
A FEI50H; 4 to 20 mA HART + display
B FEI50H; 4 to 20 mA HART
CFEI57C; PFM
V None; Prepared for FEI5x + display, cover high, transparent
W None; Prepared for FEI5x, cover flat
Y Special version, to be specified
70 Housing:
1 F15 316L IP66, NEMA4X
2 F16 polyester IP66, NEMA4X
3 F17 aluminum IP66, NEMA4X
4 F13 aluminum
+ gas-tight probe seal
IP66, NEMA4X
5T13Alu
+ gas-tight probe seal
+ separate connection compartment
IP66, NEMA4X
6 F27 316L
+ gas-tight probe seal
IP68, NEMA6P
9 Special version, to be specified
80 Cable Entry:
A Gland M20 (Ex d > thread M20)
B Thread G ½
C Thread NPT ½
D Thread NPT ¾
EPlugM12
Y Special version, to be specified
90 Type of Probe:
L4: 100 to 6000 mm/12 to 240 inch
1 Compact
2 2000 mm L4 cable > separate housing
3 ....mm L4 cable > separate housing
480inchL4cable > separate housing
5 ....inch L4 cable > separate housing
9 Special version, to be specified
100 Additional Option:
A Basic version
D EN10204-3.1 (316L wetted parts/pressurized), inspection certificate
E EN10204-3.1, NACE MR0175 (316L wetted parts/pressurized),
inspection certificate
F SIL Declaration of Conformity
S GL marine certificate
Y Special version, to be specified
FMI52 Product designation
50 Process Connection: ∅inactive length (mm)

Identification Liquicap M FMI51, FMI52 (PFM)
12 Endress+Hauser
2.2 Scope of delivery
"Caution!
Please pay attention to the instructions on unpacking, transporting and storing the measuring
devices outlined in the "Incoming acceptance, transport, storage" section on →ä13.
The scope of delivery comprises:
• The installed device
• Optional accessories (→ä35)
Documentation supplied:
• Operating Instructions
• Approval documentation; if not listed in the Operating Instructions.
2.3 Certificates and approvals
CE mark, Declaration of Conformity
The device has been constructed and tested to state-of-the-art operational safety standards and left
the factory in perfect condition as regards technical safety. The device complies with the applicable
standards and regulations that are listed in the EC Declaration of Conformity and thus meets the
legal requirements of the EC Directives. Endress+Hauser confirms that the device has been tested
successfully by affixing the CE mark.
2.4 Trademarks
Tri-Clamp®
Registered trademark of Ladish & Co., Inc., Kenosha, USA

Liquicap M FMI51, FMI52 (PFM) Installation
Endress+Hauser 13
3 Installation
3.1 Quick installation guide
L00-FMI5xxxx-17-06-xx-xx-001
1.) Screw in the device
2. a) Loosen clamping screw until the housing rotates easily.
2. b) Align the housing.
2. c) Tighten clamping screw (< 1 Nm) until the housing can no longer be rotated.
3.2 Incoming acceptance, transport, storage
3.2.1 Incoming acceptance
Check whether the packaging or content is damaged.
Check that the goods delivered are complete and compare the scope of delivery against the
information on your order.
3.2.2 Storage
For storage and transportation, pack the device in such a way as to protect it reliably against impact.
The original packaging offers the best protection for this.
The permitted storage temperature is –50°C to +85°C.
12
a2.
1.
... 270°
b
1 2
c
1 2
< 80Nm(G )
< 100 Nm (G )
< 180 Nm (G1)
< 500 Nm (G1 )
½
¾
½

Installation Liquicap M FMI51, FMI52 (PFM)
14 Endress+Hauser
3.3 Planning instructions

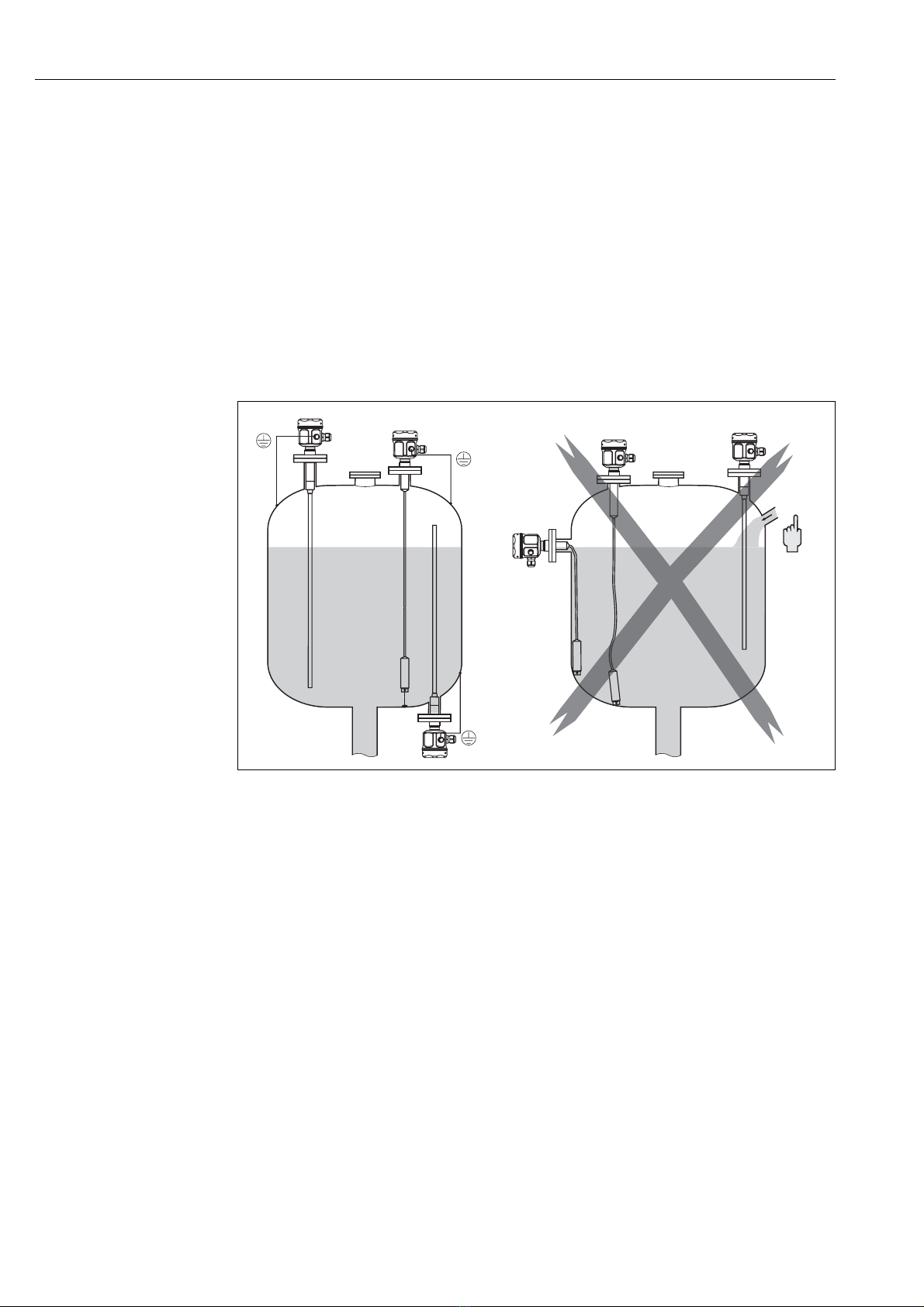

3.3.1 Installation
The Liquicap M FMI51 (rod probe) can be installed from above and from below.
The Liquicap M FMI52 (rope probe) can be installed vertically from above.
!Note!
• The probe may not come into contact with the container wall!
• Recommended distance from the container floor: ≥10 mm.
• Do not install probes in the area of the filling curtain!
• If using the probe in agitator tanks, make sure the probe is at a sufficient distance from the agita-
tor.
• Rod probes with a ground tube must be used in the event of severe lateral load.
L00-FMI5xxxx-11-06-xx-xx-003

Liquicap M FMI51, FMI52 (PFM) Installation
Endress+Hauser 15
3.3.2 Support with marine approval (GL)
Conductive or nonconductive support can be provided for fully insulated rod probes.
Partially insulated rod probes may only be supported with insulation at the uninsulated end of the
probe.
!Note!
Rod probes with a diameter of 10 mm and 16 mm have to be supported with a length ≥ 1 m (see
drawing).
L00-FMI5xxxx-06-05-xx-xx-077
Example for calculating distances:
Probe length L = 2000 mm.
L/4 = 500 mm
L/2 = 1000 mm
Measured from the end of the probe rod = 300 mm.
3.4 Measuring condition
L/4
L/2
L
300 mm
• Measuring range L1 possible from the tip of
the probe to the process connection.
• Particularly suited for small containers.
• Use a ground tube for nonconductive
media.
Note!
When installing in a nozzle, use inactive
length (L3).
The 0 %, 100 % calibration can be inverted.
L00-FMI5xxxx-15-05-xx-xx-002
100 %
0%
L3
L1

Installation Liquicap M FMI51, FMI52 (PFM)
16 Endress+Hauser
3.5 Minimum probe length for nonconductive media
(<1μs/cm)
lmin = ΔCmin / (Cs * [εr - 1])
3.6 Installation examples
3.6.1 Rod probes
Conductive tanks (metal tanks)
If the process connection of the probe is insulated from the metal tank (e.g. using seal material), the
ground connection on the probe housing must be connected to the tank using a short line.
!Note!
• A fully insulated rod probe may be neither shortened nor extended.
• If the insulation of the probe rod is damaged, this results in an incorrect measurement result.
• These application examples show vertical installation for continuous level measurement.
FMI51: rod probe
L00-FMI5xxxx-11-06-xx-xx-004
lmin = Minimum probe length
ΔCmin =5pF
Cs = Probe capacitance in air (see also →ä38, "Additional capacitance")
εr = Dielectric constant e.g. oil = 2.0

Liquicap M FMI51, FMI52 (PFM) Installation
Endress+Hauser 17
FMI51: rod probe with ground tube
Nonconductive tanks (plastic tanks)
When installing in a plastic tank, a probe with a ground tube must be used.
L00-FMI5xxxx-11-06-xx-xx-005
FMI51: rod probe with inactive length (e.g. for insulated tanks)
L00-FMI5xxxx-11-06-xx-xx-006

Installation Liquicap M FMI51, FMI52 (PFM)
18 Endress+Hauser
FMI51: rod probe with ground tube and inactive length (for mounting nozzles)
L00-FMI5xxxx-11-06-xx-xx-007
FMI51: fully insulated probe with clad flange for aggressive media
L00-FMI5xxxx-11-06-xx-xx-011

Liquicap M FMI51, FMI52 (PFM) Installation
Endress+Hauser 19
3.6.2 Rope probes
!Note!
These application examples show the installation of rope probes for continuous level measurement.

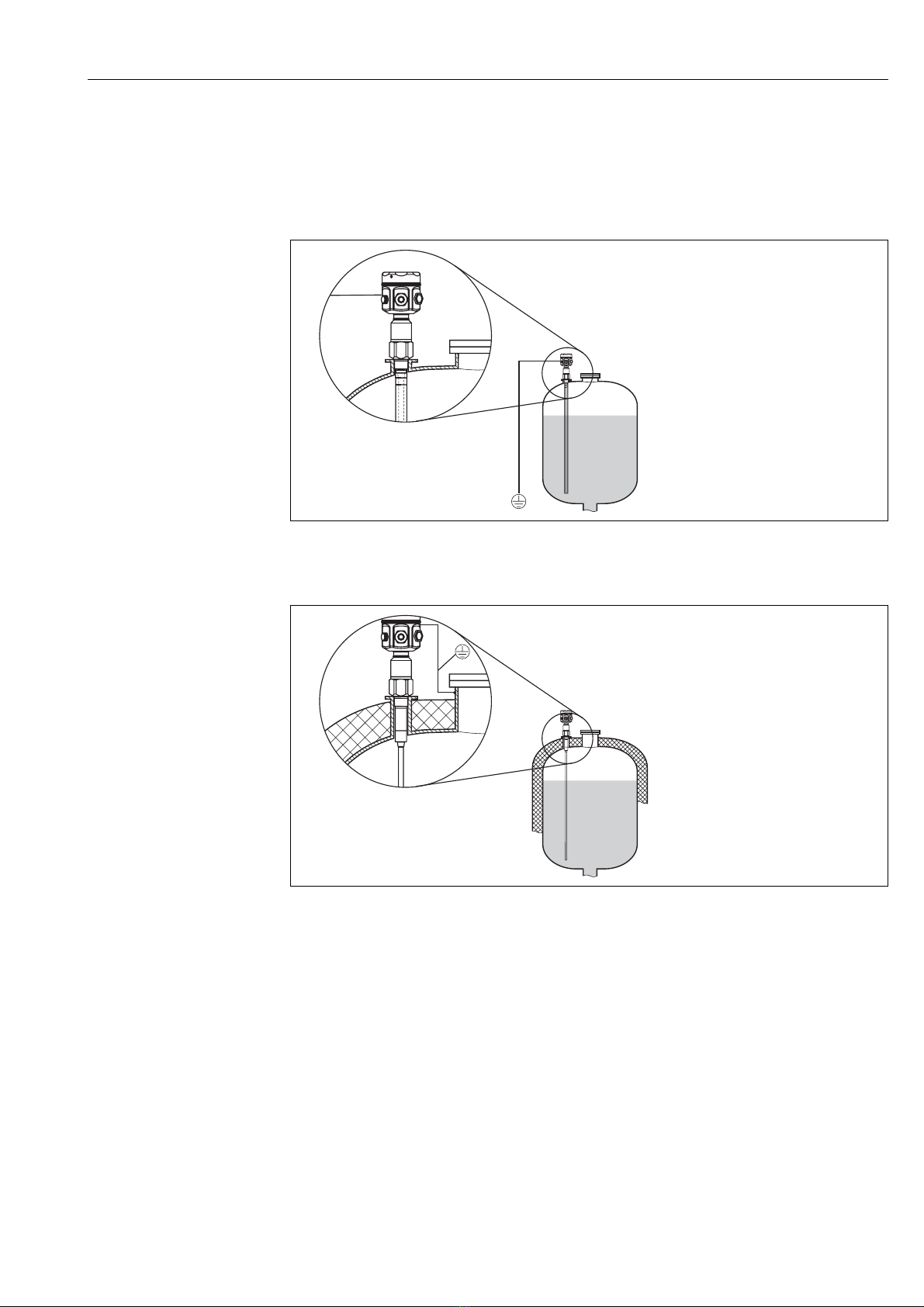

FMI52: rope probe
L00-FMI5xxxx-11-06-xx-xx-008
FMI52: rope probe with inactive length (e.g. for insulated tanks)
L00-FMI5xxxx-11-06-xx-xx-009

Installation Liquicap M FMI51, FMI52 (PFM)
20 Endress+Hauser
FMI52: rope probe with fully insulated inactive length (for mounting nozzles)
L00-FMI5xxxx-11-06-xx-xx-010
3.6.3 Shortening the rope
!Note!
See Operating Instructions, rope shortening kit KA061F/00.

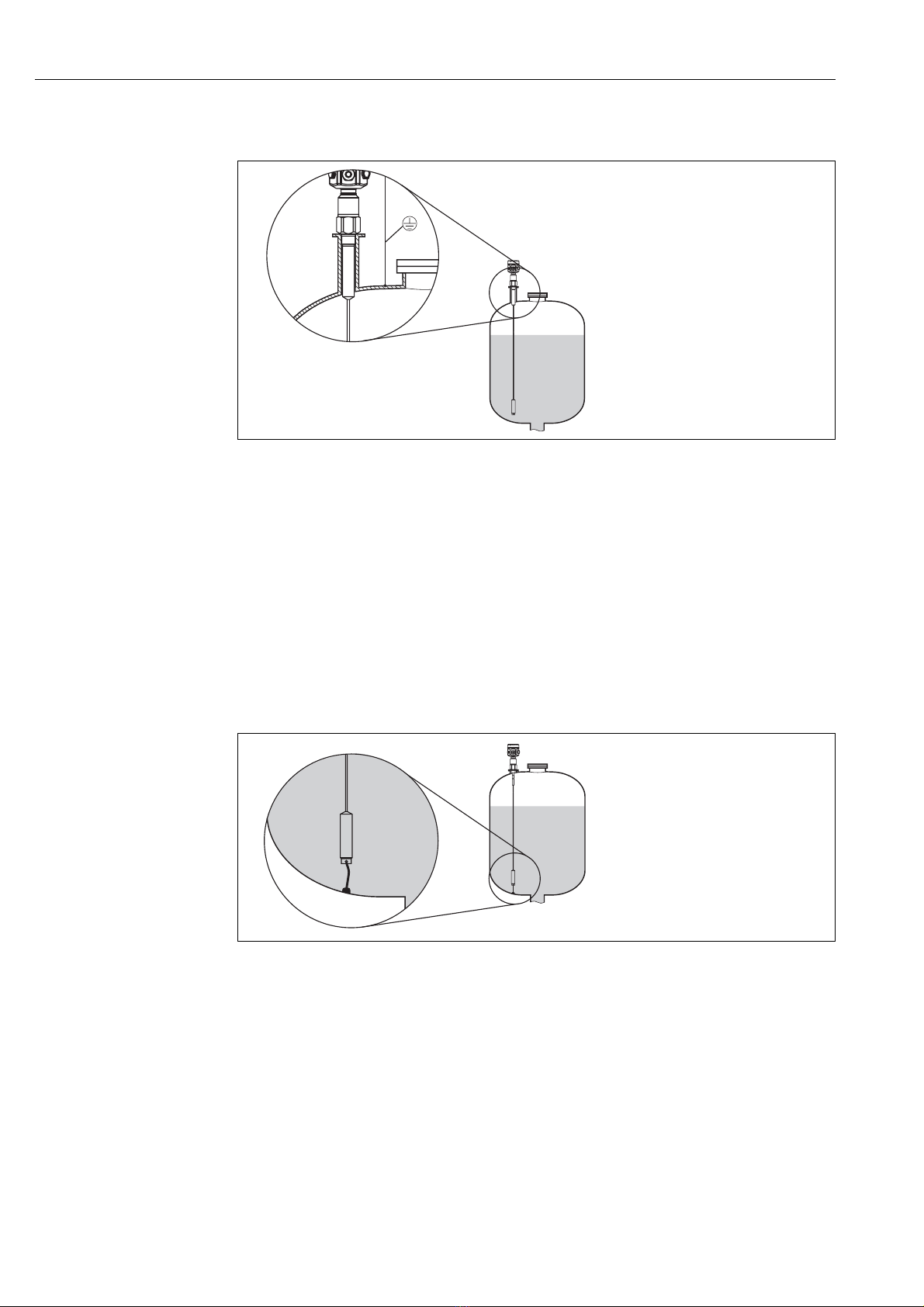

3.6.4 Tensioning weight with tension
The end of the probe needs to be secured if the probe would otherwise touch the silo wall or another
part in the tank. This is what the internal thread in the probe weight is intended for.
The bracing can be conductive or insulating to the tank wall.
To avoid too high a tensile load the rope should be loose or guyed with a spring. The maximum
tensile load may not exceed 200 Nm.
L00-FMI5xxxx-11-06-xx-xx-012
