Enduraplas FIRE RANGER User manual

Version 1.5 Copyright © Enduraplas. All Rights Reserved.
Product Codes:
SMF250FG120GH, SMF400FG120GH
SMFF250FG120GH, SMFF400FG120GH
OWNER’S MANUAL
FOAM RANGER™
FIRE RANGER™

2Fire Ranger™ | Foam Ranger™
English
CONTENTS
INTRODUCTION 3
WARNINGS 4 - 5
GETTING STARTED 6 - 13
MAINTAINING 14 & 15
WINTERIZING 16 & 17
PUMP PERFORMANCE 18
TROUBLESHOOTING 19 & 20
WARRANTY 21 - 25
PARTS BREAKDOWNS 26 - 41
!

3Version 1.5
English
INTRODUCTION
Congratulations! You now own an Enduraplas fire control
sprayer. Durable design and construction assure you a life-
time of extreme
performance. No sprayer is tougher. No sprayer will last lon-
ger.
Take a look through this owner’s manual to learn how the
pros use their Enduraplas sprayer.
Discover More Helpful Tips:
blog.enduraplas.com/spraying
Watch Instruction Videos:
www.youtube.com/enduraplas
Order Genuine Enduraplas Parts & Accessories:
parts.enduraplas.com

4Fire Ranger™ | Foam Ranger™
English
WARNINGS
1. When connecting this sprayer to your UTV, pickup
(or vehicle), ensure that you have read the vehicle’s
Owner’s Manual and that you comply with all the weight
restrictions as specified by the vehicle’s manufacturer, as
overloading can cause injury or death. Remember that 1
gallon of water weighs 8.33 pounds.
2. To ensure your own safety and that of others, you must
comply with all relevant environmental, work place health,
safety legislation and codes of practice.
3. Select and wear appropriate Personal Protection
Equipment in accordance with the label of the product
you intend to use.
4. Improper or careless use of this sprayer can cause serious
injury. Minors should never be allowed to use this sprayer.
This sprayer should not be used when bystanders or
animals are in the area. This sprayer should never be used
while children are in the area.
5. Never leave the sprayer unattended without turning o
the pump, relieving the line pressure, and flushing the
sprayer of any harmful chemicals.
6. You must be in good mental health to operate this sprayer
and not be under the influence of alcohol or any drugs
that could impair your vision, physical strength, dexterity,
judgment, or other mental capacity.
7. Be alert and never touch any part of the engine exhaust
system (muer, shield, header pipes, etc.) while the
engine is running. Always allow enough time, after
stopping the unit, for proper cooling of the muer and
surrounding parts.
8. Refuel engine with care. Gasoline is flammable, and
gasoline vapor can explode. Refuel in a well-ventilated
area, with the engine stopped.
!

5Version 1.5
English
9. Never run the pump in a closed or confined area. Exhaust
gas contains carbon monoxide which is poisonous to
humans. Avoid inhalation of exhaust gas.
10. No modifications and/or alterations may be made to this
sprayer. Any such modifications not only void the sprayer
warranty but can make the unit dangerous to anyone
operating the pump.
11. Always inspect hoses and piping to avoid burst injuries.
Watch Instruction Videos:
www.youtube.com/enduraplas

6Fire Ranger™ | Foam Ranger™
English
1) Fill the engine with regular gasoline.
2) Remove oil cap and fill the engine with
10W-30 engine oil.
Setting Up Sprayer
GETTING STARTED
Watch Instruction Videos:
www.youtube.com/enduraplas

7Version 1.5
English

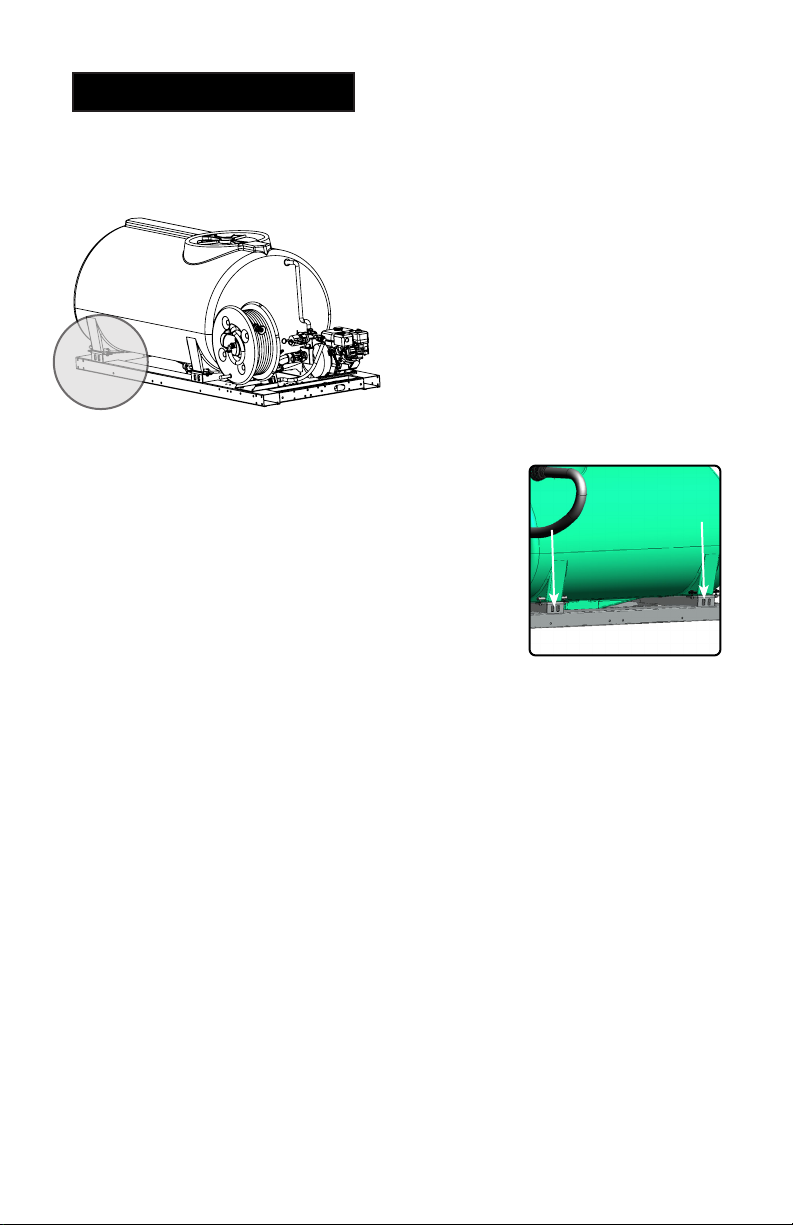

1) There are built in tie down points on
the frame for a tie down strap.
Mounting the Sprayer
GETTING STARTED

8Fire Ranger™ | Foam Ranger™
English
1) You need to ensure your pump is cor-
rectly primed. Start by threading o the
cap on top of pump and fill with water.
3) Fill the tank 1/4 full with water.
2) Before starting your engine, make
sure the drain plug and prime plug are
tightened securely and properly holding
the seal O-rings in place.
4) Fire Ranger™ Only:
Open pressure relief all the way by
turning the t-handle counter clockwise.
This will allow water to recirculate
back into tank.
GETTING STARTED
Priming the Sprayer

9Version 1.5
English
5) Start the engine and increase the
RPMs. Open the tank lid and check that
water is recirculating back into the tank.
GETTING STARTED
Priming the Sprayer
6) Fire Ranger™ Only:
Adjust regulator valve by turning
clockwise to increase spray pressure
(thread in tight, then back o until about
3 threads are showing). This will allow
small amount of water to return back
to tank, preventing the pump from
overheating.

10 Fire Ranger™ | Foam Ranger™
English
1) Foam Ranger™ Only:
Once pump is primed, open the valve
at the discharge nozzle. As soon as
water begins to flow, your system should
be primed. To avoid overheating the
pump, do not allow it to run continuously
without spraying.
1) Fill the foam tank with foaming agent
(class A foam solution is recommended).
2) Open the foam tank valve, allowing
foam concentrate to flow
ADDING FOAM
GETTING STARTED
Adding Foam to Foam Ranger
3) Turn the dial clockwise to increase
foam to desired rate.

11Version 1.5
English
GETTING STARTED
Using the QUICK-FILL™Draft Kit

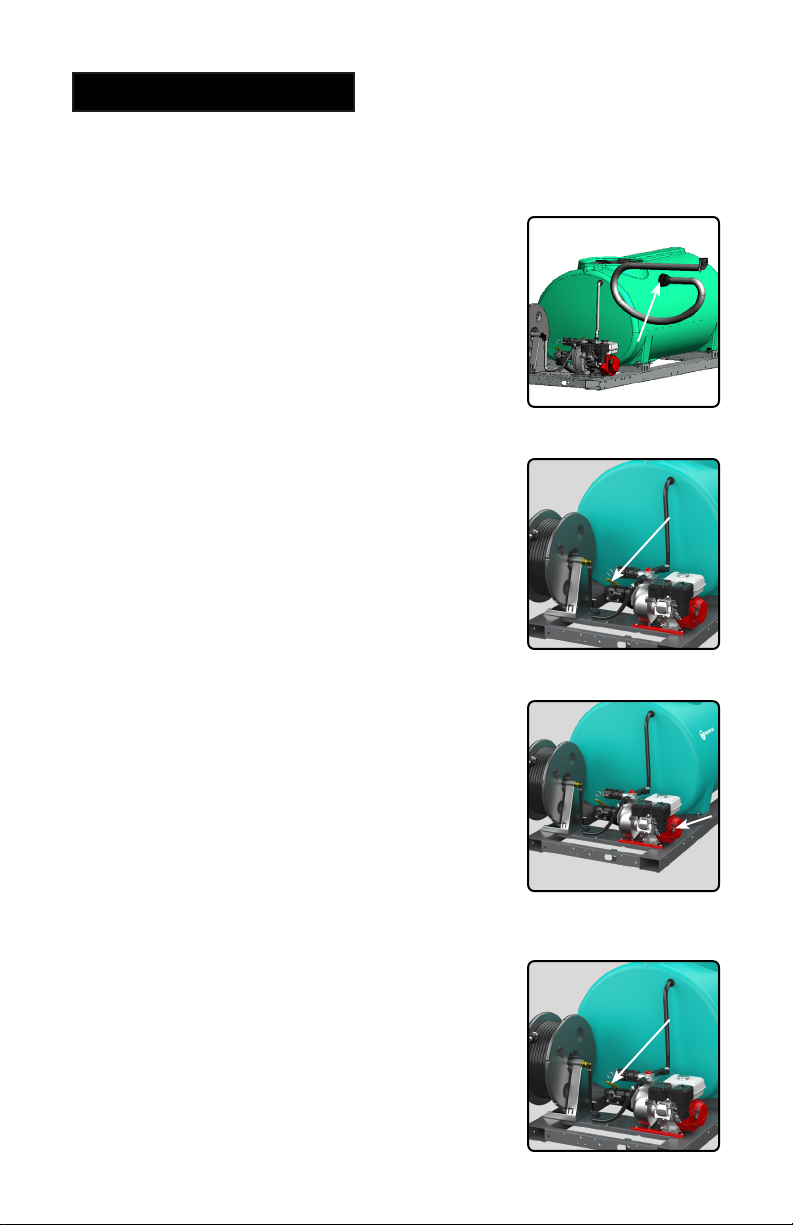

1) Ensure engine is turned o and re-
move camlock cap from large discharge
outlet on pump (top).
3) Disconnect the suction hose from
pump and attach it to the top outlet.
2) Ensure your suction hose valve is in
closed position.
4) Attach 25’ draft hose from Quickfill™
draft kit to suction port on pump (bot-
tom). Ensure water is present in the
bottom of the pump housing to allow
unit to self prime. If pump needs to be
primed, repeat step 1 of priming pump.

12 Fire Ranger™ | Foam Ranger™
English
GETTING STARTED
5) Place foot strainer, end of draft hose,
into water source and ensure strainer is
in clean water, free of sludge, etc.
7) Start engine and operate until tank
is full. We recommend opening tank lid
while filling.
6) Open ball valve between pump and
tank. This will allow water to be pushed
into tank from bottom.
8) When tank is full, turn engine o
and close suction valve between
pump and tank.
Using the QUICK-FILL™Draft Kit

13Version 1.5
English
GETTING STARTED

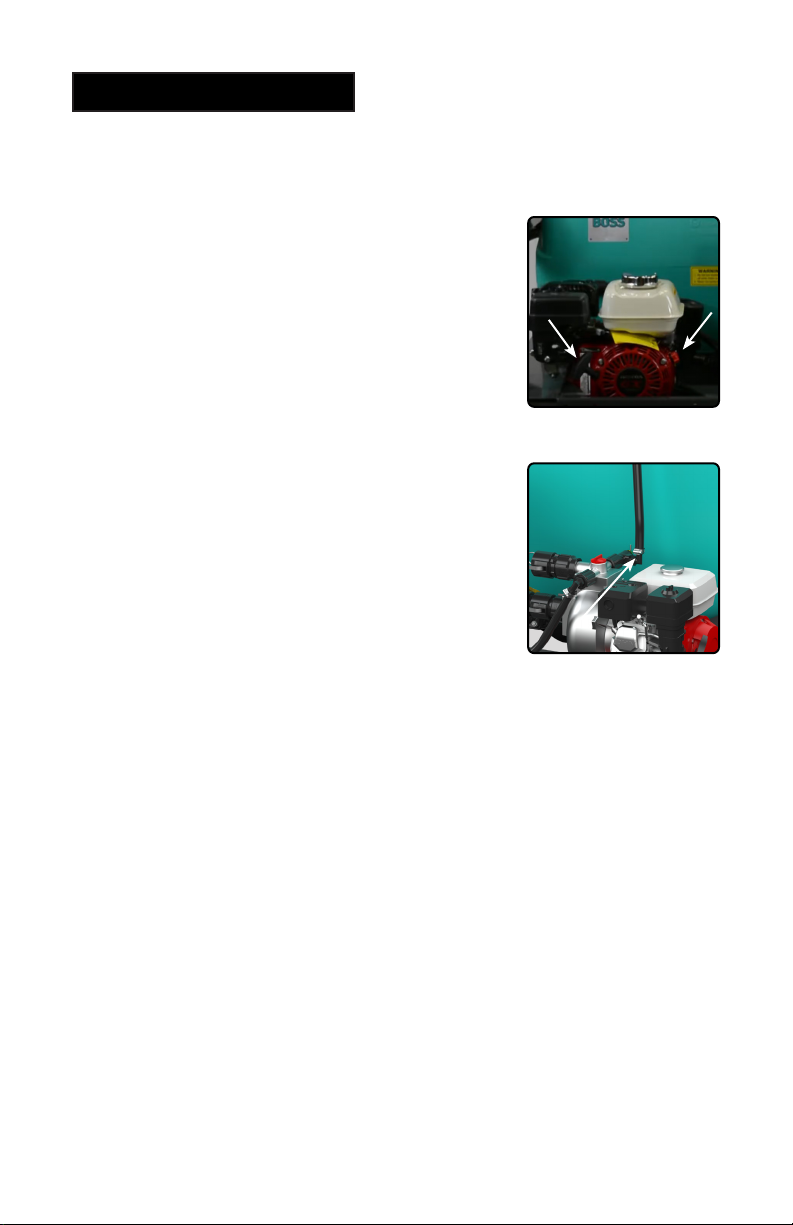

9) Remove draft hose from inlet side of
pump.
11) Reinstall cap into discharge port on
pump.
10) Take suction hose o discharge port
and reinstall onto suction port.
12) Re-open valve to allow water flow
from tank to pump.
Using the QUICK-FILL™Draft Kit

14 Fire Ranger™ | Foam Ranger™
English
MAINTAINING
The information applies in normal operating conditions. The specific intervals must be shortened accordingly for longer daily working hours. If the machine is only used occasionally, the intervals can be extended accordingly.
Before starting work
At the end of work
and/or daily
Weekly or every 40
operating hours
After the first 5
operating hours
Every 250 operating
hours o once a year
If damaged
If required
Complete machine
Visual inspection (condition, leaks) X Clean X
Tank, hoses and fittings
Clean X Drain X
Filter basket (inside lid) Clean X X Spray lance nozzle
Clean X Replace X
All accessible screws and nuts Retighten X Safety labels Replace X Pump Maintain Read and follow all maintenance and care instructions in the
Pump manual.

15Version 1.5
English
Discover More Helpful Tips:
blog.enduraplas.com/spraying
Watch Instruction Videos:
www.youtube.com/enduraplas

16 Fire Ranger™ | Foam Ranger™
English
WINTERIZING
1) Drain Tank
Disconnect camlock fitting from suction
side of pump, open suction valve to drain
all water from tank.
3) Blow out Plumbing Lines
Using compressed air, blow out the hose
lines to remove all water from the sys-
tem. This can be done by removing cap
on pump and blowing air in, make sure
hose reel nozzle is open.
2) Drain Pump
Take drain plug out of bottom of pump to
drain water out of pump.
4) Install Drain Plug
Reinstall drain plug on pump.

17Version 1.5
English

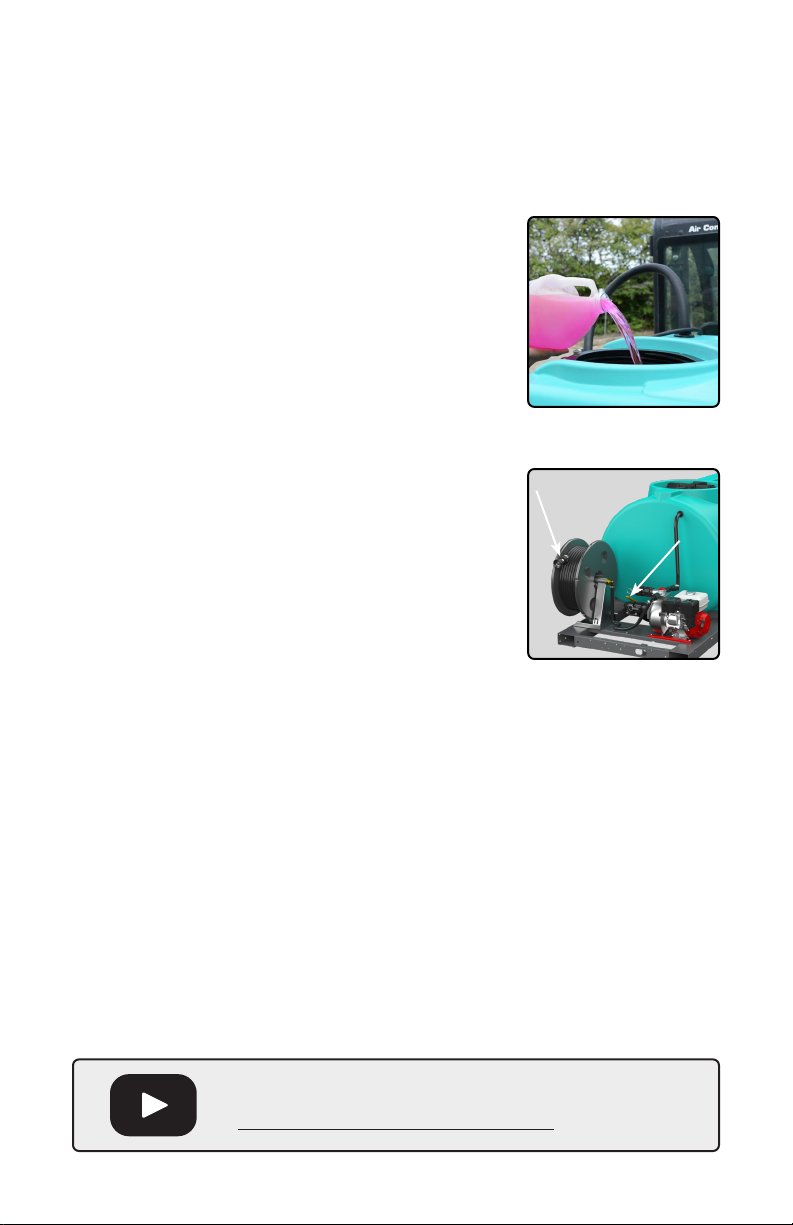

5) Flush with Anti-freeze
Pour a small amount of anti-freeze into
the tank and run the pump until the
colored liquid starts coming through the
spray ends to ensure system does not
freeze.
6) Store Sprayer Inside
Leave suction valve and hose nozzle
open and store in a safe, dry environ-
ment.
Watch Instruction Videos:
www.youtube.com/enduraplas
WINTERIZING

18 Fire Ranger™ | Foam Ranger™
English
An Aussie® QP205 pump performs at this level when pow-
ered with a GX160 Honda® engine. The QP205 and GX160
is used on the Fire Ranger and Foam Ranger .
PUMP PERFORMANCE

19Version 1.5
English
TROUBLESHOOTING
CONDITION CAUSE REMEDY
Pump will not
prime
1) Insucient motor
RPM
2) Air leak on suction
plumbing
3) Blocked/Restricted
intake hose
4) Filter cap disen-
gaged
5) Filter gasket
damaged/missing
6) Pump is out of
water
1) Increase motor
RPM until pump
primes
2) Tighten/replace fit-
tings & hose clamps.
Verify suction hoses
are in good condition
3) Remove blockage
from suction line,
ensure line is not
kinked
4) Lock filter cap into
position
5) Replace filter gas-
ket
6) Remove plug on
top of pump and fill
with water
Pressure drops/
fluctuates during
standard
operation
1) Restriction on suc-
tion line
2) Pump sucking air
3) Plugged filter
4) Damaged regulator
1) Inspect tank and
suction lines and
remove restriction
2) Tighten fittings
3) Remove and clean
filter mesh and hous-
ing
4) Remove regulator
stem and inspect for
broken parts/pieces
Pressure gauge
not registering
1) Plugged with debris 1) Unthread, check
and clean pressure
gauge

20 Fire Ranger™ | Foam Ranger™
English
Watch Instruction Videos:
www.youtube.com/enduraplas
CONDITION CAUSE REMEDY
Hand gun loses
pressure
1) Debris in hose or
nozzle
2) Pump losing prime
3) Pump pressure
dropping/fluctuating
1) Unthread nozzle tip
and clean
2) See Remedy for
‘Pump will not prime
or loses prime’
3) See Remedy for
‘Pressure drops/
fluctuates during
standard operation’
