Eneo TVD-2080Z03IR User manual

EN
User Manual
1/2.8” HD-TVI Dome, Fixed,
Day&Night, 1920x1080, 3x AF
Zoom, Infrared, 3D-DNR, 12/24V
TVD-2080Z03IR

Safety Precaution
03
FULL-HD AF-ZOOM CAMERA
CAUTION: TO REDUCE THE RISK OF ELECTIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To prevent electric shocks and risk of fire hazards, do NOT use other than
specific power source.
Warning :
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Caution :
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority
to operate the equipment.
Mains power quality should be that of a typical commercial environment. If the user
of the model requires continued operation during power mains interruptions, it is
recommended that the model be powered from an uninterruptible power supply
(UPS) or a battery.
The symbol is intended to alert the user to the presence of important
operating and maintenance(servicing) instructions in the literature
accompanying the unit.
The symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.

Safety Precaution
04
FULL-HD AF ZOOM CAMERA
NOTICE
The image used in this instruction manual are processed to help comprehension
and may differ from actual video of the camera.
Avoid installing areas where has shock or vibration which results in the problems.
Pay attention to safety when laying the connection cable and observe that the cable
is not subjected to heavy loads, kinks or damage and no moisture can get in.
Never open the device such as boards or lens.
The warranty becomes void if repairs are undertaken by unauthorized persons.
Maintenance and repair have to be carried out only by authorized service centers.
Use only a mild detergent to clean the housing.
The camera should never be operated beyond the technical specifications.
This can lead to destruction.
The camera should never be operated in water.

Contents
05
FULL-HD AF ZOOM CAMERA
Safety Precaution
p.03~04
Contents
p.05
Features
p.06~07
Composition
p.07
Dimensions
p.08
Part Names
p.09
Installation Instructions
p.10~13
Operating Instructions
p.14~29
Specifications
p.30

Features
Key Features
06
FULL-HD AF ZOOM CAMERA
• Full HD, 2Mega Pixel HD-TVI CAMERA, 1920x1080(30p/25p)
• TVI Video Transmission Distance over Coax.; 500M (RG59, 75Ω)
• Automatically removable IR Cut filter by Dual filter switcher
• Built-in f=3~9mm, F1.2~F2.1 Day & Night zoom lens
(Optical 3x Auto focus zoom / Digital 32x zoom)
• Focusing Status Indicator on Screen
- ★(Blue) Focusing in process
- ★(White) Focusing Completed
• True WDR(Wide Dynamic Range)
• Improved Noise figure with the enhanced 3D-NR
• Pointing Zoom which enables the flexible zooming at any area.
• Smart Motion Zoom in combining with Pointing Zoom.
• Preset Zoom
• Home Position setting
• Motion Detection, Privacy Mask, Defog, Sens-up(x32), BLC/HLC,
H/V/HV Flip, LSC(Lens Shade Compensation), Motion Deblur,
Pixel Defect Compensation, Lens Refresh, Lens Initializing Set
• ID / TITLE / ZOOM RATIO DISPLAY
• Enhanced Sensitivity by DSS technology
• Top performance at low light sensitivity (Sens-up On)
• OSD menu & Video sub-out for easy installation & maintenance.
• Circuit protection against faulty connection in power polarity
• Isolated power supply against ground loop problem
• Remote control via RS-485 (Pelco-D/P)
• UTC Control through HD-TVI DVR
• Built-in 2pcs High-power LED
• Double side Anti-Scratch Hard coated clear bubble
• Flush mount (option: Surface mount and various adaptors)
• Built-in 3-Axis Gimbal
• IP67 / IK10 Protection
• AC24/DC12V Dual power

General Description
• With ICR mechanism,
- Enhances its sensitivity about 10x at night time
- Can accepts the infrared light
• With 24VAC/12VDC dual power design,
- Offers the flexibility of installation
- Ensures the reliability
This camera realizes the natural and crisp image as you see the scene in front
of you by adopting Auto Focus Full HD(1920x1080p) camera module.
Highly detailed pictures can be achieved and color reproducibility deserves
attention.
Features
07
FULL-HD AF ZOOM CAMERA
Composition
Mounting Template
Cable Signal
Sticker
Operating
Instruction
Torque Wrench:
3mm (1pc)
Video Sub-out
Cable (1pc)
Mounting Screw:
4 x 30mm (3pcs)
Plastic Anchor:
6 x 30mm (3pcs)
Dome Camera
Wiring Connector
(1pc)
Connector fixing Screw:
2.5 x 5mm (1pc)

Dimensions
08
FULL-HD AF ZOOM CAMERA
Ø140
119
PCD Ø120
Ø102
Ø140
3-Ø4.2
82
(unit : mm)

Part Names
09
FULL-HD AF ZOOM CAMERA
BUBBLE DOME
3-AXIS GIMBAL
DOME COVER
SAFTY WIRE
FLUSH MOUNT
ZOOM LENS
OSD CONTROL
JOY STICK
POWER CABLE
VIDEO (BNC)
POWER CABLE
[ BOTTOM VIEW ]
POWER SUPPLY
CONNECTOR
POWER
CABLE

Installation Instructions
10
FULL-HD AF ZOOM CAMERA
1. Locate the mounting template at the installation position and drill the ceiling
or wall if needed.
2. Open the dome cover by loosening screws(4x12mm). Use the torque wrench
supplied.
3. Set the camera’s viewing angle.
4. Put the dome cover to the dome base unit and tighten the assembly screws.
- Place the dome base unit on pre-drilled position and fix it through using mounting
screws (4x30mm).
- Route the Power cable to the connecting place.
• Surface mount
• Pole mount adaptor
• Tilted mount
• Wall mount
(Requires additional
Surface mount)
• Tilted junction mount
■ Optional Mounting Accessories
Mounting Screw
(4x30mm)
Plastic Anchor
(6x30mm)
Torque
Wrench

Installation Instructions
11
FULL-HD AF ZOOM CAMERA

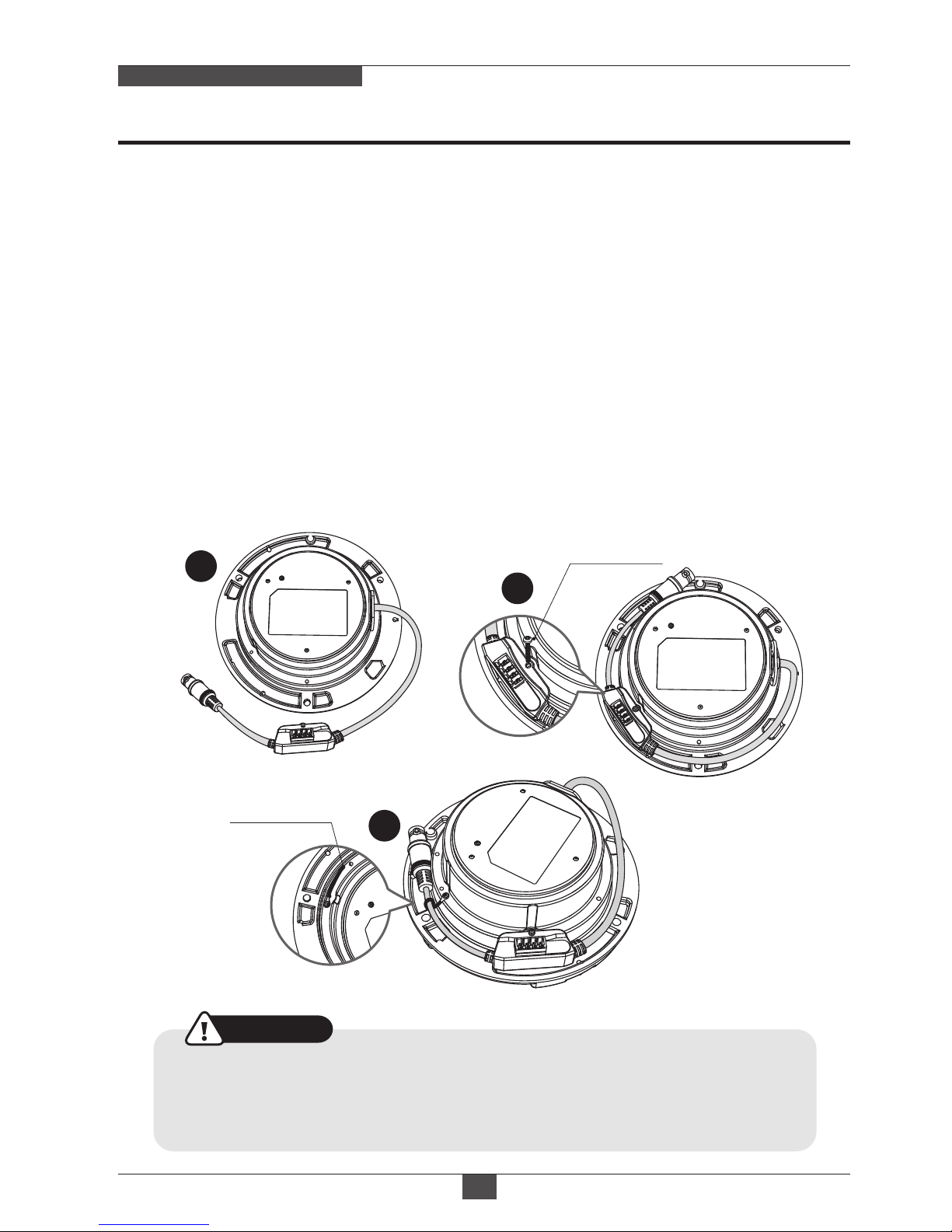

■Option 2.
Installation with Surface mount / Tilted mount
■Option 1.
Installation with Flush mount / Tilted Junction mount
3
1
Connector
fixing screw
2
Cable Holder
* Refer to the instruction guide for Tilted Junction mount .
①Cable is unfixed on the Dome base.
② Connect the power cable to their repective connections.
① Cable is unfixed on the Dome base.
②Fix the power supply connector with fixing screw as illustrated.
③Tie up the BNC cable with cable holder.
④Connect the wiring connector to their respective connections.
* Refer to the signal assignment for wiring connection.
CAUTION
• In the case of installation with Flush/ Surface/ Tilted mount,
IP protection rating is not guaranteed.
• If power, Video, Network connectors are exposed to water or rain,
separate protection shield is essential.

• Extreme care should be taken NOT to scratch the bubble dome surface while
the camera installing or adjusting.
• Care should be taken the cable is NOT to be damaged, kinked or exposed in
the hazardous area.
• Tighten enough the dome cover fixing screws so that there should be NO
gap between Lens hood and clear bubble to avoid the light inflow from IR LEDs.
Installation Instructions
12
FULL-HD AF ZOOM CAMERA
CAUTION

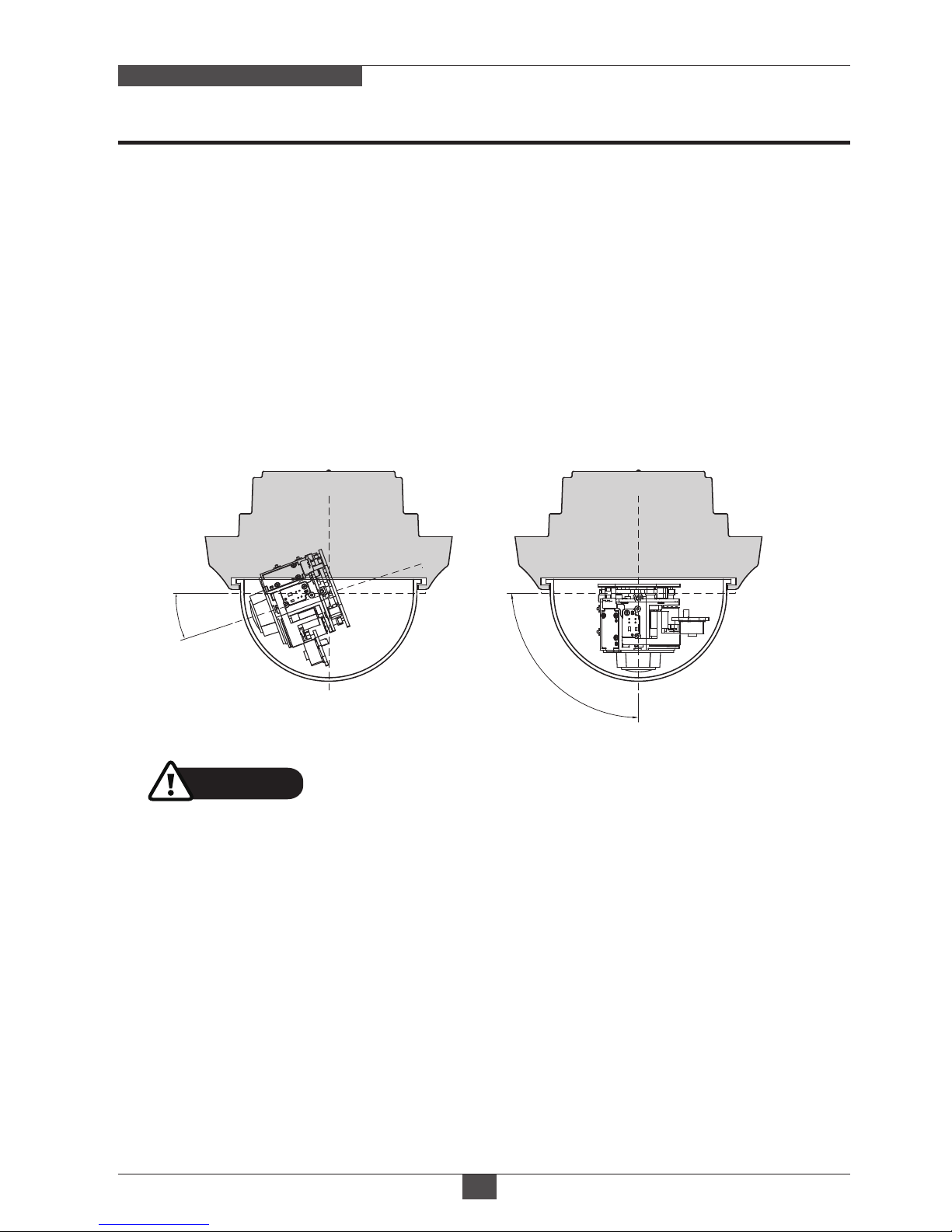

Limit of pan & tilt
1) Pan limit:
Pan is limited to +/- 173°. Do NOT force to rotate the gimbal over the limit to
prevent from the internal damage.
2) Tilt limit:
Tilt is limited to 25° min ~ 90° max. with reference to the ceiling when the
inclination of camera module is 0°, that is, the image is aligned horizontally.
3) Inclination limit (Horizontal image alignment):
Inclination limited to +/- 50° max.
25º
90º

Operating Instructions
13
FULL-HD AF ZOOM CAMERA

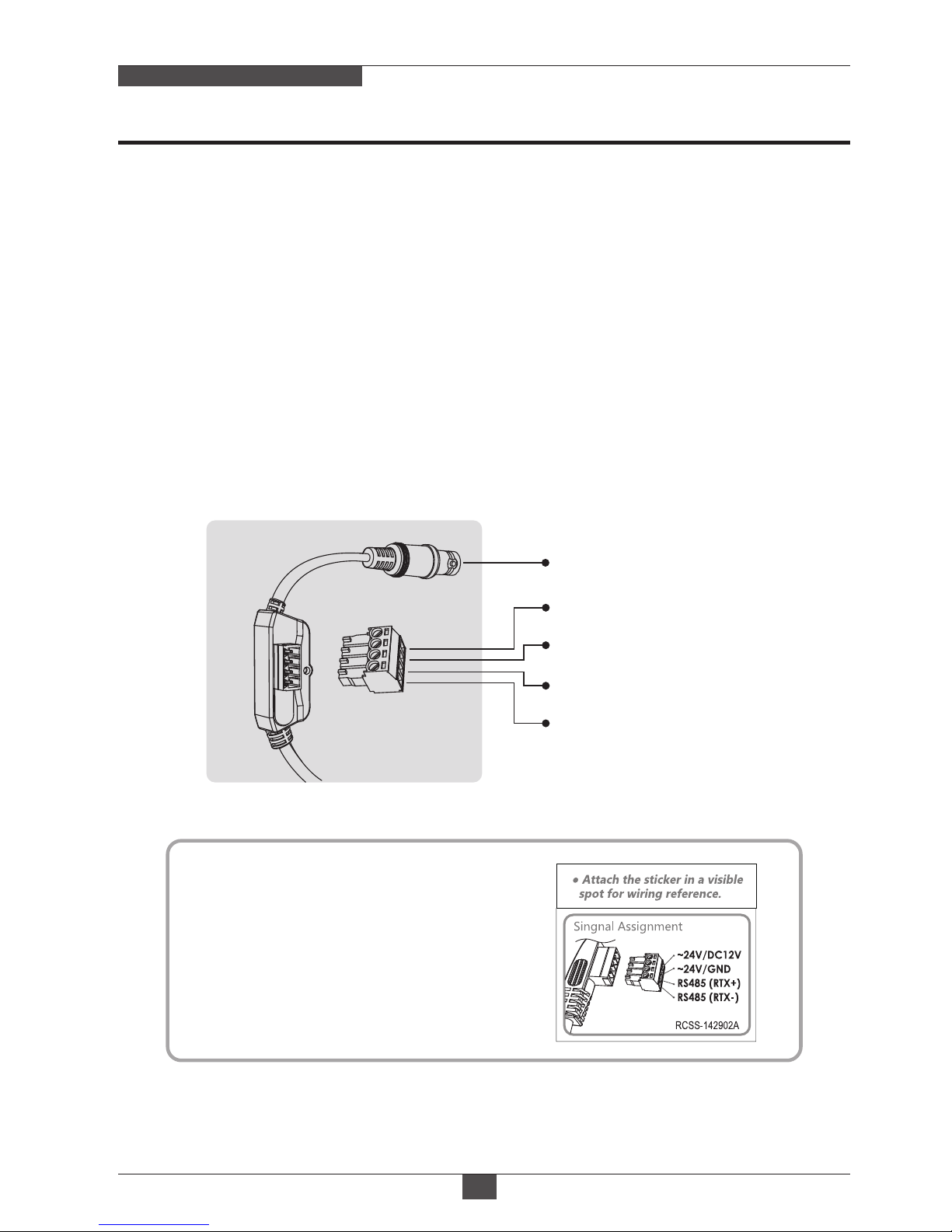

VIDEO (BNC)
AC24V/GND (Black wire)
AC24V/DC12V (Red wire)
RTX-/RS485 (Gray wire)
RTX+/RS485 (White wire)
※ Attach the Signal Assignment Sticker
in a visible spot for wiring reference.
Installation and commissioning Instructions
• Make sure the power is removed before the installation.
• Follow the order for applying power.
First, connect the low voltage (AC24V or DC12V), then plug the AC adapter to
AC outlets to avoid an improper reset from power jitter and a damage from the
surge voltage when no load.
Power Supply Connections
Camera can work with either 24VAC or 12VDC, dual voltage power.
Primary and secondary grounds are completely isolated to avoid the possible
ground-loop problems

OSD control Joy Stick
Video Sub-out
Connector
Using OSD controller
Setup menu can be accessed and controlled by OSD control joy stick on the
side of camera unit.
Five commands are available with the joy stick.
The design of OSD could be different according to the Model.
Description of the joystick operation
1) SET Key (●) : Access to the menu or enter the setting.
To enter the main menu, press the Set Key down for about 1.5sec
2) UP/DOWN Key (▲/▼) : Choose the desired sub-menu and to move the
cursor up or down.
3) LEFT/RIGHT Key (◄/►) : Set up the value of the selected menu.
Used to adjust the desired menu selection and to move the cursor left
or right.
4) denotes the long press down straightly for about 2 seconds
Operating Instructions
14
FULL-HD AF ZOOM CAMERA
Description of the ZOOM&FOCUS* adjustment
1) ▲: Zoom In
2) ▼ : Zoom Out
3) ◄: Focus Near
4) ►: Focus Far
(*) Works only when OSD Menu is inactive.
Set to Pointing Zoom ON for D-Zoom control.

Operating Instructions
15
FULL-HD AF ZOOM CAMERA
OSD menu Startup
Press ‘ ’(OSD menu SET key) down long to access the setup menu mode.
Lens Initializing is strongly recommended at the first stage of setup menu control.
ZOOM/FOCUS > LENS INIT > Press the joystick ‘ ’straight down for about
2 seconds.
MENU V3.xx
1. ZOOM/FOCUS
2. EXPOSURE
3. SCENE ENHANCE
4. 3D-NR
5. DAY/NIGHT
6. PICT ADJUST
7. SPECIAL
8. SYSTEM
9. EXIT
↵
↵
↵
↵
↵
NORMAL
MID
EXT
SAVE&EXIT
↵
Direct Control menu
MAIN DEFAULT DESCRIPTION
ZOOM/FOCUS
Sets FOCUS MODE, D-ZOOM, HOME POSITION, LENS REFRESH
and LENS INIT
-
EXPOSURE
Sets EXPOSURE MODE, BRIGHTNESS, SENS-UP, AGC and
MOTION DEBLUR.
-
SCENE
ENHANCE
NORMAL SCENE ENHANCE provides the several ways to enhance the video
in the various environments with the settings in NORMAL, WDR,
D-WDR, BLC and HLC.
NORMAL – Optimized for the normal indoor and outdoor in the good
lighting condition.
WDR – Improves the visibility for the high bright area and the dark
area by the double captures of image with LONG and SHORT
exposures. With WDR ON, the frame rate becomes half by the double
captures. WDR level can be selected from LOW, MID and HIGH.
Care should be taken to select this mode because video may lose
its quality in some environments by the over compensation.
※CVBS video signal:Connecting 2nd video to CVBS port disables
WDR function temporary. It should be considered when installer
adjusts the video with installation monitor via CVBS video signal.
D-WDR – Improves the visibility by compensating the video gain for
the dark area. Noise can increase in the dark area accordingly.
↵

Operating Instructions
16
FULL-HD AF ZOOM CAMERA
Sets WHITE BAL, SHARPNESS, COLOR GAIN, GAMMA
Sets OFF, LOW, MID and HIGH.
PICT ADJUST
Sets MIRROR/FLIP, PRIVACY, MOTION, PIXEL DEFECT, TITLE SET,
DISPLAY, DEFOG, POINTING ZOOM, PRESET ZOOM
SPECIAL
Sets TV SYSTEM, RESOLUTION, COMM.SETUP, LANGUAGE and
FACTORY DEFAULT
SYSTEM
SAVE & EXIT – Exits the menu after saving the parameters.
EXIT – Exits the menu without saving the menu.
EXIT
Sets DAY / NIGHT to EXT, AUTO, COLOR and B/W.
SMART IR can be set to reduce the saturation by the strong IR
illumination in the night in any menu of EXT, AUTO and B/W(NIGHT)
Setting SMART IR in any menu is identically applied to other menu.
Zero(0) turns off SMART IR and High setting avoids the saturation
strongly but the corners will be darker accordingly.
IR LED Control(AUTO/OFF) is available with IR LED model only.
If IR LED is set to OFF, IR LED will be turned OFF but DAY or NIGHT
is still determined by the built-in light photo sensor.
EXT - DAY or NIGHT is determined by the built-in light photo sensor.
Camera with IR LED must be set to EXT.
AUTO - Used when DAY or NIGHT is determined by light level
through the lens and DAY from/to NIGHT is switched automatically
by the scene brightness.
D<-->N THRESHOLD, D<->N GAP, D<->N DELAY and SMART IR
can be set in the menu. When EXPOSURE>AGC is less than 12,
DAY/NIGHT AUTO is disabled and forcibly switches to ___(DAY) to
avoid the malfunction. EXT, B/W(NIGHT) and COLOR(DAY) is
independent on AGC level. When EXTERNAL IR LED is used with
NON IR LED model, please set to IR LED MODE ON.
B/W(NIGHT) - Forcibly removes IR cut filter and switches to B/W
regardless of light level.
COLOR(DAY) - Forcibly DAY/NIGHT is disabled and outputs color video.
DAY/NIGHT EXT
for
IR LED
AUTO
for
No IR
LED
SCENE
ENHANCE
NORMAL
3D-NR MID
BLC – Improves the visibility for the dark object by the bright back
light. Outside area of BLC window can over saturate.
BLC has a target window for compensation and its size and position
can be set by H-POS, V-POS, H-SIZE and V-SIZE.
HLC – Cuts out the highlight area with black mask and excludes it
from compensation. Lower HLC LEVEL cut out video from the lower
level.

Operating Instructions
17
FULL-HD AF ZOOM CAMERA
ZOOM / FOCUS
FOCUS MODE
D-ZOOM
HOME POSITION
LENS REFRESH
LENS INIT.
RETURN
ZOOM PUSH
OFF
OFF
OFF
ON
RET
• ZOOM PUSH: Focusing is activated only when zoom in/out is working.
• AUTO: Focusing is always working.
• MANUAL: Focusing can only be adjusted by ▲,▼ of OSD control joystick
or the remote control via RS-485.
1. ZOOM/FOCUS
: ZOOM PUSH, AUTO and MANUAL modes are available for focusing.
1-1. FOCUS MODE (default: ZOOM PUSH)
: D-ZOOM(Digital zoom) is available up to 32x. D-ZOOM starts working when
the optical zoom reaches its maximum tele-position. Zoom ratio is displayed
on the right bottom corner of the monitor if SPECIAL>DISPLAY>ZOOM RATIO
is set to ON.
1-2. D-ZOOM (default: OFF)
• O-ZOOM RATIO: Sets the Optical
ZOOM positon as Home Position.
(x1.0~x3.0)
• DURATION: When ZOOM IN/OUT
control is accomplished, camera returns
to pre-defined Zoom position after
Duration time.
If SMART MOTION / PRESET ZOOM
are running, duration for Home position
starts after finishing SMART MOTION
/ PRESET ZOOM.
: Camera can be configured to return to pre-defined Zoom position automatically
after certain period since ZOOM IN/OUT control is accomplished.
Home Position is recovered even after camera is re-initializing or Power ON/OFF.
1-3. HOME POSITION (default: OFF)
HOME POSITION
O-ZOOM RATIO
DURATION
RETURN
OX1.5
5s
RET

Operating Instructions
18
FULL-HD AF ZOOM CAMERA
EXPOSURE
MODE
BRIGHTNESS
SENS-UP
AGC
MOTION DEBLUR
RETURN
AUTO
OFF
ON
RET
2. EXPOSURE
: Can set EXPOSURE MODE to AUTO, IRIS Priority, SHUT. Priority, MANUAL
and Flickerless. SHUT. Priority, MANUAL and Flickerless modes disable
SENS-UP and MOTION BLUR functions.
2-1. MODE (default: AUTO)
• It is strongly necessary to execute LENS INIT in cases below;
1) At the final step for the installation.
2) When focus becomes out of control by the shock or vibration.
CAUTION
|:::::::|::::::| 10
|:::::::|::::::| 12
: LENS REFRESH can be set to 1~10day and performs the scheduled LENS
Initialization automatically. Every initialization occurs when the time reaches
the scheduled time after setup or power up. When LENS REFRESH initiates
LENS Initialization, a notification ‘LENS INITIALIZING…’ appears on the top
left corner on the monitor.
1-4. LENS REFRESH (default: OFF)
: Lens initialization is necessary during the installation or the regular operation
to align the position data with the mechanical positions whose lens elements
may move and deviate from its calibrated position by the shock or vibration, for
example, during the transportation.
LENS INIT starts the lens initialization when pressing the joystick lever straight
down for about 2 sec.
LENS INIT checks the positions for zoom and focus at both of the end positions
and saves them for the references.
Lens initialization is automatically executed at power up.
1-5. LENS INIT (default: ON ‘ ’)

Operating Instructions
19
FULL-HD AF ZOOM CAMERA
• AUTO: SENS-UP is enabled or disabled automatically by the scene brightness.
Higher SENS-UP can get the brighter video but the slower frame rates with
motion blur and more white pixels. If set to AUTO, maximum integration limit
for SENS-UP(Low Shutter) can be set to x2, x4, X8, x16, X32 in SENS-UP
menu.
• OFF: Disables SENS-UP.
: The brighter video can be obtained by increasing the exposure time in the
night with SENS-UP. SENS-UP is the maximum integrations of frame by
DSS (Digital Slow Shutter) in the low light.
2-3. SENS-UP (default: OFF)
• NORMAL (default):
Optimized for the normal indoor and outdoor in the normal lighting condition.
: AGC amplifies the video gain for brighter video but noise and white pixel
accordingly. AGC level less than 10 disables AUTO in DAY/NIGHT.
2-4. AGC (default: 12)
: ON enables MOTION DEBLUR to reduce the motion blur in a certain indoor
enviroment. Noise or color rolling can increase.
: Refer to ‘DIRECT CONTROL MENU’ table.
2-5. MOTION DEBLUR (default: ON)
3. SCENE ENHANCE
• AUTO: Optimizes the video level by controlling the iris and the shutter speed
automatically.
• IRIS Priority: Selects to fix IRIS in a certain apperture and the video level is
controlled by an automatic shutter control. Lower IRIS LEVEL will close more
iris and increase the field of depth in the daytime but significantly decrease
the low light performance. Too much low IRIS LEVEL will result in the foggy
video by the diffusion from the lens iris.
• SHUT. Priority: Selects to fix SHUTTER speed in a certain speed and the video
level is controlled by an automatic iris control.
This mode is useful when the color rolling occurs under the fluorescent lighting.
It is not recommendable at outdoor in the daytime.
• MANUAL: Iris level and Shutter speed can be set to fix.
• Flickerless : Reduces the flicker in video when US(60Hz)/EU(50Hz) mode is
used in 50Hz/60Hz fluorescent lighting respectively.
: Adjusts the brightness of video(0~20).
2-2. BRIGHTNESS (default: 10)

Operating Instructions
20
FULL-HD AF ZOOM CAMERA
3D-NR is a very sophisticated and powerful time-based noise reduction technology
by monitoring the noise for the several video frames and defining and eliminating
them consecutively at low light.
Higher setting reduces noise much more but results in losing the sharpness and
the tail effect or the motion blur for the fast moving target at low light.
MENU V3.xx
1. ZOOM/FOCUS
2. EXPOSURE
3. SCENE ENHANCE
4. 3D-NR
5. DAY/NIGHT
6. PICT ADJUST
7. SPECIAL
8. SYSTEM
9. EXIT
↵
↵
↵
↵
↵
WDR
MID
EXT
SAVE&EXIT ↵
↵
↵
• WDR : Can be selected from LOW, MID and HIGH
• D-WDR : Can be selected from LOW, MID and HIGH
• BLC : Can be set the BLC area by H-POS, V-POS, H-SIZE and V-SIZE.
• HLC : Can be set the level upto 20
: Refer to ‘DIRECT CONTROL MENU’ table.
Default setting are EXT for IR-LED types and AUTO for None IR LED types.
WDR
WDR LEVEL
RETURN
MID
RET
4. 3D-NR (default: MID)
5. DAY / NIGHT
EXT
SMART IR
IR LED CONTROL
RETURN
AUTO
RET
|::::::::::::::| 0
D/N AUTO
D<->N THRESHOLD
D<->N GAP
D<->N DELAY
SMART IR
RETURN
10s
RET
|::::::::::::::| 0
|:::::::|::::::| 10
|:::::::|::::::| 10
