Eneo NTD-4101 User manual

Operating Instructions
1/4“ Network Colour Mini Dome Camera
Model: NTD-4101

3
NTD-4101
Safety Instructions
EMC class
This camera is a class A digital device to EN55022.
This device may cause interference to other equipment in domestic use. In such cases the persons opera-
ting the DVR are required to provide appropriate countermeasures, for which they themselves bear the cost.
►
►
Importance of these Operating Instructions
Please read the safety instructions and the other information contained in the Operating Instructions before
connecting and operating the camera.
The Operating Instructions should be kept in a safe place for later reference.
►
►
Environmental conditions of the camera
The camera should be protected against excessive heat, dust, humidity and vibration.
The camera should be protected against penetrating water and humidity which can cause permanent
damage.
The camera may only be operated at temperatures between 0°C and +40°C, and up to a maximum air
humidity of 85%.
►
►
►
Handling the camera
Never switch on the camera when it is humid at the inside. In such cases, have the camera checked by a
qualied service engineer.
The housing may only be opened by authorised persons. Repairs may only be carried out by qualied
service personnel.
Prior to opening the camera you must interrupt the power supply to the camera.
►
►
►
First camera operation
Never use the camera outside its specications. The camera can be destroyed if you do.
Never direct the camera towards the sun when the iris is open. This destroys the optical sensor.
When laying the connecting cables, make sure no weight is placed on them, that they are not kinked or
damaged, and that no humidity can penetrate them.
►
►
►
Cleaning the camera
Use only a damp cloth for cleaning the camera housing. Never use a wet cloth.
Use only a mild detergent to clean the housing. Do not use solvent-containing detergents or benzene. This
could permanently damage the surface nish.
►
►
Spare parts
Use only original spare parts from Videor E. Hartig GmbH.►

5
NTD-4101
Table of contents
Overview 7
Package contents 7
Basis functions 7
Features 7
Requirements for operation 7
Control options 7
Design and connections of the camera 8
Terminating the camera (RS-485) 9
Getting Started 10
Checklist for rst camera operation 10
Network Connection Setup 11
Installing the Camera 12
Installation at the monitoring point 12
Installing the safety rope 12
Drilling template 13
Opening the dome cover 14
Closing and securing the dome cover 14
Installation on ceiling or wall 15
Installing the heater kit 16
Cable routing in the pipe 16
Connecting the Camera 17
Connecting the power supply 17
Video connection 17
Audio connection input 17
Audio connection output 17
Network connection 17
Alarm connection input 17
RS-485 connection 17
Camera settings 18
Selecting the colour standard 18
Selecting the control protocol 18
Setting the ID address 18
Multiplexer in the network 19
Operation via system keypad 20
Joystick menu functions 20
Keypad menu functions 20
Camera menu operation 21
Invoking menu settings 21
Controlling the camera during menu operation 21
Saving presets via the system keypad 22
Camera movement with enabled automatic image reversal 22
Resetting alarm 22
Operation via web browser 23

6NTD-4101
Table of contents
Camera Menu Overview 24
Menu Descriptions – Camera Menu 26
PRESET (xed positions) 27
TOUR (camera movements) 28
AUTO SCAN (automatic scanning) 29
ALARM 30
CAMERA SETUP 31
DOME-SETUP 36
EXIT 37
Setting up Network Connectivity 38
Allocating or changing the camera IP address 38
Camera Control via NT-Manager 39
NT-Manager main menu 39
Additional information 39
Logging on the camera in the network 40
Camera Control via Web Browser 41
Connecting camera with web browser 41
Possible Errors and Solutions 42
Specications NTD-4101 43
Accessories 46
Dimensional Drawings 47
Index 48
Notes on disposal 50

7
NTD-4101
Overview
Package contents
1/4“ network colour mini dome camera with 10x zoom lens, 720 x 576, 12 VDC
Power supply unit 230 V/12 VDC
Connecting cable for RS-485 and alarm
Base kit xing material
Drilling template
Safety rope
RJ-45 connector
CD with viewer software (NT-Manager), setup and client software
Quick start guide, complete Installation and Operating Instructions on CD
Note: The installation hardware is not supplied.
Basis functions
SONY CCD technology
Suitable for industrial television (CCTV)
Suitable for security monitoring
Features
1/4“ vandalism-protected IP PTZ colour dome camera
Zoom lens: F1.6/3.15-31.5 mm / 10x digital zoom
Sensitivity: 0.85 Lux at F1.2
High-speed shutter (MES/ESC)
On-screen menu guidance / camera title display
Max. horizontal speed: up to 120°/s
MPEG-4 compression
Transmission rate: Up to 25 ips (720 x 576 pixel)
Viewer for live / recording and setup
Pre -alarm and post-alarm recording (in the client PC)
Integrated web server: 10Base-T/100Base-TX
Event image transfer via E-mail
Requirements for operation
This camera must be installed by qualied personnel in agreement with the regulations for electrical and
mechanical systems that are valid at the place of installation.
Note: Please refer to www.videor.com for further information.
Control options
Analog camera menu via external system keypad (not in scope of delivery)
Viewer software (NT-Manager)
Web browser
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●

8NTD-4101
Design and connections of the camera

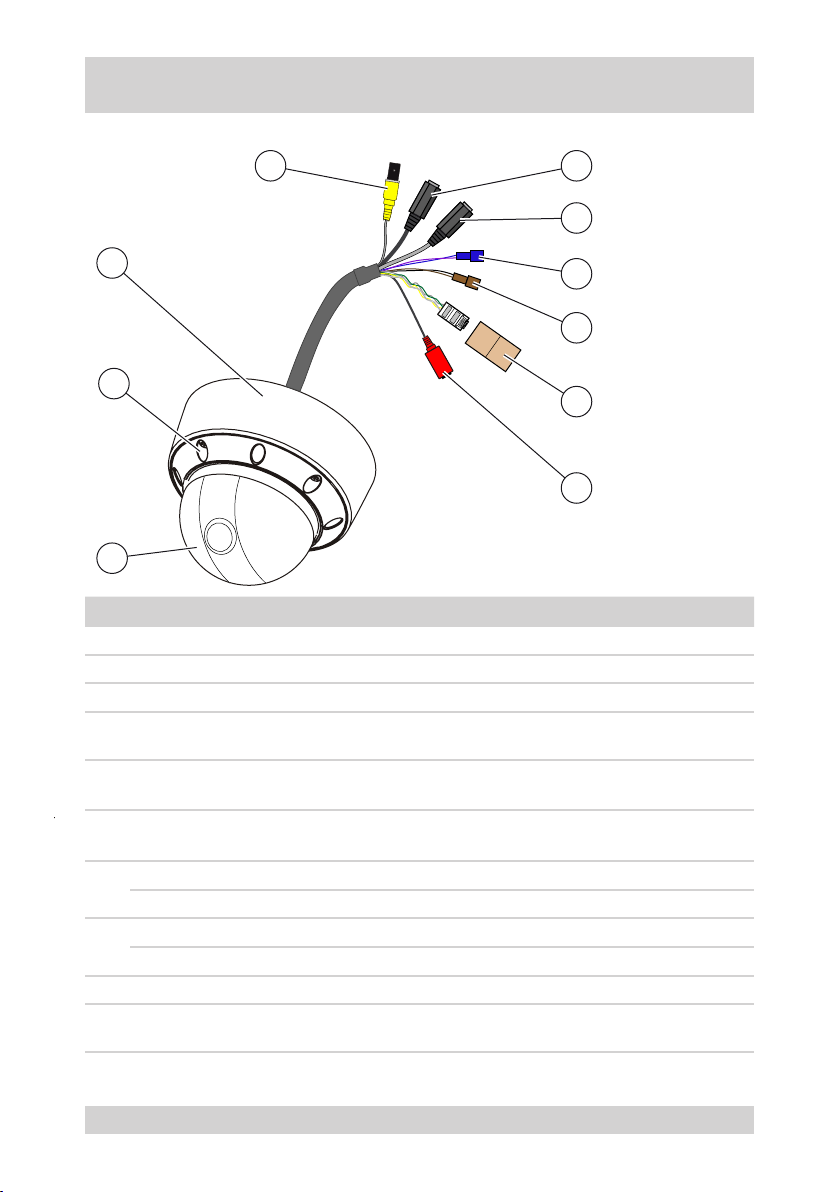

The following gure and the table describe the design and connecting elements of the camera:
2
1
3
6
7
5
9
10
8
4
No. Designation Function Connection of
1 Dome cover Housing part -
2 Screwed connection Dome cover attachment -
3 Dome base Dome with camera -
4 VIDEO OUT Video output, BNC Monitor
Multiplexer
●
●
5 AUDIO IN Audio input, 3.5-mm jack
connector, mono Microphone
6 AUDIO OUT Audio output, 3.5-mm jack
connector, mono
Active loudspeaker
Audio amplier
●
●
7ALARM IN Purple: Alarm input Alarm contact
ALARM COMMON Blue: Alarm earth Alarm contact
8RS-485(+) Black: RS-485(+) Non-inverted connection
RS-485(-) Brown: RS-485(-) Inverted connection
9 LAN (RJ-45) Network connection, RJ-45 Network cable
10 +12 VDC / GND Power supply Power supply unit 12 VDC, protection
class 2, 12 W

9
NTD-4101
Design and connections of the camera, continued

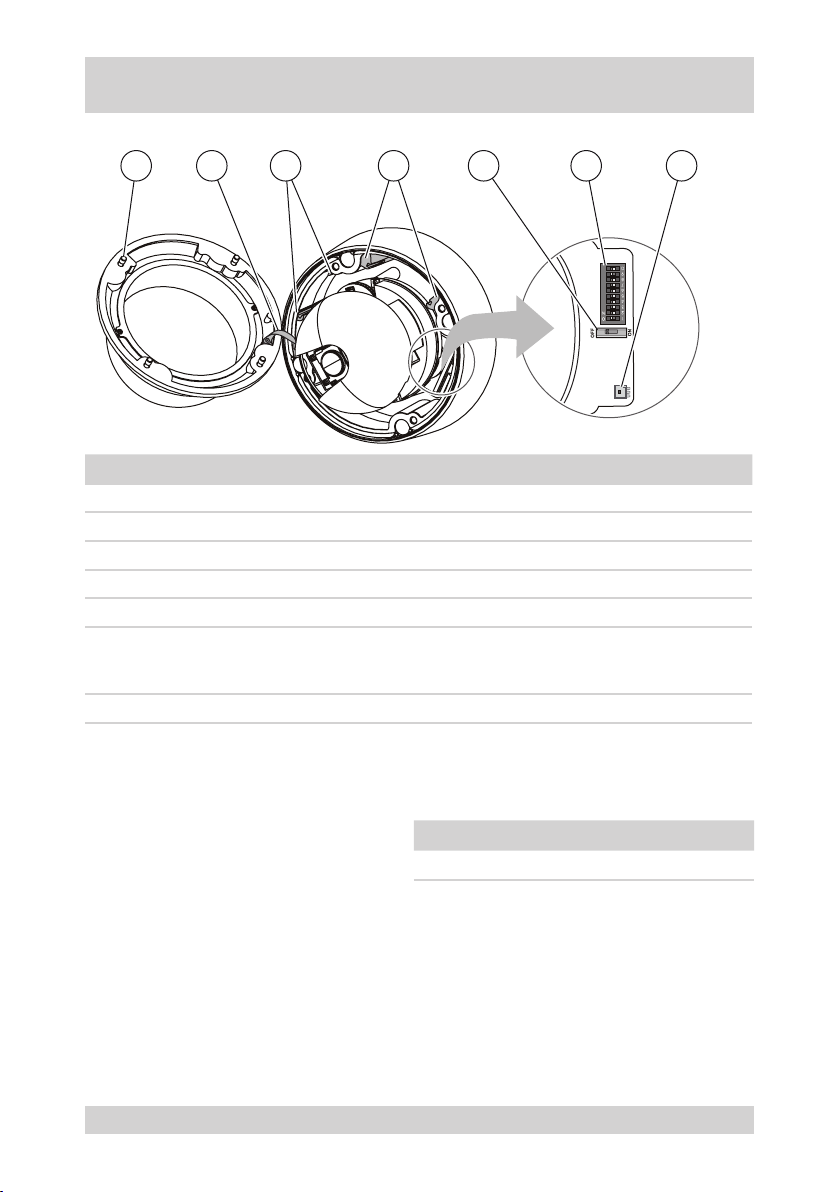

The following gure and the table describe the design and connecting elements of the camera:
21 3 4 5 6 7
No. Designation Function
1 Screw Close and secure the dome cover (not unscrewed).
2 Retaining harness Connect dome cover with dome base.
3 Retainer Accommodate heater element heater kit (accessories).
4 Retainer Accommodate connector board heater kit (accessories).
5 Termination switch Switch RS-485 termination ON/OFF.
6 DIP switch
Select the colour standard
Select the control protocol
Set the ID address
●
●
●
7 Connector Power supply for heater kit (accessories).
Terminating the camera (RS-485)
The termination of the camera at the physical end of the RS-485 line must be activated.
Requirements:
Camera separated from the power supply.
Termination switch accessible.
Network connection conguration known.
●
●
●
RS-485 of the camera Termination switch
Terminated ON
Not terminated OFF

10 NTD-4101
Getting Started
Checklist for rst camera operation
Step Action
1 Plan the network connection setup
2 Select colour standard, control protocol and ID address on the camera
3 If necessary, terminate the camera
4 Note down the MAC address of the camera
5 Make camera selections in the analog camera menu
6 Install the camera at the monitoring point
7Connecting the camera
8 Install the network software
9 Log on the camera in the network
10 Operate the camera via the network

11
NTD-4101
Network Connection Setup
The following gure shows an example of a network connection setup.
BNC
*)
*)
NT-Manager
RJ-45-LAN
External Control
RJ-45-Crossover
Internet
IP setting utility
*) terminated

12 NTD-4101
Installing the Camera
Installation at the monitoring point
This camera is suitable for
Ceiling installation, also on suspended ceiling.
Wall installation.
Note: Suitable installation hardware see Accessories.
Danger from electric shock
DANGER!Danger from electric shock
The electric equipment of the camera bears the risk of a direct/indirect electric contact.
Only skilled electricians are allowed to work on the camera.
Danger from dropping objects
DANGER!Danger from dropping objects
Improper installation can cause cameras or camera holders to drop down.
Ensure that the carrying capacity of the surface is adequate.
Use only suitable installation hardware.
Observe the Operating Instructions of the installation hardware.
●
●
●
Installing the safety rope
Prior to installing the camera on a wall or ceiling you must secure the safety rope from the parts supplied on the
camera.
1
2
Requirements:
Safety rope and screw from the parts supplied are available.
No. Meaning
1 Retaining screw M3x5
2 Safety rope
●
●
●

13
NTD-4101
Drilling template
The enclosed drilling template permits boreholes and openings to be drilled at the correct positions.

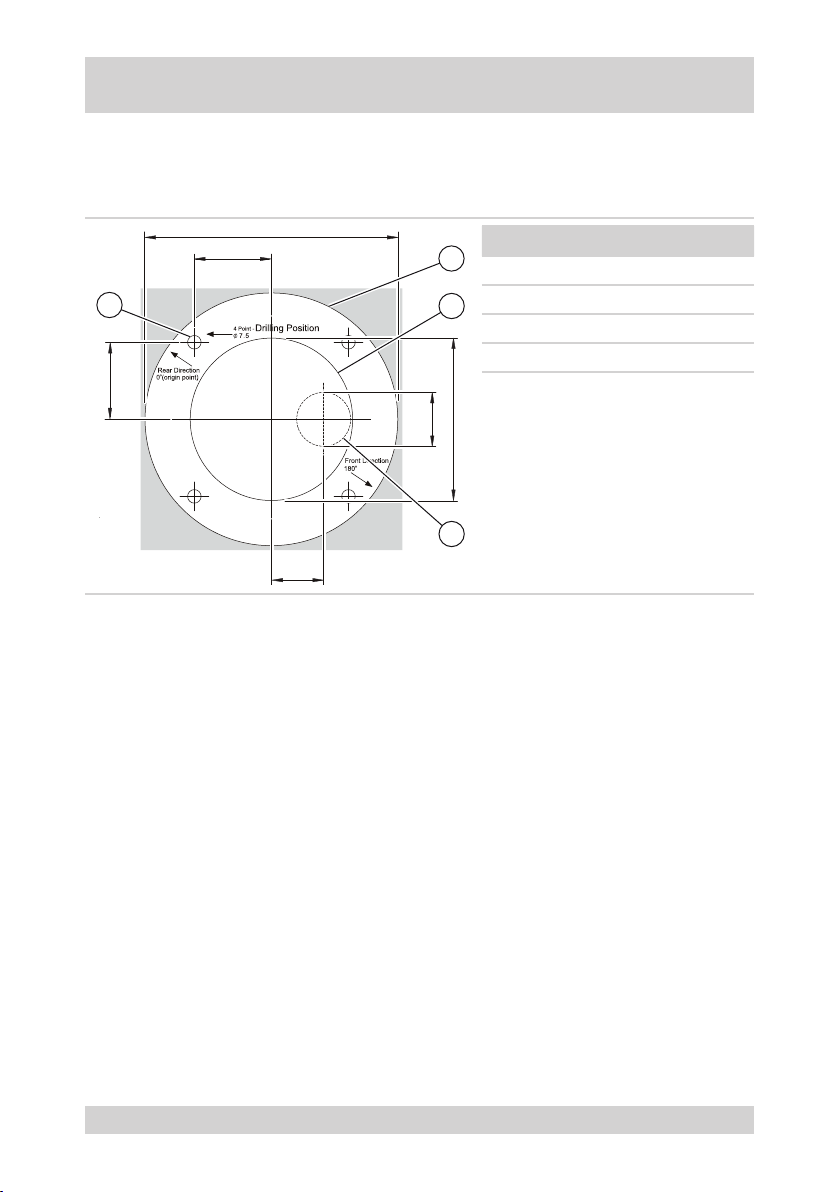

The following gure and table show the drilling template with dimensions (in mm):
30 90
29
42.5
140
42.5
13
4
2
No. Meaning
1 Borehole Ø 7.5 mm
2 Outer edge of template
3 Opening in suspended ceiling
4 Opening for cable penetration
Installing the Camera, continued

14 NTD-4101
Opening the dome cover
The dome cover of the camera can be opened for installation and adjustment. A exible plastic tape connects
dome cover and dome base with each other.
Requirements:
Screwdriver from parts supplied available.

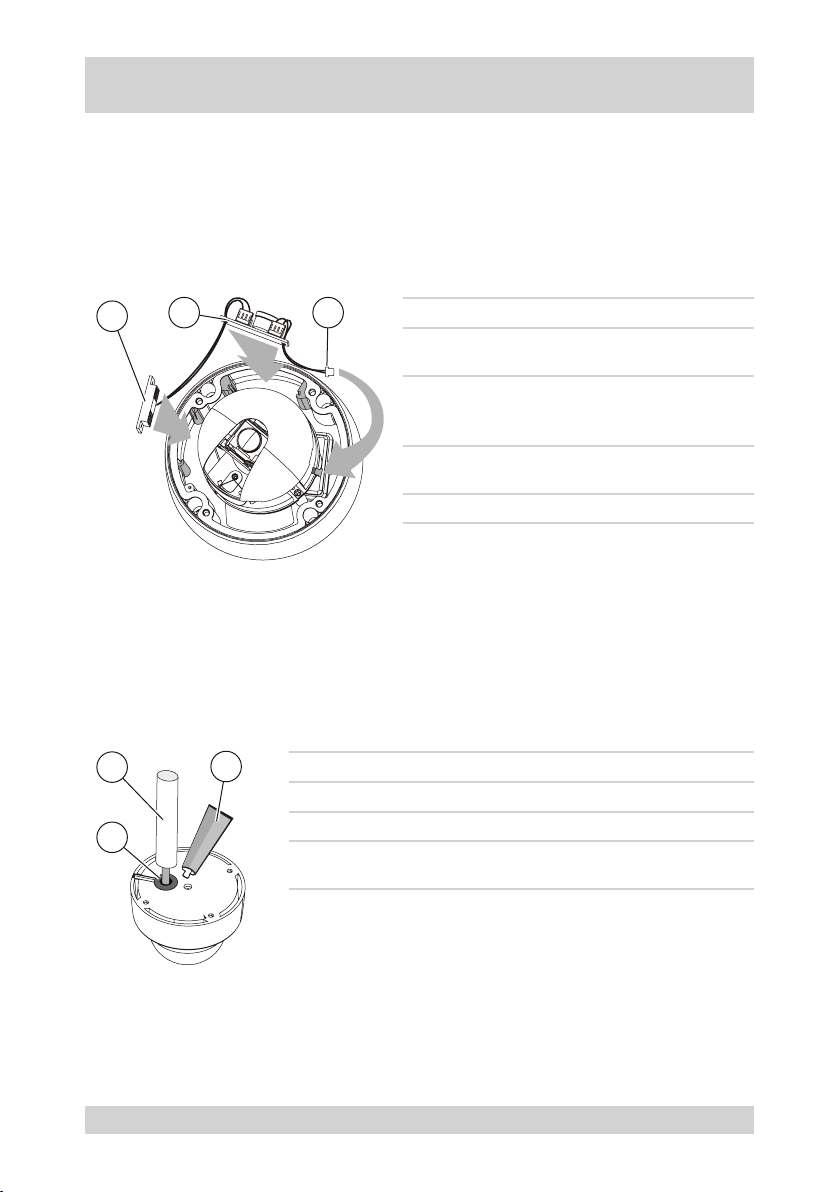

The following gure and the table describe how the dome cover can be opened:
BA C D
Step Action
1 Release four screws (A) in the dome cover (B). Do not fully unscrew the screws.
2 Slightly lift the dome cover off the dome base (D).
3Fold the dome cover at the retaining harness (C) sideways.
Result: The dome cover is open.
Closing and securing the dome cover
Once installation and adjustment have been completed, you must close and secure the dome cover.
Step Action
1 Fold the dome cover (B) over the optical system onto the dome base (D).
2Tighten four screws (A) in the dome cover (B).
Result: The dome cover is closed and secured.
●
Installing the Camera, continued

15
NTD-4101
Installation on ceiling or wall
This camera is suitable for
Ceiling installation, also on a suspended ceiling.
Wall installation.
Note: Suitable installation hardware see Accessories.
Requirements:
Sufciently stable installation underground.
Safety rope secured to the camera.
Connections prepared.
Accessories from parts supplied available.
The following gure and the table describe the installation of the camera:
A
B
C
D
Step Action
1 Attach the drilling template (C) on the point of installation.
2 Make cutout and 4 boreholes according to the drilling template.
3 Insert size-8 multi-purposes wall plugs (D) into the boreholes.
4 Secure the safety rope on a bearing part.
5 Connect the camera.
6 Open the dome cover.
7Securely screw the dome base with 4 screws M6x35 (A) and rubber gaskets (B) in the multi-
purpose wall plugs (D).
8 Close and secure the dome cover.
●
●
●
●
●
●
Installing the Camera, continued

16 NTD-4101
Installing the heater kit
To enhance the temperature range of the camera you can retrot a heater kit.
Requirements:
Dome cover open.
Accessories „heater kit“ available.
The power supply rating is at least 22 W at 12 VDC for camera and heater kit.
The following gure and the table describe the installation of the heater kit:
AB C Step Action
1Insert the heater element (A); the cooling ns
point towards the camera inside.
2
Insert the printed circuit board (B); the
soldering side points towards the camera
inside.
3Insert the plug (C) into the socket (J701) of the
PTZ board.
4 Close and secure the dome cover.
Cable routing in the pipe
The cable outlet on the camera must be changed when the cables are routed in a pipe.
Requirements:
All cables are routed in a pipe (not in scope of delivery).
Silicon sealant available (not in scope of delivery).
The following gure and the table describe the measures to be taken for routing the cables in a pipe:
C
B
A
Step Action
1 Remove the rubber gasket (A) from the camera cable outlet.
2 Route the pipe (B) over the cables to the camera.
3Sealing with silicon sealant around the pipe (C) replaces the
removed rubber gasket.
●
●
●
●
●
Installing the Camera, continued

17
NTD-4101
Connecting the Camera
Connecting the power supply
The power supply connection of this camera is suitable for a 12 VDC power supply.
Requirements:
Use only certied/listed power supply units of protection class 2.
The power supply unit must be able to supply 12 VDC with at least 12 W.
Danger from electric shock
DANGER!Danger from electric shock
The electric equipment of the camera bears the risk of a direct/indirect electric contact.
Only skilled electricians are allowed to work on the camera.
Video connection
The video output of this camera supplies a video signal of 1.0 Vp-p / 75 ohms. The video signal is transferred
via a twisted-pair (UTP)
Note: The metal of the BNC connector must not be in contact with any other metal part.
Audio connection input
The audio input of this camera is suitable for receiving an audio signal of microphone level via an asymmetrical
line.
Audio connection output
The audio output of this camera supplies an audio signal of line level via an asymmetrical line.
Network connection
The network connection of this camera is suitable for transmitting signals and for controlling the camera via a
network.
Requirements:
Use a standard RJ-45 crossover LAN cable for setup (IP assignment).
Use a standard RJ-45 LAN cable for video operation.
Alarm connection input
The alarm input of this camera is suitable for mechanical and electrical alarm contacts.
Requirements:
The cable ends must be insulated after connection, even when they are unused.
The earth connection of alarm input and/or alarm output are connected to GND.
RS-485 connection
The RS-485 connection of this camera is suitable for an RS-485 interface with baud rate 9600 bps.
Requirements:
The cable ends must be insulated after connection, even when they are unused.
Total communication cable length: max. 1200 m.
●
●
●
●
●
●
●
●

18 NTD-4101
The settings on the camera are made via DIP switches.
Requirements:
Camera separated from the power supply.
DIP switches accessible.
Network connection conguration known.
●
●
●
Icon Meaning
ON
- OFF
Selecting the colour standard Selecting the control protocol
Requirement: Colour standard known. Requirement: Control protocol known.
Colour standard DIP No. 8
NTSC
PAL -
Protocol DIP No. 9 DIP No. 0
Fastrax-II -
PELCO-D - -

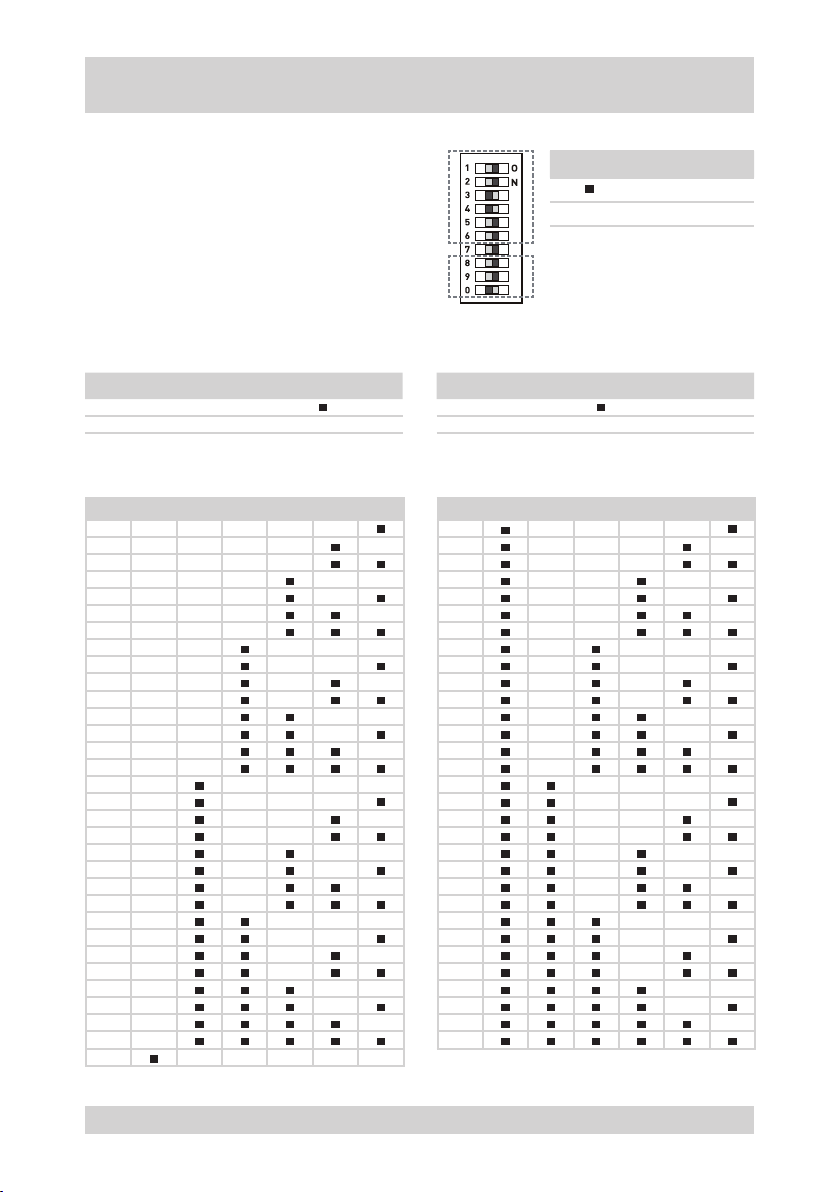

Setting the ID address
The following table shows the settings of the DIP switches for networks:
ID 6 5 4 3 2 1 ID 6 5 4 3 2 1
1- - - - - 33 - - - -
2- - - - - 34 - - - -
3- - - - 35 - - -
4- - - - - 36 - - - -
5- - - - 37 - - -
6- - - - 38 - - -
7- - - 39 - -
8- - - - - 40 - - - -
9- - - - 41 - - -
10 - - - - 42 - - -
11 - - - 43 - -
12 - - - - 44 - - -
13 - - - 45 - -
14 - - - 46 - -
15 - - 47 -
16 - - - - - 48 ----
17 - - - - 49 ---
18 - - - - 50 - - -
19 - - - 51 - -
20 - - - - 52 - - -
21 - - 53 - -
22 - - - 54 - -
23 - - 55 -
24 - - - - 56 ---
25 - - - 57 - -
26 - - 58 - -
27 - - 59 -
28 - - - 60 - -
29 -61 -
30 - - 62 -
31 -63
32 - - - - -
Camera Settings

19
NTD-4101
Camera Settings, continued
Multiplexer in the network
Systematic address assignments avoid address conicts in the network when several cameras are used via
multiplexers.
The ID address depends on
the number of multiplexers.
the camera input at the related multiplexer.
The ID address is calculated as:
Camera ID = 16 x (multiplexer ID - 1) + camera input
Examples
Multiplexer ID Camera input Calculation Camera ID
1 4 = 16 x (1 - 1) + 4 = 0 + 4 4
1 13 = 16 x (1 - 1) + 13 = 0 + 13 13
2 1 = 16 x (2 - 1) + 1 = 16 + 1 17
3 11 = 16 x (3 - 1) + 11 = 32 + 11 43
●
●

20 NTD-4101
The camera can be operated via a system keypad. Suitable system keypads see accessories.
Note: Observe the instructions in the product documentation of the system keypad.
Joystick menu functions
Joystick Menu function
Next higher menu function
Next lower menu function
Next value or mode
Previous value or mode
Joystick rotation
Keypad menu functions
Button Menu function
MENU Invoke „MAIN MENU“
ESC Cancel entries and return to the previous menu
CTRL Enable joystick for camera function
PGM Allocate presets to numeric keys
PRST Invoke preset
TOUR Invoke camera movement
SCAN Invoke automatic scanning
ALRM Reset alarm
0... 9Numeric keys
Operation via system keypad
