ENERGY KINETICS System 2000 Guide

Gas Heat – Ninth Edition – September 2018
System 2000®
Frontier Boilers®
USER’S INFORMATION MANUAL
GAS HEAT EDITION
MANUFACTURED BY:
ENERGY KINETICS, INC.
51 Molasses Hill Road
Lebanon, NJ 08833
[phone]
www.energykinetics.com or www.system2000.com
INSTALLER: PLEASE HANG THIS INFORMATION MANUAL AND ACCESSORY INSTRUCTIONS VISIBLY
NEXT TO THE BOILER USING THE SUPPLIED POUCH.
CONSUMER: PLEASE RETAIN THIS INFORMATION MANUAL AND ACCESSORY INSTRUCTIONS FOR
FUTURE REFERENCE.
WARNING: If the information in this
manual is not followed exactly, a fire
or explosion may result causing
property damage, personal injury or
loss of life.
Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS
oDo not try to light any appliance.
oDo not touch any electrical
switch; do not use any phone in
your building.
oImmediately call your gas supplier
from a neighbor’s phone. Follow
the gas supplier’s instructions.
oIf you cannot reach your gas
supplier, call the fire department.
Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
This product meets the
Energy Star®guidelines
for efficiency.
MH27877
ANSI Z21.13-2005
CSA 4.9-2005
Low-Press Boiler
ASME certified by EKI.
Certificate plate is under
the jacket on the steel
vessel.

Gas Heat - Ninth Edition, September, 2018 1
Please Read This First…..
Special Attention Flags
Please pay particular attention to the following flags when you see them throughout this manual.
DANGER: Notifies you of hazards that WILL cause severe personal injury, death or substantial property
damage.
WARNING: Notifies you of hazards that CAN cause severe personal injury, death or substantial property damage.
CAUTION: Notifies you of hazards that WILL or CAN cause minor personal injury or property damage.
NOTICE: Notifies you of special instructions on installation, operation, or maintenance that are important, but
not normally related to injury or property damage hazards.
WARNING: Retain this manual for use by your qualified service technician only. Should you observe unusual
or abnormal operation of the burner or boiler, contact your qualified service technician
immediately. Do not attempt to service or repair this product yourself.
WARNING:
Have the burner/boiler started up and serviced at least once annually by a qualified service
technician. Professional care is necessary to properly service your equipment and verify it is
operating reliably. Failure to properly maintain the equipment could result in severe personal
injury, death or substantial property damage.
WARNING: You must keep the area around the burner/boiler free from the following. Failure to comply
could result in severe personal injury, death or substantial property damage due to potential
fire, explosion or equipment damage from corrosive flue products.
Do not store or use gasoline or other flammable vapors or liquids near or in the same
room as the burner.
Do not use or store laundry products, paint, varnish, thinner or other such chemicals
near or in the same room as the burner/boiler. These chemicals cause creation of
acids in the burner, heat exchanger and vent system that can cause severe damage.
Do not store combustible materials near or in the same room as the burner/boiler.
General care and maintenance

 Please read through the information provided for you in this manual. Ask your qualified service
technician to explain normal operation of your equipment.

 Daily inspect the space around the burner/boiler to verify the area is clean and free of the materials
listed above.

 Periodically watch the operation of your burner/boiler through an operating cycle to verify normal
operation. If you notice unusual conditions or equipment behavior, contact your qualified service
technician. Follow the instructions on the next page to shut down the burner/boiler while waiting for the
technician.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause
property damage, personal injury (exposure to
hazardous materials) or loss of life. Refer to the
user’s information manual provided with this boiler.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier (who must read and follow the supplied
instructions before installing, servicing, or
removing this boiler. This boiler contains materials
that have been identified as carcinogenic, or
possibly carcinogenic, to humans).

Gas Heat - Ninth Edition, September, 2018 2
FOR YOUR SAFETY READ BEFORE OPERATING
A. This burner does not have a pilot. It is
equipped with an ignition device which
automatically lights the burner. Do not try
to light the burner by hand.
C. Use only your hand to turn the gas control knob.
Never use tools. If the knob will not turn by hand,
don’t try to repair it, call a qualified service
technician. Force or attempted repair may result in
a fire or explosion.
B. Before OPERATING, smell all around the
boiler area for gas. Be sure to smell next
to the floor because some gas is heavier
than air and will settle on the floor. See
below.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electric switch; do
not use any phone in your building
Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
If you cannot reach your gas supplier,
call the fire department.
D. Do not use this boiler if any part has been under
water. Immediately call a qualified service
technician to inspect the boiler and to replace any
part of the control system and any gas control,
which has been under water.
OPERATING INSTRUCTIONS
1. STOP! Read the safety information above.
2. Set the thermostat(s) to their lowest setting.
3. Turn off all electrical power to the burner/boiler.
4. This burner is equipped with an ignition device which automatically lights the burner.
5. Do not try to light the burner by hand.
6. Turn Gas control knob clockwise to OFF.
7. Wait five (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you
smell gas, STOP! Follow the safety information above. If you don’t smell gas, go to the next
step.
8. Turn Gas control knob counterclockwise to ON.
9. Set thermostat(s) to desired setting.
10. Turn on all electric power to the burner and boiler.
11. If the burner/boiler will not operate, follow the instructions “TO TURN OFF GAS TO THE
BURNER” below and call your service technician or gas supplier.
TO TURN OFF GAS TO THE BURNER
1. Set thermostat(s) to their lowest setting.
2. Turn off all electric power to the burner and boiler if service is to be performed.
3. Turn Gas control knob clockwise to OFF. Do not force.
WARNING: If you do not follow these instructions exactly, a fire or explosion
ma
y
result causin
g
p
ro
p
ert
y
dama
g
e,
p
ersonal in
j
ur
y
or loss of life.

Gas Heat - Ninth Edition, September, 2018 3
RECORD OF INSTALLATION
BOILER MODEL NUMBER
BOILER SERIAL NUMBER
INSTALLER NAME:
INSTALLER ADDRESS:
INSTALLER CITY, STATE:
DATE INSTALLED:
NOTES:
TABLE OF CONTENTS
Page Topic
1 Please Read This First
3 Record of Installation
3 Table of Contents
4 System 2000 Boiler – Principle of Operation
4 Digital Manager – Principle of Operations
5 Blocked Vent Shutoff System
6 In Case of No Heat
6 Annual Maintenance
6 Periodic Maintenance
7 Inspection of Flue Connections
7 Digital Manager Operation and Diagnostics
Inside Back
Cover Limited Lifetime Warranty
Back Cover Warranty Transfer Agreement

Gas Heat - Ninth Edition, September, 2018 4

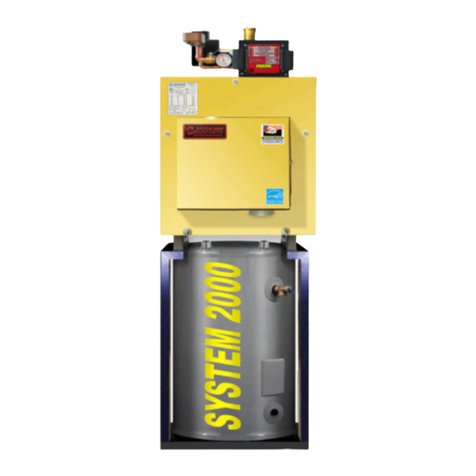

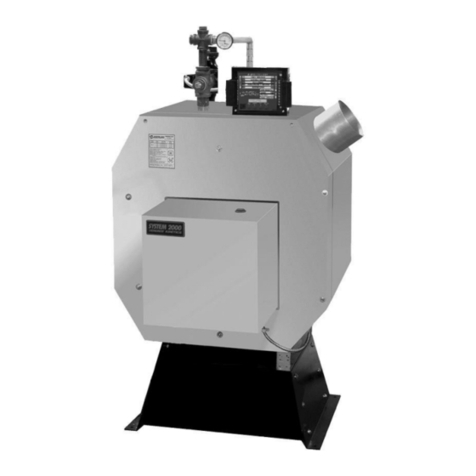

SYSTEM 2000®FRONTIER BOILER
IMPORTANT MESSAGE TO HOMEOWNER: These instructions should be carefully read and kept for future
reference to gain the best performance from your System 2000 Frontier boiler.
CONGRATULATIONS ON YOUR PURCHASE OF THE SYSTEM 2000 BOILER with a highly efficient low mass
hydronic heat exchanger, the Energy Converter. It is the product of years of engineering and advanced design, which
brings together in a single system all elements needed to provide efficient home heat. This operation and
maintenance information has been prepared so that you may better understand and use your Energy Kinetics
Frontier Boiler and Heating System.
SYSTEM 2000 BOILER - PRINCIPLE OF OPERATION
SYSTEM 2000 comprises a heat source, the energy converter, circulating water and five (or more) zones controlled
by an electronic control, the Digital Manager.
The Boiler sits cold until a thermostat calls for heat. The Digital Manager receives the call for heat and turns on
the main circulator and burner. Water circulates within the boiler as it warms up to operating temperature. When
ready, the zone valves open and deliver heat to the zones calling for heat. When the thermostats are satisfied, the
Digital Manager turns off the burner and enters the energy recovery stage. The circulator and zone valve stay
energized to deliver the heat remaining in the boiler to your home.
When energy recovery is complete and the Boiler has been cooled off, the Digital Manager turns off the system
and waits for another thermostat (or tank aquastat) to call for heat. SYSTEM 2000 runs the burner only when you
need heat and delivers that heat only where you need heat.
The System 2000 Energy Converter is the product of advanced thermal engineering. It is designed with two
separate passageways, nearly 10 feet long, coiled around each other. Water travels along one passageway from
your home toward the center of the unit and heated gases travel from the unit center toward the chimney. This is a
“forced circulation counter-flow” design and it provides very efficient transfer of heat from the burning fuel to the
circulating water. The superior insulation of the boiler minimizes heat losses to the surroundings, resulting in directing
heat to your home in an efficient and quiet manner.
SYSTEM 2000 has an extremely high annual efficiency (over 99% of steady state) because it runs only when
your home needs heat. Energy recovery is completed at the end of each heat call, virtually eliminating off cycle
losses.
Your System 2000 holds a minimal quantity of water so it begins to supply heat in about 90 seconds. This rapid
response means that your rooms can be heated quickly to temperature. The System 2000 EK1 Frontier can heat
water up to 100,000 BTU’s per hour and the EK2 Frontier up to 200,000 BTU/hr.
A modern power burner fires into the center of System 2000 where a high temperature, light weight ceramic
chamber provides ideal conditions for “near perfect” efficient, pollution-free combustion. Your System 2000 is tightly
sealed so all products of combustion pass only to the chimney.
The FRONTIER Boiler is designed with a hinged front cover that allows access to the inside of the boiler for
inspection and cleaning. All access for service is from the front, so the FRONTIER Boiler can be placed directly
against a wall or into a closet.
DIGITAL MANAGER - PRINCIPLE OF OPERATION
The left side of the Manager is the input side, which provides 24-volt power supply and connections for
thermostats. The right side is the output side, which starts the burner, circulator and zone valves or zone circulators.

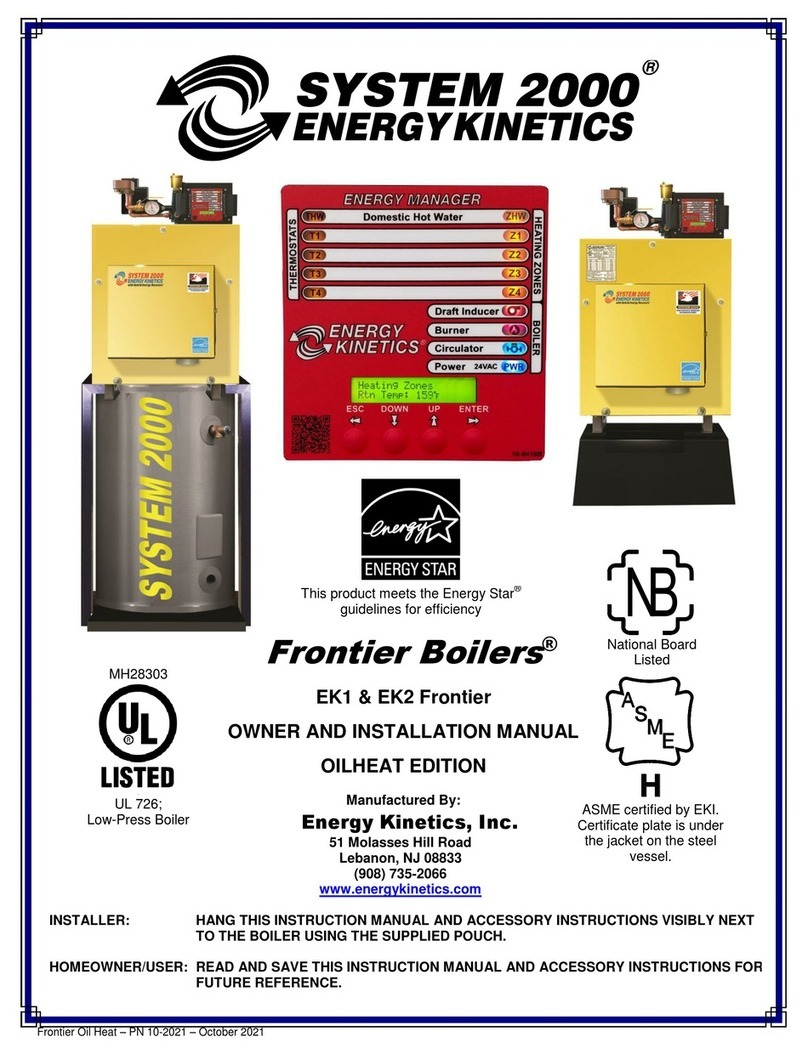

See photo of the Manager on the cover.
Lights on the Digital Manager indicate what is calling for heat (left side) and (right side) lights indicate active
zone(s), burner operation and circulator operation. These function lights are an aid in servicing. The following is a
typical cycle.
1. SYSTEM WAITING FOR A CALL: The boiler is turned off and sits cold, waiting until a call for heat. The blue
power light on the Manager is on.
2. CALL FOR HEAT: A room thermostat call starts the cycle. The thermostat light on the left side will turn on for
that zone.
3. PRE-HEAT: Output lights for the main circulator and burner turn on, the circulator starts, and the burner begins
firing. The boiler water circulates through the energy converter via the bypass line, heating up the water.

Gas Heat - Ninth Edition, September, 2018 5
4. HEAT: Once the boiler water has heated up to 150oF (about 90 seconds), the Manager will turn on the zone
output light on the right side. The zone valve will open and hot water will flow to the zone needing heat. The
burner runs as long as there is a thermostat calling and as long as heat is being delivered to the zone. The
burner may shut off if the return temperature exceeds 170oF/190oF (RED burner light turns off) or if the high limit
temperature is exceeded (RED burner light stays on, but the high limit aquastat shuts the burner off).
5. ANOTHER CALL FOR HEAT: If another zone calls for heat while the burner is already running and the return
temperature is above 150oF, the zone output will turn on, immediately supplying heat to the zone.
6. MONITOR RETURN TEMPERATURE: The Manager continually senses the return temperature and will turn off
the zone outputs if the return temperature drops below 130oF. With the zone outputs closed, the boiler water will
quickly reheat and once the return temperature reaches 150oF, then the Manager will reopen the zone valves.
7. THERMOSTAT (or Aquastat) SATISFIED: The thermostat light on the left side will go out. The burner light and
the burner will then turn off.
8. ENERGY RECOVERY: The circulator and zone valve remain energized. The circulating water will remove the
energy from the converter, sending the heat to the last zone(s) that called. The energy recovery stage continues
until the return temperature has dropped sufficiently or until maximum timing has been reached. The boiler is now
sitting cold, waiting for the next call for heat. Maximum timing for heat recovery stage is usually set at twenty
minutes for space heating zones and is fixed at five minutes for Zone HW.
BLOCKED VENT SHUTOFF SYSTEM
The SYSTEM 2000 boiler is equipped with a blocked vent shutoff system. The blocked vent shutoff system consists
of an air pressure switch mounted on the front of the boiler piped into the combustion chamber of the boiler. Under
normal operating conditions, the combustion chamber will be under negative pressure relative to the room. If the
combustion chamber pressure goes positive for more than a few seconds, then the pressure switch will interrupt the
electrical supply to the gas valve, causing the gas burner to turn off.
Certain conditions can cause positive pressure in the combustion chamber of the boiler.
Excessively windy conditions. If there are gusty winds that cause a down draft on the chimney for more than
a few seconds, then the pressure switch may turn off the gas burner.
Blocked chimney. For installations with a chimney, any kind of blockage of the chimney will cause the
pressure switch to turn off the gas burner. Blockages could include such things as birds nests, squirrel nests,
broken chimney cap, or collapsed chimney sections.
Need for cleaning. If the boiler passages have accumulated solid combustion products, then the combustion
chamber pressure will become positive and the pressure switch will turn off the burner.
There are three possible outcomes if the pressure switch opens due to positive pressure.
The burner is already off, in which case the pressure switch will close after the positive pressure is relieved
and no action is needed.
The burner is running and opening of the pressure switch shuts off the gas valve, which shuts off the flame.
The burner control detects the loss of the flame and attempts to restart the burner after a one minute delay. If
the positive pressure condition was temporary, such as a gusty wind, then the burner will automatically restart
and no action is needed.
The burner is off and tries to start while the pressure switch is open due to positive pressure in the
combustion chamber or the pressure switch opens during pre-purge. The burner control will detect that no
flame was established during the Trial For Ignition period (due to the gas valve being closed) and the burner
control will go into the ‘lock out’ condition. The burner control will turn on the red LED on the control
constantly and the green LED will be out.
oPush in and hold the reset button for one second to reset the burner control from lock out.
oThe burner will then try to relight. If the burner relights successfully, then no further action is needed.
oIf the burner goes into lock out again, then press reset again. A maximum of three reset attempts are
allowed during a single call for heat. After three resets from lock out without being able to establish
flame, the burner control will ‘latch up’ and will not allow any further attempts to start the burner.
If normal operation cannot be established within three resets, then do not make further attempts to put the
boiler back into operation.
If the burner still won’t light, contact a qualified service agency for help.

Gas Heat - Ninth Edition, September, 2018 6
NOTICE
Should overheating occur or the gas supply fail to shut off, do not turn off or disconnect the electrical supply to
the boiler. Instead, shut off the gas supply at a location external to the appliance.
NOTICE
Do not use this boiler if any part has been under water. Immediately call a qualified service technician to
inspect the boiler and to replace any part of the control system and any gas control which has been under water.
IN CASE OF NO HEAT
In case of no heat coming from the boiler, perform the following actions or call a qualified service agency for help.
Look at the Digital Manager and write down all lights showing on the Digital Manager.
oRefer to the Digital Manager Operation Summary for the meaning of the lights.
oReset the Digital Manager by turning off and back on the System Switch on the left side of the
Manager.
Remove the burner cover and look at the three LEDs on the burner control. If the red LED is on constantly,
then press and hold in the reset button for one second. The burner will then try to relight. If the burner
relights successfully, then no further action is needed.
If the burner goes into lock out again, then press reset again. A maximum of three reset attempts are allowed
during a single call for heat. After three resets from lock out without being able to establish flame, the burner
control will ‘latch up’ and will not allow any further attempts to start the burner.
oIf normal operation cannot be established within three resets, then do not make further attempts to
put the boiler back into operation.
If still no heat, contact a qualified service agency for help.
ANNUAL MAINTENANCE
The SYSTEM 2000 boiler requires an annual tune-up by a qualified service agency to maintain top efficiency
and peak performance and to verify proper performance of all safety devices.
PERIODIC MAINTENANCE
The SYSTEM 2000 boiler requires minimal attention from the user.
- Daily inspect the space around the burner/boiler to verify the area is clean and free of any flammable or combustible
materials.
- Once a month it is recommended that the owner/user inspect the boiler and to watch the operation of the boiler. The
owner/user should:
Inspect flue connections as described below.
Inspect for evidence of water, such as leakage from the safety pressure relief valve.
Watch the Digital Manager during one heating cycle of the boiler.
Verify the pressure gauge on the boiler is reading between 5 psi and 30 psi.
Verify the temperature gauge on the boiler reads no more than 220F at the end of a heating call.
If any of the above items seem unusual or out of the ordinary, then immediately call your qualified service agency.

Gas Heat - Ninth Edition, September, 2018 7
INSPECTION OF FLUE CONNECTIONS
The SYSTEM 2000 boiler burns gas and produces combustion products that must be vented outside the house
or building.
For chimney installations, there will be a flue pipe connecting the flue outlet of the boiler to the base of the
chimney. The flue pipe connections will be under positive pressure for a few seconds each time the boiler
starts, until negative draft has been established due to hot air rising up the chimney.
Once a month, inspect the flue pipe and connections. Look for evidence of deterioration from corrosion or other
sources. Watch the flue pipes during a start up of the boiler and look and smell for evidence of escaping flue
products.
For a chimney installation particularly examine the joint between the boiler outlet and the flue pipe. Also
examine the joint between the flue pipe and the base of the chimney.
DIGITAL MANAGER OPERATION AND DIAGNOSTICS
oTo confirm operation of the Manager lights, turn power off briefly and power up the Manager. On startup, all
outputs and temperature lights should turn on for a brief moment.
oThermostat Lights indicate a thermostat calling for heat. If all lights are OFF, the burner will not run because there
is no call for heat. T4 is located on the bottom.
oThe digital temperature sensor senses return temperature and is required for the Manager to work properly. The
E100 error code will flash if the digital sensor is not working properly.
oThe Option Switches located on the underside of the Manager are used to customize system settings.
oHeating or Zone output lights indicate 24-volt power from 24VAC to ZX (ZHW, Z1, Z2, Z3, and/or Z4). This provides
power to 24-volt zone valves or zone circulator relays.
oThe Inducer light ON indicates 24 volts from IND to 24VAC. This pulls in the 24-volt coil on the inducer relay,
providing 120-volts to the power vent. This will only operate with option switch 2 ON.
oThe Burner light ON indicates a closed contact between B1to B2. This is wired to T-T on the burner primary
control.
oBurner Restart Delay: If a thermostat light goes off, ending a call for heat, and then immediately goes back on,
calling for heat again, the Manager will delay turning on the burner light for two minutes to prevent short-cycling
the burner. (45 second delay for a Zone HW call.)
oThe Circulator light ON indicates 24 volts from CIRC to 24VAC. This pulls in the 24-volt coil on the Burner/Main
circulator relay, providing 120-volt power to both the main circulator and the burner.
oThe temperature display bar graph indicates the temperature of the water returning to the boiler, not the
temperature of the water being supplied to the heating system from the boiler.
oThe Manager is the operating aquastat and will turn off the burner if return temperature reaches 170°F (operating
limit).
oThe zone outputs will open when the return temperature is above 150°F and zone outputs will close when the
return temperature drops below 130°F. If a new zone calls when the returns are below 150°F the new zone will
not open until the temperature exceeds 150°F (even if other zones are open).
oThe boiler will typically take about 2 minutes to reach 150°F from a cold start.
oWhen the Manager is working properly and has found a condition that needs service, the 100,120,130, or 140
light will flash. Flashing lights mean the boiler, circulator, or something other than the Manager needs service.
oNOTE: The Manager cannot lockout the primary control on the burner. The E140 error code usually indicates
that a burner lockout has occurred. Follow the instructions under ‘In Case Of No Heat’ in order to reset the burner
control.

LIMITED LIFETIME WARRANTY
For Residential Water Boilers
By this Warranty Statement, Energy Kinetics, Inc of Clinton Township, New Jersey, issues limited warranties subject to
terms, conditions, exceptions and exclusions listed below.
These Warranties are issued only to the person or entity which owns the building in which the boiler is installed at the
time of original installation and only for such portion of the warranty periods as such person or entity owns such building
(hereinafter, the “End User”).
I. THREE YEAR –LIMITED WARRANTY FOR RESIDENTIAL WATER BOILERS
Energy Kinetics warrants that its residential heating System 2000, with residential water boiler, Models EK-1 and
EK-2, is free from defects in material and workmanship for three years from the date of installation. If any parts are
found to be defective in manufacture, Energy Kinetics will repair or replace the defective parts. Exception: Honeywell
Zone Valves
II. ADDITIONAL COMPONENT LIMITED WARRANTIES
1. Energy Kinetics warrants that its Digital Manager is free from defects in material and workmanship for a period
of five years from the date of installation. The warranty is extended to the End User for the lifetime of the unit
by a manufacturer sponsored rebuild program offered at nominal cost.
2. Energy Kinetics hereby assigns to the End User limited warranties of the original manufacture of components
supplied by Energy Kinetics to the extent or duration assignable.
3. If any such component is found defective, Energy Kinetics’ responsibility is solely to repair or replace the
defective part at its or the original manufacturer’s option.
LIMITED LIFETIME WARRANTY FOR THE PRESSURE VESSEL
During the lifetime of the original owner in the original place of installation, Energy Kinetics warrants that those parts,
which comprise the pressure vessel of the residential hot water boiler, remain free of defects in material or
workmanship under normal usage.
In the event that such pressure vessel is found to be defective in material or workmanship during the first ten years,
Energy Kinetics will repair or replace the pressure vessel at its option and include a labor allowance per the published
schedule. After 10 years, there will be a proportionate charge based upon the time the defective assembly was in
service. The proportionate charge will be equal to the appropriate percentage of the trade list price of such pressure
vessel at the time the warranty claim is made as determined in the following:
YEAR: 1st 11th 12th 13th 14th 15th 16th 17th
Percent of Trade list Price:
0% 5% 10% 15% 20% 25% 30% 35%
YEAR: 18th 19th 20th 21st 22nd 23rd 24th 25th
Percent of Trade list Price:
40% 45% 50% 55% 60% 65% 70% 75%
YEAR: 25TH and Above: 75% of Trade list Price
IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY SHALL BE LIMITED TO
THE DURATION OF THE EXPRESS WARRANTY-ENERGY KINETICS EXPRESSLY DISCLAIMS AND EXCLUDES ANY
LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY.
This Warranty gives you specific legal rights and you may have, also, other rights which vary from state to state.
EXCEPTIONS AND EXCLUSIONS
1. The warranty is subject to the condition that the residential boiler must have been installed and serviced in
accordance with Energy Kinetics instructions, the basic BOCA Building Code, local statutes and ordinances and
accepted good industry practice.
2. This warranty does not cover components that are part of the heating system but which were not furnished by
Energy Kinetics.
3. This warranty does not cover the workmanship of any installer of Energy Kinetics residential water boiler. In
addition, it does not assume any liability of any nature for unsatisfactory performance caused by improper
installation.
4. This warranty does not cover improper burner adjustments, control settings, care or maintenance.
5. This warranty does not cover any labor for removal or reinstallation of the alleged defective part, transportation to
Energy Kinetics if necessary and other materials necessary to perform the exchange.
6. This warranty does not cover failure of the pressure vessel other than defects in material or workmanship and shall
specifically exclude any other reason including but not limited to a) lack of water b) freezing c) excessive
pressure d) floods e) fire f) acts of God g) corrosion of internal or fireside surfaces h) improper water
conditioning j) improper maintenance of external fireside surfaces k) operation with defective fuels or other
additives which cause deposits to collect or corrosion to occur in or on the pressure vessel.

LIMITED WARRANTY
(Continued from Previous Page)
7. Systems installed with chimneyless, through the wall venting option may have less than complete or poor
combustion which may cause sooty fumes, odors or gradual discoloration of the area near the vent (exhaust)
outlet. Poor combustion is generally the result of a burner being out of adjustment for a number of reasons,
including but not limited to fuel condition and combustion air supply. Energy Kinetics does not guarantee nor
warranty that all times the exhaust contents will be without a trace of soot or odor for reasons described above.
Periodic cleaning and repainting of the area around the vent hood may be required if the appearance is
objectionable in the view of the end user. Such cleaning or repainting is not the responsibility of the service
company, installer or manufacturer.
LIFETIME WARRANTY TRANSFER
By completion of the Warranty Transfer Agreement, the original owner may transfer the warranty to a new owner
by payment of a $75 registration fee.
WARRANTY SERVICE
For prompt warranty service, notify the installer who in turn will notify Energy Kinetics that the purchaser believes
there is a defect in material or workmanship covered by this warranty statement.
If within 30 days of the discovery, this action does not produce a prompt response, notify Energy Kinetics, Inc. 51
Molasses Hill Road, Lebanon, NJ 08833, in writing with details to support the warranty claim.
The End User is required to make available for inspection by Energy Kinetics or its representative, the parts
claimed to be defective and, if requested by Energy Kinetics, to ship said parts prepaid to Energy Kinetics at the above
address for inspection or repair. In addition, the homeowner agrees to make all reasonable efforts to settle any
disagreement arising in connection with this claim before resorting to legal remedies in courts. If you have any
questions about the coverage of this warranty, contact Energy Kinetics at the above address.
Lifetime Warranty Transfer Agreement
(I/We), the undersigned, as the original purchaser of the SYSTEM 2000home heating system, submitted the
Warranty Registration within three (3) months of installation of (my/our) SYSTEM 2000 to Energy Kinetics, Inc., and
(I/we) hereby transfer our Lifetime Limited Warranty to the new owner(s) of the home located as noted below and
understand a thirty (30) day waiting period applies. Warranty coverage begins on the date of original installation.
SYSTEM 2000 Serial Number: Date of Original Installation:
Name of original purchaser of SYSTEM 2000:
Print or Type full Name(s)
Located at this street address:
City: State: Zip:
TRANSFER TITLE of ENERGY KINETICS’ WARRANTY TO:
Print or Type full Name(s)
New Owner(s) of the SYSTEM 2000 located at the address noted above. Title to be effective,
and continues uninterrupted coverage as is left on the original warranty. Enter Date
of Title Transfer
(Example: If the original owner has used 9 years, 3 months and 10 days of the warranty, the new homeowner warranty
transfer begins at 9 years, 3 months and 11 days and continues to the end of the warranty as described on the back of
this agreement or until the new homeowner sells the residence).
Enclosed is a check for $75.00 to register and maintain the warranty as described on the back of this Warranty
Transfer Agreement to the new homeowner named above. Please make check payable to Energy Kinetics, Inc.
Agreed to by the Original Homeowner: Accepted:
Original Homeowner Signature New Homeowner Signature
***************************************************** For Office Use Only ************************************************
Energy Kinetics, Inc. Received Transfer Information: $75.00 Received Check No.
Date Received and Registered
Confirmation of Transfer mailed to New Homeowner: By:
Date Office Personnel
