ENERGY SISTEM Mobile D9 Wireless Game User manual

ENGLISH
User Manual
POWER • IR • CHG
START
MENU
A
SELECT B

3
ENGLISH
1. safety instructions
To ensure your safety and the safety of others, please ensure that you read all the safety information
before operating this product.
Keep this information in a safe place for future reference.
This symbol indicates that this product incorporates double insulation between hazardous
mains voltage and user accessible parts.
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or
moisture.
Safety Considerations.
≥Position the cables so that they cannot be walked on or pinched by items placed on or against
them.
≥Do not use the Mobile D9 Wireless Game in humid or damp conditions.
≥Do not allow the Mobile D9 Wireless Game to get wet.
≥Do not expose the Mobile D9 Wireless Game to dripping or splashing.
≥Do not place water filled objects such as vases on top of the Mobile D9 Wireless Game.
≥Do not place naked flame sources, such as candles, on the top of the Mobile D9 Wireless Game.
≥To prevent direct exposure to the laser beam, do not open the enclosure.
Ventilation
The slots and openings on the Mobile D9 Wireless Game are for ventilation. Do not cover or block
them as it may cause overheating.
NEVER let children push anything into the holes or slots on the case.
Battery Disposal
Please ensure batteries are disposed of safely.
Never dispose of batteries in a fire or with other household waste.
Check with your local authority for disposal regulations.
Cleaning
ALWAYS unplug the product before you clean it.
Do not use liquid or aerosol cleaners.
Clean the Mobile D9 Wireless Game with a soft, damp (not wet) cloth.

54
ENGLISH
2. HealtH and safety information
Excessive video games play can cause repetitive motion injuries and eyestrain. Other symptoms you
can experience due excessive play are: eyes irritation, headache or visual acuity, discomfort in the
hand and wrist for tendinitis development.
While playing if you or your childrens feels symptons such as tingling, numbness, burning or stiffness,
we recommend you to stop playing: To avoid any of these symptons always try to:
≥Stay as far as possible from the Mobile D9 screen.
≥Do not play if you or your children are tired or need sleep.
≥Always play in a well-lit room.
≥Take a 10 to 15 minute break per every game hour.
If you continue to have any of the above symptoms or other discomfort stop playing and see a doctor.
3. accesories
Ítem Function
Wireless game controller Use the wireless game controller that provides an unique game
experience more realistic and intuitive.
Padded Headphones
Connect them to the earphones output of your Mobile D9 Wireless
Game to enjoy an improved stereo sound more personal with noise
absorb.
A/V Cable Use the A/V cable to connect your Mobile D9 Wireless Game to a TV.
AC/DC Adapter External power adapter.
Remote Control To controll your Mobile D9 Wireless Game.
Car Kit Includes easy mounting carry case adjustable to the car headrest and
12V car adapter.
5. controls and connections
5.1. Panel illustration
1
2 2
1. Screen.
2. Stereo speakers.
354
3. Power ON/OFF indicator.
4. Infrared Sensor to receive the remote control signals.
5. Battery-charge indicator

76
ENGLISH
9
7
10
8
13 15
16
14 12
11
19 18
17
6
6. Disc cover opening button.
7. Shift right in the menus. Fast Forward.
8. Shift left in the menus. Fast Rewind.
9. Move up in the menus.
10. Move down in the menus.
11. OK: to confirm the selection.
12. SOURCE: media selection.
13. SETUP: Mobile D9 wireless game’s setup menu.
14. MENU: access to the main menu.
15. TFT: Turn off/on the screen.
16. Play/Pause: starts of pauses the playback.
17. Stop: stops the playback.
18. Next track/file.
19. Previous track/file.
20
21
22
232425
20. On/Off switch.
21. DC IN Power connection (12 V).
22. 3.5 mm (1/8”) stereo earphones output.
23. 3.5 mm (1/8”) TRRS A/V output.
24. Volume control.
25. USB host port (Type A).
26
26. Card reader.
5.2. connectinG to a tV
Your Mobile D9 Wireless Game allows you to connect it to any television and display the media content
that is being playing from DVD unit or from external devices (USB, CARD). From GAME module you
can also connect your Mobile to a TV and display in both screen your games.
* Always remember to point the wireless game controller to your Mobile IR sensor to be able to interact with the games.

98
ENGLISH
6. remote control
6.1. button descriPtion
10
12
13
14
11
15 16
21
3
4
5
6
87
9
12
3
78 9
456
0
SOURCE PROG/
REPEAT
REPEAT
A-B
ANGLE/
AUDIO
DISPLAY
MENU/
ZOOM
TITLE/
SUBTITLE
STOP/
SLOW SETUP
GOTOENTER
1. SOURCE: Switches between DVD/USB/Card
Reader.
2. DISPLAY: Shows detailed information about
the current file or disc
3. ANGLE/AUDIO: Short press changes the
audio mode (if available). Long press
changes the angle mark (if available).
4. TITLE/SUBTITLE: Short press changes
between subtitles (if available). Long press
to access DVD title menu.
5. MENU/ZOOM: Short press to access DVD
main menu. Long press to zoom in.
6. STOP/SLOW: Short press to activate slow
motion. Long press to stop playback.
7. Navigation buttons/Fast forward and rewind.
8. ENTER: To confirm a selection.
9. PLAY/PAUSE: Start/pause/resume the
playback.
10. PROG/REPEAT: Short press to switch
between different repeat modes. Long press
to access progam mode.
11. REPEAT A-B: First press sets start point,
second press sets end point and third press
returns to normal playback mode.
12. Numeric keyboard.
13. SETUP: Access the setup menu.
14. GOTO: Go to a specific time index.
15. Previous: Go to previous chapter/track/file.
16. Next: Go to next chapter/track/file.
6.2. remote control battery rePlacement
Pull the battery loader out and insert a CR2025 battery.
2
1
Make sure to place the battery in the correct direction
When not using the remote control for a long time remove the
battery..
When operating range reduces replace the battery.
6.3. usinG tHe remote control
To use the remote control, point it towards to the IR receiver.
The remote control has a range of 4 metres from the Mobile at an angle of ± 30°.
The remote control will not work if the way to the receiver is blocked.
Sunlight or other very strong light will decrease the sensitivity of the remote control.
7. Wireless Game controller
Button B
Button A
LED
Menu
Select
Start
Joystick

1110
ENGLISH
7.1. Wireless Game controller battery rePlacement
Remove the battery cover from the remote control and put 3xAAA size batteries inside the com-
partment. The following diagram shows the correct way to insert batteries.
1. Open the cover 2. Install the batteries 3. Close the cover
≥Keep batteries out of reach of children. If someone swallows a coin cell or battery must receive
immediate medical attention.
≥Do not attempt to reactivate the batteries using heat, loading, or by other means. Never dispose
of batteries in fire, or disassemble or short circuit. Replace batteries at least once a year to avoid
spillage.
≥Replace all batteries at the same time and replace them with the same type.
≥When not using the remote control for a long time, remove the batteries
8. built-in recHarGeable litHium battery
Your Mobile D9 Wireless Game has a built-in rechargable lithium battery.
≥We recommend making a full charge of the battery before first use at least during 8 hours.
Charging time takes around 4 hours. Full battery has autonomy enough for 2,5 hours.
≥When the battery has a low charge level, a symbol will be displayed and the device will automati-
cally power-off after some minutes.
9. usinG your enerGy mobile d9 Wireless Game
With your Mobile D9 Wireless Game you can play multimedia files (videos, pictures, music) from
optical disk (CD/DVD), and USB devices or card memories, and also you have a built-in game module
that accurate you hours of fun.
To power on your Mobile D9 Wireless Game move the ON/OFF switch to the ON position. During the
starting the welcome screen will be displayed and you can choose between the different sources
pressing the “SOURCE” button on the remote control and use the up/down keys to select between
DVD, GAME, USB or CARD (to display USB and CARD options the external devices must be connected
on your Mobile).
9.1. PlayinG dVd-r/cd-r disc
Switch the OPEN button on the arrow direction to open the disc compartment. Insert the disc and
make sure the printed side is up. If is your first time using your Mobile be sure to remove the protec-
tion card from DVD player’s lens.
Press down the DVD cover to close the DVD compartment. The playback will be started automatically.
If the menu appears, select the desired option and press ENTER to start the playback.
Your Mobile D9 Wireless Game supports the following disc types: DVD-R/DVD+R/DVD-RW/
DVD+RW/CD-R/CD-RW.
9.2. PlayinG from usb or memory cards
You can enjoy your multimedia content (videos, music, pictures) from external disk such as USB
devices and memory cards.
Press the direction buttons to choose the desired directory and the button “ENTER” to display the
stored content. Using the directions buttons select the file you want to play and press “ENTER” to
start the movie, music or picture playback.
To return to the previous menu just select the directory named ‘...’ and press the button “ENTER”.
The USB playback is only compatible with USB devices with FAT/FAT32 format.
The Card reader accepts MemoryStick (MS), Secure Digital (SD/SDHC) and MultiMedia Card (MMC)
types.
Your Mobile D9 wireless game allows you to adjust the playback settings according to your preferen-
ces.
≥Filter: allows selecting the categories of files (Audio, Photo and Video) displayed in the browser
list.
≥Repeat: to switch different repeat playing mode.
≥Mode: select different playing mode.
Normal: shuffle mode is cancelled.
Shuffle: shuffle mode enabled. When playback reaches the end of the current chapter/track,
playback jumps to a random chapter/track. As the end of each chapter/track is reached, another
random chapter/track will be played until all tracks/chapters have been played or the Shuffle
mode is cancelled by toggling to a different Mode Option.
Music Intro: in this mode, the media will play 10 seconds then skip to next media.

1312
ENGLISH
Edit Mode: to enable programmed playback mode. When you select the mode, press LEFT
Direction key to directory and press ENTER to choose the desired track and press Add to program
to start program playback.
10. system setuP
Press the SETUP button on the remote control, the SETUP MENU(main) will be displayed.
After accessing the setup menu, press the direction buttons up/down to select an item, then press
the ENTER button to confirm.
Press LEFT direction button return to the previous menu. To exit the setup, press the SETUP button
again.
10.1. lanGuaGe
≥OSD: use this item to select the language of the setup menu and screen display.
≥Subtitle: this option provides the preset subtitle language. Follow the operating instructions
stated in DVD MENU SETUP in combination with the desired option.
≥MPEG4 Subtitle: choice different MPEG4 subtitle encoding option.
≥Audio: follow the operating instructions stated in DVD MENU SETUP in combination with the
desired option. This option provides the built-in disc dubbing language options.
≥DVD Menu: this option provides the films menu language options. Follow the operating
instructions stated in DVD MENU SETUP in combination with the desired option.
10.2. Video
≥Aspect Ratio: 4:3PS, 4:3LB, 16:9
≥TV System: NTSC, PAL, Auto
≥Smart picture.: adjust display effect for video output:
Standard: default effect.
Bright: internal setting for bright view effect.
Soft: internal setting for soft view effect.
Dynamic: user adjust brightness, contrast, colour, etc.
10.3. ratinG
≥Parental Control
Selecting a rating allows the user to set the parental control feature of the player. Select Parental
Control, and press ENTER to change the different mode.
Note: Unlock the password before setting Parental Control.
≥Set Password
Use the 0-9 keys to input four digits(password), then press ENTER to confirm.
Note: If you forget your password, please use the default password 6666 to unlock.
10.4. misceláneos
≥Use Default Settings: Reset setup data to factory defaults.
≥Screen saver: Enable/Disable screen saver function.

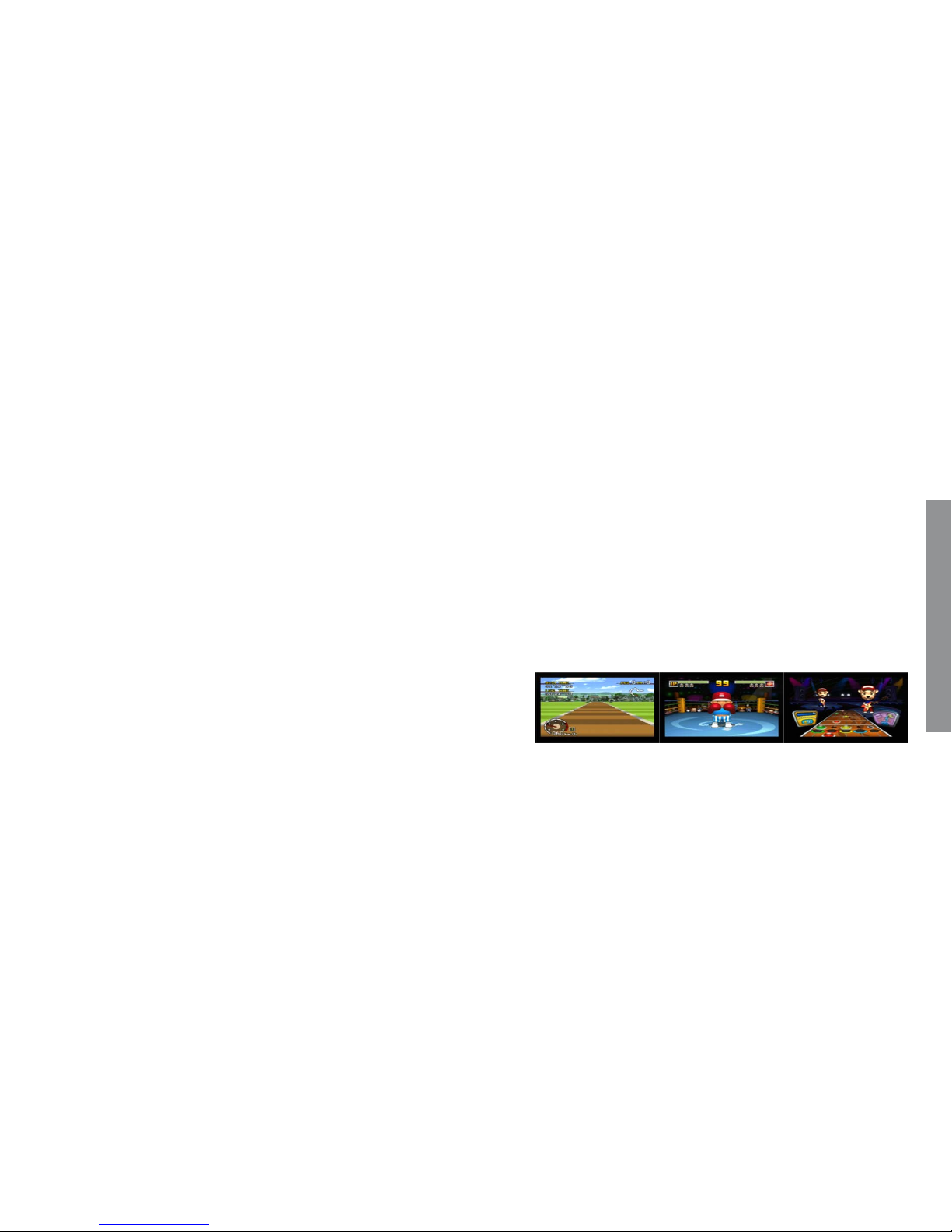

11. 32-bit Games built-in
To access to the GAME module in your Mobile D9 select the option GAME from the main menu.
Your Mobile D9 includes more than 80 exciting and challenging 32-bit games in different categories:
sports, adventure, strategy, music, puzzle, racing.
To move on the GAME menu use the directions buttons (up/down/right/left) on your wireless
gamepad controller and choose the desired game by pressing the button A.
11.1. usinG your Wireless GamePad controller

1514
ENGLISH
Depending on the game, you can hold your wireless gamepad controller either in one or two hands. Be
sure to hold firmly your wireless gamepad in all moment and use always the wrist strap.
Basic Operations
Swinging Move your wireless gamepad “swinging” to the right
or to the left and at the same time keep pressing the
button A, imitating the game movements. Example: to
play tennis just hold the wireless gamepad as would
hold a tennis racket and swing to the right or to the left.
Pulling Move your wireless gamepad to the front /back and at
the same time keep pressing the button A.
Hitting
To play boxeo just hold your wireless gamepad and
punch imitating the real movements.
Pointing Point your wireless gamepad to your Mobile Game
screen.
12. troublesHootinG
If you experience problems with your Energy Mobile D9 Wireless Game, in the first instance please
read carefully the relevant sections of this User Manual and this Troubleshooting section.
Problem Possible cause Solution
There is no picture or no
sound
Improper connection with AC adapter or car
adapter
Check the connection and confirm that the power
adapter is correctly inserted into the device.
Low battery Conecta el dispositivo a la fuente de alimenta-
ción.
Use of unauthorized power supplyn Your device may be damaged. Use only the power
supply provided with de device. In case of lost
visit our spare parts & accesories section:
www.energysistemstore.com
Power switch is on OFF position) Turn the switch to ON position
There is no sound If you can hear nothing through the speakers,
maybe the earphone is plugged in
Unplug the earphone
The sound is muted Use the volume control to unmute the sound
Dark picture Brightness and contrast are not properly
adjusted
Adjust Brightness, Contrast correctly
The remote control is not
working
Battery exhausted Charge battery
Remote control is incorrectly aimed Aim the remote control to the device. Check that
nothing blocks the front panel
Can’t play the music file
correctly OR can’t play
the video
The file is damaged or the codec is wrong Change the file
The format of the video is not compatible, or the file is damaged (check the specifications table for
the supported formats).
The wireless game
controller doesn’t respond
accordingly to the player’s
movements
Batteries exhausted Change the batteries for a new ones.
There is any object that blocks the device IR
sensoror the controller is not properly pointed
Remove the objects that can block the sensor.
Point the game controller to the IR sensor on
the device.
The images appear
distorted during playback
of the DVD
The disc is dirty. Use a soft cloth to clean the disk.
The disc may be quite scratched. Replace it with another disc.
Format not compatiblee Check that the video output format of the disc
is compatible.

17
ENGLISH
13. firmWare uPdate
To update the firmware of your Mobile D9 Wireless Game, visit our download section in our website:
www.energysistem.com You will find all the files and instructions needed to update successfully
your device.
14. sPecifications
General
TV System PAL / NTSC
Supported disc formats DVD, VCD, CD, CD-R, CD-RW, DVD+-R/W
Supported file formats MP3, JPEG, MPEG4
Video
S/N Ratio >= 65 dB
Resolution >= 500 lines
Audio
Frequency 20 Hz - 20 kHz +/- 1 dBI
S/N ratio >= 90 dB
Dynamic Range >= 80 dB
Distortion < 0.01 %
D/A Converter 96 KHz / 24 bit
Output
Screen technology TFT-LCD Color
Screen size 9“
Video output 1 Vp-p (75 Ohms)
Audio output 2 CH
Power supply DC 12 V
Power consumption <= 12 W
Size 238 x 170 x 41 mm
Weight 1.0 Kg
Specifications are subject to change without further notice.
Warranty
≥Energy Sistem Soyntec SA is liable for any lack of conformity which exists at the time the goods
were purchased during a period of 36 months. Batteries are excluded from the 36-month warranty,
having a warranty period of 12 months.
This warranty covers any defects in workmanship or materials. This warranty doesn’t cover any
failure of the product due to accidents, misuse or alteration made by an unauthorized person.
The special 36-months warranty is valid for the European Union. For other countries, please refer
to your specific legislation or your local distributor.
Warranty Procedure
1. Visit the Support section at http://support.energysistem.com and select your product to view
the FAQ (Frequently Asked Questions). The solution to your problem is very likely to have been
already published there. You will also be able to download user manuals, user guides, drivers
and updates. You can check the availability of the user manual in your language at
http://www.energysistem.com/es-es/support/manuals
2. If you cannot find an appropriate solution in the Support section, you may send us your enquiry
or warranty service request by email: [e-mail]
3. Alternatively, you may prefer to contact the distributor from which you purchased the product,
presenting the purchase receipt or invoice.
Important: This warranty doesn’t cover any damage or loss to any data stored in the product
memory, therefore Energy Sistem’s Technical Service will not assume any loss of the above
mentioned information so it is recommended to make a backup of your data and to remove any
data or personal info from its internal memory before you send the product, or to send it only
with the original factory default values.
Trademarks. All company, brand and product names are trademarks or registered trademarks of
their respective companies.
© 2012 by Energy Sistem®. All rights reserved

.
declaration of conformity
Manufacturer Name: Energy Sistem Soyntec S.A.
Address: Pol. Ind. Finestrat, C/. Calpe, 1 - 03509, Finestrat Alicante (Spain)
Tel: [phone]
Fax: [phone]
NIF: A53107488
We declare under our own exclusive responsibility that the product:
Energy Sistem® Portable DVD Player Energy™ Mobile DVD D9 Wireless Game
Manufacturing country: China
Is in compliance with the essential norms and standards of the Directive 2004/108/EC of the
European Parliament and of the Council of December 15th 2004.
This symbol on the product or the instructions means that your electrical and electronic
equipment should be disposed at the end of life separately from your household waste. For more
information, please contact the local authority or dealer where you purchased the product.
