Energy RC-MICRO CENTER User manual

RC-Micro 5.1
SPECIFICATIONS ESWCS8
Speaker System Bass-reex with down ring port
Amplier Power 240 Watts
Max SPL 97dB @ 30Hz, ground plane, 1m
Woofer 8-inch (20 cm) Injection molded cone with
Ribbed Elliptical surround
Frequency Response 36Hz-180Hz
Phase Control 0°, 180°
Variable Low Pass Filter 40Hz-150Hz
Inputs Line in/sub in, speaker level in
Power Modes O / Auto / On
Dimensions H x W x D
(Inches/cm) including feet
and grille
12.7 x 10.5 x 12.3 inches
32.2 x 40 x 31.2 cm
Product Weight 16 lbs (7.3 kg)
All specifications are subject to change without notice.©2008
www.energy-speakers.com

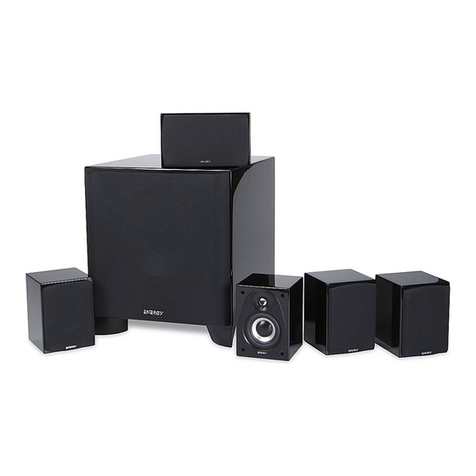

Remarkably compact 5.1 home theater system
Delivers huge audio performance from 4 microsatellites, center channel
and sub
Heart-pounding bass performance
From 240-watt, 8-inch (20 cm) subwoofer with Ribbed Elliptical surround
Magnetically shielded satellites, center channel
Eliminates interference with television signal
Amazing exibility
Keyhole slots, threaded inserts oer several mounting options
All Energy brand components were developed with these sonic
principles in mind:
• Flat On-Axis Frequency Response with Wide Bandwidth
Speakers should reproduce the entire audio range in a uniform
manner. By ensuring that no one frequency dominates any other,
Energy ensures that every note is the way it was intended to be—and
the sound is as natural as possible.
• Wide and Constant Dispersion
Sound at all frequencies radiating from the speaker should be in an
even pattern, in all directions throughout the room.
• Low Distortion and Resonance
No speaker system is totally distortion- or resonance-free, but Energy
has achieved a signicantly lower distortion level—a clearly audible
improvement.
SPECIFICATIONS RCMICRO SAT RCMICRO CENTER
Speaker System Magnetically shielded acoustic suspension
Frequency Response 150Hz-23kHz
Tweeter 0.5-inch (12.7mm) hyperbolic aluminum dome
Woofer 2.5-inch (63.5mm) high-excursion
aluminum cone
Crossover Point 3.5kHz
Eciency (Room) 88dB
Impedance 8 Ohm compatible
Recommended Amp. Power 20 - 100 Watts continuous
Dimensions H x W x D 4.7 x 3.5 x 3.5 inches
12 x 9 x 9 cm
3.5 x 5.9 x 3.5 inches
9 x 15 x 9 cm
Product Weight 1.6 lbs (0.72 kg) 1.9 lbs (0.88 kg)
Inputs Gold plated push connectors
Finish High gloss black
Mounting Options Built-in keyhole slot and threaded insert
(1/4-inch - 20)
