Enerzone Solution 2.3 User manual

READ AND KEEP THIS MANUAL FOR REFERENCE
Printed in Canada 46252I_A
SOLUTION 2.3
(EB00063 model)
Wood Stove
Owner's Manual
Part 2 of 2
INSTALLATION AND OPERATION
REQUIREMENTS
MOBILE
HOME
Safety tested according to ULC S627,
UL 1482 and UL 737 standards by an
accredited laboratory.
US Environmental Protection Agency
phase II certified wood stove compliant
with 2020 cord wood standard
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS
IN LOCAL AREA.
READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS WOOD STOVE. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
ENGLISH
2021-06-18
PAGE COUVERTURE

ONLINE WARRANTY REGISTRATION
If the unit requires repairs during the warranty period, proof of purchase must be provided.
The purchase invoice must be kept. The date indicated on it establishes the warranty period.
If it can not be provided, the warranty period will be determined by the date of manufacture of the
product. It is also highly recommended to register the warranty online at
https://www.enerzone-intl.com/en/warranty/warranty-registration/
Registering the warranty will help to quickly find the information needed on the unit.
Dealer:
Installer:
Phone Number:
Serial Numbrer:

Page 3
Installation and Operation Requirements - Solution 2.3
ENGLISH
TABLE DES MATIÈRES
1. CERTIFICATION PLATE .......................................................................................................... 4
2. General Information ................................................................................................................ 5
2.1 Performances..................................................................................................................... 5
2.2 Specifications..................................................................................................................... 6
2.3 Dimensions ........................................................................................................................ 7
2.4 EPA Loading .....................................................................................................................12
3. Clearances to Combustible Material.................................................................................... 13
3.1 Clearances........................................................................................................................13
4. Floor Protection .................................................................................................................... 20
5. Reducing Wall and Ceiling Clearances Safely .................................................................... 21
5.1 Shield Construction Rules ..................................................................................................21
6. Installation of options on your product................................................................................ 24
6.1 Legs Installation (if present on your product) .......................................................................25
6.2 Pedestal Installation...........................................................................................................28
6.3 Decorative Panels..............................................................................................................30
6.4 Optional Airmate Installation...............................................................................................31
6.5 Optional Fresh Air Intake Kit Installation ..............................................................................32
6.6 Optional Fire Screen Installation ........................................................................................33
6.7 Optional Blower And Thermodisc Installation.......................................................................34
6.8 Air Tubes And Baffle Installation..........................................................................................35
6.9 Mobile Home Installation ....................................................................................................37
7. Maintenance/Parts Replacement......................................................................................... 38
7.1 Replacement.....................................................................................................................38
7.2 Gasket..............................................................................................................................39
7.3 Door .................................................................................................................................39
8. Exploded Diagram and Parts List ........................................................................................ 42
Enerzone Limited Lifetime Warranty ......................................................................................... 46

Page 4 Installation and Operation Requirements - Solution 2.3
ENGLISH
1. CERTIFICATION PLATE

Page 5
Installation and Operation Requirements - Solution 2.3
ENGLISH
2. General Information
2.1 Performances
Values are as measured per test method, except for the recommended heating area, firebox volume,
maximum burn time and maximum heat output.
Model Solution 2.3 (EB00063)
Combustion Technology Non-catalytic
Fuel Type Dry Cordwood
Recommended heating area (sq. ft..)1 500 to 2,100 ft2(47 to 195 m2)
Total firebox volume 2.4 ft3(0.068 m3)
Loading volume EPA 2.02 ft3(0.057 m3)
Maximum burn time18 hours
Maximum heat output (dry cordwood)2 75,000 BTU/h (22.0 kW)
Overall heat output rate (min. to max.)2 3 14,800 BTU/h to 28,600 BTU/h
(4.34 kW to 8.38 kW)
Average overall efficiency3
(Dry cordwood) 69 % (HHV)4 74 % (LVH)5
Optimum efficiency6 77 %
Optimum overall efficiency7 75 %
Average particulate emissions rate8 1.54 g/h (EPA / CSA B415.1-10)9
Average CO10 89.4 g/h
1Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type
and other variables. The recommended heated area for a given appliance is dened by the manufacturer as its capacity to maintain a minimum
acceptable temperature in the designated area in case of a power failure.
2The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft3and 20 lb/ft3. Other performances are based on
a fuel load prescribed by the standard. The specied loading density varies between 7 lb/ft³ and 12 lb/ft3. The moisture content is between 19%
and 25%.
3As measured per CSA B415.1-10 stack loss method.
4Higher Heating Value of the fuel.
5Lower Heating Value of the fuel.
6Optimum overall efciency at a specic burn rate (LHV).
7The optimum heat transfer efciency is for the low burn rate and represents the appliance's ability to convert the energy contained in the wood logs
into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
8This appliance is ofcially tested and certied by an independent agency.
9Tested and certied in compliance with CFR 40 part 60, subpart AAA, section 60.534(a)(1(ii) and ASTM E3053-17. Based on ALT-125 sent by EPA on
February 28th, 2018.
10 Carbon monoxide.

Page 6 Installation and Operation Requirements - Solution 2.3
ENGLISH
2.2 Specifications
Maximum log length11 20 in (508 mm) east-west
Flue outlet diameter 6 in (150 mm)
Recommended connector pipe diameter 6 in (150 mm)
Type of chimney ULC-S629, UL 103 HT (2100 °F)
Minimum chimney height 12 feet
Baffle material C-Cast
Approved for alcove installation Yes
Approved for mobile home installation12 Yes
Type of door Simple, glass with cast iron frame
Type of glass Ceramic glass
Particulate emission standard13 EPA / CSA B415.1-10
USA standard (Safety) UL 1482, UL 737
Canada standard (Safety) ULC-S627
11 North-south: ends of the logs visible, East-west: sides of the logs visible.
12 Mobile homes (Canada) or manufactured homes (USA): The US Department of Housing and Urban Development describes “manufactured homes”
better known as “mobile homes” as follows; buildings built on xed wheels and those transported on temporary wheels/axles and set on a permanent
foundation. In Canada, a mobile home is a dwelling for which the manufacture and assembly of each component is completed or substantially
completed prior to being moved to a site for installation on a foundation and connection to service facilities and which conforms to the CAN/CSA-
Z240 MH standard.
13 Tested and certied in compliance with CFR 40 part 60, subpart AAA, section 60.534(a)(1(ii) and draft ASTM WK47329-14. Based on ALT-125
sent by EPA on February 28th, 2018.

Page 7
Installation and Operation Requirements - Solution 2.3
ENGLISH
2.3 Dimensions
2.3.1 Stove Dimensions with Square Legs
13 1/2"
343mm
27"
686mm
O
6"
153mm
9 5/8"
245mm
Figure 1: Top View
25 5/8"
651mm
10 5/8"
270mm
16 5/8"
422mm
28 1/4"
718mm
29 1/2"
748mm
23 5/8"
601mm
30 3/4"
781mm
28 3/8"
721mm
21 3/4"
554mm
26 1/4"
667mm
Figure 2: Front View Figure 3: Side View

Page 8 Installation and Operation Requirements - Solution 2.3
ENGLISH
2.3.2 Stove Dimensions with Legs
13 1/2"
343mm
27"
686mm
O
6"
9 5/8"
245mm
Figure 4: Top View
25 5/8"
651mm
10 5/8"
270mm
16 5/8"
422mm
25 1/4"
641mm
29 1/2"
748mm
23 5/8"
601mm
31 3/4"
807mm
29 3/8"
747mm
19 1/8"
486mm
26 1/4"
667mm
Figure 5: Front View Figure 6: Side View

Page 9
Installation and Operation Requirements - Solution 2.3
ENGLISH
2.3.3 Stove Dimensions with Round Legs
13 1/2"
343mm
27"
686mm
25 5/8"
651mm
O
6"
153mm
10 5/8"
270mm
16 5/8"
422mm
26 5/8"
675mm
9 5/8"
245mm
29 3/8"
746mm
23 5/8"
601mm
30 7/8"
784mm
28 1/2"
724mm
21"
532mm
KIT DE PATTES AC01293
ET AC01294
26 1/4"
665mm
Figure 7: Top View
25 5/8"
651mm
10 5/8"
270mm
16 5/8"
422mm
26 5/8"
675mm
Figure 8: Front View Figure 9: Side View
29 3/8"
746mm
23 5/8"
601mm
30 7/8"
784mm
28 1/2"
724mm
21"
532mm
26 1/4"
665mm

Page 10 Installation and Operation Requirements - Solution 2.3
ENGLISH

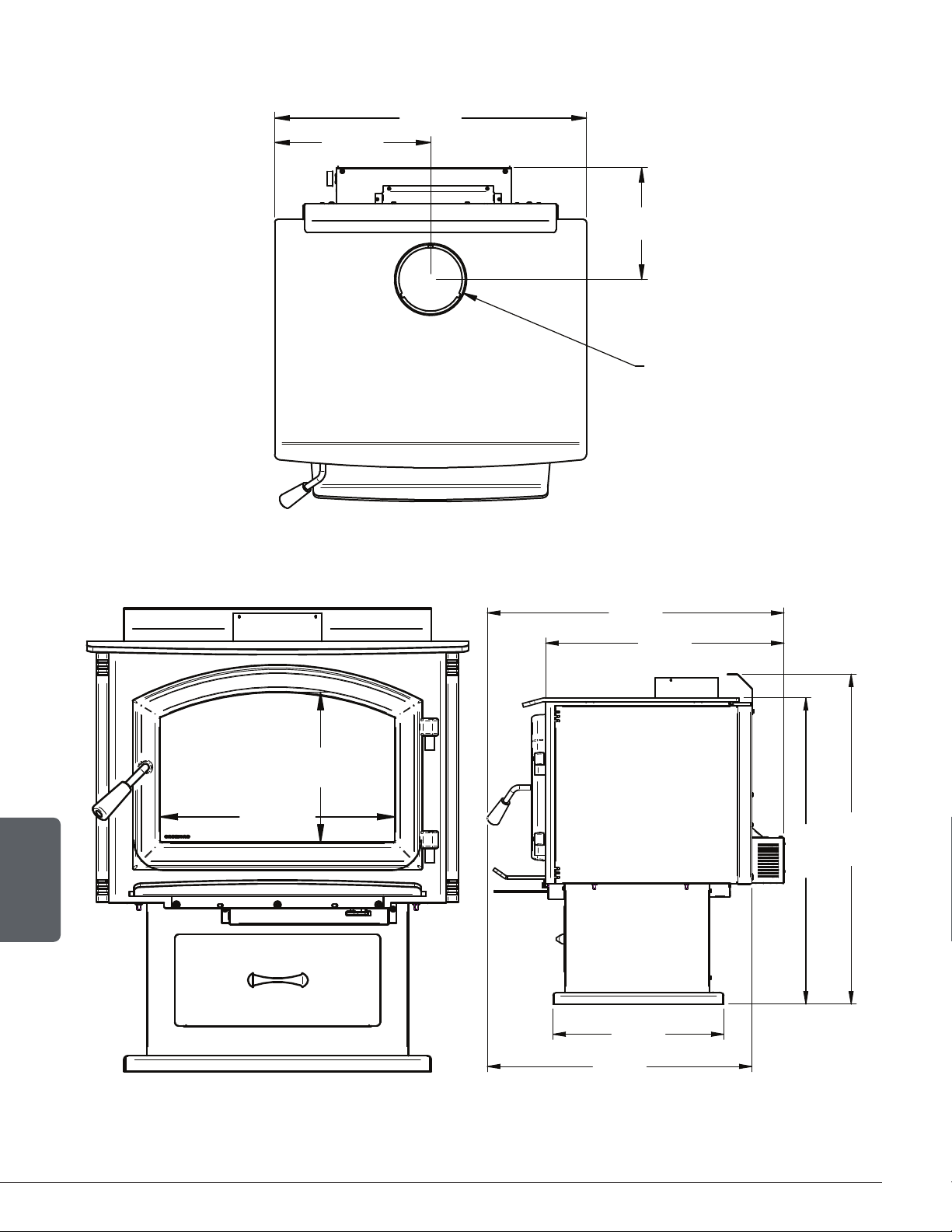

2.3.4 Dimensions with pedestal
13 1/2"
343mm
27"
686mm
9 5/8"
245mm
O
6"
153mm
Figure 10: Top View
10 5/8"
270mm
16 5/8"
422mm
29 1/2"
748mm
23 5/8"
601mm
32 3/4"
833mm
30 3/8"
773mm
17"
432mm
26 1/4"
667mm
Figure 11: Front View Figure 12: Side View

Page 11
Installation and Operation Requirements - Solution 2.3
ENGLISH
2.3.5 Combustion Chamber Dimensions
9"
227mm
17 1/2"
444mm
Figure 13: Door Opening
21"
533mm
11 7/8"
301mm
3/8"
10mm
3/16"
5mm
16 1/2"
419mm
Figure 14: Front View - Combustion Chamber Figure 15: Side View - Combustion Chamber

Page 12 Installation and Operation Requirements - Solution 2.3
ENGLISH
2.4 EPA Loading
The loading methods shown below are those that were used during emissions certification.

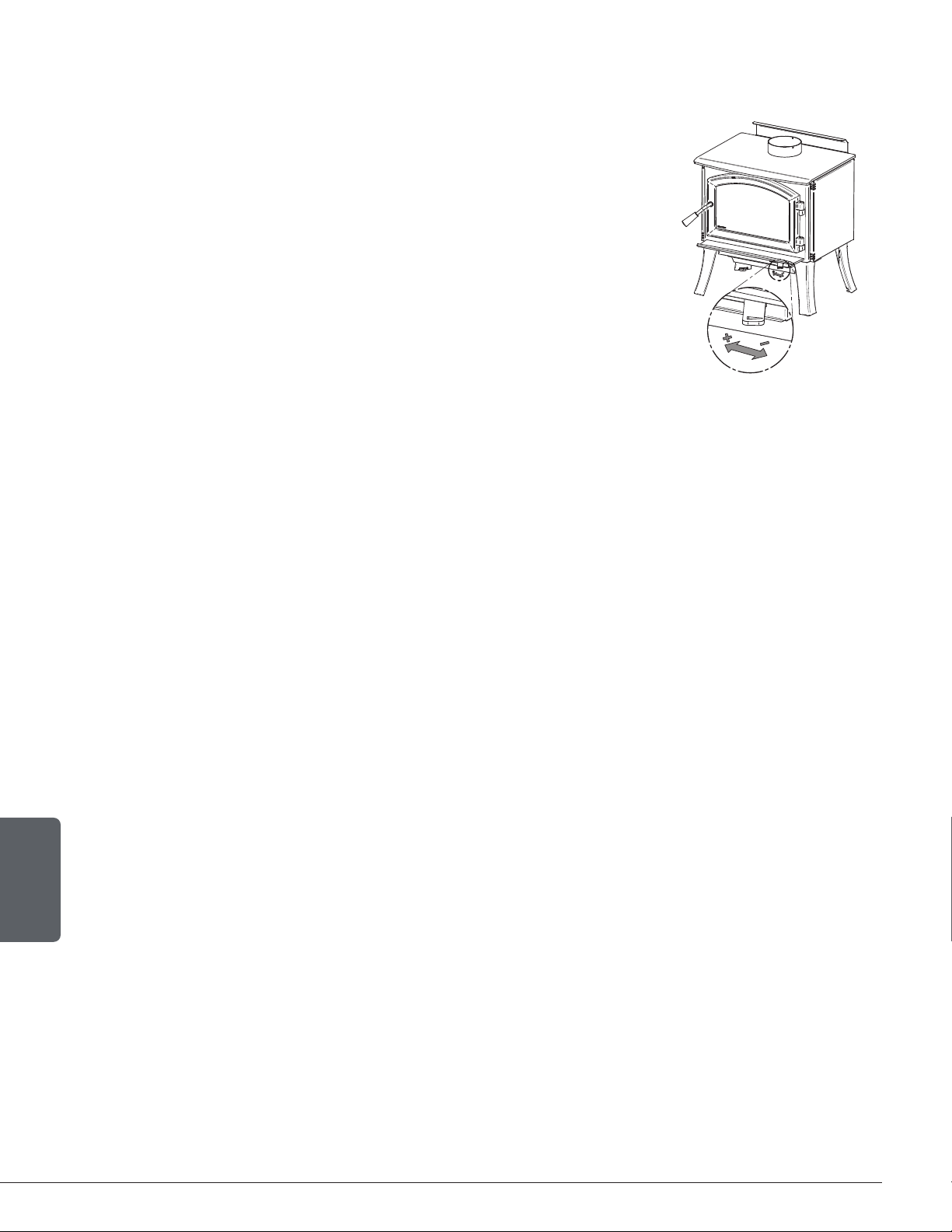

2.4.1 Air control
The air control is located underneath the ash shelf. To open the air
control, push the air control handle completely to the left (High).
This will increase the burn rate. To close the air control, push the
air control handle completely to the right (Low). This will decrease
the burn rate.
2.4.2 High burn rate (primary air control open)
Open the air control completely. Place six small pieces (2"x2") of
wood in the firebox crossing them at the greatest possible angle.
Criss cross fifteen kindling wood pieces on the small pieces of wood in three layers at the
greatest possible angle. Tie knot with five sheets of paper and place them on top of the kindling
wood. Light up the paper and let the door ajar at 90° until all the kindling wood is on fire and
the first row of small pieces of wood is on fire too. Close the door.
When there is no more fire in the front of the firebox and there are only faint flames on the wood
in the back of the firebox, break ashes, level the coal bed and put four logs in the firebox. Place
the biggest log (about 5"x5") and a medium log (about 4"x4") on the coal bed with a north-south
orientation. Place two other medium logs on the first two with the greatest possible angle. Their
should be air space between each logs and between the logs and the bricks. Let the door ajar
at 90° for approximately two minutes and then close the door.
2.4.3 Medium and low burn rate
On a 2" coal bed that is still slightly red, place five logs of approximatively 4"x4" or 3"x3" with
a north-south orientation. Place three logs on the coal bed and the other two on top with the
greatest possible angle. Their should be air space between each logs and between the logs
and the bricks. Let the door ajar at 90° for approximately 5 min. Then, close the door with the
primary air control open. Leave to burn with the primary air control open for approximately 10
minutes and then close the primary air control completely for the low burn rate and halfway for
the medium burn rate.

Page 13
Installation and Operation Requirements - Solution 2.3
ENGLISH
3. Clearances to Combustible Material
The clearances shown in this section have been determined by tests according to procedures
set out in safety standards ULC S627 (Canada), UL 1482 (U.S.A.) and UL 737 (U.S.A.). When
the stove is installed so that its surfaces are at or beyond the minimum clearances specified,
combustible surfaces will not overheat under normal and even abnormal operating conditions.
No part of the stove or flue pipe may be located closer to combustibles than the minimum
clearance figures given.
The clearances to combustible walls may be slightly different in Canada and the U.S.A. and may
also differ depending on whether single or double wall flue pipe is used. Make sure to choose
the correct clearance for the stove location and type of flue pipe.
The clearances of the appliance and the flue pipes must be met individually, meaning the appliance
cannot be installed closer to the combustible materials than the single or double wall pipe allows.
For a safe way to reduce clearances refer to section"5. Reducing Wall and Ceiling Clearances Safely"
of this manual.
3.1 Clearances
APPLIANCE CLEARANCES WITH SINGLE
WALL PIPE CONNECTOR
APPLIANCE CLEARANCES WITH DOUBLE
WALL PIPE CONNECTOR
Canada USA Canada USA
A14 ½" (368 mm) 11" (279 mm) A6" (152 mm) 6" (152 mm)
B17" (432 mm) 16" (406 mm) B17" (432 mm) 16" (406 mm)
C10" (254 mm) 10" (254 mm) C7" (178 mm) 7" (178 mm)
If the above clearances are met, then the distances measured from the flue outlet will be:
DISTANCES13 FROM PIPE CONNECTOR
WITH SINGLE WALL PIPE CONNECTOR
DISTANCES4 FROM PIPE CONNECTOR
WITH DOUBLE WALL PIPE CONNECTORE
Canada USA Canada USA
D18" (457 mm) 14 ½" (368 mm) D9 ¼" (235 mm) 9 ¼" (235 mm)
E26 ½" (673 mm) 25 ½" (648 mm) E26 ¼" (667 mm) 25 ¼" (641 mm)
F19 ¾" (502 mm) 19 ¾" (502 mm) F16 ½" (419 mm) 16 ½" (419 mm)
14 The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances
above mentioned.

Page 14 Installation and Operation Requirements - Solution 2.3
ENGLISH
A
B
E
D
CAN
48"
122 cm
US
36"
92 cm
48"
Flush
F
FC
Figure 16: Clearances - Top Figure 17: Clearances - Corner
84"
213 cm
Ve
Ho
N
Figure 18: Clearances - Side

Page 15
Installation and Operation Requirements - Solution 2.3
ENGLISH
3.1.1 With Heat Shield AC0276215
To reduce the clearances of an appliance using a single wall pipe connector, the use of a heat
shield certified with the single wall pipe connector to be used as close as 6" from combustible
materials must be used. Only in this case, the same clearances as a certified double wall pipe
connector can be used. Refer to the booklet in the screen options to obtain the dimensions to
be respected.
APPLIANCE CLEARANCES WITH DOUBLE
WALL PIPE CONNECTOR
DISTANCES16 FROM DOUBLE WALL
PIPE CONNECTOR
Canada USA Canada USA
A3" (76 mm) 3" (76 mm) D6 ¼" (159 mm) 6 ¼" (159 mm)
B4" (102 mm) 4" (102 mm) E13 ¼" (337 mm) 13 ¼" (337 mm)
C3" (76 mm) 3" (76 mm) F12 ½" (318 mm) 12 ½" (318 mm)
A
B
E
D
CAN
48"
122 cm
US
36"
92 cm
48"
Flush
F
FC
If the clearance reduction is on the same side as the door handle, position the stove at
a minimum of 6 inches from the side wall (clearance B), otherwise it may be located at
the clearance shown in the table above.
15 Note that to reduce the clearances of an appliance using a single wall pipe connector, the use of a heat shield certied with the single wall pipe
connector to be used as close as 6" from combustible materials must be used. Only in this case, the same clearances as a certied double wall
pipe connector can be used.
16 The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances
above mentioned.

Page 16 Installation and Operation Requirements - Solution 2.3
ENGLISH
3.1.2 With Lowered Ceiling
APPLIANCE CLEARANCES WITH SINGLE
WALL PIPE CONNECTOR
Canada USA
A14 ½" (368 mm) 11" (279 mm)
B19" (483 mm) 18" (457 mm)
C10" (254 mm) 10" (254 mm)
L77" (196 cm) 77" (196 cm)
Ve
Ho
L
APPLIANCE CLEARANCES WITH DOUBLE
WALL PIPE CONNECTOR
Canada USA
A9" (229 mm) 9" (229 mm)
B19" (483 mm) 19" (483 mm)
C7" (178 mm) 7" (178 mm)
L77" (196 cm) 77" (196 cm)
If the above clearances are met, then the distances measured from the flue outlet will be:
DISTANCES17 FROM PIPE CONNECTOR
WITH SINGLE WALL PIPE CONNECTOR
DISTANCES17 FROM PIPE CONNECTOR
WITH DOUBLE WALL PIPE CONNECTOR
Canada USA Canada USA
D18" (457 mm) 14 ½" (368 mm) D12 ¼" (311 mm) 12 ¼" (311 mm)
E28 ½" (724 mm) 27 ½" (699 mm) E28 ¼" (718 mm) 28 ¼" (718 mm)
F19 ¾" (502 mm) 19 ¾" (502 mm) F16 ½" (419 mm) 16 ½" (419 mm)
17 The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances
above mentioned.

Page 17
Installation and Operation Requirements - Solution 2.3
ENGLISH
3.1.3 With Heat Shield AC02762 and Lowered Ceiling
To reduce the clearances of an appliance using a single wall pipe connector, the use of a heat
shield certified with the single wall pipe connector to be used as close as 6" from combustible
materials must be used. Only in this case, the same clearances as a certified double wall pipe
connector can be used. Refer to the booklet in the screen options to obtain the dimensions to
be respected.
APPLIANCE CLEARANCES WITH DOUBLE
WALL PIPE CONNECTOR
Canada USA
A5" (127 mm) 5" (127 mm)
B6" (152 mm) 6" (152 mm)
C5" (127 mm) 5" (127 mm)
L80" (203 cm) 80" (203 cm)
Ve
Ho
L
DISTANCES18 FROM PIPE CONNECTOR
WITH DOUBLE WALL PIPE CONNECTOR
Canada USA
D8 ¼" (210 mm) 8 ¼" (210 mm)
E15 ¼" (387 mm) 15 ¼" (387 mm)
F14 ½" (368 mm) 14 ½" (368 mm)
A
B
E
D
CAN
48"
122 cm
US
36"
92 cm
48"
Flush
F
FC
If the clearance reduction is on the same side as the door handle, position the stove at
a minimum of 6 inches from the side wall (clearance B), otherwise it may be located at
the clearance shown in the table above.
18 The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances
above mentioned.

Page 18 Installation and Operation Requirements - Solution 2.3
ENGLISH
3.1.4 Inside an Combustible Alcove
See section 3.1 for the single wall pipe installation.
APPLIANCE CLEARANCES WITH DOUBLE
WALL PIPE CONNECTOR
Canada USA
A9" (229 mm) 9" (229 mm)
B19" (483 mm) 19" (483 mm)
K48" (122 cm) 48" (122 cm)
L77" (196 cm) 77" (196 cm)
Ve
Ho
L
DISTANCES19 FROM PIPE CONNECTOR
WITH DOUBLE WALL PIPE CONNECTOR
Canada USA
D12 ¼" (311 mm) 12 ¼" (311 mm)
E28 ¼ (718 mm) 28 ¼ (718 mm) A
B
E
D
K
3.1.5 Mobile Home
It is strictly forbidden to install a unit with a single wall pipe in a mobile home.
APPLIANCE CLEARANCES WITH DOUBLE
WALL PIPE CONNECTOR
DISTANCES19 FROM PIPE CONNECTOR
WITH DOUBLE WALL PIPE CONNECTOR
Canada USA Canada USA
A11" (279 mm) 11" (279 mm) D14 ¼" (362 mm) 14 ¼" (362 mm)
B18" (457 mm) 18" (457 mm) E27 ¼" (692 mm) 27 ¼" (692 mm)
C11" (279 mm) 11" (279 mm) F20 ½" (521 mm) 20 ½" (521 mm)
19 The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances
above mentioned.

Page 19
Installation and Operation Requirements - Solution 2.3
ENGLISH
3.1.6 Mobile Home With Heat Shield AC02762
It is strictly forbidden to install a unit with a single wall pipe in a mobile home.
APPLIANCE CLEARANCES WITH DOUBLE
WALL PIPE CONNECTOR
DISTANCES20 FROM PIPE CONNECTOR
WITH DOUBLE WALL PIPE CONNECTOR
Canada USA Canada USA
A3" (76 mm) 3" (76 mm) D6 ¼" (159 mm) 6 ¼" (159 mm)
B6" (152 mm) 6" (152 mm) E15 ¼" (387 mm) 15 ¼" (387 mm)
C3" (76 mm) 3" (76 mm) F12 ½" (318 mm) 12 ½" (318 mm)
A
B
E
D
CAN
48"
122 cm
US
36"
92 cm
48"
Flush
20 Les distances de tuyau listées dans ce tableau se réfèrent aux distances obtenues lorsque le poêle est installé en accord avec les dégagements
de l’appareil mentionnés ci-dessus.

Page 20 Installation and Operation Requirements - Solution 2.3
ENGLISH
4. Floor Protection
This stove is designed to prevent the floor from overheating. However, it must be placed on a
non-flammable surface to protect the floor from hot embers that may fall during loading.
The floor protection must be a continuous, non combustible material, such as steel with a minimum
thickness of 0.015" (0.38 mm) or ceramic tiles sealed together with grout. Cement board, brick, or
any other approved or listed material suited for floor protection. No R factor required.
Any type of tile will require a continuous non combustible sheet beneath to prevent the possibility
of embers falling through to the combustible floor if cracks or separation should occur in the
finished surface. Check local codes for approved alternatives.
No protection is required if the unit is installed on a non-combustible floor (ex: concrete).
FLOOR PROTECTION
Canada USA
G21 8" (203 mm) N/A
H8" (203 mm) N/A
I18" (457 mm)From
door opening
16" (406 mm)
From door
opening
JN/A 8" (203 mm)
N22 N/A See note 23
S48" (1219 mm) 38" (965 mm)
T34" (864 mm) 26 7/8" (683 mm)
U43" (1092 mm) 37" (940 mm)
V69 ½" (1765 mm) 56 ½" (1435 mm)
H
I
G
J
K
Figure 19: Floor Protection
U
T
S
84"
213 cm
Ve
Ho
N
21 The oor protection at the back of the stove is limited to the stove’s required clearance if such clearance is smaller than 8 inches (203 mm).
22 Only required under the horizontal section (Ho) of the connector. Must exceed each side of the connector by at least 2 inches (51 mm).
