Enerzone EB00041 User manual

Installation
and Operation
Manual
MOBILE
HOME
Printed in Canada
Safety tested according to ULC S627,
UL 1482 and UL 737 standards by an
accredited laboratory.
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS IN
LOCAL AREA.
READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS WOOD STOVE. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
READ AND KEEP THIS MANUAL FOR REFERENCE
ENGLISH
45923A
2019-03-27
SOLUTION 2.3
(EB00041 model)
US Environmental Protection Agency
phase II certified wood stove compliant
with 2020 cord wood standard.

Page 3
Installation and Operation Manual - Solution 2.3
ENGLISH
As one of North America’s
largest and most respected
wood stove and fireplace
manufacturers, Stove Builder
International takes pride in the
quality and performance of all
its products.
The following pages provide
general advice on wood
heating, detailed instructions
for safe and effective
installation, and guidance
on how to get the best
performance from this stove.
It is highly recommend that
this wood burning hearth
product be installed and
serviced by professionals who
are certified by a «Qualified
Agengy» such as NFI (National
Fireplace Institute®) or CSIA
(Chimney Safety Institute of
America) in the United States
and in Canada by WETT
(Wood Energy Technology
Transfer) or in Quebec
by APC (Association des
Professionnels du Chauffage).
Contact local building or fire
officials about restrictions
and installation inspection
requirements in local area.
A building permit might be
required for the installation of
this stove and the chimney
that it is connected to. It
is also recommended to
inform your home insurance
company.
Please read this entire manual
before installing and using this
stove.
A primary alternative heat
source should be available in
the home. This heating unit
may serve as a supplementary
heat source. The manufacturer
cannot be responsible for
additional heating costs
associated with the use of an
alternative heat source.
ONLINE WARRANTY REGISTRATION
If the unit requires repairs during the warranty period, proof of purchase must be provided. The
purchase invoice must be kept. The date indicated on it establishes the warranty period. If it
can not be provided, the warranty period will be determined by the date of manufacture of the
product.
It is also highly recommended to register the warranty online at
https://www.enerzone-intl.com/en/warranty/warranty-registration/
Registering the warranty will help to quickly find the information needed on the unit.
THANK YOU FOR CHOOSING
THIS WOOD STOVE.
If this stove is not
installed properly,
combustible materials
near it may overheat
and catch fire.
To reduce the
risk of fire, follow
the installation
instructions in this
manual.

Page 4 Installation and Operation Manual - Solution 2.3
ENGLISH
TABLE OF CONTENTS
PART A - OPERATION AND MAINTENANCE .............................................................................. 7
1. Safety Information .................................................................................................................... 7
2. General Information.................................................................................................................. 8
2.1 Performances .................................................................................................................. 8
2.2 Specifications .................................................................................................................. 9
2.3 Dimensions.....................................................................................................................10
2.4 Zone Heating and How to Make it Work for You ................................................................15
2.5 The Benefits of Low Emissions and High Efficiency ...........................................................15
2.6 The SBI Commitment to You and the Environment ............................................................15
3. Fuel ......................................................................................................................................... 16
3.1 How to Prepare or Buy Good Firewood ............................................................................17
4. Operating Your Stove ............................................................................................................. 19
4.1 Before Operating Your Stove ...........................................................................................19
4.2 The Use of a Fire Screen .................................................................................................19
4.3 The First Fires.................................................................................................................20
4.4 Lighting Fires..................................................................................................................21
4.5 Maintaining Wood Fires ...................................................................................................22
4.6 Building Different Fires for Different Needs........................................................................24
5. Maintaining Your Wood Heating System............................................................................... 26
5.1 Stove Maintenance .........................................................................................................26
5.2 Chimney Maintenance .....................................................................................................29
PART B - INSTALLATION............................................................................................................ 30
6. Safety Information and Standards......................................................................................... 30
6.1 Mobile Home ..................................................................................................................30
6.2 Regulations Covering Stove Installation ............................................................................30
7. Clearances to Combustible Material ..................................................................................... 31
7.1 Location of the Certification Label....................................................................................31
7.2 Clearances to Combustible Materials ...............................................................................31
7.3 Floor Protector ...............................................................................................................36
7.4 Reducing Wall and Ceiling Clearances Safely ....................................................................37
8. The Venting System................................................................................................................ 40
8.1 General .........................................................................................................................40
8.2 Suitable Chimneys ..........................................................................................................40
8.3 Minimum Chimney Height ................................................................................................42
8.4 The Relationship Between the Chimney and the House .....................................................42
8.5 Supply of Combustion Air ................................................................................................43
8.6 Installing the Chimney Connector.....................................................................................44

Page 5
Installation and Operation Manual - Solution 2.3
ENGLISH
Appendix 1 : Legs Installation ................................................................................................... 47
Appendix 2 : Pedestal Installation ............................................................................................. 50
Appendix 3: Door Overlay Installation....................................................................................... 52
Appendix 4: Decorative accent Installation .............................................................................. 53
Appendix 5 : Optional Air Mate Installation............................................................................... 54
Appendix 6: Optional Fresh Air Intake Kit Installation.............................................................. 55
Appendix 7: Optional Fire Screen Installation........................................................................... 56
Appendix 8: optional Blower and thermodisc installation........................................................ 57
Appendix 9: Air Tubes and Baffle Installation ........................................................................... 58
Appendix 10: Exploded Diagram and Parts List....................................................................... 60
ENERZONE Limited Lifetime Warranty ..................................................................................... 63
Dealer:
Installer:
Phone Number:
Serial Number:

Page 6 Installation and Operation Manual - Solution 2.3
ENGLISH

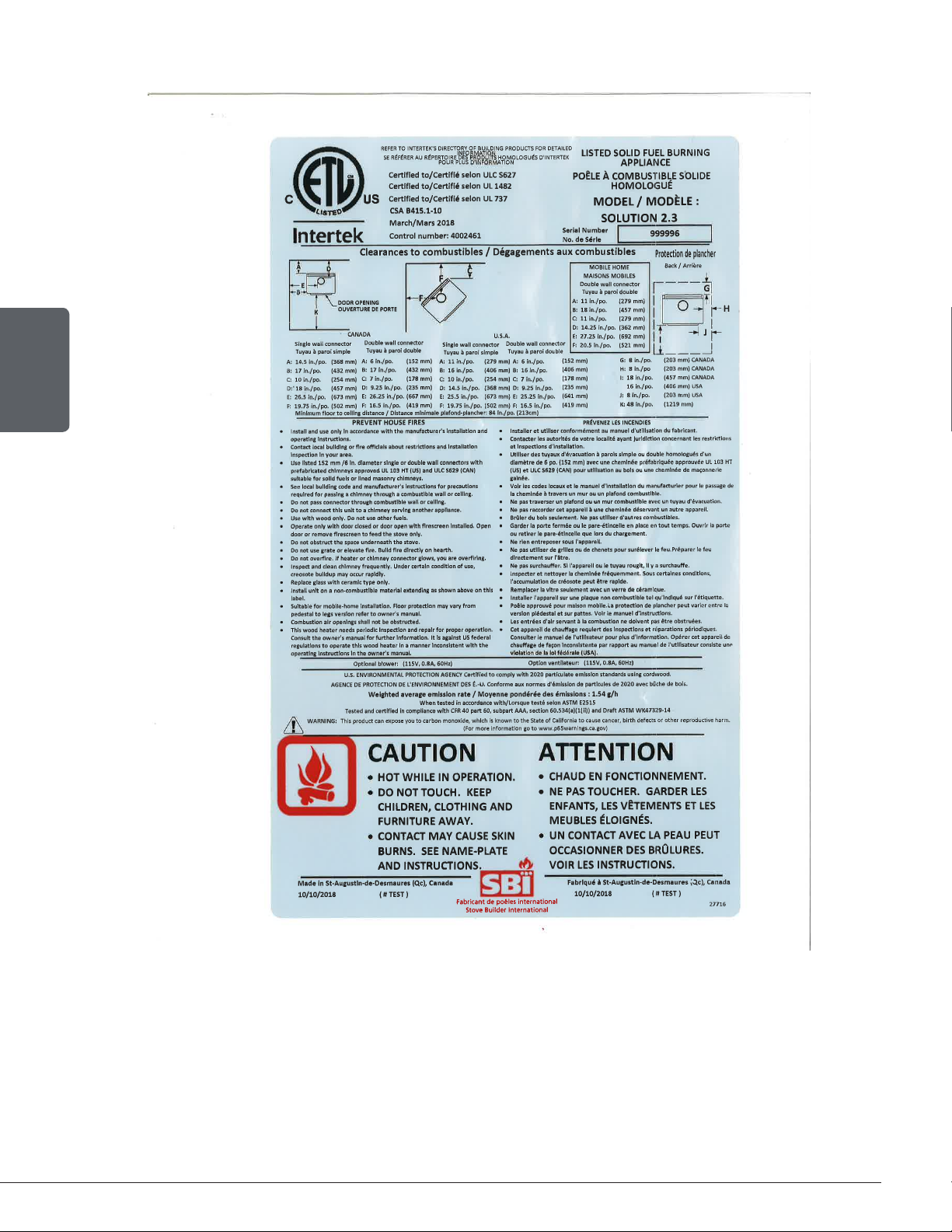

CERTIFICATION PLATE

Page 7
Installation and Operation Manual - Solution 2.3
ENGLISH
PART A - OPERATION AND MAINTENANCE
1. Safety Information
• Operate only with the door fully closed or fully open with the fire screen in place. If the door is left
partly open, gas and flame may be drawn out of the opening, creating risks from both fire and
smoke.
• HOT WHILE IN OPERATION, KEEP CHILDREN, CLOTHING AND FURNITURE AWAY.
CONTACT MAY CAUSE SKIN BURNS. GLOVES MAY BE NEEDED FOR STOVE OPERATION.
• Using a stove with cracked or broken components, such as glass, firebricks or baffle may produce
an unsafe condition and may damage the stove.
• Open the air control fully before opening the loading door.
• This stove has been tested for use with an open door in conjunction with a fire screen, sold separately.
The door may be open, or fire screen removed only during lighting procedures or reloading. Always
close the door or put back the fire screen after ignition. Do not leave the stove unattended when
the door is opened with or without the fire screen.
• NEVER USE GASOLINE, LANTERN FUEL (NAPHTHA), FUEL OIL, MOTOR OIL, KEROSENE,
CHARCOAL LIGHTER FLUID, OR SIMILAR LIQUIDS OR AEROSOLS TO START A FIRE IN
THIS STOVE. KEEP ALL SUCH LIQUIDS OR AEROSOLS WELL AWAY FROM THE STOVE
WHILE IT IS IN USE.
• Do not store fuel within heater minimum installation clearances.
• Burn only seasoned natural firewood.
• This wood heater needs periodic inspection and repair for proper operation. It is against federal
regulations to operate this wood heater in a manner inconsistent with operating instructions in this
manual.
• This appliance should always be maintained and operated in accordance with these instructions.
• Do not elevate the fire by using a grate.
• A smoke detector, a carbon monoxide detector and a fire extinguisher should be installed in the
house. The location of the fire extinguisher should be known by all family members.
This product can expose you to chemicals including carbon monoxide, which is
known to the State of California to cause cancer, birth defects or other reproductive
harm. For more information go to www.P65warnings.ca.gov/

Page 8 Installation and Operation Manual - Solution 2.3
ENGLISH
2. General Information
2.1 Performances
Values are as measured per test method, except for the recommended heating area, firebox volume,
maximum burn time and maximum heat output.
Model Solution 2.3 (EB00041)
Fuel Type Dry Cordwood
Recommended heating area (sq. ft..)1500 to 2,100 ft2(47 to 195 m2)
Nominal firebox volume 2.4 ft3 (0.068 m3)
Maximum burn time18 hours
Maximum heat output (dry cordwood)275,000 BTU/h (22.0 kW)
Overall heat output rate (min. to max.)2 3 14,800 BTU/h to 28,600 BTU/h
(4.34 kW to 8.38 kW)
Average overall efficiency3
Dry cordwood 69 % (HHV)474 % (LHV)5
Optimum efficiency677 %
Average particulate emissions rate71.54 g/h (EPA / CSA B415.1-10)8
Average CO989.4 g/h
1 Recommended heating area and maximum burn time may vary subject to location in home, chimney draft, heat loss factors, climate, fuel type, feed
rate, fuel level, and other variables. The recommended heated area for a given appliance is dened by the manufacturer as its capacity to maintain a
minimum acceptable temperature considering that the space conguration and the presence of heat distribution systems have a signicant impact
in making heat circulation optimum.
2The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft3and 20 lb/ft3. Other performances are based on
a fuel load prescribed by the standard. The specied loading density varies between 7 lb/ft³ and 12 lb/ft3. The moisture content is between 19%
and 25%.
3As measured per CSA B415.1-10 stack loss method.
4Higher Heating Value of the fuel.
5Lower Heating Value of the fuel.
6Optimum overall efciency at a specic burn rate (LHV).
7This appliance is ofcially tested and certied by an independent agency.
8Tested and certied in compliance with CFR 40 part 60, subpart AAA, section 60.534(a)(1(ii) and Draft ASTM WK47329-14.
9Carbon monoxide.

Page 9
Installation and Operation Manual - Solution 2.3
ENGLISH
2.2 Specifications
Maximum log length120 in (508 mm) east-west
Flue outlet diameter 6 in (150 mm)
Recommended connector pipe diameter 6 in (150 mm)
Type of chimney ULC S629, UL 103 HT (2100 °F)
Baffle material C-Cast
Approved for alcove installation Yes
Approved for mobile home installation2Yes
Shipping weight (without option) 375 lb (170 kg)
Appliance weight (model with legs) 353 lb (160 kg)
Appliance weight (model with pedestal) 365 lb (166 kg)
Type of door Simple, glass with cast iron frame
Type of glass Ceramic glass
Blower Optional (up to 130 CFM)
Particulate emission standard EPA / CSA B415.1-103
USA standard (Safety) UL 1482, UL 737
Canada standard (Safety) ULC S627
1East-west: through the door you see the longitudinal sides of the logs; north-south: through the door you see the tips of the logs.
2Mobile home (Canada) or manufactured home (USA): The US department of Housing and Urban Development describes “manufactured homes”
better known as “mobile homes” as followed; buildings built on xed wheels and those transported on temporary wheels/axles and set on a
permanent foundation. In Canada, a mobile home is a dwelling for which the manufacture and assembly of each component is completed or
substantially completed prior to being moved to a site for installation on a foundation and connection to service facilities and which conforms to the
CAN/CSA-Z240 MH standard.
3Tested and certied in compliance with CFR 40 part 60, subpart AAA, section 60.534(a)(1(ii) and Draft ASTM WK47329-14.

Page 10 Installation and Operation Manual - Solution 2.3
ENGLISH
2.3 Dimensions
2.3.1 Stove Dimensions With Leg Kit AC01206 or AC01208
13"
330mm
6 5/8"
168mm
Ø6"
150mm
26"
660mm
25 5/8"
651mm
16 1/4"
413mm
8 3/4"
224mm
28 1/4"
717mm
9 7/8"
252mm
Figure 1: Top view Figure 2: Front view
20 1/2"
521mm
30 3/4"
781mm
30 3/8"
771mm
10 7/8"
278mm
21 3/4"
554mm
28 3/8"
721mm
21 7/8"
556mm
25 7/8"
657mm
Figure 3: Side view

Page 11
Installation and Operation Manual - Solution 2.3
ENGLISH
2.3.2 Stove Dimensions With Leg Kit AC01293 or AC01294
13"
330mm
6 5/8"
168mm
Ø
6"
150mm
26"
660mm
25 5/8"
651mm
16 1/4"
413mm
8 3/4"
224mm
26 5/8"
675mm
10"
254mm
Figure 4: Top view Figure 5: Front view
20 1/2"
521mm
30 3/4"
781mm
30 3/8"
771mm
10 7/8"
278mm
21"
532mm
28 3/8"
721mm
21 7/8"
556mm
25 7/8"
657mm
Figure 6: Side view

Page 12 Installation and Operation Manual - Solution 2.3
ENGLISH
2.3.3 Stove Dimensions With Leg Kit AC01295 or AC01296
13"
330mm
6 5/8"
168mm
Ø
6"
150mm
26"
660mm
25 5/8"
651mm
16 1/4"
413mm
8 3/4"
224mm
25 1/4"
641mm
11"
281mm
Figure 7: Top view Figure 8: Front view
20 1/2"
521mm
31 3/4"
807mm
31 3/8"
798mm
10 7/8"
278mm
19 1/8"
486mm
29 3/8"
747mm
21 7/8"
556mm
25 7/8"
657mm
Figure 9: Side view

Page 13
Installation and Operation Manual - Solution 2.3
ENGLISH
2.3.4 Stove Dimensions With Pedestal
13"
330mm
6 5/8"
168mm
Ø
6"
150mm
26"
660mm
25 5/8"
651mm
16 1/4"
413mm
8 3/4"
224mm
21 1/2"
547mm
12 7/8"
326mm
Figure 10: Top view Figure 11: Front view
20 1/2"
521mm
33 1/2"
851mm
33 1/8"
841mm
10 7/8"
278mm
18 7/8"
478mm
31 1/4"
793mm
21 7/8"
556mm
25 7/8"
657mm
Figure 12: Side view

Page 14 Installation and Operation Manual - Solution 2.3
ENGLISH
2.3.5 Combustion Chamber Dimensions
17 1/2"
444mm
9 3/4"
248mm
21"
533mm
Figure 13: Door opening Figure 14: Front view - Combustion chamber
16 1/2"
419mm
11 7/8"
301mm
3/8"
10mm
3/16"
5mm
Figure 15: Side view - Combustion chamber

Page 15
Installation and Operation Manual - Solution 2.3
ENGLISH
2.4 Zone Heating and How to Make it Work for You
This stove is a space heater, which means it is intended to heat the area it is installed in, as well
as spaces that connect to that area, although to a lower temperature. This is called zone heating
and it is an increasingly popular way to heat homes or spaces within homes.
Zone heating can be used to supplement another heating system by heating a particular space
within a home, such as a basement, a family room or an addition that lacks another heat source.
Houses of moderate size and relatively new construction can be heated with a properly sized
and located wood stove. Whole house zone heating works best when the stove is in the part of
the house where the family spends most of its time. This is normally the main living area where
the kitchen, dining and living rooms are located. Locating the stove in this area will give the
maximum benefit of the heat it produces and will achieve the highest possible heating efficiency
and comfort. The space where the most time is spent will be warmest, while bedrooms and
basement (if there is one) will stay cooler. In this way, less wood is burnt than with other forms
of heating.
Although the stove may be able to heat the main living areas of the house to an adequate
temperature, it is strongly recommend to also have a conventional oil, gas or electric heating
system to provide backup heating.
The success of zone heating will depend on several factors, including the correct sizing and
location of the stove, the size, layout and age of your home and your climate zone. Three-season
vacation homes can usually be heated with smaller stoves than houses that are heated all winter.
2.5 The Benefits of Low Emissions and High Efficiency
The low smoke emissions produced by the special features inside this stove firebox mean that
the household will release up to 90% less smoke into the outside environment than if an older
conventional stove was used. But there is more to the emission control technologies than
protecting the environment.
The smoke released from wood when it is heated contains about half of the energy content
of the fuel. By burning the wood completely, this stove releases all the heat energy from the
wood instead of wasting it as smoke up the chimney. Also, the features inside the firebox
allows control of the air supply meaning controling the heat output, while maintaining clean and
efficient flaming combustion, which boosts the efficient delivery of heat to the home.
The emission control and advanced combustion features of this stove can only work properly if
the fuel used is in the correct moisture content range of 15% to 20%. See section «3. Fuel» of
this manual for suggestions on preparing fuelwood and judging its moisture.
2.6 The SBI Commitment to You and the Environment
The SBI team is committed to protecting the environment, so we do everything we can to use
only materials in our products that will have no lasting negative impact on the environment.
2.6.1 What is This Stove Made Of?
The body of this stove, which is most of its weight, is carbon steel. Should it ever become
necessary many years in the future, almost the entire stove can be recycled into new products,
thus eliminating the need to mine new materials.

Page 16 Installation and Operation Manual - Solution 2.3
ENGLISH
The paint coating on the stove is very thin. Its VOC content (Volatile Organic Compounds) is
very low. VOCs can be responsible for smog, so all the paint used during the manufacturing
process meets the latest air quality requirements regarding VOC reduction or elimination.
The air tubes are stainless steel, which can also be recycled.
The C-Cast baffle is made of an aluminosilicate fibre material that is compressed with a binder
to form a rigid board. C-Cast can withstand temperatures above 2,000 °F. It is not considered
hazardous waste. Disposal at a landfill is recommended.
Firebrick is mainly composed of silicon dioxide, also known as silica, a product processed from
a mined mineral. It is most commonly found in nature in the form of sand and clay. Disposal at
a landfill is recommended.
The door and glass gaskets are fibreglass which is spun from melted sand. Black gaskets have
been dipped into a solvent-free solution. Disposal at a landfill is recommended.
The door glass is a 4 mm thick ceramic material that contains no toxic chemicals. It is made
of natural raw materials such as sand and quartz that are combined in such a way to form a
high temperature glass. Ceramic glass cannot be recycled in the same way as normal glass,
so it should not be disposed of with your regular household products. Disposal at a landfill is
recommended.
3. Fuel
MATERIALS THAT SHOULD NOT BE BURNED
- GARBAGE;
- LAWN CLIPPINGS OR YARD WASTE;
- MATERIALS CONTAINING RUBBER, INCLUDING TIRES;
- MATERIALS CONTAINING PLASTIC;
- WASTE PETROLEUM PRODUCTS, PAINTS OR PAINT THINNERS, OR ASPHALT
PRODUCTS;
- MATERIALS CONTAINING ASBESTOS;
- CONSTRUCTION OR DEMOLITION DEBRIS;
- RAILROAD TIES OR PRESSURE-TREATED WOOD;
- MANURE OR ANIMAL REMAINS;
- SALT WATER DRIFTWOOD OR OTHER PREVIOUSLY SALT WATER SATURATED
MATERIALS;
- UNSEASONED WOOD; OR
- PAPER PRODUCTS, CARDBOARD, PLYWOOD, OR PARTICLEBOARD. THE PROHIBITION
AGAINST BURNING THESE MATERIALS DOES NOT PROHIBIT THE USE OF FIRE
STARTERS MADE FROM PAPER, CARDBOARD, SAW DUST, WAX AND SIMILAR
SUBSTANCES FOR THE PURPOSE OF STARTING A FIRE IN AN AFFECTED WOOD
HEATER.
BURNING THESE MATERIALS MAY RESULT IN RELEASE OF TOXIC FUMES OR RENDER
THE HEATER INEFFECTIVE AND CAUSE SMOKE.

Page 17
Installation and Operation Manual - Solution 2.3
ENGLISH
3.1 How to Prepare or Buy Good Firewood
3.1.1 What is Good Firewood?
Good firewood has been cut to the correct length for the stove, split to a range of sizes and
stacked in the open until its moisture content is down to 15% to 20%.
3.1.2 Tree Species
The tree species the firewood is produced from is less important than its moisture content. The
main difference in firewood from various tree species is the density of the wood. Hardwoods are
denser than softwoods. People who live in the coldest regions of North America usually have
only spruce, birch and poplar, other low-density species to burn and yet they can heat their
homes successfully.
Homeowners with access to both hardwood and softwood sometimes use both types for different
purposes. For example, softer woods make good fuel for mild weather in spring and fall because
they light quickly and produce less heat. Softwoods are not as dense as hardwoods so a given
volume of wood contains less energy. Using softwoods avoids overheating the house, which
can be a common problem with wood heating in moderate weather. Harder woods are best for
colder winter weather when more heat and longer burn cycles are desirable.
Note that hardwood trees like oak, maple, ash and beech are slower growing and longer lived
than softer woods like poplar and birch. That makes hardwood trees more valuable. The advice
that only hardwoods are good to burn is outdated. Old, leaky cast iron stoves wouldn’t hold
a fire overnight unless they were fed large pieces of hardwood. That is no longer true. It is
possible to successfully heat a home by using the less desirable tree species and give the forest
a break at the same time.
3.1.3 Log Length
Logs should be cut at least 1" (25 mm) shorter than the firebox so they fit
in easily. Pieces that are even slightly too long make loading the stove very
difficult. The most common standard length of firewood is 16" (400 mm).
The pieces should be a consistent length, with a maximum of 1" (25 mm)
variation from piece to piece.
3.1.4 Piece Size
Firewood dries more quickly when it is split. Large unsplit rounds can take years to dry enough
to burn. Even when dried, unsplit logs are difficult to ignite because they don’t have the sharp
edges where the flames first catch. Logs as small as 3" (75 mm) should be split to encourage
drying.

Page 18 Installation and Operation Manual - Solution 2.3
ENGLISH
Wood should be split to a range of sizes, from about 3" to 6" (75 mm to 150 mm) in cross
section. Having a range of sizes makes starting and rekindling fires much easier. Often, the
firewood purchased from commercial suppliers is not split small enough to fuel the fire. It is
sometimes advisable to resplit the wood before stacking to air dry.
3.1.5 How to Dry Firewood
Firewood that is not dry enough to burn is the cause of most complaints about wood stoves.
Continually burning green or unseasoned wood produces more creosote and involves lack of
heat and dirty glass door.
Here are some things to consider in estimating drying time:
− Firewood takes a long time to dry;
− Firewood bought from a dealer is rarely dry
enough to burn, so it is advisable to buy the
wood in spring and dry it yourself;
− Drying happens faster in dry weather than in
damp, maritime climates;
− Drying happens faster in warm summer weather
than in winter weather;
− Small pieces dry more quickly than large pieces;
− Split pieces dry more quickly than unsplit rounds;
− Softwoods take less time to dry than hardwoods;
− Softwoods like pine, spruce, poplar, and aspen can be dry enough to burn after being stacked to
air dry only for the summer months;
− Hardwoods like oak, maple and ash can take one, or even two years to dry fully, especially if the
pieces are big;
− Firewood dries more quickly when stacked outside in a location exposed to sun and wind; it takes
much longer to dry when stacked in a wood shed;
− Firewood that is ready to burn has a moisture content between 15% and 20% and will allow the
stove to produce its highest possible efficiency.
3.1.6 Judging Firewood Moisture Content
Use these guidelines to find out if the firewood is dry enough to burn:
− Cracks form at the ends of logs as they dry,
− As it dries in the sun, the wood turns from white or cream colored
to grey or yellow,
− Bang two pieces of wood together; seasoned wood sounds
hollow and wet wood sounds dull,
− Dry wood is much lighter in weight than wet wood,
− Split a piece, and if the fresh face feels warm and dry it is dry enough to burn; if it feels damp, it is
too wet,
− Burn a piece; wet wood hisses and sizzles in the fire and dry wood does not.
− A wood moisture meter can be bought to test the firewood.

Page 19
Installation and Operation Manual - Solution 2.3
ENGLISH
3.1.7 Manufactured Logs
Do not burn manufactured logs made of wax impregnated sawdust or
logs with any chemical additives. Manufactured logs made of 100%
compressed sawdust can be burned with caution in the number of
these logs burned at one time. Start with one manufactured log and
see how the stove reacts. Never use more than two manufactured
logs.
4. Operating Your Stove
This wood heater has a manufacturer-set minimum low burn rate that must not be
altered. It is against federal regulations to alter this setting or otherwise operate this
wood heater in a manner inconsistent with operating instructions in this manual.
4.1 Before Operating Your Stove
Before using the stove, the following items should be installed :
• The pedestal or the leg kit (see «Appendix 1 : Legs Installation», page 47, or «Appendix 2 :
Pedestal Installation», page 50 )
• The decorative accents (see «Appendix 4: Decorative accent Installation», page 53 ),
• The door overlay (see «Appendix 3: Door Overlay Installation», page 52 ),
• The door coil handle (A) and the air control coil handle (B) .
A
B
Figure 16: Installing the coil handles
4.2 The Use of a Fire Screen
This stove has been tested for use with an open door in conjunction with a fire screen, sold
separately. The fire screen must be properly secured on the stove to avoid any risk of sparks
damaging the flooring. When the fire screen is in use, do not leave the stove unattended to
respond promptly in the event of smoke spillage into the room.

Page 20 Installation and Operation Manual - Solution 2.3
ENGLISH
Potential causes of smoke spillage are described in Section «8. The Venting System» of this
manual. See «Appendix 7: Optional Fire Screen Installation» for installation instructions.
OPERATING THE STOVE WITH A FIRE SCREEN INCREASES POSSIBILITIES OF
GENERATING CARBON MONOXIDE. CARBON MONOXIDE IS AN ODOURLESS GAS THAT
IS HIGHLY TOXIC WHICH CAN CAUSE DEATH AT HIGH CONCENTRATION IN AIR.
Blower Operation
It is possible to install a blower on this stove. The blower is
optional and is sold separatly. See «Appendix 10: Exploded
Diagram and Parts List» for genuine part number.
The blower is installed on the back of the stove to increase
airflow through the heat exchanger and improve hot air
circulation in the room. When used regularly, the blower can
provide a small increase in efficiency, up to 2%. However,
the use of a blower should not be used as a way to gain
more output from a stove that is undersized for the space
it is intended to heat.
Ensure the blower cord is not in contact with any
surface of the stove to prevent electrical shock or fire
damage. Do not run cord beneath the stove.
Figure 17: Air flow with a blower
The blower has a rheostat that can be adjusted in three different
positions; either from high (HI) to low (LO) or closed (OFF).
Allow the stove to reach operating temperature (approximately
one hour) before turning on the blower, since increased airflow
from the blower will remove heat and affect the start up
combustion efficiency.
The blower is also equipped with a heat sensor. When the
blower is ON, it will start automatically when the stove is hot
enough and it will stop when the stove has cooled down.
Therefore, the blower speed control can be left at the desired
setting.
OFF
HI
LO
Figure 18: Blower rheostat
4.3 The First Fires
Two things will happen when burning the first few fires; the paint cures and the internal
components of the stove are conditioned.
As the paint cures, some of the chemicals vaporize. The vapors are not poisonous, but they do
smell bad. Fresh paint fumes can also cause false alarms in smoke detectors.
So, when lighting the stove, be prepared by opening doors or windows to ventilate the house.
Burn one or two small fires to begin the curing and conditioning process. Then build bigger and
hotter fires until there is no longer paint smell from the stove.
