SCAN Basic 4 User manual

SCAN Basic 4
INSTRUCTIONS FOR
INSTALLATION AND USE
This manual is accompanied by a
pamphlet with General Instructions for
Installation. Edition 10.04 - GB
MONTERINGSVEJLEDNING
med brugs- og fyringsanvisning
Indhold:
Generelle råd og anvisninger . . . . . . . . . .2-3
Reklamationsret
Type- og miljøgodkendelse
Udpakning
Tilbehør til din pejs
Montering af kakler og fedtsten
Kvalitetskontrol
Anmeldelsespligt
Skorstenstjek
Skorstensløsninger
Bærende underlag
Brændbar eller ikke brændbar væg
Gulvplade
Varmefordeling
Justerskrue
Typeskilt
Produktionsnr.
Servicepakke
Monteringsvejledning. . . . . . . . . . . . . . . . .4-7
Tilslutning til eksisterende/muret skorsten
Tilslutning topafgang til stålskorsten
Forbrændingsluft udefra
Brugs- og fyringsanvisning . . . . . . . . . . . 8-10
Vedligeholdelse af pejseovnen
Håndtering af brændsel
Optænding og fyring
Fejlsøgning . . . . . . . . . . . . . . . . . . . . . . . . 11
SCAN 3
BRUGSANVISNING
TildenneBrugsanvisninghørerogsåen
generelMonteringsvejledning. Udgave03.03-DK
MONTERINGSVEJLEDNING
medbrugs-ogfyringsanvisning
Indhold:
Generellerådoganvisninger..........2-3
Reklamationsret
Type-ogmiljøgodkendelse
Udpakning
Tilbehørtildinpejs
Monteringafkaklerogfedtsten
Kvalitetskontrol
Anmeldelsespligt
Skorstenstjek
Skorstensløsninger
Bærendeunderlag
Brændbarellerikkebrændbarvæg
Gulvplade
Varmefordeling
Selvlukkendelåge
Justerskrue
Typeskilt
Produktionsnr.
Servicepakke
Monteringsvejledning.................4-7
Tilslutningtileksisterende/muretskorsten
Tilslutningtopafgangtilstålskorsten
Forbrændingsluftudefra
Brugs-ogfyringsanvisning...........8-10
Vedligeholdelseafpejseovnen
Håndteringafbrændsel
Optændingogfyring
Fejlsøgning........................11
Tildennemonteringsvejledninghørerogsåen
separatbrugsanvisningfordenenkeltepejs.
Udgave02/03-DK
Til dennemonteringsvejledning hørerogsåen
separatbrugsanvisning fordenenkelte pejs.
Udgave 02/03 - DK
Approved according to DIN 18891

Clean combustion
The SCAN Basic 4 uses the "CB technique"
(Clean-Burn) to ensure an optimally clean
combustion. The extra combustion air is pre-
heated and led into the combustion chamber
close to the ceramic smoke deflector.
Ceramic smoke deflectors
Lift up the lower ceramic smoke deflector, pull
out the pins in the lateral combustion chamber
plates and remove the deflector. The upper
deflector is removed in the same way.
You have chosen a product from one of Europe's leading
manufacturers of wood-burning stoves. We are convin-
ced that your stove will be to your full satisfaction and
give you many hours of pleasure if you follow the advice
and instructions of this manual.
Please read this manual as well as the General
Instructions for Installation before beginning the
installation.
Congratulations on your new SCAN stove!
2
3
1
4

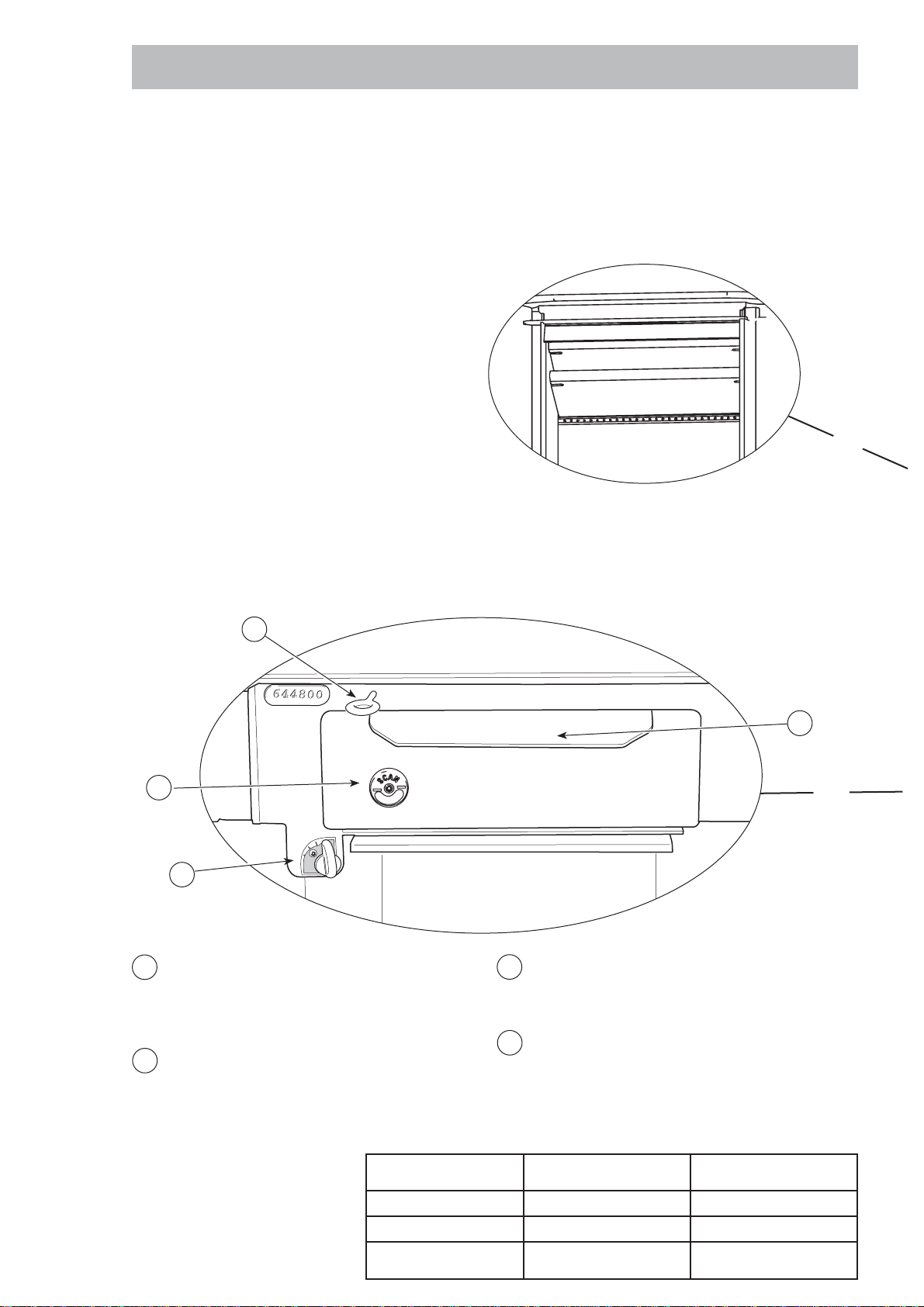

1 Ashtray. When you open the door, you have access
to the ashtray, which is placed below the combus-
tion chamber. Attention! Be careful when you empty
ashes from the stove. There may be embers left for
up to 24 hours after the stove was last used.
2 Handle for shaking grate. The stove is equipped
with a shaking grate. When you activate the grate
handle, the ashes from the combustion chamber are
emptied into the ashtray.
3 Regulation for primary air. Turn the air valve in
order to open. The primary air is used when lighting
and refuelling the stove. It should always be closed
during continuous firing.
4 Regulation for combustion air. Push the button
sideways. Left position is closed and right position is
open. The air is used for the combustion and regu-
lates the output of the stove.
The ashtray, shaking grate, and primary air should
always be closed during continuous firing.
Adjustment of the air
SCAN Basic 4
Wood / briquettes Fuel kg/h (beechwood
max. 20% humidity)
SCAN Basic 4 1,8 kg
Combustion air % 100
Primary air % 50

Accessories
For this model you can have the following accessories:
Handle
Pull out the handle to open the door.
Adjustment screws
The stove has two adjustment screws on the bot-
tom that can be used for levelling the stove.
Self-closing door (BA 1)
The door is prepared with a self-closing function at the fac-
tory. If you tighten the spring with the hexagon spanner, the
door will close automatically when you let go of it.
• Lateral covering in soapstone or ceramic tiles
(white or blue)
• Top plate in soapstone
• Small grill
• Steel floor plate
• Connection piece for fresh-air intake
SCAN Basic 4
Stove
model
SCAN
Connecting
adaptor
mm
1
Density of
flue gas
flow
g/s
2
Flue gas
tempera-
ture
oC
3
Minimum
draft
Pa
4
Density of
flue gas
flow
g/s
5
Flue gas
temperature
oC
6
Minimum
draft
Pa
7
0,8
Minimum
draft
Pa
B4 150 29 184 10 5 290 14 11
With closed doorsWith open doors
Data for calculation of the chimney
Columns 2 and 5 show the flue gas temperature in the connecting adaptor
Columns 3 and 6 show the lowest/minimum draft in Pa by rated value
Column 7 shows the lowest/minimum draft in Pa by 0.8 x rated value
The stove can be prepared for an external air sup-
ply where fresh air is let directly into the combustion
chamber (must be mounted from the factory).

Krog Iversen & Co. A/S - DK-5492 Vissenbjerg
1000
834
150
532 446
162
Warranty conditions
All SCAN wood-burning stoves and inserts are made of first-class material and
are subject to a strict quality control before they leave the factory. However, if
an error should occur, we back all SCAN wood-burning stoves and inserts with
an extensive, five-year limited warranty.
See also the General Instructions for Installation delivered with your stove
for more details.
Technical info
Rated output: 6 kW
Min./max.: 3 - 8 kW
Weight: 130 - 210 kg
Connection piece, diameter: int. 135 mm / ext. 148 mm
*
**
* To the middle of the rear outlet
** Connection to fresh-air intake
Distances to flammable
materials (mm)
Production number
Write the production number of
your stove here so that you have
it at hand in case you need to
contact us.
You can choose between several floor plates
in different shapes and dimensions for your
stove. Please contact your local authorities
concerning the security distances needed.
SCAN Basic 4
200
Base plate
Radiation area
Radiation
area
Base
plate
200
500
500
300
R800
R800
R800
300
200
You should read this manual as well as the General Instructions for Inatallation before beginning the installation.
