Engcon S60 User manual
User manual
MACHINE COUPLER
S60
Article 9000705 | Version 1.3
Language
Country
Original Instructions
Preface
Preface
Dear Customer,
Thank you for choosing a product from engcon.
engcon is the market leader in tiltrotators and tools for excavators. We represent
innovation, knowledge and experience, and we develop our products with a focus on the
customer's needs. Please visit our website for contact information and details about the
rest of our product range.
www.engcon.com
2
Table of Contents
Table of Contents
1. Introduction
1.1. General............................................................................................................ 5
1.2. Scrapping and recycling.................................................................................. 5
1.3. Transport and storage..................................................................................... 5
1.4. Warranty.......................................................................................................... 6
1.5. Technical support and spare parts.................................................................. 6
1.6. Product approval............................................................................................. 7
1.6.1. EU Declaration of Conformity.................................................................. 7
2. Safety
2.1. General............................................................................................................ 8
3. Design and function
3.1. General............................................................................................................ 9
3.2. Q-Safe............................................................................................................. 9
3.2.1. Overview.................................................................................................. 10
3.3. EC-Oil.............................................................................................................. 11
4. Installation
4.1. Identification.....................................................................................................12
4.2. Locking hydraulics........................................................................................... 13
4.3. Attaching the machine coupler........................................................................14
4.4. Electrical and hydraulics..................................................................................15
4.4.1. Installing hydraulic hoses.........................................................................16
4.5. EC-Oil.............................................................................................................. 17
4.6. External hose connection................................................................................ 18
4.7. Direct feed....................................................................................................... 18
4.8. Q-Safe............................................................................................................. 19
4.9. On completion................................................................................................. 19
5. Operation
5.1. Before using.................................................................................................... 20
5.2. Lifting points.................................................................................................... 21
5.3. Changing tools.................................................................................................21
5.3.1. Connecting tools...................................................................................... 22
5.3.2. Disconnecting tools..................................................................................24
6. Maintenance
6.1. General............................................................................................................ 26
6.2. Daily inspections..............................................................................................27
6.3. Special maintenance....................................................................................... 28
6.3.1. EC-Oil.......................................................................................................28
6.4. Tightening torque.............................................................................................29
7. Troubleshooting
7.1. Q-Safe............................................................................................................. 30
3
Table of Contents
7.1.1. Indications................................................................................................ 30
8. Decals
8.1. Warning decals................................................................................................32
8.1.1. Warning decals in cab............................................................................. 32
8.1.2. Warning decals on product......................................................................33
9. Technical data
9.1. Machine hitch S60...........................................................................................34
10. Glossary
10.1. Designations.................................................................................................. 35
10.2. Abbreviations................................................................................................. 35
11. Service
11.1. Service record................................................................................................36
4
1 Introduction
1. Introduction
1.1. General
This user manual contain important information about your product's functions and
characteristics, and how to use it in the best way. Before you begin using the product, it is
important that you read and understand the content of these instructions, especially the
sections that address safety.
In addition to these instructions, you must study and understand the applicable safety
information for the relevant base machine as well as any other equipment involved.
The user manual is supplied with supplementary documentation providing more detailed
descriptions of the installation, fitting, operation and maintenance of control systems and
custom modifications for your specific product.
Information, images, illustrations and specifications used in the instructions are based
on product information that was available at the time of going to press. Images and
illustrations used in the instructions are typical examples and not intended to be exact
depictions of various part of the product. We reserve the right to make changes without
prior notice.
Always store the user manual together with any other supplementary information in a safe
manner and such that it is always available.
1.2. Scrapping and recycling
engcon makes constant efforts to reduce its environmental impact. engcon's products
comprise at least 99 per cent recyclable material. All assembly and service work must
take place in compliance with legislation and ordinances governing the environment,
health and occupational safety. This refers to all work with residual materials including
handling, storage and processing. To prevent contamination of soil and water, spillages
must be avoided. Should a spillage occur, it must be dealt with.
Hazardous waste may only be disposed of by those authorized to do so. All waste
produced must be disposed of in compliance with applicable legislation and ordinances:
- Metal and plastics to be recycled.
- Hydraulic hoses are normally used for energy recovery (sort as hazardous waste).
- Oils and greases are normally used for energy recovery (sort as hazardous waste).
- Electronic components to be recycled for materials (sort as hazardous waste).
- Packaging to be sorted at source and recycled for materials.
- Paper to be sorted at source and recycled for materials.
If in doubt, contact the environmental manager at engcon.
1.3. Transport and storage
There are no lifting or attachment points on the machine coupler. For haulage,
transportation or handling, the machine coupler must be strapped to a pallet.
5
1 Introduction
1.4. Warranty
This product was designed, dimensioned and manufactured by engcon. It is forbidden
to modify, alter or convert this product such that it no longer corresponds to the
manufacturer's specifications. When replacing parts or making repairs, contact an
authorized workshop.
Warranty: One (1) year providing the product has not been subjected to abuse or other
abnormal operation.
1.5. Technical support and spare parts
Contact information for support and spare parts can be found at www.engcon.com.
6
1 Introduction
1.6. Product approval
1.6.1. EU Declaration of Conformity
Manufacturer: engcon Nordic AB - Industricentragatan 4, SE 833 93 Strömsund, Sweden
THE OBJECT OF THE DECLARATION DESCRIBED BELOW CONFORMS WITH
Directive: Machinery Directive 2006/42/EU, EMC Directive 2014/30/EU.
Type designation:
Part no:
Serial No:
Max jacking point:
Max hydraulic pressure:
Date:
Other:
Harmonized standards
SS-EN ISO 12100:2010
SS-EN 474-1:2006+A5:2018
SS-EN 474-5:2006+A3:2013
SS-ISO 13031:2016
The standards and regulatory directives have been applied and the product complies with the requirements for
CE marking.
This declaration and engcon's warranties will cease to be valid immediately if spare parts other than engcon
original spare parts are used, or if any changes or other interventions are made without engcon's permission.
SIGNED FOR AND ON BEHALF OF
Krister Blomgren – Signatory for engcon Nordic AB
Strömsund 26 April 2023
Qualified person authorized to compile the technical documentation:
Fredrik Jonsson, Head of R&D, engcon AB
7
2 Safety
2. Safety
2.1. General
It is important that you read and understand all warnings prior to installation work on this
product or before you use it and any accessories supplied. The warning texts highlight
potential risks and describe how to avoid them. The following warning levels are used in
this user manual:
DANGER
Indicates that an accident will occur if the regulation is
not followed. Risk of personal injury or death.
WARNING
Indicates that an accident may occur if the regulation
is not followed. Risk of personal injury or death.
CAUTION
Indicates that an accident may occur if the regulation
is not followed. Risk of personal injury.
IMPORTANT
Indicates that an accident may occur if the regulation is
not followed. Risk of damage to property, process or the
surroundings.
REMARKS
Specifies additional information that may make performance or
understanding of specific operations easier.
8
3 Design and function
3. Design and function
3.1. General
The engcon machine coupler is mounted on the excavator's stick. The machine coupler
renders tool attachment and detachment more efficient.
DANGER
Do not exceed tipping load limits. The weight of the
product and the increased reach may impair stability.
Risk of personal injury and damage to property.
3.2. Q-Safe
Q-Safe is a warning system that monitors the connection of tools to the machine quick
coupler and/or the quick coupler beneath the tiltrotator. It uses a double mechanical lock
to prevent the tool coming loose from the coupler, even if some part of the locking system
should fail. The alarm outputs are connected to a QLM module mounted on the stick. It
uses sound and light warning signals when a tool is incorrectly connected, as the primary
safety purpose of the quick coupler is to protect personnel nearby. The operator must
inform personnel concerned what the alarms mean.
WARNING
Stop work immediately and begin troubleshooting if
the system warns of a faulty tool connection during
operation. Risk of personal injury and damage to
property.
CAUTION
Use hearing protection when in close proximity
to or operating the Q-Safe machine coupler when
connected. Risk of hearing loss.
9
3 Design and function
3.3. EC-Oil
engcon’s system for more efficient tool changes. It provides the ability to switch hydraulic
tools without leaving the cab. The system is designed for maximum reliability in harsh
environments. It is a fully hydraulic system that handles the connection of tools under full
system pressure.

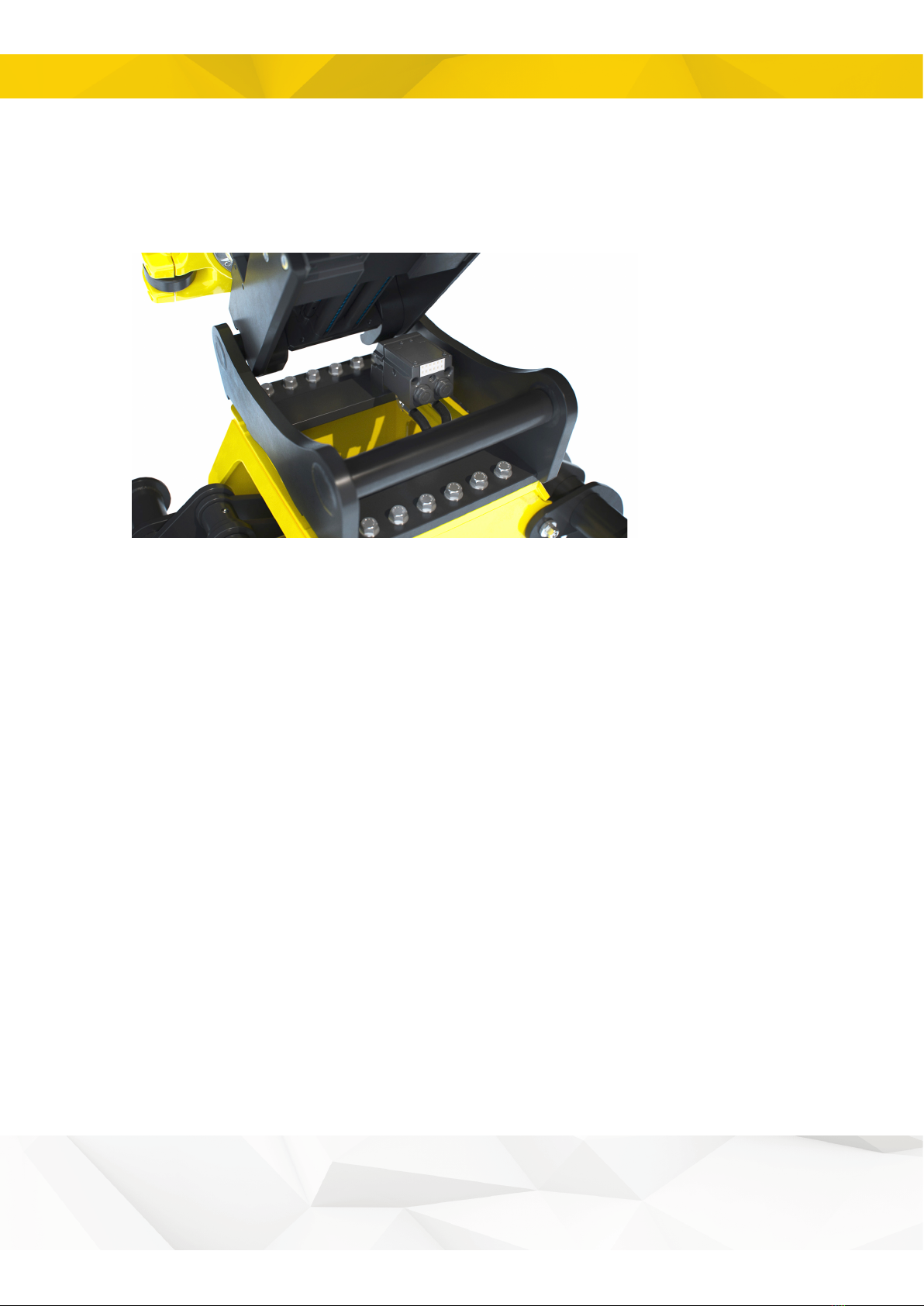

Figure 2.
11
4 Installation
4. Installation
It is important to check the necessary additional documentation before installation. At time
of delivery, your product and supplementary documentation are as far as possible adapted
to your base machine.
WARNING
Never attempt to increase the maximum capacity
of the equipment by modifications not approved by
the supplier. Risk of personal injury and damage to
property.
WARNING
Welding is not permitted. It can have a negative
impact on safety. Risk of personal injury and damage
to property. For welding, contact your dealer or
engcon Nordic AB.
WARNING
Beware of moving parts. A lack of awareness may lead
to crush injuries. Risk of personal injury.
IMPORTANT
Ensure miscibility with the base machine's hydraulic oil
prior to installation. If you are in any doubt, contact your
lubricant supplier. An incorrect mixture could damage hydraulic
components.
4.1. Identification
Check that your product's rating plate matches the information according to 1.6.1. EU
Declaration of Conformity. If there is any deviation, contact the supplier before you begin
initial installation.
12
4 Installation
Ratin plate content:
Part number
Type designation
Serial number
Year of manufacture
Weight
Max jacking point
Max hydraulic pressure

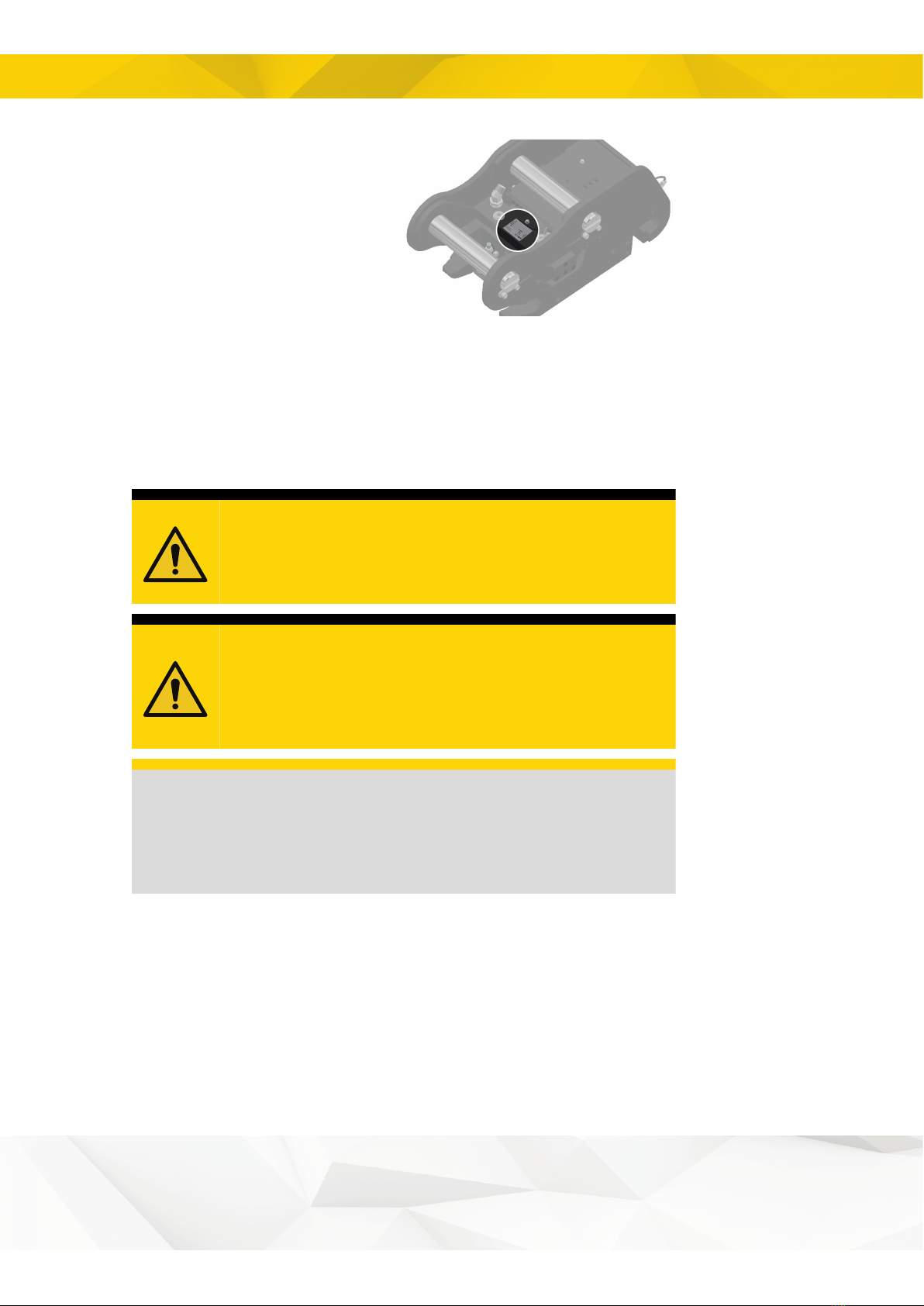

Figure 3.
4.2. Locking hydraulics
The following mounting and installation instructions assume the excavator to be equipped
with the appropriate locking hydraulics. If the base machine does not have locking
hydraulics, contact engcon for reference to the recommended installation kit.
DANGER
Do not exceed tipping load limits. The weight of the
product and the increased reach may impair stability.
Risk of personal injury and damage to property.
WARNING
If you have any doubts concerning the safety aspects
of your knowledge, the equipment or work, contact
a dealer or engcon Nordic AB. Incorrect installation
affect safety.
IMPORTANT
Assembly and installation may only be carried out at a
workshop authorized by the manufacturer. Changes to the
assembly may not be carried out without the manufacturer’s
consent.
13
4 Installation
4.3. Attaching the machine coupler
Before installation
Check the tipping load limits. Take the product's weight
and the increased reach into account. Installation may
make it necessary to reduce the capacity of the tool.
Position the base machine and machine coupler on a flat,
non-slip surface. Make sure the product is upright and in
line with the stick and the dog bone linkage.

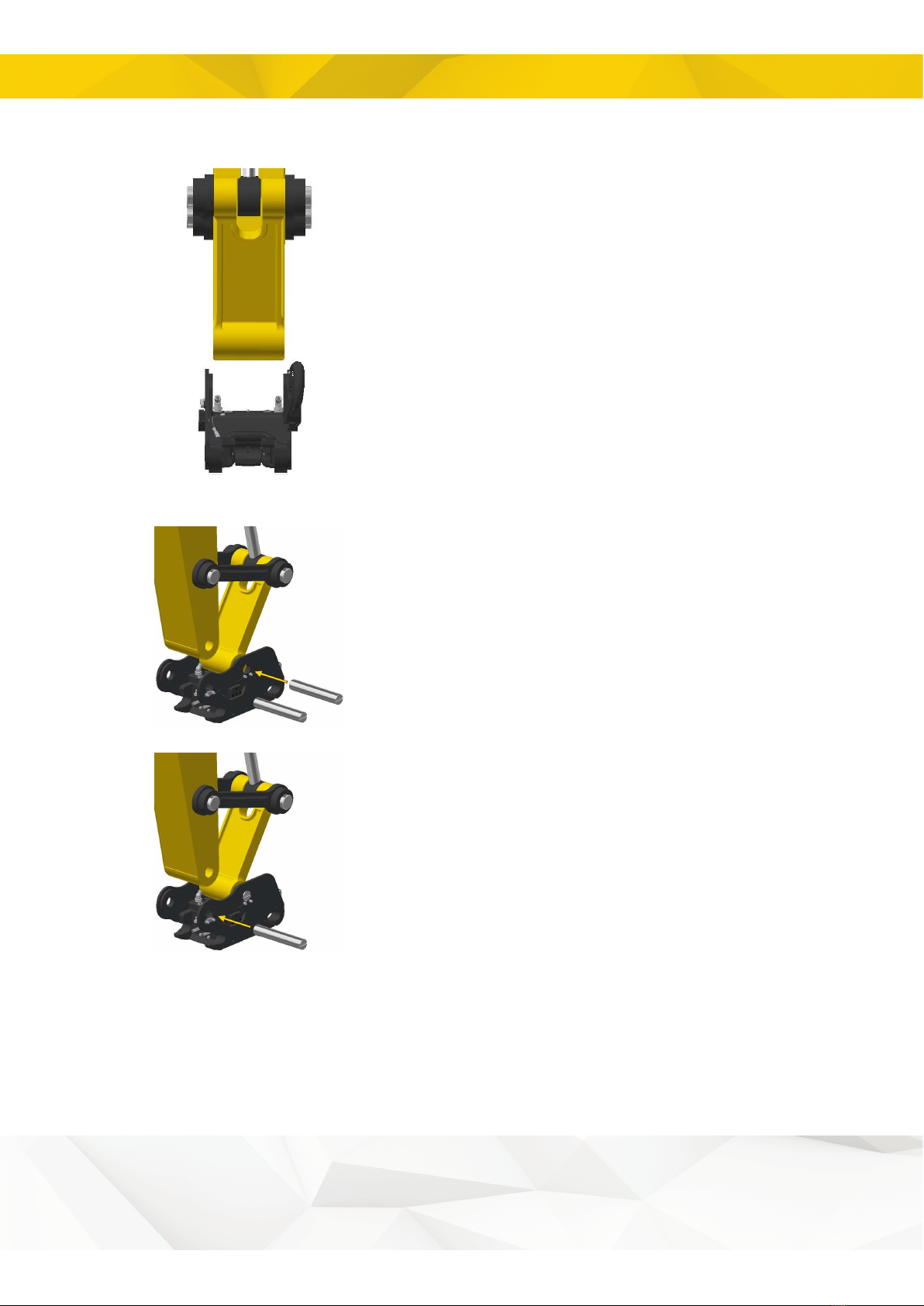

Figure 4.
Installation
Fit any O-rings if such must be used.
Position the dog bone linkage to align with the appropriate
holes in the machine coupler.
Shim the width if necessary.
Insert the intended shaft journal.
Figure 5.
Fit the shaft journal lock and make sure it locks correctly.
Figure 6.
6. Position the stick so that it is aligned with the
designated holes in the machine bracket.
7. Lower the stick carefully; make sure that no shear
forces occur.
8. Shim the width if necessary.
9. Apply plenty of grease in the cavity and bushings.
14
4 Installation
IMPORTANT
Fill the bushings and the cavity
in the stick with grease. Central
lubrication only provides top-offs.
10. Insert the intended shaft journal.
11. Fit the shaft journal lock and make sure it locks
correctly.
Figure 7.
4.4. Electrical and hydraulics
IMPORTANT
Maintenance and repair of the electrical system may only be
carried out by professionally qualified persons.
WARNING
Switch off power when working on the electrical
system and remove any live objects before starting
work Risk of personal injury.
WARNING
Be meticulous with the insulation of electrical
conductors and components when installing/fitting
electrical equipment. Short circuits in electrical wiring
can result in fires.
15
4 Installation
4.4.1. Installing hydraulic hoses
Make sure hose lengths are such that they do not hang
too much or are stretched when tilting the product.
Fit the hydraulic hoses as shown in Figure 10.
Close Open indicates the locking function (the location of
the adapters may vary)
Figure 8.
Tank Pressure Rotation mark theEC-Oil block hydraulic
connections.
WARNING
The hydraulic system
must be de-pressurized
before work on the
system is begun. Risk
of personal injury and
damage to property.
Minimum supply pressure for lock hydraulics is 3,190 psi.
Observe maximum supply pressure. See Chapter 9.
Technical data.
Figure 9.
Bildtext
As far as possible, use free return to tank. The back
pressure in the return line should not exceed 360 psi.
For EC-Oil S60 (DC2)
Fit the hydraulic hoses as shown in Figure 10.
Close (C)
Open (O)
Tank (T)
Pressure (P)
Figure 10.
Invisible caption
Central lubrication
16
4 Installation
Option for EC-Oil S60 (DC2)
Install the hydraulic hoses according to Figure 11.
Close (C)
Open (O)
Tank (T)
Pressure (P)
Figure 11.
Invisible caption
Central lubrication
4.5. EC-Oil
3
2
1
1. Remove the cover and its associated bolts and
washers.
4
5
2
6
2. Install the connection block and its associated
bolts and washers; torque tighten to 79 Nm.
Position
Part number
Description
1
1071029
Cover plate S60 - without ECO-block
2
611041
Washer NL10-DPE 10,7x16,6x2,7
3
612019
Screw MC6S 10x35 12.9 ZFSHL ISO4762
4
1069516
Connection block ECO60 W-S60-quick hitch -left
5
612022
Screw MC6S 10x55 12.9 ZFSHL ISO4762
6
7001829
O-ring 21,95x1,78 NBR 90 shore
17
4 Installation
4.6. External hose connection
3
2
1
1. Remove the cover and its associated bolts and
washers.
7
2
5
4
6
8
2. Install the connection block and its associated
bolts and washers; torque tighten to 79 Nm.
Position
Part number
Description
1
1070776
Cover plate S60 - without side-block
2
611041
Washer NL10-DPE 10,7x16,6x2,7
3
612018
Screw MC6S 10x30 12.9 ZFSHL ISO4762
4
1071473
Side block S60 - for hose connection
5
612019
Screw MC6S 10x35 12.9 ZFSHL ISO4762
6
611515
Screw MC6S 10x50 12.9 ZFSHL ISO4762
7
7001838
O-ring 18,77x1,78 NBR 70 shore
8
710979
O-ring 25,12x1,78 NBR 70 shore
4.7. Direct feed
In the case of direct feed to a separate function via the right EC oil block, the connection
block must be plugged.
18
4 Installation
1
1
1
1
Position
Part number
Description
1
711524
Pipe Plug DIN 906 1/2" 180156
4.8. Q-Safe
See separate installation instructions.
Also available on the website or by contacting engcon.
4.9. On completion
1. Affix the warning decal supplied in a conspicuous
place that does not distract the operator.
WARNING
Replace damaged or
illegible signs and
decals before using
the machine. Risk of
personal injury and
damage to property.
2. Carry out a function check; contact your service
partner.
Figure 12.
- Run the tool functions a few times to remove any air
from the system. Important for preventing uncontrolled
movement.
- Check that the machine coupler works. Activate the
quick coupler lock.
- Check that the hoses are not subjected to pinching,
cutting or stretching.
19
5 Operation
5. Operation
5.1. Before using
Check your base machine manufacturer's recommendations for calculating tipping loads,
and be sure to include the increased weight and reach the product entails.
DANGER
Do not exceed tipping load limits. The weight of the
product and the increased reach may impair stability.
Risk of personal injury and damage to property.
The machine coupler may only be used with the brackets and tools it is designed for.
See additional information in the separate user manual for each tool.
WARNING
Take care when handling long objects. Take dynamic
load and the extended risk area into account. Risk of
personal injury and damage to property.
WARNING
Always make sure of a good grip when lifting objects.
Risk of personal injury and damage to property.
IMPORTANT
Check the base machine's specified max capacity. Any use
of the product in excess of base machine max capacity may
damage the machine.
20
Table of contents
Other Engcon Industrial Equipment manuals
