Englefield MILANO 97516A-CP User manual

BEFORE YOU BEGIN
1258469-AN2-C Jun 2019
INSTALLATION
INSTRUCTIONS
TAPWARE
Englefield
MILANO Shower or Bath Mixer 97516A-CP
If you are building a
bathroom from scratch,
giving your bathroom a
makeover or just replacing
an old tap, Englefield can
provide a solution for you.
All information is based on the latest product information available at the time of
publication. ENGLEFIELD reserves the right to make changes in product
characteristics, packaging, or availability at any time without notice.
Please leave this installation guide for the consumer as it contains
important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Ensure all local plumbing codes are observed.
3. Optimum working pressure: 100kPa to 500kPa.
4. Minimum working pressure: 35kPa.
5. Maximum working pressure: 800kPa.
6. If pressure exceeds 500kPa, a pressure limiting valve must be installed.
7. All installations should comply with the relevant requirements of AS/NZS 3500.
ROUGH-IN
NEW ZEALAND
KOHLER NZ LTD
Free Ph: 0800 100 382
Free Fax: [phone]
www.englefield.co.nz
AUSTRALIA
KOHLER CO.
Free Ph: 1 800 ENGLEFIELD
(1 800 364 533)
www.englefield.com
For warranty information, please visit our website
Page 41258469-AN2-C June 2019 Englefield
INSTALLATION INSTRUCTIONS MILANO Shower or Bath Mixer
3-GB 1/2”
48 x 48
91
114
35~60
110
110
CLEANING INSTRUCTIONS
SPARE PARTS LIST
All Finishes: Clean the finish with mild soap and warm water. Wipe entire surface completely dry with a
clean soft cloth. Many cleaners may contain such chemicals as ammonia, chlorine, toilet chemicals etc. which
could adversely affect the finish and are not recommended for cleaning.
Do not use abrasive cleaners or solvents on Englefield tapware.

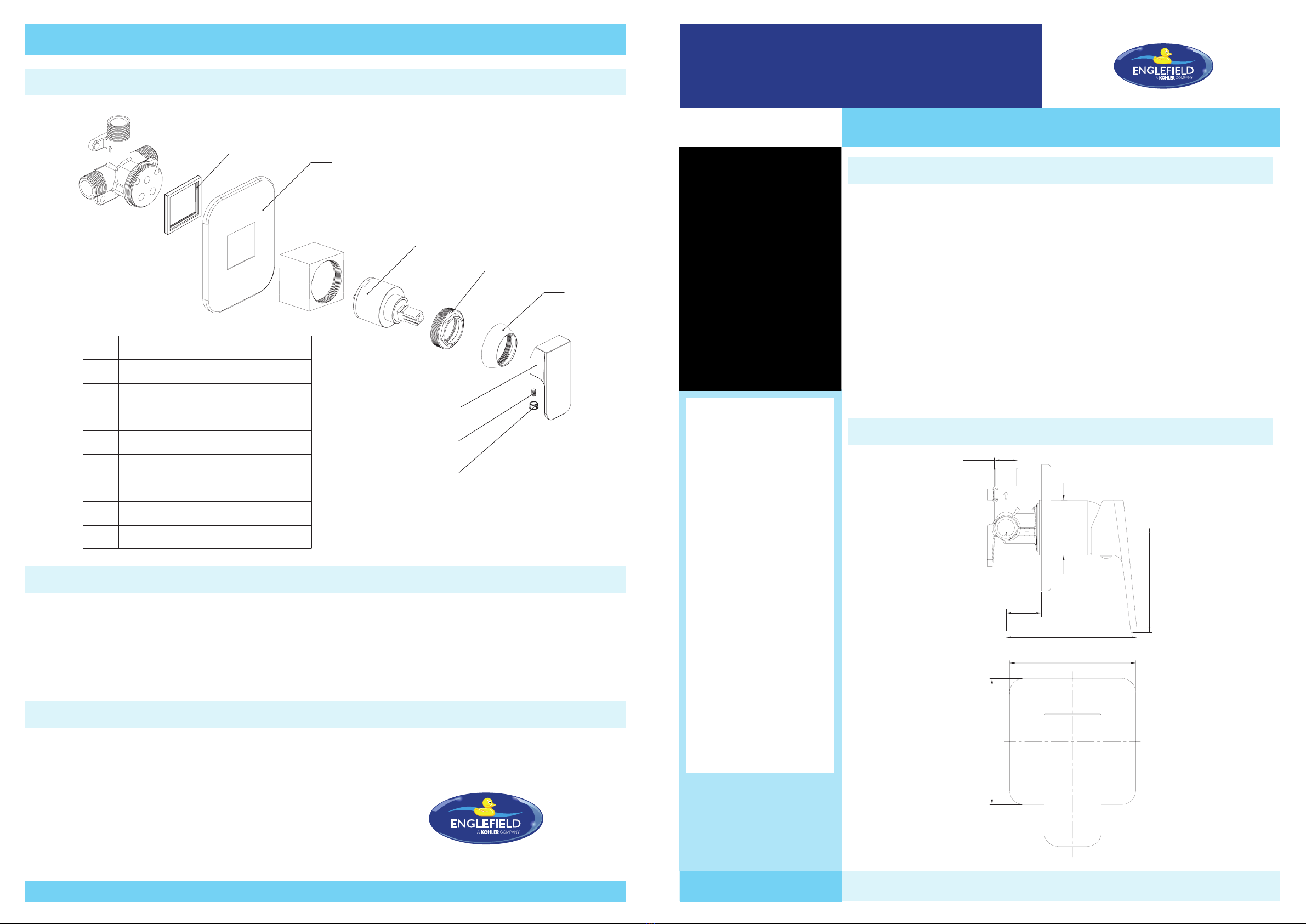

No. Description Part No.
1 Button 1250283-CP
2 Screw 1250284
3 Handle 1250306-CP
4 Bonnet 1250280-CP
5 Nut 1250282
6 Cartridge 1372777
7 Face Plate 1250345-CP
8 Lining Ring 1250349
1
2
3
4
5
6
7
8
CONTACT AND WARRANTY INFORMATION

INSTALLATION - IN-WALL VALVE
1258469-AN2-C June 2019 Page 2 Englefield 1258469-AN2-C June 2019 Page 3 Englefield
MILANO Shower or Bath Mixer INSTALLATION INSTRUCTIONS MILANO Shower or Bath Mixer INSTALLATION INSTRUCTIONS
NOTE: DO NOT DISCARD THE PLASTIC GUARD UNTIL THE FINISHED WALL HAS BEEN COMPLETED.
1.) Determine where the in-wall valve(1) will be located in the wall.
2.) Construct a suitable nog for mounting the in-wall valve. Ensure the nog is level and at the correct depth.
Note: Distance of the inlet centres from finished wall: 35-60mm.
3.) Ensure the arrow mark(2) on the valve body is pointing up. The hot water inlet(3) is on the left. Fix the
in-wall valve body onto the nog through at least two of the lugs(4). Note: Fixing screws not supplied.
4.) Connect the G1/2” water supply pipes to the inlets. Note: Hot inlet on the left, cold inlet on the right.
Connect G1/2” pipe from top outlet to shower head or bath spout, as required.
1.) Install the finished wall up to the plastic guard.
1
2
345
1.) Ensure that all connections are tight. Remove plastic guard and ensure the cartridge is in the off position.
2.) Turn on the main water supply and check for leaks. Repair as needed.
3.) Replace plastic guard and ensure the main water supply is turned off.
INSTALLATION - FINISHED WALL
1.) Remove the plastic guard after the finished wall has been completed
2.) Apply a bead of silicone to the rear of the faceplate(2). Slide the faceplate onto the valve body(1), ensuring
that the drainage cutout is pointing down. Push it firmly against the wall.
3.) Install the handle(3) on the cartridge and tighten the grub screw(4) with the hex key.
4.) Insert the plug button(5) into the handle.
INSTALLATION - TRIM KIT
INSTALLATION CHECKOUT
2
1
3
4
4
