Englefield EVORA II User manual

INSTALLATION
INSTRUCTIONS
TOILET | EVORA IITM RIMLESS BACK-TO-WALL
Page 1 www.englefield.co.nz1507110-A2-B November 2022
With an Englefield toilet suite you can be sure of having
excellence, comfort, durability and style. It’s the details
that Englefield cares about - from pioneering the latest
technology to innovative design.
Note: The Evora II Rimless Back-to-Wall toilet suite is suitable
for both a top rear entry & side entry water inlet.

EVORA II TM Rimless Back-to-Wall Toilet Suite INSTALLATION INSTRUCTIONS
Page 2 www.englefield.co.nz
BEFORE YOU BEGIN:
1507110-A2-B November 2022
Before proceeding with installation, please read these instructions to familiarise
yourself with the required tools, materials and installation sequences. Please leave
these instructions for the consumer after installation.
Prior to installation, inspect the toilet to ensure that no damage has occurred in tran-
sit. If damage has occurred, or a visible defect exists, do not proceed with installa-
tion, and advise your supplier immediately.
CAUTION: Risk of personal injury or product damage. Handle with care. Vitreous
China can break or chip if the product is handled carelessly.
Observe all local plumbing and building codes. Installation shall be in accordance
with AS/NZS 3500 and AS/NZS 6400.
Carefully inspect the new toilet for damage.
If the existing toilet does not have a water supply shut-off valve below the cistern,
install one before installing the new toilet.
Water supply hose not supplied for side entry. Your plumber can provide a suitable
hose of sufficient length from the shut-off valve to the cistern inlet.
WARNING: Ensure that no part ofthe cistern inlet hose issubmerged in water.

EVORA II TM Rimless Back-to-Wall Toilet Suite INSTALLATION INSTRUCTIONS
Page 3 www.englefield.co.nz
PARTS IDENTIFICATION:
1507110-A2-B November 2022
TOOLS IDENTIFICATION:
Caulking Gun
Screw Driver
Tape Measure
Adjustable
Spanner Level Pipe Wrench
Tube Cutter
Sponge
Drill & Bits
Safety Glasses
PLUS:
• Adjustable pliers
• Metal file
• 1/2” socket
• Hacksaw
• Silicone sealant
• Pencil
250mm hose for
Top/Rear install
(supplied with cistern)
Side Entry
Capping Plug
(supplied)
Side Inlet Valve
(for Top Rear Entry.
Supplied with cistern)
Cistern Bung
(supplied with cistern)
Shut-off Valve
(not supplied)
Bottom Inlet Valve
(supplied with cistern)
Vario Connector
(supplied)
PLUS:
• Pan fixing kit (supplied)
• Water supply hose for
side entry (not supplied)
Flush Valve
(supplied with cistern)

EVORA II TM Rimless Back-to-Wall Toilet Suite INSTALLATION INSTRUCTIONS
Page 4 www.englefield.co.nz
PREPARING TO INSTALL:
1507110-A2-B November 2022
NOTE:For shut-off valves positioned on the right-hand side,
a longer water supply hose may be required (not supplied).
For Top Rear Entry installations, skip topage 6.
For Side Entry/Bottom Inlet installations, proceed with instructions below.
WARNING: Ensure that no part of the cistern inlet hose is submerged in water.
Left-hand
valve position
Right-hand
valve position
Shut-off
valve Shut-off
valve
Side entry hole
Side entry hole
1. Removethe existing toilet: Turn off the water supply and flush the toilet, then
sponge out all remaining water from the cistern. Disconnect the supply hose from
the shut-off valve and removethe old pan and cistern.
CAUTION: Risk of hazardous gases. Temporarily stuff a rag in the closet flange. Ensure
this is removed before installing the new toilet.
2.
Identify the type of toilet installation:
A) Side Entry with Bottom Inlet Valve or B) Top Rear Entry with Side Inlet Valve.
For Side Entry toilets, the bottom inlet valve is supplied with the cistern.
3. For Side Entry/Bottom Inlet installations, check the shut-off valve position.

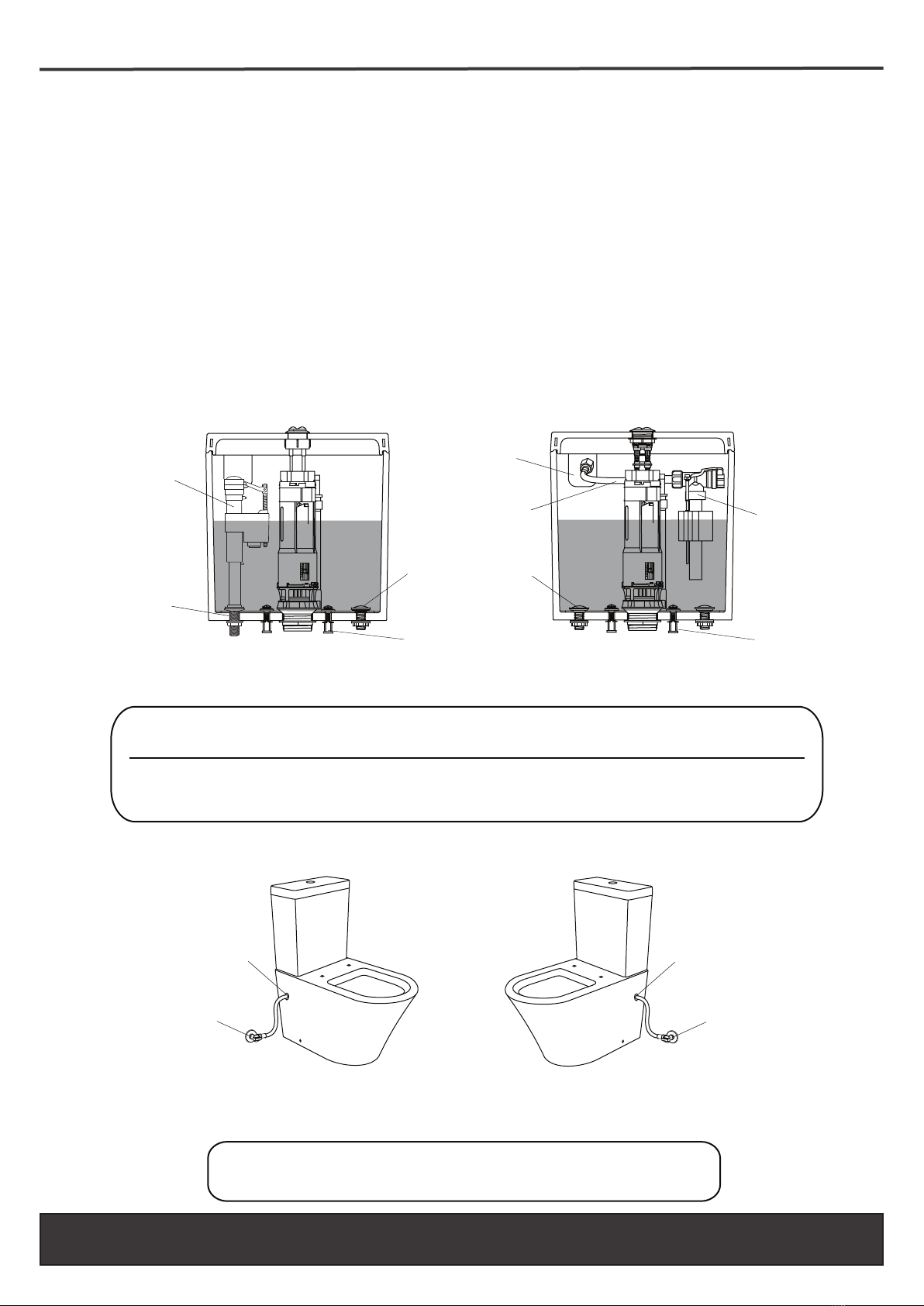

Bottom
Inlet
Valve
Bottom
Inlet
Side
Inlet
Valve
B) Top Rear Entry
cistern configuration
Cistern
Inlet Hose
Top Rear
Entry
Bung
Captive
Nut
(in pan)
Captive
Nut
(in pan)
A) Bottom inlet
cistern configuration
Bung

EVORA II TM Rimless Back-to-Wall Toilet Suite INSTALLATION INSTRUCTIONS
Page 5 www.englefield.co.nz
A). CISTERN INSTALLATION - BOTTOM INLET:
1507110-A2-B November 2022
Gasket
Fixing Screw
Pan Inlet
Capping Plug
Water Supply Hose
(Not supplied)
Side Entry Holes
1. Remove & discard the Side Inlet valve and 250mm hose.
2.
Install the Bottom Inlet valve tothe cistern. Place the washers over the fixing
screws and locate in cistern fixing holes.
Note:
Bottom inlet valve has been
preset to deliver a full flush
volume of 4.5L.
3. Position the cistern on the pan by centering the gasket on the pan inlet. Securely
tighten the fixing screws so the cistern is level.
4. Connect supply hose to cistern inlet and feed the supply hose through side hole in
the pan.
5. Connect the supply hose to the shut-off valve. Test for leaks. Insert a capping plug
into the unused hole.
Bottom
Inlet
Valve
Washer
Seal
Nut
Captivated Nut
(in pan)
Rubber Seal
Washer
Fixing Screw

EVORA II TM Rimless Back-to-Wall Toilet Suite INSTALLATION INSTRUCTIONS
Page 6 www.englefield.co.nz1507110-A2-B November 2022

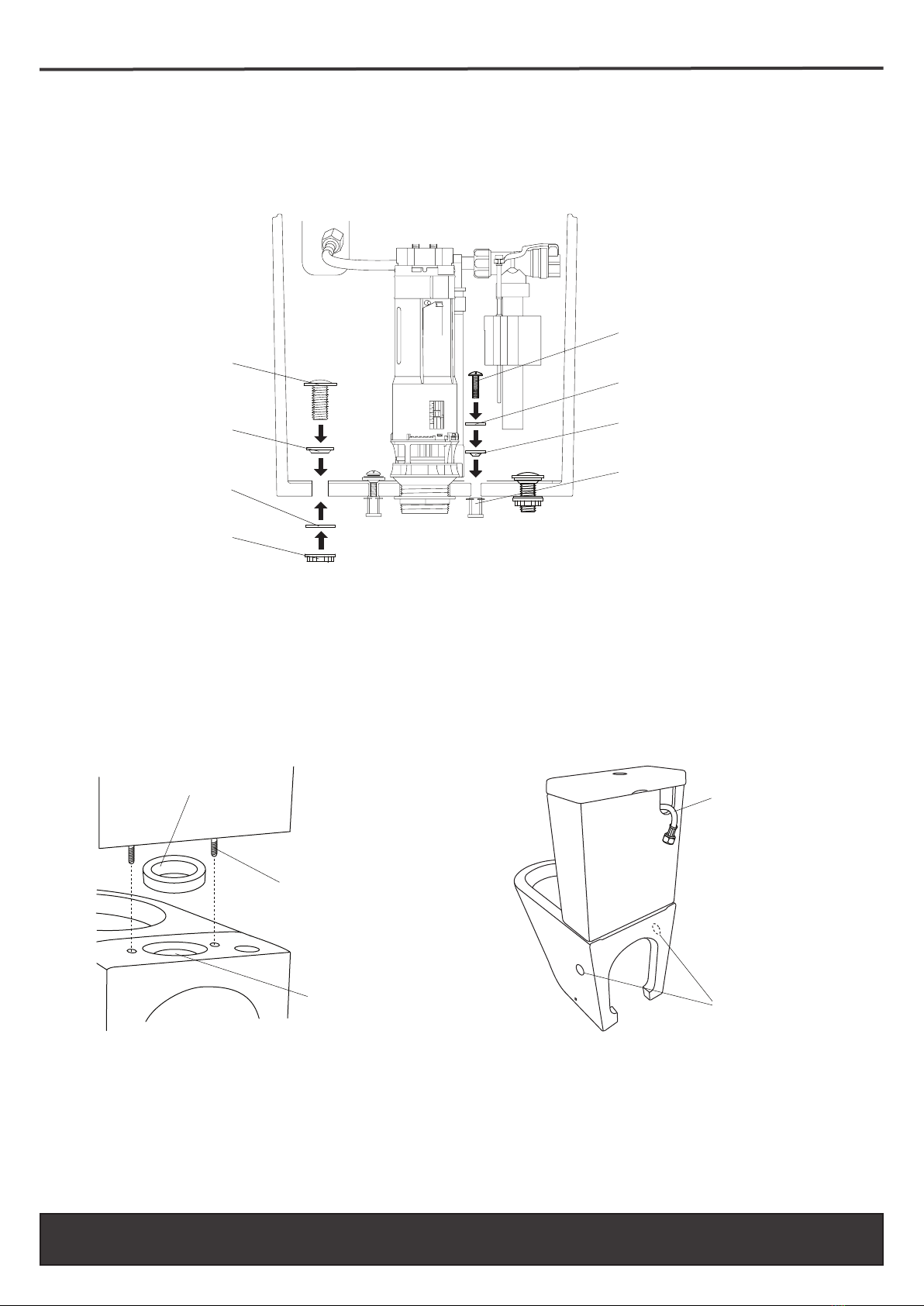

B). CISTERN INSTALLATION - TOP REAR ENTRY:
Bung
Seal
Washer
Nut
Captivated Nut
(in pan)
Seal
Washer
Fixing Screw
Gasket
Fixing Screw
Pan Inlet
Cistern Inlet
Hose
(supplied)
Side Entry Holes
1. Securely install the bung into the bottom inlet of the cistern. Place the washers over
the fixing screws and locate in cistern fixing holes.
2. Position the cistern on the pan by centering the gasket on the pan inlet. Securely
tighten the fixing screws so the cistern is level.
3. Connect the supply hose to the cistern inlet and connect the hose to the water
supply shut-off valve.
4.
Insert capping plugs into the side entry holes in the pan.
5. Connect the supply hose tothe shut-off valve totest the system for leaks. Shut
off the water supply and disconnect the hose.

EVORA
TM Rimless Back-to-Wall Toilet Suite INSTALLATION INSTRUCTIONS
Page 7 www.englefield.co.nz1507110-A2-B November 2022
PAN INSTALLATION:

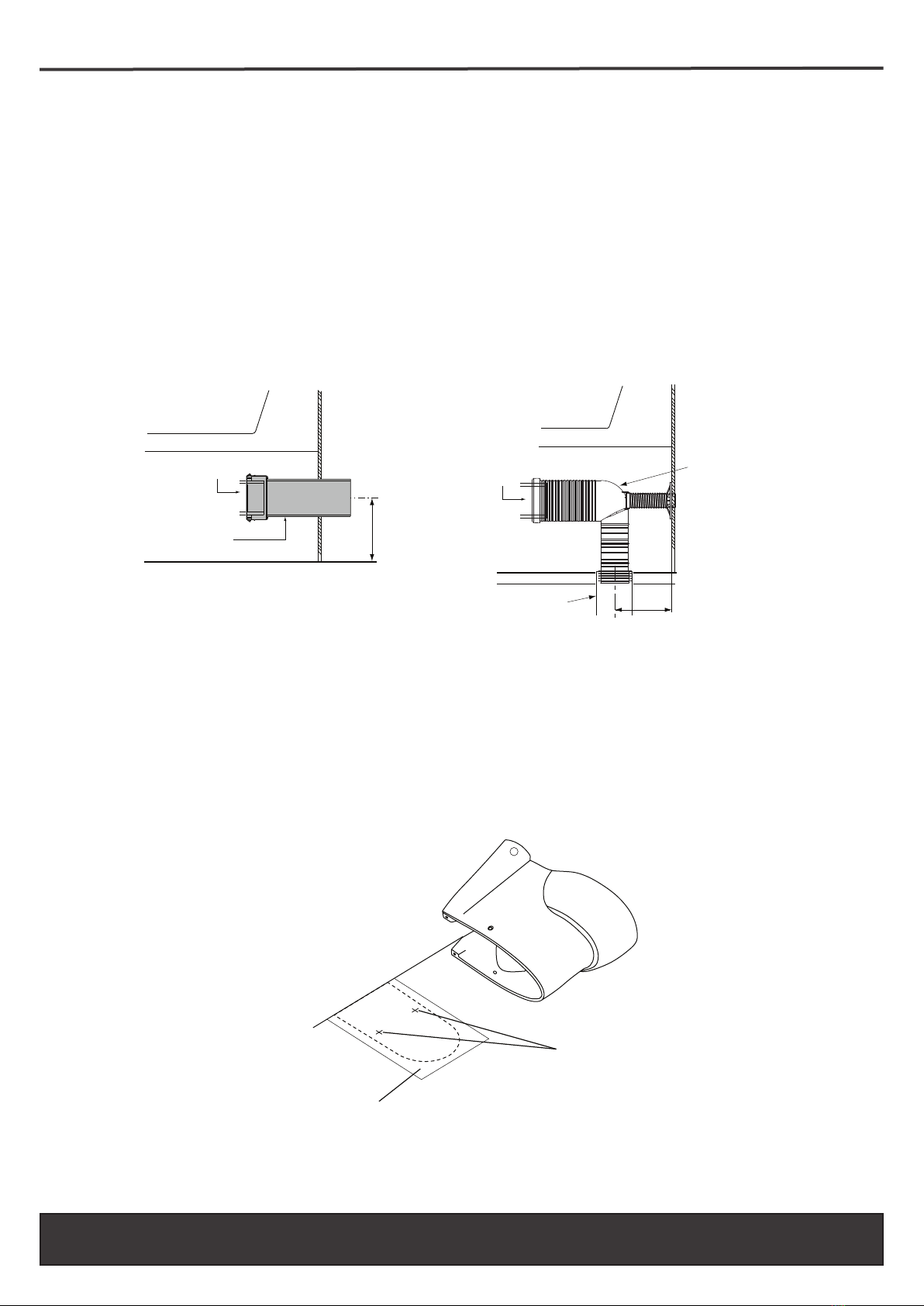

Wall
Fixing hole
locations
Template
P-Trap Finished
Wall
Pan
Straight Pan
Connector
Setout
(185mm)
S-Trap Finished
Wall
Vario
Connector
Pan
Waste Pipe
Setout
(90mm-170mm)
1. The pan can be installed as P-Trap or S-Trap.
For S-Trap installations please use the supplied Vario Pan Connector, and follow
the included instructions.
For P-Trap installations the straight pan connector is not supplied.
2. Use the template, mark the positions of floor fixing kit holes.

EVORA II TM Rimless Back-to-Wall Toilet Suite INSTALLATION INSTRUCTIONS
Page 8 www.englefield.co.nz1507110-A2-B November 2022
Anchor
Screw
Sleeve
Hole
Cap
Hexagon
Lag Screw
Bracket
Washer
Anchor
3. Drill fixing holes at the marked locations on the floor and insert the anchors where
required.
4. Place a washer onto each of the hexagon screws and fix the brackets to
the floor.
5. Position the toilet in the marked location, while ensuring an effective con-
nection is made with the pan connector.
6. Install the plastic screw sleeves and use the screws to fix the toilet to the
brackets. Attached the chromed caps to the screw heads.

EVORA II TM Rimless Back-to-Wall Toilet Suite INSTALLATION INSTRUCTIONS
Page 9 www.englefield.co.nz1507110-A2-B November 2022
PUSH BUTTON INSTALLATION:
1. Disassemble the push rods.
2. Using the push rod, measure the distance between the flush valve and the top of the
cistern lid. Mark this length and cut the push rod to length.
3. Re assemble the push rods.
4. Fit the lid and test the buttons. Adjust the rods as required.

EVORA II TM Rimless Back-to-Wall Toilet Suite INSTALLATION INSTRUCTIONS
Page 10 www.englefield.co.nz1507110-A2-B November 2022

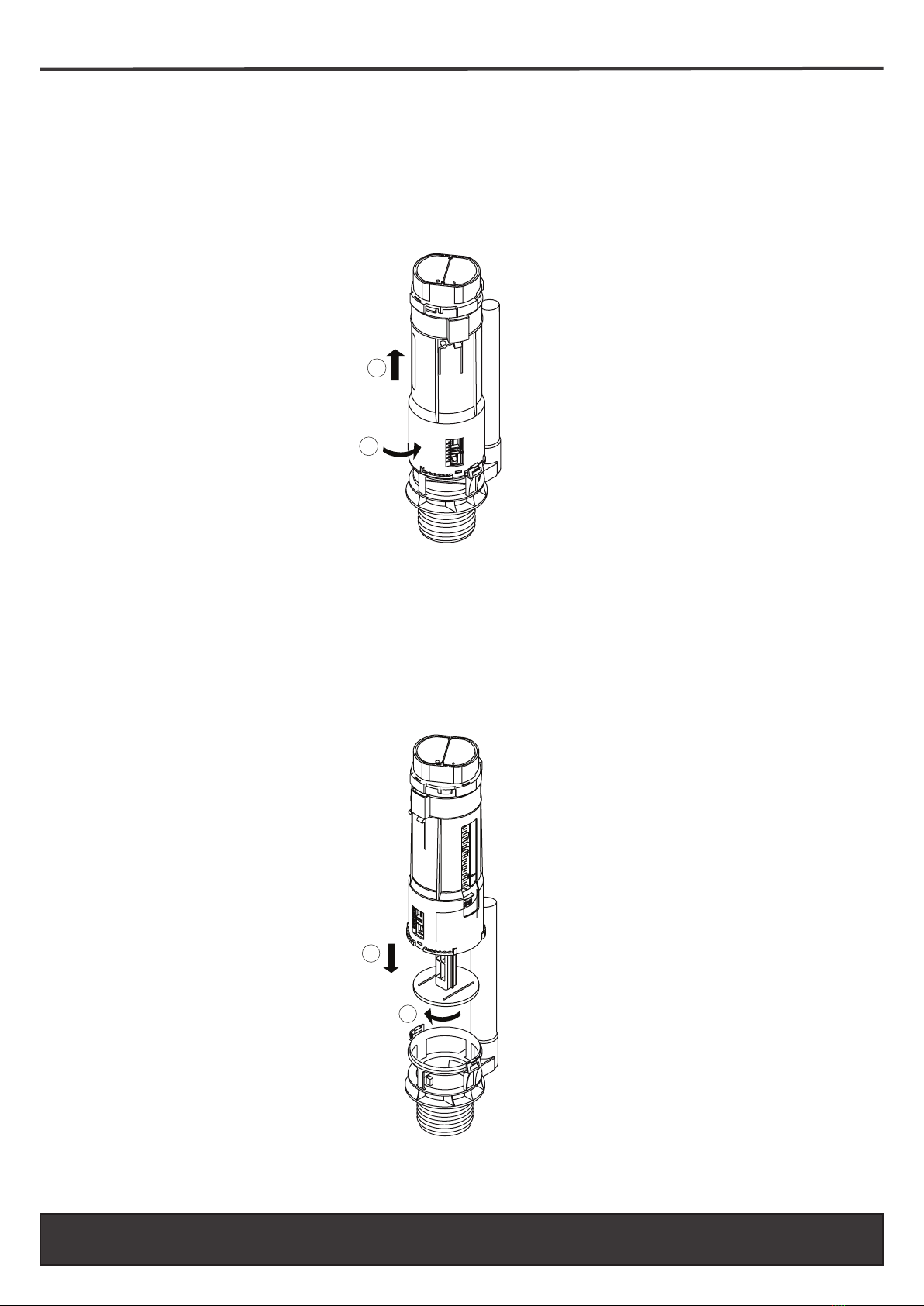

1. Release flush valve by turning anti-clockwise and pulling straight up on the can-
ister.
1
2
1
2
2. Assemble flush valve by pushing straight down into the canister and turning
clockwise.
FLUSH VALVE REMOVAL AND INSTALLATION:

EVORA II TM Rimless Back-to-Wall Toilet Suite INSTALLATION INSTRUCTIONS
Page 11 www.englefield.co.nz1507110-A2-B November 2022

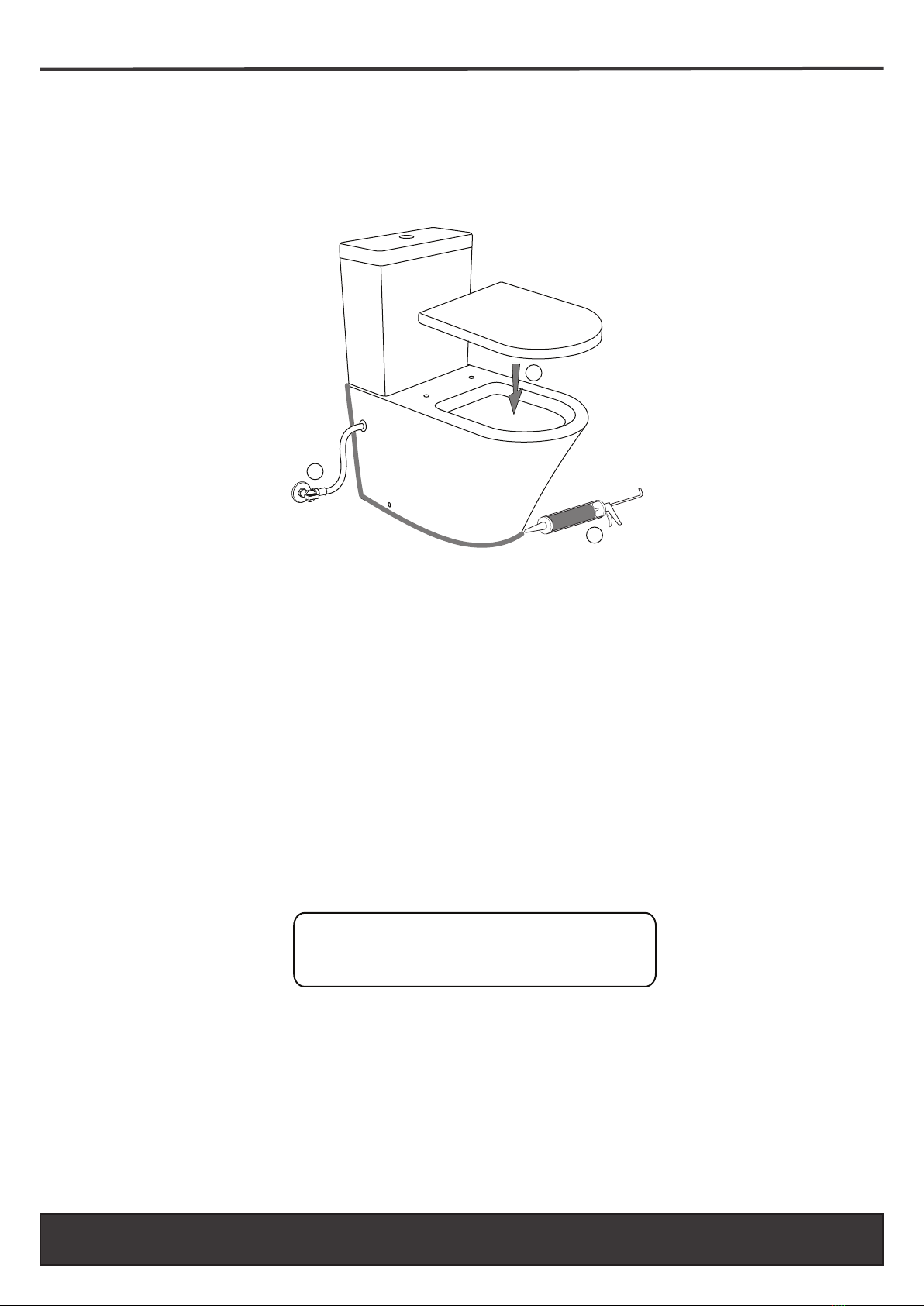

FINALISING INSTALLATION:
2
3
1
1. Install the seat as per the supplied seat instructions.
2. Make final connection of water supply hose to shut-off valve . Test the system for
leaks.
3. Apply a suitable sealant between the pan and adjacent surface.
Your toilet suite is now installed.

www.englefield.co.nz
CONTACT AND WARRANTY INFORMATION:
NEW ZEALAND
KOHLER NZ LTD
Free Ph: 0800 100 382
Free Fax: [phone]
www.englefield.co.nz
AUSTRALIA
KOHLER AUSTRALIA
Free Ph: 1 800 ENGLEFIELD
(1 800 364 533)
www.englefield.com
For warranty information, please visit our website.
EVORA II TM Rimless Back-to-Wall Toilet Suite INSTALLATION INSTRUCTIONS
Page 12
1507110-A2-B November 2022
