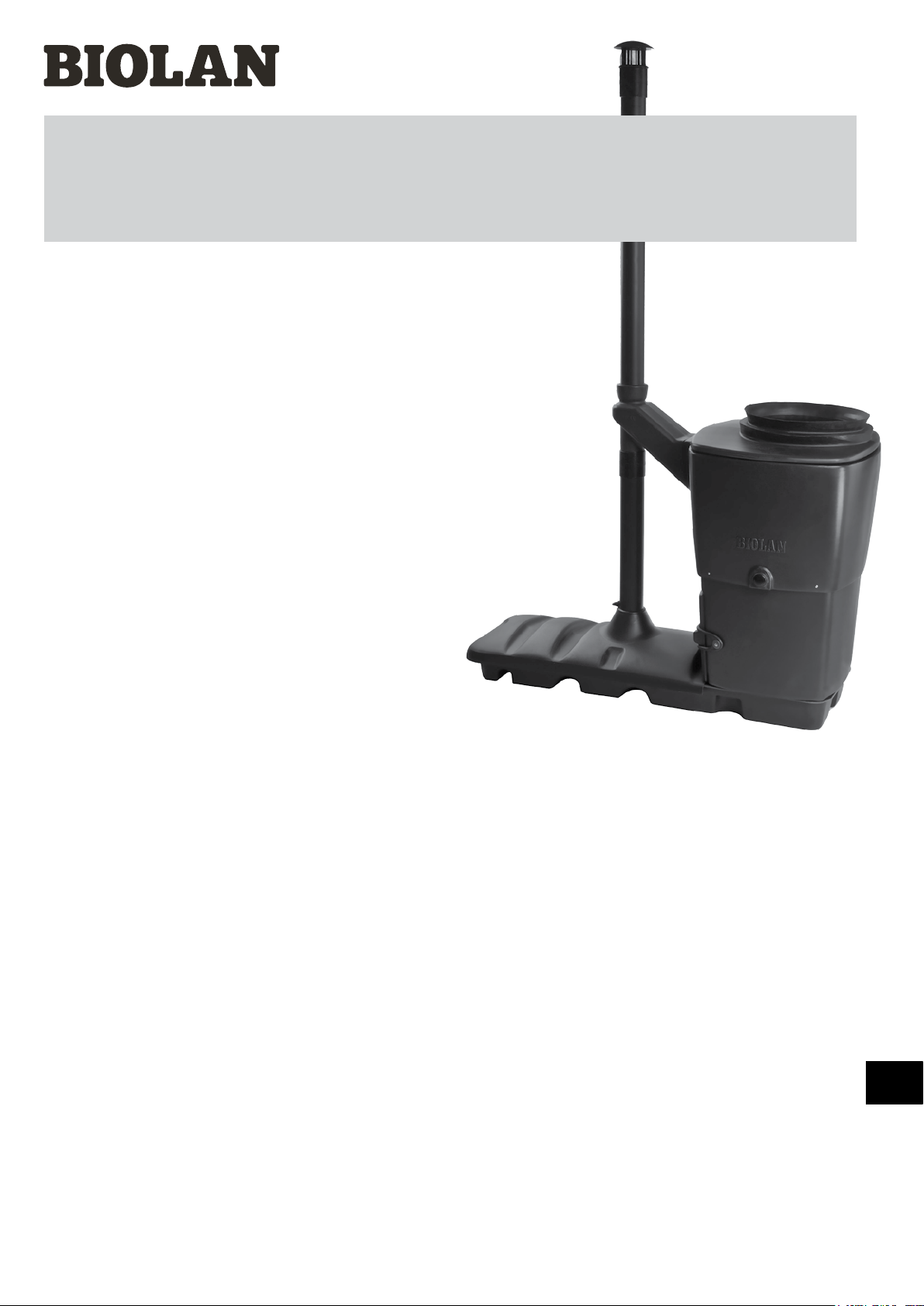

EASYLETT
Instructions for installation, use and maintenance
The Biolan Easylett is an odourless, tidy and environment-
friendly toilet. The toilet can be installed without breaking
the seat top. Its operating principle is natural so it requires
neither water nor electricity supply.
Contents
Component list EN-2
1. Planning and installation EN-3
 1.1Technicalspecications EN-3
2. Before installation EN-3
3. Installation in the toilet building EN-3
4. Before use EN-4
5. Air channel in the toilet tank EN-4
6. What can be placed in the Easylett toilet? EN-4
7. Using bulking material EN-4
8. Year-round use of the Biolan Easylett EN-4
9. To be observed if used in winter EN-4
10. Emptying the Biolan Easylett EN-4
11. Emptying the seep liquid canister EN-4
12. Problems that may occur EN-5
12.2 Moisture EN-5
12.3 The mass does not drop down by itself
after the emptying EN-5
Disposal of the product EN-5
Biolan accessories EN-6
About the guarantee EN-6

EN-2
EN
Spare parts sales: dealers, and in Finland, the Biolan online shop at www.biolan.
Component list
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
17
18
19
20
21
22
Component Part name Part No. Material
1 body 17769000 PE
2top 17769100 PE
3 gasket 19769000 EPDM
4 air channel 18710040 PE
air channel screws, 4 pcs RST
5 emptying door 17769200 PE
6 emptying door latch, 2 pcs. and 18710370 EPDM
latch washer, 2 pcs. EPDM
latch screw, 2 pcs. RST
latch washer, 2 pcs. RST
latch nut, 2 pcs. RST
7 ventilation channel and 18576900 PE
ventilation channel screw, 2 pcs. RST
8 o-ring 19701390 EPDM
9 lead-through rubber 30/40, 2 pcs. 19780050 EPDM
10 inlet air grate 18710400 PP
11 evaporating pan 17769010 PE
12 evaporating pan cover 17769020 PE
13 emptying trough 17769300 PE
14 seep liquid pipe, 32 mm, exible 28578010 PE
15 canister 16187700 PE
16 ventilation pipe 460 mm 28710260 PP
17 ventilation pipe 1000 mm, 3 pcs. 28710250 PP
18 locking stud 18790004 PA
19 connecting sleeve, 4 pcs. 28710270 PP
20 pipe bracket, 2 pcs. 18704050 PP
21 ventilation pipe cap, 75 mm 18710250 PP
22 Emptying Aid 70726300 PP
In addition to the components illustrated in the components
picture, the Easylett toilet also includes:
canister cap, with hole 16187710 PE
Protective cap for canister 16187720 PE
user manual Finnish/Swedish/
English
27769010 PAPER
rivet, 2 pcs. RST

EN-3
EN
1. Planning and installation
When selecting the location for and erecting the Biolan Easylett, it
isessentialtoprovidesufcientspaceforuseandmaintenanceof
the toilet, to route the ventilation pipe without any bends through
the roof of the building over the ridge and to locate the seep liquid
canister in a suitable place. See the dimension drawing for the toilet
unit (page 2).
Placethetoiletunitdirectlyonsufcientlyrmgroundorconcrete
surface.Donotplacetheunitontoboardedoor.
1.1 Technical specications
- Toparea53x53cm
- Total height to the upper edge of the gasket 91 cm
- Total length of the unit 124 cm
- Height of the evaporating pan 9.7 cm
- Volume of the body about 130 l
- Weight about 14 kg
- Externaldiameteroftheliquidremovalhose32mm
- Volume of the seep liquid canister 15 l
- Externaldiameteroftheventilationpipe75mm,
length3x1.0m1x0.46m
2. Before installation
Make sure that the air channel (part 4) inside the body is still in
place after transportation. The channel must rest on the sill on the
inside wall of the tank so that the inlet air grate (part 10) at the side
ofthebodywillallowunobstructedairowintotheairchannel.The
air inlet valve cannot be adjusted. Make sure that the gasket (part
3) is in place in the top (part 2). Keep the protective cap for the seep
liquid canister (part 15) and use it during emptying of the canister.
3. Installation in the toilet building
The Biolan Easylett is installed under the seat top of an existing
toilet building. Level out the base so that the distance between the
base and the seat top will be 86–90 cm. The base must be level
across the entire length (113 cm) of the evaporating pan (part 11).
Install the ventilation channel (part 7) in place inside the body. (See
Fig. 1.) Put the top of the body (part 3) in place. Place the body in
its place on top of the evaporating pan (part 11), at the end oppo-
site to the seep liquid removal hole. By help of the evaporating pan
and the body, test that the distance between the base and the seat
top is correct. The gasket (part 2) in the Easylett's top must press
against the lower surface of the seat top. Make sure that the open-
ing in the Easylett's top fully aligns with the opening in the seat top.
Connect the seep liquid pipe (part 14) to the lead-through rubber
(part 9) at the end of the evaporating pan (part 11). Route the pipe
into the canister (part 15). Bury the canister in the ground, or place
itsomeotherwaysothattheseepliquidowsbygravitationinto
the canister.
Wherenecessary,theventilationpipecanbeextendedusingsew-
agepipesandttings(32mmindiameter).Alwaysusesleeveswith
a sealing ring for joining up the pipes. If the seep liquid canister is
difcult to bury, you can replace it with a smaller canister. If you
want, you can lay the seep liquid canister on its side.
Using the connecting sleeves (part 19), join up the 1 m-long ventila-
tion pipes (part 17) that point up from the ventilation channel (part
7), and support them on the wall by means of the pipe brackets
(part 20). Install a connecting sleeve with a cap for the outlet air
(part 21) in the end of the topmost ventilation pipe. As necessary,
you can cut off the ventilation pipes. Ensure, however, that the ven-
tilation pipe will reach above the roof ridge of the toilet building.
Install the evaporating pan cover into place. Install the 0.46 m-long
ventilation pipe (part 16) in place and connect it with the ventilation
channel (part 7) by means of the connecting sleeve (part 19). Lock
the pipe in position by inserting the locking stud (part 18) in the
hole at the lower end of the pipe.
Fig. 1 Install the ventilation channel (part 7) in place inside the
body.

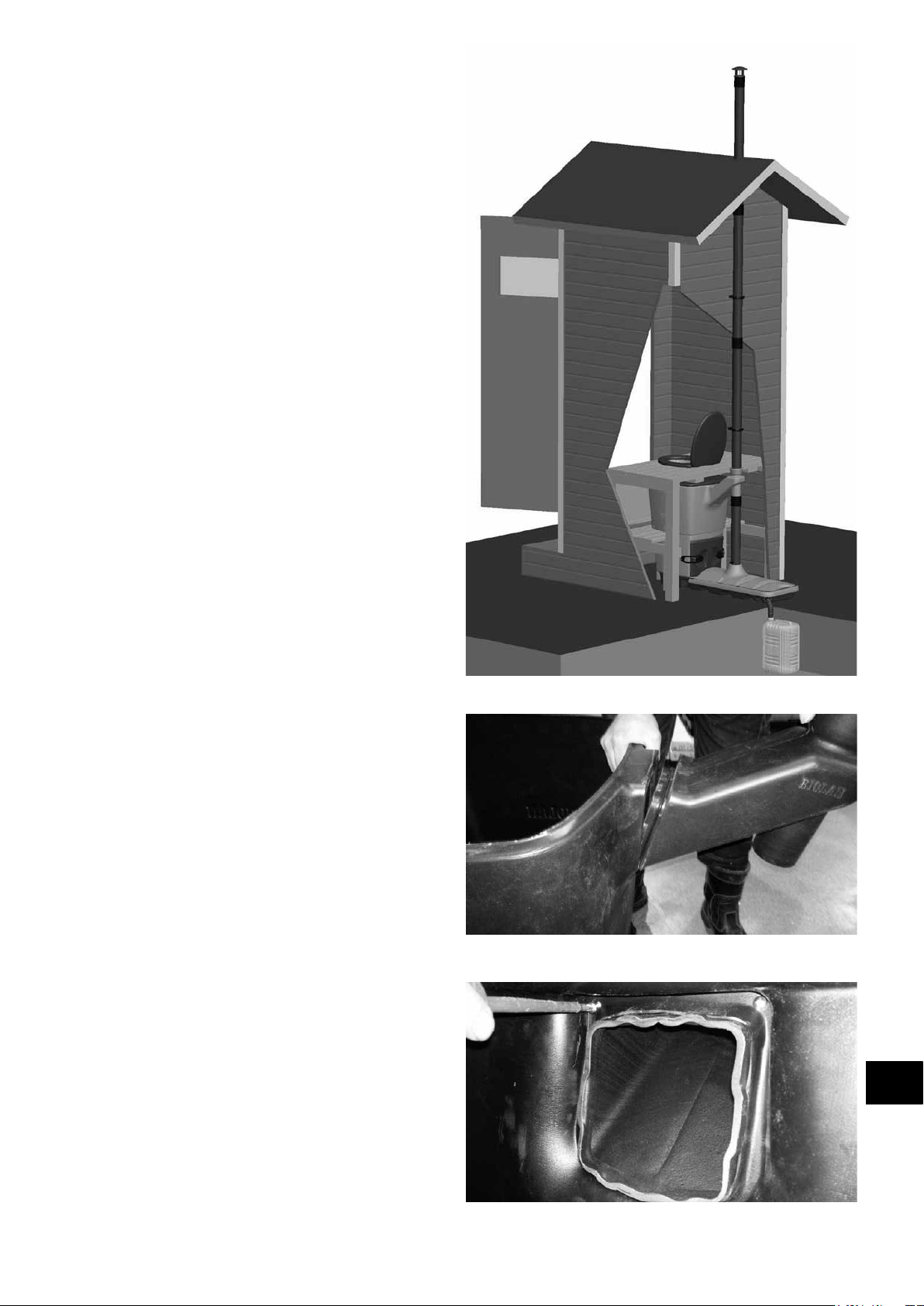

Example picture of toilet installation and placing the liquid canister.
Fig. 2 Attach the channel to the body by the screws (part 7), in-
cluded in the delivery.

EN-4
EN
4. Before use
Putalayerapproximately5cmthick(about20l)ofBiolanCompost
and Toilet Bulking Material, chips or coarse bark on the bottom of
the body to prevent the liquid removal holes from getting clogged.
Fill the evaporating pan with non-fertilised and non-limed peat
(such as e.g. Biolan Peat) or Biolan Compost and Toilet Bulking Ma-
terial, level with the highest notch. The compartment with the lead-
through for the seep liquid hose shall be left empty. Fill up tightly
the space below the body with bulking material up to the lower edge
of the emptying door.
5. Air channel in the toilet tank
Operation of the Biolan Easylett is very effective because of the air
channel (part 4) inside the toilet body. The channel brings the air
required by the compost to the centre of the compost mass – to the
layer where it is most needed. At the same time, the air channel
prevents the compost mass from packing on the bottom and keeps
the mass elevated during emptying. The air channel is visible at the
initial stage, but after that, it is virtually obscured by the mass all
the time.
6. What can be placed in the Easylett
toilet?
The Biolan Easylett is intended for composting toilet waste. Placing
kitchen waste in the Easylett is not recommended. Do not put into
the toilet anything that hampers the composting process or does
not compost, such as:
- debris, sanitary towels
- chemicals (incl. lime)
- detergents, washing water
- ash, cigarette butts, matches
7. Using bulking material
Everytimeafterthetoiletisused,applyapproximately0.2-0.5litres
of Biolan Compost and Toilet Bulking Material over the left mat-
ter. Note that bulking material must also be applied after urinating.
Applying suitable bulking material is essential for proper operation
of the toilet. We recommend using the Biolan Compost and Toilet
Bulking Material as bedding.
8. Year-round use of the Biolan
Easylett
A toilet, installed in a cold space, freezes during winter. Freezing
damages neither the unit nor the compost mass itself and the com-
posting process continues when the temperature rises. A toilet unit
located in a cold space can be used occasionally during winter.
9. To be observed if used in winter
If you plan to use the toilet continuously in winter, install the unit
in a warm space and also make sure that the liquid removal hose,
the seep liquid canister and the evaporating pan do not freeze. If
installing the toilet in a warm space indoors, insulate the ventilation
pipeofthetoiletwhereitruns throughcoldspaces,forexample,
in the intermediate roof space, to prevent condensation of water.
The toilet can be used occasionally in winter (= weekend use) even
if the unit is located in a cold space.
10. Emptying the Biolan Easylett
Remove the ventilation pipe (part 16), leaving from the evaporating
pan cover (part 12), and the evaporating pan cover. Place the emp-
tying trough (part 13) on the edge of the evaporating pan, below the
emptying door (part 5). Open and remove the emptying door. Using
a spade or the emptying aid (part 22), remove some mass from
theemptyingdoor. To enablean efcientuninterruptedcompost-
ing process, we recommend that no more than half of the mass be
discharged from the unit at a time. Do not empty the tank until it
hasbecomefullforthersttime.Thereisnoneedtowashthetoilet
tank internally when emptying it.
Toilet waste can be so tough that it does not drop down onto the
bottom of the toilet unit by itself after the emptying. If this is the
case, push the mass down using a sturdy stick or the emptying aid
(part 22). This is easiest to begin from the corners. Be careful not to
break the air channel (part 4) in the centre of the unit.
If the toilet is to be used only in summer, empty it in spring before
usingitforthersttime.Theemptyingprocessismostconvenient
and easiest at this stage.
Change peat/bulking material in the evaporating pan in spring be-
fore starting to use the toilet. The mass can be removed by means
of the emptying aid (part 22).
11. Emptying the seep liquid canister
Empty the seep liquid canister as required, however, at least once
a year. You can utilise the seep liquid, that is rich in nutrients, as
asourceofnitrogenforcompost.Thisintensiestheactivityofthe
garden compost in particular, which is poor in nutrients but rich in
carbon. This way, you do not have to dilute the seep liquid.
You can also use seep liquid as fertiliser for ornamental plants in
the yard and garden. A safe dilution ratio is 1:5. Undiluted seep
liquid can also be used, but then you must water the area carefully
after the application to avoid early blight.
Fertilising in the autumn is not recommended so as not to disturb
the preparation of perennial plants for winter. The recommended
storingtimefortheseepliquidbeforeuseas fertiliserisapproxi-
mately one year.
Emptying the Easylett

EN-5
EN
Please consult your local waste advisor for regulations
oncomposting.Visitwww.biolan.formoreinformation
on composting and the utilisation of seep liquid.
Liquids rich in nutrients must not be allowed to enter
thesoilastheycauseanexcessivelyconcentratednu-
trient load.
12. Problems that may occur
12.1 Insects or maggots
Themostcommoniesinthecompostingtoiletsaresmallfungus
gnats,fruitiesetc.Usingaynetdoesnotpreventthesetinyies
fromenteringthecompost.Theymaggotsarelightincolour,and
can try to get out of the toilet unit via the seat part, if the conditions
inside the toilet are too hot for them.
Thepresenceofiesinthecompostoftenindicatesthatthecom-
post mass is too wet.
- check that the bedding used is Biolan Compost and Toilet
Bulking Material. Some beddings (e.g. fresh chips of deciduous
trees)attractiestothecompost.Thepinebarkusedinthe
Biolan Compost and Toilet Bulking Material, however, acts as a
repellent.
- add a thick layer of bulking material on top of the compost.
- doawaywithanyyinginsectsinthetoiletspaceorthe
evaporating pan using pyrethrin-based spray. Consult your local
garden centre to select a suitable product. Repeat the spraying
atintervalsofatleasttwo-threedaystoexterminatethenew
generations emerging from eggs and maggots. Spray insecticide
also inside the toilet unit and close the lid. Repeat the spraying
untilyinginsectscannolongerbespotted.
12.2 Moisture
When the composting process is at its most effective, it is normal
that the bottom surface of the seat ring lid is moist. However, if
there is a lot of moisture on the seat ring lid and on the sides of the
seat ring, something is wrong.
Normally the problem occurs in the air outlet system or in the liquid
separator system.
- make sure that the ventilation pipe (part 17) has not been
blocked.
- check that the ventilation pipe is routed from the toilet unit
straightuptotheroof,andthatitextendsovertheroofridge.If
theventilationpipeisnotstraightordoesnotextendabovethe
roof ridge, you can repair the installation or improve the ventila-
tion by installing the Biolan Wind Fan. You can also improve the
ventilationbyextendingtheventilationpipe.
- checkthattheseepliquidremovalsystemisoperational:theex-
cessive liquid is routed from the evaporating pan to the canister.
- make sure that the holes in the bottom of the body have not
been clogged.
- check that the bedding used is Biolan Compost and Toilet Bulk-
ing Material.
- makesurethatasufcientamountofBiolanCompostandToilet
Bulking Material, about 0.2-0.5 litres, has been applied after
each use. It may prove necessary to double the usage of bulking
material temporarily. Disposal of the product
The raw materials used are presented in the component list (see
page 4). Dispose of each part as prescribed. Always follow the re-
gionalandcollecting-point-specicinstructions.
To energy-from-waste process or recycling of plastic:
EPDM = ethylene propylene
PE = polyethylene
PP = polypropylene
To collection of metal:
RST = stainless steel
To recycling of paper:
Paper
12.3 The mass does not drop down by itself after the
emptying
It is normal that the toilet waste is tough, sticks to the toilet walls,
and does not drop down by itself after the emptying.
- drop the mass down by pushing through the seat opening using
eithertheCompostmixerorasturdystick.Droppingiseasiestto
begin from the corners. Be careful not to break the air channel
(part 4) in the centre of the toilet unit.

EN-6
EN
Biolan Compost and Toilet Bulking Material
Biolan Compost and Toilet Bulking Material is
a blend of pure, dried and ground conifer bark,
wood and peat for composting and dry toilets.
Applying it regularly to the compost keeps the
compost mass airy and ensures the composting
isefcientandodourless.
Package size: a bag of 40 litres, a bag of 85
litres
Product number: 40 l 70562100, 85 l
70562500
HVAC code: 40 litres 3663112, 85 litres 3663122
Biolan Peat
Biolan Peat is clean, white non-fertilised or limed
sphagnum peat. It is naturally sour. Biolan Peat
issuitablefor,forexample,storingrootcrop,use
as soil conditioner, and use in an evaporating
pan for seep liquid.
Package size: a bag of 70 litres
Product number: 55544200
Biolan Pehvakka
Biolan Pehvakka is a hinged thermal seat, which is hygienic and du-
rable.Theexiblefoammaterialneithercracks
in use nor absorbs moisture. Both the lid and
the seat ring can be lifted up, which makes
thorough cleaning of the seat easier. It can be
cleaned using any common domestic cleaning
agents.Theseatcanbettedintoiletswhere
the distance between the hinge pins is either
16 cm or 18 cm.
Product number: 70578500
HVAC code: 3663115
Biolan Wind Fan
TheBiolanWindFanisanefcientexhaustfan
that is powered by the wind. It is ideal for im-
proving the ventilation in warehouses, dry toi-
lets, bathrooms, small scale water treatment
plants etc, and locations that need good venti-
lation. The Wind Fan is made of aluminium, and
thanks to its very mobile bearing, even a slight
breezecanimproveventilationsignicantly.
Product number: 70572500
HVAC code: 3663109
About the guarantee
The Biolan Easylett is guaranteed for one year.
1. The guarantee is valid from the date of purchase and covers pos-
sible defects in material and workmanship. The guarantee does
not cover any indirect damage.
2. Biolan Oy retains the right to decide about repairing or replacing
damaged parts at its discretion.
3. Any damage resulting from careless or forcible handling of the
device, from failure to observe the operating instructions, or
from normal wear, will not be covered by this guarantee.
For matters related to the guarantee, please consult Biolan Oy di-
rectly.
Biolan Oy
P.O.Box2,FI-27501KAUTTUA
Tel. [phone]
www.biolan.
Biolan Garden Composter
The Biolan Garden Composter is intended
for the composting of domestic, garden
and toilet waste in a detached house or
a holiday home. Its large, hinged cover
makesthellingofthecompostereasier.
The hermetic structure and adjustable air
exchangepreventthecompostmassfrom
drying, and reduce the need for maintenance.
Product number: green 70572000, grey 70576700
Biolan Stone Composter
The Biolan Stone Composter is intended
for the composting of domestic and gar-
den waste in a detached house or holiday
home. Thanks to its large size, it is well-
suited to the composting of garden waste
and toilet waste from a summer cottage.
Biolan Stone Composter having the colour
of natural stone merges well with its sur-
roundings, and is well-suited even to small
yards.
Product number: grey granite 70573200
Biolan Compostmixer
The Biolan Compostmixer is made of glass bre-reinforced pro-
pene,soitneithercorrodesnoroxidisesevenovertime.TheBiolan
Compostmixerofferseffortlessmixingofthecompost.
Product number: 70575200
Biolan Suotis
Biolan Suotis is a biochemical seep liquid
lter for a dry toilet. The device cleans
up the seep liquid so that it can be con-
ducteddirectlyintotheground.Thelter
operates by gravitation and does not need
any electricity supply. The capacity of the
device is 60 litres.
Product number: 70572100
HVAC code: 3623612
Visit www.biolan. for the most recent product information
06/2013

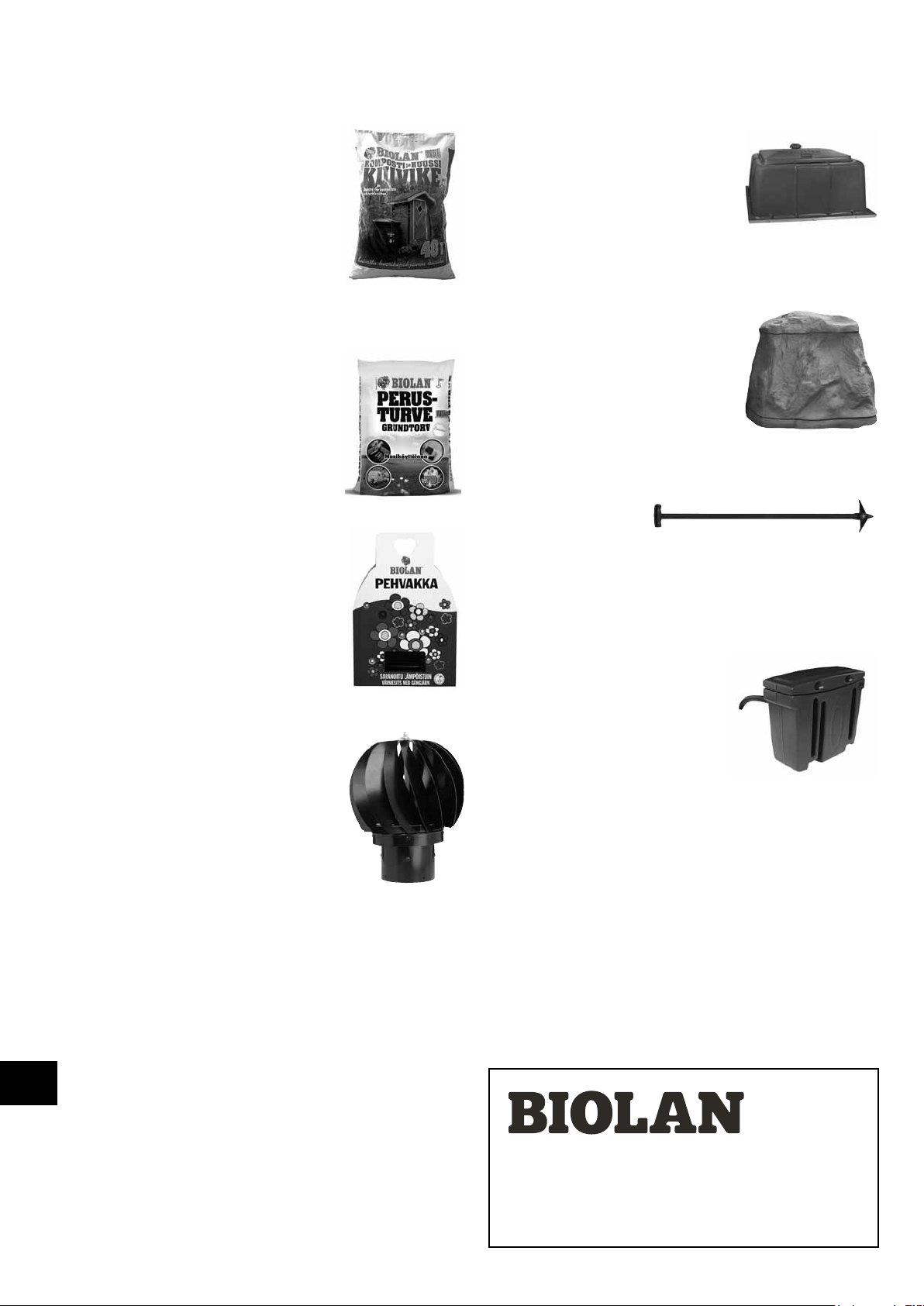

Biolan accessories
(Availability varies from country to country. Consult your local dealer for details)
