1GENERAL DESCRIPTION
The radio transmitter device PTM 21x from EnOcean enables the implementation of wireless
remote controls without batteries. Power is provided by a built-in electro-dynamic power
generator. The PTM 21x device serves the 868 MHz and 902 MHz radio interface protocol of
EnOcean.
Electro-dynamic powered radio transmitter device PTM 21x
Following variants are available:
PTM 210 868,300 MHz
PTM 215 868,300 MHz with encryption
PTM 210U 902,875 MHz
1.1 Basic Functionality
A common electro-dynamic energy transducer is actuated by a bow (1), which can be
pushed from outside the device by an appropriate push button or switch rocker. When the
energy bow is pushed down, electrical energy is created and an RF telegram is transmitted
including a 32-bit device ID. Releasing the energy bow generates different telegram data,
so every PTM telegram contains the information that the bow was pressed or released.
“Long” or “Short” push button operation (the time between pushing and releasing the
pushbutton) can be easily detected by the receiver. By doing that, applications such as
dimming control or blinds control including slat action are simple to implement.

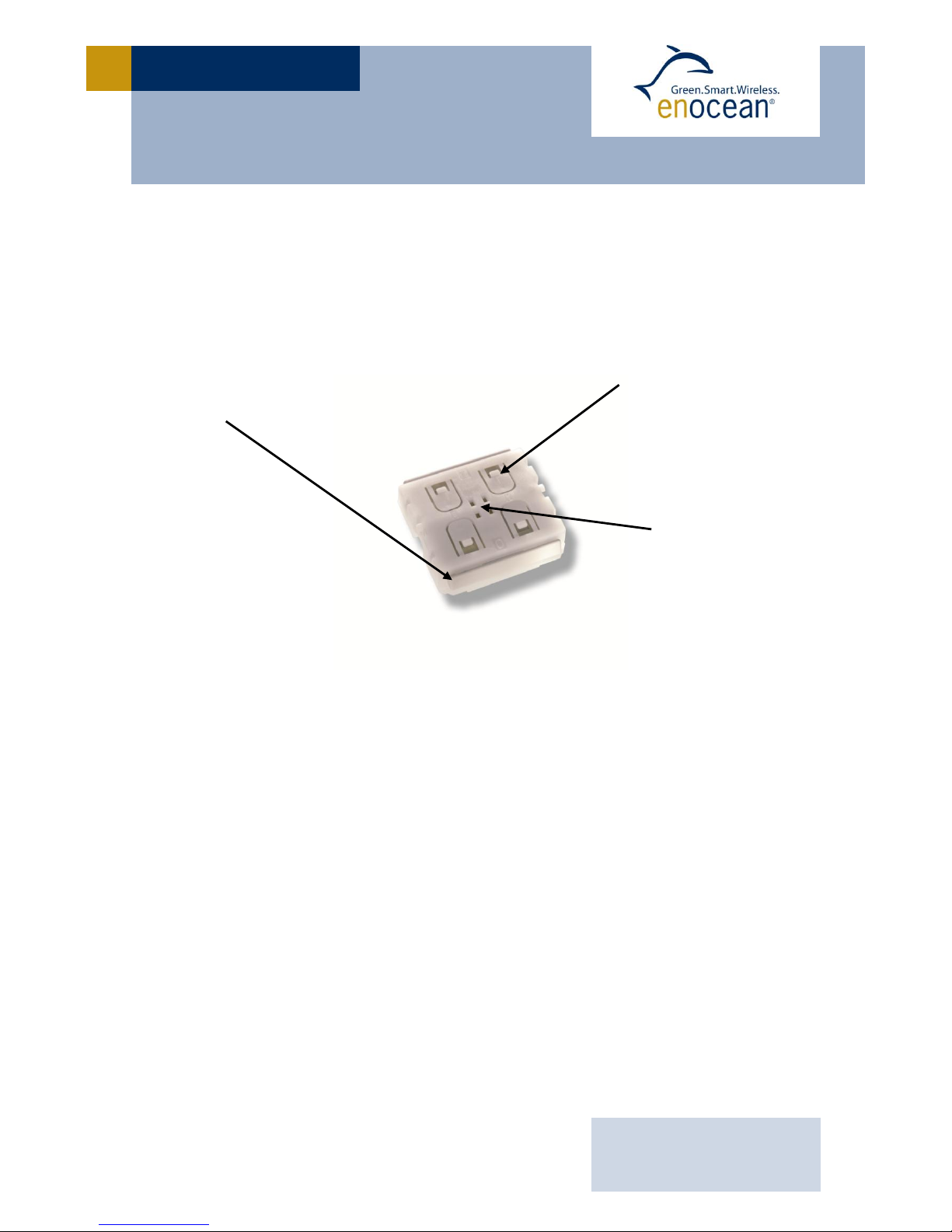

(2) Contact nipples
for switch rocker
identification
(1) Energy bow
on both device sides
Rotation axis for
pushbuttons or
switch rocker

USER MANUAL
EnOcean GmbH
Kolpingring 18a
82041 Oberhaching
Germany
Phone [phone]
Fax [phone]
[email protected]
www.enocean.com
Subject to modifications
PTM 210 / PTM 215 / PTM 21U User Manual
January 2012
Page 5/19
PTM 210 / PTM 215 / PTM 210 U
In addition, the PTM telegram transmits the operating status of the contact nipples (2)
when pressing the bow. This enables the identification of up to 2 appropriate switch rockers
or up to 4 pushbuttons.
PTM 215 supports 2 operating modes. A normal mode and a secure mode with additional
rolling code mechanism which allows to prevent replay attacks in sensible applications.
1.2 Typical Applications
Building installation
Industrial automation
Consumer electronics
Key applications are wall-mounted flat rocker switches with 1 or 2 rockers, as well as
handheld remote controls with up to 4 single pushbuttons. Because the RF transmitters are
self-powered (no batteries), maintenance-free RF systems are possible.
1.3 Technical Data
Power supply power generation by rocker operating,
electro-dynamic power generator
Antenna internal PCB antenna
Frequency PTM 210: 868.300 MHz (ASK)*
PTM 215: 868,300 MHz (ASK)*
PTM 210U: 902,875 MHz (FSK)
Data rate 125 kbps
Channels 2 with 4 action states each
upper/lower pushbutton is pressed/released
EnOcean Equipment Profile supported EEP F6-02-xx, F6-04-xx
Security mode rolling code with AES128 (PTM 215 only)
Transmission range typ. 300 m free field, typ. 30 m indoor
Device-identifier individual 32-bit ID (factory programmed)
*) According the international standard for energy harvesting wireless radio protocol for self-powered applications:
ISO/IEC 14543-3-10

USER MANUAL
EnOcean GmbH
Kolpingring 18a
82041 Oberhaching
Germany
Phone [phone]
Fax [phone]
[email protected]
www.enocean.com
Subject to modifications
PTM 210 / PTM 215 / PTM 21U User Manual
January 2012
Page 6/19
PTM 210 / PTM 215 / PTM 210 U
1.4 Mechanical Interface
Device dimensions (inclusive rotation axis and energy bow) 40.0 x 40.0 x 11.2 mm
Device weight 20 g ± 1 g
Energy bow travel / operating force 1.8 mm / typ. 8 N
*) at room temperature, only one energy bow may be actuated at the same time!
Restoring force at energy bow typ. 0.7 N to 4 N
For the correct function of the application, the specified minimal restoring force of 0.5 N must be considered!
Number of operations at 25°C typ. 100.000 actuations tested according to VDE 0632 / EN 60669
Cover material Hostaform (POM)
Energy bow material PBT (50% GV)

USER MANUAL
EnOcean GmbH
Kolpingring 18a
82041 Oberhaching
Germany
Phone [phone]
Fax [phone]
[email protected]
www.enocean.com
Subject to modifications
PTM 210 / PTM 215 / PTM 21U User Manual
January 2012
Page 7/19
PTM 210 / PTM 215 / PTM 210 U

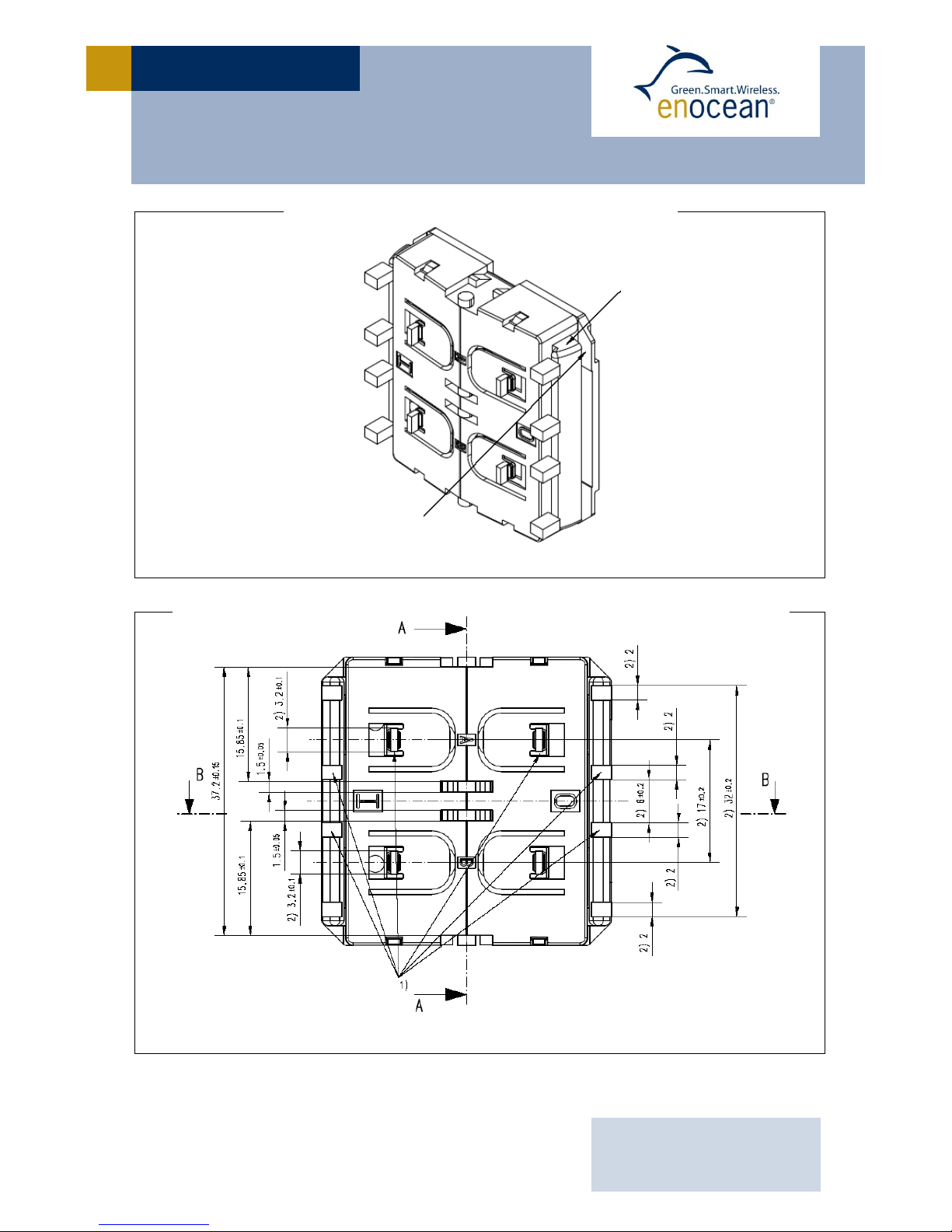

PTM 21x without antenna, tilted view (including rocker catwalks)
1) these catwalks are not needed when using one single rocker only 2) dimensions of rocker part
PTM 21x, top view (note cut A, B and C marking)
Energy Bow
Stopper

USER MANUAL
EnOcean GmbH
Kolpingring 18a
82041 Oberhaching
Germany
Phone [phone]
Fax [phone]
[email protected]
www.enocean.com
Subject to modifications
PTM 210 / PTM 215 / PTM 21U User Manual
January 2012
Page 8/19
PTM 210 / PTM 215 / PTM 210 U
PTM 21x, cut A
2) dimensions of rocker part
PTM 21x, cut B and C

USER MANUAL
EnOcean GmbH
Kolpingring 18a
82041 Oberhaching
Germany
Phone [phone]
Fax [phone]
[email protected]
www.enocean.com
Subject to modifications
PTM 210 / PTM 215 / PTM 21U User Manual
January 2012
Page 9/19
PTM 210 / PTM 215 / PTM 210 U
Hatched areas: support planes
PTM 21x rear view
labeling area

USER MANUAL
EnOcean GmbH
Kolpingring 18a
82041 Oberhaching
Germany
Phone [phone]
Fax [phone]
[email protected]
www.enocean.com
Subject to modifications
PTM 210 / PTM 215 / PTM 21U User Manual
January 2012
Page 10/19
PTM 210 / PTM 215 / PTM 210 U
2) dimensions of rocker part
PTM 21x, side view
If the rocker is not mounted on the rotation axis of PTM 21x several tolerances
have to be considered! The measure from support plane to top of the energy bow
is 7.70 mm +/- 0.3 mm!
The movement of the energy bow must not be limited by mounted rockers!
Catwalks of switch rocker must not exert continuous forces on contact nipples!
catwalks of switch rocker
rocker tilted to 5.4 degrees (corresponds to 1.8 mm energy bow travel)
press bow to stopper
support plane
mounting plane
rotary

USER MANUAL
EnOcean GmbH
Kolpingring 18a
82041 Oberhaching
Germany
Phone [phone]
Fax [phone]
[email protected]
www.enocean.com
Subject to modifications
PTM 210 / PTM 215 / PTM 21U User Manual
January 2012
Page 11/19
PTM 210 / PTM 215 / PTM 210 U
1.5 Environmental Conditions
Operating temperature -25 °C up to +65 °C
Storage temperature -25 °C up to +65 °C
Humidity 0% to 95% r.h.
1.6 Ordering Information
Type
Ordering Code
Approvals
PTM 210
PTM 215
PTM 210U
S3001-A210
S3001-A215
S3031-A210
EN300220
EN300220
FCC / IC

USER MANUAL
EnOcean GmbH
Kolpingring 18a
82041 Oberhaching
Germany
Phone [phone]
Fax [phone]
[email protected]
www.enocean.com
Subject to modifications
PTM 210 / PTM 215 / PTM 21U User Manual
January 2012
Page 12/19
PTM 210 / PTM 215 / PTM 210 U
2FUNCTIONAL DESCRIPTION
2.1 Block Diagram

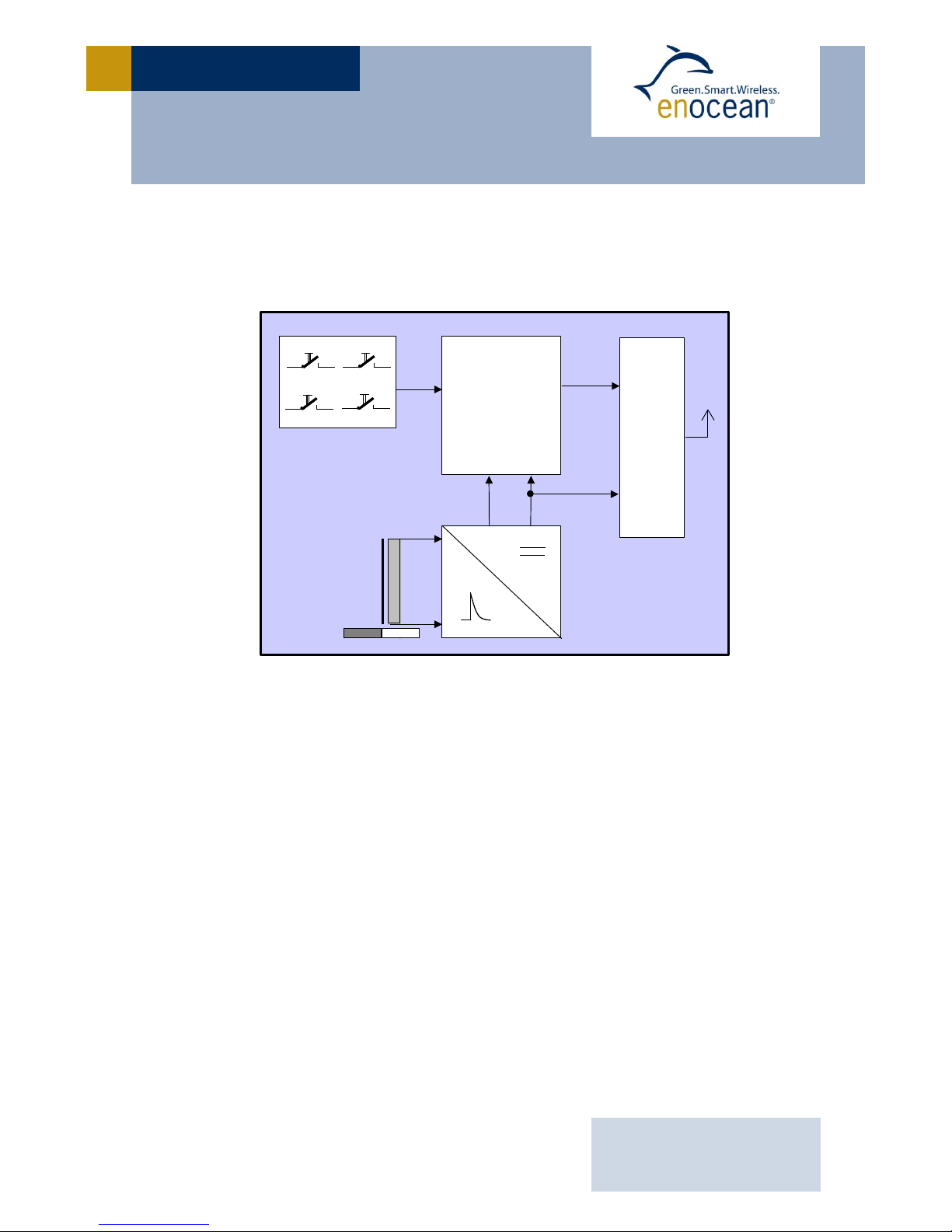

Block diagram of PTM 21x
Energy Bow / Power Generator
Converts pressure on the energy bow into electrical energy.
Power Converter
Electronic converter unit for generating the device DC power supply
Processor
Converts the contact nipples’ status and pushed/released data from the power generator
into a reliable and energy-efficient telegram structure.
Radio transmitter
Sends the data in the form of a series of short EnOcean radio telegrams.
Processor
HF
Contact Nipples
Energy
Bow
Power
Converter
Data
DC Power
Pushed/Released
Ant
NS
Processor
HF
Contact Nipples
Energy
Bow
Power
Converter
Data
DC Power
Pushed/Released
Ant
NS NS

USER MANUAL
EnOcean GmbH
Kolpingring 18a
82041 Oberhaching
Germany
Phone [phone]
Fax [phone]
[email protected]
www.enocean.com
Subject to modifications
PTM 210 / PTM 215 / PTM 21U User Manual
January 2012
Page 13/19
PTM 210 / PTM 215 / PTM 210 U
2.2 Contact Nipples Designation
With 4 contact nipples, the PTM 21x offers 2 channels with 4 action states each (up-
per/lower nipple is pressed/released when activating the energy bow). The nipples’ desig-
nation is as follows:
Contact nipple designation
2.3 Operating modes
There are 2 operating modes:
Normal mode: PTM 210, PTM 210U and PTM 215
Secure mode: PTM 215
After production, PTM 215 is set to “normal mode”.
Radio signals of the PTM 21x are event-controlled (energy bow is pressed/released) with
contact nipple code (channel/state) and unique device identification (fixed 32-bit ID).
2.3.1 Normal mode (PTM 210, PTM 210U, PTM 215)
In normal mode, PTM 21x sends telegrams according to EEP F6-02-xx and F6-04-xx as
specified in EnOcean Equipment Profiles V2.1. Details see:
http://www.enocean-alliance.org/fileadmin/redaktion/enocean_alliance/pdf/EnOcean_Equipment_Profiles_EEP2.1.pdf
Due to the mechanical hysteresis of the energy bow, in most rocker switch device
implementations, pressing the rocker sends an N-message and releasing the rock-
er sends a U-message!
O
I
BA
CHANNEL
STATE
O
I
BA
CHANNEL
STATE

USER MANUAL
EnOcean GmbH
Kolpingring 18a
82041 Oberhaching
Germany
Phone [phone]
Fax [phone]
[email protected]
www.enocean.com
Subject to modifications
PTM 210 / PTM 215 / PTM 21U User Manual
January 2012
Page 14/19
PTM 210 / PTM 215 / PTM 210 U
2.3.2 Secure mode (PTM 215)
In secure mode, PTM 215 sends telegrams with rolling code as specified in the “Security of
EnOcean Radio Networks” specification. When telegrams are not received by the receiver
this may lead to a de-synchronization of transmitter and receiver. In order to prevent fail-
ure, the receiver will usually test if the rolling code is in a defined window and will resyn-
chronize automatically. The size of this rolling code window is set on the receiver side.
The teach-in telegram is described in chapter 4.2 of “Security of EnOcean Radio Networks”.
Type is: 1-PTM
It is sent by simultaneously pressing both contact nipples of rocker A or rocker B and actu-
ating the energy bow. See also 2.3.3.
In operating mode the telegram structure is as follows:
R-ORG-S
8 bit
DATA
8 bit
MAC
24 bit
ID
32 bit
STATUS
8 bit
R-ORG-S : 0x30
DATA : This field is encrypted. After decryption with VAES decryption algorithm
DATA can be interpreted as shown in the table below.
The VAES decryption algorithm is described in the
“Security of EnOcean Radio Networks” specification.
http://www.enocean.com/en/security-specification/
DolphinAPI provides functions for this purpose
MAC : Message authentication code as described in the
“Security of EnOcean Radio Networks”specification.
http://www.enocean.com/en/security-specification/
In order to verify if a telegram is valid the receiver has to calculate the MAC
based on R-ORG-S, encrypted DATA and current rolling code and compare it
with the received MAC value.
DolphinAPI provides functions for this calculation.
ID : Unique 32 bit identifier
STATUS : always 0
DATA after
decryption
with VAES
Description
0x00-0x04
Reserved
0x05
Key A1 and B0 pressed. Polarity PUSH
0x06
3 or 4 keys pressed
0x07
Key A0 and B0 pressed. Polarity PUSH
0x08
No key pressed. Polarity PUSH
0x09
Key A1 and B1 pressed. Polarity PUSH
0x0A
Key A0 and B1 pressed. Polarity PUSH
0x0B
Key B1 pressed. Polarity PUSH
0x0C
Key B0 pressed. Polarity PUSH
0x0D
Key A1 pressed. Polarity PUSH
0x0E
Key A0 pressed. Polarity PUSH
0x0F
Polarity RELEASE for any combination of keys pressed

USER MANUAL
EnOcean GmbH
Kolpingring 18a
82041 Oberhaching
Germany
Phone [phone]
Fax [phone]
[email protected]
www.enocean.com
Subject to modifications
PTM 210 / PTM 215 / PTM 21U User Manual
January 2012
Page 15/19
PTM 210 / PTM 215 / PTM 210 U
The rolling code is not transmitted with every telegram. It is only transmitted dur-
ing teach-in. Afterwards the receiver has to increase the counter autonomously.
It is strongly recommended to use PTM 215 in secure mode only in fixed installa-
tions with safe radio distance. Otherwise it could happen that the rolling code of
PTM 215 and the receiver get out of synchronization.
Failure will occur when PTM 215 is operated consecutively outside the range of the
receiver more often than the defined rolling code window allows. The same may
apply in case of power interruptions on the receiver side. In this case it is neces-
sary to set the receiver in LRN mode and teach-in the device again.
Due to the enhanced telegram length of teach-in telegrams in secure mode, teach-
in is only possible at temperatures between 0 and 40°C.
If the teach-in process is not successful please repeat the procedure. Due to the
enhanced telegram length of teach-in telegrams in secure mode only a single
teach-in sub-telegram is sent at every actuation (no redundancy).
2.3.3 Switching between modes
The device can be switched from normal mode to secure mode by simultaneously pressing
both contact nipples of rocker A or rocker B and actuating the energy bow.
The device can be switched from secure mode to normal mode by simultaneously pressing
all four contact nipples of rocker A and rocker B and actuating the energy bow.
Before changing the operating mode please make sure to clear the device from all
receivers which have been taught to work with this device before. Otherwise the
receiver will ignore the telegrams and the application will not work.

USER MANUAL
EnOcean GmbH
Kolpingring 18a
82041 Oberhaching
Germany
Phone [phone]
Fax [phone]
[email protected]
www.enocean.com
Subject to modifications
PTM 210 / PTM 215 / PTM 21U User Manual
January 2012
Page 16/19
PTM 210 / PTM 215 / PTM 210 U
3APPLICATIONS INFORMATION
3.1 Construction of application specific Switch Rockers
For CAD system development support, 3D construction data is available from EnOcean (IGS
data). Using this data, the mechanical interface is fixed, and the shape and surface of the
rocker(s) can be changed according to requirements. Recommendation for suitable rocker
material is polycarbonate (buckling resistant and wear-proof material). It is recommended
to apply teflon varnish in the areas of actuation.
Please note that the rockers should be of nonmetal for best transmission range!
Please also avoid plastic materials with conducting ingredients like graphite!
3.2 Device Mounting
For mounting the PTM 21x device into an application specific case, the package outline
drawings of the device are roughly dimensioned in chapter 1.4. If more detailed dimension-
ing data device case is necessary, 3D construction data is available from EnOcean (IGS
data).

Mounting the device back side on metal surfaces directly or mounting the device
into metal frames can lead to up to typical 30% loss of transmission range within
a building.

USER MANUAL
EnOcean GmbH
Kolpingring 18a
82041 Oberhaching
Germany
Phone [phone]
Fax [phone]
[email protected]
www.enocean.com
Subject to modifications
PTM 210 / PTM 215 / PTM 21U User Manual
January 2012
Page 17/19
PTM 210 / PTM 215 / PTM 210 U
3.3 Transmission Range
The main factors that influence the system transmission range are type and location of the
antennas of the receiver and the transmitter, type of terrain and degree of obstruction of
the link path, sources of interference affecting the receiver, and “dead” spots caused by
signal reflections from nearby conductive objects. Since the expected transmission range
strongly depends on this system conditions, range tests should categorically be performed
before notification of a particular range that will be attainable by a certain application.
The following figures for expected transmission range are considered by using a PTM, a
STM or a TCM radio transmitter device and the TCM radio receiver device with preinstalled
whip antenna and may be used as a rough guide only:
Line-of-sight connections: Typically 30 m range in corridors, up to 100 m in halls
Plasterboard walls / dry wood: Typically 30 m range, through max. 5 walls
Line-of-sight connections: Typically 30 m range in corridors, up to 100 m in halls
Ferro concrete walls / ceilings: Typically 10 m range, through max. 1 ceiling
Fire-safety walls, elevator shafts, staircases and supply areas should be considered as
screening.
The angle at which the transmitted signal hits the wall is very important. The effective wall
thickness –and with it the signal attenuation –varies according to this angle. Signals
should be transmitted as directly as possible through the wall. Wall niches should be
avoided. Other factors restricting transmission range:
Switch mounted on metal surfaces (up to 30% loss of transmission range)
Hollow lightweight walls filled with insulating wool on metal foil
False ceilings with panels of metal or carbon fibre
Lead glass or glass with metal coating, steel furniture
The distance between EnOcean receivers and other transmitting devices such as com-
puters, audio and video equipment that also emit high-frequency signals should be at least
0.5 m.
A summarized application note to determine the transmission range within buildings is
available as download from www.enocean.com.

USER MANUAL
EnOcean GmbH
Kolpingring 18a
82041 Oberhaching
Germany
Phone [phone]
Fax [phone]
[email protected]
www.enocean.com
Subject to modifications
PTM 210 / PTM 215 / PTM 21U User Manual
January 2012
Page 18/19
PTM 210 / PTM 215 / PTM 210 U
4AGENCY APPROVALS
4.1 PTM 210 and PTM 215 CE Approval
The devices bear the EC conformity marking CE and conform to the R&TTE EU-directive on
radio equipment. The assembly conforms to the European and national requirements of
electromagnetic compatibility. The conformity has been proven and the corresponding doc-
umentation has been deposited at EnOcean. The PTM devices can be operated without noti-
fication and free of charge in the area of the European Union, and in Switzerland. The fol-
lowing provisos apply:
EnOcean RF devices must not be modified or used outside their specification limits.
EnOcean RF devices may only be used to transfer digital or digitized data. Analog speech
and/or music are not permitted.
The final product incorporating EnOcean RF devices must itself meet the essential re-
quirement of the R&TTE Directive and a CE marking must be affixed on the final product
and on the sales packaging each. Operating instructions containing a Declaration of Con-
formity has to be attached.
If transmitters are used according to the regulations of the 868.300 MHz band, a so-called
“Duty Cycle” of 1% per hour for each transmitter must not be exceeded. Permanent trans-
mitters such as radio earphones are not allowed. For conventional applications, it must be
ensured that the PTM 215 or PTM 210 radio device is not operated more than 6000 times
within one hour (one operation: energy bow is pressed and released). Within this calcula-
tion, the extraordinary short telegram length is considered including three subtelegrams.
Also a tolerance of 5% in the telegram length is included.

USER MANUAL
EnOcean GmbH
Kolpingring 18a
82041 Oberhaching
Germany
Phone [phone]
Fax [phone]
[email protected]
www.enocean.com
Subject to modifications
PTM 210 / PTM 215 / PTM 21U User Manual
January 2012
Page 19/19
PTM 210 / PTM 215 / PTM 210 U
4.2 FCC and Industry Canada Regulatory Statements
This device complies with part 15 of the FCC rules and Industry Canada ICES- 003. Opera-
tion is subject to the following two conditions: (1) This device may not cause harmful inter-
ference, and (2) this device must accept any interference received, including interference
that may cause undesired operation. Any changes or modifications not expressly approved
by manufacturer could void the user’s authority to operate the equipment.
IMPORTANT! Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1)
l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, meme si le brouillage est susceptible d’en
compromettre le fonctionnement.
IMPORTANT! Tous les changements ou modifications pas expressément approuvés par la
partie responsable de la conformité ont pu vider l’autorité de l’utilisateur pour actioner cet
équipment.
FCC ID: SZV-PTM210U
IC: 5713A-PTM210U
