OWNER’S MANUAL
EG31-118
FOCUS
SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certied kit is used.
WHAT TO DO IF YOU SMELL GAS
• Open windows/extinguish any open
ame.
• Do not try to light any appliance.
• Do not touch any electrical switch or
use any phone in your building.
• Immediately call your gas supplier
from a neighbour’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
WARNING
If the information in this manual is not followed exactly, a re or explosion may result
causing property damage, personal injury or loss of life. Installation and service must be
performed by a qualied installer, service agency or the gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other
ammable vapours and liquids in the
vicinity of this or any other appliance.
Massachusetts installations (Warning): This product must be installed by a licensed
plumber or gas tter when installed within the Commonwealth of Massachusetts.
Other Massachusetts code requirements: Flexible connector must not be longer than
36in., a shut off valve must be installed; only direct vent sealed combustion products
are approved for bedrooms/bathrooms. A carbon monoxide detector is required in all
rooms containing gas red direct vent appliances.

FOR SAFE INSTALLATION AND OPERATION OF YOUR “ENVIRO” HEATER,
PLEASE CAREFULLY READ THE FOLLOWING INFORMATION:
• All ENVIRO gas-red appliances must be installed
in accordance with their instructions. Carefully read all
the instructions in this manual rst. Consult the building
authority having jurisdiction to determine the need for
a permit prior to commencing the installation.
• NOTE: Failure to follow these instructions could
cause a malfunction of the replace, which could
result in death, serious bodily injury, and/or property
damage.
• Failure to follow these instructions may also void
your re insurance and/or warranty.
GENERAL
• Installation and repair should be done by a
qualied service person. The appliance should be
inspected before the rst use and, at least, annually
by a qualied service person. More frequent
cleaning may be required due to excessive lint from
carpeting, bedding material, etc. It is imperative the
control compartments, burners and circulating air
passageways of the appliance be kept clean.
• Due to high temperatures, the appliance should
be located out of high trafc areas and away from
furniture and draperies.
Children and adults should be alerted to the
hazards of high surface temperatures and
should stay away to avoid burn or clothing
ignition.
• Young children should be carefully supervised
when in the same room as the appliance.
• Clothing or other ammable materials should not
be placed on or near the appliance.
FOR YOUR SAFETY
• Installation and service must be performed by a
qualied installer, service agency or gas supplier.
• This installation must conform to local codes or, in
the absence of local codes, to the current CAN/CGA-
B149 installation code (Canada) or National Fuel Gas
Code ANSI Z223.1.2 (USA)
• To prevent injury, do not allow anyone who is
unfamiliar with the stove to operate it.
• To prevent injury, if the pilot or pilot and
burners have gone out on their own, open the
glass door and wait 5 minutes to air out before
attempting to re-light the stove.
• Always keep the area around these appliances
clear of combustible material, gasoline and other
ammable liquids and vapours.
• These appliances should not be used as a drying
rack for clothing or for hanging Christmas stockings/
decorations.
• Due to the paint curing on the stove, a faint odor
and slight smoking will likely be noticed when the
stove is rst used. Open a window until the smoking
stops.
Always connect this gas stove to a vent system and
vent to the outside of the building envelope. Never
vent to another room or inside the building. Make sure
the specied vent pipe is used; properly sized and of
adequate height to provide sufcient draft. Inspect
the venting system annually for blockage and signs of
deterioration.
WARNING: Failure to position the parts in accordance
with the diagrams in this booklet, or failure to use only
parts specically approved with this appliance may
result in property damage or personal injury.
WARNING: Do not operate with the glass front
removed, cracked or broken. Replacement of the
glass should be done by a licensed or qualied service
person.
• Never use solid fuels such as wood, paper,
cardboard, coal, or any ammable liquids, etc., in this
appliance.
• Do not use this heater if any part has been under
water. Immediately call a qualied service technician
to inspect the heater and to replace any part of the
control or gas control systems that have been under
water.
• Do not abuse the glass by striking it or slamming
the door shut.
Safety Precautions
2

Table of Contents
3
Safety Precautions.....................................................................................................2
Table of Contents......................................................................................................3
Codes And Approvals.................................................................................................4
Specications............................................................................................................5
Dimensions....................................................................................................5
Rating Label Location.....................................................................................5
Operating Instructions...............................................................................................6

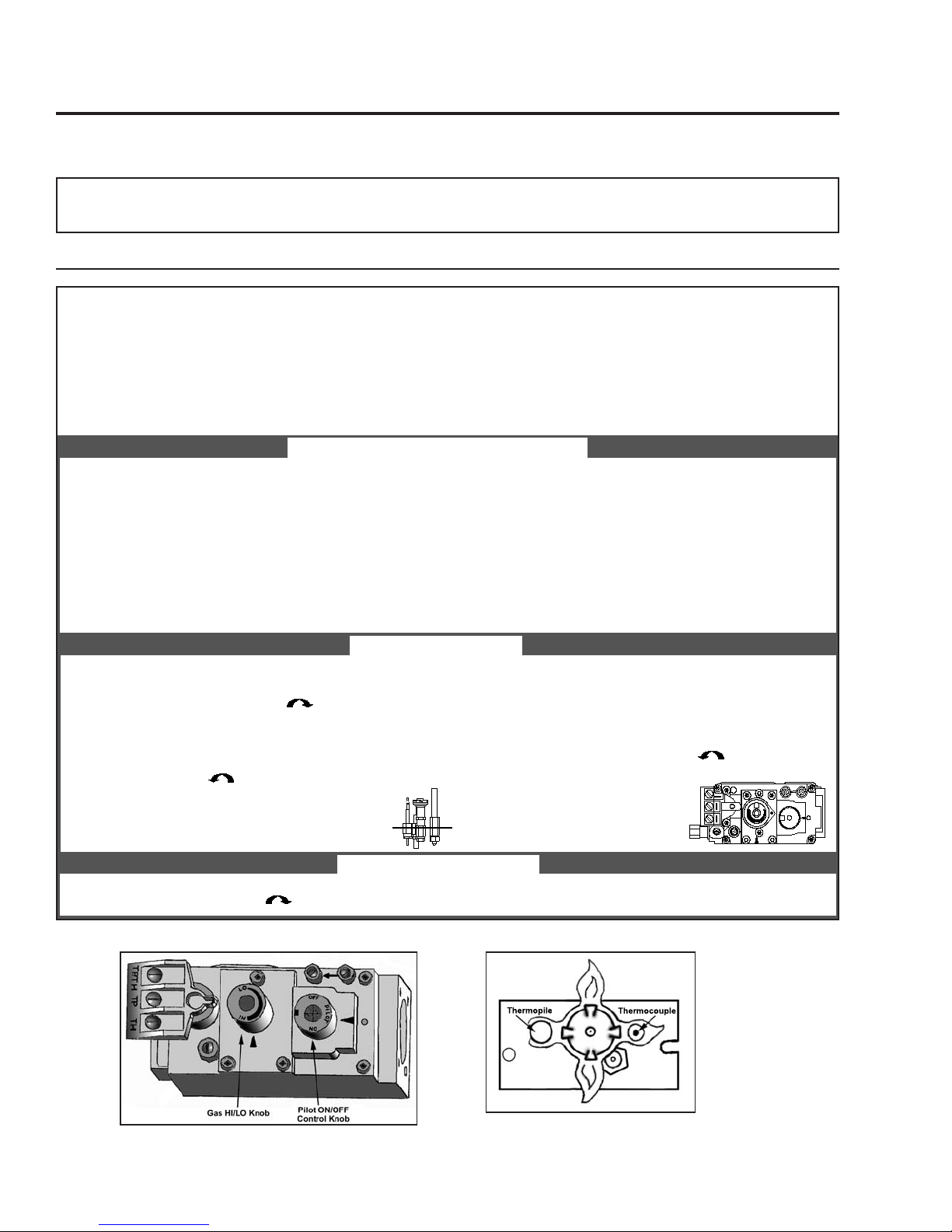

Lighting Instructions.......................................................................................6
Adjusting Venturi Air Settings..........................................................................7
Blower speed.................................................................................................7
Normal Sounds During Operation.....................................................................7
Maintenance And Service...........................................................................................8
Routine Maintenance......................................................................................8
Glass Door Removal........................................................................................8
Cleaning The Glass.........................................................................................8
Cleaning The Firebox......................................................................................8
Replacing the Glass........................................................................................8
Maintaining Fascia And Surround Finishes........................................................9
Burner and Blower Removal............................................................................9
Fuel Conversion............................................................................................10
Initial Installation....................................................................................................12
Clearances to Combustibles...........................................................................12
B Vent Model................................................................................................12
Automatic Flue Gas Spill Switch.....................................................................12
Direct Vent Model.........................................................................................13
Direct Vent Restrictor Ring............................................................................13
Preparing Your Focus For Installation.............................................................13
Fan Controller & Burner Switch Installation.....................................................15
Converting A Direct Vent Fireplace To A B-Vented Fireplace..............................16
Converting A B-Vent Fireplace To A Direct Vented Fireplace..............................16
Venting Fireplace Inserts...............................................................................17
Electrical Requirements.................................................................................18
Gas Line Connection.....................................................................................19
Secondary Installation.............................................................................................20
Log Set and Ember Installation......................................................................20
Brick Panel Installation..................................................................................21
Trouble Shooting.....................................................................................................22
Parts List - Components...........................................................................................23
Parts Diagram - Body...............................................................................................25
Parts List - Surrounds & Fascia.................................................................................26
Parts Diagram - Surrounds & Fascia..........................................................................27
Parts List - Cast.......................................................................................................28
Parts Diagram- Cast Bay Front..................................................................................30
Warranty.................................................................................................................31
Installation Data Sheet.............................................................................................32

DIRECT VENT: This type is identied by the sufx DV. This appliance draws all of its air for combustion from
outside the dwelling, through a specially designed vent pipe system.
This appliance has been tested and approved for installations from 0 feet to 4500 feet (1372 m) above sea level.
BV: This Vented appliance draws all of its combustion air from the dwelling and must be vented using listed B or L
vent. May also be vented through a conventional chimney using a chimney liner kit.
This appliance has been tested and approved for installations from 0 feet to 2000 (610 m) above sea level.
In the USA: The appliance may be installed at higher altitudes. Please refer to your American Gas Association
guidelines which state: the sea level rated input of Gas Designed Appliances installed at elevations above 2000
(610 m) feet is to be reduced 4% for each 1000 feet (305 m) above sea level. Refer also to local authorities or
codes which have jurisdiction in your area regarding the de-rate guidelines.
In Canada: When the appliance is installed at elevations above 4500 feet (1372 m), the certied high altitude
rating shall be reduced at the rate of 4% for each additional 1000 feet (305 m).
• This appliance has been tested by INTERTEK (Warnock Hersey) and found to comply with the established
VENTED GAS FIREPLACE HEATER standards in CANADA and the USA as follows:
VENTED GAS FIREPLACE HEATER (FOCUS BV/DV; NG/LPG)
TESTED TO: ANSI Z21.88a-2003/CSA 2.33a-2003 VENTED GAS FIREPLACE HEATERS
CAN/CGA 2.17-M91 GAS FIRED APPLIANCES FOR HIGH ALTITUDES
CSA P.4.1-02 TESTING METHOD FOR MEASURING ANNUAL FIREPLACE EFFICIENCY
This ENVIRO FOCUS Fireplace:
• Has been certied for use with either natural or propane gases. (See rating label.)
• Is not for use with solid fuels.
• Is approved for bedroom or bed sitting room. (IN CANADA: must be installed with a listed wall thermostat. IN
USA: see current ANSI Z223.1 for installation instructions.)
• Must be installed in accordance with local codes. If none exist, use current
installation code CAN/CGA B149 in Canada or ANSI Z223.1/NFPA 54 in the USA.
• Must be properly connected to an approved venting system and not connected to a
chimney ue serving a separate solid-fuel burning appliance.
• Is not approved for closet or recessed installations.
• Must have inner at unit glass installed before bay window can be installed.
IMPORTANT NOTICE (Regarding rst re up): When the unit is turned on
for the rst time, it should be turned onto high without the fan on for the rst 4
hours. This will cure the paint, logs, gasket material and other products used in the
manufacturing process. It is advisable to open a window or door, as the unit will
start to smoke and can irritate some people. After the unit has gone through the
rst burn turn the unit off including the pilot, let the unit get cold then remove the
glass door and clean it with a good gas replace glass cleaner, available at your
local ENVIRO dealer.
4
Codes And Approvals

WARNING: Operation of this heater when not connected to a properly installed and maintained
venting system can result in carbon monoxide (CO) poisoning and possible death.
Specifications
5
12 1/16"
(30.6cm)
18" (45.7cm)
30 5/16" (77cm)
14 3/16"
(36.0cm)
13 "
(33.7cm)
42" (106.7
31 13/16" (80.8cm)
27 7/8"
(70.8 cm)
3"
(7.6cm) 14 3/8"
(36.5cm)
18 15/16" (48.1cm)
19 "
(49.5cm)

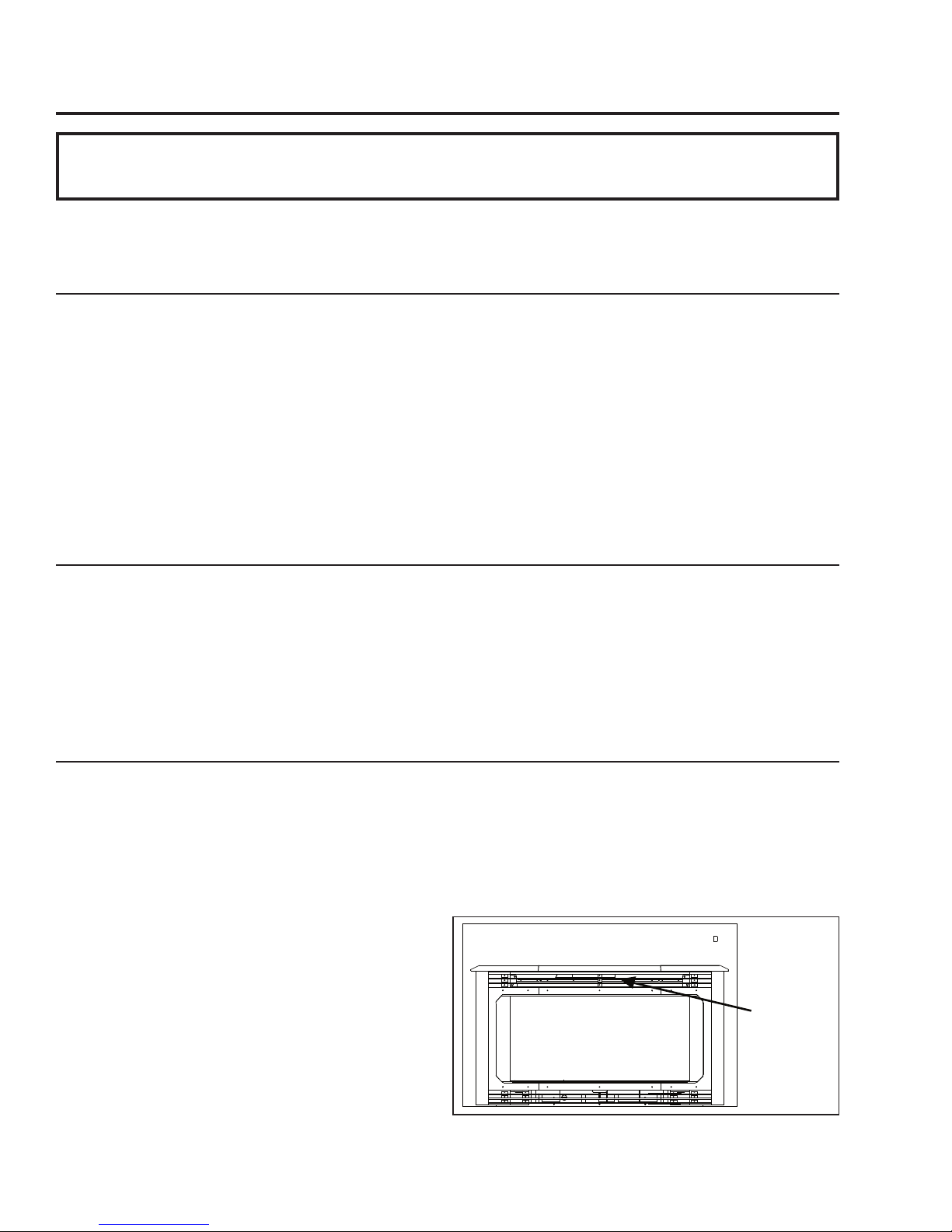

RATING LABEL LOCATION:
The rating label is located under the control panel and is attached to a rectangular metal sheet that is
chained to the replace.
DIMENSIONS:
Figure 1: Focus Exterior Dimensions.

Operating Instructions
For Your Safety, Read Safety Precautions And
Lighting Instructions Before Operating
LIGHTING INSTRUCTIONS:
Thermopile
Thermocouple
Figure 3: Gas Valve. Figure 4: Pilot Burning.
6
1. STOP! Read the safety information above on this label.
2. Turn off all electrical power to this appliance.
3. Turn off the gas control knob clockwise to the off position.
4. Open door. Wait fIve (5) minutes to clear out any gas. Close door. If
you smell gas STOP! Follow “B” in the above safety information. If
you do not smell gas go to the next step.
5. Find pilot-located to the left under the front log. Turn the gas control
knob counter-clockwise to “PILOT”. Push the gas control in fully
and hold, keep knob depressed for about 30 seconds after
the pilot is lit. Release knob. If pilot goes out, repeat
steps 4 through 5.
CAUTION: Hot while operating. Do not touch, severe burns may result. Keep children, clothing,
furniture, gasoline or other flammable vapors away.
FOR YOUR SAFETY READ BEFORE OPERATING
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
A) This appliance is equipped with a pilot, which must be lit by hand by
following these instructions exactly.
B) BEFORE LIGHTING smell all around the appliance area for gas and next to
the floor because some gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance. Do not touch any electrical switch: do not
use any phone in your building. Immediately call your gas supplier from a
neighbor's phone. Follow the gas suppliers instructions. If you cannot reach
your gas supplier, call the fire department.
C) Use only your hand to push in or turn the gas control knob;
NEVER use tools. If the knob will not push in or turn by hand, do
not try to repair it. Call a qualified service technician. Force or
attempted repair may result in a fire or explosion.
D) Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and any
gas control which has been under water.
LIGHTING INSTRUCTIONS
WARNING: this gas valve has a lockout device, which will not allow the
pilot burner to be relit until the thermocouple has cooled. If the knob does
not pop up when released, stop and immediately call your service
technician or gas supplier.
If the pilot does not stay lit after several tries, turn the gas control knob
to “OFF” and call your service technician or gas supplier.
6. Turn the gas control knob counter clockwise to the “ON”
position. Flip the burner switch to “ON” THEN TURN THE “HI/LOW”
knob to the desired setting.
7. Turn on the electrical power to the unit.
TO TURN OFF GAS TO APPLIANCE
1. Flip burner switch to “OFF”
2. Turn the gas control knob clockwise to the “OFF” position.

3. Turn off all electrical power to the appliance if service is to be performed.
CAUTION: Do not operate this fireplace with the glass removed, cracked or broken. Replacement of the panel(s) should be done by a licensed or
qualified person! This appliance needs fresh air for safe operation and must be installed with provisions for combustion and ventilation air. See
installation and operating instructions manual. Keep burner and control compartment clean.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage, or loss of life. Refer to owner's
information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or the gas supplier.
See installation and operating instructions accompanying appliance. Installation and service must be performed by a qualified installer, service agency,
or the gas supplier.
O
L
I
T
P
TP TH TP TH
IN OUT
H
I
L
O
N
O
F
O
F
L
I
P
T
O
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY A FIRE OR EXPLOSION MAY
RESULT, CAUSING PROPERTY DAMAGE, PERSONAL INJURY OF LOSS OF LIFE.
Figure 2. Lighting Instruction Label

Move the rod located behind the
piezo ignitor to increase or decrease
primary air at the venturi tube.
There is only one (1) venturi and one (1) air shutter
to be adjusted.
When installing the burner top, ensure that
the venturi tube is engaged to the air shutter
adjustment rod.
Use this small venturi adjustment rod to achieve a
proper and efcient ame, shown in Figure 5.
Adjust rod until the ame pattern is similar to
Figure #.
Table 1: Venturi Setting.
Natural Gas Propane
Venturi Setting Rear 1/16” min. 3/16” min. Figure 5: Venturi Air Setting Rod
7
Operating Instructions
ADJUSTING VENTURI AIR SETTINGS:
BLOWER SPEED:
The blower will come on only when the replace is up to temperature (approximately 20 minutes). The
speed of the fan can be changed by turning the fan control knob. To turn the blower off, turn the knob
COUNTER CLOCKWISE until it “clicks” off.
It is advisable not to operate the blower below 1/3 speed as it puts a strain on the windings of the blower
and running the blower at lower speeds could also cause premature fan failure.
NORMAL SOUNDS DURING OPERATION:
Table 2: Normal Sounds.
Component Sound & Reason
Focus & Fascia Creaking when heating up or cooling down.
Burner Light pop or poof when turned off; this is more common with LP units.
Temperature Sensor Clinking when it senses to turn the blower on or off.
Pilot Flame Quiet whisper while the pilot ame in on.
Blower / Fan Air movement that increase and decreases with the speed of the blower. The
blower is pushing the heat from the replace into the room.
Gas Control Valve Dull click when turning on or off, this is the valve opening and closing.

8
Maintenance And Service
ROUTINE MAINTENANCE:
At least once a year, run through the following procedures to ensure the system is clean and working
properly. Check the burner to see if all the ports are clear and clean. Check the pilot to make sure it is not
blocked by anything. The pilot ame should be blue with little or no yellow on the tips.
Warning: Clearances must be sufcient to allow access for maintenance and service
Warning: Failure to position the parts in accordance with this manual, or failure to use only parts
specically approved with this appliance may result in property damage or personal injury.
The venting system must be periodically examined; it is recommended the examination is done by a
qualied agency.
GLASS DOOR REMOVAL:
Figure 6: Top bolts for glass door.
Turn unit off and wait until the appliance has cooled down.
Remove the decorative fascia or clip-on bay window by lifting it up
and removing it from the slots in the body of the unit.
Undo the two (2) 5/16’’ bolts at the top of the door frame and then lift
the glass and frame, being careful that the glass does not fall out of
the door frame assembly. Install in the reverse order.
Ensure the door is properly fastened after cleaning before attempting
to re-light the appliance.
CLEANING THE GLASS:
When the replace has cooled, remove the face of the replace along with the glass. See MAINTENANCE
AND SERVICE - GLASS DOOR REMOVAL. Check the gasket material on the back of the glass, making sure that
it is attached and intact.
During a cold start up, condensation will sometimes form on the glass. This is a normal condition with all
replaces. However, this condensation can allow dust and lint to cling to the glass surface. Initial paint
curing of the appliance can leave a slight lm behind the glass, a temporary problem. The glass will need
cleaning about two weeks after installation. Use a mild glass cleaner and a soft cloth; abrasive
cleaners will damage the glass and plated surfaces. Depending on the amount of use, the glass
should require cleaning no more than two or three times a season. Do not clean the glass when it is
hot.
CLEANING THE FIREBOX:
Remove the logs carefully, as they are very fragile. Gently remove all the embers and rock wool and place
on a paper towel. Vacuum the bottom of the rebox thoroughly. Carefully clean any dust off the logs and
remove any lint from the burner and pilot. At this time, inspect the burner pan for cracking or severe
warping. If a problem is suspected, contact the dealer. Check the logs for deterioration or large amounts
of soot; a small amount on the bottom side of the logs is normal. Replace the logs and embers as in the
SECONDARY INSTALLATION - LOG SET AND EMBER INSTALLATION section. If new/more embers and rock wool are
required, contact your nearest ENVIRO dealer.
REPLACING THE GLASS:
The glass in the replace is a high temperature ceramic. If the glass is damaged in any way, a factory
replacement is required (see PARTS LIST). Wear gloves when handling damaged glass door assembly

9
to prevent personal injury. When the glass door assembly is being transported, it must be wrapped in
newsprint and tape and/or a strong plastic bag. Do not operate with the glass front removed, cracked
or broken. Removal and replacement of the glass from the door must be done by a licensed or qualied
service person. The glass must be purchased from an ENVIRO dealer. No substitute materials
are allowed.
MAINTAINING FASCIA AND SURROUND FINISHES:
When a plated surround or face is received, it should be unpacked/unwrapped carefully to avoid getting
anything on the surface of the nish, including cleaners, polish and nger prints. If your ngers come into
contact with the nishes, the oils left as ngerprints on the plating can become permanently etched in
the surface. To prevent this, clean the painted surfaced with a damp cloth and clean plated nishes with
denatured alcohol after the installation and prior to rst ring of the replace. If your ngers come into
contact with the antique copper nish, the oils left as ngerprints on the copper can cause discoloration,
which will eventually turn green in that area. You can clean the patina or discolored areas of the antique
copper nish with “OO” 3M green sanding pads. These can be purchased from most hardware stores. On
the areas with discoloration, use the sanding pads to sand in the same direction as the brushed nish,
then blend the nish by feathering in the surrounding area. This renishing procedure has been approved
by the manufacturer and will not harm the nish. Please note: ANTIQUE COPPER IS THE ONLY FINISH
THAT CAN BE SANDED, DO NOT SAND PEWTER, GOLD OR NICKEL FINISHES.
BURNER AND BLOWER REMOVAL:
1. Turn the unit off, remove the glass door (see MAINTENANCE AND SERVICE - GLASS DOOR REMOVAL) and the
log set. Caution: Bleed lines before lighting and light pilot with door open.
2. Remove the burner tray top by removing the two (2) T-20 screws located in the center of the burner
tray (see Figure 7). Slide tray to the left and lift out.
3. Remove brick panels (see SECONDARY INSTALLATION - BRICK PANELS INSTALLATION).
4. Remove the surround panel by lifting it straight up and then out to free it from the body of the unit.
5. Turn the gas supply off and remove gas connection and disconnect the wiring from the side of the
appliance.
6. Remove the three (3) T-20 screws that hold the air deector in place on the back rewall (see Figure 7)
and undo the remaining screws that hold the burner assembly in the appliance. Carefully remove the
Maintenance And Service
gas tray assembly from the rebox,
ensuring that wires and gas lines are
not damaged.
7. Remove the blower and housing from
the gas tray assembly by removing
the fastening screws located on
the back of the gas tray assembly.
Disconnect the wiring from the fan
temperature sensor and remove.
To install; follow steps 1 through 7 in
reverse. Perform a gas leak check on all
gas line with a soap and water solution
or an approved method and check
burner and blower assembly for proper
operation.
Gas and electrical
tray complete
Air deflector
Burner top

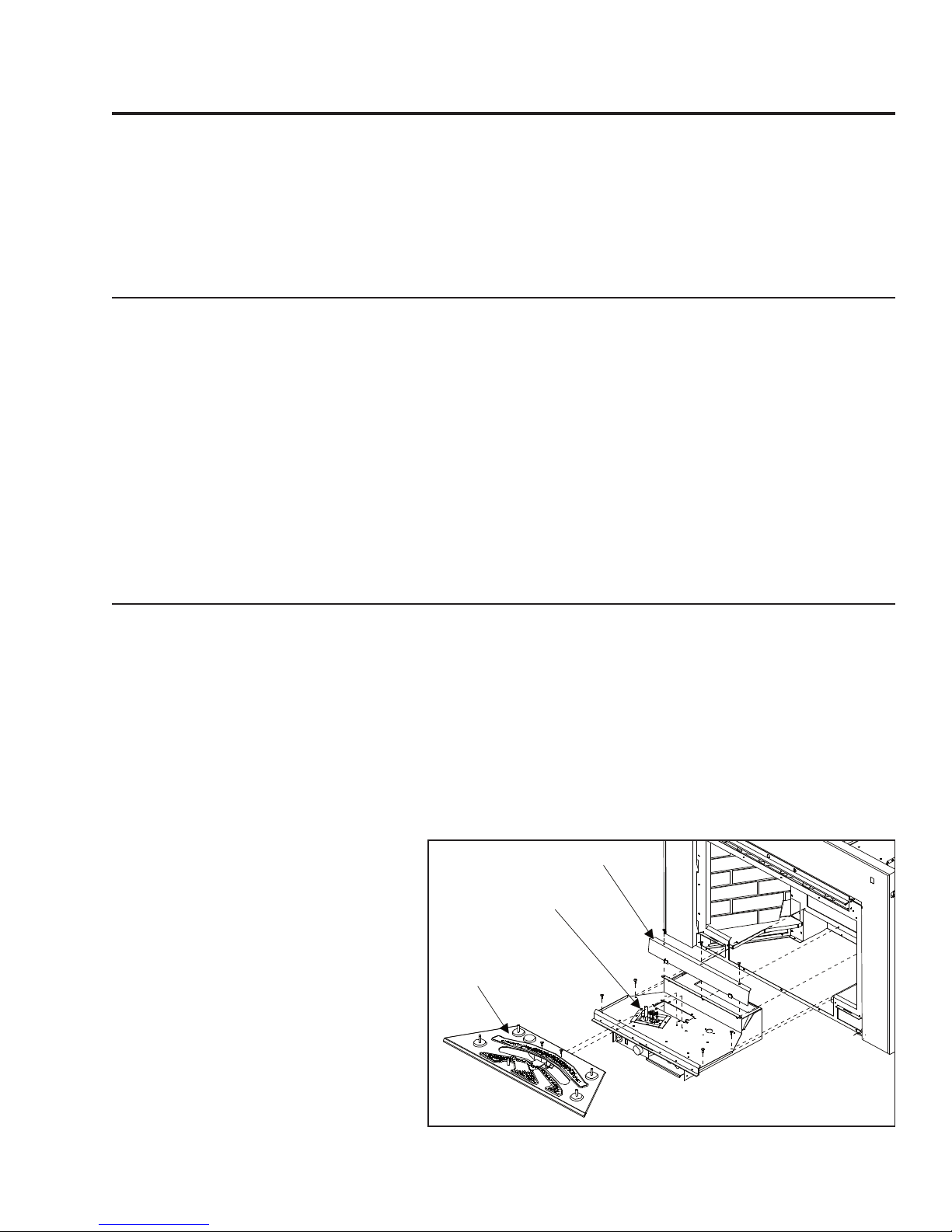

Figure 7: Removing Burner and Gas Tray.

Maintenance And Service
FUEL CONVERSION:

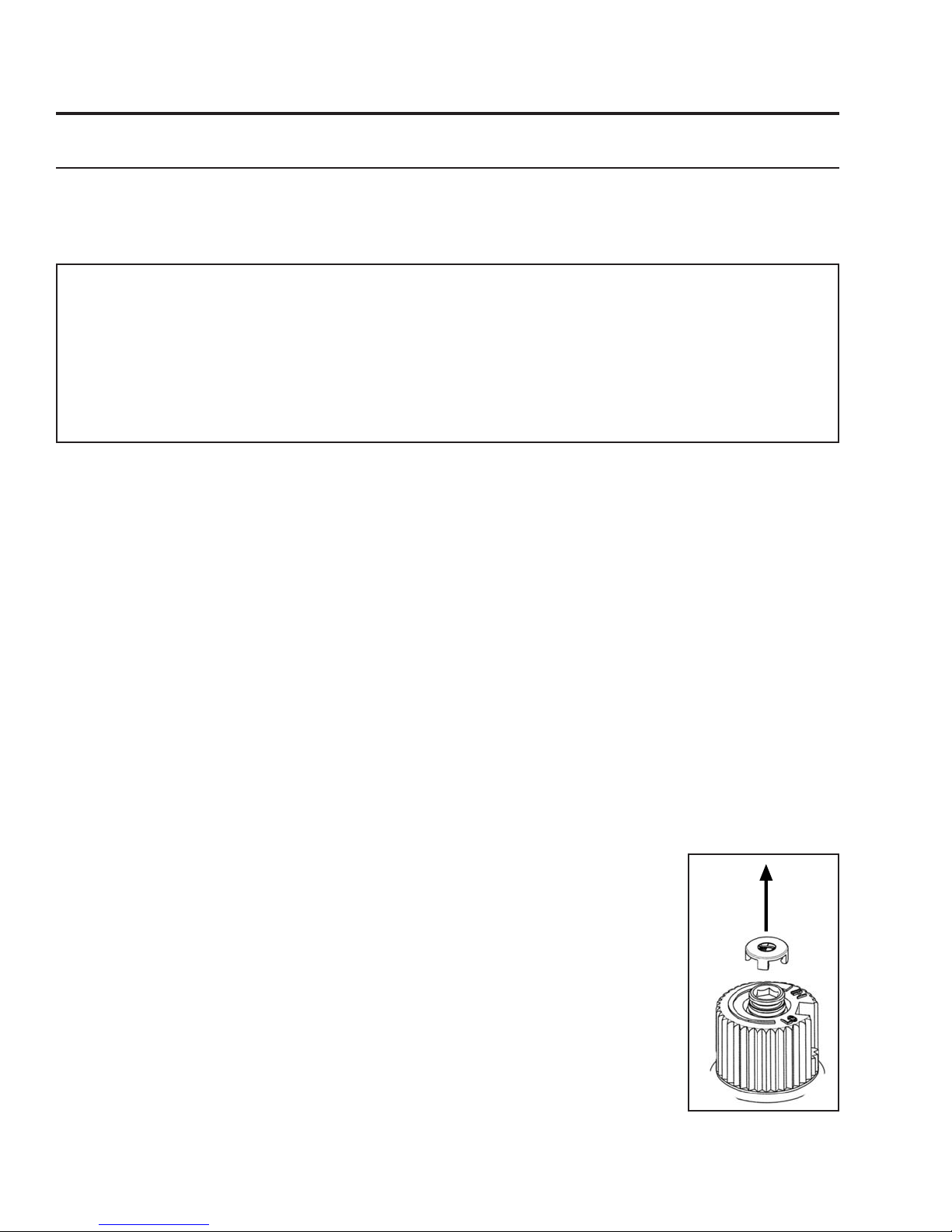

Figure 8: Removing
valve cap.
5. Convert the burner orice(s):
a) Remove the main burner orice with a  inch deep socket.
b) Put a bead of pipe-thread sealant or approved Teon tape on the orice
threads before installing into the brass elbow.
c) Install the new orice(s) from the kit into the brass elbow.

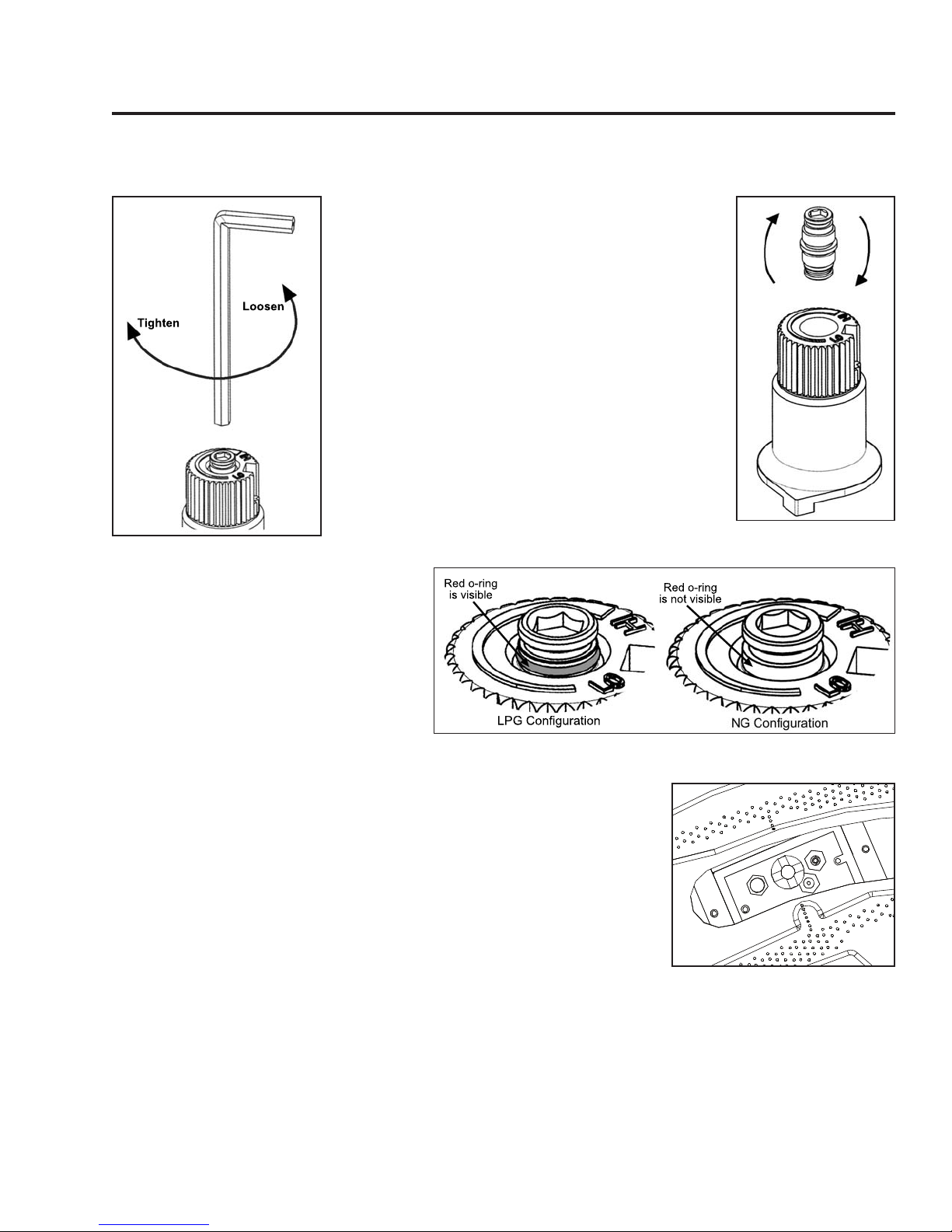

6. Convert the pilot injector:
a) Pull the pilot hood straight up to access the pilot injector.
b) Using a 5/32” or 4 mm Allen key, remove the pilot injector.
c) Install the new pilot injector supplied with this conversion kit. Simply screw
the new injector inside the pilot hood using the Allen key,
d) Reinstall the hood by placing the hood on the assembly, line up the key
way, and snap into place.
10
TO BE INSTALLED BY A QUALIFIED SERVICE AGENCY ONLY
Please read and understand these instructions before installing.
Warning: This conversion kit shall be installed by a qualied service agency in accordance
with the manufacturer’s instructions and all applicable codes and requirements of the
authority having jurisdiction. If the information in these instructions is not followed
exactly, a re, explosion or production of carbon monoxide may result causing property
damage, personal injury or loss of life. The qualied service agency is responsible for
the proper installation of this kit. The installation is not proper or complete until the
operation of the converted appliance is checked as specied in the manufacturer’s
instructions supplied with the kit.
Kit Parts List:
1 - Orice (NG #38 DMS or LP #52 DMS)
1 - Pilot Injector (NG 0.62 mm; LP 0.35 mm)
1 - Installation instruction sheet
1 - Conversion label
Carefully inspect all parts supplied with this conversion kit. If any parts have been damaged or are
missing, contact your dealer, distributor or courier company to have them replaced before starting this
installation.
Conversion Kit Installation:
1. Turn control knob on the gas valve to the “OFF” position and shut the gas supply off at the shut-off
valve upstream of the unit. CAUTION: The gas supply must be shut off prior to disconnecting the
electrical power and before proceeding with the conversion. Allow the valve and unit to cool down
to room temperature.
2. Remove the glass as shown in the MAINTENANCE AND SERVICE - OPENING THE DOOR.
3. Carefully remove the log set and ember material if they are installed.
4. Remove the burner as shown in the MAINTENANCE AND SERVICE - BURNER REMOVAL.

11
Maintenance And Service
b) Insert a 5/32” or 4 mm Allen wrench into the
hexagonal key-way of the screw (see Figure 9),
rotate it counter-clockwise until it is free and
extract it.
c) Check that the screw is clean and if necessary
remove dirt.
d) Flip the screw (refer to Figure 10).
e) Using the Allen wrench as shown in Figure 9,
rotate the screw clockwise until a torque of 9 inch
lbs. WARNING! Do not over tighten the screw.
It is recommended that you grip the wrench by
the short side.
f) Verify that if the conversion is from NG to LPG,
the screw must be re-assembled with the red o-
ring visible (refer to Figure 11). If the conversion
is from LPG to NG, the red o-ring of the screw
must be not visible. Figure 10: Flip valve
screw.
Red o-ring
is not visible
Red o-ring
is visible
LPG Configuration
g) Re-attach the black protection
cap that was removed in step a
(Figure 8).
8. Reinstall the burner, brick panels,
log set, embers, and glass door. Also
refer to SECONDARY INSTALLATION -
INSTALLING LOG SET AND EMBERS. When
re-installing the burner, ensure that
the burner to pilot hood relationship Figure 11: O-ring on valve screw.
is similar to what is shown in Figure 12. On some units you will need
to pay special attention when installing the burner that the venturi
adjustment rod is properly installed into the venturi adjustment piece
welded to the burner venturi tube
9. Reconnect the main gas line if it was disconnected and open the
shut-off valve at the gas line to the unit.
10. Use a small brush to apply a warm soapy water solution to all gas
connections (use a half dish soap and half warm water). If a gas leak
is present, bubbling will occur. Gas leaks can be repaired by using an
approved pipe thread sealant or approved Teon tape. NEVER USE
Loosen
Tighten
Figure 9: Removing valve
screw.
7. Convert the SIT gas valve:
a) Remove the black protection cap from the HI/LO knob by hand shown in Figure 8.
AN OPEN FLAME WHEN TESTING FOR LEAKS.
11. Reconnect the electrical power to the unit.
12. Relight the main burner in both the “HI” and “LO” positions to verify proper burner ignition and
operation and proper ame appearance. Also refer to SECONDARY INSTALLATION - LOG SET AND EMBERS
INSTALLATION for a ame appearance picture.
13. MAKE SURE that the conversion label is installed on or close to the rating label to signify that the
unit has been converted to a different fuel type.
Figure 12: Burner to pilot hood
relationship.

12
Initial Installation
Check draft
with a match
or smoke in
a " (6 mm)
tube located
here.
Warning: Failure to position the parts in accordance with this manual, or failure to use only parts
specically approved with this appliance may result in property damage or personal injury.
CLEARANCES TO COMBUSTIBLES:
Mantle pillar to glass door 9” (22.8 cm)
From oor to 8” wide mantle 38” (96.5 cm)
Minimum non-combustible surface in front of unit 11” (27.9 cm)
Warning: Clearances must be sufcient to allow access for operation, maintenance and service. Stove
must sit on a non-combustible surface.
Depth of unit into replace 16” (41 cm)
Depth of unit out of replace 3’’ (7.6 cm)
Minimum replace size: Width 34” (86.36 cm)
Height 21” (53.3 cm)
Depth 18” (45.7 cm)
B VENT MODEL:
WARNING: This appliance has been designed to operate by drawing combustion air and dilution air
from the room. It is also designed to draw room air for proper heat circulation from the sides of the
unit. Blocking or modifying the louvers in any way can create hazardous situations, either through poor
venting or by overheating. It is important that this unit has sufcient air circulation for proper venting
and combustion. Provisions must be made for the supply of adequate combustion and ventilation air.
These openings must not be blocked. The appliance must not be connected to a chimney ue servicing
a separate solid fuel burning appliance.
AUTOMATIC FLUE GAS SPILL SWITCH:
NOTE: This heater must be properly connected to a venting system. This heater is equipped with a vent
safety shutoff system designed to protect against improper venting of combustion products. This safety
switch is located on the rear of the appliance close to the draft hood relief opening. If the switch trips
more than once, the venting should be inspected by a qualied service technician for possible blockage
or severe down draft conditions.
BV Only: The draft hood must be in the same pressure zone as the air inlet. To inspect draft from
WARNING: Operation of this heater when not connected to a properly installed and maintained
venting system can result in carbon monoxide (CO) poisoning and possible death.
the front of the unit, locate the ” tube between
the louvers (see Figure 13) and check for a draft
using smoke. A vacuum or suction into the tube will
indicate proper drafting.
This model can be vented with 4” aluminum or
stainless steel ex vent and/or certied Type B Gas
Vent. The ue collar of the appliance will t inside
of a standard 4” vent and may be fastened directly
to the vent, check periodically that the vent is
unrestricted and an adequate draft is present when
the unit is in operation. Figure 13: Draft Check.

PREPARING YOUR FOCUS FOR INSTALLATION:
1. Remove the appliance and surround panels from the packaging; check to make sure there is no
damage. Carefully check the glass door. Do not use the unit if it is damaged. In the event damage is
found, please report it to both the courier and your dealer as soon as possible.
2. Carefully clean the replace and ue before installing the stove. Failure to do so may result in fumes
or dirt being blown into the room and may cause a re leading to death or serious injury.
3. Remove the glass door; see MAINTENANCE AND SERVICE - GLASS DOOR REMOVAL.
4. Remove log and ember set and all wrapping material from inside the stove. Remove wrapping material
from log and embers and check for any damage. If damage is observed, do not use unit and contact
your local dealer.
5. Remove the vent collar plate from the top of the stove by unscrewing the two (2) T-20 Torx screws
located on the center top of the stove. Slide collar plate backwards. Properly secure the vent collar
plate to the exible vent pipe liner(s) previously installed in the chimney. Be careful not to over-stretch
the liner(s).
Initial Installation
QUALIFIED INSTALLERS ONLY
DIRECT VENT MODEL:
WARNING: This appliance has been designed to draw room air for proper heat circulation
from the sides of the unit. Blocking or modifying the louvers in any way can create hazardous
situations.
This model is vented with TWO (2) 3” aluminum or stainless steel ex vent leading into a co-linear to co-
axial vent adaptor and using a Simpson Dura Vent vertical termination cap. The ue collars of this model
will t inside of standard 3” vent and may be fastened directly to the vent. The Exhaust vent is in the
center of the ue connector. The Air Intake is on the left side of the vent collar plate (this outlet is not in
the center it is off to one side of the vent collar plate.)
Check periodically that the vents are unrestricted. Also ensure that all direct vent pipes have been
properly sealed and installed after routine inspection or cleaning. The air intake and exhaust pipes must
be installed in the correct locations on the removable draft hood connector.

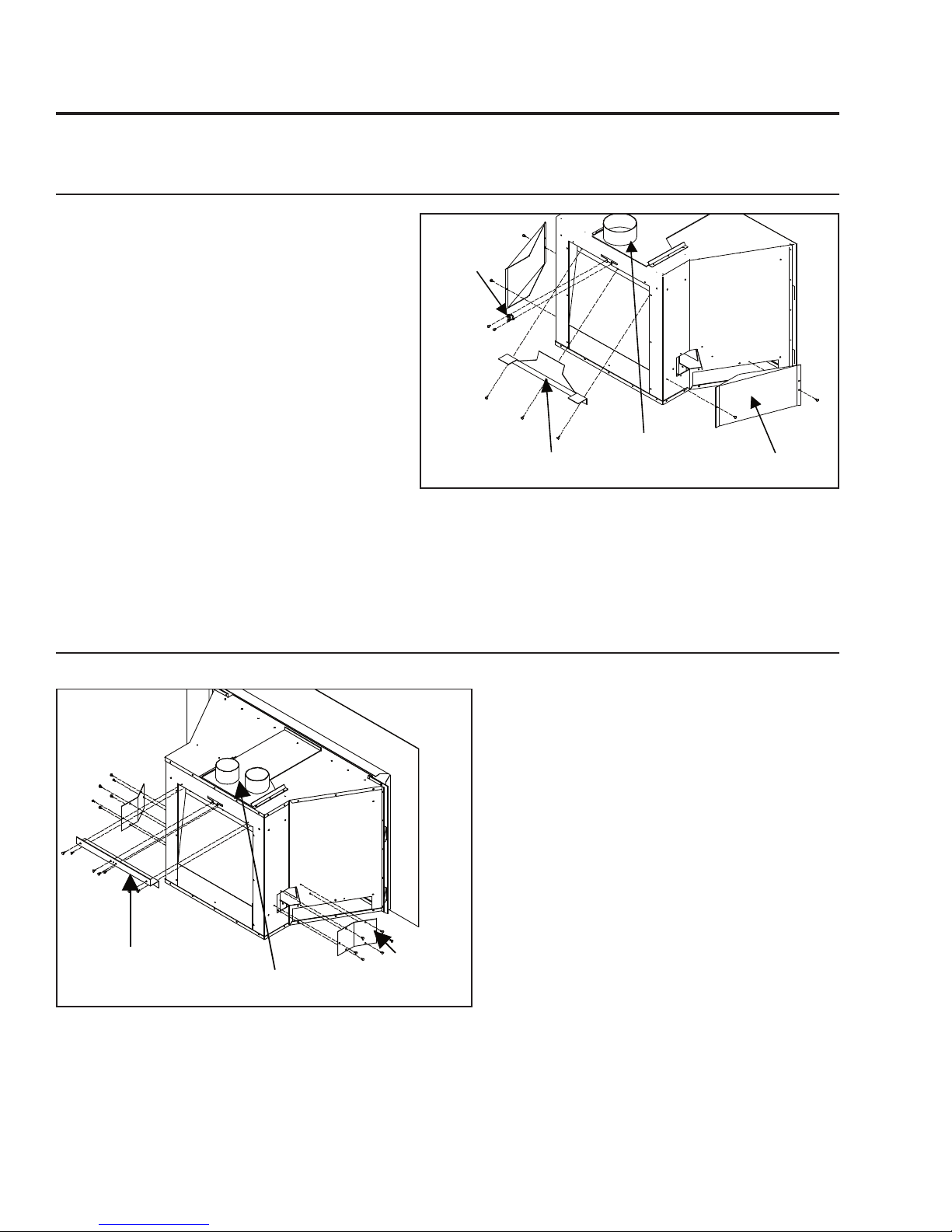

DIRECT VENT RESTRICTOR RING:
Figure 14: Direct vent restrictor ring installation.
Vent Restrictor Ring
DIRECT VENT ONLY: The maximum vertical vent
height for a direct vent installation is 25 feet (7.62 m).
Use the vent restrictor ring for installations above 15
feet (4.57 m). See Figure 14 for installation of restrictor
ring.
13

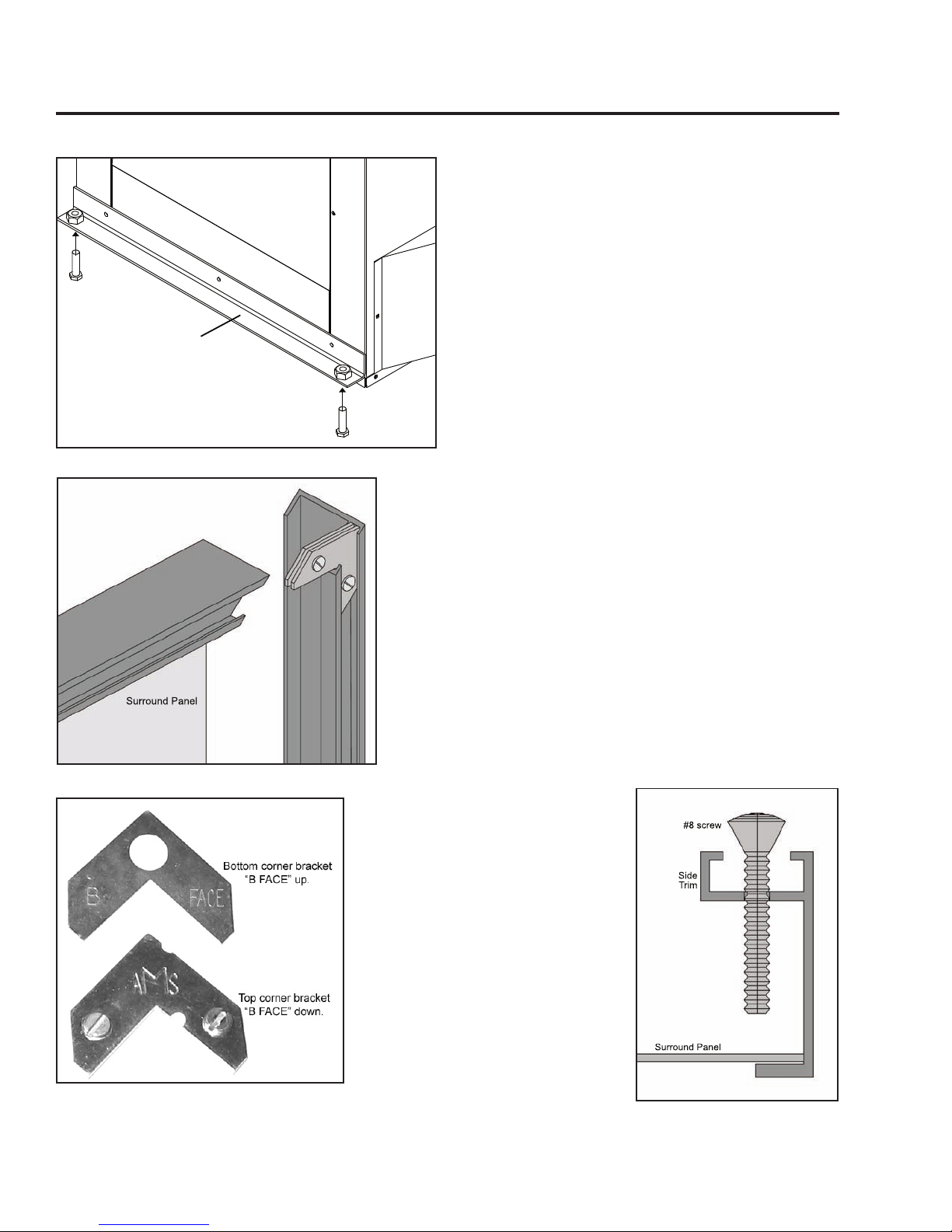

a) Attach one side trim to the top trim using a corner bracket
(see Figure 16) to secure pieces together. There are two
(2) main pieces to each corner bracket (see Figure 17).
When installing the corner pieces into the trim the “B
FACE” sides must face each other and the screw heads
are to face out. With the bracket in place and the top and
a side trim snug together use a at head screwdriver to
turn the two (2) screws in the bracket in to tighten it into
the trim.
b) Slide the two (2) attached trim pieces onto the surround
panel.
c) Attach the other side trim piece to the top trim using the
same method used in Step a.
6. Install the leveling legs. Thread the two (2) 5”
(13 cm) bolts and locknut up into the captive nuts
at each end of the leveling leg bracket (refer to
Figure 15).
7. Place the unit part way into the replace.
Connect the replace insert’s exible gas line to
the household gas supply, using locally approved
methods. Place the electric cable so it can be
connected to the power supply.
8. As you push the unit into its nal position in the
replace, reinstall the vent collar plate to the
stove by sliding it along the draft hood and secure
with the screw. Adjust the leveling legs to ensure
the unit is level.
8. The trim set for your surround panel, must be
installed before installing the surround panel onto
the unit.
Figure 15: Installation of Leveling Legs.
Leveling legs bracket
Initial Installation
d) Place the second side of the
trim on the surround panel in
the same manner use on the
rst side and secure in the same
manner.
e) On the side trims there are holes
2” (50 mm) from either end.
Using a Phillips screwdriver to
place a #8 screw 1” long in
each hole and tighten (refer to
Figure 18). This will keep the
trim tight against the surround.
NOTE: The notch at the bottom of
the left trim is so the power cord
can be run to the outside of the
panel.
14
Figure 18: Screw to hold the
trim against the surround.
Surround Panel
Side
Trim
#8 screw
Surround Panel
Figure 16: Corner brackets for trim.
Figure 17: Two pieces of corner bracket.

Figure 19: Surround Panel installation.
15
Initial Installation
QUALIFIED INSTALLERS ONLY

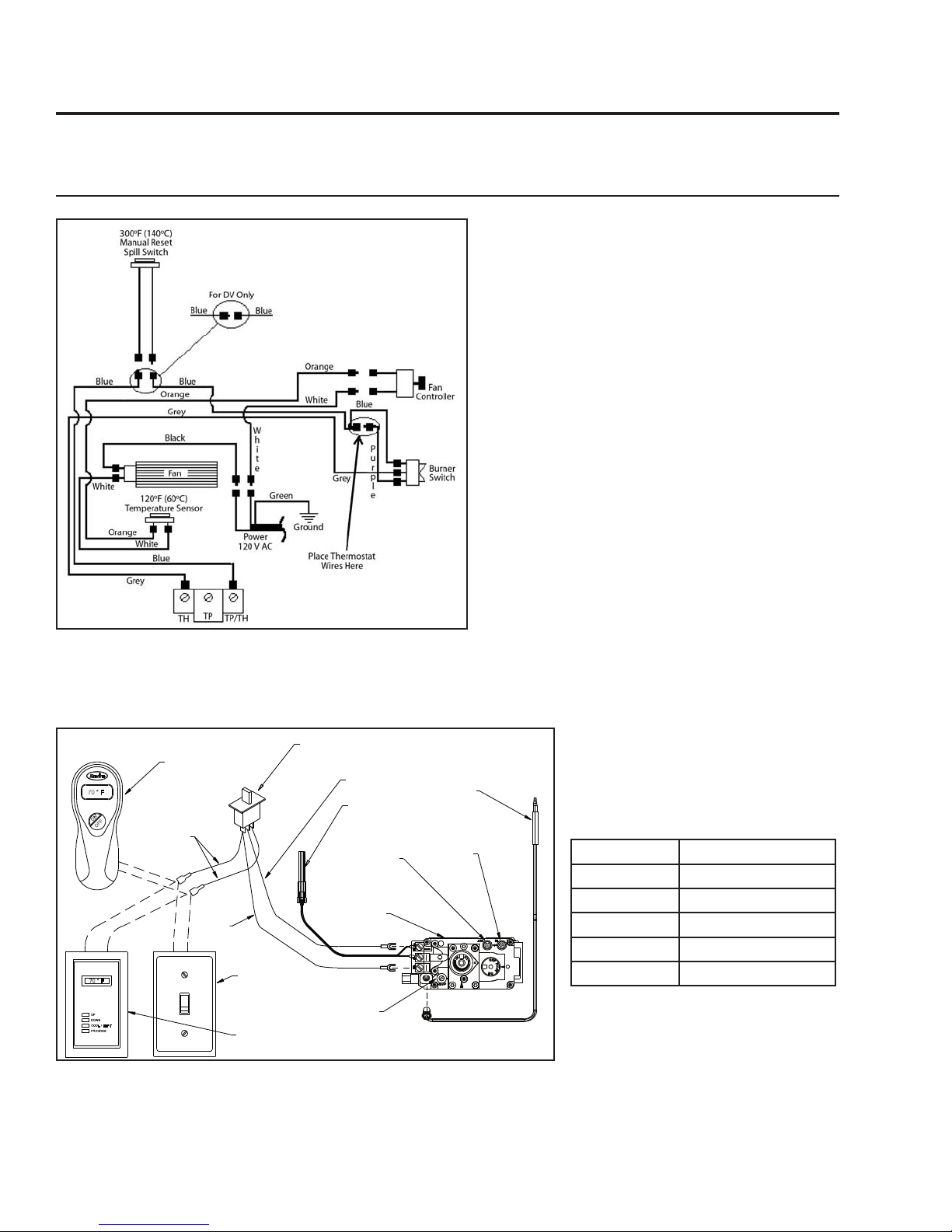

The standard surround panel comes with a fan controller and burner switch so the set that comes with
the unit panel can be kept as spare parts. The fan controller comes pre-mounted in the surround panel
and burner switch is pressed into a notch in the trim. Route the wiring harness through the hole in the
side of the unit marked with an “A” in Figure 20.
Option 3 - Cast Iron Faceplate or Bay Door Assembly.
The fan controller is to be installed into the Focus’ control panel but the burner switch can be installed
into the fascia (see Figure 20). To accomplish this, cut one wire tie so that the wires can be properly
routed. Place the orange and white wires through through the hole in the side of the unit, marked with
an “A” in Figure 20, then along behind the front edge of the replace bottom to the control panel. Use
the wire ties provide to bundle and secure wire. Remove the knob and screw from the fan controller
and place the fan controller through the round hole in the control panel from the back. Tighten nut onto
fan controller from the front of control panel and push on the knob. The burner switch is pressed into a
notch on the edge of the fascia.
Fan controller location
Wiring harness
Burner switch location
A
Figure 20: Component placement.
Option 1 - Unit Panel, Cast Iron Faceplate, Bay Door
Assembly, or Custom Surround Panel.
The fan controller and burner switch are to be installed
into the Focus’ control panel (see Figure 20). Remove the
knob and screw from the fan controller and place the fan
controller through the round hole in the control panel from
the back. Tighten nut onto fan controller from the front of
control panel and push on the knob. The burner switch is
just pushed into place from the front of the control panel.
Route the wiring harness as shown in Figure 20.
Option 2 - Standard Surround Panel.
FAN CONTROLLER & BURNER SWITCH INSTALLATION:
The fan controller and burner switch may be installed in one of three places. Keep the wires away from
the bottom of the rebox or any other hot surfaces.
10. Connect the wires from the unit to the ON/OFF/
THERMOSTAT switch and the FAN CONTROLLER (see
INITIAL INSTALLATION - ELECTRICAL REQUIREMENTS).
11. Place the assembled surround panel around the
stove, align the slots. Push back then down to
engage the surround panel hooks with the slots in the
replace. Install the decorative fascia or bay window
options to the appliance by aligning the hooks and
the slots in the replace as seen in the surround panel
installation.

16
Initial Installation
QUALIFIED INSTALLERS ONLY
CONVERTING A DIRECT VENT FIREPLACE TO A B-VENTED FIREPLACE:
existing and attach with three (3) sheet metal screws evenly spaced to new 4’’ chimney connector.
5. Test re the appliance and ensure proper operation. A venturi adjustment could be required to achieve
an efcient ame. Improper operation or adjustment could result in Carbon Monoxide production
causing personal injury or property damage.
CONVERTING A B-VENT FIREPLACE TO A DIRECT VENTED FIREPLACE:
Chimney
Connector
Drafthood
Diverter
300°F (140°F)
Spill Switch
Air Channels (x2)
Parts required for conversion
1 - 300°F (149°C) manual reset spill switch
and wires
1 - Drafthood (4’’ chimney connection)
2 - Air channels
1 - Drafthood diverter
1. Remove the chimney connector, fresh air
cover plates and draft hood cover plate.
2. Install the 300°F (149°C) spill switch in the
location provided.
3. Install the two fresh air channels in the
correct locations.
4. Install a new 4’’ chimney liner into the
Drafthood
Cover Plate Chimney
Connector
Air Channel
Cover Plate (x2)
Parts required for conversion
1 - Drafthood (2 - 3’’ dual pipe chimney
connector)
2 - Air channel cover plates
1 - Drafthood cover plate.
1. Remove the chimney connector, 300° spill
switch, two (2) B-vent air channels and B-
vent draft diverter plate.
2. Install the two (2) air channel cover plates in
the locations provided.
3. Install the draft hood cover plate in the
location provided.
4. Install two (2) 3’’ chimney liners in the
existing chimney, securing the 3’’ liners with
three (3) sheet metal screws evenly spaced
to the new chimney connector.
Figure 21: Converting To A BV Fireplace.
Figure 22: Converting To A DV Fireplace.
5. Test re the appliance and ensure proper operation. A venturi adjustment could be required to achieve
an efcient ame. Improper operation or adjustment could result in Carbon Monoxide production
causing personal or property damage.

Install sealed throat connector or
flashing to prevent leakage of room
air up through chimney.
DV Only: Before installing vent
liners, mark each liner on both
ends to designate which is the
intake and the exhaust.
Measure the height of the chimney
before hand and purchase the
appropriate kit. Never attempt to
over-stretch a flexible liner to
accommodate the height of the
chimney.
Any flue damper must be removed
or blocked permanently in the open
position.
The chimney must be clean, in
good working order and constructed
of non-combustible materials.
Make sure that all chimney
cleanouts are tightly fitting and will
not permit air to leak into the
chimney
   
Initial Installation
QUALIFIED INSTALLERS ONLY
VENTING FIREPLACE INSERTS:
The ENVIRO FOCUS may be installed and vented into any solid fuel replace that has been installed
in accordance with the National, Provincial/State and local building codes and has been constructed of
non-combustible materials.
An approved chimney liner and rain cap must be used. A throat connector or ashing must be installed
to ensure a tight seal, top performance, safety and efciency. Carefully follow the manufacturer’s
instructions which accompany the chimney liner kit.
Remove the vent collar plate from the top of the insert and connect it securely with sheet metal screws
and/or hose clamps. Check for any tears in the liner at this point.
IMPORTANT: The screws that hold the vent collar plate in its approved position must be installed.
Figure 23: Installation of Focus DV and BV.
17

18
The Focus will operate without electrical
power. This model has a Millivolt gas control
which uses the pilot ame to generate enough
electricity to operate the main burners. This
appliance when equipped with a blower, must
be electrically connected and grounded in
accordance with local codes or in the absence
of local codes, with the current CSA C22.1
CANADIAN ELECTRICAL CODE Part 1, SAFETY
STANDARDS FOR ELECTRICAL INSTALLATIONS,
OR THE NATIONAL ELECTRICAL CODE ANSI /
NFPA 70 in the U.S.
WARNING: Electrical grounding instructions.
This appliance is equipped with a three-prong
(grounding) plug for your protection against
shock hazard, and should be plugged directly
into a properly grounded three-prong outlet.
DO NOT cut or remove the grounding prong
from this plug.
Table 3. Recommended Thermostat
Wire Size.
Wire Size Max. Length
14 gauge 100 ft (30.48 m)
16 gauge 60 ft (18.29 m)
18 gauge 40 ft (12.00 m)
20 gauge 25 ft (7.62 m)
22 gauge 18 ft (5.49 m)
COOL/HEAT
PROGRAM
DOWN
UP
70°F
70°F
ON
OFF
Optional
Remote
Control
Purple
Grey
Optional
Wall Switch
Optional
Thermostat
Pilot
Adjustment
Screw
ON/OFF/REMOTE
Thermostat Switch
Blue
Thermopile
Thermocouple
Manifold
Pressure
Tap
Inlet
Pressure
Tap
Gas
Control
Valve
Figure 25: Wiring of a Thermostat.
Figure 24: Focus Wiring Diagram.
Initial Installation
QUALIFIED INSTALLERS ONLY
ELECTRICAL REQUIREMENTS:
CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation. Verify proper operation after servicing.

Initial Installation
QUALIFIED INSTALLERS ONLY
GAS LINE CONNECTION:
Warning: Only persons licensed to work with gas piping may make the necessary gas connections to
this appliance.
Gas Line Connection:
•This replace is equipped with a certied exible pipe located on the right side of the unit, terminating
in a ” male NPT tting. Consult the local authorities for local codes or use the CAN/CGA B149 (1 or 2)
installation code in Canada. In the US, gas installations follow either local codes or the current edition of
the National Fuel Gas Code ANSI Z223.1.
•The efciency of this unit is a product thermal efciency rating determined under continuous operating
conditions and was determined independently of any installed system.
The appliance and its’ shut-off valves must
be disconnected from the gas supply piping
system during any pressure testing where
the pressure exceeds  psig (3.45 KPa) or
the valve will be damaged.
The unit must be isolated from the gas
supply piping system by closing its’
individual manual shut off valve during any
pressure testing of the gas supply piping
system at pressures equal to or less than
 psig (3.45 KPa).
Always check for gas leaks with a soap
and water solution after completing
the required pressure test.
O
L
I
T
P
TP TH TP TH
IN OUT
H
I
L
O
N
O
F
O
F
L
I
P
T
O

 

 


 

 

TO TEST VALVE PRESSURES:
The pressure taps are located on the top right of
the valve.
• Turn set screw 1 turn counterclockwise to
loosen.
• Place 5/16 in (8 mm) I.D. hose over the
pressure taps.
• Check pressures using a manometer.
• When nished, release pressure, remove hose
and tighten set screw.
NEVER USE AN OPEN FLAME FOR LEAK TESTING.
Figure 26: Fully Labeled Gas Valve.
Table 4: Pressure and BTU Information.
Main Burner Natural Gas
(in W.C./KPa)
Propane Gas
(in W.C./KPa)
Orice: #38 DMS #52 DMS
Manifold Press: 3.8 / 0.95 11.0 / 2.74
Min. Manifold Press: 1.1 / 0.27 2.7 / 0.67
Max. Supply Press: 7.0 / 1.74 13.0 / 3.28
Min. Supply Press: 5.0 / 1.24 12.0 / 2.98
Max. BTU Input: 30,000/ 8.8 KW∙h 28,500/ 8.2 KW∙h
Min. BTU Input: 15,000/ 4.4 KW∙h 14,000/ 4.1 KW∙h
19

Secondary Installation
LOG SET AND EMBER INSTALLATION:
The placement of the logs is not arbitrary. If they are positioned incorrectly, the ames can be “pinched”
and will not burn correctly. The burner comes with placement pins and rest areas, which make alignment
easier. Using Figures 27 to 31, carefully set the logs in place.
Back Placement/Support Pins
NOTE: The logs are fragile and should
be handled with care.
Place the rear log on the two back placement
pins.
Install the left front log on the left placement
pin with the narrow end of the log resting on
the rectangular rest area.
Install the right front log on the right
placement pin with the narrow end
of the log resting on the rectangular
rest area. The last two logs should
meet tip to tip on the rest area.
One end of the big log twig will rest
on the pin on the right log and the
other will lay within the left rest
area.
The small log twig should be placed
so it sit completely within the right
rest area.
Once the logs are in place the embers
can be placed lightly between the
logs. Bags of ceramic ber embers
and rock wool are provided. The
ceramic ber comes in chunks that
are about 2”-4” (5-10cm) long.
Break these roughly in half and
place them irregularly around the
burner. When there is a sparse but
even layer of embers, spread the
rock wool in the same manner. DO
NOT pack this ember material as this
could create an unsafe condition.
The pieces should be lightly place so
they don’t completely block any of
the tiny ports. DO NOT allow any of
the embers to rest against the pilot
assembly.
Figure 27: Focus burner.
Figure 28: Focus Log Placement 1.
Figure 29: Focus Log Placement 2.
Figure 30: Focus Log Placement 3.
20
