Spirit 16611608000 User manual

OWNER’S MANUAL
MODEL NO.
16611608000
- Assembly
- Operation
- Trouble
- Shooting
- Parts
- Warranty
CAUTION:
You must read and
understand this
owner’s manual
before operating unit.

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2017
Email: [email protected] 1
Product Registration…………………………………………………………………………….2
Important Safety Instructions………………………………………………………….….……3
Important Electrical Instructions.……………………………………………………….….…..4
Assembly Instructions………………………………………………………………….….……8
Features………………………………………………………………………………………….12
Operation of Your Elliptical…………………………………………………………………….13
Maintenance…………………………………………………………………………………….33
Exploded View Diagram …………………………………………..…………………………. 34
Parts List………………………………………………………………………………………...35
Training Guidelines…………………………………………………………………….….…...38
Stretching……………………….……………………………………………………………….42
Manufacturer’s Limited Warranty……………………………………………………….…… 44
Thank you for purchasing our product, please save these instructions.
Please do not perform or attempt any customizing, adjustments, repair
or maintenance that is not described in this manual.
Table of Contents

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2017
Email: [email protected] 2
CONGRATULATIONS ON YOUR NEW ELLIPTICAL
Thank you for your purchase of this quality elliptical from Dyaco Canada Inc. Your new
elliptical was manufactured by one of the leading fitness manufacturers in the world and is
backed by one of the most comprehensive warranties available. Through your dealer,
Dyaco Canada Inc. will do all we can to make your ownership experience as pleasant as
possible for many years to come. The local dealership where you purchased this elliptical is
your administrator for all warranty and service needs. Their responsibility is to provide you
with the technical knowledge and service personnel to make your experience more informed
and any difficulties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number,
and the date of purchase below to make any future, needed contact easy. We appreciate
your support and we will always remember that you are the reason that we are in business.
Please complete and mail your registration card today and enjoy your new elliptical.
Yours in Health,
Dyaco Canada lnc. Name of Dealer______________________________________
Telephone Number of Dealer___________________________
Purchase Date_______________________________________
RECORD YOUR SERIAL NUMBER
Please record the Serial Number of this fitness product in the space provided below.
Serial Number_______________________________________
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to
Dyaco Canada Inc.
Product Registration

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2017
Email: [email protected] 3
WARNING -Read all instructions before assembling, using or servicing this equipment.
Before beginning this or any exercise program, consult a physician. This is especially
important for persons over the age of 35 or persons with pre-existing health conditions.
If you experience nausea, dizziness or other abnormal symptoms while exercising, stop your
workout at once and consult a physician.
To avoid muscular pain and strain, begin each workout by warming up and end it by cooling
down (slow pedaling at low resistance). Don’t forget to stretch at the end of the workout.
Do not operate elliptical on deeply padded, plush or shag carpet. Damage to both
carpet and elliptical may result.
Keep children away from the elliptical. There are obvious pinch points and other caution
areas that can cause harm.
Keep hands away from all moving parts.
Never operate the elliptical if any of the parts are damaged. If the elliptical is not working
properly, call your dealer.
Never drop or insert any object into any openings.
Do not use outdoors.
Do not attempt to use your elliptical for any purpose other than for the purpose it is
intended.
The hand pulse sensors are not medical devices. Various factors, including the user’s
movement, may affect the accuracy of heart rate readings. The pulse sensors are
intended only as exercise aids in determining heart rate trends in general.
Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable
for use on your elliptical. Quality athletic shoes are recommended to avoid leg fatigue.
Max. user’s weight: 450 lbs
SAVE THESE INSTRUCTIONS - THINK SAFETY!
Important Safety Instructions

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2017
Email: [email protected] 4
IMPORTANT ELECTRICAL INSTRUCTIONS
WARNING!
NEVER remove any cover without first disconnecting AC power.
If voltage varies by ten percent (10%) or more, the performance of your elliptical may be
affected. Such conditions are not covered under your warranty. If you suspect the voltage
is low, contact your local power company or a licensed electrician for proper testing.
NEVER expose this elliptical to rain or moisture. This product is NOT designed for use outdoors,
near a pool or spa, or in any other high humidity environment. The operating temperature
specification is 40 to 120 degrees Fahrenheit, and humidity is 95% non-condensing (no water
drops forming on surfaces).
GROUNDING INSTRUCTIONS
This product must be grounded. If the elliptical should malfunction or breakdown,
grounding provides a path of least resistance for electric current, reducing the risk of electric
shock. This product is equipped with a cord having an equipment-grounding plug. The plug
must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to
whether the product is properly grounded. Do not modify the plug provided with the
product if it will not fit the outlet; have a proper outlet installed by a qualified electrician.

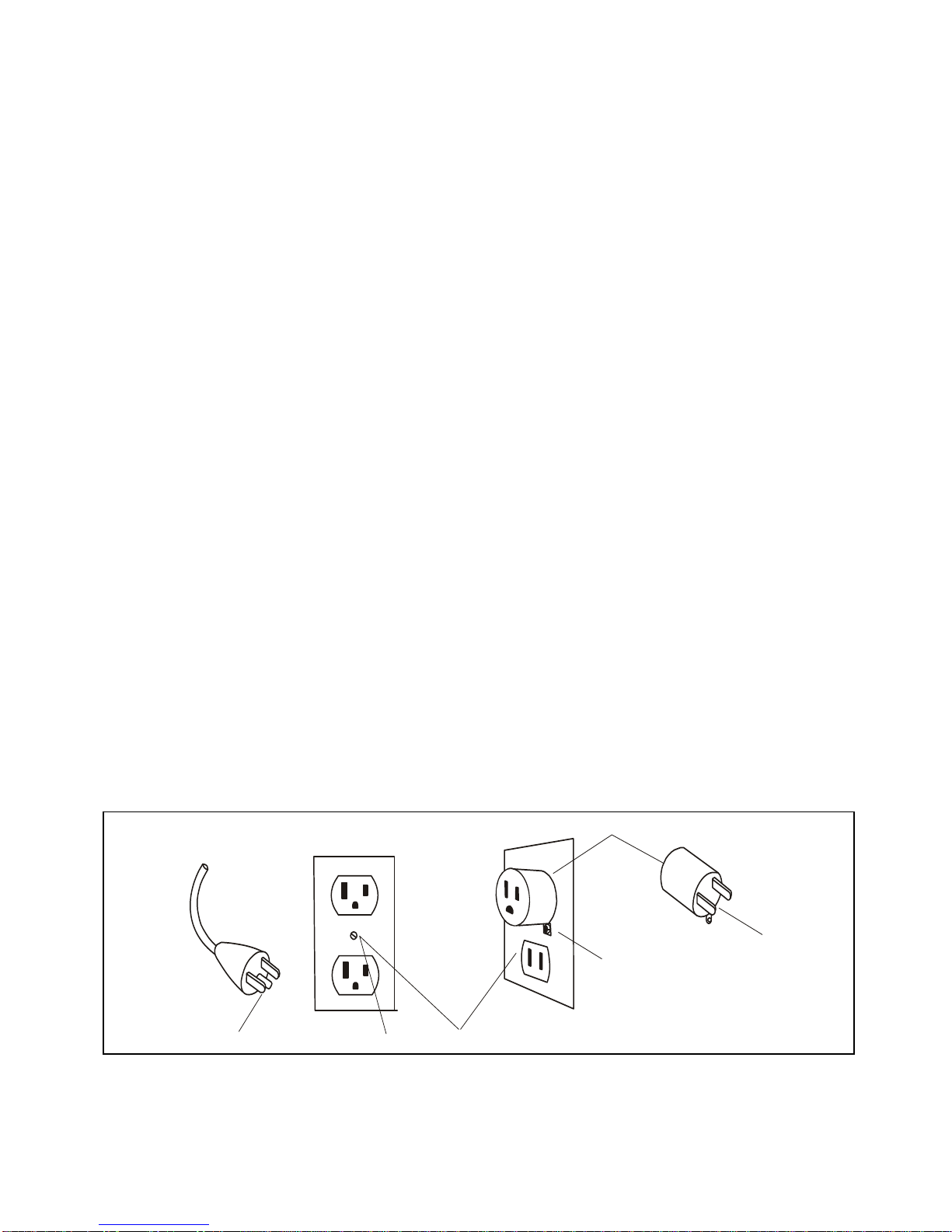

This product is for use on a nominal 110-volt circuit, and has a grounding plug that looks like
the plug illustrated below. A temporary adapter that looks like the adapter illustrated below
may be used to connect this plug to a 2-pole receptacle as shown below if a properly
grounded outlet is not available.The temporary adapter should be used only until a properly
grounded outlet (shown below) can be installed by a qualified electrician.The green colored
rigid ear lug, or the like, extending from the adapter, must be connected to a permanent
ground such as a properly grounded outlet box cover.Whenever the adapter is used, it must
be held in place by a metal screw.
Grounded Outlet
Grounding Pin Grounded Outlet Box
Adapter
Metal Screw
Tab of
Grounding Screw

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2017
Email: [email protected] 5
Never operate the elliptical without reading and completely understanding the results of any
operational change you request from the computer.
Do not use excessive pressure on console control keys. They are precision set to properly
function with little finger pressure. If you feel the buttons are not functioning properly with
normal pressure, contact your dealer.
Do not attempt any servicing or adjustments other than those described in this manual. All
else must be left to trained service personnel familiar with electro-mechanical equipment and
authorized under the laws of the country in question to carry out maintenance and repair
work.
Hold the handlebar for support when getting on or off the elliptical.
Make sure there is at least one meter of clearance between the elliptical and any fixed object.
The safety level of this elliptical can only be ensured if you inspect all parts for signs of wear
or visible damage before each use. If a part is damaged, do not use the elliptical. Replace
any damaged parts immediately and keep the elliptical out of use until repair can be made.
Place the elliptical on a firm, level surface. Place the elliptical on a protective surface to avoid
damaging the floor beneath the equipment.
If the wattage reading on the console seems incorrect, see your local dealer for recalibration.
Elliptical Lubrication
1. Pour 2c.c of the lubricant under the middle of the rail. You must lubricate the rails every three
months.
2. If you feel the exercise is not smooth or you hear noise during your exercise, lubricate the
middle rail with 2 c.c.of the lubricant.
Important Operation Instructions

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2017
Email: [email protected] 6
Assembly Pack Check List
Ste
p
2
#127 - 3/8” x 2-1/4”
Button Head Socket Bolt (4 pcs) #130 - 3/8”
Flat Washer (4 pcs)
#129 - 3/8”
Curved Washer (6 pcs)
#128 - 3/8” x 3-3/4”
Button Head Socket Bolt (6 pcs)
#106 - 5/16”
Flat Washer (2 pcs) #126 - 5/16" x 15mm
Socket Head Cap Bolt (2 pcs) #97 - M5 x 12mm
Phillips Head Screw (4 pcs)
#119 - M6 x 15mm
Phillips Head Screw (2 pcs)
#97 - M5 x 12mm
Phillips Head Screw (4 pcs)
Step 1
#131 - M5 x 10mm
Phillips Head Screw (8 pcs)

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2017
Email: [email protected] 7
#132 - M8 x 25mm
Socket Cap Bolt (4 pcs) #135 - 3/8” x 3/4”
Hex Head Bolt
W / Loctite (2 pcs)
#136 - M10
Nylon Nut (2 pcs)
#137 - M10 x 14mm
Shoulder Bolt (2 pcs) #138 - 3/8”
Flat Washer (2 pcs)
#134 - 3.5 x 12mm
Sheet Metal Screw (14 pcs) #97- M5 x 12mm
Phillips Head Screw (16 pcs)
Step 4
#134 - 3.5mm x 12mm
Sheet Metal Screw (4 pcs)
#133 - 25mm
Wave Washer (2 pcs) #107 - 5/16"
Flat Washer (1 pcs)
Step 3

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2017
Email: [email protected] 8
STEP 1:
Gather HARDWARE FOR STEP 1.
Slide the RAIL ASSEMBLY (2) under the rear oval stabilizer tube of the main frame. Secure
together with 2 BOLTS (127) and 2 WASHERS (130) from the top of the tube and 4 BOLTS
(128) and 4 CURVED WASHERS (129) from the front of the tube. Make sure all 6 BOLTS
are tightened securely.
Install the CENTER ALUMINUM RAIL (89) with 2 BOLTS (128) and 2 CURVED WASHERS
(129) at the rear and 2 BOLTS (127) and 2 WASHERS (130) at the front.
Install the 2 STABILIZER COVERS (84 RIGHT & 83 LEFT) with 2 SCREWS (97) to the
middle STABILIZER TUBE and the 2 STABILIZER COVERS (83 RIGHT & 84 LEFT) with 2
SCREWS (97) to the rear stabilizer tube.
Assembly Instructions

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2017
Email: [email protected] 9
STEP 2:
Gather HARDWARE FOR STEP 2.
Attach FOOTPLATES (L 67) to the pedal mounting plate with 4 SCREWS (131).
Slide the PEDAL ARM assembly (5) onto the crank axle of the main body. Be careful not to
force it because damage to the bearings can occur. Secure with a BOLT (126) and
WASHER (106).
Install the COVER (64) over the pedal arm connection at the rotation axle with a SCREW
(119).
Install the ROLLER WHEEL COVER (69) with 2 SCREWS (97).
Repeat all steps with the opposite PEDAL ARM assembly (6).

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2017
Email: [email protected] 10
STEP 3:
Gather HARDWARE FOR STEP 3
Unravel the COMPUTER CABLE (35), CSAFE CABLE (32), TV CABLE (33), NETWORK
CABLE (34), CONSOLE POWER CABLE (36), HDMI CABLE (46) and snake it through the
bottom of the CONSOLE MAST (11) and out the top. To install the CONSOLE MAST (11),
first insert 3 SCREWS (132) onto the mainframe then locate the CONSOLE MAST (11) on
its position and tighten three screws. Now the last SCREW (132) must be with FLAT
WASHER (107) to tighten to the screw hole.
Mount the CONSOLE MAST COVERS (80 & 81) with 4 SCREWS (134).
Install 2 WAVE WASHERS (133) onto the CONSOLE MAST AXLE then install the SWING
ARMS (L9) (R10) onto the axles. Do not force them or use a hammer as damage to the
bearings can occur. Secure with a BOLT (135) and WASHER (138) on each arm.
Attach the bottom of the swing arms to the rod ends of the pedal arms using 2 SHOULDER
BOLTS (137) and 2 NYLON NUTS (136).

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2017
Email: [email protected] 11

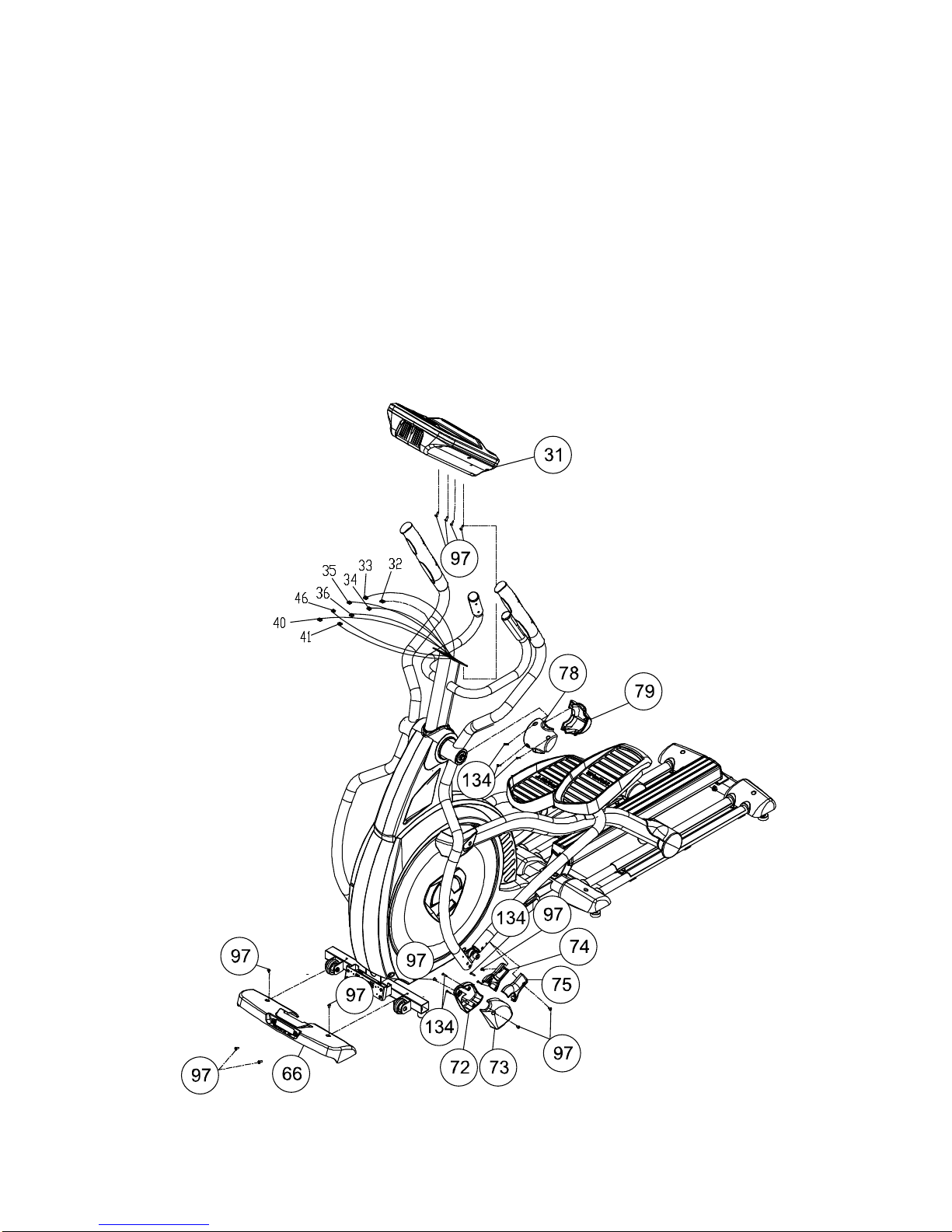

STEP 4:
Gather HARDWARE FOR STEP 4.
Plug the COMPUTER CABLE (35) CSAFE CABLE (32), NETWORK CABLE (34),
CONSOLE POWER CABLE (36), HDMI CABLE (46) and HANDPULSE ASSEMBLY (40/41)
into the corresponding connectors on the back of the CONSOLE (31). Mount the CONSOLE
(31) to the MAST with 4 SCREWS (97).
Install 4 FRONT & REAR HANDLEBAR COVERS (77/76 & 78/79) with 6 SCREWS (134).
Install 4 CONNECTING ARM COVERS (74X2 & 75X2) to the ends of the PEDAL ARMS
with 4 SCREWS (97) and 4 SCREWS (134). Be careful not to install these covers upside
down! There is an arrow on the inside of each cover to indicate the correct installation
direction.
Install the 4 CONNECTING ARM COVERS (72 X 2 & 73 X 2) to the connection point at the
bottom of the SWING ARMS using 4 SCREWS (134) and 4 SCREWS (97).
Install the FRONT STABILIZER COVER (66) with 4 SCREWS (97).

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2017
Email: [email protected] 12
Footpads
Through research performed with a leading sports scientist and physical rehabilitation expert, the
engineering has developed a breakthrough in pedal design. The history of elliptical use over the
past few years tells us that many users suffer from ankle, Achilles tendon, knee and/or hip pain.
While researching a solution to these common problems the engineers consulted Richard DeKok,
P.T., M.T.C., of St. Bernards Industrial Rehabilitation Center in Jonesboro Arkansas. Together we/
identified the inherent problem in elliptical designs and developed a solution to solve the problem.
What we found is that when you use an elliptical you tend to push outward during the power stroke
and not just straight back. This causes stress on the outer part of the foot and throws off the natural
alignment of the body’s joints. The solution we discovered was to add a 2-degree inward angle to
the footpads. This might sound simple but it was all that was needed to put the user’s joints back
into a neutral alignment. This eases the over stressing of the ankles, knees and hips and allows the
user to exercise longer without discomfort.
Transportation
The elliptical is equipped with two transport wheels, which are engaged when rear of CE Series
Elliptical is lifted.
Features

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2017
Email: [email protected] 13
The console
Starting the operation
• Plug in the power cord and switch on the main power switch located at the front base of the unit.
• When the power is turned on, the screen will show the initial image and then enter the ready mode
which is the beginning of the console operation.
First page for you to operate by touching the icons.
Quick operating functional buttons are installed.
Operation of Your Elliptical
Large Touch-
Screen LCD
Convenient cargo
compartment for
keys, phone, or
MP3 player
Fan to keep
you cool
Ten innovative
programs offer a
variety of work-outs
Easy-Touch
Control Buttons

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2017
Email: [email protected] 14
Quick Start
• Press “START” button and the console start performing the program. Press “LEVEL” up/down
buttons further to change the resistance level you desire.
• Press “HOME” button on the top left corner or “STOP” to pause your workout.
Featuring Functions of this Elliptical:
Touch-control screen is installed for operating the elliptical. You can directly touch any functional
button on the screen or through buttons on the bottom to control. On the bottom, there are the
“START” button to begin the workout, “STOP” button to pause/stop exercise and “FAN” button to
turn the fan on or off.
Pause / Stop
• Press “STOP” button once or “HOME” button on the screen, the unit will stop and keep values of
time, distance and calorie on the screen. The screen will count down for 5 minutes then reset.
• Press “START” button to continue the workout during pause.
•Press “STOP” button twice, the console will ask you if you want to end the workout. If “STOP”
button is pressed the third time, the console will display your workout summary.
Heart Rate Feature
The Pulse (Heart Rate) on the screen shows the current value of the heart beats per minute. You
must use both left and right stainless steel sensors to pick up your pulse. Pulse values are
displayed anytime the computer is receiving a Grip Pulse signal. You may use the Grip Pulse
feature while in Heart Rate Control. The console can also detect the pulse from a wireless chest
strap.
To Turn Off the Unit
The screen will automatically turn off (go to sleep) after 30 minutes of inactivity. This function is
called sleep mode. In sleep mode, the elliptical will power down everything except for a minimum of
circuitry for detecting key presses, so it will start up again if this is activated. There is only a tiny
amount of current used in sleep mode (about the same as your TV when it is turned off) and it is
perfectly fine to leave the main power switch on in sleep mode.
Audio:
To listen to any audio source with this unit, you must plug a headset into the port on the console.

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2017
Email: [email protected] 15

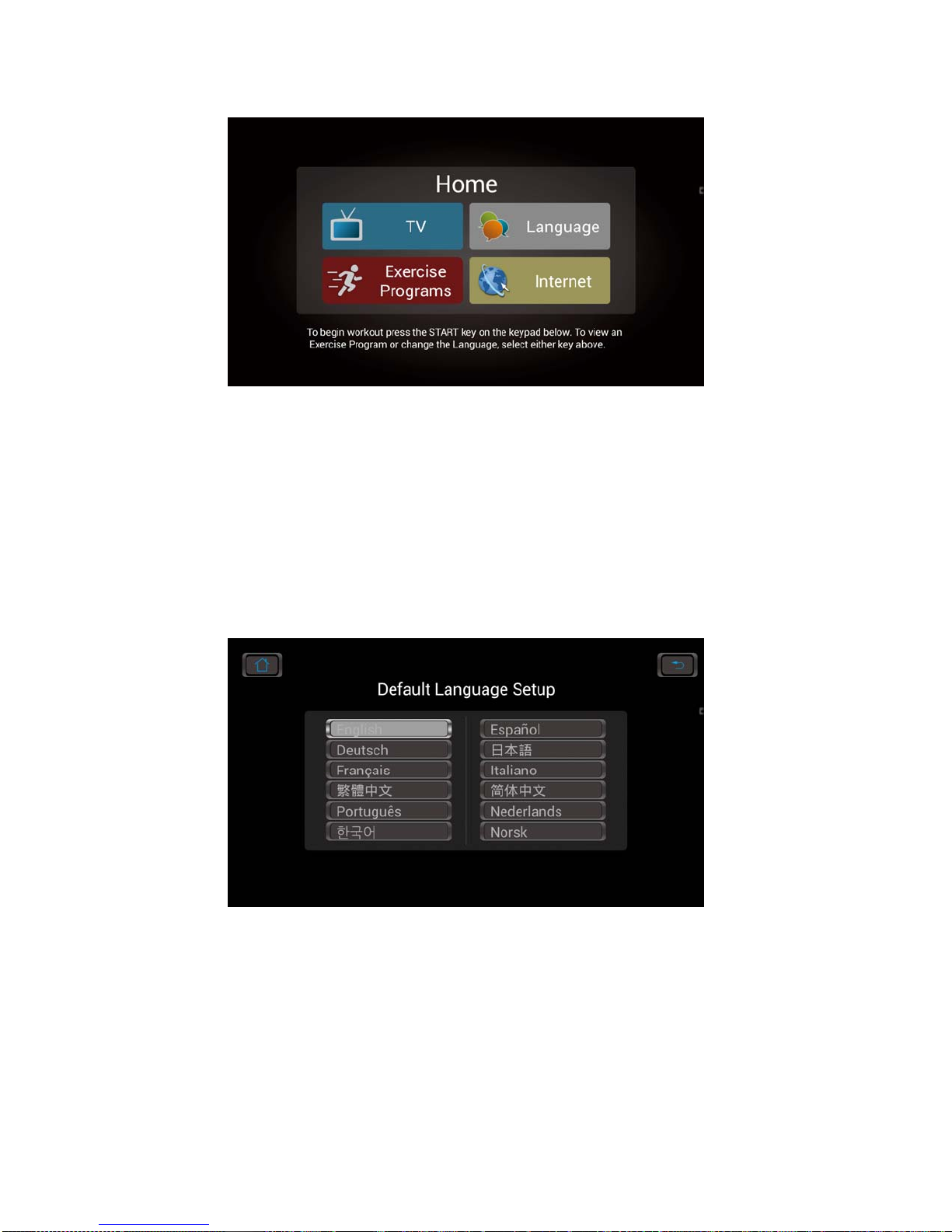

Touch Screen Operation
• First page HOME
There are four selections. Usually the “Language” is the first selection.
•When you press “Language” button on the first page HOME, it enters the menu with all
languages selection.
There are 12 languages to choose.
Touch the desired language button to set and the system will return to the first page for the program
operation. If you don’t want to change the language, press HOME button at the upper left corner to
return to the first page.

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2017
Email: [email protected] 16
TV
When the TV button on the Home page is pressed, it directly enters TV interface.
Now you can enjoy TV programs. If you want to enjoy TV while exercising, press Start button at
front of the elliptical to start it.
You can change the TV channel by using Up/Down buttons on the TV channel or the channel
control panel buttons at the right side of the screen for quick channel switching. You can also use
up/down buttons on the volume to change the sound volume. If you want to be quiet, touch Mute
button. Touch Max Screen to switch to full screen. When you want to resume the original screen
display, just touch the image and the screen resumes. Use Fast and Slow buttons to control the
speed and Up or Down button to set the incline level during the exercise.
When you want to pause, just press Home button at left top or press Stop button once and the
pause window will show up If you want to stop, you can choose to end the program or press
“STOP” button again to end the program (the console will display a message to ask you if you want
to end the workout). Pressing the “STOP” button third time and the console will display a workout
summary.

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2017
Email: [email protected] 17
Internet
When the Internet button on the Home page is pressed, it directly enters Internet interface.
There are 6 internet connections to choose for you to go on the internet while you are exercising
(internet cable connection or WIFI connection is required). Press “START” button of the elliptical to
start it.
Use “level up/down buttons to control the resistance level during the exercise. When you want to
pause, just press Home button at left top or press Stop button once and the pause window will
show up. If you want to stop, you can choose to end the program or press Stop button again to
terminate the setting and show up the workout summary. If Stop button is pressed the third time, it
returns to the initial status (the beginning).
Exercise Programs
When the Exercise Program button on the Home page is pressed, it directly enters Menu interface.
There are 10 program modes in Menu interface for you to choose the desired program mode. For
Manual Program as an example, just touch Manual button on the screen to enter the program for
Manual.

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2017
Email: [email protected] 18
MANUAL
Press Profile button to enter the Profile interface. If this program is unwanted, just press Home
icon at left top to return to the first page, or return icon at right top to return to the previous page to
continue the last operation. If other profile is wanted, touch left or right arrow button to choose the
wanted program.
The profile interface image is as below.
If it is the program you want, touch Enter button at the bottom once to enter next image. If not,
touch the Home icon at left top to return to the first page or the return icon at right top to return to
the previous page to continue the last operation. If other profile is wanted, touch left or right arrow
button to choose the wanted program.

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2017
Email: [email protected] 19
Setting Program
This image is for setting program time, user’s age and weight. Press Enter button after entering
parameters to confirm. Then press Start button to start the Manual Program. If not, just press
Home icon at left top to return to the first page, or return icon at right top to return to the previous
page to continue the last operation.
Display Options
Simple
After starting the program, a “SIMPLE” workout view displays as below.
The simple workout view contains all values on the bottom concerning your workout. The resistance
level is at the right side and is adjustable with the Up or Down buttons.
The bar chart for the resistance level is in the middle. TV interface button is on top to touch for
entering the TV mode, or touch Internet for entering the internet interface. If Program button is
touched, the system will ask you if you want to end the current workout. If “DISPLAY” button is
touched, you can access the different workout views.
