ePropulsion SPIRIT 1.0 Evo User manual

SPIRIT 1.0 Evo User Manual
Jan, 2021 Version 1.0
Copyright © 2021 ePropulsion. All Rights Reserved

1
Acknowledgement
Thanks for choosing ePropulsion products, your trust and support in our company
are sincerely appreciated. We are dedicated to providing high-performance electric
outboards, electric outboards, sup/kayak motors, reliable lithium batteries and acces-
sories.
Welcome to visit www.epropulsion.com and contact us if you have any concerns.
Using This Manual
Before use of the product, please read this user manual thoroughly to understand the
correct and safe operations. By using this product, you hereby agree that you have
fully read and understood all contents of this manual. ePropulsion accepts no liability
for any damage or injury caused by operations that contradict this manual.
Due to ongoing optimization of our products, ePropulsion reserves the rights of con-
stantly adjusting the contents described in the manual. ePropulsion also reserves the
intellectual property rights and industrial property rights including copyrights, patents,
logos and designs, etc.
This manual is subject to update without prior notice, please visit our website www.
epropulsion.com for the latest version. If you find any discrepancy between your
products and this manual, or should you have any doubts concerning the product or
the manual, please visit www.epropulsion.com.
ePropulsion reserves the rights of nal interpretation of this manual.
This manual is multilingual, in case of any discrepancy in the interpretation of differ-
ent language versions, the English version shall prevail.
Symbols
The following symbols will help to acquire some key information.
Important instructions or warnings
Useful information or tips

2
Product Identification
Below picture indicates the serial numbers of SPIRIT 1.0 Evo. Please note the posi-
tion of the serial numbers and record them for access to warranty service and other
after-sale services.
Figure 0-1
ElectricOutboard Motor
Model:
RatedPower: 1000 W
RatedVoltage: 48 V
S/N:
Date:
Serial NO.
Electric Outboard Motor
Model:
Rated Power: 1000 W
Rated Voltage: 48 V
S/N:
Date:

3
Table of Contents
Acknowledgement..................................................................................... 1
Using This Manual..................................................................................... 1
Symbols .................................................................................................... 1
Product Identification................................................................................ 2
1 Product Overview ................................................................................... 5
1.1 In the Package......................................................................................... 5
1.2 Parts and Diagram................................................................................... 7
1.3 Specifications.......................................................................................... 8
1.4 Declaration of Conformity..................................................................... 11
2 Important Notes before Start ................................................................ 12
2.1 Outboard ................................................................................................ 12
2.2 Battery.................................................................................................... 13
3 Installation ........................................................................................... 15
4 Connecting a 48V Battery ..................................................................... 19
5 Operation.............................................................................................. 20
5.1 Checklist before Start ........................................................................... 20
5.2 Starting................................................................................................... 20
5.3 Stopping................................................................................................. 22
5.4 Power off the External Battery.............................................................. 23
5.5 Tiller Adjustment ................................................................................... 24
5.6 Tilting up the Outboard Motor .............................................................. 26
5.7 Fixing the Steering Direction................................................................. 27
5.8 Fixing for Easy Carrying ........................................................................ 27
6 Evo Control System .............................................................................. 28
6.1 Display Panel ......................................................................................... 28
6.2 Charging the Remote Control ............................................................... 32
6.2.1 Charging by Solar Power............................................................. 32
6.2.2 Charging by Wired Connection ................................................... 32
6.3 Power Adjusting .................................................................................... 34
6.3.1 Power Adjusting for Evo Control System ................................... 34

4
6.3.2 Recalibration ................................................................................ 35
6.4 Use of Safety Wristband ....................................................................... 37
6.4.1 Pairing Safety Wristband with Evo Control System ................... 37
6.4.2 Man Overboard Protection.......................................................... 37
6.4.3 Emergency Stop........................................................................... 37
6.5 Pairing Evo Control System with the Outboard ................................... 38
6.6 Warning Messages................................................................................ 40
7 Battery Charging................................................................................... 42
8 Hydro Generation Function ................................................................... 44
9 Trim Angle Adjusting ............................................................................ 45
10 Propeller Assembly ............................................................................ 47
11 Anti-grounding Mode.......................................................................... 48
12 Maintenance....................................................................................... 50
12.1 Notes.................................................................................................... 50
12.2 Propeller Maintenance........................................................................ 50
12.3 Replacing the Anode ........................................................................... 51
12.4 Maintenance Time Table .................................................................... 52
13 Transportation and Storage ................................................................ 53
13.1 Transportation..................................................................................... 53
13.2 Placement............................................................................................ 54
13.3 Storage................................................................................................. 54
14 Emergency Situations......................................................................... 55
14.1 Impact Damage................................................................................... 55
14.2 Submerged Outboard.......................................................................... 55
14.3 Low Battery Level................................................................................ 55
15 Warranty ............................................................................................ 56
15.1 Warranty Policies................................................................................. 56
15.2 Out of Warranty ................................................................................... 57
15.3 Warranty Claim Procedures................................................................ 57

5
1 Product Overview
SPIRIT 1.0 Evo is designed to be an integrated electric outboard with high overall e-
ciency and long cruising duration. The power of SPIRIT 1.0 Evo is equivalent to a 3hp
petrol outboard but works quieter. With removable tiller or remote control, it’s easy
to carry and store. All these high-performance features make SPIRIT 1.0 Evo an ideal
option for tenders, dinghies and sailboats.
The SPIRIT 1.0 Evo includes two models, SPIRIT 1.0 Evo-L and SPIRIT 1.0 Evo-S,
which have different shaft lengths for adaptation of different transom heights.

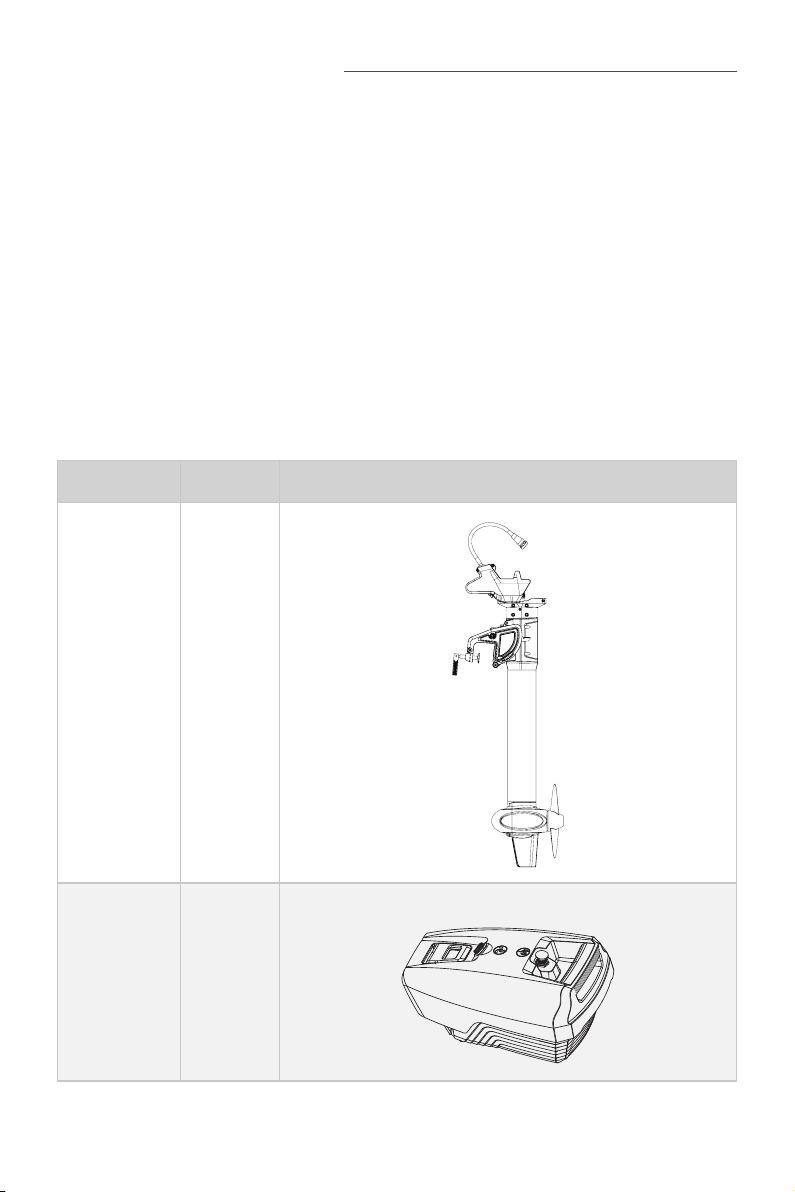

1.1 In the Package
Unpack the package and check if there is any damage caused during transport.
Check all the items inside the package against the below list. If there is any transport
damage or lack of any listed item, please contact your dealer immediately.
Items Qty./Unit Figure
Outboard
(Main part) 1 set
Battery
(Purchase
Separately)
1 set

6
Save the ePropulsion original package for the outboard storage.
Other accessories mentioned in this user manual need to be purchased by users
from ePropulsion authorized dealers.
There are currently four types of ocial chargers for SPIRIT Battery Plus. The
one included in the package is Standard Charger. The other three are Fast Charg-
er, Solar Charger and DC Charger, which need to be purchased separately by us-
ers from ePropulsion authorized dealers.

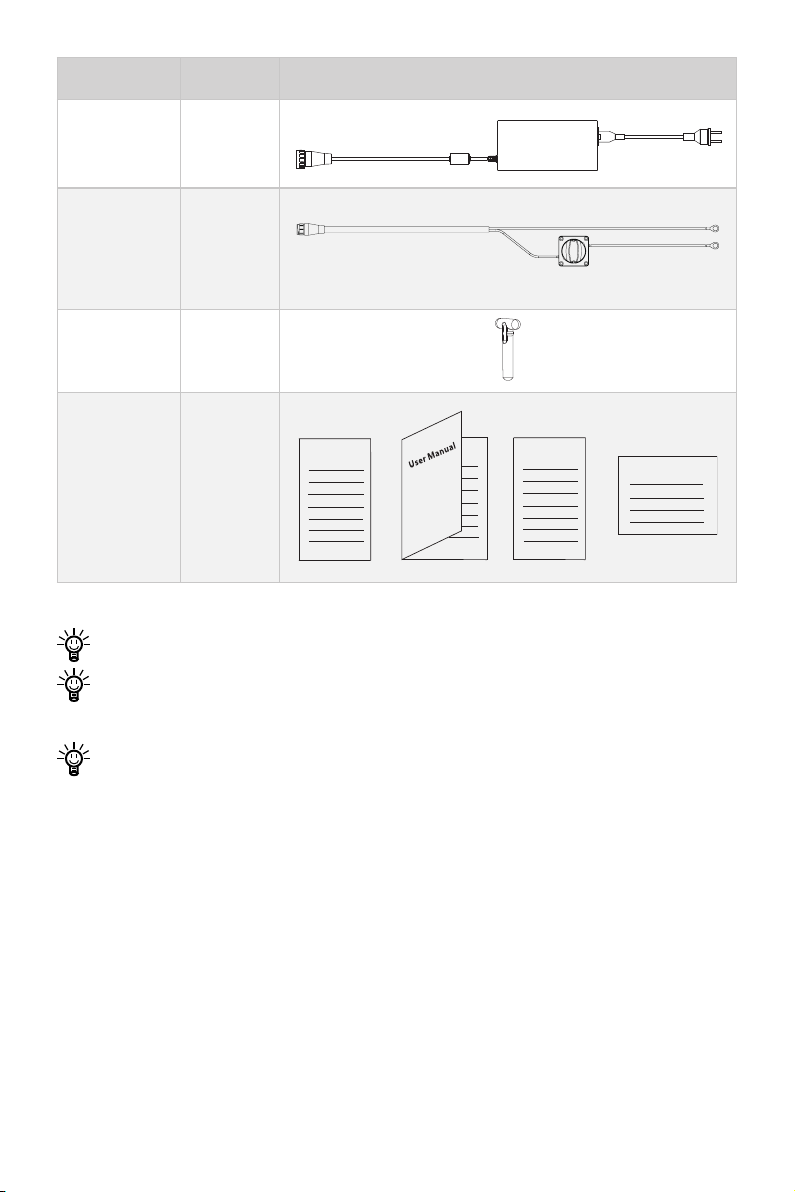

Items Qty./Unit Figure
Battery
Charger 1 set
Spirit External
Battery Cable
(Purchase
Separately)
1 set
Steering
Lock Pin 2 pieces
User Manual,
Warranty
Card,
Quality Certi-
cate & Invita-
tion Card
1 set
Warranty
Quality
Certificate
Invitation Card

7
1.2 Parts and Diagram
Handle Shaft
Battery Handle
Charging Port
Charging Indicator
Power Port
Battery Lock
Battery Pack
(built-in Li-po
batteries and BMS)
Power Cable
Beaching Pin
Bracket Clamp
Clamp Tightening
Handle
Trim Pin
Shaft
Motor
Propeller
Trim Release Lever
Anode
Skeg
Figure 1-1

8
1.3 Specifications
SPIRIT 1.0 Evo-L / SPIRIT 1.0 Evo-S
Type Electric
Rated Input Power 1 kW
Rated Current 20.8 A
Comparable Petrol Outboard 3 hp
Maximum Overall Eciency 55%
Maximum Rotation Speed 1200 rpm
Steering Remote Control / Tiller Control
Weight (without battery) 10.2 kg (S)
10.6 kg (L)
Dimension (L×W×H) 405 mm × 226 mm × 1072 mm (S)
405 mm × 226 mm × 1197 mm (L)
Shaft Length 625 mm (S)
750 mm (L)
Trim Angle 0°, 7°, 14°, 21°, 85°
Propeller (Diameter / Pitch) 280 mm / 5.8"

9
SPIRIT Battery Plus
Type Lithium-Polymer
Rated Capacity 1276 Wh
Rated Voltage 45.6 V
Cut-off Voltage 33.6 V
Full Charged Voltage 52.2 V
Charging Time ~8 hrs
Cycle Life ≥500 cycles (80% of Rated Capacity)
Temperature Range Charging: 0°C ~ 45°C (32°F ~ 113°F)
Discharging: -20°C ~ 60°C (-4°F ~ 140°F)
Dimension (L×W×H) 416 mm × 275 mm × 202 mm
Weight 8.8 kg / 19.4 lbs.
External Battery Requirement
Type Lead-acid Battery or Lithium Battery
Rated Voltage 48 V
Minimum Voltage 39 V
Maximum Voltage 60 V
Minimum Continuous
Discharge Current 28 A
Internal Resistance ﹤100 mΩ

10
SPIRIT 1.0 Plus Charger
Output Power 180 W
Output Voltage 52.2 V DC
Output Current 3.5 A
Cut-off Current 0.4 A
Temperature Range Operation: -10°C ~ 45°C (14°F ~ 113°F)
Storage: -30°C ~ 70°C (-22°F ~ 158°F)
Rated Input Voltage 100 ~ 264 V AC
Output Frequency 50 Hz / 60 Hz
Input Current (Max) 2 A @ 220 V
Eciency ≥87%
It is forbidden to charge other batteries with SPIRIT charger. It is strictly forbid-
den to charge SPIRIT battery with non-ocial standard charger.
SPIRIT Battery Plus, SPIRIT 1.0 Evo machine and SPIRIT 1.0 Plus charger should
be used together. It is forbidden to use SPIRIT Battery Plus and SPIRIT 1.0 Plus
charger for SPIRIT 1.0 Evo machine, and it is forbidden to use SPIRIT battery for
SPIRIT 1.0 Evo machine. Otherwise, the consequences of mixed use are at your
charge.

11
1.4 Declaration of Conformity
Object of the Declaration:
Product: Electric Outboard Motor
Model: SPIRIT 1.0 Evo, SPIRIT 1.0 Evo-S, SPIRIT 1.0 Evo-L
Company Name: Guangdong ePropulsion Technology Limited
Address: Room 201, Bldg.17A, 4th XinZhu Road, SongShan Lake District, Dongguan
City, Guangdong Province, China
The object of the declaration is in conformity with the following directives:
EMC-directive 2014/30/EU
MD-directive 2006/42/EC
RED-directive 2014/53/EU
Applied Standards:
EN 55014-1:2017 EN 300328:2019
EN 55014-2:2015 EN 50663:2017
EN 61000-3-2:2014 EN 62368-1:2014+A1:2017
EN 61000-3-3:2013/A1:2019 EN 60204-1:2018
EN 301489-1:2019 EN ISO 12100:2010
EN 301489-3:2019
This device complies with part 15 of the FCC Rules: Operation is subject to the follow-
ing two conditions:
1. This device may not cause harmful interference and,
2. This device must accept any interference received, including interference that
may cause undesired operation.
Signature:
Shizheng Tao, Chief Executive Ocer & Cofounder of
Guangdong ePropulsion Technology Limited

12
2 Important Notes before Start
The SPIRIT 1.0 Evo electric outboard motor is designed to offer clean propulsion and
excellent experience on water. For safety reasons, please read the following instruc-
tions and notes before using this product. By using this product you hereby: 1) agree
to these notes and instructions; 2) agree not to use this product for purposes that
infringe upon or contravene laws and regulations; 3) agree to be responsible for your
own conduct while operating this product.
2.1 Outboard
• Only allow adults who have thorough understanding of this manual to operate
this product.
• Always have a paddle on board especially if the electric outboard motor is the
only propulsion system.
• Familiarize yourself with all the outboard operations, including start/stop,
steering and tilting.
• Check the status of the outboard and battery level before each trip.
• Follow the boat manufacturer’s instructions on the maximum allowed outboard
power of your boat, do not overload the boat or the outboard.
• Take serious of battery safety. Follow battery instructions, avoid short-circuit,
overheat, overcharge and over-discharge.
• Only run the outboard while the propeller is under water.
• Stop the outboard immediately if someone falls overboard.
• Do not leave the outboard in the water while the boat speed reach 35km/h.
• Tilt up the outboard above water after use.
• Wash the outboard with fresh water after operating in salt water.
• If an error code displays and the outboard malfunctions, please reset the
throttle to zero position and cut the power off, then refer to 6.2 Error Codes and
Solutions to acquire the solution to the error.
• For protection considerations, the motor will stop immediately if the battery
voltage drops below the critical level during operation or when running.
WARNING

13
• To keep electric connectors in good condition, please spray the connectors
about every 3 months with contact spray.
• To store the outboard motor, put the machine in original ePropulsion package
and keep it in a dry and ventilated place without direct sun exposure.
2.2 Battery
The SPIRIT Battery Plus specially designed for SPIRIT 1.0 Evo can only be charged
with an ePropulsion original charger. The battery has a built-in battery management
system which provides cell balancing function, over charging protection, over dis-
charging protection, short-circuit protection, over temperature protection, under tem-
perature protection, over current protection, communication function, etc. Though the
battery has been tested to be reliable and safe during normal operation, it should be
handled with care as safety is critically important. Please adhere to the following in-
structions when using it.
• Do not drop, strike or squash the battery.
• Do not disassemble the battery or conduct unauthorized repair, the battery
disassembly can only be conducted by ePropulsion service.
• Never charge a broken or damaged battery.
• Only charge the battery with an ePropulsion original charger.
• Do not charge the battery near flammable materials like carpet or wood.
• Disconnect charger when not in use.
• Though the battery is IP67 waterproof, it’s suggested not to immerse it in water
or store it in moist environment.
• Keep conductive objects away from the discharging port and charging port to
avoid damage of electronic components.
• Use the port cap to avoid accidental short-circuit.
• Never discharge the battery below 33V. Store the battery in dry environment.
• Charge the battery immediately after full discharge.
• Before long time storage, ensure the battery charge level is 60% around, store
the battery in 15°C ~ 25°C (59°F ~ 77°F) ambient temperature. If the battery level
is larger than 60% for more than ten days without activity, the battery itself will
discharge with a small current around 100mA until it reaches the 60% battery
level.
WARNING

14
• Battery will actively discharge to 75% after 20 days without charging or
discharging.
• If battery level is low for a long time, it will enter sleep mode. Charge to wake it
up.
• During long time storage, activate the battery every 3 months by a charge
condition and keep the battery charge level at 60% around. This activation is
very important and it can help to keep the battery in good condition.
• After long time storage, fully charge the battery before use.
• Do not leave the battery in a hot or pressurized container, such as trunk of the
vehicle on hot days.
• Dispose of unusable or damaged batteries in a container specially reserved
for this purpose, follow appropriate local guideline and regulations. For further
information you can contact your local solid waste collecting point or your
dealer.
• Never dispose the battery as general household waste or in fire.

15
3 Installation

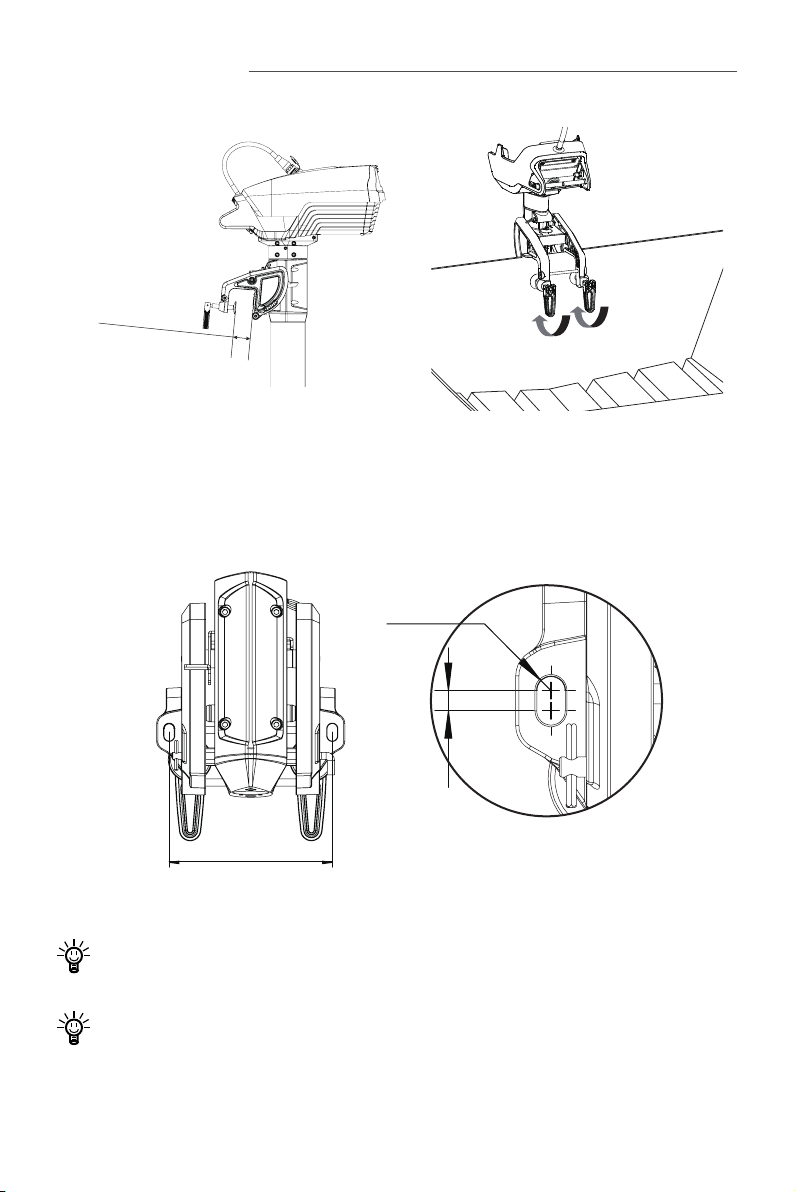

Step1: Hang the motor on the transom and tighten the two clamp handles.
Transom Thickness
Range: 28mm~63mm
LOCK
Figure 3-1 Figure 3-2
After tightening the clamp handles fully, the users can also use two screws to x the
outboard to the boat. The dimensions of the two mounting holes are shown below.
Figure 3-3
Never use screws to x the outboard when the clamp handles are not fully tight-
ened.
Ensure the outboard is firmly fixed as loosened clamp screws may cause the
outboard to fall into water or get damaged. Check the screws or clamps every
time before use since they may be loosened because of mechanical vibrations.
136.7 mm
6 mm
R4.25 mm

16

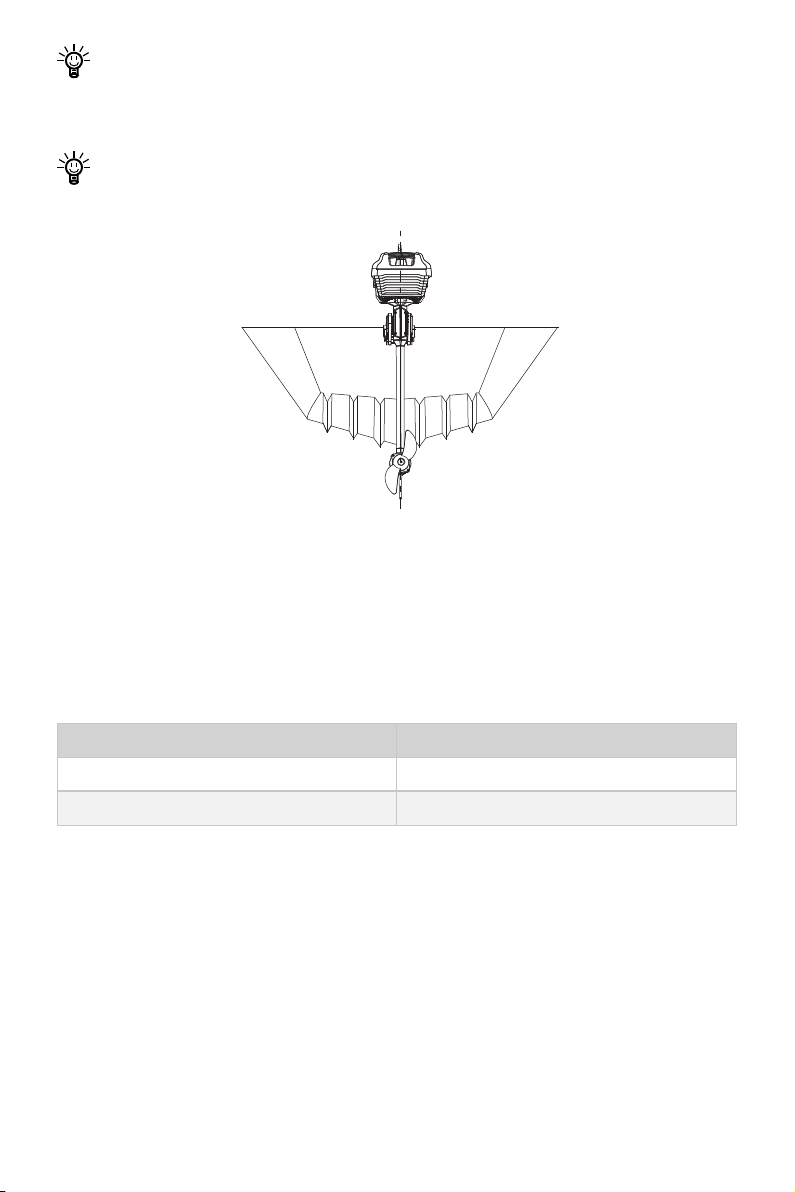

A cable is recommended to be used to avoid complete loss of your outboard in
case it falls off the transom. Use the cable to connect your outboard and a se-
cure mounting point on the boat.
Ensure to mount the outboard on the center line of your boat. If the boat shape
is asymmetric, please consult your dealer to get proper solution.
Figure 3-4
The mounting height of the outboard affects the running speed seriously. When the
mounting height is too high, ventilation may occur to waste power. When the mount-
ing height is too low, the water resistance will increase and it will lead to eciency
and running speed reducing.
Transom Height Recommended Model
400mm~500mm SPIRIT 1.0 Evo-S
Higher than 500mm SPIRIT 1.0 Evo-L
Select a proper model according to your transom height and applications. The opti-
mum mounting height is affected by the conditions of boat and requirements. It’s rec-
ommended to test running at a different height to help obtain the optimum mounting
height. You can consult your dealer to get more information.
Center line

17
Figure 3-5
Step2: Install Evo Control System. Please refer Evo Control System Installation Guide,
mount the Evo Remote Control/Evo Tiller on the boat/outboard, and complete the wir-
ing between Evo Control System and outboard.
Step3: Lift the battery by gripping the handle and pull up the battery lock. Align the
two slots on the battery bottom to the blocks on the bracket and put down the bat-
tery. Release the battery lock and lock the battery on the bracket.
Ensure to hold the battery handle before detaching or mounting the battery.
Figure 3-6
Transom height
Top of boat transom
Bottom of boat
(lowest point)
Slot
Block

18
Step4: Plug the power cable connector in the power port and tighten the connector.
The connector is metal, and it own needs to be gure tight ½ of a turn clockwise.
Figure 3-7 Figure 3-8
Make sure the power cable connector and socket are dry before connecting to
avoid short-circuit.
Please spray and clean the connectors about every 3 months with contact spray.
