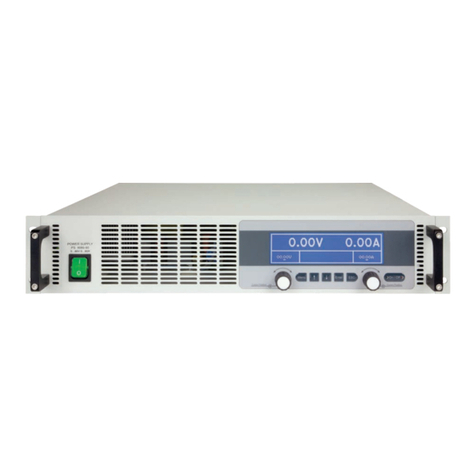

EPS Stromversorgung PSI 9080-40 2U User manual

EPS
Stromversorgung
Operating Guide
PSI 9000 2U
DC Laboratory Power Supply
Attention! This document is only
valid for devices with rmware
“KE: 2.17” (standard version)
resp. “KE: 2.04” (GPIB, 3W)
and “HMI: 2.10” and “DR: 1.6.5”
or higher. For availability of up-
dates for your device check our
website or contact us.
Doc ID: PSI92UTEN
Revision: 04
Date: 06/2017

Page 3
EPS Stromversorgung GmbH
Alter Postweg 101 • 86159 Augsburg
Germany
Fon: +49 821 / 570451-0
Fax: +49 821 / 570451-25
www.eps-germany.de
[e-mail]
PSI 9000 2U Series
TABLE OF CONTENTS
1GENERAL
1.1 About this document......................................5
1.1.1 Retention and use..........................................5
1.1.2 Copyright........................................................5
1.1.3 Validity ............................................................5
1.1.4 Symbols and warnings ..................................5
1.2 Warranty.........................................................5
1.3 Limitation of liability ........................................5
1.4 Disposal of equipment ...................................6
1.5 Product key ....................................................6
1.6 Intended usage ..............................................6
1.7 Safety .............................................................7
1.7.1 Safety notices.................................................7
1.7.2 Responsibility of the user...............................7
1.7.3 Responsibility of the operator .......................8
1.7.4 User requirements .........................................8
1.7.5 Alarm signals..................................................9
1.8 Technical Data ...............................................9
1.8.1 Approved operating conditions......................9
1.8.2 General technical data...................................9
1.8.3 Specic technical data .................................10
1.8.4 Views............................................................22
1.8.5 Control elements..........................................25
1.9 Construction and function............................26
1.9.1 General description......................................26
1.9.2 Block diagram ..............................................26
1.9.3 Scope of delivery .........................................27
1.9.4 Accessories..................................................27
1.9.5 Options .........................................................27
1.9.6 The control panel (HMI)...............................28
1.9.7 USB port (rear side).....................................31
1.9.8 Interface module slot ...................................31
1.9.9 Analog interface ...........................................31
1.9.10 Share Bus-Connection ................................32
1.9.11 Sense connector (remote sensing) .............32
1.9.12 Master-Slave bus.........................................32
1.9.13 GPIB port (optional) .....................................32
2INSTALLATION & COMMISSIONING
2.1 Transport and storage .................................33
2.1.1 Transport ......................................................33
2.1.2 Packaging ....................................................33
2.1.3 Storage.........................................................33
2.2 Unpacking and visual check........................33
2.3 Installation ....................................................33
2.3.1 Safety procedures before installation and
use................................................................33
2.3.2 Preparation...................................................34
2.3.3 Installing the device .....................................34
2.3.4 Connection to AC supply .............................35
2.3.5 Connection to DC loads...............................35
2.3.6 Grounding of the DC output ........................36
2.3.7 Connection of remote sensing ....................37
2.3.8 Installation of an interface module...............38
2.3.9 Connecting the analog interface .................38
2.3.10 Connecting the “Share” bus ........................39
2.3.11 Connecting the USB port (rear side)...........39
2.3.12 Initial commission.........................................39
2.3.13 Commission after a rmware update or a
long period of non-use.................................39
3OPERATION AND APPLICATION
3.1 Personal safety ............................................40
3.2 Operating modes .........................................40
3.2.1 Voltage regulation / Constant voltage .........40
3.2.2 Current regulation / constant current / current
limiting ..........................................................41
3.2.3 Power regulation / constant power / power
limiting ..........................................................41
3.2.4 Internal resistance regulation ......................41
3.3 Alarm conditions ..........................................42
3.3.1 Power Fail ...................................................42
3.3.2 Overtemperature..........................................42
3.3.3 Overvoltage protection.................................42
3.3.4 Overcurrent protection.................................42
3.3.5 Overpower protection ..................................42
3.4 Manual operation .........................................43
3.4.1 Switching on the device...............................43
3.4.2 Switching off the device...............................43
3.4.3 Conguration via MENU..............................43
3.4.4 Adjustment limits (Limits).............................52
3.4.5 Changing the operating mode.....................52
3.4.6 Manual adjustment of set values.................53
3.4.7 Switching the main screen view ..................53
3.4.8 The meter bars.............................................54
3.4.9 Switching the DC output on or off................54
3.4.10 Recording to USB stick (logging) ................55
3.5 Remote control.............................................56
3.5.1 General.........................................................56
3.5.2 Control locations ..........................................56
3.5.3 Remote control via a digital interface ..........56
3.5.4 Remote control via the analog interface
(AI)................................................................57
3.6 Alarms and monitoring.................................61
3.6.1 Denition of terms ........................................61
3.6.2 Device alarm and event handling................61
3.7 Control panel (HMI) lock..............................63
3.8 Limits lock.....................................................64
3.9 Loading and saving a user prole ...............64
3.10 The function generator.................................65
3.10.1 Introduction...................................................65
3.10.2 General.........................................................65
3.10.3 Method of operation.....................................66
3.10.4 Manual operation .........................................66

Page 4
EPS Stromversorgung GmbH
Alter Postweg 101 • 86159 Augsburg
Germany
Fon: +49 821 / 570451-0
Fax: +49 821 / 570451-25
www.eps-germany.de
[e-mail]
PSI 9000 2U Series
3.10.5 Sine wave function.......................................67
3.10.6 Triangular function .......................................67
3.10.7 Rectangular function....................................68
3.10.8 Trapezoidal function.....................................69
3.10.9 DIN 40839 function ......................................69
3.10.10 Arbitrary function..........................................70
3.10.11 Ramp Function.............................................74
3.10.12 UI and IU table functions (XY table)............74
3.10.13 PV table function (photovoltaics).................76
3.10.14 FC table function (fuel cell)..........................77
3.10.15 Remote control of the function generator....79
3.11 Other applications........................................80
3.11.1 Parallel operation in master-slave mode
(MS)..............................................................80
3.11.2 Series connection ........................................83
3.11.3 Operation as battery charger.......................83
3.11.4 Two quadrant operation (2QO) ...................84
4SERVICE AND MAINTENANCE
4.1 Maintenance / cleaning................................86
4.2 Fault nding / diagnosis / repair...................86
4.2.1 Replacing a defect mains fuse ....................86
4.2.2 Firmware updates ........................................86
4.3 Calibration ....................................................87
4.3.1 Preface .........................................................87
4.3.2 Preparation...................................................87
4.3.3 Calibration procedure ..................................87
5CONTACT AND SUPPORT
5.1 Repairs .........................................................89
5.2 Contact options ............................................89

Page 5
EPS Stromversorgung GmbH
Alter Postweg 101 • 86159 Augsburg
Germany
Fon: +49 821 / 570451-0
Fax: +49 821 / 570451-25
www.eps-germany.de
[e-mail]
PSI 9000 2U Series
1. General
1.1 About this document
1.1.1 Retention and use
This document is to be kept in the vicinity of the equipment for future reference and explanation of the operation of
the device. This document is to be delivered and kept with the equipment in case of change of location and/or user.
1.1.2 Copyright
Reprinting, copying, also partially, usage for other purposes as foreseen of this manual are forbidden and breach
may lead to legal process.
1.1.3 Validity
This manual is valid for the following equipment with TFT display panel, including derived variants.
Model Article nr. std. Article nr. HS Model Article nr. std. Article nr. HS
PSI 9080-40 2U 06230304 06730304 PSI 9750-06 2U 06230313 06730313
PSI 9200-15 2U 06230305 06730305 PSI 9080-120 2U 06230314 06730314
PSI 9360-10 2U 06230306 06730306 PSI 9200-50 2U 06230315 06730315
PSI 9500-06 2U 06230307 06730307 PSI 9360-30 2U 06230316 06730316
PSI 9750-04 2U 06230308 06730308 PSI 9500-20 2U 06230317 06730317
PSI 9080-60 2U 06230309 06730309 PSI 9750-12 2U 06230318 06730318
PSI 9200-25 2U 06230310 06730310 PSI 9040-40 2U 06230319 06730319
PSI 9360-15 2U 06230311 06730311 PSI 9040-60 2U 06230320 06730320
PSI 9500-10 2U 06230312 06730312 PSI 9040-120 2U 06230321 06730321
Changes and modications for special models will be listed in a separate document.
1.1.4 Symbols and warnings
Warning and safety notices as well as general notices in this document are shown in a box with a symbol as follows:
Symbol for a life threatening danger
Symbol for general safety notices (instructions and damage protection bans) or important infor-
mation for operation
Symbol for general notices
1.2 Warranty
EPS Stromversorgung guarantees the functional competence of the applied technology and the stated performance
parameters. The warranty period begins with the delivery of free from defects equipment.
Terms of guarantee are included in the general terms and conditions (TOS) of EPS Stromversorgung.
1.3 Limitation of liability
All statements and instructions in this manual are based on current norms and regulations, up-to-date technology
and our long term knowledge and experience. The manufacturer accepts no liability for losses due to:
• Usage for purposes other than designed
• Use by untrained personnel
• Rebuilding by the customer
• Technical changes
• Use of not authorized spare parts
The actual delivered device(s) may differ from the explanations and diagrams given here due to latest technical
changes or due to customized models with the inclusion of additionally ordered options.

Page 6
EPS Stromversorgung GmbH
Alter Postweg 101 • 86159 Augsburg
Germany
Fon: +49 821 / 570451-0
Fax: +49 821 / 570451-25
www.eps-germany.de
[e-mail]
PSI 9000 2U Series
1.4 Disposal of equipment
A piece of equipment which is intended for disposal must, according to European laws and regulations (ElektroG,
WEEE) be returned to the manufacturer for scrapping, unless the person operating the piece of equipment or an-
other, delegated person is conducting the disposal. Our equipment falls under these regulations and is accordingly
marked with the following symbol:
1.5 Product key
Decoding of the product description on the label, using an example:
PSI 9 080 - 40 2U zzz
Field for identication of installed options and/or special models
S01...S0x = Special version
HS = High Speed option installed
3W = Option 3W installed (GPIB port instead of interface slot)
Construction (not always given)
2U = 19" rack enclosure with 2U of height
Maximum current of the device in Ampere
Maximum voltage of the device in Volt
Series : 8= Series 8000 or 800, 9= Series 9000
Type identication:
PSI = Power Supply Intelligent, always programmable
Special models are always derived from standard models and can vary in input voltage and
current from those given.
1.6 Intended usage
The equipment is intended to be used, if a power supply or battery charger, only as a variable voltage and current
source, or, if an electronic load, only as a variable current sink.
Typical application for a power supply is DC supply to any relevant user, for a battery charger the charging of vari-
ous battery types and for electronic loads the replacement of an ohmic resistor by an adjustable DC current sink
in order to load relevant voltage and current sources of any type.
• Claims of any sort due to damage caused by non-intended usage will not be accepted.
• All damage caused by non-intended usage is solely the responsibility of the operator.

Page 7
EPS Stromversorgung GmbH
Alter Postweg 101 • 86159 Augsburg
Germany
Fon: +49 821 / 570451-0
Fax: +49 821 / 570451-25
www.eps-germany.de
[e-mail]
PSI 9000 2U Series
1.7 Safety
1.7.1 Safety notices
Mortal danger - Hazardous voltage
• Electrical equipment operation means that some parts can be under dangerous voltage.
Therefore all parts under voltage must be covered! This basically applies to all models,
though 40 V models according to SELV can not generate hazardous DC voltage.
• All work on connections must be carried out under zero voltage (output not connected
to load) and may only be performed by qualied and informed persons. Improper ac-
tions can cause fatal injury as well as serious material damage.
• Never touch cables or connectors directly after unplugging from mains supply as the
danger of electric shock remains.
• Never touch the contacts on DC output terminal directly after switching off the DC output,
because there still can dangerous voltage present, sinking more or less slowly depend-
ing on the load! There also can be dangerous potential between negative DC output to
PE or positive DC output to PE due to charged X capacitors.
• The equipment must only be used as intended
• The equipment is only approved for use within the connection limits stated on the product label.
• Do not insert any object, particularly metallic, through the ventilator slots
• Avoid any use of liquids near the equipment. Protect the device from wet, damp and conden-
sation.
• For power supplies and battery chargers: do not connect users, particularly low resistance, to
devices under power; sparking may occur which can cause burns as well as damage to the
equipment and to the user.
• For electronic loads: do not connect power sources to equipment under power, sparking may
occur which can cause burns as well as damage to the equipment and to the source.
• ESD regulations must be applied when plugging interface cards or modules into the relative slot
• Interface cards or modules may only be attached or removed after the device is switched off.
It is not necessary to open the device.
• Do not connect external power sources with reversed polarity to DC input or outputs! The
equipment will be damaged.
• For power supply devices: avoid where possible connecting external power sources to the DC
output, and never those that can generate a higher voltage than the nominal voltage of the device.
• For electronic loads: do not connect a power source to the DC input which can generate a volt-
age more than 120% of the nominal input voltage of the load. The equipment is not protected
against over voltage and may be irreparably damaged.
• Never insert a network cable which is connected to Ethernet or its components into the master-
slave socket on the back side of the device!
• Always congure the various protecting features against overvoltage etc. for sensitive loads to
what the target application requires!
1.7.2 Responsibility of the user
The equipment is in industrial operation. Therefore the operators are governed by the legal safety regulations.
Alongside the warning and safety notices in this manual the relevant safety, accident prevention and environmental
regulations must also be applied. In particular the users of the equipment:
• must be informed of the relevant job safety requirements
• must work to the dened responsibilities for operation, maintenance and cleaning of the equipment
• before starting work must have read and understood the operating manual
• must use the designated and recommended safety equipment.
Furthermore, anyone working with the equipment is responsible for ensuring that the device is at all times techni-
cally t for use.

Page 8
EPS Stromversorgung GmbH
Alter Postweg 101 • 86159 Augsburg
Germany
Fon: +49 821 / 570451-0
Fax: +49 821 / 570451-25
www.eps-germany.de
[e-mail]
PSI 9000 2U Series
1.7.3 Responsibility of the operator
Operator is any natural or legal person who uses the equipment or delegates the usage to a third party, and is
responsible during its usage for the safety of the user, other personnel or third parties.
The equipment is in industrial operation. Therefore the operators are governed by the legal safety regulations.
Alongside the warning and safety notices in this manual the relevant safety, accident prevention and environmental
regulations must also be applied. In particular the operator has to
• be acquainted with the relevant job safety requirements
• identify other possible dangers arising from the specic usage conditions at the work station via a risk assessment
• introduce the necessary steps in the operating procedures for the local conditions
• regularly control that the operating procedures are current
• update the operating procedures where necessary to reect changes in regulation, standards or operating con-
ditions.
• dene clearly and unambiguously the responsibilities for operation, maintenance and cleaning of the equipment.
• ensure that all employees who use the equipment have read and understood the manual. Furthermore the users
are to be regularly schooled in working with the equipment and the possible dangers.
• provide all personnel who work with the equipment with the designated and recommended safety equipment
Furthermore, the operator is responsible for ensuring that the device is at all times technically t for use.
1.7.4 User requirements
Any activity with equipment of this type may only be performed by persons who are able to work correctly and
reliably and satisfy the requirements of the job.
• Persons whose reaction capability is negatively inuenced by e.g. drugs, alcohol or medication may not operate
the equipment.
• Age or job related regulations valid at the operating site must always be applied.
Danger for unqualied users
Improper operation can cause person or object damage. Only persons who have the necessary
training, knowledge and experience may use the equipment.
Delegated persons are those who have been properly and demonstrably instructed in their tasks and the atten-
dant dangers.
Qualied persons are those who are able through training, knowledge and experience as well as knowledge of
the specic details to carry out all the required tasks, identify dangers and avoid personal and other risks.

Page 9
EPS Stromversorgung GmbH
Alter Postweg 101 • 86159 Augsburg
Germany
Fon: +49 821 / 570451-0
Fax: +49 821 / 570451-25
www.eps-germany.de
[e-mail]
PSI 9000 2U Series
1.7.5 Alarm signals
The equipment offers various possibilities for signalling alarm conditions, however, not for danger situations. The
signals may be optical (on the display as text) acoustic (piezo buzzer) or electronic (pin/status output of an analog
interface). All alarms will cause the device to switch off the DC output.
The meaning of the signals is as follows:
Signal OT
(OverTemperature)
• Overheating of the device
• DC output will be switched off
• Non-critical
Signal OVP
(OverVoltage)
• Overvoltage shutdown of the DC output due to high voltage entering the device or gener-
ated by the device itself due to a defect
• Critical! The device and/or the load could be damaged
Signal OCP
(OverCurrent)
• Shutdown of the DC output due to excess of the preset limit
• Non-critical, protects the load from excessive current consumption
Signal OPP
(OverPower)
• Shutdown of the DC output due to excess of the preset limit
• Non-critical, protects the load from excessive power consumption
Signal PF
(Power Fail)
• DC output shutdown due to AC undervoltage or defect in the AC input
• Critical on overvoltage! AC input circuit could be damaged
1.8 Technical Data
1.8.1 Approved operating conditions
• Use only inside dry buildings
• Ambient temperature 0-50°C
• Operational altitude: max. 2000 m above sea level
• Max. 80% relative humidity, non-condensing
1.8.2 General technical data
Display: Colour TFT touch screen with gorilla glass, 4.3”, 480pt x 272pt, capacitive
Controls: 2 rotary knobs with pushbutton functions, 2 pushbutton
The nominal values for the device determine the maximum adjustable ranges.

Page 10
EPS Stromversorgung GmbH
Alter Postweg 101 • 86159 Augsburg
Germany
Fon: +49 821 / 570451-0
Fax: +49 821 / 570451-25
www.eps-germany.de
[e-mail]
PSI 9000 2U Series
1.8.3 Specic technical data
(1 Related to the nominal values, the accuracy denes the maximum deviation between an adjusted values and the true (actual) value.
Example: a 80 V model has min. 0.1% voltage accuracy, that is 80 mV. When adjusting the voltage to 5 V, the actual value is allowed to differ max. 80 mV, which
means it might be between 4.92 V and 5.08 V.
(2 RMS value: LF 0...300 kHz, PP value: HF 0...20MHz
(3 The display error adds to the error of the related actual value on the DC output
1000 W Model 2U
PSI 9040-40 PSI 9080-40 PSI 9200-15
AC Input
Voltage range 90...264 V AC 90...264 V AC 90...264 V AC
Connection 1ph,N,PE 1ph,N,PE 1ph,N,PE
Frequency 45-65 Hz 45-65 Hz 45-65 Hz
Fusing T16 A T16 A T16 A
Leak current < 3.5 mA < 3.5 mA < 3.5 mA
Power factor ~ 0.99 ~ 0.99 ~ 0.99
DC Output
Max. output voltage UMax 40 V 80 V 200 V
Max. output current IMax 40 A 40 A 15 A
Max. output power PMax 1000 W 1000 W 1000 W
Overvoltage protection range 0...44 V 0...88 V 0...220 V
Overcurrent protection range 0...44 A 0...44 A 0...16.5 A
Overpower protection range 0…1100 W 0…1100 W 0…1100 W
Output capacitance (std. model) 5440 μF 5440 μF 800 μF
Output capacitance (HS model) 86 μF 86 μF 40 μF
Temperature coefcient for set
values Δ/K Voltage / current: 100 ppm
Voltage regulation
Adjustment range 0...40 V 0...80 V 0...200 V
Accuracy (1 (at 23 ± 5°C) < 0.1% UNom < 0.1% UNom < 0.1% UNom
Line regulation at ±10% ΔUAC < 0.02% UNom < 0.02% UNom < 0.02% UNom
Load regulation at 0...100% load < 0.05% UNom < 0.05% UNom < 0.05% UNom
Rise time 10...90% Max. 30 ms Max. 30 ms Max. 30 ms
Settling time after load step < 1.5 ms < 1.5 ms < 1.5 ms
Display: Resolution See section „1.9.6.4. Resolution of the displayed values“
Display: Accuracy (3 ≤ 0.2% UNom ≤ 0.2% UNom ≤ 0.2% UNom
Ripple (2 < 114 mVPP
< 8 mVRMS
< 114 mVPP
< 8 mVRMS
< 164 mVPP
< 34 mVRMS
Remote sensing compensation Max. 5% UNom Max. 5% UNom Max. 5% UNom
Output voltage fall time (at no load)
after switching DC output off --Down from 100% to <60 V: less than 10 s
Current regulation
Adjustment range 0...40 A 0...40 A 0...15 A
Accuracy (1 (at 23 ± 5°C) < 0.2% INom < 0.2% INom < 0.2% INom
Line regulation at ±10% ΔUAC < 0.05% INom < 0.05% INom < 0.05% INom
Load regulation at 0...100% ΔUOUT < 0.15% INom < 0.15% INom < 0.15% INom
Ripple (2 < 3.7 mARMS < 3.7 mARMS < 2.2 mARMS
Display: Resolution See section „1.9.6.4. Resolution of the displayed values“
Display: Accuracy (3 ≤ 0.2% INom ≤ 0.2% INom ≤ 0.2% INom
Power regulation
Adjustment range 0…1000 W 0…1000 W 0…1000 W
Accuracy (1 (at 23 ± 5°C) < 1% PNom < 1% PNom < 1% PNom
Line regulation at ±10% ΔUAC < 0.05% PNom < 0.05% PNom < 0.05% PNom
Load reg. at 10-90% ΔUOUT * ΔIOUT < 0.75% PNom < 0.75% PNom < 0.75% PNom

Page 11
EPS Stromversorgung GmbH
Alter Postweg 101 • 86159 Augsburg
Germany
Fon: +49 821 / 570451-0
Fax: +49 821 / 570451-25
www.eps-germany.de
[e-mail]
PSI 9000 2U Series
(1 Related to the nominal values, the accuracy denes the maximum deviation between an adjusted values and the true (actual) value.
(2 The display error adds to the error of the related actual value on the DC output
(3 For technical specications of the analog interface see „3.5.4.4 Analog interface specication“ on page 58
(4 Article number of the base version, devices with options will have a different number
(5 Typical value at 100% output voltage and 100% power
1000 W Model 2U
PSI 9040-40 PSI 9080-40 PSI 9200-15
Power regulation
Display: Resolution See section „1.9.6.4. Resolution of the displayed values“
Display: Accuracy (2 ≤ 0.8% PNom ≤ 0.8% PNom ≤ 0.8% PNom
Efciency (5 ~ 92% ~ 92% ~ 93%
Internal resistance regulation
Adjustment range 0...30 Ω 0...60 Ω 0...400 Ω
Accuracy (1 ≤ 2% of max. resistance ± 0.3% of maximum current
Display: Resolution See section „1.9.6.4. Resolution of the displayed values“
Analog interface (3
Set value inputs U, I, P, R
Actual value output U, I
Control signals DC on/off, remote control on/off, resistance mode on/off
Status signals CV, OVP, OT
Galvanic isolation to the device Max. 1500 V DC
Sample rate of inputs & outputs 500 Hz
Insulation
Output (DC) to enclosure (PE) DC minus: permanent max. ±400 V
DC plus: permanent max. ±400V + output voltage
Input (AC) to output (DC) Max. 2500 V, short-term
Miscellaneous
Cooling Temperature controlled fans, front inlet, rear exhaust
Ambient temperature 0..50°C
Storage temperature -20...70°C
Humidity < 80%, not condensing
Standards EN 61010, EN 61326
Overvoltage category 2
Protection class 1
Pollution degree 2
Operational altitude < 2000 m
Digital interfaces
Featured 1x USB-B for communication, 1x USB-A for functions, 1x GPIB (only with option 3W)
Slot (standard version) optional: CAN, CANopen, Probus, Pronet, RS232, Ethernet, ModBus TCP
Galvanic isolation from device Max. 1500 V DC
Terminals
Rear side Share Bus, DC output, AC input, remote sensing, analog interface, USB-B, master-
slave bus, Interface module slot
Front side USB-A
Dimensions
Enclosure (WxHxD) 19“ x 2U x 463 mm
Total (WxHxD) 483 x 88 x min. 535 mm (depending on DC out terminal type)
Weight ~ 12 kg ~ 12 kg ~ 12 kg
Article number of std. model (4 06230319 06230304 06230305
Article number of HS model (4 06730319 06730304 06730305

Page 12
EPS Stromversorgung GmbH
Alter Postweg 101 • 86159 Augsburg
Germany
Fon: +49 821 / 570451-0
Fax: +49 821 / 570451-25
www.eps-germany.de
[e-mail]
PSI 9000 2U Series
1000 W Model 2U
PSI 9360-10 PSI 9500-06 PSI 9750-04
AC Input
Voltage range 90...264 V AC 90...264 V AC 90...264 V AC
Connection 1ph,N,PE 1ph,N,PE 1ph,N,PE
Frequency 45-65 Hz 45-65 Hz 45-65 Hz
Fusing T16 A T16 A T16 A
Leak current < 3.5 mA < 3.5 mA < 3.5 mA
Power factor ~ 0.99 ~ 0.99 ~ 0.99
DC Output
Max. output voltage UMax 360 V 500 V 750 V
Max. output current IMax 10 A 6 A 4 A
Max. output power PMax 1000 W 1000 W 1000 W
Overvoltage protection range 0...396 V 0...550 V 0...825 V
Overcurrent protection range 0...11 A 0...6.6 A 0...4.4 A
Overpower protection range 0…1100 W 0…1100 W 0…1100 W
Output capacitance (std. model) 330 μF 120 μF 40 μF
Output capacitance (HS model) 20 μF 15 μF 9 μF
Temperature coefcient for set
values Δ/K Voltage / current: 100 ppm
Voltage regulation
Adjustment range 0...360 V 0...500 V 0...750 V
Accuracy (1 (at 23 ± 5°C) < 0.1% UNom < 0.1% UNom < 0.1% UNom
Line regulation at ±10% ΔUAC < 0.02% UNom < 0.02% UNom < 0.02% UNom
Load regulation at 0...100% load < 0.05% UNom < 0.05% UNom < 0.05% UNom
Rise time 10...90% Max. 30 ms Max. 30 ms Max. 30 ms
Settling time after load step < 1.5 ms < 1.5 ms < 1.5 ms
Display: Resolution See section „1.9.6.4. Resolution of the displayed values“
Display: Accuracy (3 ≤ 0.2% UNom ≤ 0.2% UNom ≤ 0.2% UNom
Ripple (2 < 210 mVPP
< 59 mVRMS
< 190 mVPP
< 48 mVRMS
< 212 mVPP
< 60 mVRMS
Remote sensing compensation Max. 5% UNom Max. 5% UNom Max. 5% UNom
Output voltage fall time (at no load)
after switching DC output off Down from 100% to <60 V: less than 10 s
Current regulation
Adjustment range 0...10 A 0...6 A 0...4 A
Accuracy (1 (at 23 ± 5°C) < 0.2% INom < 0.2% INom < 0.2% INom
Line regulation at ±10% ΔUAC < 0.05% INom < 0.05% INom < 0.05% INom
Load regulation at 0...100% ΔUOUT < 0.15% INom < 0.15% INom < 0.15% INom
Ripple (2 < 1.6 mARMS < 0.5 mARMS < 0.3 mARMS
Display: Resolution See section „1.9.6.4. Resolution of the displayed values“
Display: Accuracy (3 ≤ 0.2% INom ≤ 0.2% INom ≤ 0.2% INom
Power regulation
Adjustment range 0…1000 W 0…1000 W 0…1000 W
Accuracy (1 (at 23 ± 5°C) < 1% PNom < 1% PNom < 1% PNom
Line regulation at ±10% ΔUAC < 0.05% PNom < 0.05% PNom < 0.05% PNom
Load reg. at 10-90% ΔUOUT * ΔIOUT < 0.75% PNom < 0.75% PNom < 0.75% PNom
(1 Related to the nominal values, the accuracy denes the maximum deviation between an adjusted values and the true (actual) value.
Example: a 80 V model has min. 0.1% voltage accuracy, that is 80 mV. When adjusting the voltage to 5 V, the actual value is allowed to differ max. 80 mV, which
means it might be between 4.92 V and 5.08 V.
(2 RMS value: LF 0...300 kHz, PP value: HF 0...20MHz
(3 The display error adds to the error of the related actual value on the DC output

Page 13
EPS Stromversorgung GmbH
Alter Postweg 101 • 86159 Augsburg
Germany
Fon: +49 821 / 570451-0
Fax: +49 821 / 570451-25
www.eps-germany.de
[e-mail]
PSI 9000 2U Series
1000 W Model 2U
PSI 9360-10 PSI 9500-06 PSI 9750-04
Power regulation
Display: Resolution See section „1.9.6.4. Resolution of the displayed values“
Display: Accuracy (2 ≤ 0.8% PNom ≤ 0.8% PNom ≤ 0.8% PNom
Efciency (5 ~ 93% ~ 93% ~ 93%
Internal resistance regulation
Adjustment range 0...1080 Ω 0...2500 Ω 0...5625 Ω
Accuracy (1 ≤ 2% of max. resistance ± 0.3% of maximum current
Display: Resolution See section „1.9.6.4. Resolution of the displayed values“
Analog interface (3
Set value inputs U, I, P, R
Actual value output U, I
Control signals DC on/off, remote control on/off, resistance mode on/off
Status signals CV, OVP, OT
Galvanic isolation to the device Max. 1500 V DC
Sample rate of inputs & outputs 500 Hz
Insulation
Output (DC) to enclosure (PE) DC minus: permanent max. ±400 V
DC plus: permanent max. ±400V + output voltage
Input (AC) to output (DC) Max. 2500 V, short-term
Miscellaneous
Cooling Temperature controlled fans, front inlet, rear exhaust
Ambient temperature 0..50°C
Storage temperature -20...70°C
Humidity < 80%, not condensing
Standards EN 61010, EN 61326
Overvoltage category 2
Protection class 1
Pollution degree 2
Operational altitude < 2000 m
Digital interfaces
Featured 1x USB-B for communication, 1x USB-A for functions, 1x GPIB (only with option 3W)
Slot (standard version) optional: CAN, CANopen, Probus, Pronet, RS232, Ethernet, ModBus TCP
Galvanic isolation from device Max. 1500 V DC
Terminals
Rear side Share Bus, DC output, AC input, remote sensing, analog interface, USB-B, master-
slave bus, Interface module slot
Front side USB-A
Dimensions
Enclosure (WxHxD) 19“ x 2U x 463 mm
Total (WxHxD) 483 x 88 x min. 535 mm (depending on DC out terminal type)
Weight ~ 12 kg ~ 12 kg ~ 12 kg
Article number of std. model (4 06230306 06230307 06230308
Article number of HS model (4 06730306 06730307 06730308
(1 Related to the nominal values, the accuracy denes the maximum deviation between an adjusted values and the true (actual) value.
(2 The display error adds to the error of the related actual value on the DC output
(3 For technical specications of the analog interface see „3.5.4.4 Analog interface specication“ on page 58
(4 Article number of the base version, devices with options will have a different number
(5 Typical value at 100% output voltage and 100% power

Page 14
EPS Stromversorgung GmbH
Alter Postweg 101 • 86159 Augsburg
Germany
Fon: +49 821 / 570451-0
Fax: +49 821 / 570451-25
www.eps-germany.de
[e-mail]
PSI 9000 2U Series
(1 Related to the nominal values, the accuracy denes the maximum deviation between an adjusted values and the true (actual) value.
Example: a 80 V model has min. 0.1% voltage accuracy, that is 80 mV. When adjusting the voltage to 5 V, the actual value is allowed to differ max. 80 mV, which
means it might be between 4.92 V and 5.08 V.
(2 RMS value: LF 0...300 kHz, PP value: HF 0...20MHz
(3 The display error adds to the error of the related actual value on the DC output
1500 W Model 2U
PSI 9040-60 PSI 9080-60 PSI 9200-25
AC Input
Voltage range 90...264 V AC 90...264 V AC 90...264 V AC
- with additional derating 90...150 V AC 90...150 V AC 90...150 V AC
Connection 1ph,N,PE 1ph,N,PE 1ph,N,PE
Frequency 45-65 Hz 45-65 Hz 45-65 Hz
Fusing T16 A T16 A T16 A
Leak current < 3.5 mA < 3.5 mA < 3.5 mA
Power factor ~ 0.99 ~ 0.99 ~ 0.99
DC Output
Max. output voltage UMax 40 V 80 V 200 V
Max. output current IMax 60 A 60 A 25 A
Max. output power PMax 1500 W 1500 W 1500 W
Max. output power PMax with derating 1000 W 1000 W 1000 W
Overvoltage protection range 0...44 V 0...88 V 0...220 V
Overcurrent protection range 0...66 A 0...66 A 0...27.5 A
Overpower protection range 0…1650 W 0…1650 W 0…1650 W
Output capacitance (std. model) 5440 μF 5440 μF 800 μF
Output capacitance (HS model) 86 μF 86 μF 40 μF
Temperature coefcient for set
values Δ/K Voltage / current: 100 ppm
Voltage regulation
Adjustment range 0..40 V 0...80 V 0...200 V
Accuracy (1 (at 23 ± 5°C) < 0.1% UNom < 0.1% UNom < 0.1% UNom
Line regulation at ±10% ΔUAC < 0.02% UNom < 0.02% UNom < 0.02% UNom
Load regulation at 0...100% load < 0.05% UNom < 0.05% UNom < 0.05% UNom
Rise time 10...90% Max. 30 ms Max. 30 ms Max. 30 ms
Settling time after load step < 1.5 ms < 1.5 ms < 1.5 ms
Display: Resolution See section „1.9.6.4. Resolution of the displayed values“
Display: Accuracy (3 ≤ 0.2% UNom ≤ 0.2% UNom ≤ 0.2% UNom
Ripple (2 < 114 mVPP
< 8 mVRMS
< 114 mVPP
< 8 mVRMS
< 164 mVPP
< 34 mVRMS
Remote sensing compensation Max. 5% UNom Max. 5% UNom Max. 5% UNom
Output voltage fall time (at no load)
after switching DC output off --Down from 100% to <60 V: less than 10 s
Current regulation
Adjustment range 0...60 A 0...60 A 0...25 A
Accuracy (1 (at 23 ± 5°C) < 0.2% INom < 0.2% INom < 0.2% INom
Line regulation at ±10% ΔUAC < 0.05% INom < 0.05% INom < 0.05% INom
Load regulation at 0...100% ΔUOUT < 0.15% INom < 0.15% INom < 0.15% INom
Ripple (2 < 5.6 mARMS < 5.6 mARMS < 1.3 mARMS
Display: Resolution See section „1.9.6.4. Resolution of the displayed values“
Display: Accuracy (3 ≤ 0.2% INom ≤ 0.2% INom ≤ 0.2% INom
Power regulation
Adjustment range 0…1500 W 0…1500 W 0…1500 W
Accuracy (1 (at 23 ± 5°C) < 1% PNom < 1% PNom < 1% PNom
Line regulation at ±10% ΔUAC < 0.05% PNom < 0.05% PNom < 0.05% PNom
Load reg. at 10-90% ΔUOUT * ΔIOUT < 0.75% PNom < 0.75% PNom < 0.75% PNom

Page 15
EPS Stromversorgung GmbH
Alter Postweg 101 • 86159 Augsburg
Germany
Fon: +49 821 / 570451-0
Fax: +49 821 / 570451-25
www.eps-germany.de
[e-mail]
PSI 9000 2U Series
(1 Related to the nominal values, the accuracy denes the maximum deviation between an adjusted values and the true (actual) value.
(2 The display error adds to the error of the related actual value on the DC output
(3 For technical specications of the analog interface see „3.5.4.4 Analog interface specication“ on page 58
(4 Article number of the base version, devices with options will have a different number
(5 Typical value at 100% output voltage and 100% power
1500 W Model 2U
PSI 9040-60 PSI 9080-60 PSI 9200-25
Power regulation
Display: Resolution See section „1.9.6.4. Resolution of the displayed values“
Display: Accuracy (2 ≤ 0.8% PNom ≤ 0.8% PNom ≤ 0.7% PNom
Efciency (5 ~ 92% ~ 92% ~ 93%
Internal resistance regulation
Adjustment range 0...20 Ω 0...40 Ω 0...240 Ω
Accuracy (1 ≤ 2% of max. resistance ± 0.3% of maximum current
Display: Resolution See section „1.9.6.4. Resolution of the displayed values“
Analog interface (4
Set value inputs U, I, P, R
Actual value output U, I
Control signals DC on/off, remote control on/off, resistance mode on/off
Status signals CV, OVP, OT
Galvanic isolation to the device Max. 1500 V DC
Sample rate of inputs & outputs 500 Hz
Insulation
Output (DC) to enclosure (PE) DC minus: permanent max. ±400 V
DC plus: permanent max. ±400V + output voltage
Input (AC) to output (DC) Max. 2500 V, short-term
Miscellaneous
Cooling Temperature controlled fans, front inlet, rear exhaust
Ambient temperature 0..50°C
Storage temperature -20...70°C
Humidity < 80%, not condensing
Standards EN 61010, EN 61326
Overvoltage category 2
Protection class 1
Pollution degree 2
Operational altitude < 2000 m
Digital interfaces
Featured 1x USB-B for communication, 1x USB-A for functions, 1x GPIB (only with option 3W)
Slot (standard version) optional: CAN, CANopen, Probus, Pronet, RS232, Ethernet, ModBus TCP
Galvanic isolation from device Max. 1500 V DC
Terminals
Rear side Share Bus, DC output, AC input, remote sensing, analog interface, USB-B, master-
slave bus, Interface module slot
Front side USB-A
Dimensions
Enclosure (WxHxD) 19“ x 2U x 463 mm
Total (WxHxD) 483 x 88 x min. 535 mm (depending on DC out terminal type)
Weight ~ 12 kg ~ 12 kg ~ 12 kg
Article number of std. model (4 06230320 06230309 06230310
Article number of HS model (4 06730320 06730309 06730310

Page 16
EPS Stromversorgung GmbH
Alter Postweg 101 • 86159 Augsburg
Germany
Fon: +49 821 / 570451-0
Fax: +49 821 / 570451-25
www.eps-germany.de
[e-mail]
PSI 9000 2U Series
1500 W Model 2U
PSI 9360-15 PSI 9500-10 PSI 9750-06
AC Input
Voltage range 90...264 V AC 90...264 V AC 90...264 V AC
- with additional derating 90...150 V AC 90...150 V AC 90...150 V AC
Connection 1ph,N,PE 1ph,N,PE 1ph,N,PE
Frequency 45-65 Hz 45-65 Hz 45-65 Hz
Fusing T16 A T16 A T16 A
Leak current < 3.5 mA < 3.5 mA < 3.5 mA
Power factor ~ 0.99 ~ 0.99 ~ 0.99
DC Output
Max. output voltage UMax 360 V 500 V 750 V
Max. output current IMax 15 A 10 A 6 A
Max. output power PMax 1500 W 1500 W 1500 W
Max. output power PMax with derating 1000 W 1000 W 1000 W
Overvoltage protection range 0...396 V 0...550 V 0...825 V
Overcurrent protection range 0...16.5 A 0...11 A 0...6.6 A
Overpower protection range 0…1650 W 0…1650 W 0…1650 W
Output capacitance (std. model) 330 μF 120 μF 40 μF
Output capacitance (HS model) 20 μF 15 μF 9 μF
Temperature coefcient for set
values Δ/K Voltage / current: 100 ppm
Voltage regulation
Adjustment range 0...360 V 0...500 V 0...750 V
Accuracy (1 (at 23 ± 5°C) < 0.1% UNom < 0.1% UNom < 0.1% UNom
Line regulation at ±10% ΔUAC < 0.02% UNom < 0.02% UNom < 0.02% UNom
Load regulation at 0...100% load < 0.05% UNom < 0.05% UNom < 0.05% UNom
Rise time 10...90% Max. 30 ms Max. 30 ms Max. 30 ms
Settling time after load step < 1.5 ms < 1.5 ms < 1.5 ms
Display: Resolution See section „1.9.6.4. Resolution of the displayed values“
Display: Accuracy (3 ≤ 0.2% UNom ≤ 0.2% UNom ≤ 0.2% UNom
Ripple (2 < 210 mVPP
< 59 mVRMS
< 190 mVPP
< 48 mVRMS
< 212 mVPP
< 60 mVRMS
Remote sensing compensation Max. 5% UNom Max. 5% UNom Max. 5% UNom
Output voltage fall time (at no load)
after switching DC output off Down from 100% to <60 V: less than 10 s
Current regulation
Adjustment range 0...15 A 0...10 A 0...6 A
Accuracy (1 (at 23 ± 5°C) < 0.2% INom < 0.2% INom < 0.2% INom
Line regulation at ±10% ΔUAC < 0.05% INom < 0.05% INom < 0.05% INom
Load regulation at 0...100% ΔUOUT < 0.15% INom < 0.15% INom < 0.15% INom
Ripple (2 < 2.4 mARMS < 0.7 mARMS < 0.5 mARMS
Display: Resolution See section „1.9.6.4. Resolution of the displayed values“
Display: Accuracy (3 ≤ 0.2% INom ≤ 0.2% INom ≤ 0.2% INom
Power regulation
Adjustment range 0…1500 W 0…1500 W 0…1500 W
Accuracy (1 (at 23 ± 5°C) < 1% PNom < 1% PNom < 1% PNom
Line regulation at ±10% ΔUAC < 0.05% PNom < 0.05% PNom < 0.05% PNom
Load reg. at 10-90% ΔUOUT * ΔIOUT < 0.75% PNom < 0.75% PNom < 0.75% PNom
(1 Related to the nominal values, the accuracy denes the maximum deviation between an adjusted values and the true (actual) value.
Example: a 80 V model has min. 0.1% voltage accuracy, that is 80 mV. When adjusting the voltage to 5 V, the actual value is allowed to differ max. 80 mV, which
means it might be between 4.92 V and 5.08 V.
(2 RMS value: LF 0...300 kHz, PP value: HF 0...20MHz
(3 The display error adds to the error of the related actual value on the DC output

Page 17
EPS Stromversorgung GmbH
Alter Postweg 101 • 86159 Augsburg
Germany
Fon: +49 821 / 570451-0
Fax: +49 821 / 570451-25
www.eps-germany.de
[e-mail]
PSI 9000 2U Series
1500 W Model 2U
PSI 9360-15 PSI 9500-10 PSI 9750-06
Power regulation
Display: Resolution See section „1.9.6.4. Resolution of the displayed values“
Display: Accuracy (2 ≤ 0.7% PNom ≤ 0.8% PNom ≤ 0.85% PNom
Efciency (5 ~ 93% ~ 93% ~ 93%
Internal resistance regulation
Adjustment range 0...720 Ω 0...1500 Ω 0...3750 Ω
Accuracy (1 ≤ 2% of max. resistance ± 0.3% of maximum current
Display: Resolution See section „1.9.6.4. Resolution of the displayed values“
Analog interface (4
Set value inputs U, I, P, R
Actual value output U, I
Control signals DC on/off, remote control on/off, resistance mode on/off
Status signals CV, OVP, OT
Galvanic isolation to the device Max. 1500 V DC
Sample rate of inputs & outputs 500 Hz
Insulation
Output (DC) to enclosure (PE) DC minus: permanent max. ±400 V
DC plus: permanent max. ±400V + output voltage
Input (AC) to output (DC) Max. 2500 V, short-term
Miscellaneous
Cooling Temperature controlled fans, front inlet, rear exhaust
Ambient temperature 0..50°C
Storage temperature -20...70°C
Humidity < 80%, not condensing
Standards EN 61010, EN 61326
Overvoltage category 2
Protection class 1
Pollution degree 2
Operational altitude < 2000 m
Digital interfaces
Featured 1x USB-B for communication, 1x USB-A for functions, 1x GPIB (only with option 3W)
Slot (standard version) optional: CAN, CANopen, Probus, Pronet, RS232, Ethernet, ModBus TCP
Galvanic isolation from device Max. 1500 V DC
Terminals
Rear side Share Bus, DC output, AC input, remote sensing, analog interface, USB-B, master-
slave bus, Interface module slot
Front side USB-A
Dimensions
Enclosure (WxHxD) 19“ x 2U x 463 mm
Total (WxHxD) 483 x 88 x min. 535 mm (depending on DC out terminal type)
Weight ~ 12 kg ~ 12 kg ~ 12 kg
Article number of std. model (4 06230311 06230312 06230313
Article number of HS model (4 06730311 06730312 06730313
(1 Related to the nominal values, the accuracy denes the maximum deviation between an adjusted values and the true (actual) value.
(2 The display error adds to the error of the related actual value on the DC output
(3 For technical specications of the analog interface see „3.5.4.4 Analog interface specication“ on page 58
(4 Article number of the base version, devices with options will have a different number
(5 Typical value at 100% output voltage and 100% power

Page 18
EPS Stromversorgung GmbH
Alter Postweg 101 • 86159 Augsburg
Germany
Fon: +49 821 / 570451-0
Fax: +49 821 / 570451-25
www.eps-germany.de
[e-mail]
PSI 9000 2U Series
(1 Related to the nominal values, the accuracy denes the maximum deviation between an adjusted values and the true (actual) value.
Example: a 80 V model has min. 0.1% voltage accuracy, that is 80 mV. When adjusting the voltage to 5 V, the actual value is allowed to differ max. 80 mV, which
means it might be between 4.92 V and 5.08 V.
(2 RMS value: LF 0...300 kHz, PP value: HF 0...20MHz
(3 The display error adds to the error of the related actual value on the DC output
3000 W Model 2U
PSI 9040-120 PSI 9080-120 PSI 9200-50
AC Input
Input voltage 180...264 V AC 180...264 V AC 180...264 V AC
- with additional derating 180...207 V AC 180...207 V AC 180...207 V AC
Input connection 1ph,N,PE 1ph,N,PE 1ph,N,PE
Input frequency 45-65 Hz 45-65 Hz 45-65 Hz
Input fuse (internal) T16 A T16 A T16 A
Leak current < 3.5 mA < 3.5 mA < 3.5 mA
Power factor > 0.99 > 0.99 > 0.99
DC Output
Max. output voltage UMax 40 V 80 V 200 V
Max. output current IMax 120 A 120 A 50 A
Max. output power PMax 3000 W 3000 W 3000 W
Max. output power PMax with derating 2500 W 2500 W 2500 W
Overvoltage protection range 0...44 V 0...88 V 0...220 V
Overcurrent protection range 0...132 A 0...132 A 0...55 A
Overpower protection range 0…3300 W 0…3300 W 0…3300 W
Output capacitance (std. model) 10880 μF 10880 μF 1600 μF
Output capacitance (HS model) 172 μF 172 μF 80 μF
Temperature coefcient for set
values Δ/K Voltage / current: 100 ppm
Voltage regulation
Adjustment range 0...40 V 0...80 V 0...200 V
Accuracy (1 (at 23 ± 5°C) < 0.1% UNom < 0.1% UNom < 0.1% UNom
Line regulation at ±10% ΔUAC < 0.02% UNom < 0.02% UNom < 0.02% UNom
Load regulation at 0...100% load < 0.05% UNom < 0.05% UNom < 0.05% UNom
Rise time 10...90% Max. 30 ms Max. 30 ms Max. 30 ms
Settling time after load step < 1.5 ms < 1.5 ms < 1.5 ms
Display: Resolution See section „1.9.6.4. Resolution of the displayed values“
Display: Accuracy (3 ≤ 0.2% UNom ≤ 0.2% UNom ≤ 0.2% UNom
Ripple (2 < 114 mVPP
< 8 mVRMS
< 114 mVPP
< 8 mVRMS
< 164 mVPP
< 34 mVRMS
Remote sensing compensation Max. 5% UNom Max. 5% UNom Max. 5% UNom
Output voltage fall time (at no load)
after switching DC output off --Down from 100% to <60 V: less than 10 s
Current regulation
Adjustment range 0...120 A 0...120 A 0...50 A
Accuracy (1 (at 23 ± 5°C) < 0.2% INom < 0.2% INom < 0.2% INom
Line regulation at ±10% ΔUAC < 0.05% INom < 0.05% INom < 0.05% INom
Load regulation at 0...100% ΔUOUT < 0.15% INom < 0.15% INom < 0.15% INom
Ripple (2 < 11 mARMS < 11 mARMS < 6.5 mARMS
Display: Resolution See section „1.9.6.4. Resolution of the displayed values“
Display: Accuracy (3 ≤ 0.2% INom ≤ 0.2% INom ≤ 0.2% INom
Power regulation
Adjustment range 0…3000 W 0…3000 W 0…3000 W
Accuracy (1 (at 23 ± 5°C) < 1% PNom < 1% PNom < 1% PNom
Line regulation at ±10% ΔUAC < 0.05% PNom < 0.05% PNom < 0.05% PNom
Load reg. at 10-90% ΔUOUT * ΔIOUT < 0.75% PNom < 0.75% PNom < 0.75% PNom

Page 19
EPS Stromversorgung GmbH
Alter Postweg 101 • 86159 Augsburg
Germany
Fon: +49 821 / 570451-0
Fax: +49 821 / 570451-25
www.eps-germany.de
[e-mail]
PSI 9000 2U Series
(1 Related to the nominal values, the accuracy denes the maximum deviation between an adjusted values and the true (actual) value.
(2 The display error adds to the error of the related actual value on the DC output
(3 For technical specications of the analog interface see „3.5.4.4 Analog interface specication“ on page 58
(4 Article number of the base version, devices with options will have a different number
(5 Typical value at 100% output voltage and 100% power
3000 W Model 2U
PSI 9040-120 PSI 9080-120 PSI 9200-50
Power regulation
Display: Resolution See section „1.9.6.4. Resolution of the displayed values“
Display: Accuracy (2 ≤ 0.8% PNom ≤ 0.8% PNom ≤ 0.85% PNom
Efciency (5 ~ 92% ~ 92% ~ 93%
Internal resistance regulation
Adjustment range 0...10 Ω 0...20 Ω 0...120 Ω
Accuracy (1 ≤ 2% of max. resistance ± 0.3% of maximum current
Display: Resolution See section „1.9.6.4. Resolution of the displayed values“
Analog interface (3
Set value inputs U, I, P, R
Actual value output U, I
Control signals DC on/off, remote control on/off, resistance mode on/off
Status signals CV, OVP, OT
Galvanic isolation to the device Max. 1500 V DC
Sample rate of inputs & outputs 500 Hz
Insulation
Output (DC) to enclosure (PE) DC minus: permanent max. ±400 V
DC plus: permanent max. ±400V + output voltage
Input (AC) to output (DC) Max. 2500 V, short-term
Miscellaneous
Cooling Temperature controlled fans, front inlet, rear exhaust
Ambient temperature 0..50°C
Storage temperature -20...70°C
Humidity < 80%, not condensing
Standards EN 61010, EN 61326
Overvoltage category 2
Protection class 1
Pollution degree 2
Operational altitude < 2000 m
Digital interfaces
Featured 1x USB-B for communication, 1x USB-A for functions, 1x GPIB (only with option 3W)
Slot (standard version) optional: CAN, CANopen, Probus, Pronet, RS232, Ethernet, ModBus TCP
Galvanic isolation from device Max. 1500 V DC
Terminals
Rear side Share Bus, DC output, AC input, remote sensing, analog interface, USB-B, master-
slave bus, Interface module slot
Front side USB-A
Dimensions
Enclosure (WxHxD) 19“ x 2U x 463 mm
Total (WxHxD) 483 x 88 x min. 535 mm (depending on DC out terminal type)
Weight ~ 15 kg ~ 15 kg ~ 15 kg
Article number of std. model (4 06230321 06230314 06230315
Article number of HS model (4 06730321 06730314 06730315

Page 20
EPS Stromversorgung GmbH
Alter Postweg 101 • 86159 Augsburg
Germany
Fon: +49 821 / 570451-0
Fax: +49 821 / 570451-25
www.eps-germany.de
[e-mail]
PSI 9000 2U Series
3000 W Model 2U
PSI 9360-30 PSI 9500-20 PSI 9750-12
AC Input
Input voltage 180...264 V AC 180...264 V AC 180...264 V AC
- with additional derating 180...207 V AC 180...207 V AC 180...207 V AC
Input connection 1ph,N,PE 1ph,N,PE 1ph,N,PE
Input frequency 45-65 Hz 45-65 Hz 45-65 Hz
Input fuse (internal) T16 A T16 A T16 A
Leak current < 3.5 mA < 3.5 mA < 3.5 mA
Power factor > 0.99 > 0.99 > 0.99
DC Output
Max. output voltage UMax 360 V 500 V 750 V
Max. output current IMax 30 A 20 A 12 A
Max. output power PMax 3000 W 3000 W 3000 W
Max. output power PMax with derating 2500 W 2500 W 2500 W
Overvoltage protection range 0...396 V 0...550 V 0...825 V
Overcurrent protection range 0...33 A 0...22 A 0...13.2 A
Overpower protection range 0…3300 W 0…3300 W 0…3300 W
Output capacitance (std. model) 660 μF 240 μF 80 μF
Output capacitance (HS model) 40 μF 15 μF 18 μF
Temperature coefcient for set
values Δ/K Voltage / current: 100 ppm
Voltage regulation
Adjustment range 0...360 V 0...500 V 0...750 V
Accuracy (1 (at 23 ± 5°C) < 0.1% UNom < 0.1% UNom < 0.1% UNom
Line regulation at ±10% ΔUAC < 0.02% UNom < 0.02% UNom < 0.02% UNom
Load regulation at 0...100% load < 0.05% UNom < 0.05% UNom < 0.05% UNom
Rise time 10...90% Max. 30 ms Max. 30 ms Max. 30 ms
Settling time after load step < 1.5 ms < 1.5 ms < 1.5 ms
Display: Resolution See section „1.9.6.4. Resolution of the displayed values“
Display: Accuracy (3 ≤ 0.2% UNom ≤ 0.2% UNom ≤ 0.2% UNom
Ripple (2 < 210 mVPP
< 59 mVRMS
< 190 mVPP
< 48 mVRMS
< 212 mVPP
< 60 mVRMS
Remote sensing compensation Max. 5% UNom Max. 5% UNom Max. 5% UNom
Output voltage fall time (at no load)
after switching DC output off Down from 100% to <60 V: less than 10 s
Current regulation
Adjustment range 0...30 A 0...20 A 0...12 A
Accuracy (1 (at 23 ± 5°C) < 0.2% INom < 0.2% INom < 0.2% INom
Line regulation at ±10% ΔUAC < 0.05% INom < 0.05% INom < 0.05% INom
Load regulation at 0...100% ΔUOUT < 0.15% INom < 0.15% INom < 0.15% INom
Ripple (2 < 5 mARMS < 1.5 mARMS < 0.9 mARMS
Display: Resolution See section „1.9.6.4. Resolution of the displayed values“
Display: Accuracy (3 ≤ 0.2% INom ≤ 0.2% INom ≤ 0.2% INom
Power regulation
Adjustment range 0…3000 W 0…3000 W 0…3000 W
Accuracy (1 (at 23 ± 5°C) < 1% PNom < 1% PNom < 1% PNom
Line regulation at ±10% ΔUAC < 0.05% PNom < 0.05% PNom < 0.05% PNom
Load reg. at 10-90% ΔUOUT * ΔIOUT < 0.75% PNom < 0.75% PNom < 0.75% PNom
(1 Related to the nominal values, the accuracy denes the maximum deviation between an adjusted values and the true (actual) value.
Example: a 80 V model has min. 0.1% voltage accuracy, that is 80 mV. When adjusting the voltage to 5 V, the actual value is allowed to differ max. 80 mV, which
means it might be between 4.92 V and 5.08 V.
(2 RMS value: LF 0...300 kHz, PP value: HF 0...20MHz
(3 The display error adds to the error of the related actual value on the DC output
