Epson SureColor T-3270 User manual

v20150130
Epson SureColor T-3270/5270/7270
WinProle
INSTALLATION GUIDE
Windows XP, Vista, 7
DO NOT INSTALL THE EPSON (OEM) INKS OR PAPER THAT WERE PROVIDED WITH THE PRINTER.
CAUTION

1) Verify the version of the Windows operating system
2) Download and install the Epson printer driver
3) Congure the Epson printer driver
4) Download, install and register the SubliJet-E WinProle
5) Congure your design software* (i.e. CorelDRAW, Photoshop, Illustrator, etc)
6) Using the Sawgrass color palette*
SECTIONS:
The steps outlined below are required to complete the
installation and conguration process of the Epson
SC-T3270, 5270 or 7270 printer driver and SubliJet-E
WinProle on a computer running Microsoft Windows
8. For optimum results, perform the steps in the order
presented.
Page 1
Page 2
Page 10
Page 14
*
*
* Steps 1-4 are included in this document. Steps 5 and 6 are located on the SubliJet-E SC-T3270,
5270 and 7270 WinProle Installation and Conguration webpage on sawgrassink.com and can be
accessed by the links provided above.

Epson SC-T3270/5270/7270
Installation and Configuration Guide
Step 1 of 6: Verify the Operating System Version
PAGE 1 of 20 >>
To begin, verify your version of the Windows operating system to download the compatible driver.
1) To check the version, click the Start button in the lower left corner of the Desktop. Then, right-click on
Computer and select Properties in the drop down list (see FIGURE 1).
FIGURE 1
B
C
A
2) The screen shown below should appear. Note the Windows Edition and System Type. The example
pictured below is running Windows 7 on a 64-bit operating system. Note your version and only download
the driver that is compatible with that version (see FIGURE 2).
FIGURE 2
A
B
Now that the version of the Windows operating system is known, proceed to Step 2, Epson Printer
Driver Download and Installation.

PAGE 2 of 20 >>
Epson SC-T3270/5270/7270
Installation and Configuration Guide
Step 2 of 6: Epson Printer Driver Download and Installation
The following instructions explain how to download and install the Epson printer driver on a computer
running Windows. These instructions feature Windows 7 and Internet Explorer 11. Your experience
may differ based on the operating system and internet browser being used.

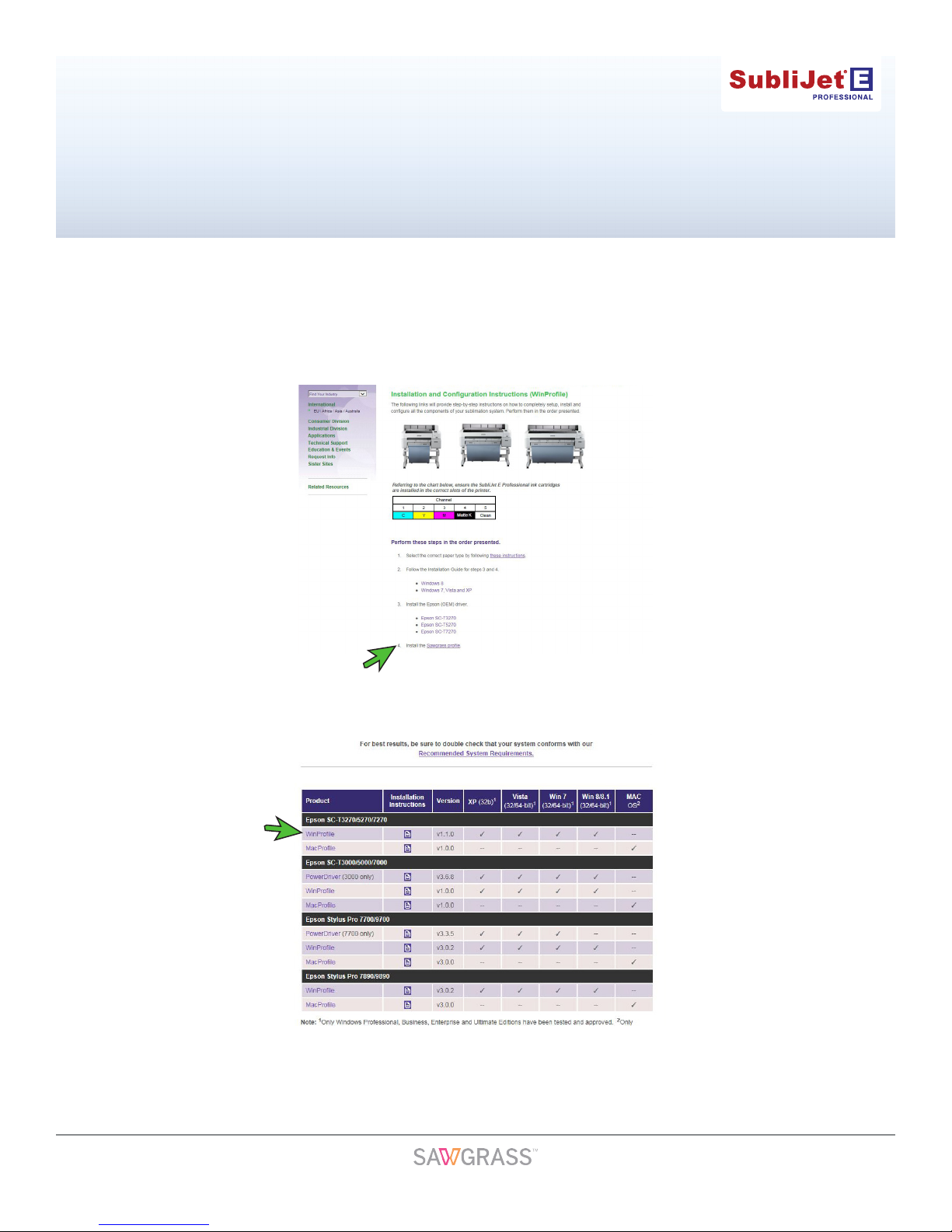

1) Locate the Sawgrass Technologies website by entering sawgrassink.com in the address eld of your
web browser. Once there, hold the mouse arrow over Technical Support. From the drop down
list that appears select SubliJet-E, Epson SC-T3270/5270/7270, WinProle then Installation and
Conguration Instructions (see FIGURE 1).
FIGURE 1
B
A
C D E

SubliJet-E: Epson SC-T3270/5270/7270 – Installation and Configuration Guide
Step 2 of 6: Epson Printer Driver Download and Installation
PAGE 3 of 20 >>

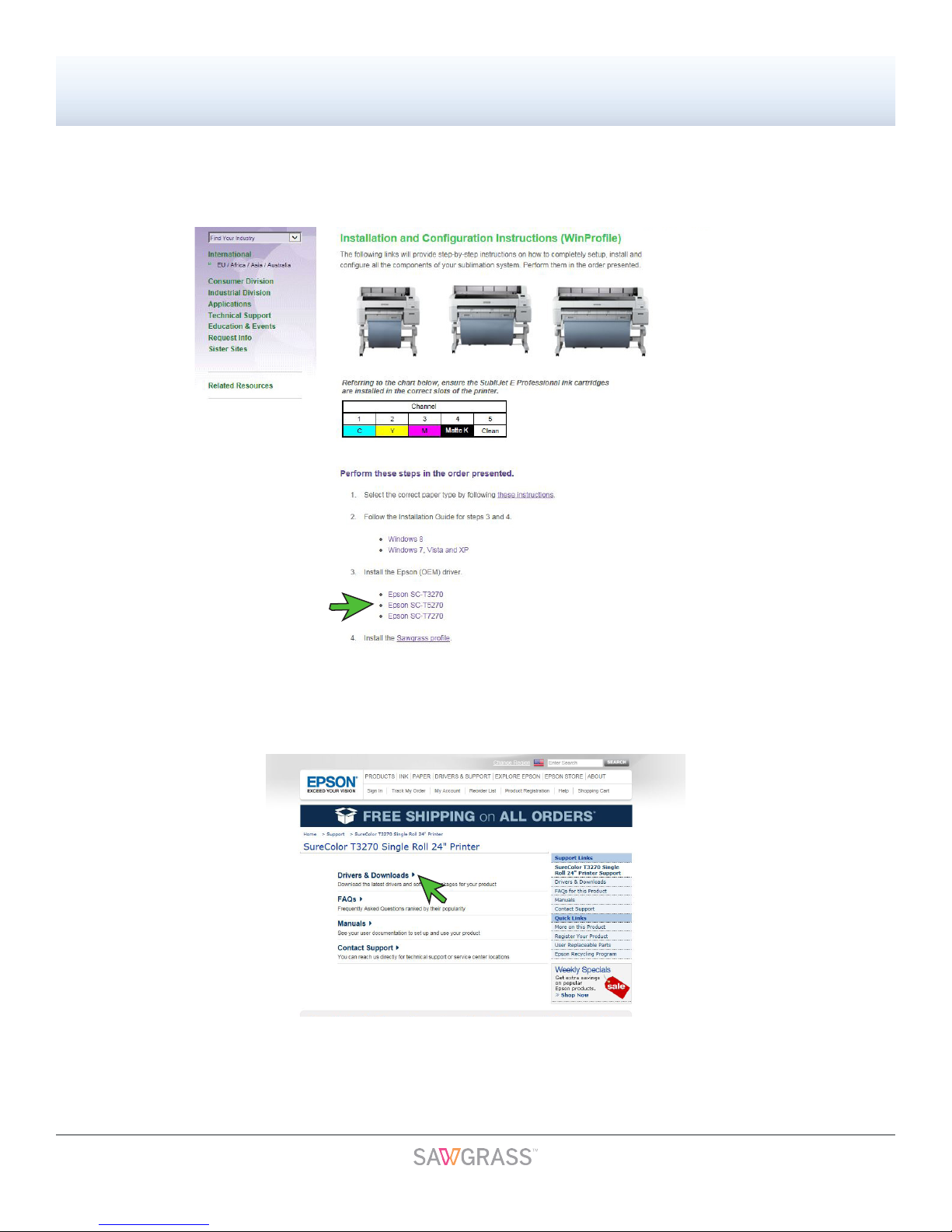

3) This will take you directly to the SC-T3270 section of Epson’s website. Click on Drivers and
Downloads (see FIGURE 3).
FIGURE 3
FIGURE 2
2) Once on the appropriate Installation and Conguration Instructions webpage for your setup, click on the
link in Step 3 for your particular printer, Install the Epson (OEM) driver. For these instructions, we will
install the Epson SC-T3270 driver but the T5270 and T7270 steps will be the same (see FIGURE 2).

SubliJet-E: Epson SC-T3270/5270/7270 – Installation and Configuration Guide
Step 2 of 6: Epson Printer Driver Download and Installation
PAGE 4 of 20 >>

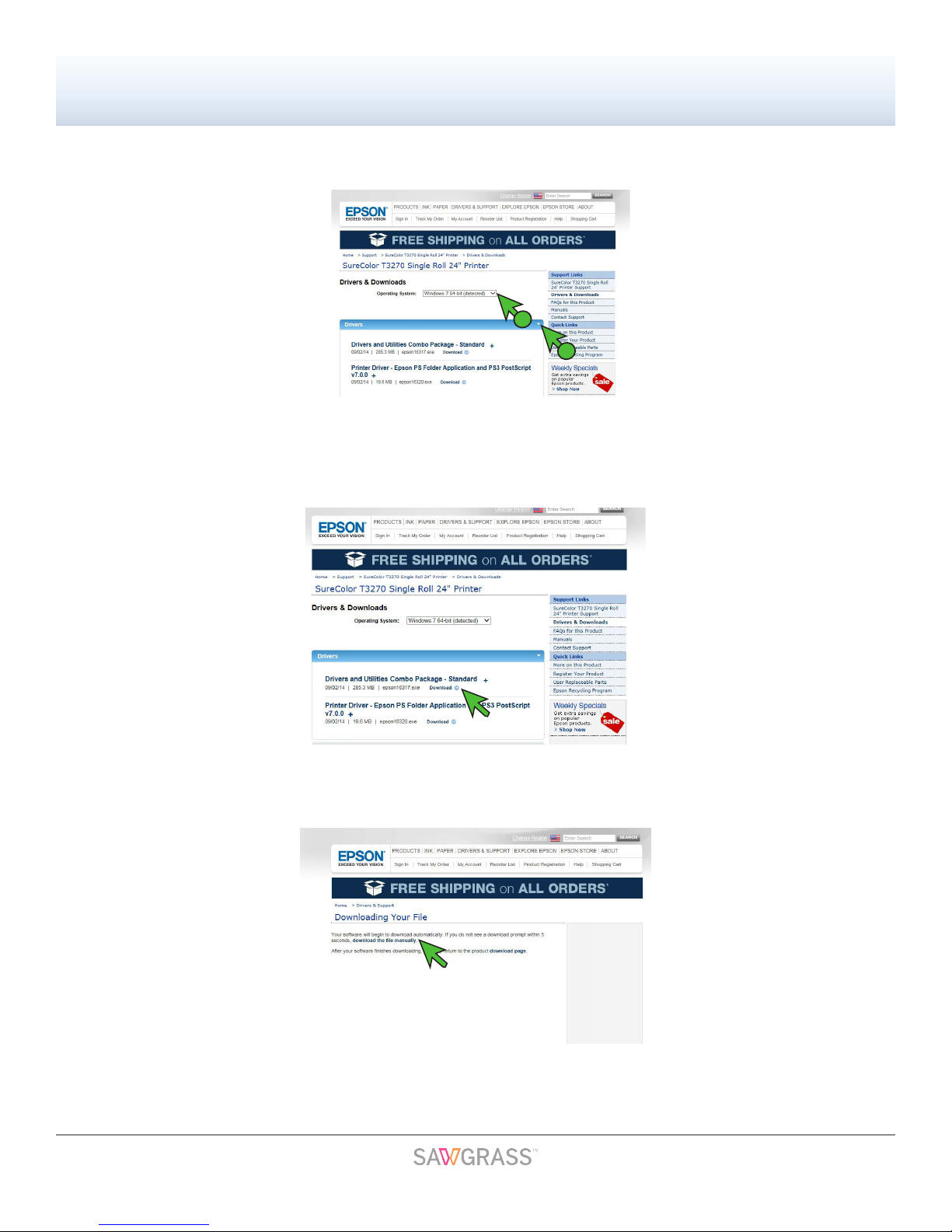

5) Click on the Download that is associated with the Driver and Utilities combo package only (Not the
Epson PS Folder Application and PS3 PostScript) (see FIGURE 5).
FIGURE 5
6) The download should begin automatically. If you do not see a download prompt within 5 seconds, click
download the le manually (see FIGURE 6).
FIGURE 6
4) Verify that the correct Operating System is selected. If so, click on Drivers (see FIGURE 4).
Note: At anytime during the download and installation process, your rewall or virus protection
software may present warnings. Make the appropriate selections necessary to continue.
FIGURE 4
A
B

SubliJet-E: Epson SC-T3270/5270/7270 – Installation and Configuration Guide
Step 2 of 6: Epson Printer Driver Download and Installation
PAGE 5 of 20 >>
FIGURE 8

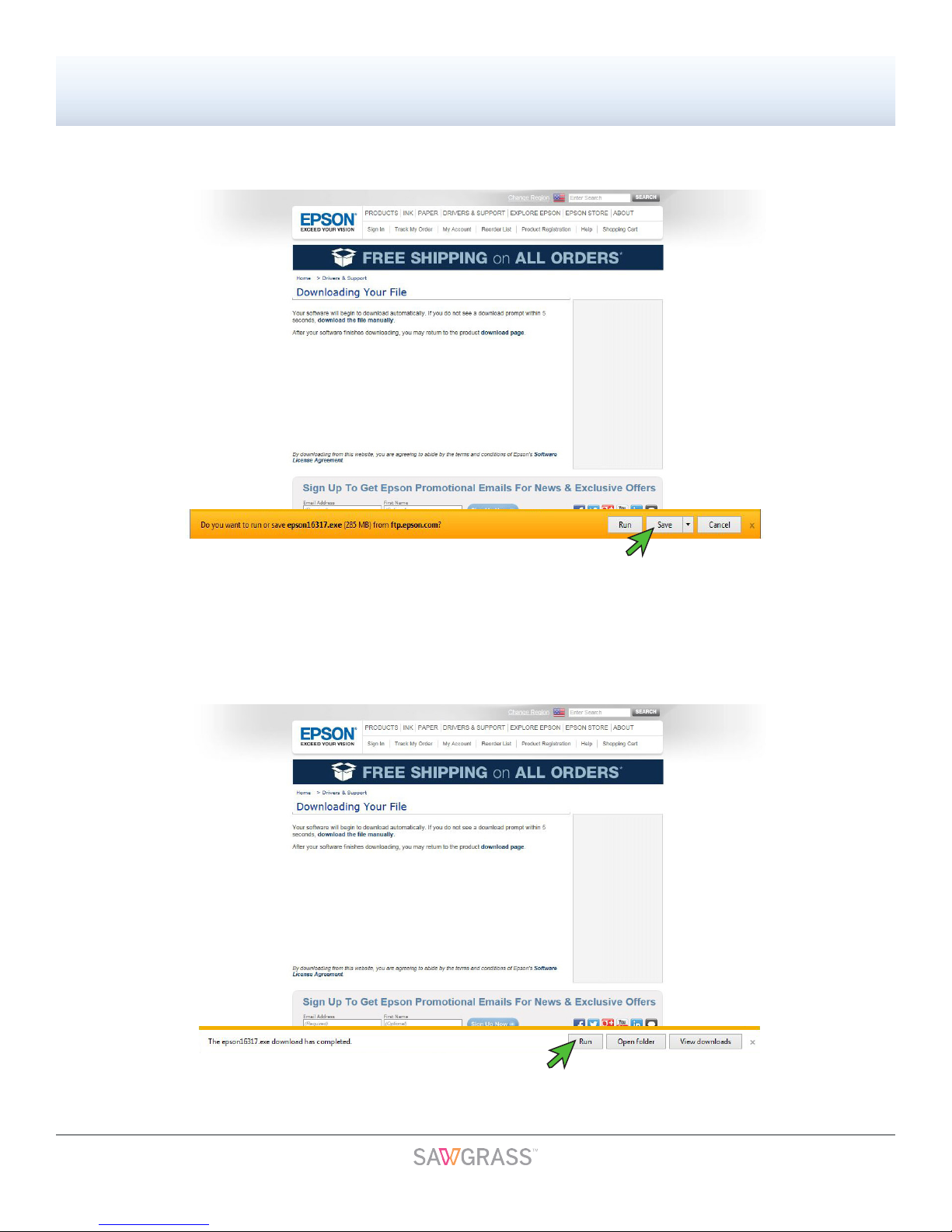

7) The following window will appear asking if you want to Run, Save or Cancel. Click Save (see FIGURE 7).
FIGURE 7
8) The le will begin downloading into the Downloads folder on your computer. When complete, the
download message at the bottom of the screen will give you the option to Run, Open Folder or View
downloads. Click Run (see FIGURE 8).

SubliJet-E: Epson SC-T3270/5270/7270 – Installation and Configuration Guide
Step 2 of 6: Epson Printer Driver Download and Installation
PAGE 6 of 20 >>

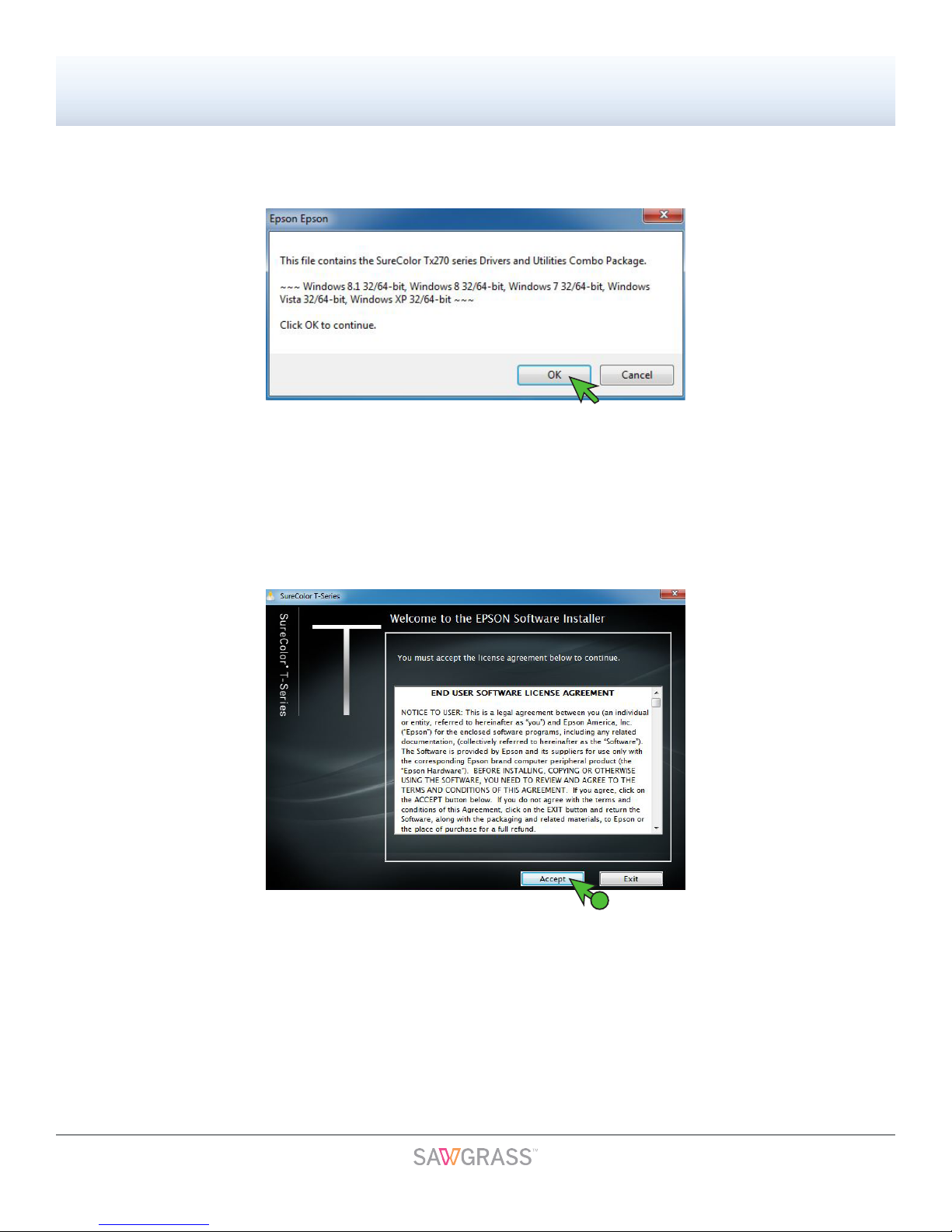

9) An Epson Installer window will appear instructing you to click Ok to continue. Click OK. The WinZip
Self-Extractor will start running (see FIGURE 9).
FIGURE 9
FIGURE 10
10) You must accept the Software License Agreement before you can install the printer driver. If you agree
with the terms click Accept (see FIGURE 10).
A

SubliJet-E: Epson SC-T3270/5270/7270 – Installation and Configuration Guide
Step 2 of 6: Epson Printer Driver Download and Installation
PAGE 7 of 20 >>
12) Next, select the software to install. Only install the Epson drivers and utilities. Uncheck the other
options. Click Install (see FIGURE 12).
A
FIGURE 12 B

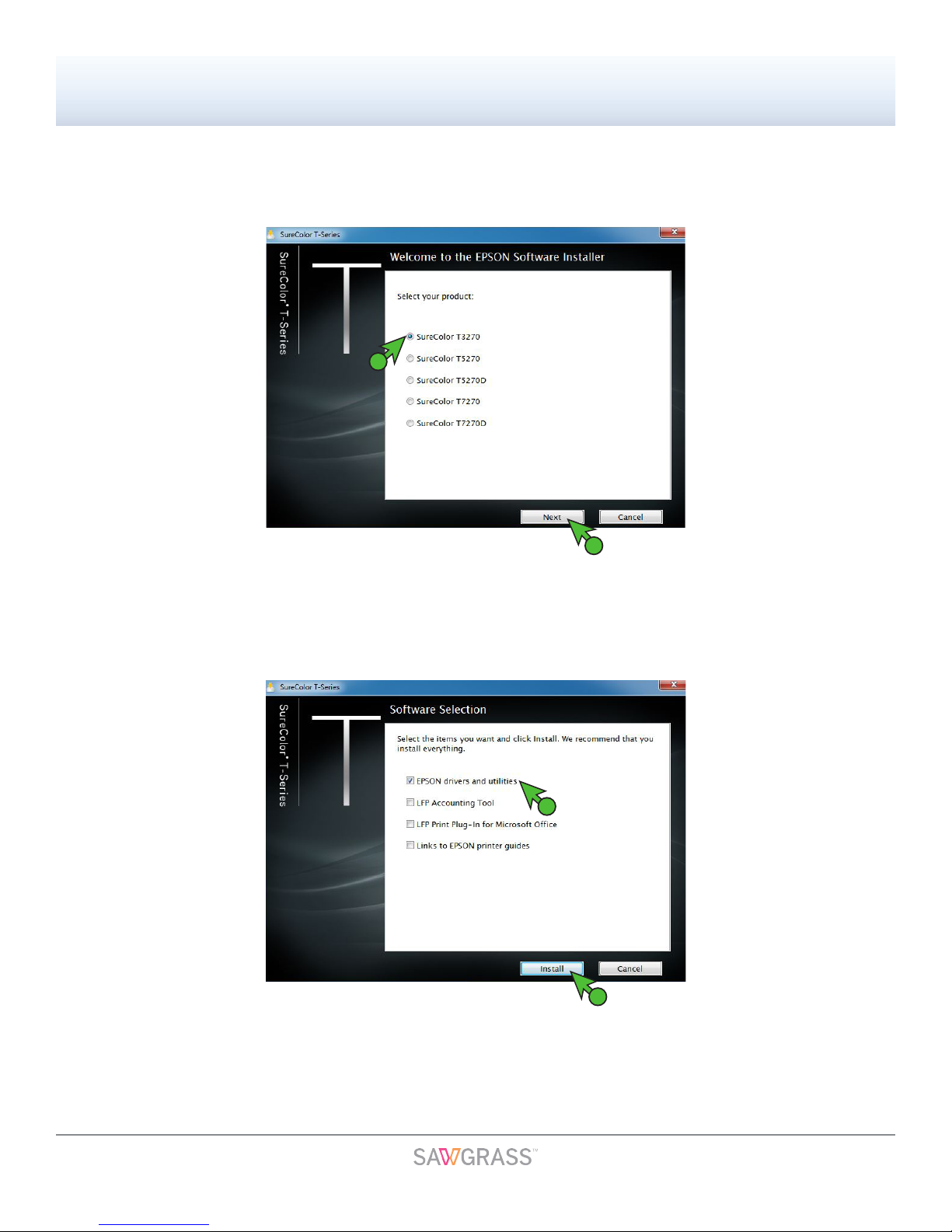

11) In the Epson Software Installer screen that opens, select the printer to install. There are 5 options,
select either the SureColor T3270, SureColor T5270 or SureColor T7270. Then click Next
(see FIGURE 11).
FIGURE 11
A
B

SubliJet-E: Epson SC-T3270/5270/7270 – Installation and Configuration Guide
Step 2 of 6: Epson Printer Driver Download and Installation
PAGE 8 of 20 >>
14) The following window will appear signifying that the installation was successful. Click OK to continue
the installation (see FIGURE 14).
FIGURE 14

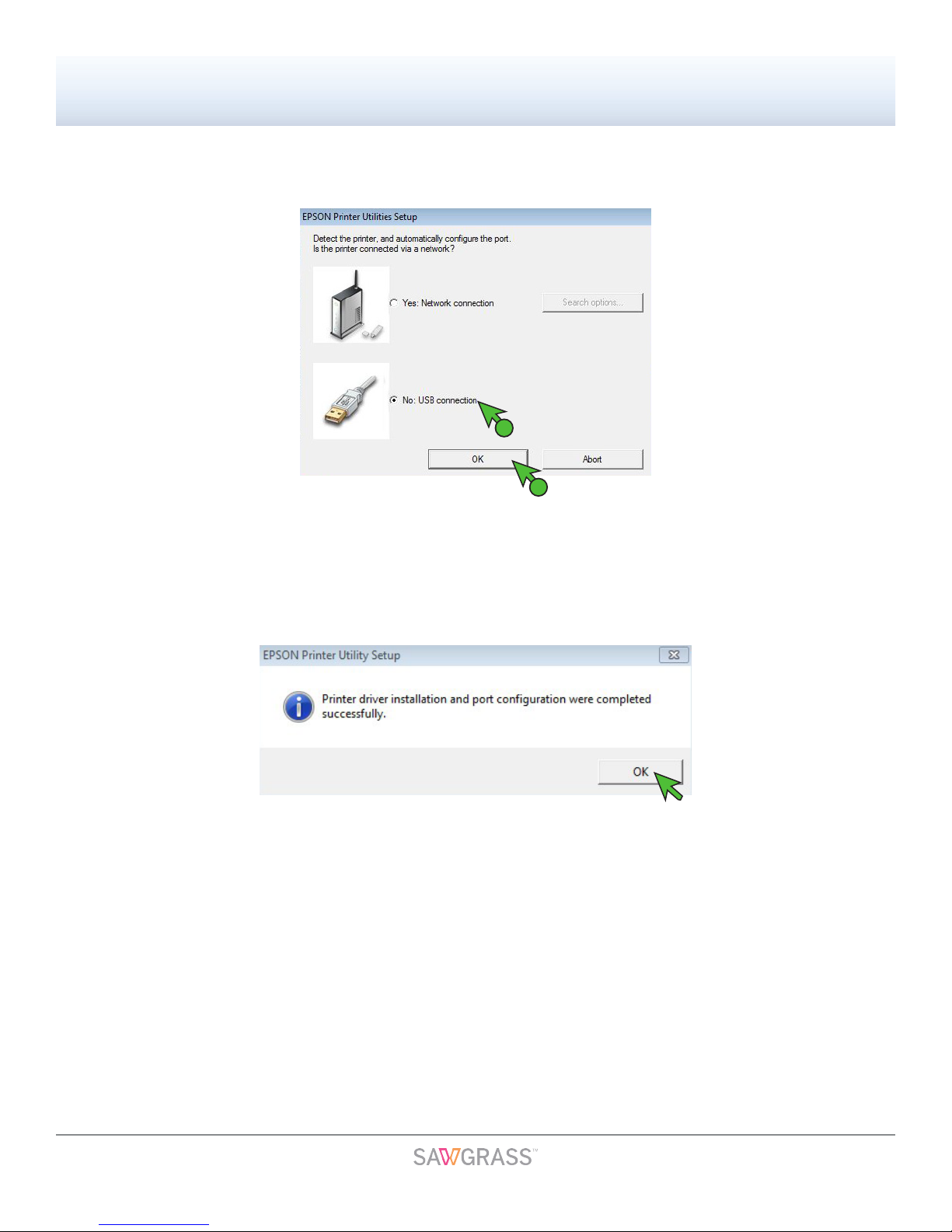

13) Select whether this printer will be connected via a network. For this instance, select No: USB
connection. Then click OK (see FIGURE 13).
FIGURE 13
A
B

SubliJet-E: Epson SC-T3270/5270/7270 – Installation and Configuration Guide
Step 2 of 6: Epson Printer Driver Download and Installation
PAGE 9 of 20 >>
16) The following window will appear signifying that the installation was complete. Click Exit to conclude
the installation (see FIGURE 16).
FIGURE 16

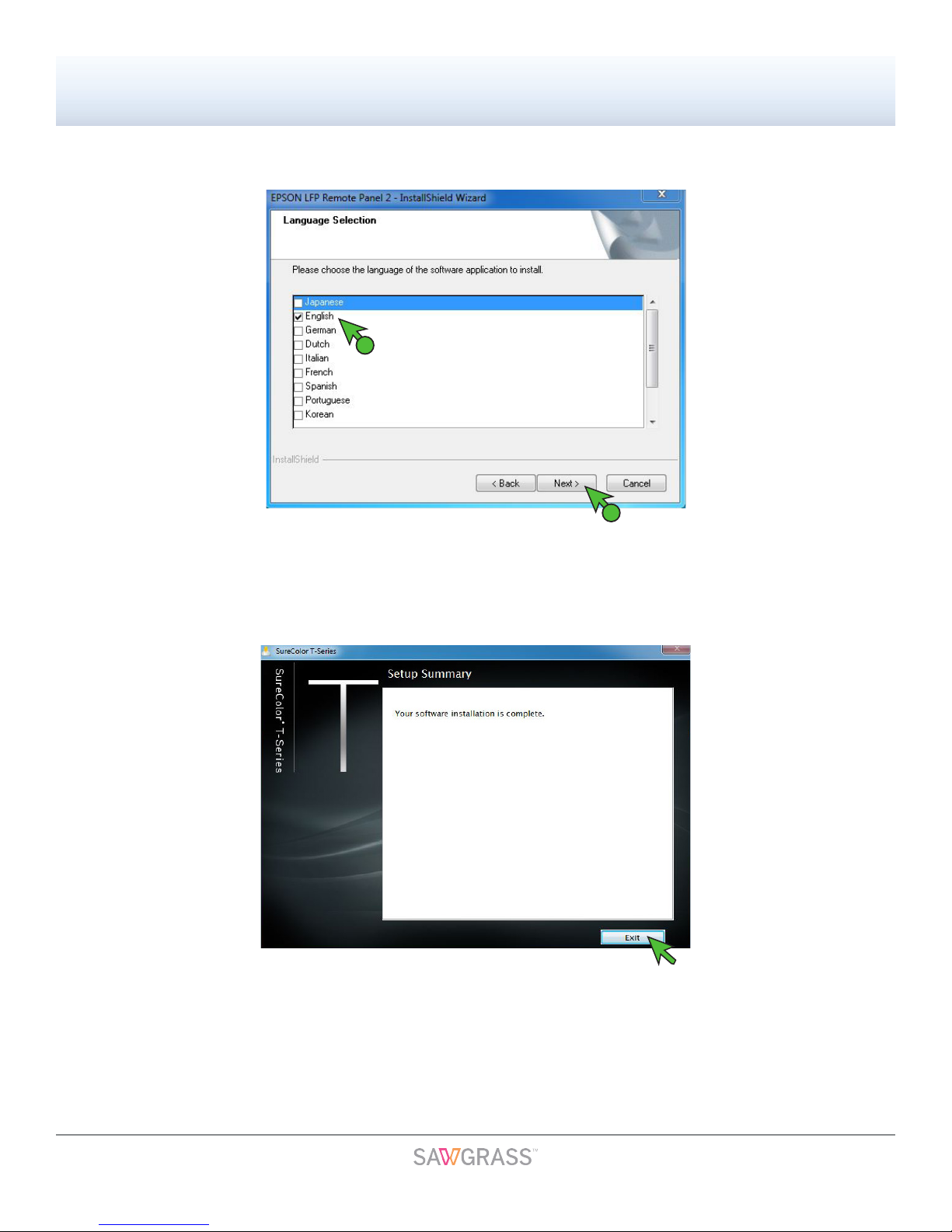

15) Select the language of the software application to install. Then click OK (see FIGURE 15).
FIGURE 15
A
B
The Epson printer driver installation is complete. Proceed to Step 3, Epson Print Driver Conguration.

Epson SC-T3270/5270/7270
Installation and Configuration Guide
Step 3 of 6: Epson Printer Driver Conguration
PAGE 10 of 20 >>
The following instructions explain how to properly congure the Epson SC-T3270/5270/7270 printer
driver to work with the SubliJet-E WinProle.

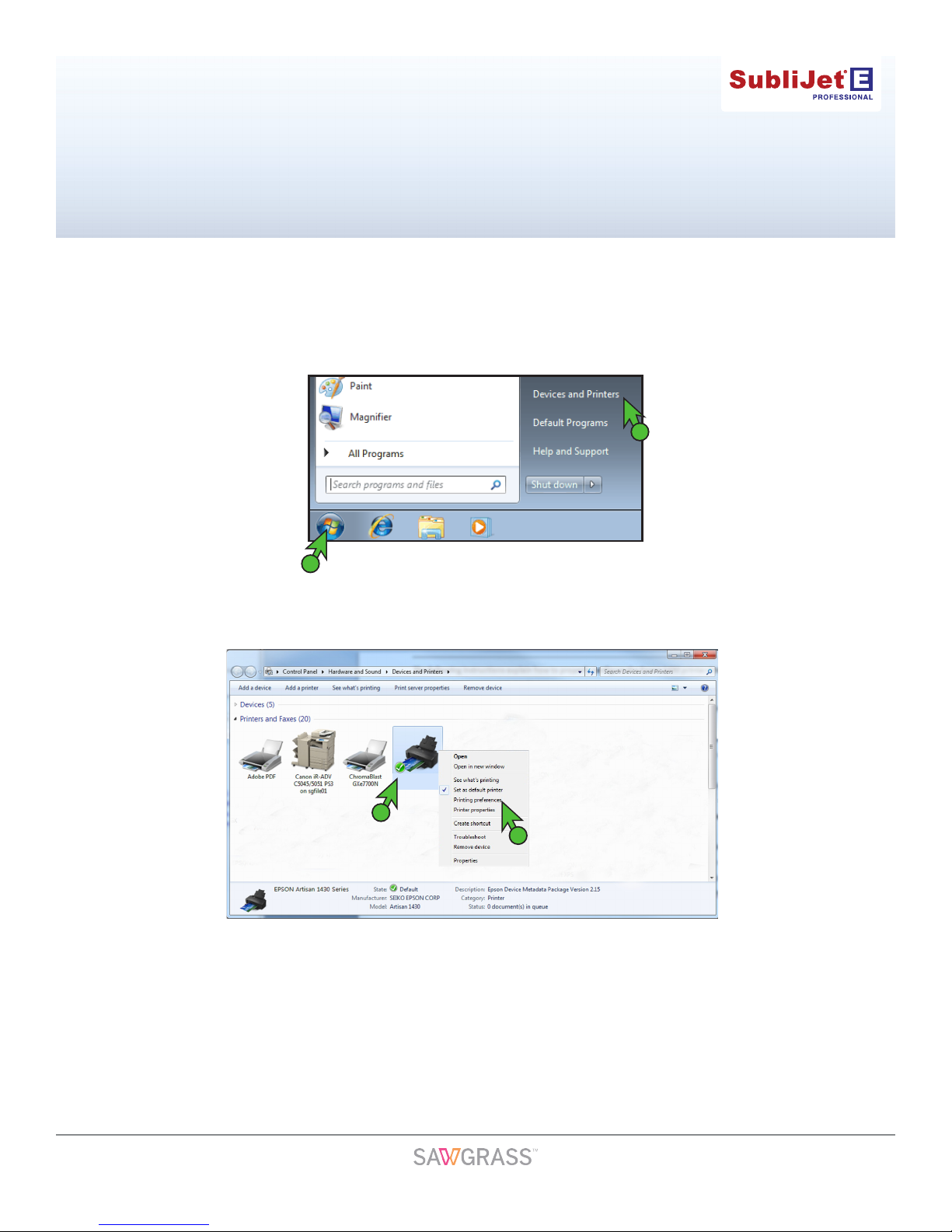

1) To begin, click the Start icon and select Devices and Printers (see FIGURE 1). If using an older version
of Microsoft Windows, select Printers and Faxes instead.
NOTE: The Epson SC-T3200/5200/7200 Printing Preferences window may also be accessed by
clicking “Print Properties” or “Print Preferences” within the print window of the graphic design
software. Also the 3200/5200/7200 Series shares a print driver with the 3270/5270/7270 Series.
FIGURE 1
2) In the Printers folder, right-click on the Epson SC-T3200/5200/7200 Series printer driver icon and select
Printing Preferences (see FIGURE 2).
A
B
FIGURE 2
EPSON
SC-T3200/5200/7200
Series
A
B

SubliJet-E: Epson SC-T3270/5270/7270 – Installation and Configuration Guide
Step 3 of 6: Epson Printer Driver Conguration
PAGE 11 of 20 >>
3) In the Epson SC-T3200/5200/7200 Series Printing Preferences window, click the Printer Settings tab
and match your settings to those shown below: (see FIGURE 3)
B
b
a
A
C
FIGURE 3
A. Media Type: Matte Paper - Enhanced Matte / Ultra Premium Presentation
D. Print Mode: Color/B&W Photo
F. Resolution: Quality Options - Level 5 (Max Quality) and then click OK (see FIGURE 4)
FIGURE 4
D
E. Color Mode: Off (No Color Management)
E
H
I
G. Uncheck: High Speed (see FIGURE 3)
H. Uncheck: Edge Smoothing (see FIGURE 3)
I. Uncheck: Finest Detail (see FIGURE 3)
F
C. Print Quality: Advanced Settings
G
B. Source: Select the appropriate roll paper size based on your printer

SubliJet-E: Epson SC-T3270/5270/7270 – Installation and Configuration Guide
Step 3 of 6: Epson Printer Driver Conguration
PAGE 12 of 20 >>
4) Still in the Epson SC-T3200/5200/7200 Printing Preferences window, click on the Layout tab and select
Mirror Image (see FIGURE 5)
B
FIGURE 5
A
5) Next, click on the Advanced tab and conrm Auto Rotate is checked. Click Save/Del... to save the
current settings (see FIGURE 6)
B
FIGURE 6
AC

SubliJet-E: Epson SC-T3270/5270/7270 – Installation and Configuration Guide
Step 3 of 6: Epson Printer Driver Conguration
PAGE 13 of 20 >>
FIGURE 7
A
B
6) In the Saves or Deletes Select Settings window which opens, name the settings Sawgrass and click
Save (see FIGURE 7).
Installation and conguration of the Epson SC-T3270/5270/7270 Printer Driver is now complete. Proceed to
Step 4, SubliJet-E WinProle Download, Installation and Registration.
7) Back in the Printing Preferences window, click OK to complete the conguration (see FIGURE 8).
FIGURE 8

Epson SC-T3270/5270/7270
Installation and Configuration Guide
Step 4 of 6: SubliJet-E WinProle Download,
Installation and Registration
PAGE 14 of 20 >>
The following instructions explain how to download, install and register the SubliJet-E WinProle. These
instructions feature Windows 7 and Internet Explorer 11. Your experience may differ based on the operating
system and internet browser being used.
2) On the webpage that appears, click the link for the WinProle in the Epson SC-T3270/5270/7270 section
(see FIGURE 2).
FIGURE 1
FIGURE 2
Note: At anytime during the download and installation process, your rewall or virus protection
software may present warnings. Make the appropriate selections necessary to continue.
1) Again, from the appropriate Installation and Conguration webpage for your setup, click on the link in
Step 4, Install the Sawgrass prole (see FIGURE 1).

SubliJet-E: Epson SC-T3270/5270/7270 – Installation and Configuration Guide
Step 4 of 6: SubliJet-E WinProle Download, Installation and Registration
PAGE 15 of 20 >>

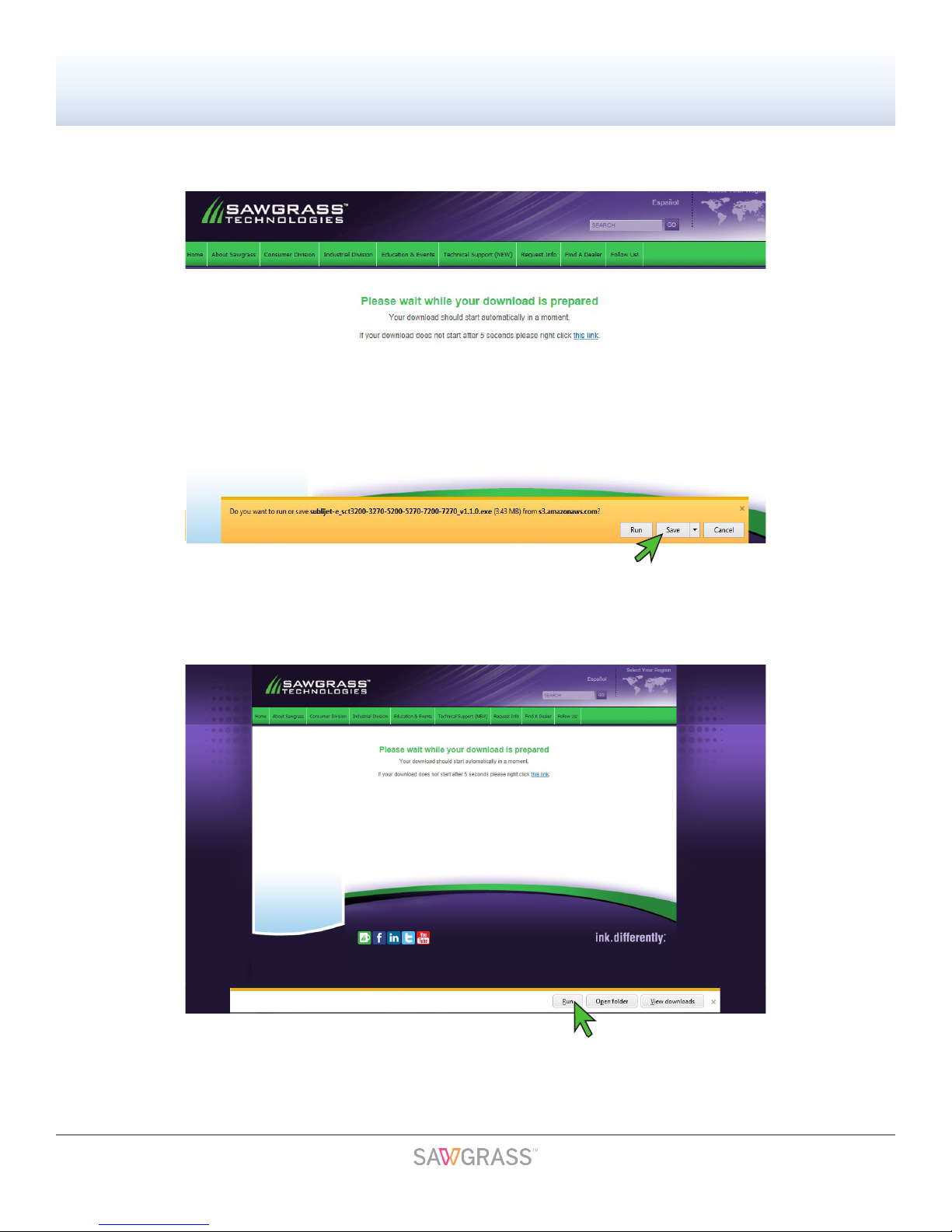

3) The following window will appear asking if you want to Run, Save or Cancel. Click Save (see FIGURE 3).
FIGURE 3
4) The le will begin downloading into the Downloads folder on your computer. When complete, the
download message at the bottom of the screen will give you the option to Run, Open or View
downloads. Click Run (see FIGURE 4).
FIGURE 4
Placeholder Images
Placeholder Images
Placeholder Images
Placeholder Images
The sublijet-e_sct3200-3270-5200-5270-7200-7270_v1.1.0.exe download has completed.

SubliJet-E: Epson SC-T3270/5270/7270 – Installation and Configuration Guide
Step 4 of 6: SubliJet-E WinProle Download, Installation and Registration
PAGE 16 of 20 >>
FIGURE 5

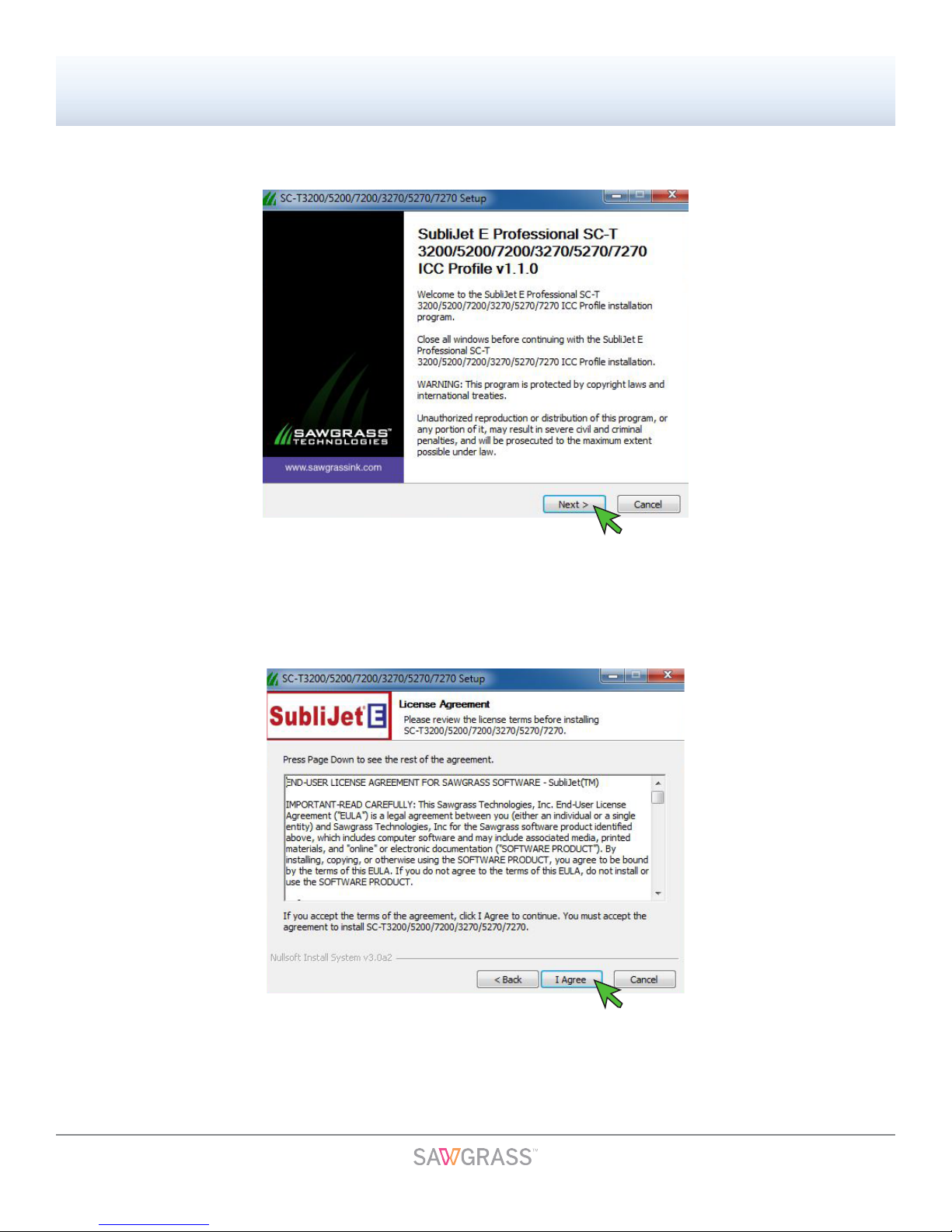

5) Verify that the WinProle is for the correct printer. If so, click Next (see FIGURE 5).
FIGURE 6
6) If you agree with the terms of the License Agreement, click I Agree (see FIGURE 6).

SubliJet-E: Epson SC-T3270/5270/7270 – Installation and Configuration Guide
Step 4 of 6: SubliJet-E WinProle Download, Installation and Registration
PAGE 17 of 20 >>

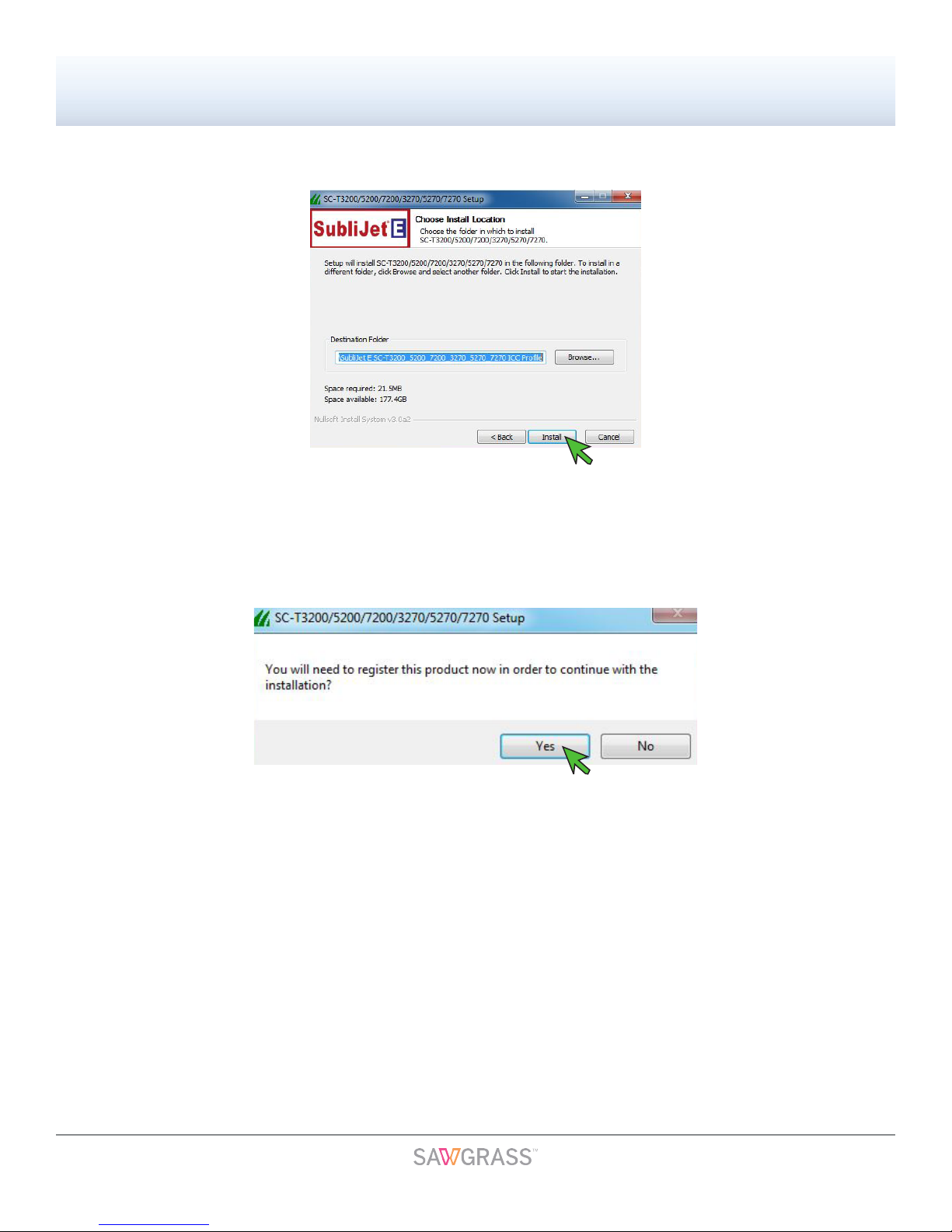

7) Click Install to allow the WinProle to be installed into the correct destination folder (see FIGURE 7).
FIGURE 7
8) Click Yes when prompted to Register the WinProle. A separate Prole Registration window will
appear (see FIGURE 8).
FIGURE 8

SubliJet-E: Epson SC-T3270/5270/7270 – Installation and Configuration Guide
Step 4 of 6: SubliJet-E WinProle Download, Installation and Registration
PAGE 18 of 20 >>
10) On the Product Registration web page that automatically opens, ll in the required information and
click Submit when complete. A registration code will be sent to the email address entered on that form
(see FIGURE 10).
FIGURE 10
9) Take note of the Product ID number, it will be needed to register your software. Click the Obtain
Registration Code button (see FIGURE 9).
FIGURE 9
A
B
