PowerLite® Home Cinema 3010+
Home Theater Projector
User’s Guide

2Contents
Contents
Introduction 5
Projector Parts 6
Remote Control 8
Optional Accessories 9
Warranty 9
Using This Manual 9
Setting Up the Projector 11
Choose a Location 11
Installing the Projector 14
Connecting the Cables 16
Connecting Video and Computer Equipment 16
Making Other Connections 18
Installing Batteries in the Remote Control 19
Turning the Projector On and Off 19
Turning On the Projector 19
Turning Off the Projector 20
Selecting the Image Source 20
Positioning the Image 21
Making Basic Adjustments 24
Focusing and Zooming 24
Choosing the Aspect Ratio 25
Viewing 3D images 26
Projecting in Split Screen mode 27
Starting a Slideshow 28
Choosing Slideshow Options 29
Choosing the Color Mode 30

Contents 3
Advanced Color Adjustments 31
Adjusting the Gamma Setting 31
Adjusting RGBCMY 33
Locking the Projector 34
Making Detailed Adjustments 35
Using the Menu System 35
Changing How the Menus Display 36
Adjusting the Picture Quality 37
Input Brightness Settings 37
Sharpness and Picture Quality Settings 39
Color Settings 40
3D Setup 42
Adjustments for Computer Images 43
Split Screen Setup 44
Selecting Memory Settings and Resetting the Projector 45
Creating Memory Settings 45
Selecting Memory Settings 46
Renaming Memory Settings 46
Deleting Saved Memory Settings 47
Resetting the Projector 47
Customizing Projector Features 48
Image Sizing 48
Screen Options 49
Other Setup Options 50
Using HDMI Link 52
Setting Up HDMI Link 52
Changing HDMI Link Settings 53
Maintenance 54
Cleaning the Lens 54
Cleaning the 3D Glasses 55

4Contents
Cleaning the Projector Case 55
Cleaning and Replacing the Air Filter 56
Replacing the Lamp 58
Resetting the Lamp Usage Timer 61
Checking the Projector Status 61
Storing the Projector 62
Transporting the Projector 62
Problem Solving 63
What To Do When the Lights Come On or Flash 63
Solving Picture Problems 65
Solving Remote Control Problems 69
Where to Get Help 70
Specifications 72
General 72
Lamp 72
Remote Control 73
Dimensions 73
Electrical 73
Environmental 74
Safety 74
Compatible Video Formats 74
ESC/VP21 Command Codes 76
Notices 77
Important Safety Information 77
Epson Limited Warranty 79
FCC Compliance Statement 79
Copyright Notice 80
A Note Concerning Responsible Use of Copyrighted Materials 81
Trademarks 81

Introduction 5
Introduction
The PowerLite®Home Cinema 3010+ projector lets you enjoy theater-quality 3D images in
the relaxing environment of your own home. Designed especially for home cinema use, it
offers these outstanding features:
■Native 1080p (1920 × 1080) resolution, dynamic contrast ratio up to 20,000:1 and up to
2000 lumens of brightness (white light output and color light output) for incredibly rich,
sharp images in any room lighting
■Auto Iris system that constantly controls the light output based on the gamma and
black/white levels of your projected content, for perfectly adjusted images and deepest
blacks
■Epson C2Fine®3LCD technology for reliable picture quality, increased contrast ratio and
uniform colors
■1080Perfect™video processing for more film-like images free of noise or artifacts
■10-bit color quality for unmatched color accuracy, with over a billion colors available
■HDMI®(High-Definition Multimedia Interface®) ports for superior, uncompressed
digital video
■True 16:9 wide-format projection
■Powerful 10 W per channel stereo speaker system
■Flexible setup configurations, including front projection and ceiling mounted, with
horizontal keystone slider for offset placement

6Introduction
Projector Parts
Control panel
Air exhaust
vent
Lens cover Adjustable foot
HDMI ports
External 3D
IR port
Remote control
IR receiver
Horizontal keystone slider
Zoom
ring
Front
Back
Lamp cover
Cable clip hole
Air intake
vent
Air filter cover
Focus ring
Speakers
Power inlet
Cable clip hole
Kensington®
lock port
Audio (L-R) port
Component port
RS-232C port
USB port
Remote control
IR receiver
Video port
PC port

Introduction 7
Brightness
sensor
Esc button
Power
button
Mounting bracket
attachment points
Bottom
Projector Control Panel
Front adjustable feet
Power
light
Source button
Volume/horizontal keystone
correction buttons
Vertical
keystone
correction
buttons
Lamp
light
Temperature
light

8Introduction
Remote Control
Source buttons
Switch between equipment
connected to the projector
On button
Turns projector on
Menu navigation
buttons
Split button
Toggles the Split
Screen function
on or off
Color Mode button
Quickly change color
settings to match room
lighting
Aspect button
Changes the picture’s aspect ratio
A/V Mute button
Temporarily stops
projection or hides the
menu screen
Auto Iris button
Toggles the Auto Iris
function on or off
HDMI Link button
Enables and disables the
HDMI link function
User button
Function can be set
by the user from the
settings menu
Illumination button
Lights the remote control
buttons for easy viewing
Menu button
Displays the projector’s
menus
Default button
Resets menu selection
to default values
2D/3D button
Toggles between 2D
and 3D projection
RGBCMY button
Displays the color adjustment menu
Pattern button
Displays test
patterns to adjust
the image
HDMI Link control buttons
Control playback of a linked
video device
Memory button
Accesses the settings
memory menu
Standby button
Turns projector off
Botão Esc
Return to a previous menu level
when a menu is displayed
Volume buttons
Adjust volume level

Introduction 9
Optional Accessories
Epson provides the following optional accessories for the projector:
You can purchase these and other accessories from an authorized Epson reseller. To find the
nearest reseller, please contact Epson as describe on page 70.
Warranty
Your projector comes with a basic two-year carry-in warranty. For details, see the Quick Setup
sheet.
Using This Manual
This book contains all the information you need to use the projector, in addition to basic
setup and maintenance instructions, troubleshooting tips, important safety instructions,
specifications, and warranty information.
Please follow these guidelines as you read through the manual:
Warning: Must be followed carefully to avoid bodily injury.
Caution: Must be observed to avoid damage to your equipment.
Note: Contains important information about your projector.
Tip: Contains helpful projection tips.
Product Part number
Replacement lamp V12H010L68
Replacement air filter V13H134A38
Kensington security lock (anti-theft device) ELPSL01
Projector mount V12H003B20
Computer cable (6 feet [1.8 meters]) V12H005C02
3D active shutter glasses V12H483001
Replacement lamp V12H010L68

10 Introduction
Need additional help? Take advantage of Epson’s automated support services 24 hours a day
at www.latin.epson.com (website available only in Spanish and Portuguese). Use this site to
view FAQs or product information and e-mail Epson.

Setting Up the Projector 11
Setting Up the Projector
Follow the instructions in this section to choose a location for the projector, connect the
cables, and display an image.
Choose a Location
You can install the projector for the viewing setups shown below, as well as rear projection.
Center
Ceiling
Side

12 Setting Up the Projector
Keep the projector level and place it at a height where its lens is centered between the top and
bottom of the screen. If this isn’t possible, use the horizontal keystone slider and vertical
keystone buttons to adjust the image (see page 21).
Note: Image quality may be reduced if excessive keystone correction is used.
The size of the image is determined by the distance from the projector’s lens to the screen.
Depending on your display settings and how you use the zoom ring, the actual size may differ.
Use these tables as a guide for projector placement:
16:9 aspect ratio
Projection distance Diagonal image size (width × height) Offset
3.8 to 6.2 feet
(116 to 190 cm)
40 in. (35 × 20 in.)
(101.6 cm [89 × 50 cm])
0 in.
(0 cm)
5.8 to 9.4 feet
(176 to 287 cm)
60 in. (51 × 30 in.)
(152.4 cm [130 × 75 cm])
0 in.
(0 cm)
7.7 to 12.6 feet
(235 to 383 cm)
80 in. (71 × 39 in.)
(203.2 cm [180 × 100 cm])
0 in.
(0 cm)
9.7 to 15.7 feet
(295 to 480 cm)
100 in. (87 × 47 in.)
(254 cm [220 × 120 cm])
0 in.
(0 cm)
11.6 to 18.9 feet
(354 to 576 cm)
120 in. (106 × 59 in.)
(304.9 cm [270 × 150 cm])
0 in.
(0 cm)
14.6 to 23.7 feet
(444 to 721 cm)
150 in. (130 × 75 in.)
(361 cm [330 × 190 cm])
0.3 in.
(1 cm)
17.5 to 28.4 feet
(533 to 866 cm)
180 in. (173 × 98 in.)
(457 cm [440 × 250 cm])
0.3 in.
(1 cm)
Projection distance Offset Offset refers to distance
from bottom of image to
center of lens.
Diagonal image size

Setting Up the Projector 13
To determine the exact image size when you know the projection distance (or the exact
projection distance when you know the desired image size), you can use the Image Size
Calculator. This program is available on the Epson website at epson.com/support.
Also keep these considerations in mind:
■Make sure there is plenty of space for ventilation around and under the projector. Do not
set the projector on top of loose materials that could block its vents.
■Make sure the projector is within 9.8 feet (3 m) of a grounded electrical outlet or
extension cord.
In order to view 3D images correctly, 3D glasses must be worn within proper range of the
projector. Use the image below to determine the ideal distance for 3D projection (the shading
represents the 3D viewing area):
4:3 aspect ratio
Projection distance Diagonal image size (width × height) Offset
4.7 to 7.6 feet
(143 to 233 cm)
40 in. (32 × 24 in.)
(101.6 cm [81 × 61 cm])
0 in.
(0 cm)
7.1 to 11.5 feet
(216 to 352 cm)
60 in. (47 × 35 in.)
(152.4 cm [120 × 90 cm])
0 in.
(0 cm)
9.5 to 15.4 feet
(289 to 470 cm)
80 in. (63 × 47 in.)
(203.2 cm [160 × 120 cm])
0 in.
(0 cm)
11.8 to 19.3 feet
(361 to 588 cm)
100 in. (79 × 59 in.)
(254 cm [200 × 150 cm])
0 in.
(0 cm)
14.2 to 23.2 feet
(434 to 706 cm)
120 in. (94 × 71 in.)
(304.8 cm [240 × 180 cm])
0.3 in.
(1 cm)
17.8 to 29 feet
(544 to 883 cm)
150 in. (118 × 91 in.)
(381 cm [300 × 230 cm])
0.3 in.
(1 cm)
23.8 to 38.7 feet
(726 to 1179 cm)
200 in. (161 × 118 in.)
(508 cm [410 × 300 cm])
0.3 in.
(1 cm)
60º
16.5 ft (5 m)
13 ft (4 m)

14 Setting Up the Projector
Use the optional external 3D emitter if you cannot view the 3D image normally or if the
projector is located more than 16.5 feet (5 m) from the viewing area. See “Optional
Accessories” on page 9 for purchasing information.
Installing the Projector
To install the projector, you first need to determine the location, based on the size of your
screen (maximum diagonal image size). Use the tables on page 12 as a guide to positioning the
projector.
To suspend the projector from a ceiling, you will need the optional projector mount designed
for the projector. See page 9 for ordering information. Follow the instructions included with
the mount to install the projector.
Warning: When installing or adjusting the ceiling mount, do not use adhesives to prevent the
screws from loosening and do not use any type of oil or lubricant. These may cause the projector
casing to crack and the projector may fall, causing serious injury and serious damage to the
projector.
If you install the projector on the ceiling, you will need to invert the picture so that it appears
right side up. Follow these steps:
1. Press the Menu button on the remote control.
2. Open the Settings menu, then select Projection.
3. Select Front/Ceiling.
4. Press the Menu button to exit the menu system.

Setting Up the Projector 15
The following illustrations show the dimensions of the projector:
Center of lens
3.2 in.
(80 mm)
5.5 in.
(139.6 mm)
8.2 in. (210 mm)
16.5 in. (420 mm)
11.8 in. (300 mm)
2.4 in.
(60 mm) 5.9 in. (150 mm)
2.8 in.
(70 mm)
14.4 in.
(365 mm)
6.3 in.
(160 mm)

16 Setting Up the Projector
Connecting the Cables
Connecting Video and Computer Equipment
You can connect the projector to many types of video equipment, such as a Blu-ray
Disc™/DVD player, digital tuner, cable or satellite box, video game console, camcorder, or
digital camera. You can also connect it to a desktop or laptop PC or Apple®Mac®system. For
details on compatible video formats, see page 74.
You can connect up to six pieces of equipment at the same time, using any of the
commercially available cables shown below:
Port name Video equipment connection Computer connection
HDMI 1/
HDMI 2
Use an HDMI cable:
Component Use a component video cable
(with RCA-style connectors):
Connect the cable to the three
component video ports. Match
corresponding colors between the
cable and the ports. For audio, use a
stereo RCA audio cable:
—
PC — Use a Mini D-sub, 15-pin monitor cable
to connect to a computer RGB
(monitor) port:
For audio, use a stereo RCA to
mini-jack stereo (3.5 mm) audio cable:

Setting Up the Projector 17
For best results, connect your video equipment to the HDMI port, if possible. If your
equipment doesn’t support HDMI, connect it to either the Component (for high quality,
component video) or Video (for composite video) port.
When you connect an HDMI cable to the projector, it is recommended that you fasten it
with the included cable clip. Follow these steps to install the cable clip:
1. Connect the HDMI cable to one of the HDMI ports on the projector.
2. Insert the guide of the cable clip into the cable clip hole near the HDMI port, as show
below.
3. Place the open cable clip around the HDMI cable, but don’t lock it into place.
4. Slide the cable clip towards the projector and lock the clip onto the HDMI connector.
To remove the cable clip, unlock the clip and disconnect the HDMI cable. Then pinch the
side of the guide of the cable clip and carefully pull it out of the cable clip hole.
Video Use an RCA video and audio cable: —
Port name Video equipment connection Computer connection

18 Setting Up the Projector
Making Other Connections
Connect the power cable and other cables described below, depending on how you plan to
use the projector.

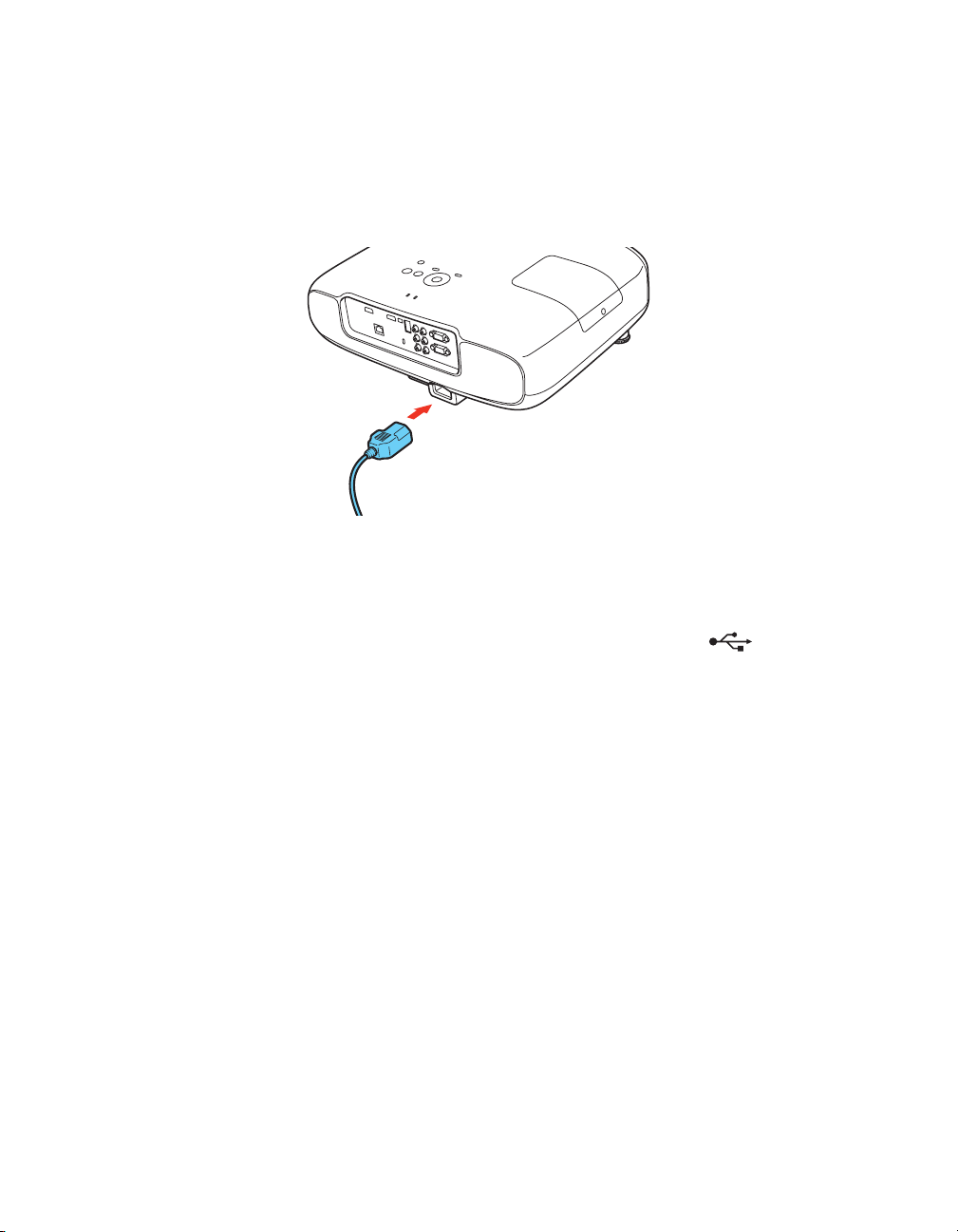

■Plug the power cable into the projector and a grounded electrical outlet.
■To use an AV controller with the projector, connect a 9-pin null modem serial cable to
the RS-232C port.
■To connect to a digital camera, flash drive, or storage device, connect the USB cable that
came with your device to both your device and to the projector’s USB port. For
information on using the projector’s Slideshow feature, see page 28.

Setting Up the Projector 19
Installing Batteries in the Remote Control
The remote control uses two AA batteries.
Warning: Keep batteries away from children. If a battery is swallowed, contact your doctor
immediately.
1. Release the tab and remove the cover.
2. Insert two new AA batteries as shown.
3. Insert the tab on the cover and press it down until it clicks into
place.
Aim the remote control at the screen, or at the front or back of the
projector. Make sure you are within 32 feet (10 meters) of the projector.
If you suspect the batteries are weak, press the illumination button. If
the buttons do not glow, replace the batteries.
Turning the Projector On and Off
Turning On the Projector
1. Remove the lens cap.
2. Turn on any connected equipment you plan to use.
3. Press the On button on the remote control or the Ppower button on the projector.
Remote control Projector

20 Setting Up the Projector
The power light flashes while the projector warms up. If you don’t see a picture, you may
need to change the image source as described on page 20.
Note: With Direct Power On turned on, the projector turns on as soon as you plug it in.
To prevent children from turning on the projector, you can use the Child Lock feature. See
page 34 for details.
If you’ll be using the projector at an altitude above 4921 feet (1500 meters), turn on High Altitude
Mode so the fan can properly cool the projector at the high altitude air pressure. See page 51 for
details.
Warning: Never look into the projector lens when the lamp is on. This can damage your eyes and
is especially dangerous for children.
Turning Off the Projector
1. Turn off any equipment connected to the projector.
2. Press the Ppower button on the projector twice or press the Standby button on the
remote control and wait for the power light to stop flashing.
Caution: Turn off this product when not in use to prolong the life of the projector. Lamp life will vary
depending upon mode selected, environmental conditions, and usage. Brightness decreases over
time.
Selecting the Image Source
The source buttons on the projector and remote control let you switch between images from
different pieces of equipment connected to the projector (such as a Blu-ray Disc/DVD player,
cable or satellite box, or video game console).
Press the Source button on the remote control that corresponds to the port to which your
video source is connected.
