Introduction 5
Introduction
The PowerLite®Home Cinema 3020+ projector lets you enjoy theater-quality 3D images in
the relaxing environment of your own home. Designed especially for home cinema use, it
offers these outstanding features:
■Native 1080p (1920 × 1080) resolution, dynamic contrast ratio up to 40,000:1 and up to
2200 lumens of brightness (white light output) for incredibly rich, sharp images in any
room lighting
■Auto Iris system that constantly controls the light output based on the gamma and
black/white levels of your projected content, for perfectly adjusted images and deepest
blacks
■EPSON®C2Fine™3LCD technology for reliable picture quality, increased contrast ratio
and uniform colors
■1080Perfect™video processing for more film-like images free of noise or artifacts
■10-bit color quality for unmatched color accuracy, with over a billion colors available
■HDMI®(High-Definition Multimedia Interface®) ports for superior, uncompressed
digital video
■True 16:9 wide-format projection
■Powerful 10 W per channel stereo speaker system with two speakers
■Flexible setup configurations, including front projection and ceiling mounted, with
horizontal keystone slider for offset placement

6Introduction
Projector Parts

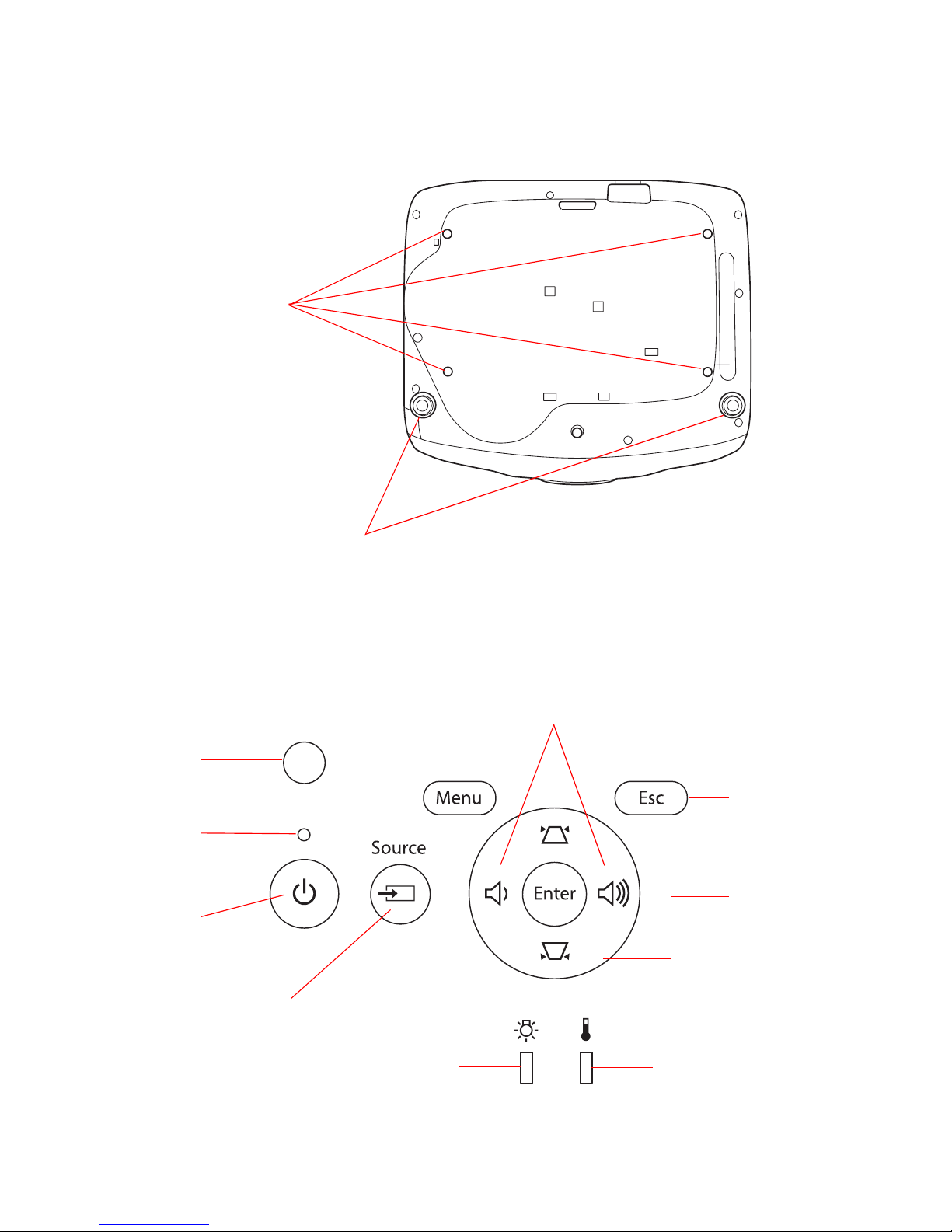

Control panel
Air exhaust
Lens cover Adjustable foot
HDMI ports
Remote receiver
Horizontal keystone slider
Zoom ring
Front
Back
Lamp cover
Cable clip hole
Air intake
Air filter cover
Focus ring
Speakers
Power inlet
Cable clip hole
Kensington®lock port
Audio (L-R) port
Component port
RS-232C port
USB port
Remote receiver
Video port
PC port

Introduction 7
Brightness
sensor
Escape button
Power button
Mounting bracket
attachment points
Bottom
Projector Control Panel
Front adjustable feet
Power
light
Source button
Volume/horizontal
keystone buttons
Vertical
keystone
buttons
Lamp
light
Temperature
light

8Introduction

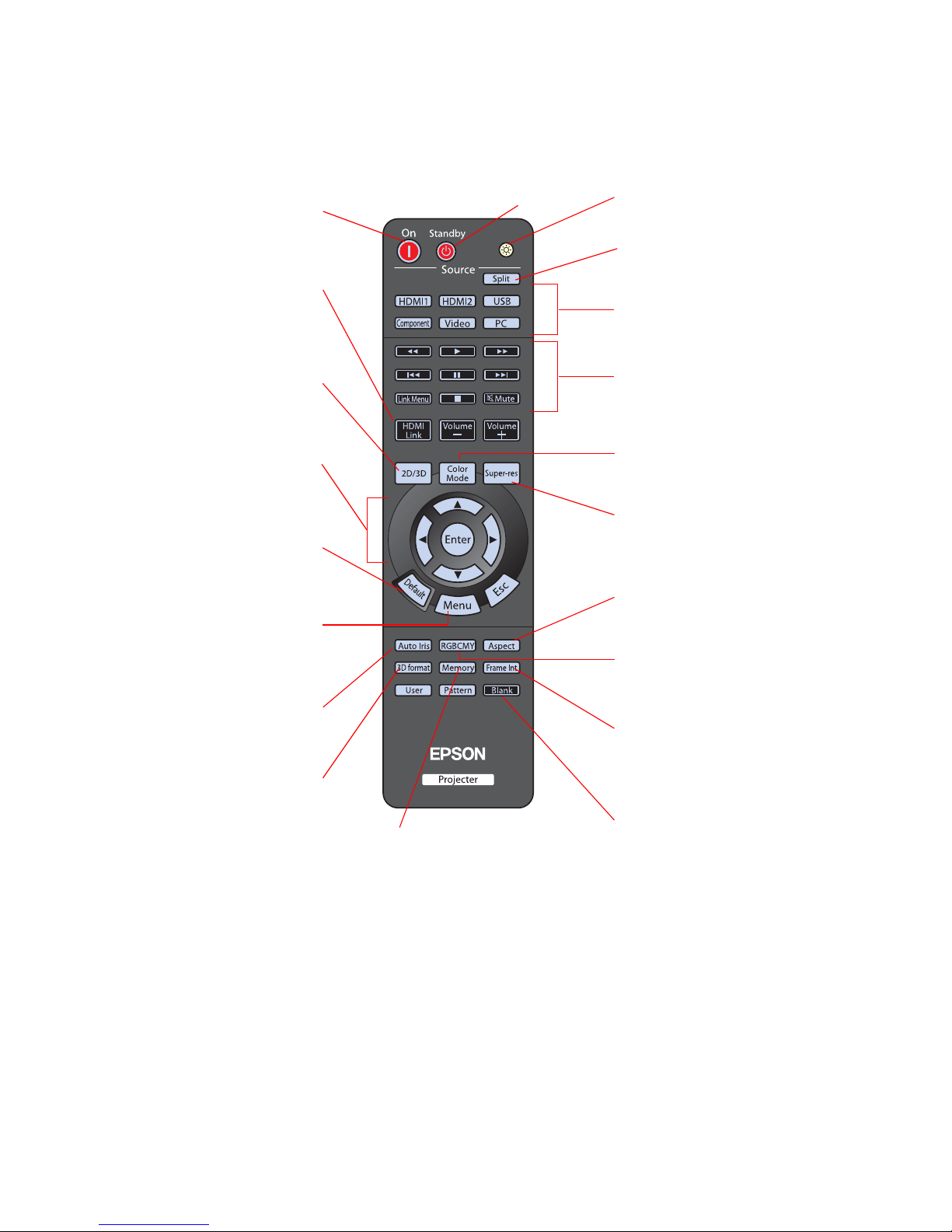

Remote Control
Source buttons
Switch between equipment
connected to the projector
On button
Turns projector on
Menu navigation
buttons
Color Mode button
Quickly change color settings
to match room lighting
Aspect button
Changes the picture’s
aspect ratio
Blank button
Temporarily stops projection o
r
hides the menu screen
Auto Iris button
Toggles the Auto Iris
function on or off
HDMI Link button
Enables and disables the
HDMI link function
Frame Int button
Adjusts the Frame Interpolatio
n
setting
Split button
Toggles the Split Screen
function on or off
Menu button
Displays the projector’s
menus
Default button
Resets menu
selection to default
values
2D/3D button
Toggles
between 2D and
3D projection
RGBCMY button
Displays the color
adjustment menu
Memory button
Accesses the memory
menu
HDMI Link control buttons
Control playback of a linked
video device
Super-res button
Adjusts the Super-res setting
on or off
Standby button
Turns projector off
Illumination button
Lights the remote control
buttons for easy viewing
3D Format button
Adjusts the 3D Format
setting

Introduction 9
Optional Accessories
Epson provides the following optional accessories for the projector:
You can purchase these accessories from an authorized EPSON reseller. To find the nearest
reseller, please call Epson as described on page 73.
Warranty
Your projector comes with a basic two-year warranty for the projector, one-year 3D glasses
warranty, and a 90 day limited warranty for the lamp. For details, see the Quick Setup sheet.
Product Part number
Replacement lamp V12H010L68
Air filter replacement V13H134A38
Kensington security lock (anti-theft device) ELPSL01
Projector mount CHF1000
Computer cable (6 feet [1.8 meters]) V12H005C02
EPSON RF 3D Active Shutter Glasses V12H548006
PixiePlus™control system for EPSON projectors ELPSP10
Belkin Pro Series VGA / SVGA cable – 6 ft. (1.8 m) F3H982-06
Belkin PureAV HDMI audio video cable – 3 ft. (0.9 m) AV22300-03

10 Introduction
Using This Manual
This book contains all the information you need to use the projector, in addition to basic
setup and maintenance instructions, troubleshooting tips, important safety instructions,
specifications, and warranty information.
Please follow these guidelines as you read through the manual:
Warning: Must be followed carefully to avoid bodily injury.
Caution: Must be observed to avoid damage to your equipment.
Note: Contains important information about your projector.
Tip: Contains helpful projection tips.
Need additional help? Take advantage of Epson’s automated support services 24 hours a day
at global.latin.epson.com/Soporte (website available in Spanish). Use this site to view FAQs
or product information and e-mail Epson.

Setting Up the Projector 11
Setting Up the Projector
Follow the instructions in this section to choose a location for the projector, connect the
cables, and display an image.
Choose a Location
You can install the projector for the viewing setups shown below, as well as rear projection.
Center
Ceiling

12 Setting Up the Projector
Keep the projector level and place it at a height so its lens is even with the top or the bottom
of the screen and is centered horizontally. If this isn’t possible, use the horizontal keystone
slider and vertical keystone buttons to adjust the image (see page 23).
Note: Image quality is reduced if keystone correction is used. For the best possible image quality,
avoid using keystone correction.
The size of the image is determined by the distance from the projector’s lens to the screen.
Depending on your display settings and how you use the zoom ring, the actual size may differ.
Use these tables as a guide for projector placement:
16:9 aspect ratio
Projection distance Diagonal image size (width × height) Offset
3.8 to 6.2 feet
116 to 190 cm
40 in. (35 × 20 in.)
101.6 cm (89 × 50 cm)
0.1 in.
(0 cm)
5.8 to 9.4 feet
176 to 287 cm
60 in. (51 × 30 in.)
152.4 cm (130 × 75 cm)
0.1 in.
(0 cm)
7.7 to 12.6 feet
235 to 383 cm
80 in. (71 × 39 in.)
203.2 cm (180 × 100 cm)
0.1 in.
(0 cm)
9.7 to 15.7 feet
295 to 480 cm
100 in. (87 × 47 in.)
254 cm (220 × 120 cm)
0.1 in.
(0 cm)
11.6 to 18.9 feet
354 to 576 cm
120 in. (106 × 59 in.)
304.9 cm (270 × 150 cm)
0.1 in.
(0 cm)
14.6 to 23.7 feet
444 to 721 cm
150 in. (130 × 75 in.)
361 cm (330 × 190 cm)
0.2 in.
(1 cm)
17.5 to 28.4 feet
533 to 866 cm
180 in. (173 × 98 in.)
457 cm (440 × 250 cm)
0.3 in.
(1 cm)

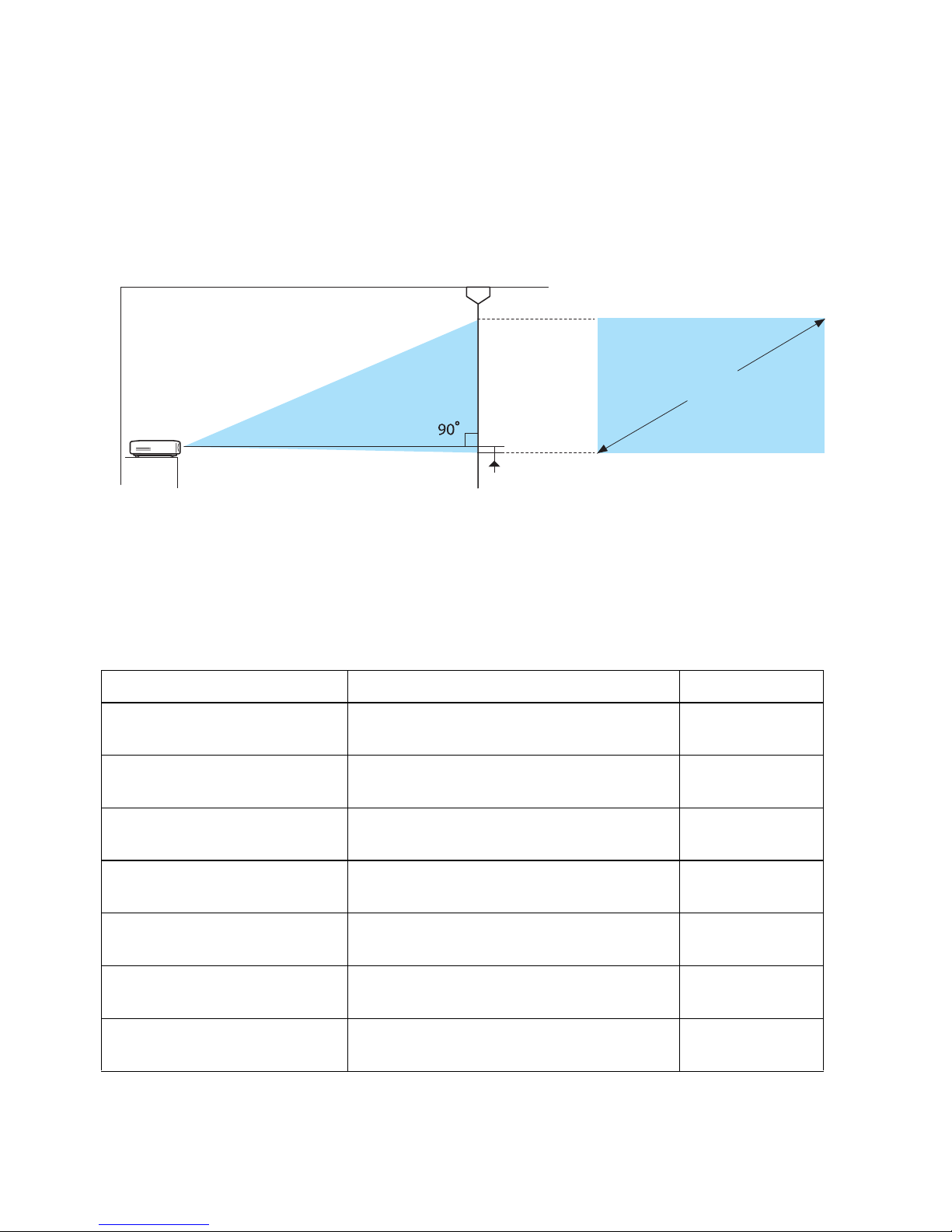

Projection distance Offset Offset refers to distance from
bottom of image to center of lens.
Diagonal image size

Setting Up the Projector 13
To determine the exact image size when you know the projection distance (or the exact
projection distance when you know the desired image size), you can use the Image Size
Calculator. This program is available on the Epson website at epson.com/support (U.S.).
Also keep these considerations in mind:
■Make sure there is plenty of space for ventilation around and under the projector. Do not
set the projector on top of loose materials that could block the vents underneath.
■Make sure the projector is within 9.8 feet (3 m) of a grounded electrical outlet or
extension cord.
4:3 aspect ratio
Projection distance Diagonal image size (width × height) Offset
4.7 to 7.6 feet
143 to 233 cm
40 in. (32 × 24 in.)
101.6 cm (81 × 61 cm)
0.1 in.
(0 cm)
7.1 to 11.5 feet
216 to 352 cm
60 in. (47 × 35 in.)
152.4 cm (120 × 90 cm)
0.1 in.
(0 cm)
9.5 to 15.4 feet
289 to 470 cm
80 in. (63 × 47 in.)
203.2 cm (160 × 120 cm)
0.1 in.
(0 cm)
11.8 to 19.3 feet
361 to 588 cm
100 in. (79 × 59 in.)
254 cm (200 × 150 cm)
0.2 in.
(0 cm)
14.2 to 23.2 feet
434 to 706 cm
120 in. (94 × 71 in.)
304.8 cm (240 × 180 cm)
0.2 in.
(0 cm)
17.8 to 29 feet
544 to 883 cm
150 in. (118 × 91 in.)
381 cm (300 × 230 cm)
0.3 in.
(1 cm)
23.8 to 38.7 feet
726 to 1179 cm
200 in. (161 × 118 in.)
508 cm (410 × 300 cm)
0.3 in.
(1 cm)

14 Setting Up the Projector
In order to view 3D images correctly, 3D glasses must be worn within 32 feet (10 m) of the
projector. Use the image below to determine the viewing distance for 3D projection (the
shading represents the 3D viewing area):
Installing the Projector
To install the projector, you first need to determine the location, based on the size of your
screen (maximum diagonal image size). Use the tables on page 12 as a guide to positioning the
projector.
To suspend the projector from a ceiling, you will need the optional projector mount designed
for the projector. See page 9 for ordering information. Follow the instructions included with
the mount to install the projector.
Warning: When installing or adjusting the ceiling mount, do not use adhesives to prevent the
screws from loosening and do not use any type of oil or lubricant. These may cause the projector
casing to crack and the projector may fall, causing serious injury and serious damage to the
projector.
If you install the projector on the ceiling, you will need to invert the picture so that it appears
right side up. Follow these steps:
1. Press the Menu button on the remote control.
2. Open the Settings menu, then select Projection.
3. Select Front/Ceiling.
4. Press the Menu button to exit the menu system.

Setting Up the Projector 15

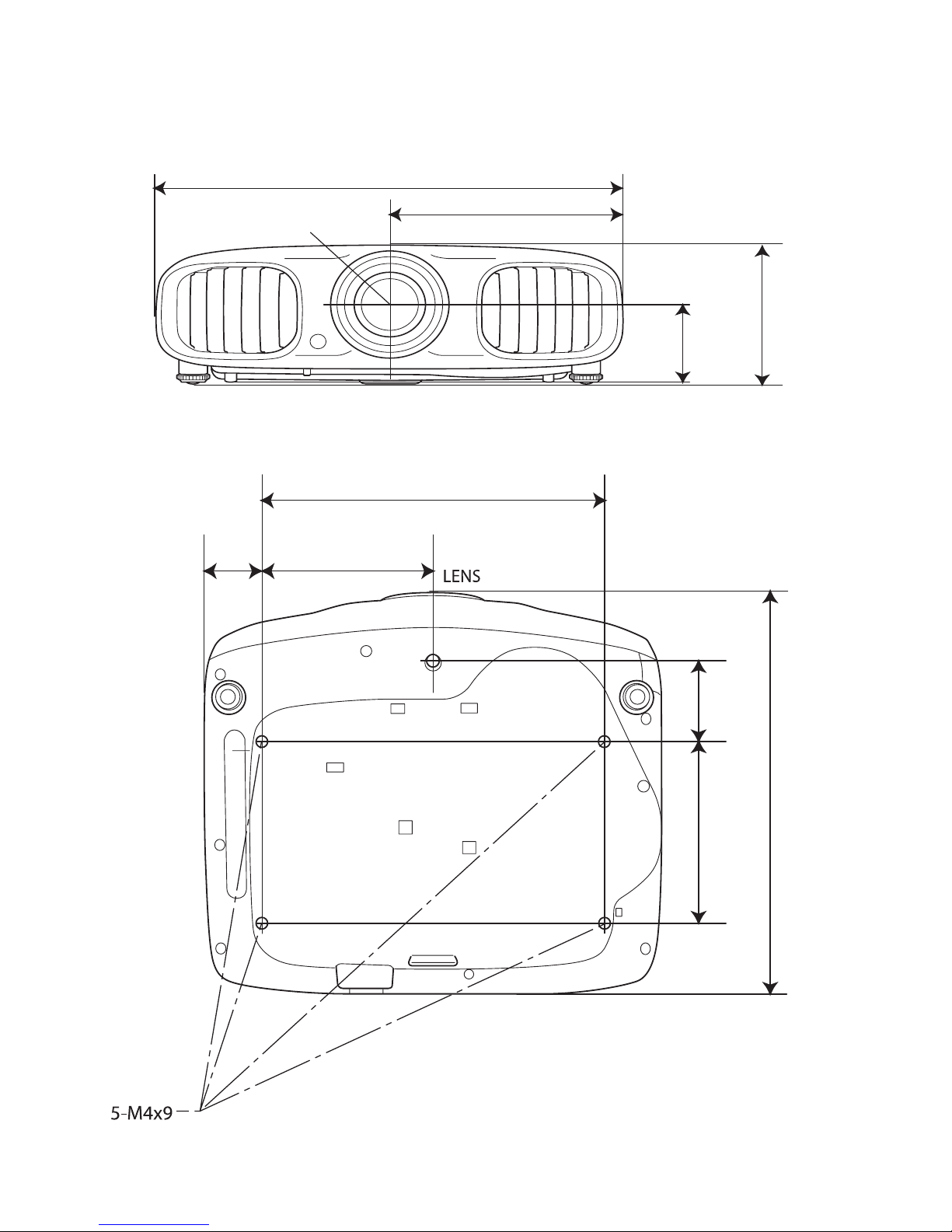

The following illustrations show the dimensions of the projector:
Center of lens
3.2 in.
(80 mm)
5.5 in.
(139.6 mm)
8.3 in. (210 mm)
16.5 in. (420 mm)
11.8 in. (300 mm)
2.4 in.
(60 mm) 5.9 in. (150 mm)
2.8 in.
(70 mm)
14.4 in.
(365 mm)
6.3 in.
(160 mm)

16 Setting Up the Projector
Connecting the Cables
Connecting Video and Computer Equipment
You can connect the projector to many types of video equipment, such as a Blu-ray
Disc™/DVD player, digital tuner, cable or satellite box, video game console, camcorder, or
digital camera. You can also connect it to a desktop or laptop PC or Apple Mac system. For
details on compatible video formats, see page 77.
You can connect up to five pieces of equipment directly to the projector at the same time,
using any of the commercially available cables shown below:.
Port name Video equipment connection Computer connection
HDMI 1/
HDMI 2
Use an HDMI cable:
Component Use a component video cable
(with RCA-style connectors):
Connect the cable to the three
component video ports. Match
corresponding colors between the
cable and the ports. For audio, use a
stereo RCA audio cable:
—
PC — Use a Mini D-sub, 15-pin monitor cable
to connect to a computer RGB
(monitor) port:
For audio, use a stereo RCA to
mini-jack stereo (3.5 mm) audio cable:

Setting Up the Projector 17
For best results, connect your video equipment to the HDMI port, if possible. If your
equipment doesn’t support HDMI, connect it to either the Component (for high quality,
component video) or Video (for composite video) port.
When you connect an HDMI cable to the projector, it is recommended that you fasten it
with the included cable clip. Follow these steps to install the cable clip:
1. Connect the HDMI cable to one of the HDMI ports on the projector.

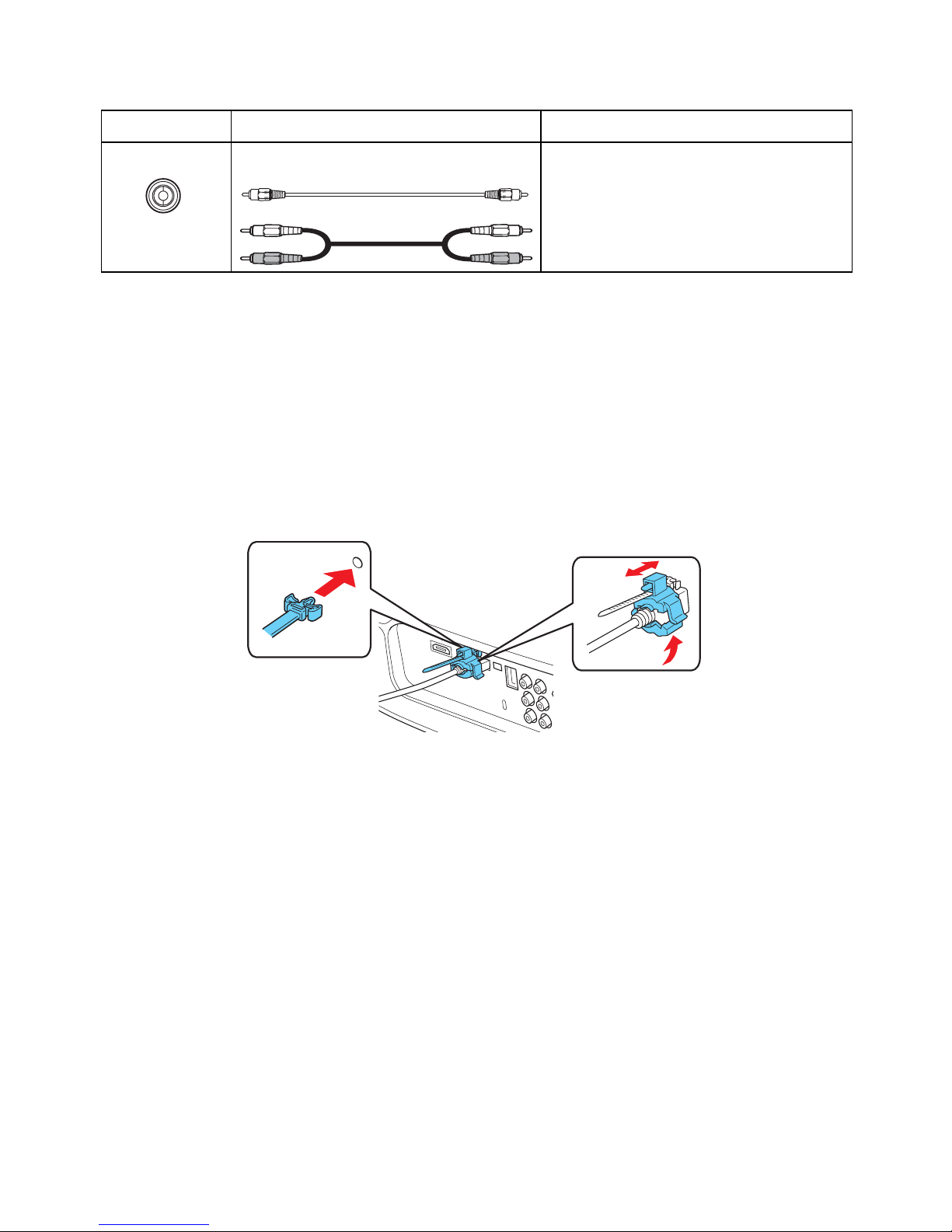

2. Insert the end of the cable clip anchor into the cable clip hole near the HDMI port, as
show below.
3. Place the open cable clip around the HDMI cable, but don’t lock it into place.
4. Slide the cable clip towards the projector and lock the clip onto the HDMI connector.
To remove the cable clip, unlock the clip and disconnect the HDMI cable. Then pinch the
side of the cable clip anchor and carefully pull it out of the cable clip hole.
Video Use an RCA video and audio cable: —
Port name Video equipment connection Computer connection

18 Setting Up the Projector
Making Other Connections
Connect the power cable and other cables described below, depending on how you plan to
use the projector.
■Plug the power cable into the projector and a grounded electrical outlet.
■To use an AV controller with the projector, connect a 9-pin null modem serial cable to
the RS-232C port.
■To connect to a digital camera, flash drive, or storage device, connect the USB cable that
came with your device to both your device and to the projector’s USB port. For
information on using the projector’s Slideshow feature, see page 31.

Setting Up the Projector 19
Installing Batteries in the Remote Control
The remote control uses two AA batteries.
Warning: Keep batteries away from children. If a battery is swallowed, contact your doctor
immediately.
1. Release the tab and lift open the cover.
2. Insert two new AA batteries as shown.
3. Insert the tab on the cover and press it down until it clicks into
place.
Aim the remote control at the screen, or at the front or back of the
projector. Make sure you are within 32 feet (10 meters) of the projector.
If you suspect the batteries are weak, press the illumination button. If
the buttons do not glow, check the battery orientation or replace the
batteries.
Charging the 3D Glasses
If you are using EPSON RF 3D Active Shutter Glasses, follow these steps to charge the
glasses:
1. Plug a USB cable into the port on the bridge of the glasses.

20 Setting Up the Projector

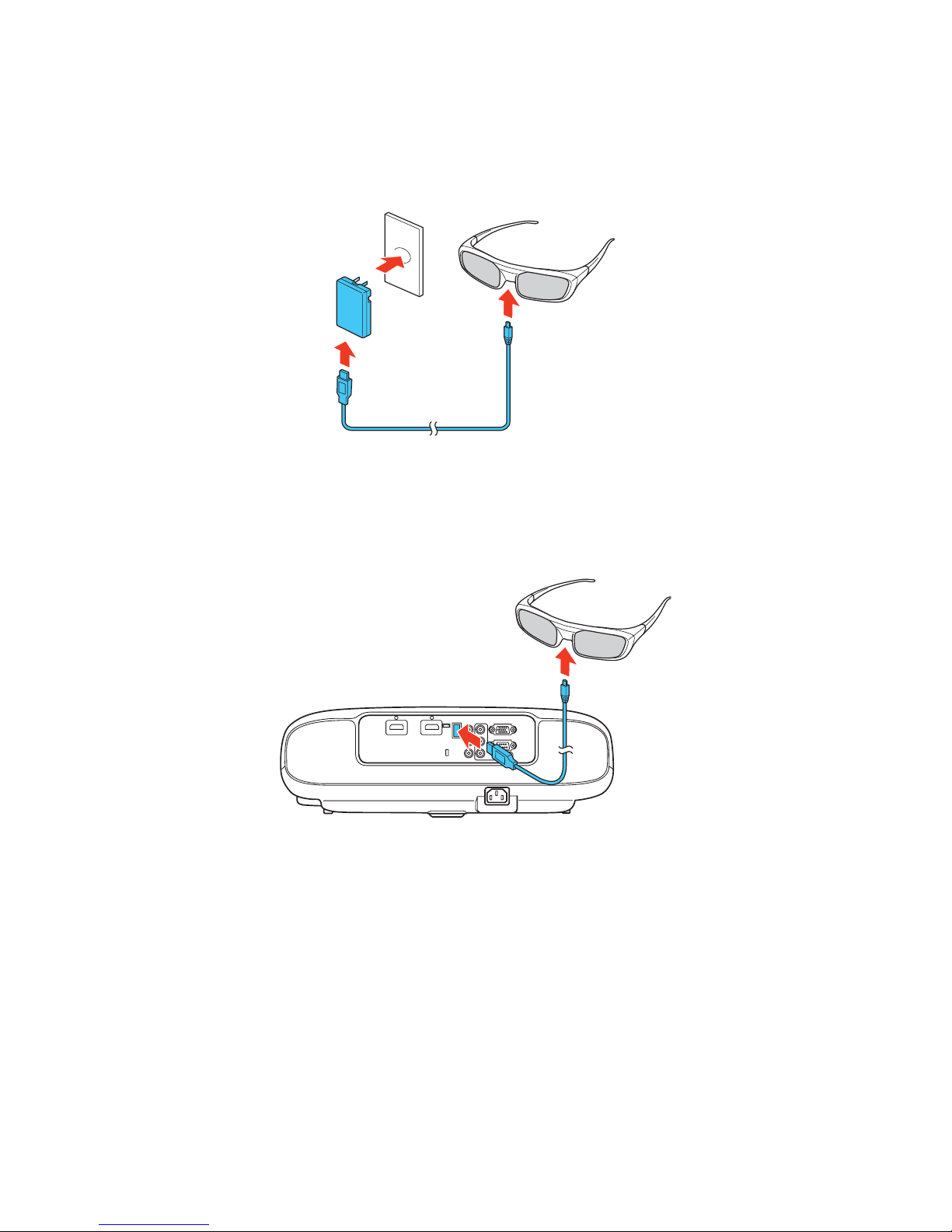

2. Do one of the following:
■Plug the other end of the USB cable into the USB to AC adapter, then connect the
adapter to a wall outlet.
■Plug the other end of the USB cable into the USB-A port on the back of the
projector.
Note: The projector must be turned on to charge the 3D glasses through the USB port.
■Plug the other end of the USB cable into a computer or other device with an available
USB port.
Note: Epson does not guarantee the compatibility of the EPSON RF 3D active shutter
glasses with computers or other devices.
