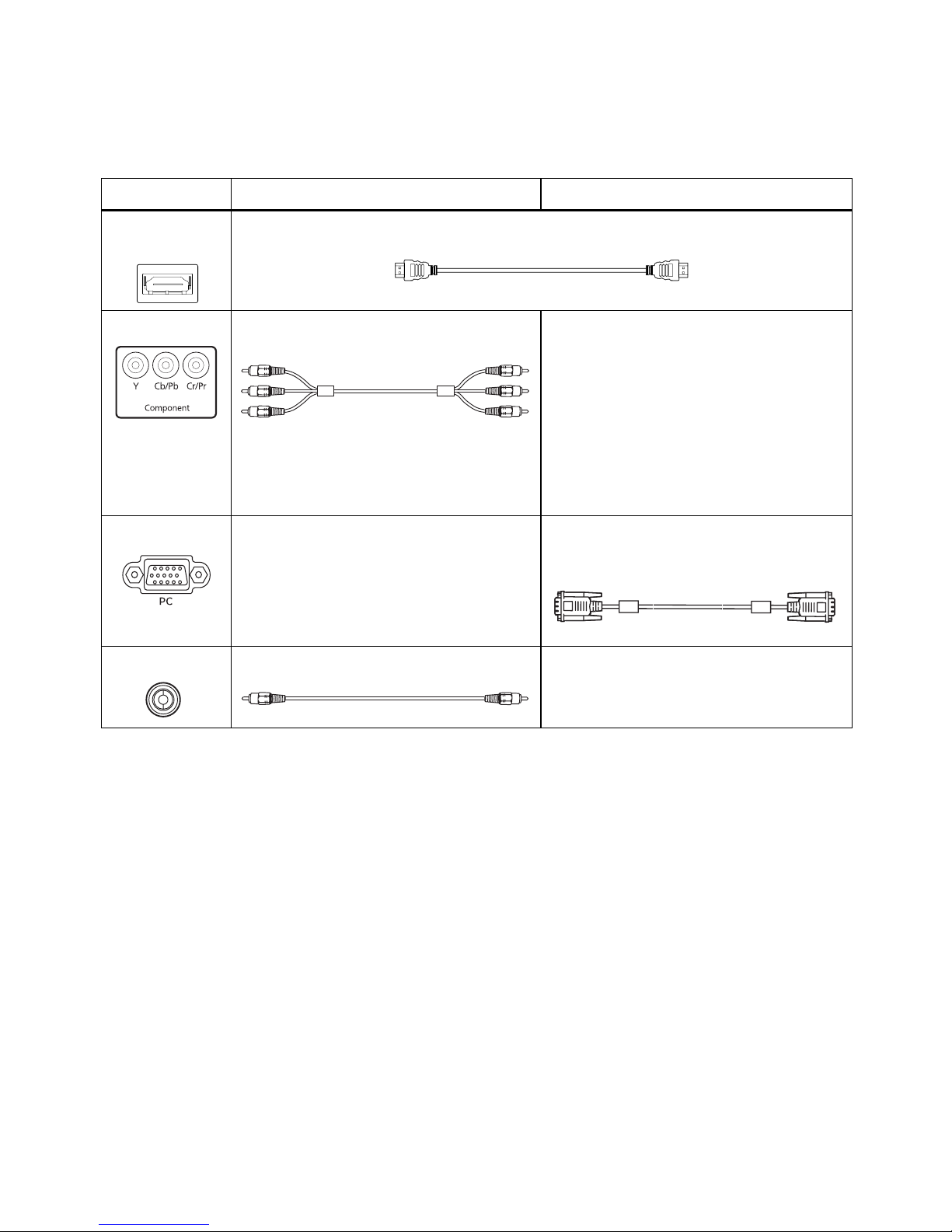

Connecting Video and Computer Equipment 18
Making Other Connections 21
Installing Batteries in the Remote Control 22
Charging the 3D Glasses 22
Turning the Projector On and Off 23
Turning On the Projector 23
Turning Off the Projector 24
Selecting the Image Source 24
Positioning the Image 26
Making Basic Adjustments 29
Focusing and Zooming 29
Choosing the Aspect Ratio 30
Viewing 3D images 31
Projecting in Split Screen mode 33
Choosing the Color Mode 34

Contents 3
Advanced Color Adjustments 35
Adjusting the Gamma Setting 36
Adjusting RGBCMY 37
Locking the Projector 37
Making Detailed Adjustments 39
Using the Menu System 39
Changing How the Menus Display 40
Adjusting the Picture Quality 41
Input Brightness Settings 41
Sharpness and Picture Quality Settings 43
Color Settings 45
3D Setup 46
Adjustments for Computer Images 48
WirelessHD Settings (PowerLite Home Cinema 5020UBe only) 49
Split Screen Setup 50
Selecting Memory Settings and Resetting the Projector 51
Creating Memory Settings 51
Selecting Memory Settings 51
Renaming Memory Settings 52
Deleting Saved Memory Settings 52
Resetting the Projector 53
Customizing Projector Features 54
Image Sizing 54
Screen Options 55
Other Setup Options 55
Adjusting the LCD Alignment 57
Using WirelessHD 60
Placing the WirelessHD Transmitter 60
Connecting the WirelessHD Transmitter 61
Viewing WirelessHD Content 62
Switching WirelessHD Sources 62
Using Picture-in-Picture 64

4Contents
Using HDMI Link 66
Setting Up HDMI Link 66
Changing HDMI Link Settings 67
Maintenance 68
Cleaning the Lens 68
Cleaning the 3D Glasses 69
Cleaning the Projector Case 70
Cleaning and Replacing the Air Filter 70
Replacing the Lamp 72
Resetting the Lamp Usage Timer 75
Checking the Projector Status 76
Storing the Projector 76
Transporting the Projector 77
Problem Solving 78
What To Do When the Lights Come On or Flash 78
Solving Picture Problems 80
Solving Remote Control Problems 84
Solving WirelessHD Problems (PowerLite Home Cinema 5020UBe Only) 85
Where to Get Help 86
Specifications 87
Notices 92
Important Safety Information 92
FCC Compliance Statement 94
Copyright Notice 95
A Note Concerning Responsible Use of Copyrighted Materials 95
Trademarks 96

Introduction 5
Introduction
The PowerLite®Home Cinema 5020UB/5020UBe projector lets you enjoy theater-quality
2D and 3D images in the relaxing environment of your own home. Designed especially for
home cinema use, it offers these outstanding features:
■Native 1080p (1920 × 1080) resolution, dynamic contrast ratio up to 320,000:1 and up
to 2400 lumens of color brightness and 2400 lumens of white brightness (light output)
for incredibly rich, sharp images in almost any setting
■Auto Iris system that constantly controls the light output based on the gamma and
black/white levels of your projected content, for perfectly adjusted images and deepest
blacks now in both 2D and 3D
■Epson C2Fine®3LCD technology for reliable picture quality, increased contrast ratio and
uniform colors
■10-bit color quality for unmatched color accuracy, with over a billion colors available
■HDMI®(High-Definition Multimedia Interface®) ports for superior, uncompressed
digital video
■THX®3D certified to deliver exquisite, natural textures and film-like movie experiences
■Built-in cinema filter and Fujinon® lens for exceptional picture quality
■True 16:9 wide-format projection
■Flexible setup configurations, including front projection and ceiling mounted, with
vertical and horizontal lens shift dials for offset placement

6Introduction
Projector Parts
Air exhaust
Projector lens
Adjustable foot
HDMI ports
Remote receiver
Vertical lens shift dial
Front
Back
Lamp cover
Air intake
Air filter cover
Power inlet Kensington®lock port
RS-232C port
Video port
PC port
Control panel
Horizontal
lens shift dial
Focus ring
Zoom ring

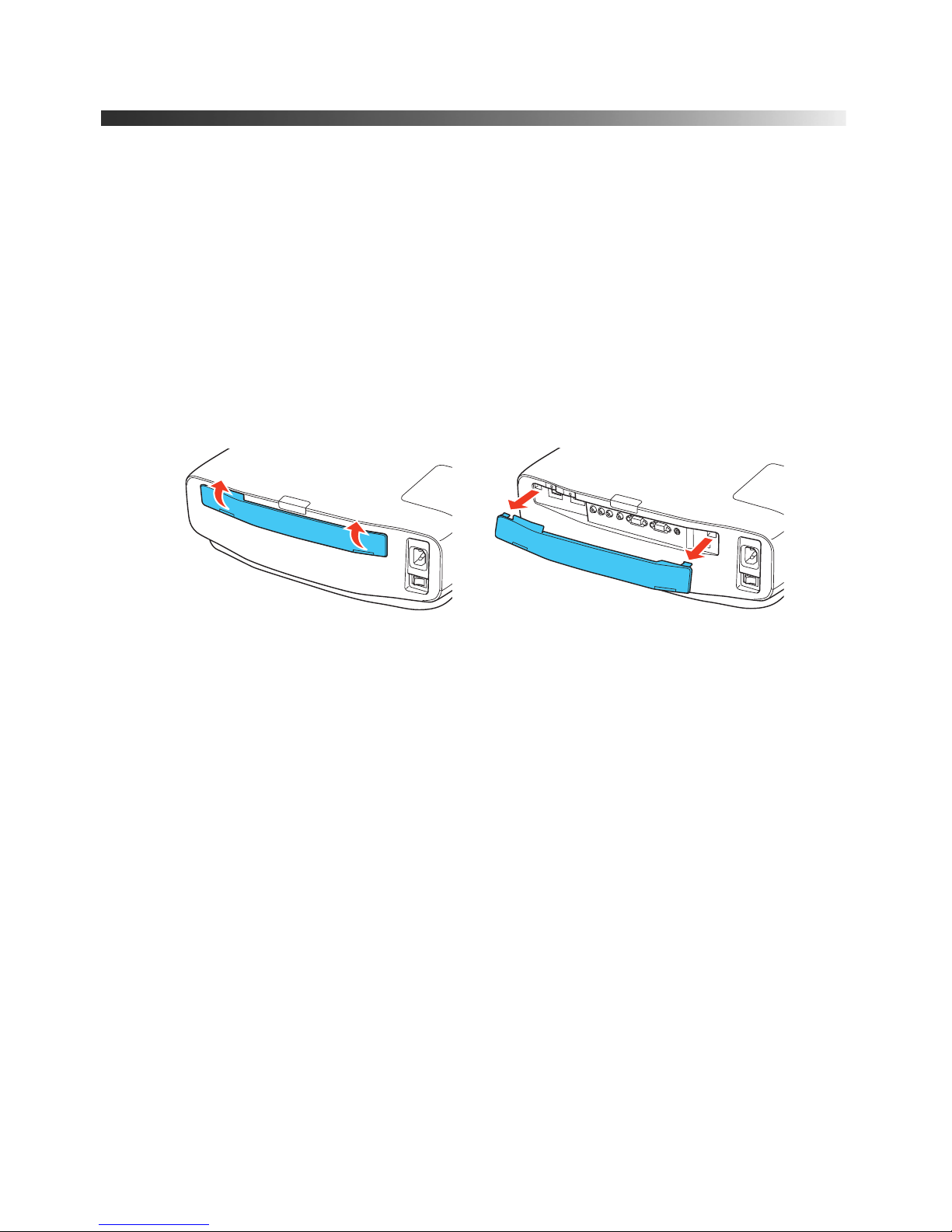

HDMI Cable clip holes
Component port
Power switch
Trigger out port (12V DC
200mA max)
Auto lens
shutter
Control
panel cover
Power and
warning
lights

Introduction 7
Escape button

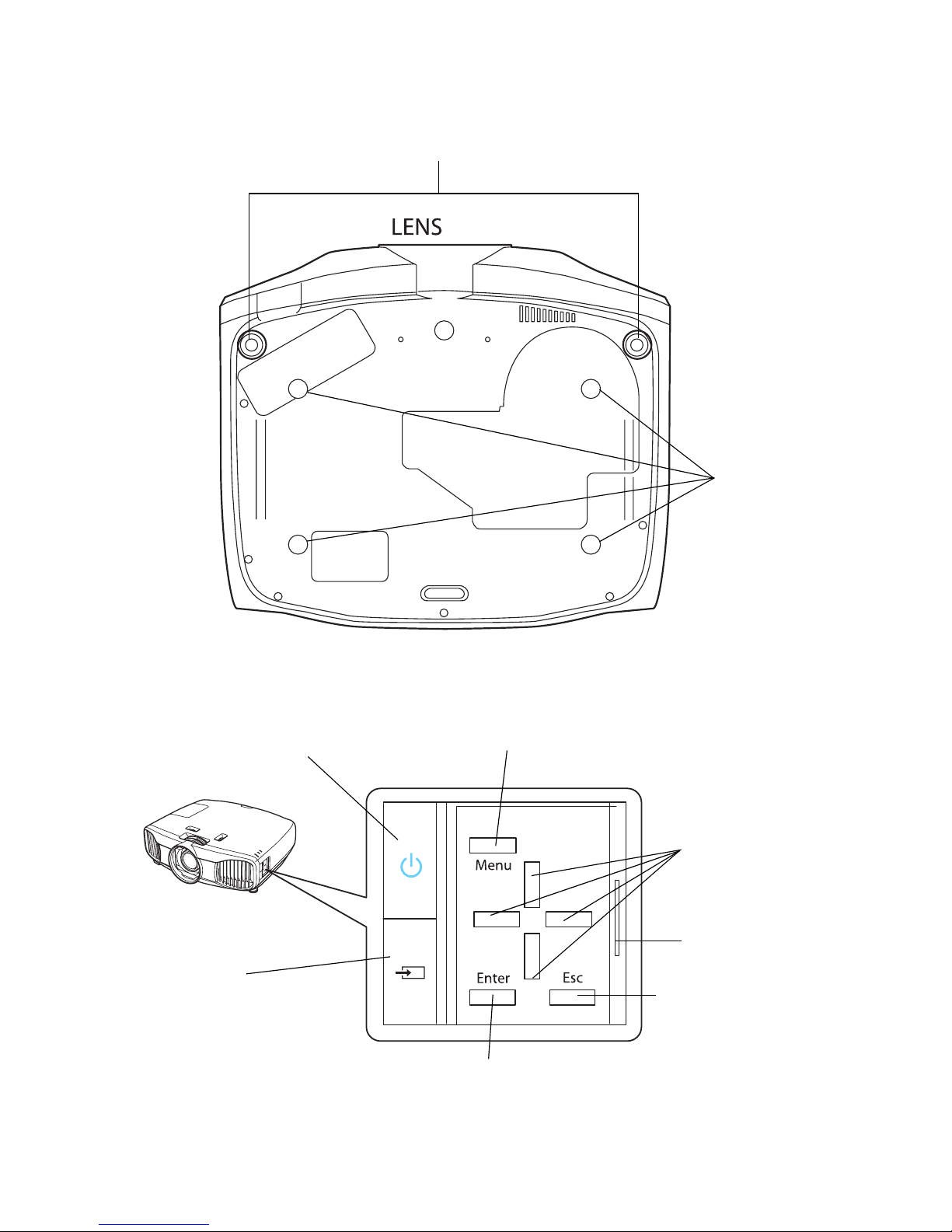

Power button
Mounting bracket
attachment points
Bottom
Projector Control Panel
Source button
Menu navigation/
vertical keystone
buttons
Front adjustable feet
Menu button
Enter button
Retractable
cover

8Introduction
Remote Control – PowerLite Home Cinema 5020UB
Source buttons
Switch between equipment
connected to the projector
On button
Turns projector on
Menu
navigation
buttons
3D Format button
Adjusts the 3D
Format setting
Color Mode button
Quickly change color settings
to match room lighting
Aspect button
Changes the picture’s aspect ratio
Blank button
Temporarily stops projection or
hides the menu screen
Auto Iris button
Toggles the Auto Iris
function on or off
HDMI Link button
Enables and disables the
HDMI link function
Frame int setting
Adjusts the Frame Interpolation
setting
Illumination button
Lights the remote control
buttons for easy viewing
Menu button
Displays the projector’s
menus
Default button
Resets menu
selection to default
values
2D/3D button
Toggles
between 2D and
3D projection
RGBCMY button
Displays the color adjustment menu
Memory button
Accesses the
memory menu
HDMI Link control buttons
Control playback of a linked
video device
Super-res button
Adjusts the Super-res setting
on or off
Standby button
Turns projector off
Split button
Toggles the Split
Screen function on or
off
User button
Programmable button
performs various
functions
Pattern button
Toggles the test
pattern on or off

Introduction 9
Remote Control – PowerLite Home Cinema 5020UBe
Source buttons
Switch between equipment
connected to the projector
On button
Turns projector on
Menu
navigation
buttons
Color Mode button
Quickly change color settings
to match room lighting
Aspect button
Changes the picture’s aspect ratio
Blank button
Temporarily stops projection or
hides the menu screen
Auto Iris button
Toggles the Auto Iris
function on or off
HDMI Link button
Enables and disables the
HDMI link function
Frame Int button
Adjusts the Frame Interpolation
setting
Menu button
Displays the projector’s
menus
Default button
Resets menu
selection to default
values
2D/3D button
Toggles
between 2D and
3D projection
RGBCMY button
Displays the color adjustment menu
Memory button
Accesses the
memory menu
HDMI Link control buttons
Control playback of a linked
video device
Super-res button
Adjusts the Super-res setting
on or off
WirelessHD
Transmitter
controls
Illumination button
Lights the remote control
buttons for easy viewing
Standby button
Turns projector off
Split button
Toggles the Split
Screen function on or
off
User button
Programmable button
performs various
functions
Pattern button
Toggles the test
pattern on or off

10 Introduction
Optional Accessories
Epson provides the following optional accessories for the projector:
In addition to the accessories listed above, 1-year and 2-year extended service plans are
available. You can purchase these plans and other accessories from an authorized Epson
reseller. To find the nearest reseller, please call 800-GO-EPSON (800-463-7766). To
purchase online, visit www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).
Registration and Warranty
Your projector comes with a basic two-year carry-in warranty for the projector, one-year 3D
glasses warranty, and a 90 day limited warranty for the lamp. For details, see the Quick Setup
sheet.
In addition, Epson offers free Extra CareSM Home Service. In the unlikely event of an
equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will
ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See your
Extra Care Home Service brochure for details.
To register, simply follow the registration instructions on the CD, or register online at
epson.com/webreg. Registering also lets you receive special updates on new accessories,
products, and service.
Product Part number
Replacement lamp V13H010L69
Air filter replacement V13H134A39
Replacement remote control – 5020UB 1581984
Replacement remote control – 5020UBe 1582262
Kensington security lock (theft-deterrent device) ELPSL01
Projector mount CHF1000
RF 3D active shutter glasses V12H548006
PixiePlus control system for Epson projectors ELPSP10
Belkin Pro Series VGA / SVGA cable – 6 ft F3H982-06
Belkin PureAV HDMI audio video cable – 3 ft AV22300-03
Rear Cable Cover – White V12H003011

Introduction 11
Using This Manual
This book contains all the information you need to use the projector, in addition to basic
setup and maintenance instructions, troubleshooting tips, important safety instructions,
specifications, and warranty information.
Please follow these guidelines as you read through the manual:
Warning: Must be followed carefully to avoid bodily injury.
Caution: Must be observed to avoid damage to your equipment.
Note: Contains important information about your projector.
Tip: Contains helpful projection tips.
Need additional help? Take advantage of Epson’s automated support services 24 hours a day
at epson.com/support (U.S.) or epson.ca/support (Canada). Use this site to view FAQs or
product information and e-mail Epson.
If you need more help, you can use the Epson®PrivateLine®Support service by calling
[phone].
Note: Your product may look different from the illustrations in this guide, but the instructions are
the same.

12 Setting Up the Projector
Setting Up the Projector
Follow the instructions in this section to choose a location for the projector, connect the
cables, and display an image.
Choose a Location
You can install the projector for the viewing setups shown below, as well as rear projection.
Front Ceiling

Setting Up the Projector 13
Keep the projector level and place it at a height so its lens is even with the top or the bottom
of the screen and is centered horizontally. If this is not possible, use the lens shift dials to
reposition the image. You can use lens shift to move the image up or down by nearly its full
height, and left or right by about one-half its width (for details, see page 26).
If you place the projector off to the side, aim it straight ahead (rather than at the center of the
screen), then use the horizontal lens shift dial to center the image on the screen.
Caution: Do not try to move the lens by hand, or you may damage the projector. Always use the
lens shift dials to change the lens position.

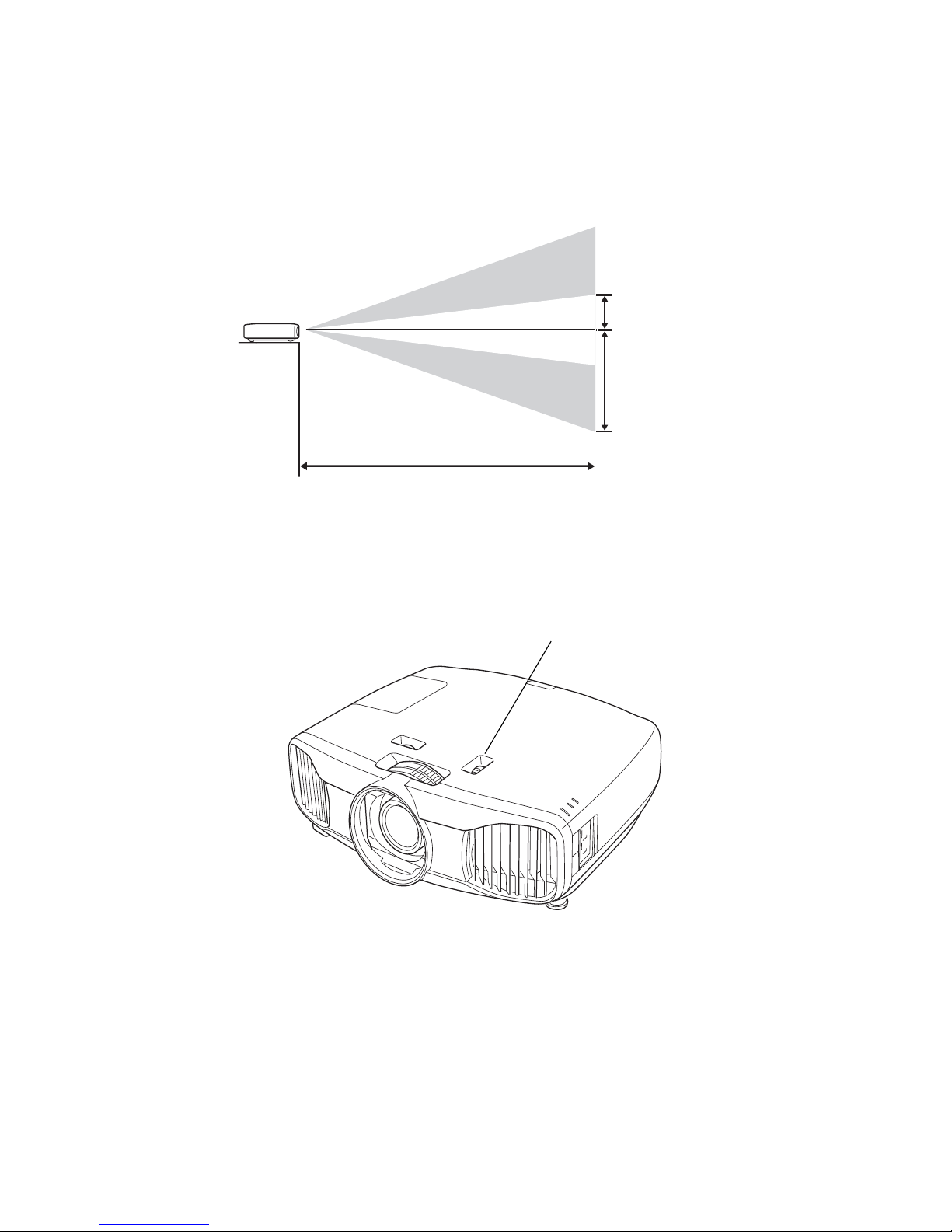

Projection distance
Offset A
Offset B
Offset refers to distance from
bottom of image to center of
lens using maximum lens shift.
Horizontal lens shift dial
Vertical lens shift dial

14 Setting Up the Projector
The size of the image is determined by the distance from the projector’s lens to the screen.
Depending on your display settings and how you use the Zoom ring, the actual size may
differ. Use these tables as a guide for projector placement:
16:9 aspect ratio
Projection distance
Diagonal image size
(width × height) Offset A Offset B Horizontal Offset
3.8 to 8.3 feet
1.17 to 2.52 m
40 in. (35 × 20 in.)
101.6 cm (89 × 50 cm)
9 in.
23 cm
28.6 in.
73 cm
–16.4 to 16.4 in.
–42 to 42 cm
5.8 to 12.5 feet
1.77 to 3.80 m
60 in. (51 × 28 in.)
152.4 cm (130 × 75 cm)
13.5 in.
34 cm
42.9 in.
109 cm
–24.6 to 24.6 in.
–63 to 63 cm
7.8 to 16.7 feet
2.38 to 5.08 m
80 in. (71 × 39 in.)
203.2 cm (180 × 100 cm)
17.9 in.
46 cm
57.2 in.
145 cm
–32.8 to 32.8 in.
–83 to 83 cm
9.8 to 20.9 feet
2.98 to 6.36 m
100 in. (87 × 47 in.)
254 cm (220 × 120 cm)
22.4 in.
57 cm
71.5 in.
181 cm
–41 to 41 in.
–104 to 104 cm
11.8 to 25.1 feet
3.59 to 7.64 m
120 in. (106 × 59 in.)
305 cm (270 × 150 cm)
26.9 in.
68 cm
85.7 in.
218 cm
–49.2 to 49.2 in.
–125 to 125 cm
14.7 to 31.4 feet
4.50 to 9.56 m
150 in. (130 × 75 in.)
381 cm (330 × 190 cm)
33.6 in.
85 cm
107.2 in.
272 cm
–61.5 to 61.5 in.
–156 to 156 cm
17.7 to 37.7 feet
5.39 to 11.49 m
180 in. (173 × 98 in.)
457 cm (440 × 250 cm)
40 in.
103 cm
129 in.
327 cm
–74 to 74 in.
–188 to 188 cm
4:3 aspect ratio
Projection distance
Diagonal image size
(width × height) Offset A Offset B Horizontal Offset
4.7 to 10.1 feet
1.44 to 3.09 m
40 in. (32 × 24 in.)
101.6 cm (81 × 61 cm)
11.0 in.
28 cm
35.0 in.
89 cm
–20.1 to 20.1 in.
–51 to 51 cm
7.1 to 15.3 feet
2.18 to 4.66 m
60 in. (47 × 35 in.)
152.4 cm (120 × 90 cm)
16.5 in.
42 cm
52.5 in.
133 cm
–30.1 to 30.1 in.
–76 to 76 cm
9.6 to 20.4 feet
2.92 to 6.23 m
80 in. (63 × 47 in.)
203.2 cm (160 × 120 cm)
22.0 in.
56 cm
70 in.
178 cm
–40.2 to 40.2 in.
–102 to 102 cm
12 to 25.5 feet
3.66 to 7.79 m
100 in. (79 × 59 in.)
254 cm (200 × 150 cm)
27.5 in.
70 cm
87.5 in.
222 cm
–50.2 to 50.2 in.
–127 to 127 cm
14.4 to 30.7 feet
4.40 to 9.36 m
120 in. (94 × 71 in.)
305 cm (240 × 180 cm)
32.9 in.
84 cm
104.9 in.
267 cm
–60.2 to 60.2 in.
–153 to 153 cm
18 to 38.4 feet
5.51 to 11.71 m
150 in. (118 × 91 in.)
381 cm (300 × 230 cm)
41.2 in.
105 cm
131.2 in.
333 cm
–75.3 to 75.3 in.
–191 to 191 cm

Setting Up the Projector 15
To determine the exact image size when you know the projection distance (or the exact
projection distance when you know the desired image size), you can use the Image Size
Calculator. This program is available on the Epson website at epson.com/support (U.S.) or
epson.ca/support (Canada).
Also keep these considerations in mind:
■Make sure there is plenty of space for ventilation around and under the projector. Do not
set the projector on top of loose materials that could block the vents underneath.
■Make sure the projector is within 9.8 feet (3 m) of a grounded electrical outlet or
extension cord.

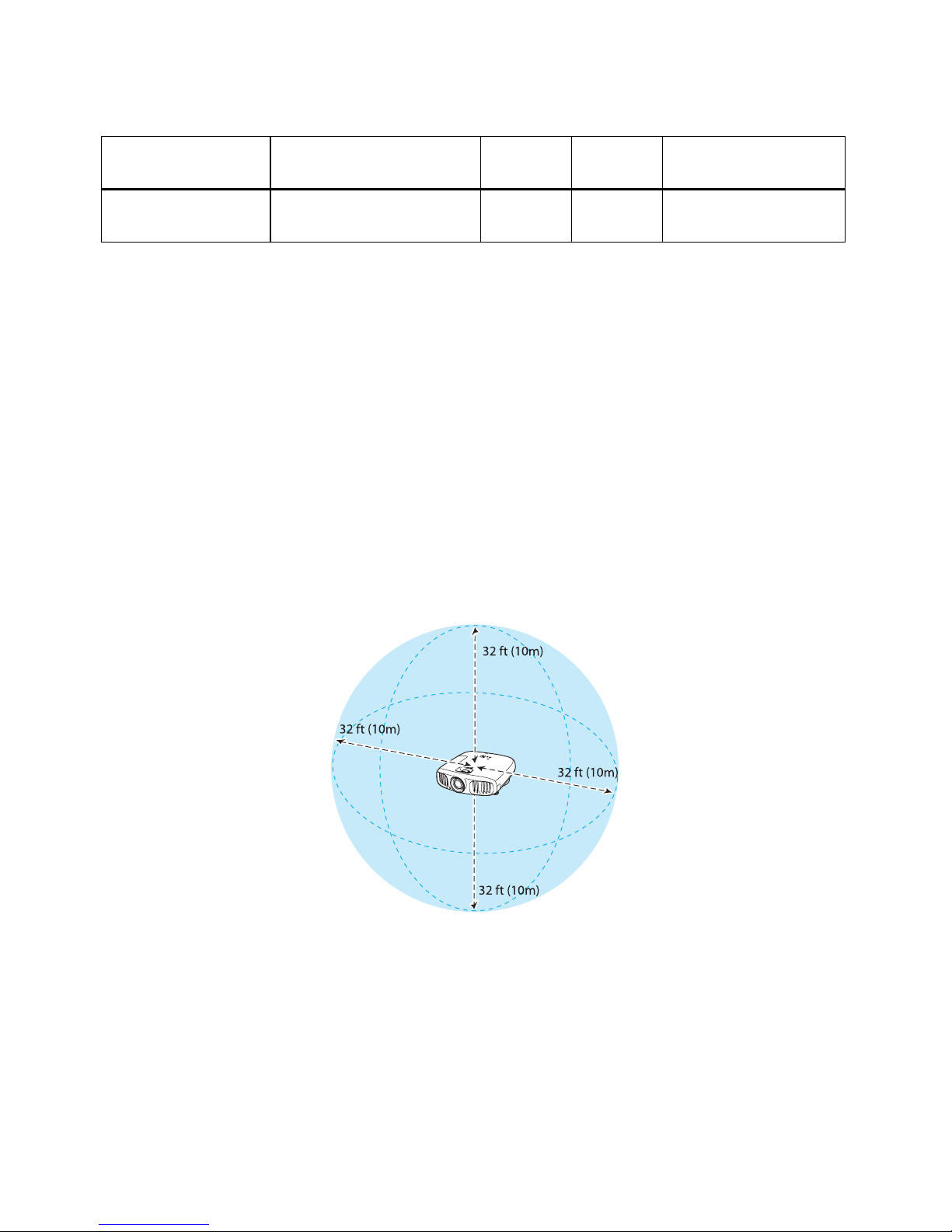

In order to view 3D images correctly, 3D glasses must be worn within proper range of the
projector. Use the image below to determine the ideal distance for 3D projection (the shading
represents the 3D viewing area):
24.2 to 51.3 feet
7.36 to 15.62 m
200 in. (161 × 118 in.)
508 cm (410 × 300 cm)
55 in.
139 cm
175 in.
444 cm
–100.4 to 100.4 in.
–255 to 255 cm
4:3 aspect ratio (continued)
Projection distance
Diagonal image size
(width × height) Offset A Offset B Horizontal Offset

16 Setting Up the Projector
Installing the Projector
To install the projector, you first need to determine the location, based on the size of your
screen (maximum diagonal image size). Use the tables on page 14 as a guide to positioning the
projector.
To suspend the projector from a ceiling, you will need the optional projector mount designed
for the projector. See page 10 for ordering information. Follow the instructions included with
the mount to install the projector.
Warning: When installing or adjusting the ceiling mount, do not use adhesives to prevent the
screws from loosening and do not use any type of oil or lubricant. These may cause the projector
casing to crack and the projector may fall, causing serious injury and serious damage to the
projector.
If you install the projector on the ceiling, you will need to invert the picture so that it appears
right side up. Follow these steps:
1. Press the Menu button on the remote control.
2. Open the Settings menu, then select Projection.
3. Select Front/Ceiling.
4. Press the Menu button to exit the menu system.

Setting Up the Projector 17
The following illustrations show the dimensions of the projector:
LENS
Ceiling mou
nt
screw size
4-M4x9 mm
11.8 in. (300 mm)
5.9 in. (150 mm)
3.3 in.
(83 mm)
2.4 in.
(60 mm)
6.3 in.
(160 mm)
15.6 in.
(396 mm)
18.3 in. (466 mm)
9.2 in. (233 mm)
3.3 in.
(83 mm)
6.2 in.
(159 mm)

18 Setting Up the Projector
Connecting the Cables
Connecting Video and Computer Equipment
You can connect the projector to many types of video equipment, such as a Blu-ray
Disc™/DVD player, digital tuner, cable or satellite box, video game console, camcorder, or
digital camera. You can also connect it to a desktop or laptop PC or Apple Mac system. For
details on compatible video formats, see page 89.
To remove the interface cover and connect cables to the back of the projector (PowerLite
Home Cinema 5020UBe only), grip the cover at the gaps on the bottom of the cover and pull
upwards. Swing the cover out from the projector, then pull the cover straight out to detach it.
Note: If you have trouble gripping the gaps on the bottom of the cover, use a flat object, such as
a coin, to help open the cover.
To reattach the cover, insert the tabs at the top of the cover into the projector, then snap the
bottom of the cover into place.

Setting Up the Projector 19
You can connect up to five pieces of equipment at the same time, using any of the
commercially available cables shown below:
Note: See page 56 for information on connecting with WirelessHD (PowerLite Home Cinema
5020UBe only).
For best results, connect your video equipment to the HDMI port, if possible. If your
equipment doesn’t support HDMI, connect it to either the Component (for high quality,
component video) or Video (for composite video) port.
Note: You need to use a High Speed HDMI cable to use the projector’s 3D features. If you aren’t
sure if your HDMI cable is High Speed, contact your cable manufacturer.
Port name Video equipment connection Computer connection
HDMI1/
HDMI2
Use an HDMI cable (High Speed required for 3D):
Component Use a component video cable
(with RCA-style connectors):
Connect the cable to the three
component video ports. Match
corresponding colors between the
cable and the ports.
—
PC — Use a Mini D-sub, 15-pin monitor cable
to connect to a computer RGB
(monitor) port:
Video Use an RCA video cable: —

20 Setting Up the Projector
When you connect an HDMI cable to the projector, it is recommended that you fasten it
with the included cable clip. Follow the steps below to install the cable clip.
Note: The cable clip will fit most standard, round HDMI cables. The clip may not fit non-round or
thick HDMI cables.
1. Connect the HDMI cable to one of the HDMI ports on the projector.
2. Insert the end of the cable clip anchor into the cable clip hole above the HDMI port, as
shown below.
3. Place the open cable clip around the HDMI cable, but don’t lock it into place.
4. Slide the cable clip towards the projector and lock the clip onto the HDMI connector.
To remove the cable clip, unlock the clip and disconnect the HDMI cable. Then pinch the
sides of the cable clip anchor and carefully pull it out of the cable clip hole.
