Epson Perfection 1670 Photo User manual

EPSON Perfection1670Photo
Perfection1270
Color Image Scanner
®
Service Manual
SESC03-002

Notice
All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transmitted in any form or by any means electronic, mechanical,
photocopying, or otherwise, without the prior written permission of SEIKO EPSON CORPORATION.
All effort have been made to ensure the accuracy of the contents of this manual. However, should any errors be detected, SEIKO EPSON would greatly
appreciate being informed of them.
The contents of this manual are subject to change without notice.
The above not withstanding SEIKO EPSON CORPORATION can assume no responsibility for any errors in this manual or the consequences thereof.
EPSON is a registered trademark of SEIKO EPSON CORPORATION.
General Notice: Other product names used herein are for identification purpose only and may be trademarks or registered trademarks of their
respective owners. EPSON disclaims any and all rights in those marks.
Copyright © 2005 SEIKO EPSON CORPORATION.
Imaging & Information Product Division
IMAGING & INFORMATION CS QUALITY MANAGEMENT & PL DEPARTMENT

PRECAUTIONS
Precautionary notations throughout the text are categorized relative to 1) Personal injury and 2) damage to equipment.
DANGER Signals a precaution which, if ignored, could result in serious or fatal personal injury. Great caution should be exercised in performing procedures preceded by
DANGER Headings.
WARNING Signals a precaution which, if ignored, could result in damage to equipment.
The precautionary measures itemized below should always be observed when performing repair/maintenance procedures.
DANGER
1. ALWAYS DISCONNECT THE PRODUCT FROM THE POWER SOURCE AND PERIPHERAL DEVICES PERFORMING ANY MAINTENANCE OR REPAIR PROCEDURES.
2. NO WORK SHOULD BE PERFORMED ON THE UNIT BY PERSONS UNFAMILIAR WITH BASIC SAFETY MEASURES AS DICTATED FOR ALL ELECTRONICS
TECHNICIANS IN THEIR LINE OF WORK.
3. WHEN PERFORMING TESTING AS DICTATED WITHIN THIS MANUAL, DO NOT CONNECT THE UNIT TO A POWER SOURCE UNTIL INSTRUCTED TO DO SO. WHEN
THE POWER SUPPLY CABLE MUST BE CONNECTED, USE EXTREME CAUTION IN WORKING ON POWER SUPPLY AND OTHER ELECTRONIC COMPONENTS.
4. WHEN DISASSEMBLING OR ASSEMBLING A PRODUCT, MAKE SURE TO WEAR GLOVES TO AVOID INJURIER FROM METAL PARTS WITH SHARP EDGES.
WARNING
1. REPAIRS ON EPSON PRODUCT SHOULD BE PERFORMED ONLY BY AN EPSON CERTIFIED REPAIR TECHNICIAN.
2. MAKE CERTAIN THAT THE SOURCE VOLTAGES IS THE SAME AS THE RATED VOLTAGE, LISTED ON THE SERIAL NUMBER/RATING PLATE. IF THE EPSON
PRODUCT HAS A PRIMARY AC RATING DIFFERENT FROM AVAILABLE POWER SOURCE, DO NOT CONNECT IT TO THE POWER SOURCE.
3. ALWAYS VERIFY THAT THE EPSON PRODUCT HAS BEEN DISCONNECTED FROM THE POWER SOURCE BEFORE REMOVING OR REPLACING PRINTED CIRCUIT
BOARDS AND/OR INDIVIDUAL CHIPS.
4. IN ORDER TO PROTECT SENSITIVE MICROPROCESSORS AND CIRCUITRY, USE STATIC DISCHARGE EQUIPMENT, SUCH AS ANTI-STATIC WRIST STRAPS, WHEN
ACCESSING INTERNAL COMPONENTS.
5. DO NOT REPLACE IMPERFECTLY FUNCTIONING COMPONENTS WITH COMPONENTS WHICH ARE NOT MANUFACTURED BY EPSON. IF SECOND SOURCE IC OR
OTHER COMPONENTS WHICH HAVE NOT BEEN APPROVED ARE USED, THEY COULD CAUSE DAMAGE TO THE EPSON PRODUCT, OR COULD VOID THE
WARRANTY OFFERED BY EPSON.

About This Manual
This manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer. The instructions and procedures included
herein are intended for the experienced repair technicians, and attention should be given to the precautions on the preceding page.
Manual Configuration
This manual consists of four chapters and Appendix.
CHAPTER 1.TROUBLESHOOTING
Describes the step-by-step procedures for the troubleshooting.
CHAPTER 2.DISASSEMBLY/ASSEMBLY
Describes the step-by-step procedures for disassembling and
assembling the product.
CHAPTER 3.ADJUSTMENT
Provides Epson-approved methods for adjustment.
CHAPTER 4.MAINTENANCE
Provides preventive maintenance procedures and the lists of
Epson-approved lubricants and adhesives required for servicing
the product.
APPENDIX Provides the following additional information for reference:
• Connector pin assignments
• Electric circuit boards components layout
• Electrical circuit boards schematics
• Exploded diagram
• Parts List
Symbols Used in this Manual
Various symbols are used throughout this manual either to provide additional
information on a specific topic or to warn of possible danger present during a
procedure or an action. Be aware of all symbols when they are used, and
always read NOTE, CAUTION, or WARNING messages.
Indicates an operating or maintenance procedure, practice
or condition that is necessary to keep the product’s quality.
Indicates an operating or maintenance procedure,
practice, or condition that, if not strictly observed, could
result in damage to, or destruction of, equipment.
May indicate an operating or maintenance procedure,
practice orcondition that is necessary to accomplish a task
efficiently. It may also provide additional information that is
related to a specific subject, or comment on the results
achieved through a previous action.
Indicates an operating or maintenance procedure, practice
or condition that, if not strictly observed, could result in
injury or loss of life.
Indicates a product reassembly procedure, practice or
condition that must be executed in accordance with the
specified standards to keep the product's quality.
A D J U S T M E N T
R E Q U I R E D
C A U T I O N
CHECK
P O I N T
W ARNING

Revision Status
Revision Date of Issue Description
A June 23, 2003 First release
B April 18, 2005 Model addition (Perfection 1270)
Circuit diagram addition

EPSON Perfection 1670 Photo/Perfection 1270 Revision B
6
Contents
Chapter 1 TROUBLESHOOTING
1.1 Overview ............................................................................................................... 8
1.2 Self-diagnostic Function........................................................................................ 8
1.3 Troubleshooting..................................................................................................... 9
Chapter 2 DISASSEMBLY/ASSEMBLY
2.1 Overview ............................................................................................................. 12
2.1.1 Precautions.................................................................................................. 12
2.1.2 Used Tools.................................................................................................. 12
2.1.3 Screws Used in Disassembly and Reassembly........................................... 13
2.2 Disassembly Procedure ....................................................................................... 14
2.2.1 Removal of TPU Unit................................................................................. 15
2.2.2 Removal of Upper Housing........................................................................ 16
2.2.3 Removal of I/F Board................................................................................. 18
2.2.4 Removal of Carriage Unit........................................................................... 19
2.2.5 Removal of CR Motor ................................................................................ 23
2.2.6 Removal of Panel Board............................................................................. 24
2.2.7 Removal of Pulley Set and Pressure Spring............................................... 25
2.2.8 Removal of TPU Inverter Board................................................................. 26
2.2.9 Removal of Hinge Holders......................................................................... 28
Chapter 3 ADJUSTMENT
Chapter 4 MAINTENANCE
4.1 Overview ............................................................................................................. 32
4.1.1 Cleaning...................................................................................................... 32
4.1.2 Lubrication.................................................................................................. 32
Chapter 5 APPENDIX
5.1 Overview............................................................................................................. 34
5.1.1 Scanner Connection Diagram..................................................................... 34
5.1.2 Connector Connection Table...................................................................... 34
5.1.3 Connector Wiring Table............................................................................. 35
5.2 Circuit Diagrams ................................................................................................. 37
5.3 Parts List, Exploded diagram .............................................................................. 46

CHAPTER
1
TROUBLESHOOTING

EPSON Perfection 1670 Photo/Perfection 1270 Revision B
TROUBLESHOOTING Overview 8
1.1 Overview
This chapter explains the troubleshooting of this product.
1.2 Self-diagnostic Function
With the self-diagnostic function, the scanner self-checks the operating status of each
component, and if any error is detected, displays its definition, as indicated in Table
1-1, with the LED of the Start button.
Table 1-1. Self-diagnosis Display
LED Error Definition (Cause, Action)
Red LED ON Fatal error
Cause: The Lamp is dead.
The Carriage does not return to the home position.
The Main Unit is faulty.
Action: Switch power OFF to stop operation.
Recover: After eliminating the error cause:
Switch power ON again.
Send the initialization command (ESC @).
Disconnect and connect the USB connector.
Receivable command: [ESC F, ESC f, ESC @]

EPSON Perfection 1670 Photo/Perfection 1270 Revision B
TROUBLESHOOTING Troubleshooting 9
1.3 Troubleshooting
This section explains troubleshooting from the viewpoint of superficial phenomena.
Here, problems are classified on a unit level according to the superficial phenomena at
their occurrence. Referring to Table 1-2, find out the corresponding phenomenon and
check according to the corresponding reference table.
Table 1-2. Trouble Phenomena and Reference Tables
Table 1-3. Image Cannot Be Read Neatly
Table 1-4. If Power Is Switched ON, the Host Does Not Recognize the Scanner
Phenomenon Definition Reference
Table
The image cannot be read neatly. The image cannot be read neatly. 1-3
A "communication error" occurred.
When communication with the Host
is made again after occurrence of the
above error, a "communication
error" occurs.
If power is switched ON, the Host
does not recognize the scanner. 1-4
If power is switched ON, the Main
Unit does not operate. The Main Unit does not perform initialization operation. 1-5
A "fatal error" occurred.
If power is switched ON again after
occurrence of the above error, power
is not restored.
The Carriage Unit does not operate. 1-6
The Carriage Unit operates but the
error is displayed. 1-7
The Fluorescent Lamp does not turn
ON. 1-8
The optional TPU does not operate. The optional TPU does not operate. 1-9
Step Cause Check Point Judgment Action
1
Dirt has adhered to
the Document Glass.
(White spots appear
in the image.)
Has dirt adhered to the
Document Glass? Yes
Remove the dirt.
(Refer to "Chapter 4
Maintenance".)
2
The Mirrors in the
Carriage Unit are
dirty.
(Vertical streaks
appear in the image.)
Has dirt adhered to the
Mirror section? Yes
Remove the dirt.
(Blow away the dirt
with air.)
3The I/F Board is
faulty. -- -- Replace the I/F Board.
4The CCD Sensor
Board is faulty. -- -- Replace the Carriage Unit.
Step Cause Check Point Judgment Action
1
The Host does not
support USB. After choosing "My
Computer" -
"Properties" - "Device
Manager" on Windows,
is "Universal Serial Bus
Controller" valid?
No
Replace the Host.
2
The TWAIN Driver
supplied with the
scanner has not been
installed properly.
Has TWAIN Driver
supplied with the
scanner been installed
properly?
No
Install (or reinstall) the
correct TWAIN Driver.
3The USB Cable is faulty. Is there no error after replacement of the
USB Cable? Yes Replace the USB Cable.
4The I/F Board is
faulty. -- -- Replace the I/F Board.

EPSON Perfection 1670 Photo/Perfection 1270 Revision B
TROUBLESHOOTING Troubleshooting 10
Table 1-5. The Main Unit Does Not Perform Initialization Operation
Table 1-6. The Carriage Unit Does Not Operate
Table 1-7. The Carriage Operates but the Error Is Displayed
Table 1-8. The Fluorescent Lamp Does Not Turn ON
Table 1-9. The Optional TPU Does Not Operate
Step Cause Check Point Judgment Action
1
Any connector has
come off. Check all connectors. If there any
disconnected
connector?
Yes Connect the
disconnected connector.
No Replace the I/F Board.
Step Cause Check Point Judgment Action
1Any connector on the I/F Board has come
off.
Has any connector on
the I/F Board come
off? Yes Connect the connector.
2
The Carriage
Movement
Mechanism is
defective.
•Does the CR Motor
operate when power
is switched ON with
the Upper Housing
of the scanner
removed?
•Does the Carriage
Unit move smoothly
with the CR Motor
removed?
No
Check the Carriage
Movement Mechanism,
and replace the
corresponding part or
disassemble and
reassemble the
Mechanism.
3
The CR Motor is
defective. Disconnect the connector on the I/F
Board, and using a
multimeter, measure
the coil resistances
between pins 2 and 4
and between pins 1 and
3 on the Motor side.
Are the resistances at
the two points
approximately 4.8Ω?
No
Replace the CR Motor.
4The I/F Board is
faulty. --- -- Replace the I/F Board.
Step Cause Check Point Judgment Action
1The I/F Board is
faulty. --- -- Replace the I/F Board.
Step Cause Check Point Judgment Action
1The connector on the CCD Board has come
off.
Has the connector on
the CCD Board come
off? Yes Replace the Carriage
Unit.
2
The Fluorescent
Lamp is not
connected securely to
the connector on the
Inverter Board.
Is the Fluorescent
Lamp connected
securelyontheInverter
Board? No
Replace the Carriage
Unit.
3Replace the Carriage Unit. Is there no error after replacement of the
Carriage Unit? Yes Replace the Carriage
Unit.
4The Main Unit I/F
Board is faulty. Is there no error after replacement of the
Carriage Unit? Yes Replace the Carriage
Unit.
Step Cause Check Point Judgment Action
1The Cable of the optional TPU Unit
has come off.
Has the Connector
CN1 of the I/F Board
come off? Yes Connect the Connector
CN1 of the I/F Board.
2The Main Unit I/F
Board is faulty. -- -- Replace the I/F Board.
3
The TPU Inverter
Board is faulty. +24V line: Lamp, Motor
+5V line: Sensor,
Logic Circuit
--
Replace the optional
TPU Unit.

CHAPTER
2
DISASSEMBLY/ASSEMBLY

EPSON Perfection 1670 Photo/Perfection 1270 Revision B
DISASSEMBLY/ASSEMBLY Overview 12
2.1 Overview
This chapter explains the procedures for disassembling the major units and parts of the
product. Unless otherwise explained, reassembly should be carried out in the reverse
order of the disassembly procedure. When you have to remove any units or
components that are not described in this chapter, refer the exploded diagram in the
Appendix.
Before starting disassembly, always read the precautions described in the next section.
2.1.1 Precautions
Before starting the disassembly or reassembly of the product, always read the
following precautions given under the headings "WARNING" and "CAUTION".
The following figure shows the definition of the scanner orientations explained in the
disassembly procedure.
Figure 2-1. Orientation Definition
2.1.2 Used Tools
To protect this product from damage, use the specified tools indicated in the following
table.
W ARNING
Before disassembling or reassembling this product, always
disconnect the Power Cable and Interface Cable. However,
when you have to work with power ON for voltage
measurement, etc., use extreme care not to get an electric shock
and do the work in accordance with the procedure given in this
manual.
To prevent your hands from being cut by sharp edges, always
wear gloves before starting disassembly/reassembly.
When touching any internal components, use a static electricity
discharger such as anti-static wrist straps, and handle them
carefully to protect the microprocessors and circuits.
C A U T I O N
When transporting this product, always make sure that the
Carriage has returned to the home position (front), and lock
the Carriage Unit.
Provide sufficient work space for disassembling and
reassembling.
Always use only the recommended tools for disassembly,
reassembly and adjustment.
Be sure to tighten the screws to the specified torque.
Use the specified grease for lubrication. (Refer to Chapter 4 for
details.)
Table 2-1. Specified Tools
Tool Name Supplier Part Number
Phillips screwdriver No. 1 EPSON 1080530
Phillips screwdriver No. 2 EPSON 1080532
Flat-blade screwdriver EPSON 1080527
Long-nose pliers EPSON TBD
Tweezers EPSON 1080561

EPSON Perfection 1670 Photo/Perfection 1270 Revision B
DISASSEMBLY/ASSEMBLY Overview 13
2.1.3 Screws Used in Disassembly and Reassembly
The screws used in this chapter are indicated below. When reassembling this product,
do the work after fully confirming the screw types and the number of screws to be used
in each section. (Refer to Tables 2-2 and 2-3.)

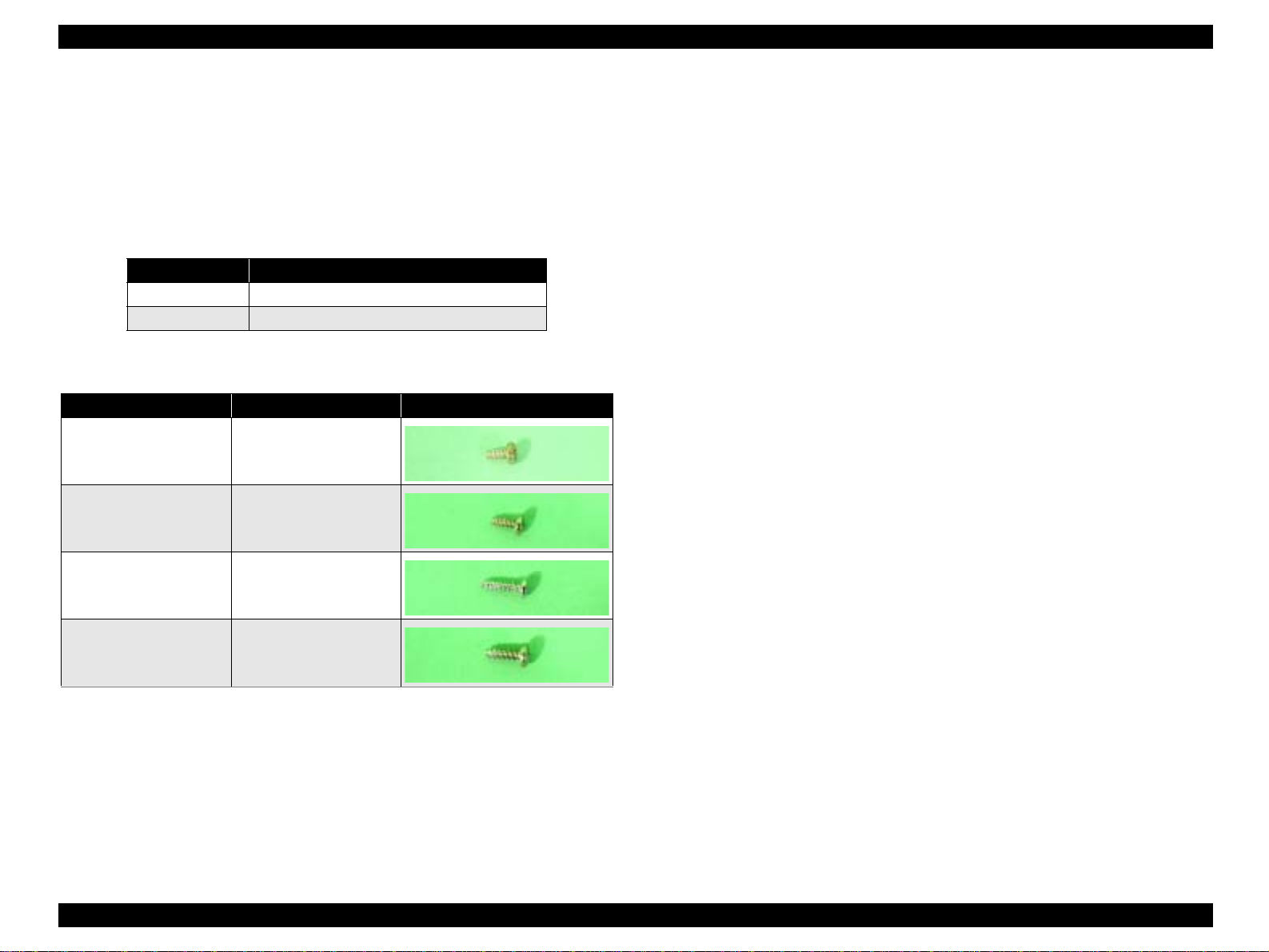

Table 2-2. Abbreviations of Screws
Abbreviation Part Name
CBP Cross Recessed Binding Head P Tite Screw
CBB Cross Recessed Binding Head B Tite Screw
Table 2-3. Used Screw List
No. Standard Outline
1 CBB (M3x6)
2CBP (M3x8)
3 CBB (M3x12)
4CBP (M4x12)

EPSON Perfection 1670 Photo/Perfection 1270 Revision B
DISASSEMBLY/ASSEMBLY Disassembly Procedure 14
2.2 Disassembly Procedure
This section illustrates how to remove the main components of this product. Unless otherwise specified, the reassembly procedure is omitted here since the product can be reassembled
in the reverse order of the disassembly procedure. For the engagement of the main components, refer to the general exploded views in the Appendix.
The following flowchart shows the disassembling procedure step-by-step. When disassembling any unit, refer to the corresponding page number shown in the following figure.
Figure 2-2. Disassembly/Reassembly Flowchart
Start
Removal of TPU Unit
(P.15)
Removal of Upper Housing
(P.16)
Removal of Carriage Unit
(P.19)
Removal of CR Motor
(P.23)
Removal of I/F Board
(P.18) Removal of Panel Board
(P.24)
Removal of Pulley Set and
Pressure Spring (P.25)
Removal of TPU Inverter Board
(P.26)
Removal of Hinge Holders
(P.28)

EPSON Perfection 1670 Photo/Perfection 1270 Revision B
DISASSEMBLY/ASSEMBLY Disassembly Procedure 15
2.2.1 Removal of TPU Unit
1. Disconnect the Inverter Cable from the Main Unit.
2. Open the TPU Unit.
3. Hold and lift both the left and right ends of the TPU Unit, and remove the TPU Unit.
Figure 2-3. Removal of TPU Unit (1)
Figure 2-4. Removal of TPU Unit (2)
Inverter Cable
TPU Unit
Step 2
Step 3

EPSON Perfection 1670 Photo/Perfection 1270 Revision B
DISASSEMBLY/ASSEMBLY Disassembly Procedure 16
2.2.2 Removal of Upper Housing
1. Open the TPU Unit. (Refer to 2.2.1)

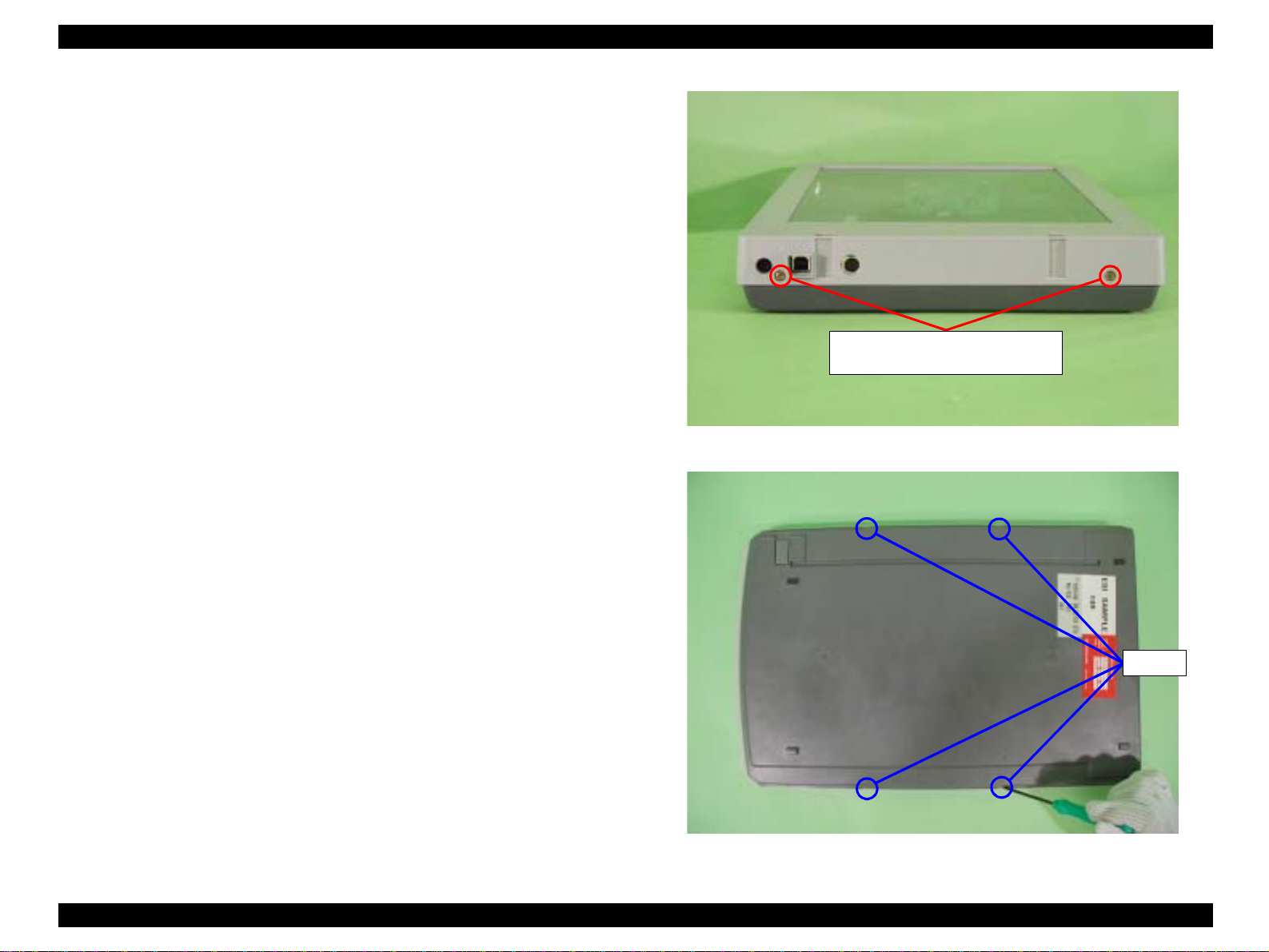

2. Remove the two screws (CBB M3x6) that are securing the Upper Housing.
3. Using the flat-blade screwdriver, disengage the four hooks that are securing the Upper
Housing.
Figure 2-5. Screws That Are Securing Upper Housing
Figure 2-6. Hooks That Are Securing Upper Housing
CBB (M3x6)
Tightening torque 6-8kgfcm
Hooks

EPSON Perfection 1670 Photo/Perfection 1270 Revision B
DISASSEMBLY/ASSEMBLY Disassembly Procedure 17

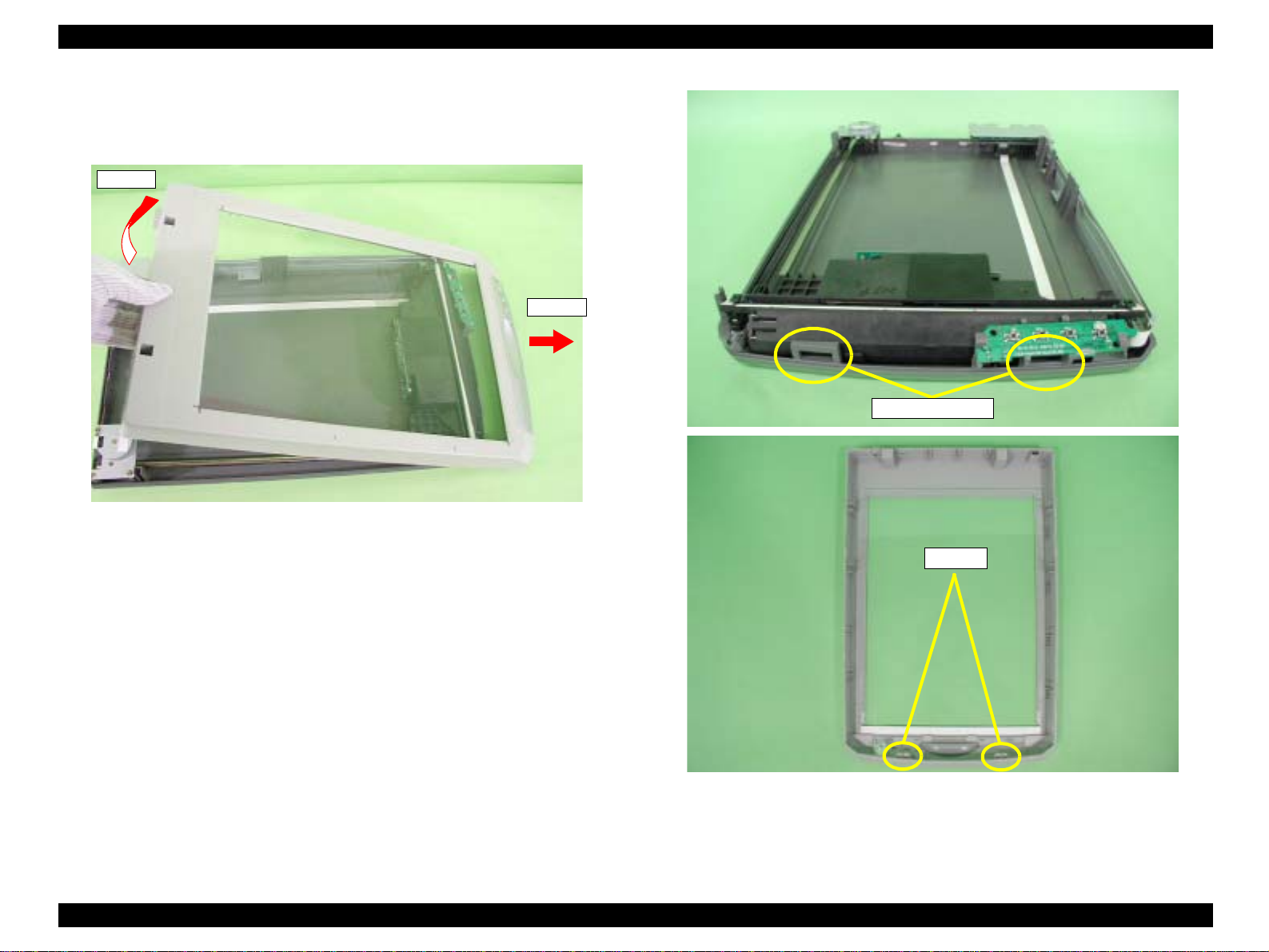

4. Lift the rear side of the Upper Housing. In this state, slide it to the front to disengage
the two hooks and remove the Upper Housing.
Figure 2-7. Removal of Upper Housing
Figure 2-8. Hooks
Step 4-1)
Step 4-2)
Hook sockets
Hooks

EPSON Perfection 1670 Photo/Perfection 1270 Revision B
DISASSEMBLY/ASSEMBLY Disassembly Procedure 18
2.2.3 Removal of I/F Board
1. Remove the Upper Housing. (Refer to 2.2.2)
2. Disconnect the CR Motor Connector Cable and Panel FFC from the I/F Board.
3. In the order shown in Figure 2-10, unlock the Harness Locking Mechanism and
disconnect the Carriage FFC from the I/F Board.
4. Remove the three screws (CBP M3x8) shown in Figure 2-11, and remove the
following parts.
1. Shield Plate for I/F Board (Upper side)
2. I/F Board
3. Shield Plate for I/F Board (Lower side)
Figure 2-9. Disconnection of CR Motor Connector Cable and Panel FFC
Figure 2-10. Disconnection of Carriage FFC
Figure 2-11. Removal of I/F Board
CR Motor Connector Cable
Panel FFC
I/F Board Carriage FFC
Step 3-1) Step 3-1)
Step 3-2)
CBP (M3x8)
Tightening torque 6-8kgfcm
Shield Plate for I/F Board (Lower side)
Shield Plate for I/F Board (Upper side)
I/F Board

EPSON Perfection 1670 Photo/Perfection 1270 Revision B
DISASSEMBLY/ASSEMBLY Disassembly Procedure 19
2.2.4 Removal of Carriage Unit
1. Unlock the Carriage Lock at the bottom of the Main Unit.
2. Remove the Upper Housing. (Refer to 2.2.2)
3. Remove the I/F Board. (Refer to 2.2.3)
4. Move the Carriage Unit to the center.
5. Remove the two screws (CBP M3x8) that are securing the FFC Stop Plate.
Figure 2-12. Unlocking of Carriage Lock
Figure 2-13. Screws That Are Securing FFC Stop Plate
Unlocking position Locking
position
Carriage Lock
Step 4
Boss
CBP (M3x6)
Tightening torque 6-8kgfcm
FFC Stop Plate
Carriage Unit

EPSON Perfection 1670 Photo/Perfection 1270 Revision B
DISASSEMBLY/ASSEMBLY Disassembly Procedure 20

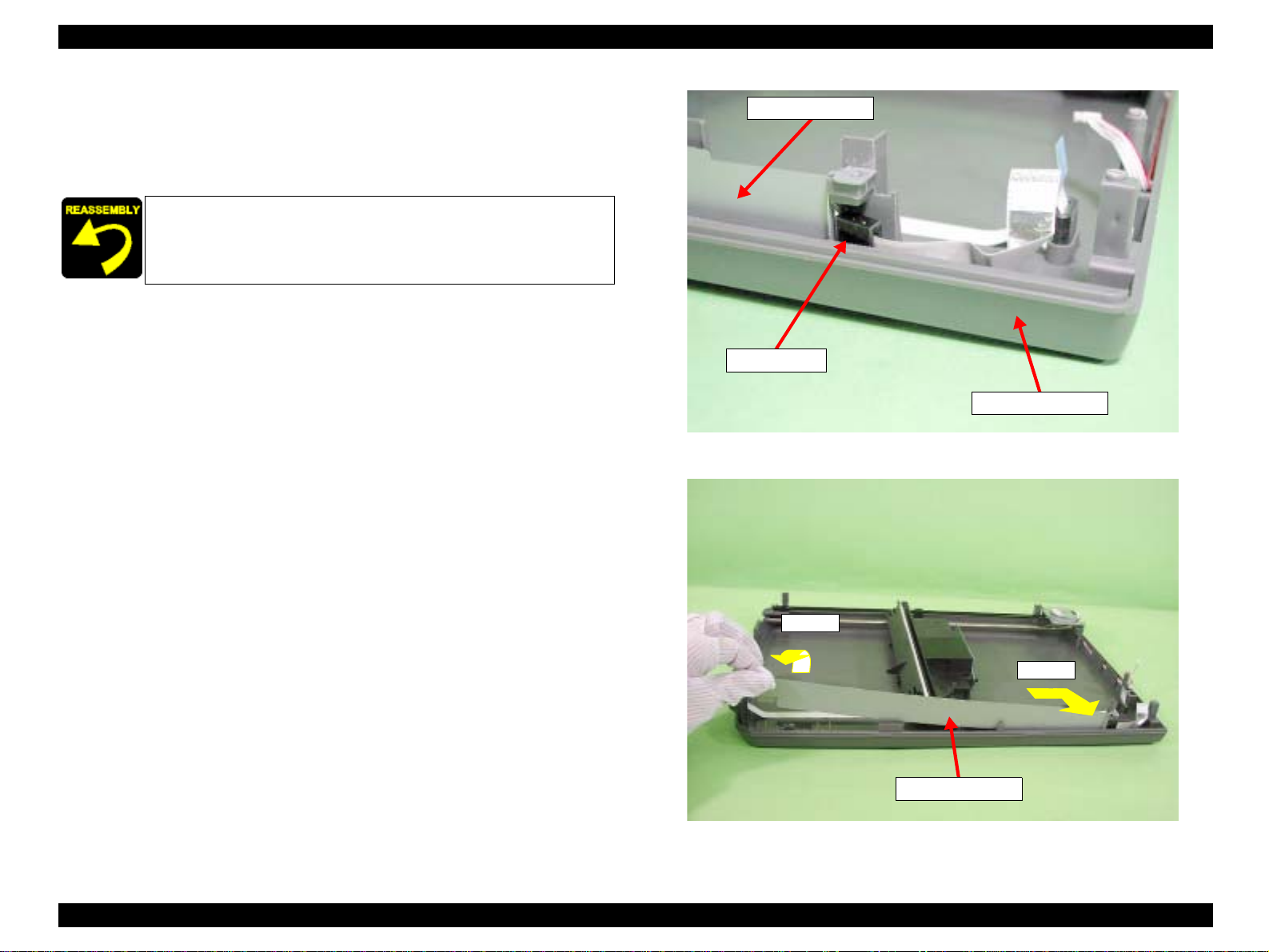

6. Remove the Ferrite Core from the Lower Housing (note that the Ferrite Core is secured
by a double-faced tape).
7. Twist and lift the FFC Stop Plate to the outside. Slide it to the rear as-is, and remove it
diagonally upward.
Figure 2-14. Peeling of Ferrite Core
Figure 2-15. Removal of FFC Stop Plate
Reinstall so that the Boss of the Lower Housing matches the notch of
the FFC Stop Plate. (Refer to Figure 2-13.)
Ferrite Core
Lower Housing
FFC Stop Plate
Step 7-1)
Step 7-2)
FFC Stop Plate
