Equator WR 09 SL User manual

Please read the instructions carefully and keep for future reference
OWNER’S MANUAL
WINE REFRIGERATOR
MODEL - WR 09 SL

Installation - Insufficient spacing around appliance
.

1. Open Smart Phone
2. Open Photo
3. Scan QR Code
either
QR Code

Children should be supervised to ensure that they do not climb on
or play with the appliance.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction.
!
1

ensure the correct voltage is 115V / 60Hz.
2

Press the Power ON/OFF button to turn the appliance on.
Press the Light ON/OFF button to turn on the LED light inside
the appliance.
The appliance should be placed in a room where the temperature
is between 32℉-101℉ (0 to 38℃).
The temperature range of the appliance is 41℉-64.4℉ (5℃-18℃).
Increase or decrease the temperature by pressing the Up and
Down arrows.
Pressing the temperature Up and Down buttons for 5 seconds
will display the temperature as ℃ or ℉.
3
Temperature Display
Light
Power
Temperature
Up and Down

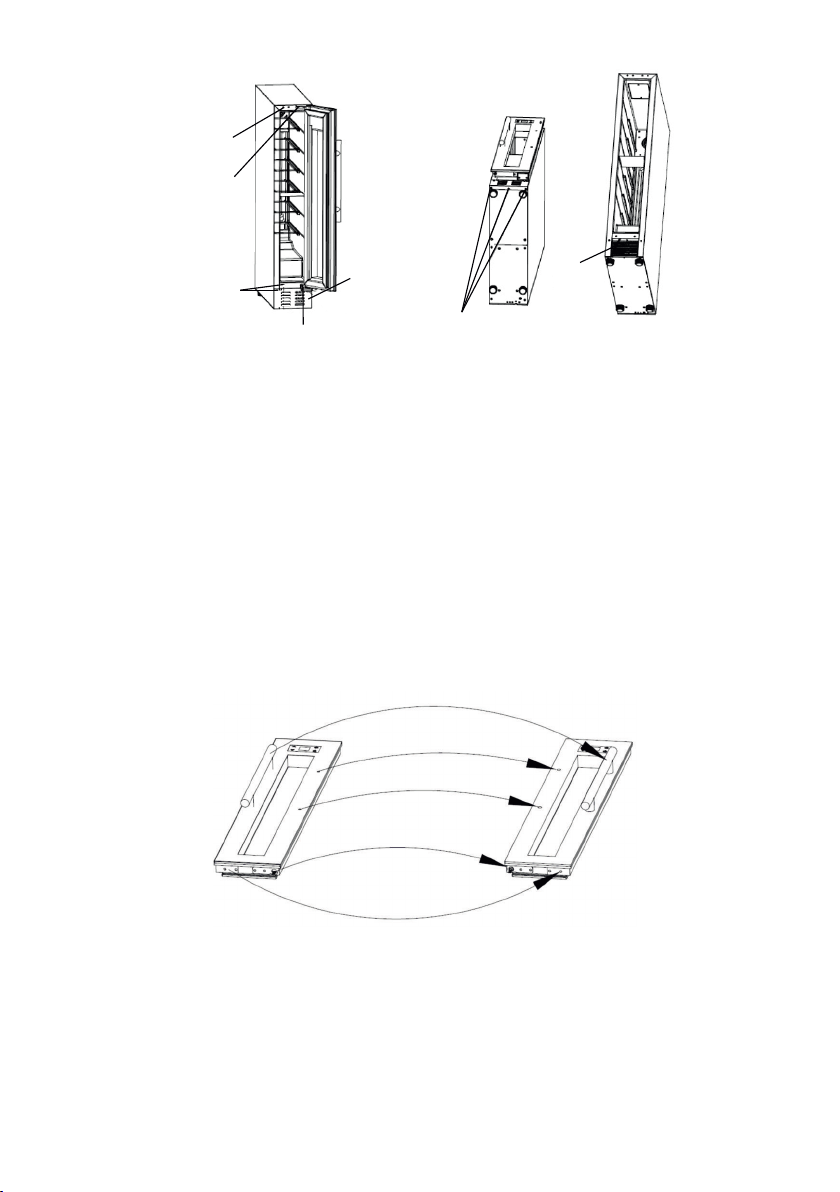

Door Reversal
Use a screwdriver to remove the bottom panel cover and
disconnect the signal wire.
Use a screwdriver to remove the upper and lower hinges of the
door and remove the door.
Turn the unit sideways and reinstall the front panel.
Move the signal wire from the right side to the left side and reinstall
the bottom panel.
4. Remove screw hole cap
2. Remove upper door
hinge screws
5. Remove these screws
3. Remove lower door
hinge screws
1. Remove bottom
panel cover
6. Remove these screws
7. Move
signal
wire
Remove the handle, hole cap and door stopper.
Install them on the other side of the cabinet as shown below:
Take out the upper and lower door hinges from the accessory bag
and install the door in the corresponding position on the other side.
Ensure the hinge holes and screws are aligned and tighten the
screws to complete the door reversal process.
4

Ensure bottles are spread evenly, so that
weight is not concentrated in one area of
the unit. Ensure bottles do not touch the
back of the cabinet.
Shelf capacity: 1 bottles per shelf
Loading and Storage of Wine Bottles
1. Move door seal
2. Insert screws
3. Using screwdriver fasten door handle
4. Replace door seal to original position
Installing Door Handle
Install the handle according to the following four steps:
5

Check the power source.
Move unit if it is near heat source or direct sunlight
The following are normal:
· Moisture on the glass door – wipe with dry cloth
· Sound of fluid is the compressor when it is starting or stopping
· Flowing sound of refrigerant in the refrigeration system
· Condensation forming inside the cabinet – wipe with dry cloth
6

WARNING: This product contains chemical known to the State of
California to cause cancer and birth defects or other reproductive
harm.
California Proposition 65
7
WR 09
9 Bottles ( 0.78 cu.ft)
Model
41.9 lbs
32.28" x 5.90" x 20.66"
41 F - 64.4 F
